Chinese good price front loader agricultural machinery 3T 3000kgs wheel loader with diesel engine
- Category: >>>
- Supplier: Shenchuan(Shanghai) Heavy Industrial Machinery Co. Ltd.
Share on (1601070512711):
Product Overview
Description
Product Overview

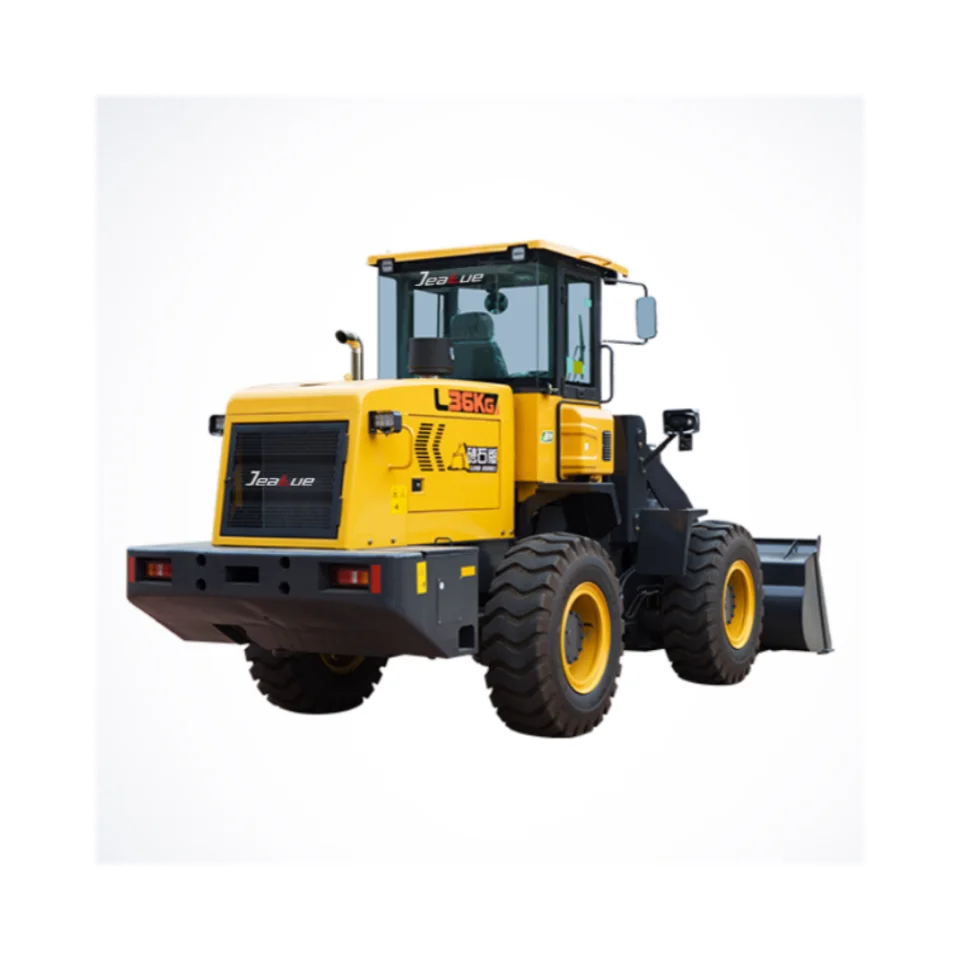

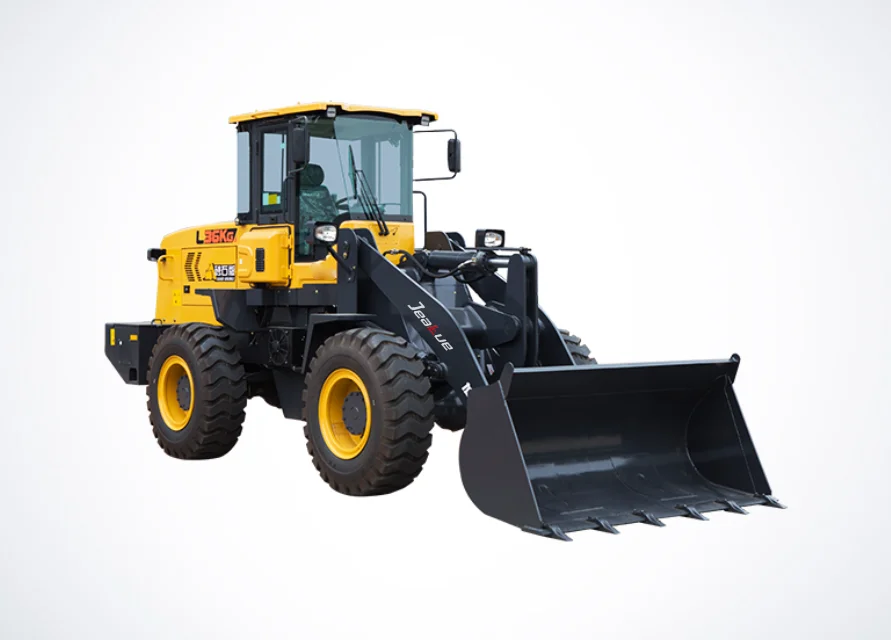

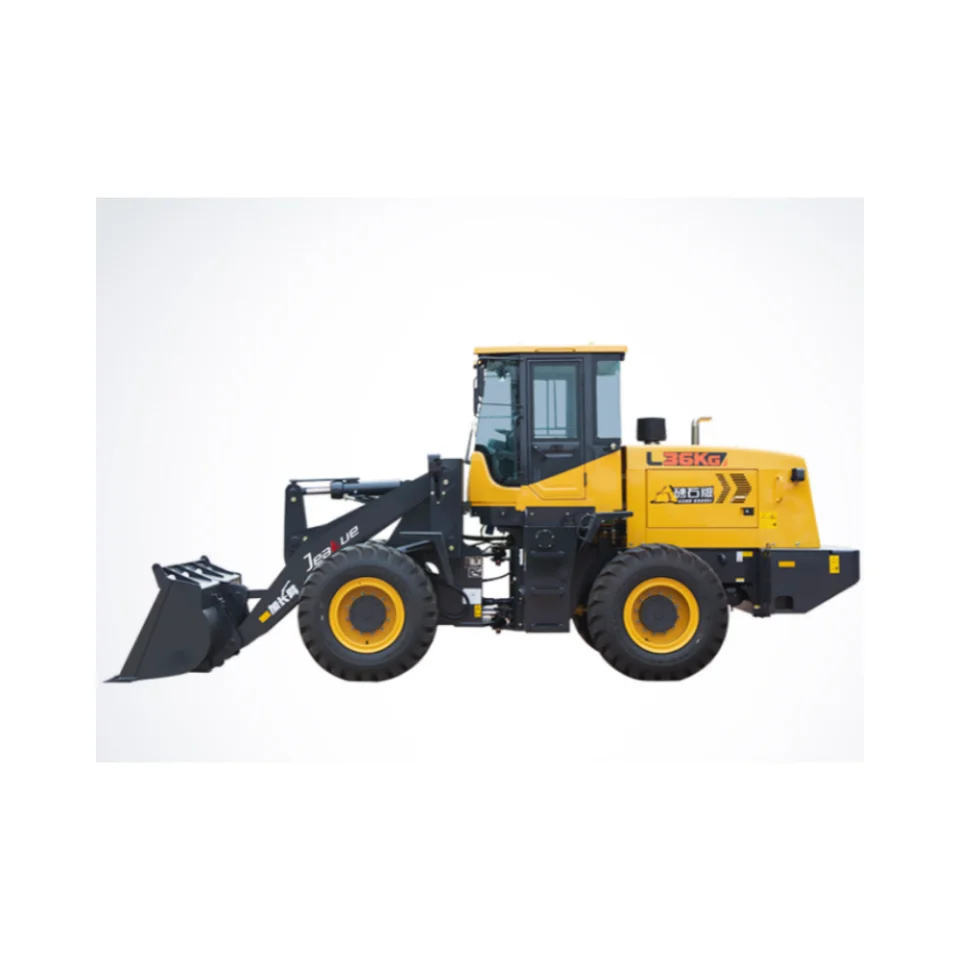

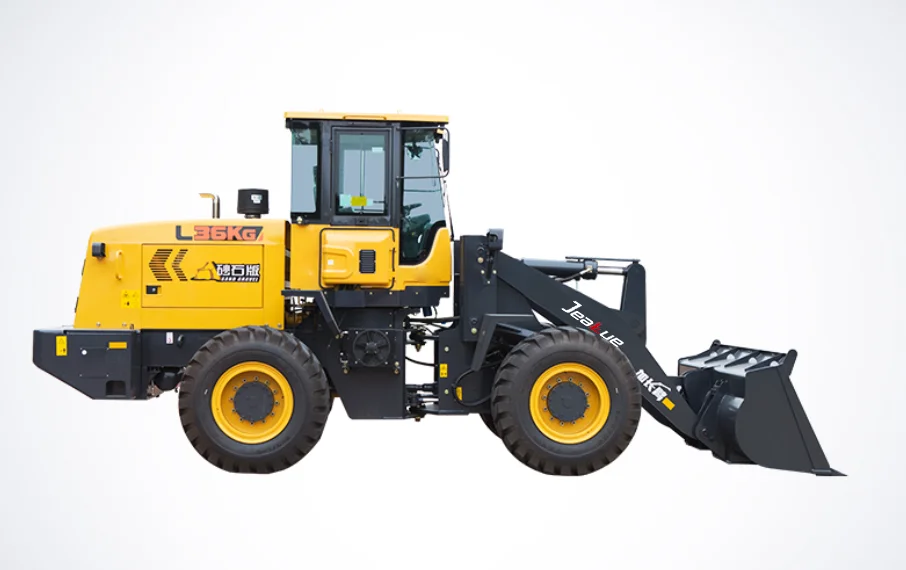

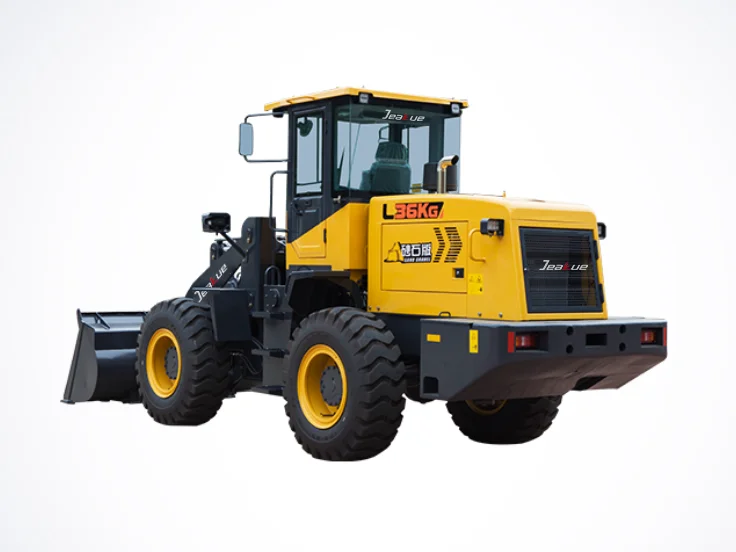

L36K-G 3ton wheel loader
L36K-G loader is a high-performance product developed based on JEAKUE's latest R&D platform, is a new generation of craftsmanship created by JEAKUTE set a number of scientific research achievements, the whole machine adopts a fashionable appearance and interior design, wheelbase reaches 2800mm, the use of median articulation, the whole machine lightweight design, load distribution is more reasonable, outstanding comprehensive performance, is a heavy-duty product launched by JEAKUE.
PRODUCT SPECIFICATIONS
No | Parameter names | L36K-G (Sand & Gravel Extended Boom) | L36K-G (Coal Extended Boom) | |
1 | Maximum unloading height（mm） | 3057±30 | 2912±30 | |
2 | Unloading distance(mm) | 906±20 | 1076±20 | |
3 | Engine model | WP4.6N | WP4.6N | |
4 | Rated power/rated speed(kW/rpm) | 92/2200 | 92/2200 | |
5 | Forward speed | 0-41.5 | 0-41.5 | |
6 | Backward speed | 0-30 | 0-30 | |
7 | Wheelbase(mm) | 2800 | 2800 | |
8 | Fuel Tank (L) | 150 | 150 |
Details
1. Engine
This model adopts Weichai WP4.6N national IV electronically controlled high-pressure common rail and ECU intelligent control engine, which has the advantages of low fuel consumption and low emission.
This model adopts Weichai WP4.6N national IV electronically controlled high-pressure common rail and ECU intelligent control engine, which has the advantages of low fuel consumption and low emission.
2. Torque converter and gearbox
JEAKUE single-stage single-phase three-element torque converter is combined with fixed-shaft gearbox, with multi-gear control of four front and two rear, which can meet the speed requirements of different working conditions.
JEAKUE single-stage single-phase three-element torque converter is combined with fixed-shaft gearbox, with multi-gear control of four front and two rear, which can meet the speed requirements of different working conditions.
3. Air filter
It is equipped with a standard 93 desert air filter to improve the cleanliness of the intake air and adapt to multi-dust working conditions.
It is equipped with a standard 93 desert air filter to improve the cleanliness of the intake air and adapt to multi-dust working conditions.
4. cab
The new cab used in this model is equipped with front and rear LED lights, water spray cans, reading lights, defrost vents, etc., which have the advantages of noise reduction and dust prevention, heat insulation, and wide vision.
The new cab used in this model is equipped with front and rear LED lights, water spray cans, reading lights, defrost vents, etc., which have the advantages of noise reduction and dust prevention, heat insulation, and wide vision.
5. Air conditioner evaporator cover (open state)
The evaporator cover can be opened flexibly to facilitate the replacement of the filter element to ensure the long-lasting cooling effect of the air conditioner in summer.
The evaporator cover can be opened flexibly to facilitate the replacement of the filter element to ensure the long-lasting cooling effect of the air conditioner in summer.
6. working device
Optimized design of high-efficiency connecting rod mechanism, fast action, large digging force, strong lifting capacity, to ensure that all kinds of working conditions are met.
Optimized design of high-efficiency connecting rod mechanism, fast action, large digging force, strong lifting capacity, to ensure that all kinds of working conditions are met.
7. hood
It adopts the upper and lower assembly structure, and the left, right and rear door are designed to facilitate maintenance and the overall appearance is beautiful and generous.
It adopts the upper and lower assembly structure, and the left, right and rear door are designed to facilitate maintenance and the overall appearance is beautiful and generous.
8. drive axle
The wheelbase is lengthened to improve the working stability of the whole vehicle.
The wheelbase is lengthened to improve the working stability of the whole vehicle.
Advantages
Power system
● The low-speed and high-torque Weichai engine exclusive to JEAKUE wheel loader adopts the latest WP10H platform and adopts flexible electromagnetic fan, which is advanced and reliable, strong power, efficient and fuel-efficient, quiet and comfortable, intelligent and environmentally friendly, and reduces engine fuel consumption by 10% compared with WP10 platform;
● Set up no-load, medium-load and heavy-load three-level power control modes to meet the needs of different working conditions, and the comprehensive fuel consumption is low;
● Contains water level alarm function, which reminds users to waterproof in time and further improves the reliability of the whole machine.
● Set up no-load, medium-load and heavy-load three-level power control modes to meet the needs of different working conditions, and the comprehensive fuel consumption is low;
● Contains water level alarm function, which reminds users to waterproof in time and further improves the reliability of the whole machine.
The electrical system is intelligent and reliable
● Inlaid instrument cluster, wide line of sight, easy to observe, electrical control buttons are centrally arranged, within reach, easy to control;
●Independent foldable steering column, more comfortable operation;
● The integrated relay box and fuse box are easy to overhaul and more reliable;
● Combined stepper motor instrument, high precision, accurate display, long service life, fault alarm; Remote monitoring of fault information, fault self-diagnosis, convenient maintenance;
● Equipped with LED lights, strong light, long life, LED reading lights in the cab, entertainment sound system.
●Independent foldable steering column, more comfortable operation;
● The integrated relay box and fuse box are easy to overhaul and more reliable;
● Combined stepper motor instrument, high precision, accurate display, long service life, fault alarm; Remote monitoring of fault information, fault self-diagnosis, convenient maintenance;
● Equipped with LED lights, strong light, long life, LED reading lights in the cab, entertainment sound system.
Driving environment
● The integrated cab is selected, the sealing is improved, the noise can be controlled at 80 decibels, and the shock absorber performance is strengthened, so as to perfectly achieve shock absorption and noise reduction. optional air conditioning and heating;
● Shock-absorbing seat stepless adjustment, new stepper digital combined instrument, easy to read vehicle operation information, timely and accurate provision of real-time vehicle information, fault self-inspection and alarm, to ensure the efficient and safe operation of the host;
● Optimized design of various control buttons, strong human-computer interaction, no fatigue in long-term work.
● Shock-absorbing seat stepless adjustment, new stepper digital combined instrument, easy to read vehicle operation information, timely and accurate provision of real-time vehicle information, fault self-inspection and alarm, to ensure the efficient and safe operation of the host;
● Optimized design of various control buttons, strong human-computer interaction, no fatigue in long-term work.
Optional Attachment

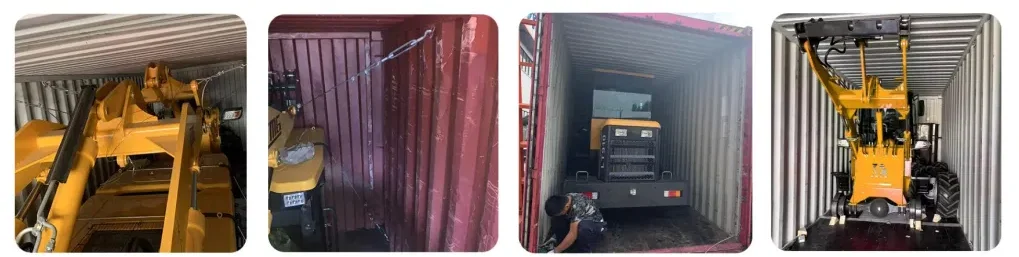

Packing & Delivery
