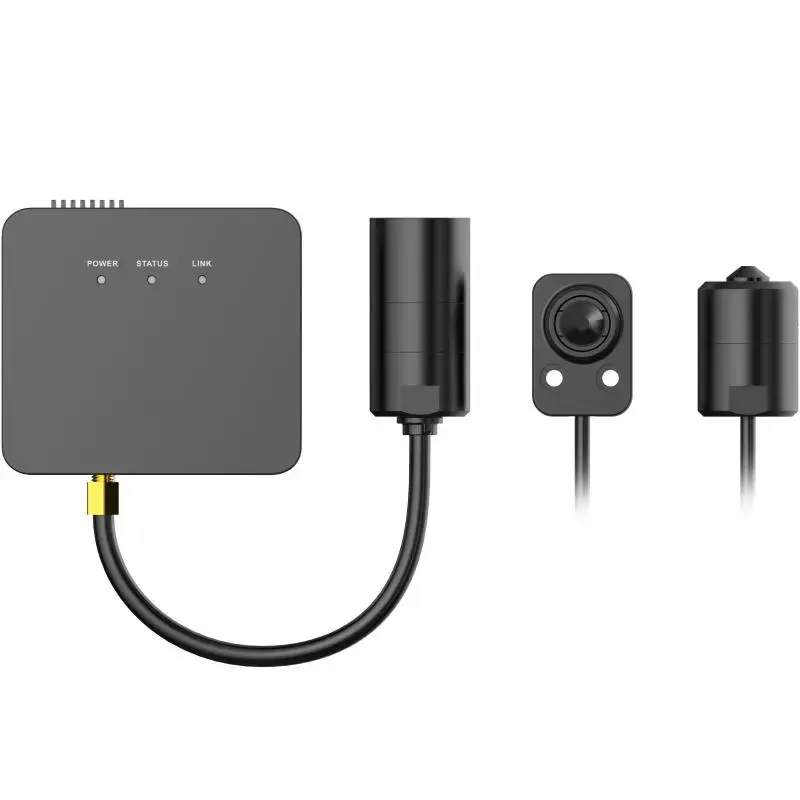

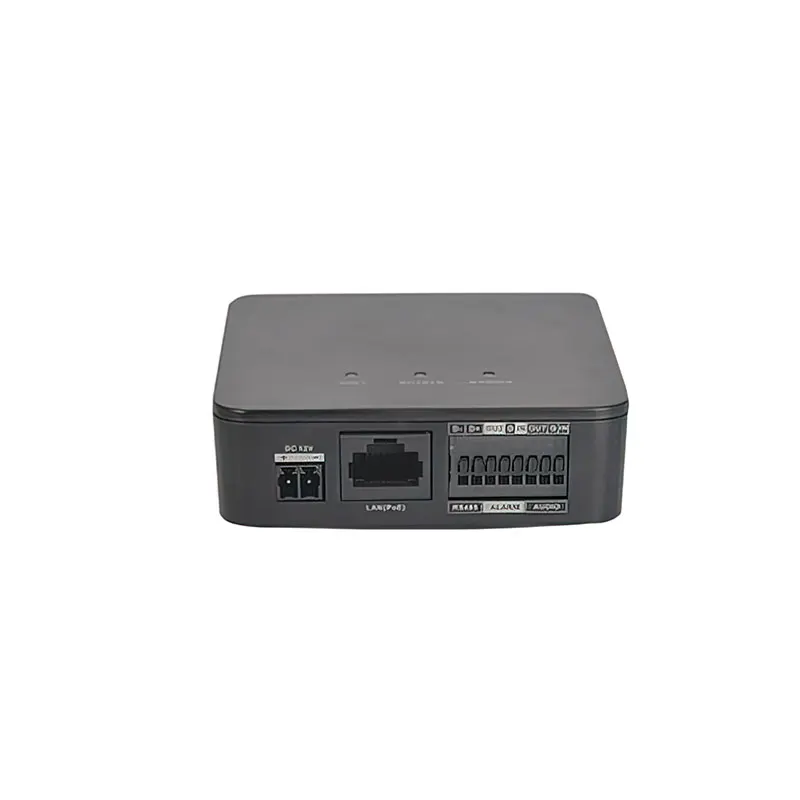

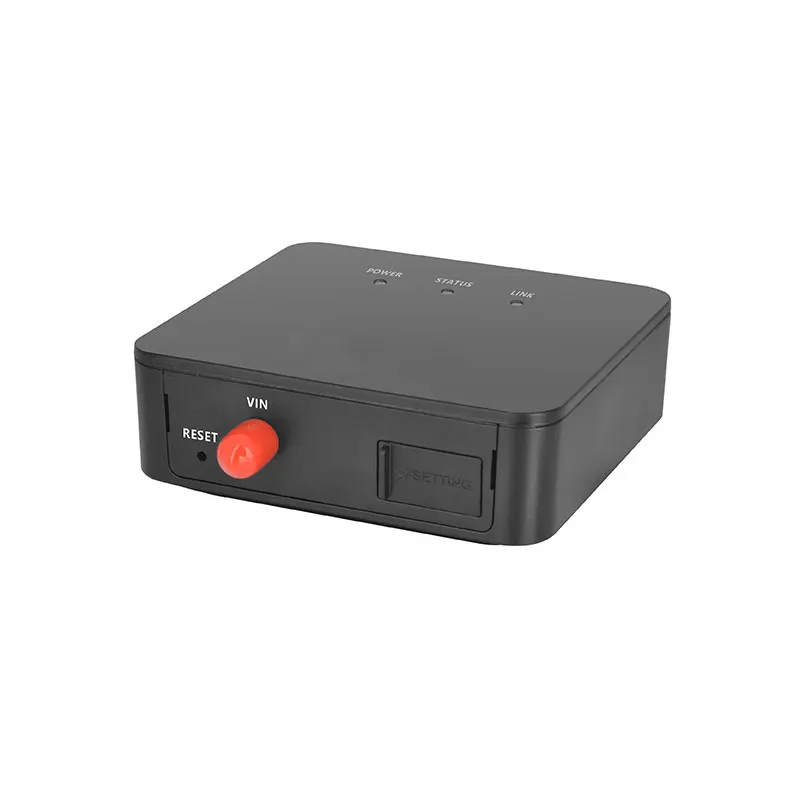

Original Hik Separated Network Camera DS 2CD6445FWD L30 DS 2CD6445FWD L20
- Category: >>>
- Supplier: Shenzhen Ruoxi Technology Co. Ltd.
Share on (1601070596276):
Product Overview
Description
We sell all Hikvison ,Da hua products! OEM All Hikvsion, Da hua products !
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount.
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount.
Specification
DS-2CD6445G1-XX Hik Separated Network Camera DS-2CD6445G1-C1(Without Camera)
* High quality imaging with 4 MP resolution
* Efficient H.265+ compression technology to save bandwidth and storage
* Clear imaging against strong back light due to 120 dB true WDR technology
* Audio and alarm interface available
* 3D DNR technology delivers clean and sharp images
* Camera
* Image Sensor1/3" Progressive Scan CMOS
* Max. Resolution2560 × 1440
* Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
* Shutter Time1/3 s to 1/100,000 s
* Lens
* Efficient H.265+ compression technology to save bandwidth and storage
* Clear imaging against strong back light due to 120 dB true WDR technology
* Audio and alarm interface available
* 3D DNR technology delivers clean and sharp images
* Camera
* Image Sensor1/3" Progressive Scan CMOS
* Max. Resolution2560 × 1440
* Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
* Shutter Time1/3 s to 1/100,000 s
* Lens
* Focal Length & FOV2.8 mm: horizontal FOV: 98°, vertical FOV: 53°, diagonal FOV: 115°
4 mm: horizontal FOV: 75°, vertical FOV: 41.5°, diagonal FOV: 88°
* Lens MountM12
* Iris TypeFixed
* Aperture2.8 mm: F2.0
4 mm: F2
* DORI
* DORI2.8 mm: D: 62 m, O: 24.6 m, R: 12.4 m, I: 6.2 m
4 mm: D: 80 m, O: 31.7 m, R: 16 m, I: 8 m
* Video
* Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
* Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
* Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
* Video CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
* H.264 TypeBaseline Profile/Main Profile/High Profile
* H.265 TypeMain Profile
* Bit Rate ControlCVR/BVR
* Scalable Video Coding (SVC)H.264 and H.265 encoding
* Region Of Interest (ROI)Support 1 fixed region for main stream
* Audio
* Audio TypeMono
* Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
* Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
* Audio Sampling Rate8 kHz/16 kHz/32 kHz
* Environment Noise FilteringYes
* Network
* ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
* Simultaneous Live ViewUp to 15 channels
* APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
* User/HostUp to 32 users
3 level: administrator, operator, and user
* Network StorageNAS (NFS, SMB/CIFS)
* ClientiVMS-4200, Hik-Connect
* Web BrowserPlug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
* Image
* Image Parameters SwitchYes
* Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
* Day/Night SwitchDay, Night, Auto, Schedule
* Wide Dynamic Range (WDR)120 dB
* Image EnhancementBLC, HLC, defog, 3D DNR
* Privacy MaskYes
* Interface
* Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
* On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
* Audio1 input (line in), 1 output (line out)
* Alarm1 input, 1 output (max. 12 VDC, 30 mA)
* RS-4851 RS-485 (half duplex, Hik, Pelco-P, Pelco-D, self-adaptive)
* Reset KeyYes
* Event
* Basic EventMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality
diagnosis
* Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended
baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
* LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
4 mm: horizontal FOV: 75°, vertical FOV: 41.5°, diagonal FOV: 88°
* Lens MountM12
* Iris TypeFixed
* Aperture2.8 mm: F2.0
4 mm: F2
* DORI
* DORI2.8 mm: D: 62 m, O: 24.6 m, R: 12.4 m, I: 6.2 m
4 mm: D: 80 m, O: 31.7 m, R: 16 m, I: 8 m
* Video
* Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
* Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
* Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
* Video CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
* H.264 TypeBaseline Profile/Main Profile/High Profile
* H.265 TypeMain Profile
* Bit Rate ControlCVR/BVR
* Scalable Video Coding (SVC)H.264 and H.265 encoding
* Region Of Interest (ROI)Support 1 fixed region for main stream
* Audio
* Audio TypeMono
* Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
* Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
* Audio Sampling Rate8 kHz/16 kHz/32 kHz
* Environment Noise FilteringYes
* Network
* ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
* Simultaneous Live ViewUp to 15 channels
* APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
* User/HostUp to 32 users
3 level: administrator, operator, and user
* Network StorageNAS (NFS, SMB/CIFS)
* ClientiVMS-4200, Hik-Connect
* Web BrowserPlug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
* Image
* Image Parameters SwitchYes
* Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
* Day/Night SwitchDay, Night, Auto, Schedule
* Wide Dynamic Range (WDR)120 dB
* Image EnhancementBLC, HLC, defog, 3D DNR
* Privacy MaskYes
* Interface
* Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
* On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
* Audio1 input (line in), 1 output (line out)
* Alarm1 input, 1 output (max. 12 VDC, 30 mA)
* RS-4851 RS-485 (half duplex, Hik, Pelco-P, Pelco-D, self-adaptive)
* Reset KeyYes
* Event
* Basic EventMotion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality
diagnosis
* Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended
baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
* LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
