YWfluid Micro diaphragm air pump with dc motor widely used for lab equipments
YWfluid Micro diaphragm air pump with dc motor widely used for lab equipments
YWfluid Micro diaphragm air pump with dc motor widely used for lab equipments
YWfluid Micro diaphragm air pump with dc motor widely used for lab equipments

YWfluid Micro diaphragm air pump with dc motor widely used for lab equipments

Share on (1601070617936):


Price:$19.00 - $19.90

Quantity:


Product Overview

Description

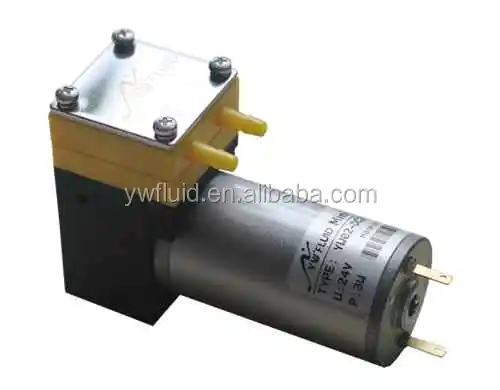

Micro diaphragm air pump with dc motor widely used for lab equipments


YW02-A-DCL_02








YW02-A-DC_09_01


























































ModelDCDCLBLDC
Motor typeBrush motorBrush motorBrushless motor
Pump Assembly Rated Life2000Hrs3000Hrs5000Hrs
MediaGases and liquid
Pressure range0.1Mpa
Vacuum range-0.05Mpa
Gas flow3L/min
Liquid flow320ml/min
Operating Environment0-40℃
Head Configuration:single
Nominal Motor Voltages12V,24V Other voltage can be customized




application


YW02-A-DCL_0402-A-DCL-yxYW02-A-DCL_08



YW02-A-DC_09_03


YW02-A-DCL_12YW02-A-DCL_10


relative_product_diaphragm


YW02-A-DCL_13





Keywords: Micro diaphragm air pump,12v/24v mini air pump,micro diaphragm air pump, 12v dc mini diaphragm air pump
