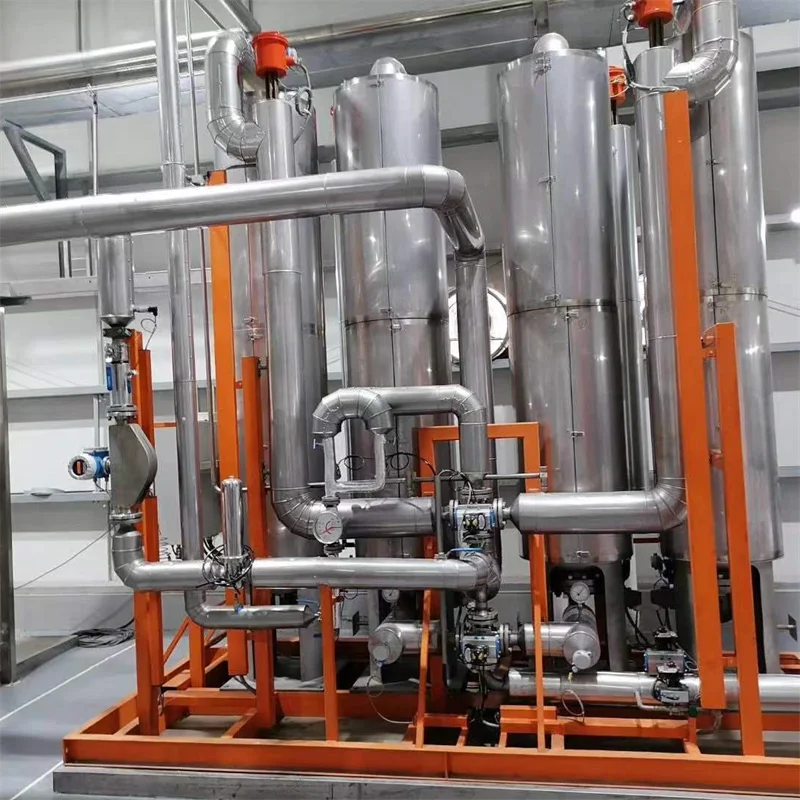

Best Quality CO2 System 20kg/h 2000kg/h Chemical Tail Gas CO2 Plant
- Category: >>>
- Supplier: Wobo Industrial Group Corp.
Share on (1601070628134):
Product Overview
Description
Carbon Dioxide Gas Liquid Generator Plant
Enviromentally Friendly Food Grade Gas Recovery Gas Liquid CO2 Generator Equipment:
Fine Quality Co2 Aquarium Generator 1000Kg/H Small Co2 Generator System For Drinks
Liquid Gas CO2 Generation Equipment :
WOBO is committed to food-grade gas, liquid carbon dioxide and solid dry ice engineering design, equipment manufacturing, and complete equipment provision. Proprietary low-temperature distillation, multi-stage distillation, multi-stage liquefaction and other technologies make our equipment suitable for different geographical environments and climatic conditions. By optimizing and improving the process flow and key equipment, our device has the advantages of low investment, small area, and thorough purification.
The company has more than 100 sets of different raw gas design, manufacturing and installation engineering experience in various standard carbon dioxide devices, which have been exported to the United States, Peru, Ukraine, Russia, India, Cameroon, Algeria and other countries and regions. The largest single set of CO2 plant has reached 500Kt/a.
Our equipment is suitable for coal-fired power plants, gas combustion, steel and cement and other low-concentration carbon dioxide gas capture and refining, such as power plant boilers, steel plant smelting, lime kilns and cement plants.
The company has more than 100 sets of different raw gas design, manufacturing and installation engineering experience in various standard carbon dioxide devices, which have been exported to the United States, Peru, Ukraine, Russia, India, Cameroon, Algeria and other countries and regions. The largest single set of CO2 plant has reached 500Kt/a.
Our equipment is suitable for coal-fired power plants, gas combustion, steel and cement and other low-concentration carbon dioxide gas capture and refining, such as power plant boilers, steel plant smelting, lime kilns and cement plants.

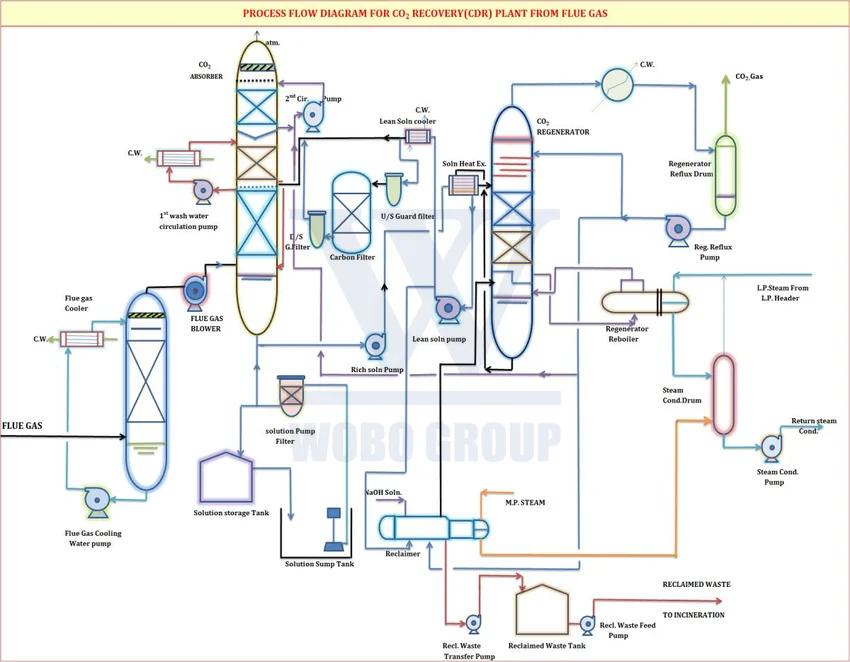

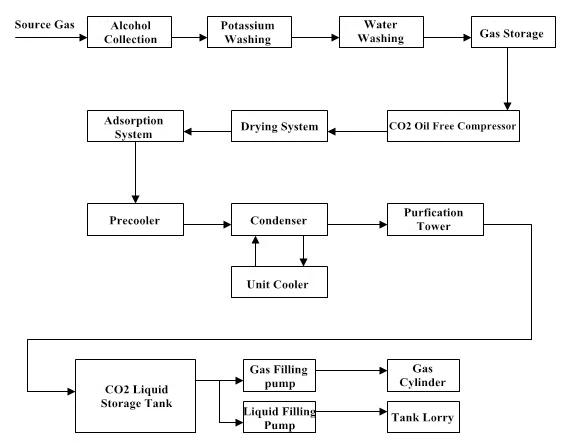

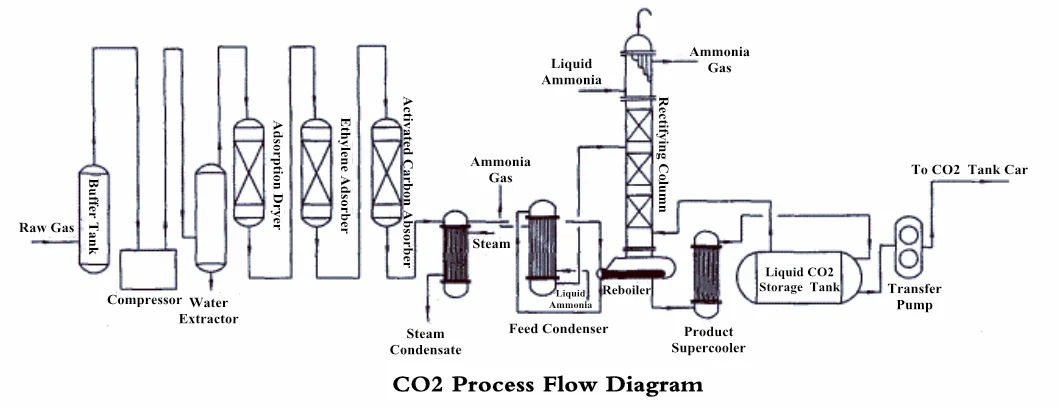

Process Flow Diagram
Product Parameter
Model | Capacity(T/H) | CO2 Purity | Power (KW/T) | Floor Space(M2) | ||||
WOCO2-2.4K | 0.3 | 99.99% | 250 | 6 x 12 | ||||
WOCO2-1W | 1.2 | 99.99% | 230 | 12 x 24 | ||||
WOCO2-2W | 2.5 | 99.99% | 220 | 12 x 24 | ||||
WOCO2-3W | 3.7 | 99.99% | 210 | 12 x 30 | ||||
WOCO2-4W | 5 | 99.99% | 200 | 12 x 36 | ||||
WOCO2-10W | 10 | 99.99% | 190 | 15 x 40 | ||||
Parameters may vary with different carbon dioxide gas raw materials | ||||||||
Product Description
Flue Gas CO2 Recovery and Utilization:
Flue gas refers to the emissions from power plants, boilers, lime kilns, cement plants, etc., typically containing 8-35% CO2. This system employs MEA to absorb CO2 at room temperature. After concentration, the CO2 undergoes adsorption, drying, cooling, and heat exchange before entering the rectification tower for sulfur and nitrate removal. Impurities like oxygen, nitrogen, and water vapor
are stored in tanks for reuse.
are stored in tanks for reuse.
Chemical Industry Exhaust Gas CO2 Recovery and Utilization:
The tail gas in petrochemical and chemical industries refers to CO2-rich emissions from separation units. It contains 80~99% CO2
and impurities like sulfur, carbon monoxide, hydrocarbons, hydrogen, ammonia, oxygen, benzene, and water vapor. This system uses
water washing, specialized adsorbents, patented hydrocarbon removal tech, and distillation to remove impurities and store purified
gas for use.
and impurities like sulfur, carbon monoxide, hydrocarbons, hydrogen, ammonia, oxygen, benzene, and water vapor. This system uses
water washing, specialized adsorbents, patented hydrocarbon removal tech, and distillation to remove impurities and store purified
gas for use.
Fermentation Gas CO2 Recovery and Utilization:
Fermentation gas, from facilities like alcohol factories, breweries, and sugar factories, contains high levels of carbon dioxide (90-99%), along with alcohols, aldehydes, methane, hydrogen, nitrogen, and water vapor, among other impurities. This system uses water washing, separation, and special adsorbents to remove impurities like alcohols, aldehydes, and carbon monoxide. Water is removed through drying, cooling, and distillation to eliminate methane, hydrogen, nitrogen, and other impurities.
Natural Gas Tail Gas CO2 Recovery and Utilization:
Tail gas generated during the extraction, transportation, and utilization of natural gas contains CO2 and other components. This
system uses technologies such as chemical absorption or membrane separation to recover and purify CO2 from the tail gas for
further utilization or storage.
system uses technologies such as chemical absorption or membrane separation to recover and purify CO2 from the tail gas for
further utilization or storage.

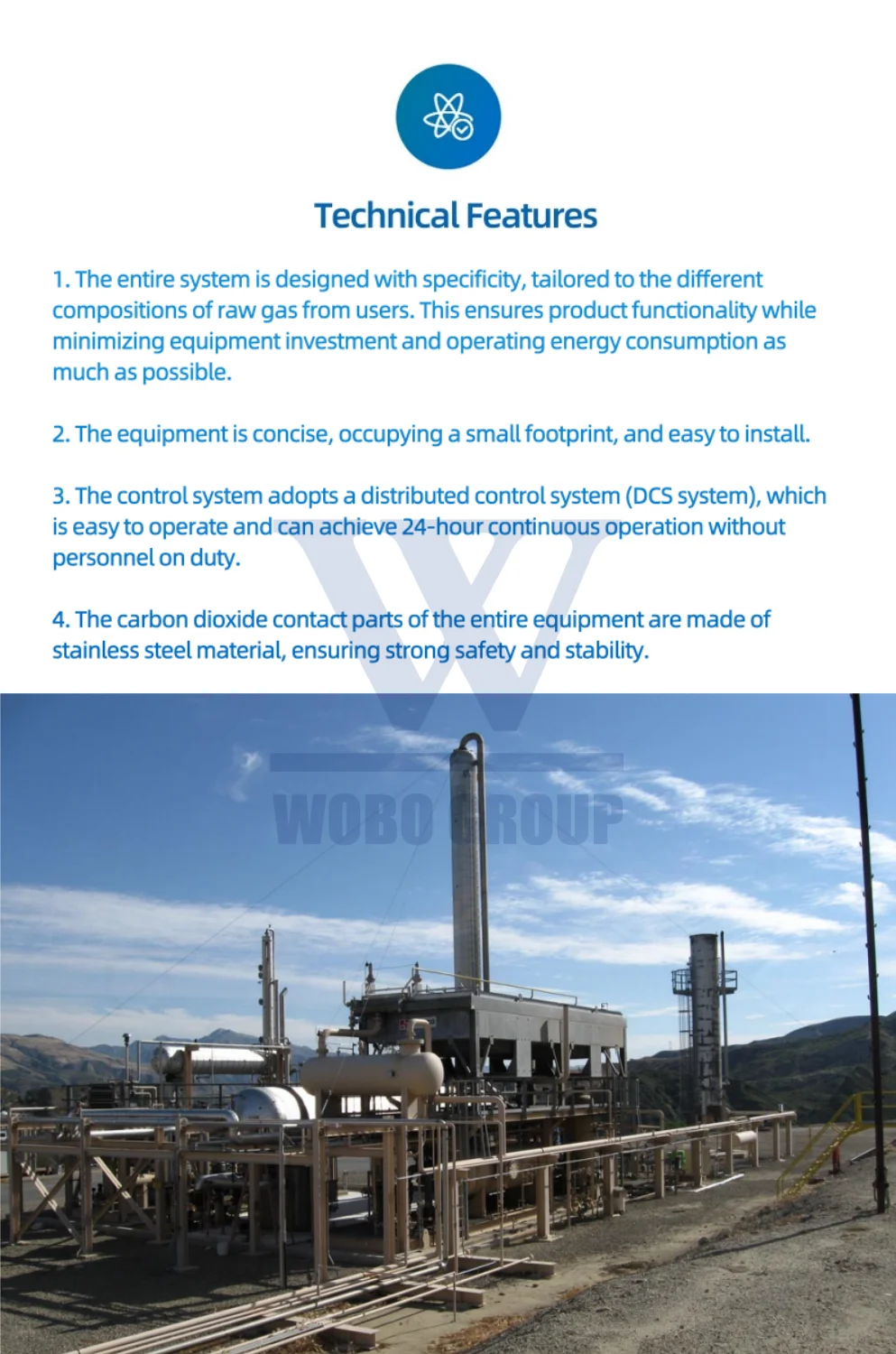

Product Advantages
Product Application
Relative Products
CO2 Gas Cylinders
CO2 Cryogenic Insulated Cylinders
CO2 Liquid Storage Tanks
CO2 Liquid Transport Tanks
Anhydrous Ethanol Equipment
Alcohol Equipment
