Product Overview
Description
Product Description
3 Phase Low Frequency Online UPS 10kVA-800kVA Power Backup Power 5kw

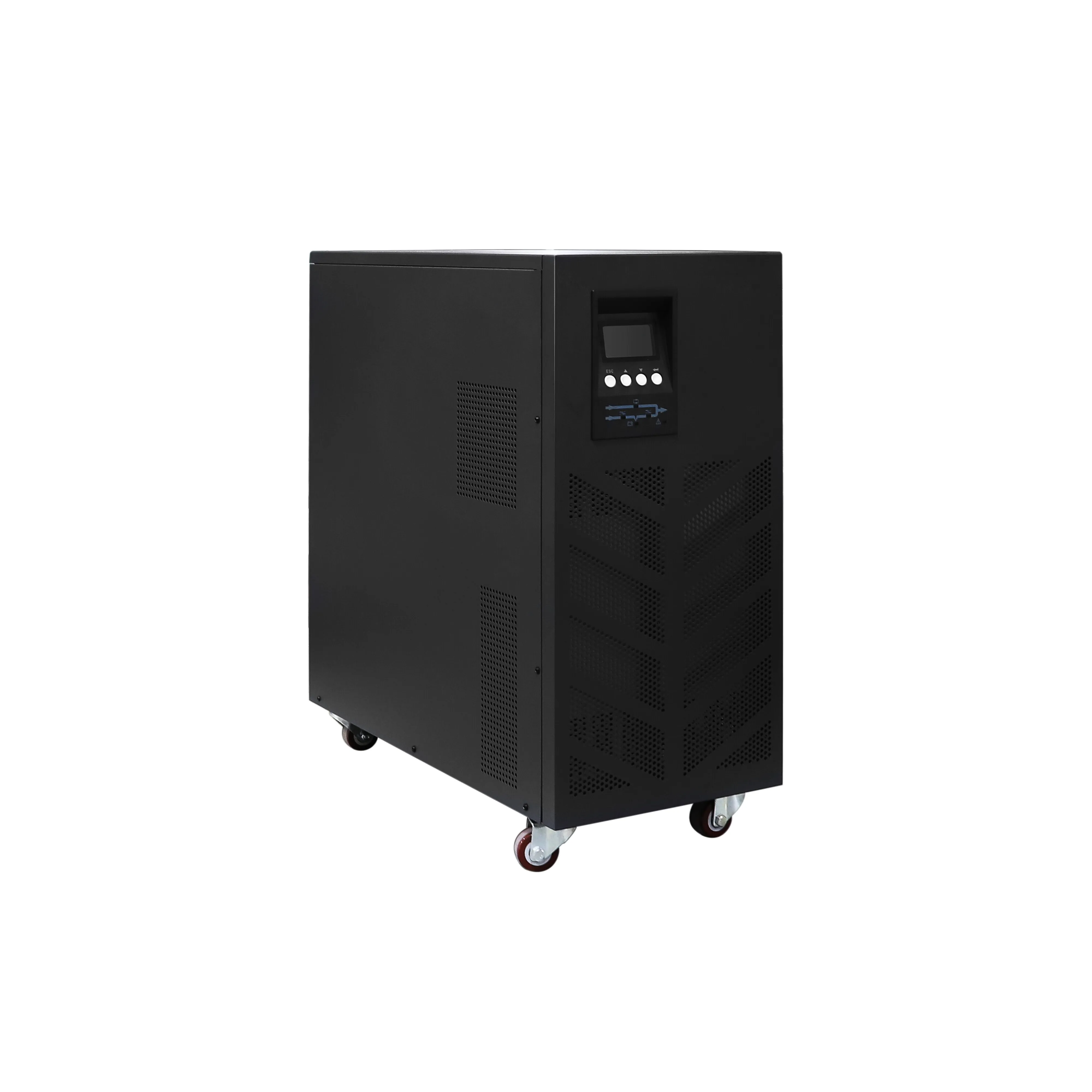

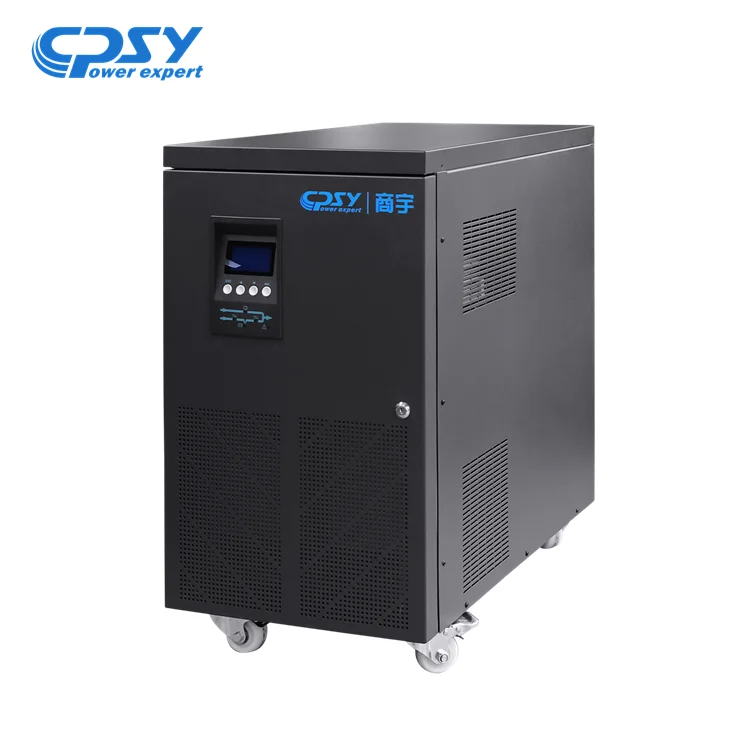

| Model | GP1106K - GP1120K |
| Capacity | 6KVA 04.8KW - 20KVA 16KW |
Technical data
(CONTACT US FOR MORE INFORMATION)
Model(Three Phase input Three Phase output) | GP3310K | GP3315K | GP3320K | GP3330K | GP3340K | GP3360K | GP3380K | GP33100K | GP33120K | GP33160K | GP33200K | ||||||||||
AC input | Nominal power | 380V | |||||||||||||||||||
active power | 380V±25% | ||||||||||||||||||||
Frequency Range | 50Hz:46Hz-54Hz;60Hz:56Hz-64Hz | ||||||||||||||||||||
Bypass input | Nominal voltage | 380V | |||||||||||||||||||
Voltage Range | 380V±25% | ||||||||||||||||||||
Frequency Range | 50Hz:46Hz-54Hz;60Hz:56Hz-64Hz | ||||||||||||||||||||
Output | Nominal power | 10KVA /8KW | 15KVA /12KW | 20KVA /16KW | 30KVA /24KW | 40KVA /32KW | 60KVA /48KW | 80KVA /64KW | 100KVA /80KW | 120KVA /96KW | 160KVA /128KW | 200KVA /160KW | |||||||||
Nominal voltage | 380V | ||||||||||||||||||||
Output voltage range | 200/208/220/230/240VAC(Phase voltage) | ||||||||||||||||||||
Stable voltage precision | ±2% | ||||||||||||||||||||
Dynamic voltage transients | ≤9% | ||||||||||||||||||||
Output voltage waveform distortion | ≤3% (linear load); ≤8% (nonlinear load) | ||||||||||||||||||||
Power factor | 0.8 | ||||||||||||||||||||
Frequency tracking range | 50Hz:46Hz-54Hz;60Hz:56Hz-64Hz | ||||||||||||||||||||
Frequency precision(battery inverter) | 50Hz:(50+0.1)Hz;60Hz:(60+0.1)Hz | ||||||||||||||||||||
Overload capacity | 105%±5% ≤load,warning overload; | ||||||||||||||||||||
105%±5% <load≤125%±5% Transfer to bypass and Alarming after 2 mins; | |||||||||||||||||||||
125%±5% <load≤150%±5% Transfer to bypass and Alarming after 30 second; | |||||||||||||||||||||
load>150%±5%, Transfer to bypass after 500ms; | |||||||||||||||||||||
Output current peak ratio | ≥3:1 | ||||||||||||||||||||
System | Switch time (normal mode) | 0ms | |||||||||||||||||||
System efficiency (linear load) | ≥76% | ≥82% | ≥82% | ≥85% | ≥89% | ≥90% | |||||||||||||||
Display | LCD+LED | ||||||||||||||||||||
EMS/EMI | Conduction | IEC EN62040-02 | |||||||||||||||||||
Radiation | |||||||||||||||||||||
Disturbance rejection | IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III | ||||||||||||||||||||
Safety requirements | GB4943-2001/IEC62040-1 | ||||||||||||||||||||
Noise(1m) | ≤55dB | ≤70dB | |||||||||||||||||||
Insulation resistance(Ω) | >2M (500VDC) | ||||||||||||||||||||
Surge protection | IEC60664-1 IV | ||||||||||||||||||||
Environment | Working temperature | 0°C-40°C | |||||||||||||||||||
Elevation | <1000m(>1000m,the load decrease 1% for every 100 meter) | ||||||||||||||||||||
Working humidity | 20%-95% | ||||||||||||||||||||
Battery voltage | 192VDC (12V×16pcs) | 384VDC(12V×32pcs) | |||||||||||||||||||
Dimensions: ( W x D x H )mm | 455×1055×830 | 700×1600 ×800 | 830×1135×515 | 850×1650×880 | 1245×1900 ×855 | ||||||||||||||||
Industrial UPS advantages:
-Special LBS function
-Adopting thyristor phase controlled rectification technology
-The inverter adopts an IGBT module half bridge structure
-Standard output isolation transformer
-Anti voltage surge design
-Level 9 seismic design
-Power Factor 0.8/0.9(optional)
-Adopting advanced three-stage charging method
-The overall efficiency reaches 95%,ECO mode to 98%
-N+X parallel redundancy function, Max 4 parallel machines
-90% of components are from internationally renowned brands
-Abandant monitoring/communication interfaces available, SNMP/MODBUS/dry contacts/emergency stop EPO/USB/RS232/RS485/CAN, etc.
-Conformal Coated PCA component
-Customizable waterproof level, IP20-IP56
-Low fault rate, as low as 0.35% (0.3% -0.5%)
-Can connect to 2 independent mains (dual mains input)
-Adjustable number of battery units
