Product Overview
Description
Products Description
Details Images
Product Parameters
Datasheet | MID 25KTL3-X1 | MID 30KTL3-X | MID 33KTL3-X | MID 36KTL3-X | MID 40KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power(for module STC) | 37500W | 45000W | 49500W | 54000W | 60000W | |||||
Max. DC voltage | 1100V | |||||||||
Start voltage | 250V | |||||||||
Nominal voltage | 600V | |||||||||
MPPT voltage range | 200-1000V | |||||||||
No. of MPP trackers | 3 | 3 | 3 | 4 | 4 | |||||
No. of PV strings per MPP tracker | 2 | |||||||||
Max. input current per MPP tracker | 26A | |||||||||
Max. short-circuit current per MPP tracker | 32A | |||||||||
Output data (AC) | ||||||||||
AC nominal power | 25000W | 30000W | 33000W | 36000W | 40000W | |||||
Max. AC apparent power | 27700VA | 33300VA | 36600VA | 39600VA | 44000VA | |||||
Nominal AC voltage(range*) | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 40A | 50.5A | 55.5A | 60.0A | 66.6A | |||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
Max.efficiency | 98.8% | |||||||||
European efficiency | 98.5% | |||||||||
MPPT efficiency | 99.9% | |||||||||
Protection devices | ||||||||||
DC reverse polarity protection | Yes | |||||||||
DC switch | Yes | |||||||||
AC/DC surge protection | Type III / Type III | |||||||||
Insulation resistance monitoring | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
Ground fault monitoring | Yes | |||||||||
Grid monitoring | Yes | |||||||||
Anti-islanding protection | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
AFCI protection | Optional | |||||||||
General data | ||||||||||

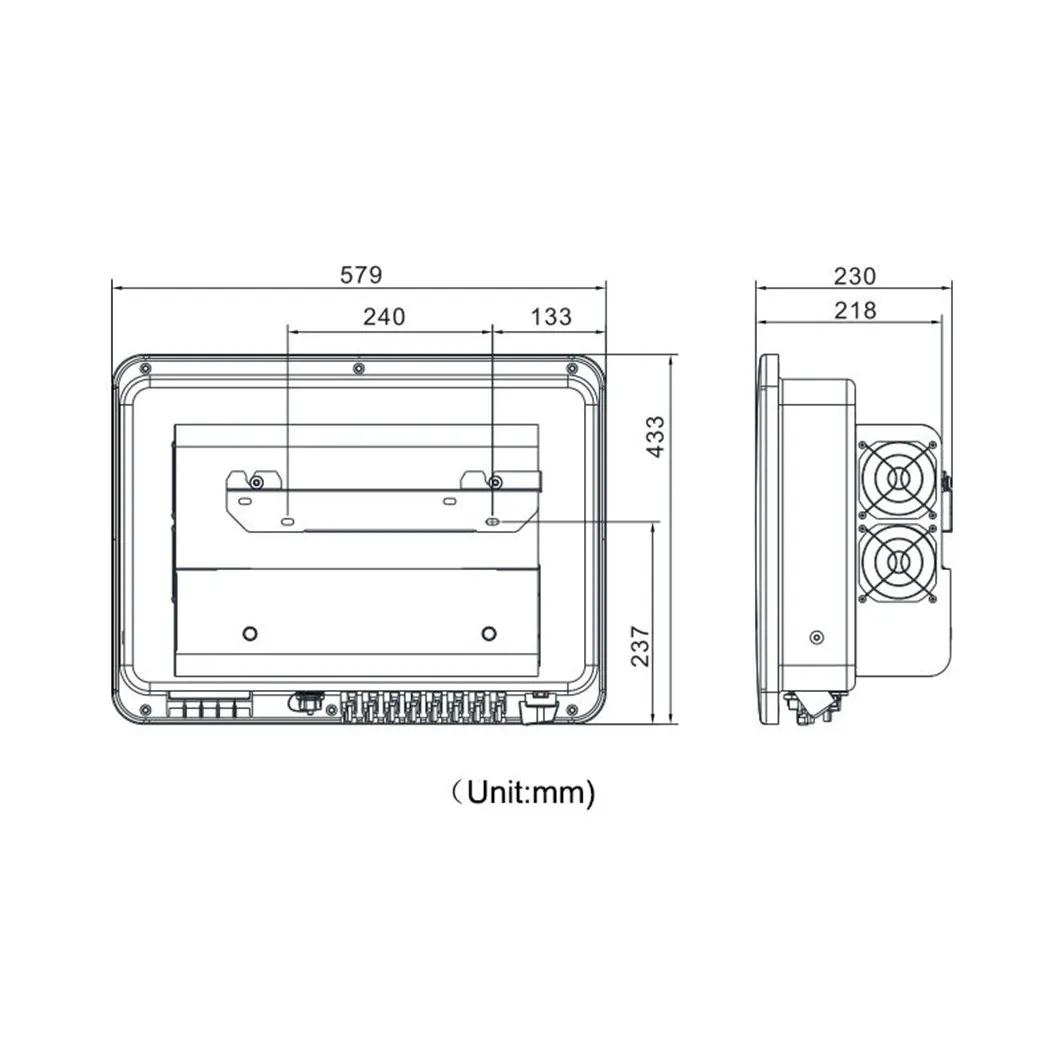

Dimensions (W / H / D) | 580/435/230mm | |||||||||
Weight | 29.5kg | 29.5kg | 29.5kg | 30.5kg | 30.5kg | |||||
Operating temperature range | –25°C ... +60°C | |||||||||
Nighttime power consumption | < 1W | |||||||||
Topology | Transformerless | |||||||||
Cooling | Smart air cooling | |||||||||
Protection degree | IP66 | |||||||||
Relative humidity | 0-100% | |||||||||
Altitude | 4000m | |||||||||
DC connection | H4/MC4(Optional) | |||||||||
AC connection | Cable gland+OT terminal | |||||||||
Display | OLED+LED/WIFI+APP | |||||||||
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes/Yes/Optional/Optional/Optional /Optional | |||||||||
Warranty | 10 years | |||||||||
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116,IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565 | ||||||||||
Packing & Delivery
Company Profile
ANHUI GP NEW ENERGY CO., LTD
We, Anhui GP New Energy Co., Ltd (Great Pack) focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, solar energy batteries, are the leading Lifepo4 battery supplier in China, who committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Exhibition
Certifications
FAQ
What does a solar inverter do?
It's a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC)
electricity, which the electrical grid uses.
electricity, which the electrical grid uses.
What is the difference between a string solar inverter and a hybrid inverter?
Hybrid inverters generate power exactly the same way as common string solar inverters. The difference is that it has built-in battery connections to enable energy storage for later use. This battery backup ability enables most hybrid systems to also operate as a backup power supply during a blackout.
Can you go off-grid with hybrid inverter?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
What are the basic parameters of inverter?
There are 3 parameters that will define the output of power inverter, and they are the frequency, the voltage, and power capacity.
