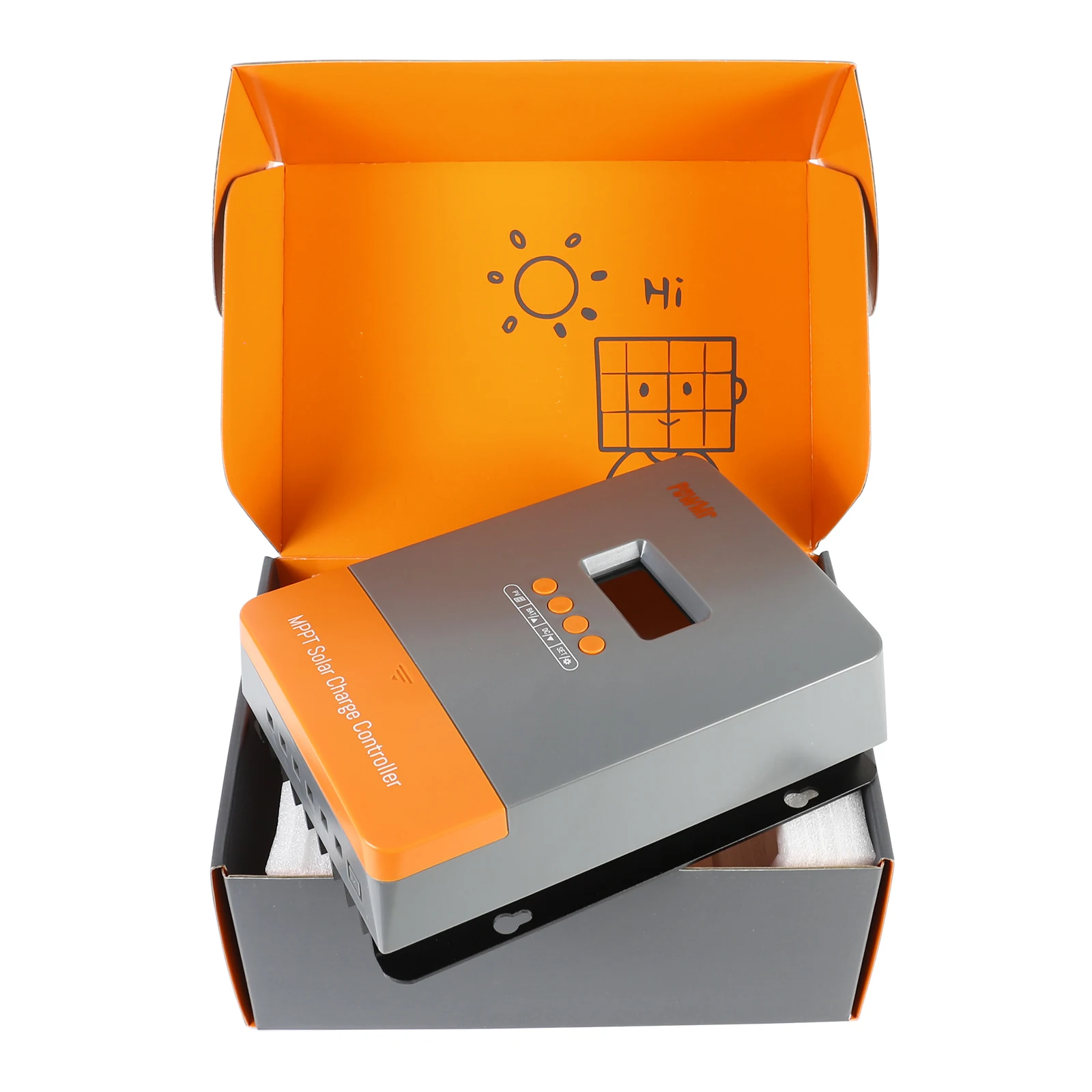

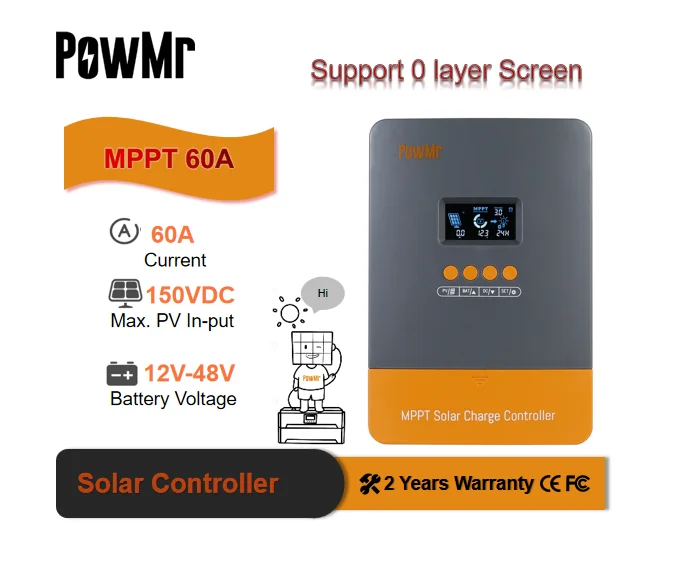

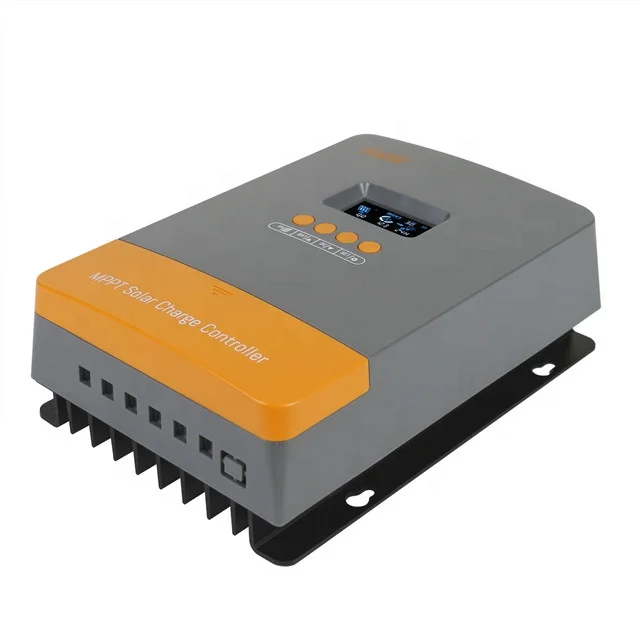

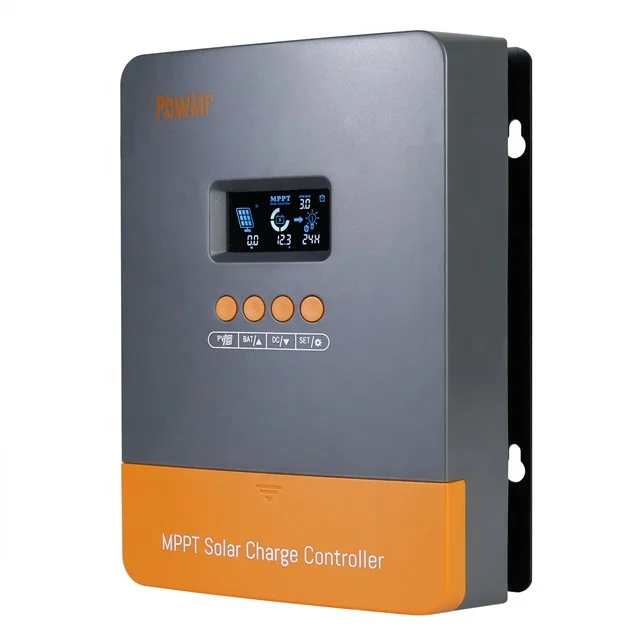

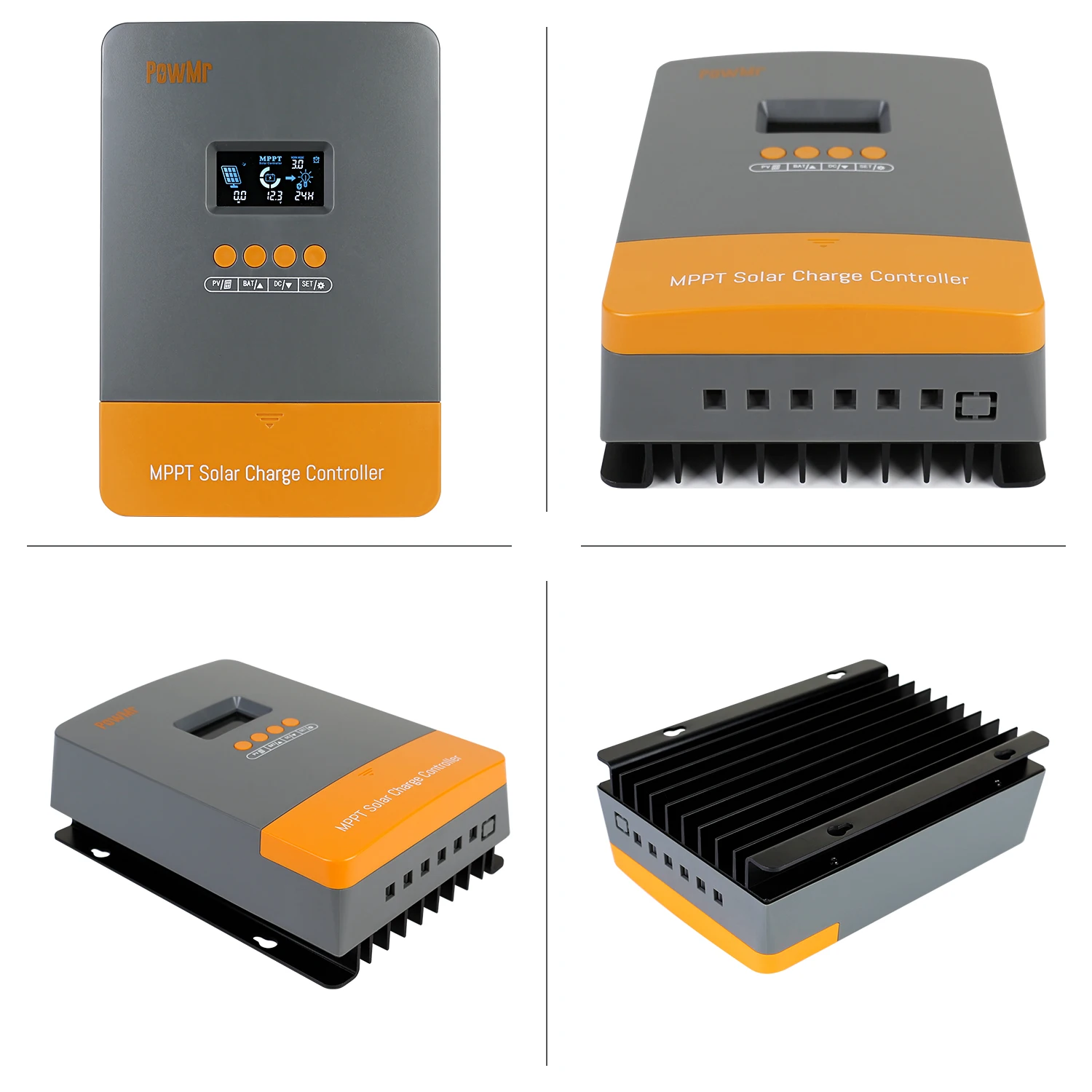

PowMr 60A Solar Panel Regulator 12V/24V/36V/48V Max PV Input 150V MPPT Solar Charge Controller for Solar System
- Category: >>>
- Supplier: Shenzhen Hehe Jin Industrial Co. Ltd.
Share on (1601070852140):
Product Overview
Description
Product Description
POWMR 60Amps MPPT solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.
It comes with a number of outstanding features, such as:
(1) MPPT 30A/40A/50A/60A solar charge controller
(2) 100% MPPT technology
(3) 0 Layer, easy installation, easy setup
(4) Built-in DSP controller with high performance
(5) Automatic switch for 12V/24V/36V/48V battery bank

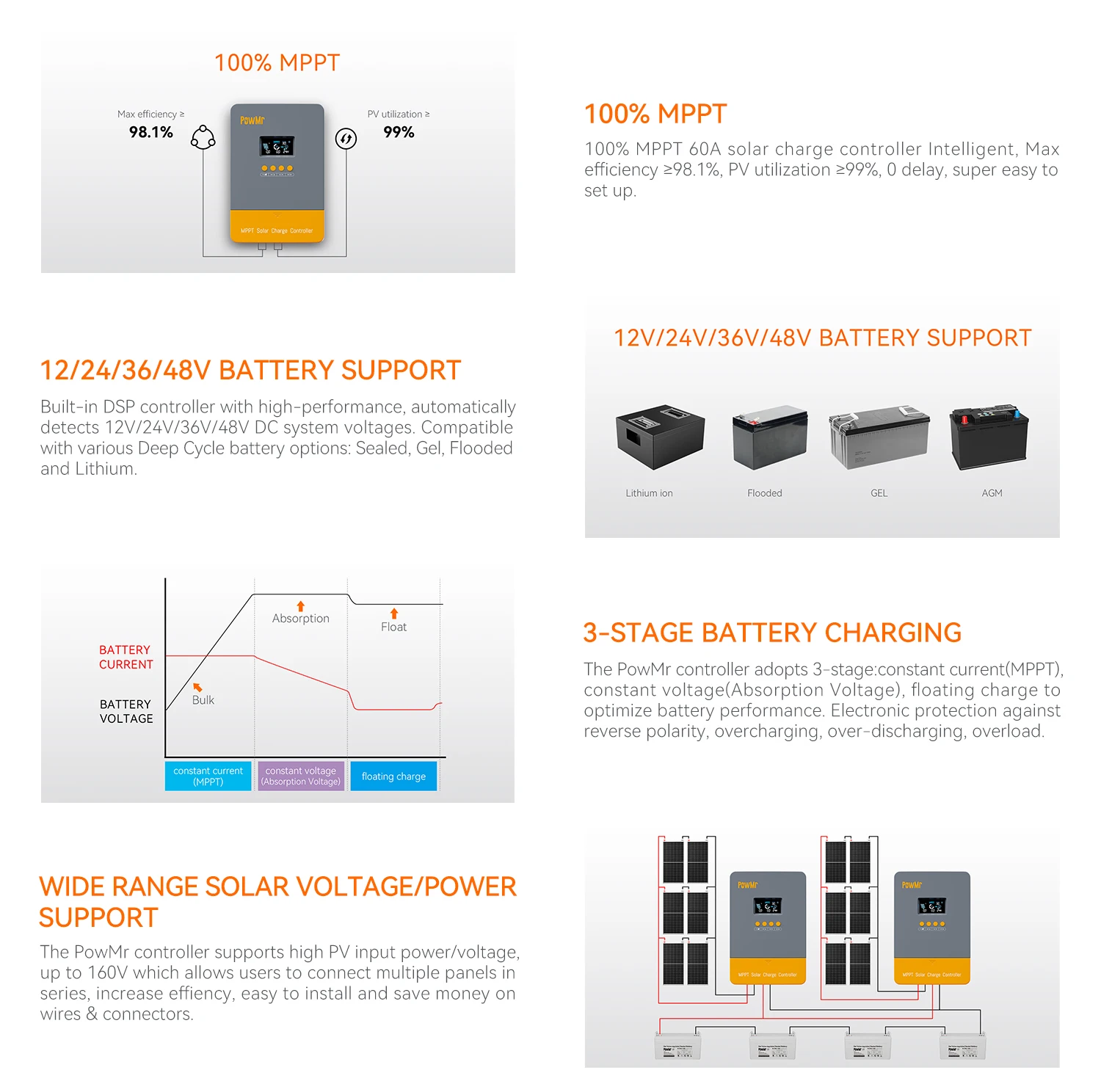

(6) 3-stage charging optimizes battery performance
(7) Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
(8) Over-temperature protection
(9) Troubleshooting promotion function.
(10) Suitable for battery types such as sealed lead acid, vented gel, and lithium battery etc
(11) Easy to be mounted
Specification
Technical Specification for Selection Guide | ||
Models | POW-M60-PRO | |
Charging mode | MPPT Maximum power point tracking automatically | |
Charging | 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge | |
System type | DC12V/24V/36V/48V Recognition automatically | |
System voltage automatic recognition | 1 2V system (DC9V-DC15V) | |
24V system (DC18V-DC29V) | ||
36V system (DC30V-DC39V) | ||
48V system (DC40V〜DC60V) | ||
Soft start time | <1S | |
Dynamic response and recovery time | >98.1 % (Voc is 1.5 or 2 times than battery, then it's the best efficiency) | |
PV utilization | >99% | |
Input specification | ||
VOC from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it's the best efficiency.) | 12V system (DC20V〜DC80V) | |
24V system (DC37V-DC105V) | ||
36V system (DC50V〜DC160V) | ||
48V system (DC72V〜DC160V) | ||
The maximum PV input voltage (Voc) | DC190V(The controller can't work at this voltage of long duration that will break controller. Please refer to the Input voltage from PV.) | |
The maximum PV input power (The total power rated of PV can't be over this watt that will break the controller.) | 12V system (720W) | |
24V system (1440W) | ||
36V system (2100W) | ||
48V system (2800W) | ||
Output specification | ||
Selectable battery type(default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) | |
Absorption Charging Voltage | Refer to Batteries charging reference | |
Floating Charging Voltage | Refer to Batteries charging reference | |
Overcharging protection voltage | 12V system (15V) | |
24V system (30V) | ||
36V system (45V) | ||
48V system (60V) | ||
Rated output current | 60A | |
Temperature Coefficient | ±0.02%/ °C | |
Automatic temperature compensation | 14.2V-(Max temperature-25 °C)*0.3 | |
Output voltage ripple-peak | 100mv | |
Output voltage accuracy | <±1% | |
Input Anti-intrusion protection | yes | |
Temperature Protection | 75°C | |
Temperature increased protection | Output power will reduce when it's more than 70 °C | |
Output power will be normal when it's less than 55 °C | ||
Fan-on temperature | >40 °C | |
Fan-off temperature | <35 °C | |
Acoustic noise | <40dB | |
Cooling way | Forced air cooling | |
Components | Imported materials, Accord to EU standards, Industrial grade range. | |
Environmental requirements | Meet 2002/95/EC; No cadmium, hydrides, and fluorides | |
Security Level | Accord to CE, PSE, FCC, EMC, EN60950 | |
Electromagnetic Compatibility | Accord to EN6W00, EN55022, EN55024 | |
Enclosure | IP21 | |

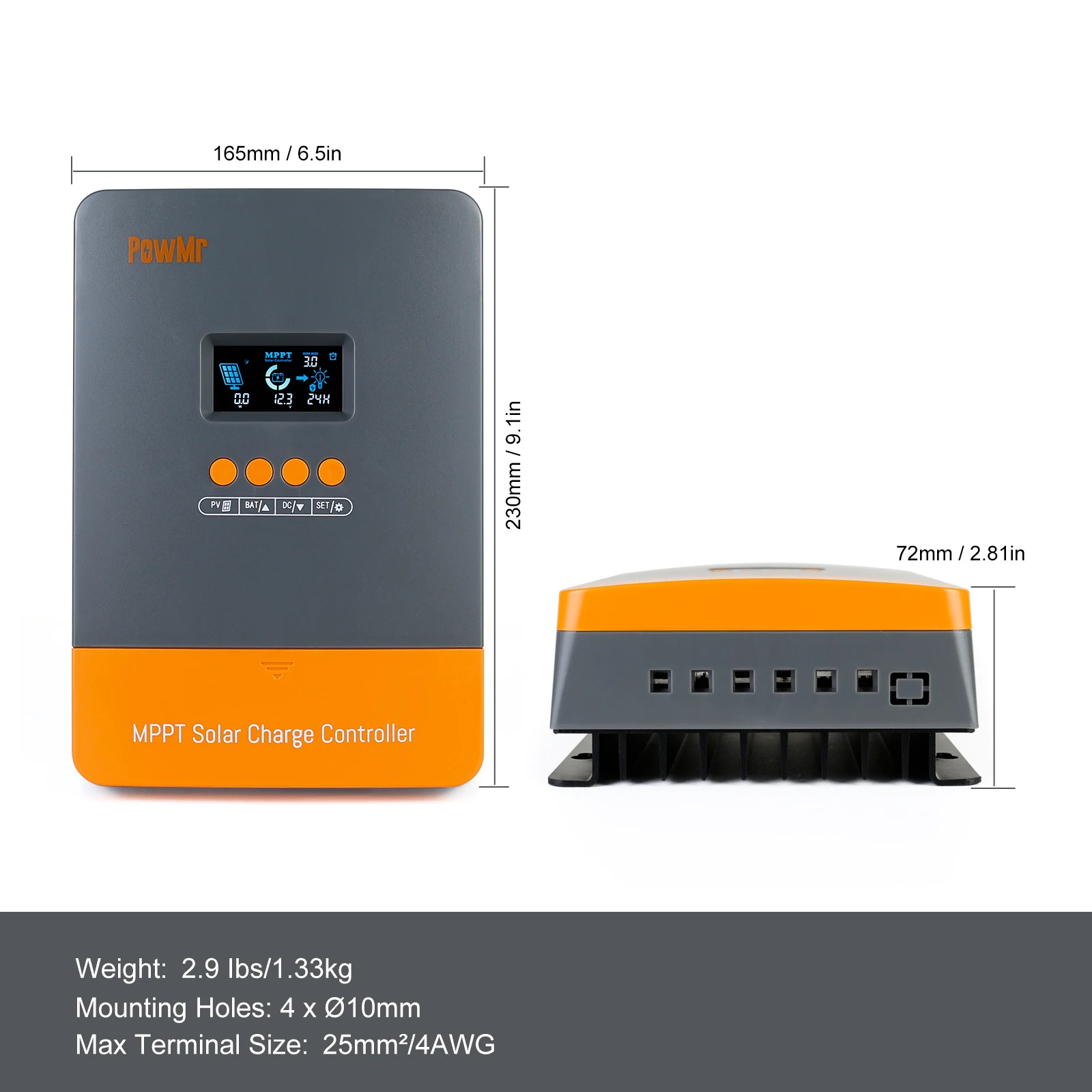

Net weight(Kg) | 1.3 | |
Gross weight(Kg) | 1.5 | |
