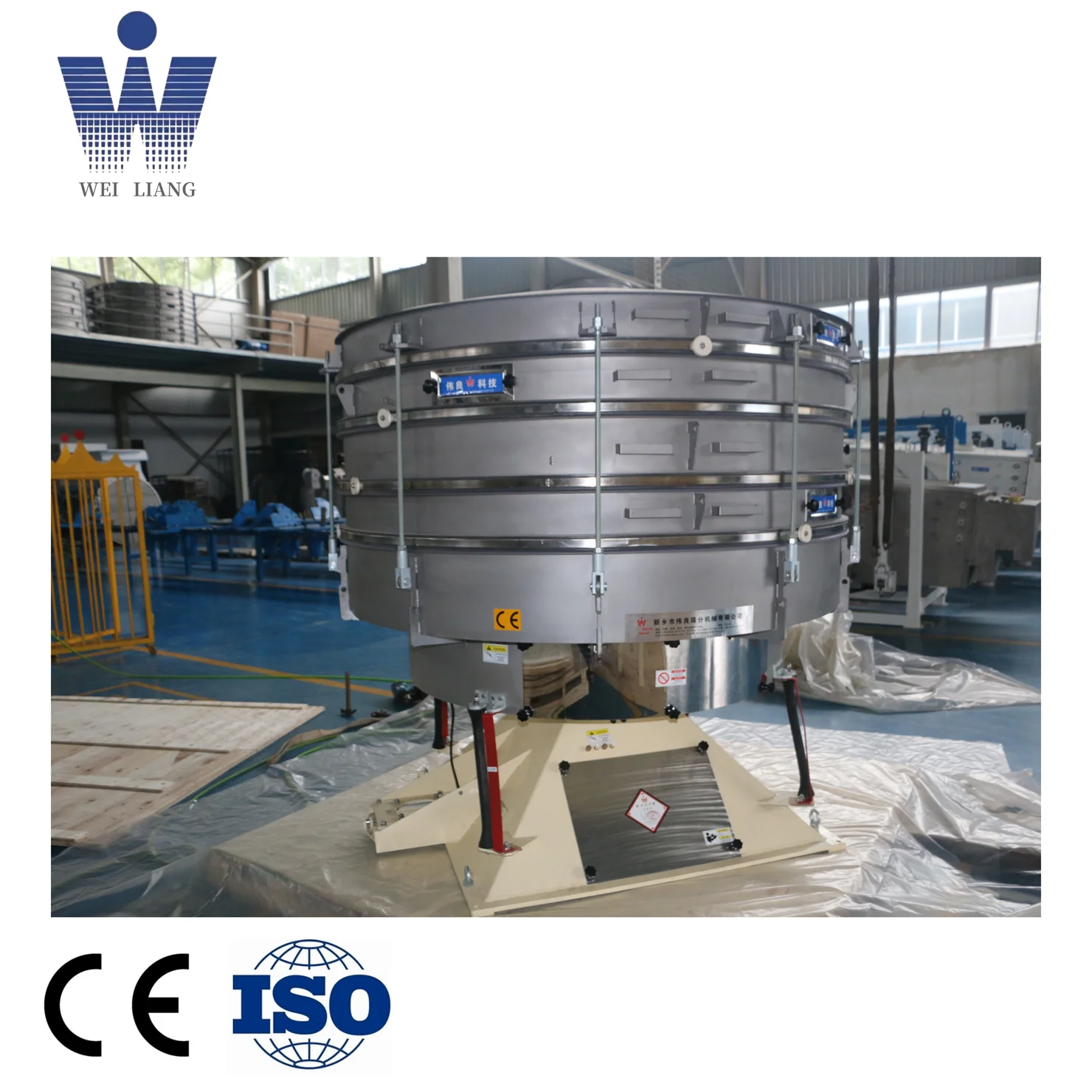

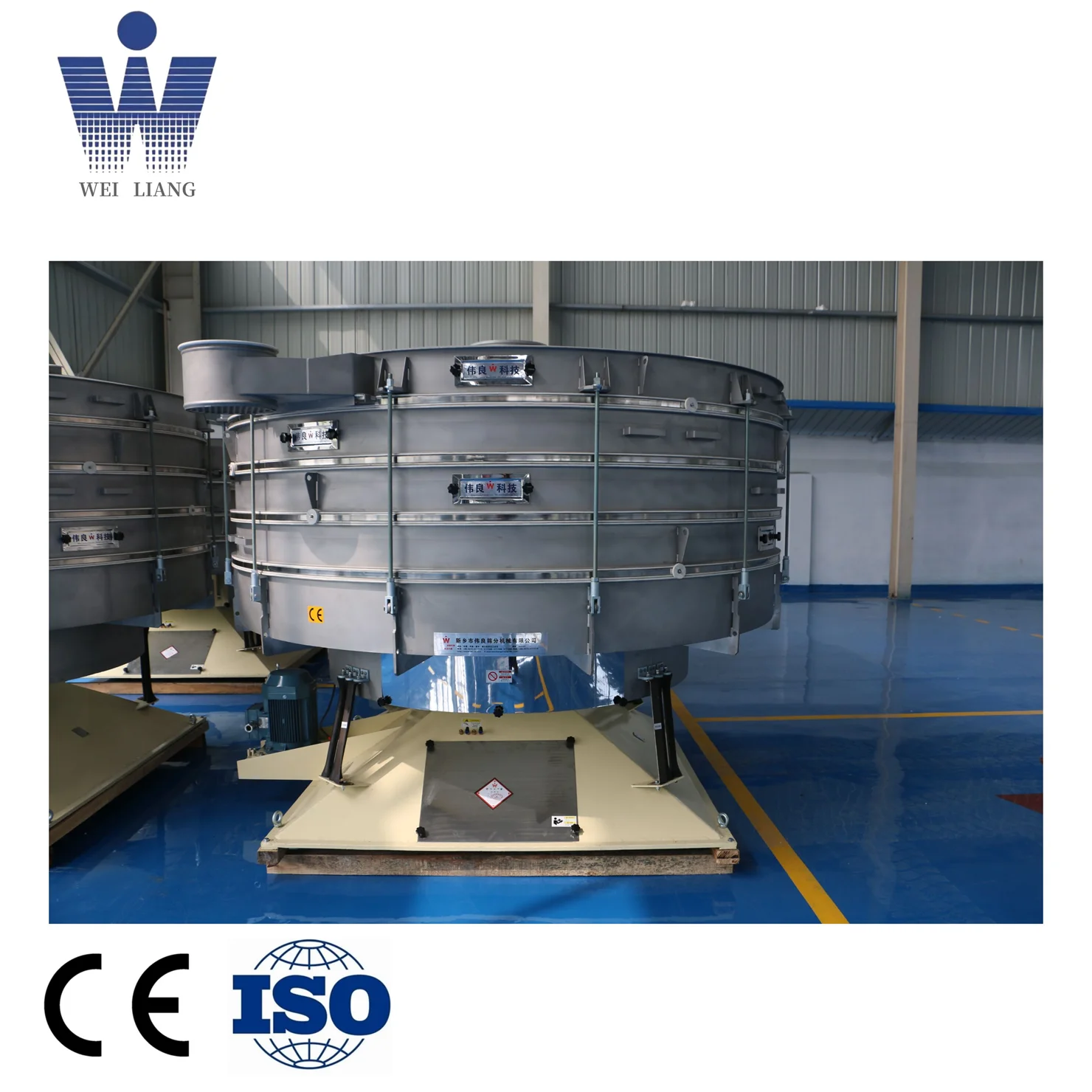

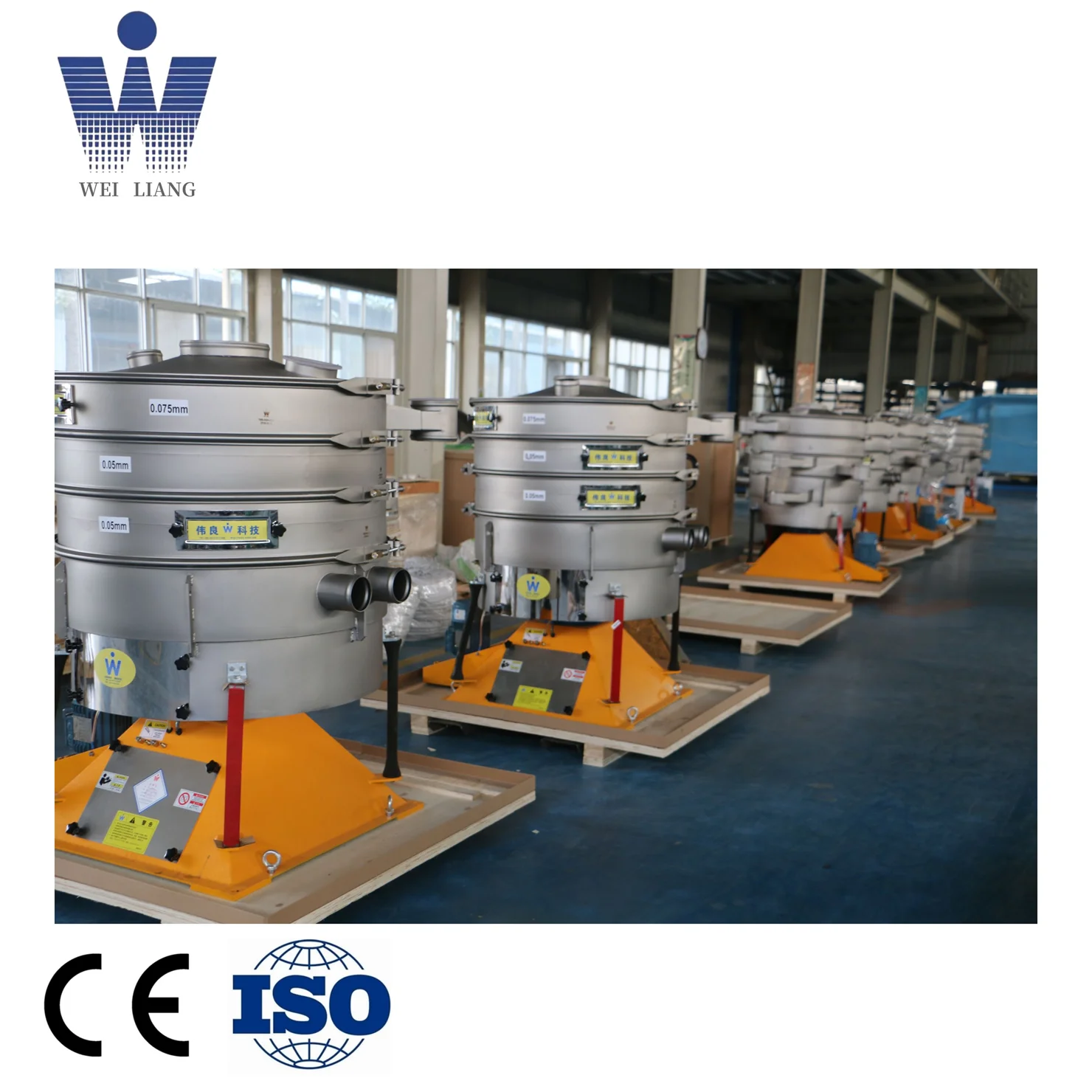

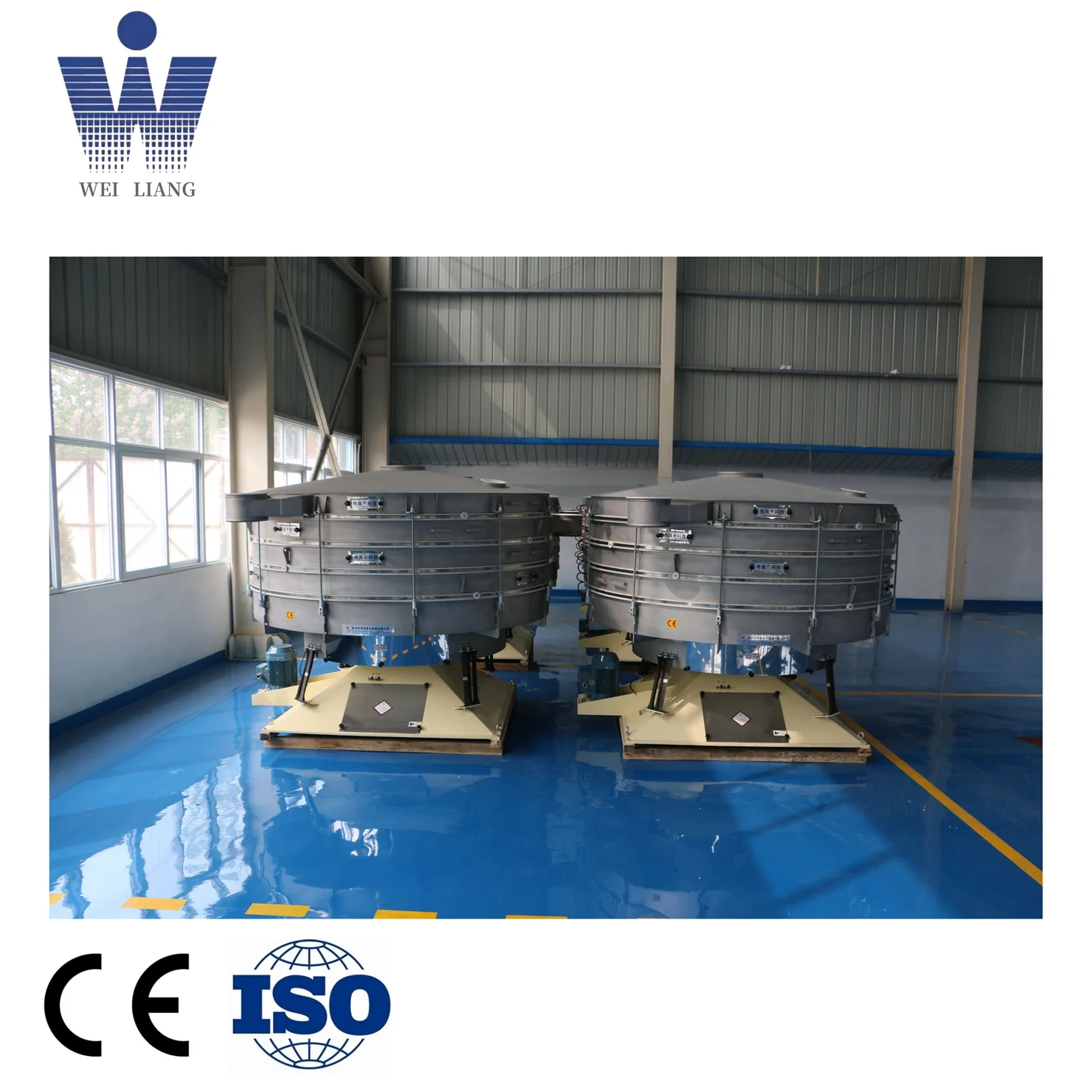

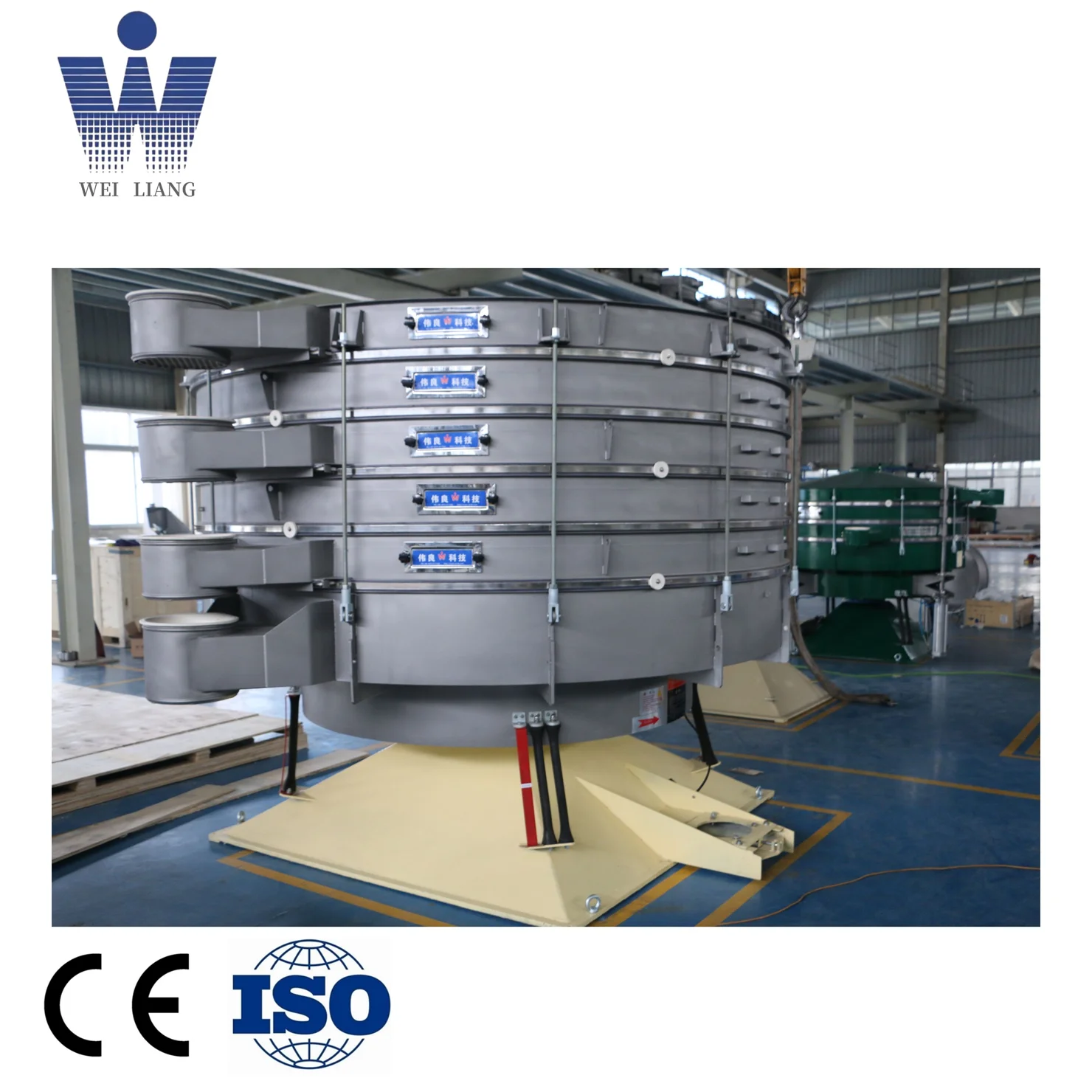

Fine Screening High Quality Tumbler Sieving Machine Grading Sodium Chloride Citric Acid Powder Tumbler Sieving Machine
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (1601071767685):
Product Overview
Description
Product Description
PRINCIPLE
The material is continuously fed from the top center inlet, thereby spreading outward to across the entire screening surface. The finer particles fall through the screen, and the coarse particles successively slide towards the periphery. The material moves from the center of the screen to the edge in a spiral pattern with acceleration gradually increasing, which result effective near size screening. This sieving process is repeated on each layer, and the separated particles are discharged through the outlets.
WHY CHOOSE US
The core of a good Tumbler screen is "BALANCE".

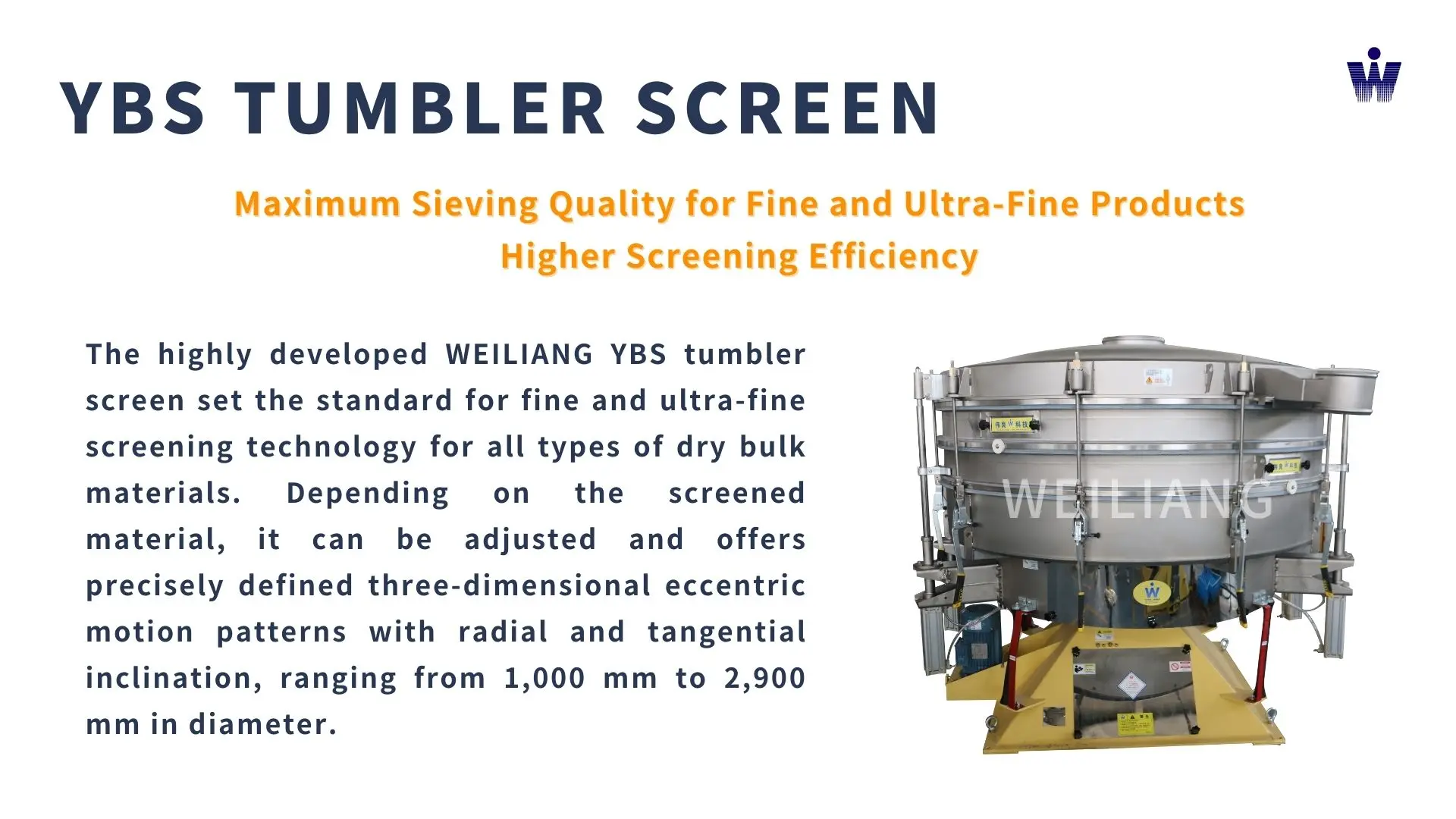

Our engineers will adjust eccentric, radial and tangential (ERT) angular according to the unique characteristics of each material to change the retention time and movement trajectory of the material on the screen.
The adjustment to the radius of eccentric angular will change the speed of the machine’s movement. Larger tangential angular will accelerate the tangential direction and speed of material. The radial angular will affect the perpendicular motion.
Larger models （above YBS-2000） will be more obvious. If the ERT parameter adjustment is not suitable, there will be problems with the machine's motion trajectory, resulting in imbalance, lead to machine cracking, decreased screening precision, etc.

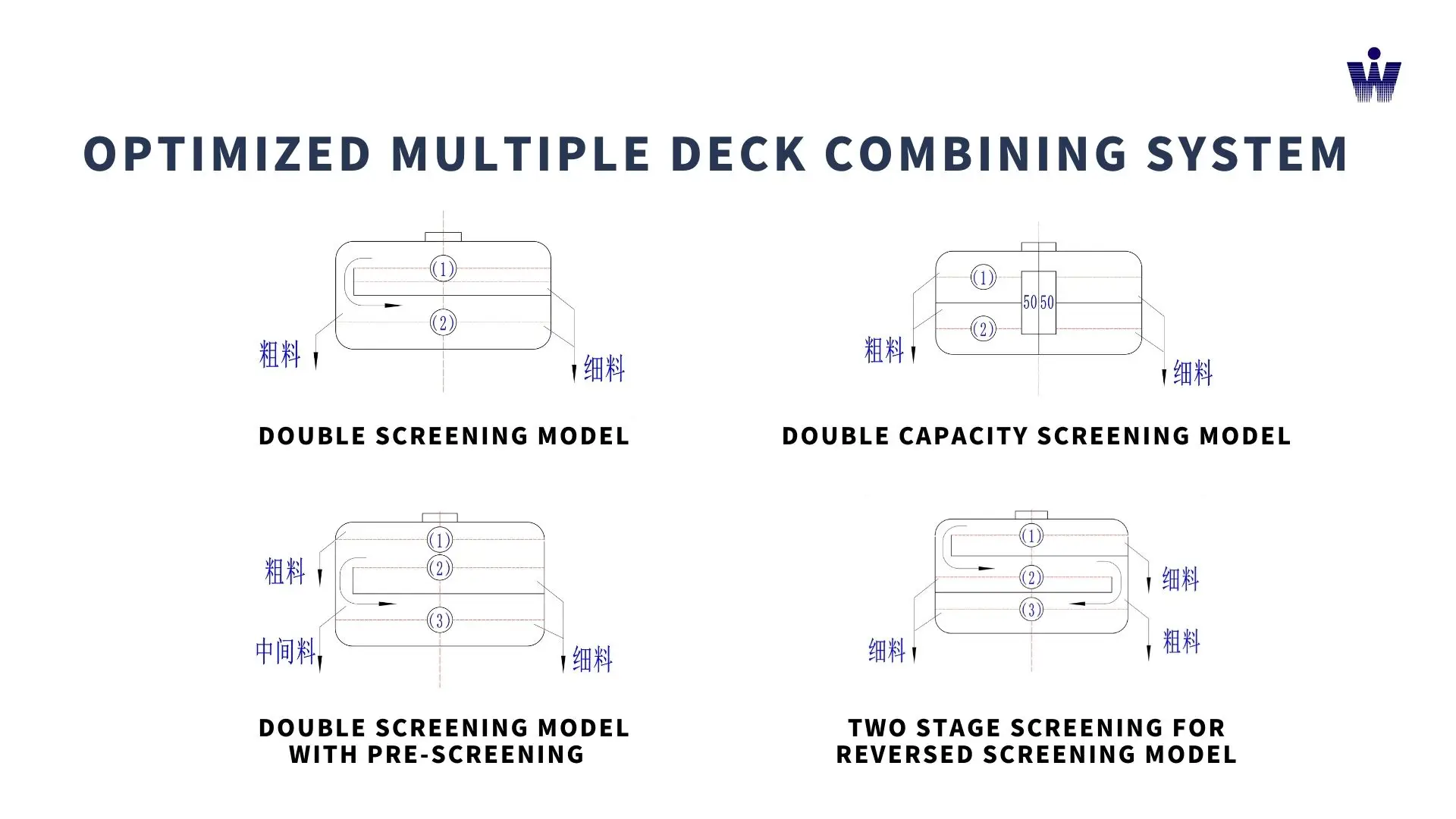

By adjusting the ERT, Weiliang YBS tumbler screen can achieve the optimal sieving effect for different materials.
Technical Parameters

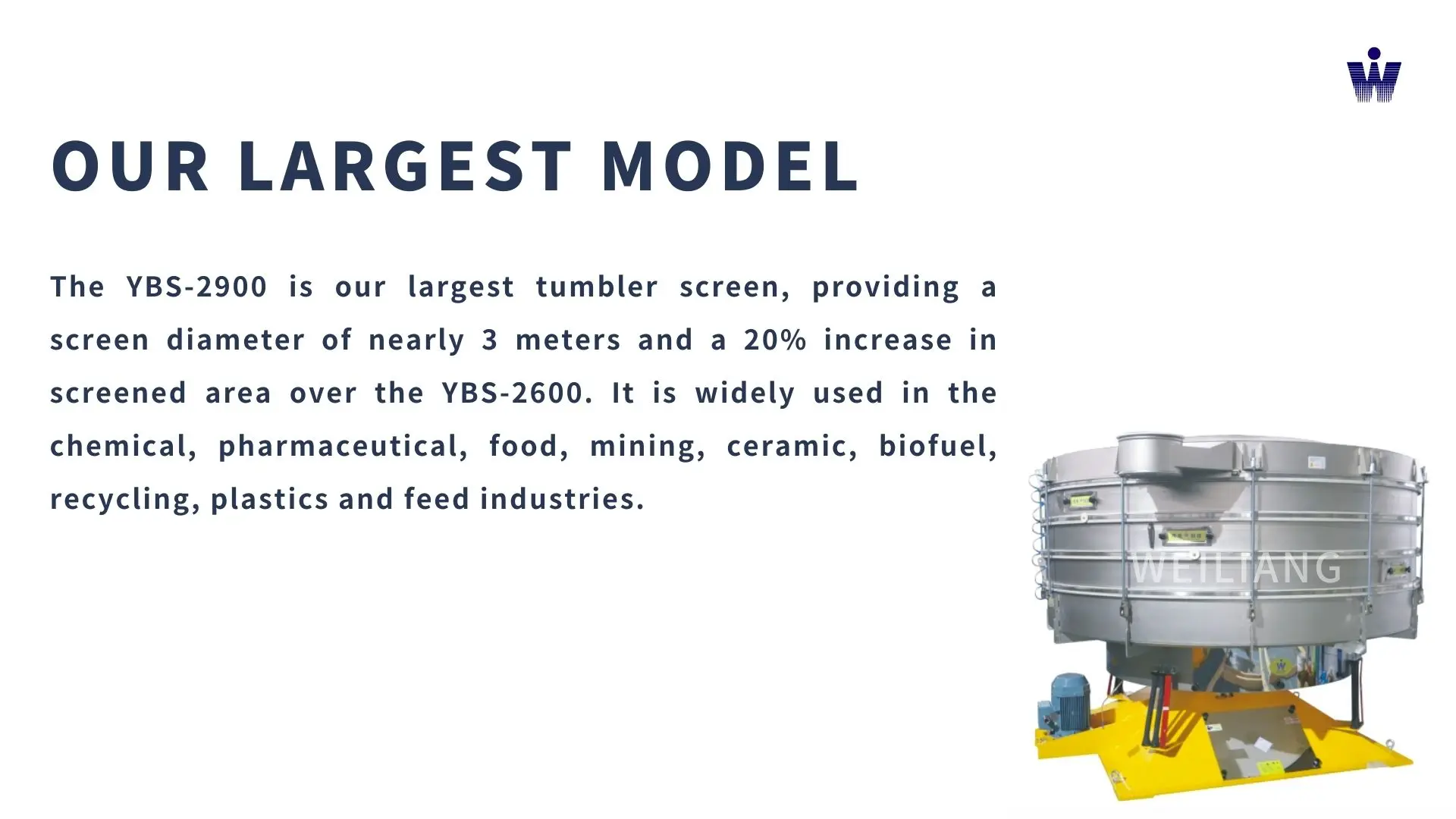

Model | YBS-1000 | YBS-1200 | YBS-1600 | YBS-2000 | YBS-2200 | YBS-2600 | YBS-2900 | ||||||
Diameter(mm) | Ø1040 | Ø1250 | Ø1580 | Ø1880 | Ø2200 | Ø2650 | Ø2909 | ||||||
Mesh area(sq.m) | 0.75 | 1.11 | 1.83 | 2.62 | 3.7 | 5.31 | 6.39 | ||||||
Power(kw) | 1.5 | 1.5 | 3.0 | 4.0 | 4.0 | 5.5 | 7.5 | ||||||
Layer(s) | 1--5 | ||||||||||||
Applications
* Pharmaceuticals (Chinese medicine powder, western medicine powder, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
Packing & Delivery
Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
Company Profile
Weiliang Sieving Machinery Co., Ltd founded in 2006, is a leading manufacturer of vibrating separation equipment, specialized in fine screening, with two branches. Our leading products include vibrating screen, ultrasonic vibrating screen,
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
WEILIANG is first company to produce tumbler screen and gyratory sifter in china. We always adhere to the strategy of scientific and technological development, and have more than 80 invention patents.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Hot Selling Products
FYBS Gyratory Screen
YBS Tumbler Screen
WLQ Centrifugal Screen
S49AQ
Direct Discharge vibrating screen
SZF Linear Vibrating Screen
S49AC
Ultrasonic Vibrating Screen
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance. We are available to offer help all the time.
2. What is the delivery time from the factory?
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
4. Payment Terms?
We usually accept T/T, L/C;
We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery.
