48V 5kw 10kwh 15kwh Power Wall mounted 51.2V 300ah Lithium Lifepo4 Wall Mounted Solar Energy Storage Battery
- Category: >>>
- Supplier: Yichun Dawnstars Manufacture And Trade Co. Ltd.
Share on (1601071965477):
Product Overview
Description
Products Description
PERFORMANCE SPECIFICATIONS | ||||||||
Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-15 | HZEB-LCT-16 | ||||
Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | ||||
Cell model/configuration | 3.2V100Ah/16S1P | 3.2V206Ah/16S1P | 3.2V280Ah/16S1P | 3.2V314Ah/16S1P | ||||
Capacity(Ah) | 100Ah | 206Ah | 280Ah | 314Ah | ||||
Rated Energy(kwh) | 5.12kwh | 10.55kwh | 14.34kwh | 16.076kwh | ||||
Max.Charge/Discharge Current(A) | 50A/50A | 100A/100A | 100A/100A | 100A/100A | ||||
Voltage Range(Vdc) | 44.8-57.6V | |||||||
Scalability | Up to 6 parallel | |||||||

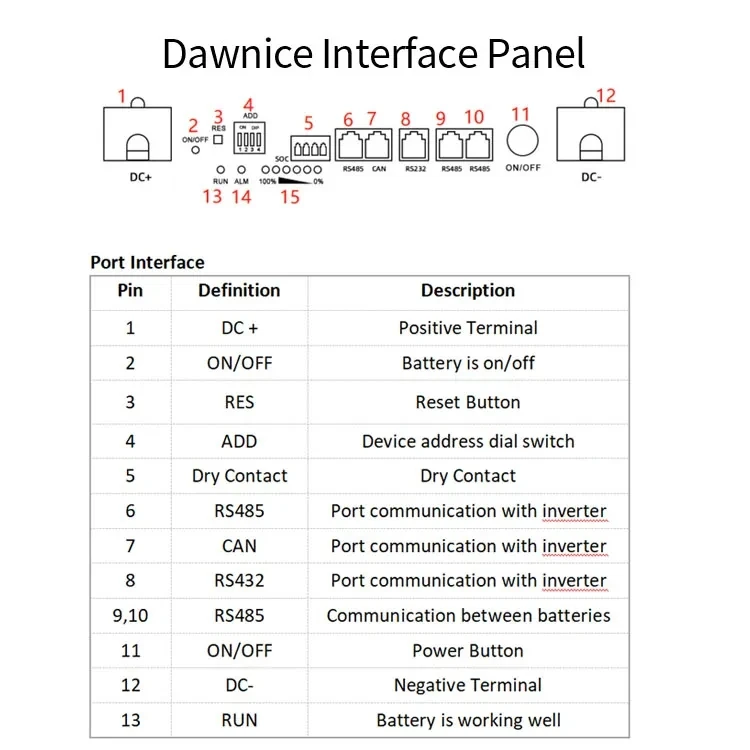

Communication | RS232-PC,RS485(B)-BAT RS485(A) | |||||||
Cycle Life | ≥6000Cycles | |||||||
Design Life | ≥15Years(25℃) | |||||||
MECHANICAL SPECIFICATIONS | ||||||||
Weight(Net/gross)(KG) | 58.2/65kg | 96.05/102kg | 122/135kg | 127/148kg | ||||
Dimension(W/D/H)(mm) | 645*440*193 | 620*461*284 | 765*461*284 | |||||
Installation Mode | Wall mounted | |||||||
IP Grade | IP54 | |||||||
SECURITY AND CERTIFICATION | ||||||||
Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |||||||
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||||
Protection | BMS,Breaker | |||||||
ENVIRONMENTAL SPECIFICATIONS | ||||||||
Operating temperature(℃) | Charge 0℃_50℃;discharge -10℃_50℃ | |||||||
Altitude(m) | ≤2000 | |||||||
Humidity | ≤95%(Non-condensing) | |||||||
Production process
Company Profile
Packaging and shipping

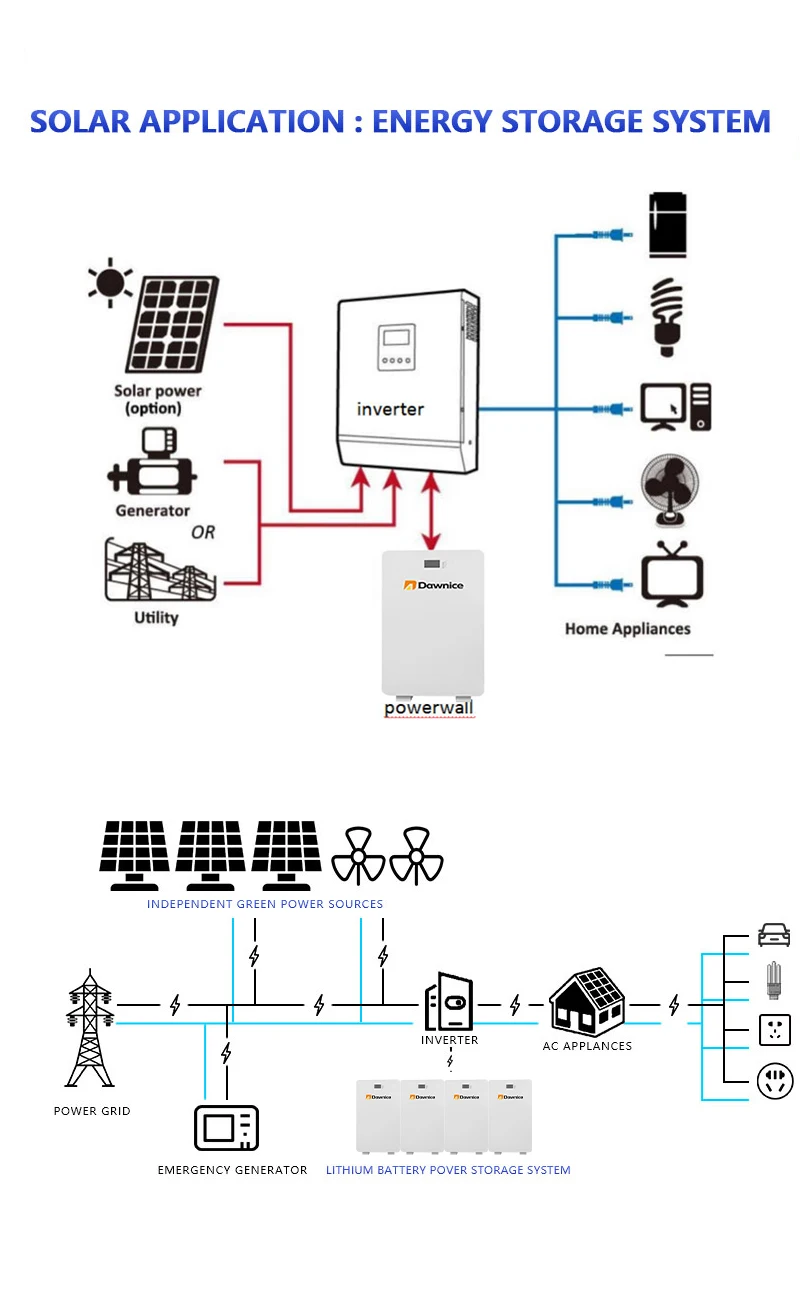

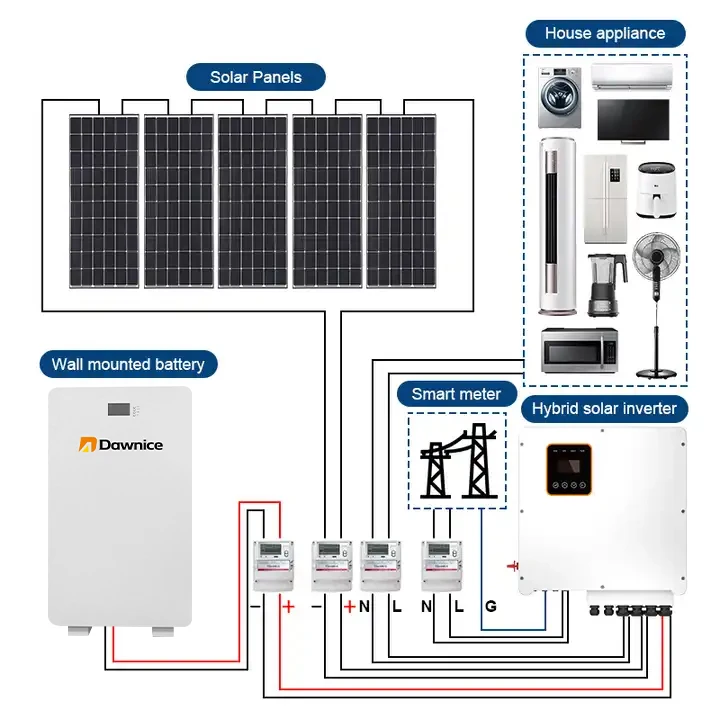

The role of wall-mounted battery:
1. Energy saving and emission reduction
2. Reduce the burden of the power grid
3. Improve power quality
4. Emergency power supply
In emergencies, the home energy storage system can be used as an emergency power supply to ensure household electricity demand.
1. Energy saving and emission reduction
2. Reduce the burden of the power grid
3. Improve power quality
4. Emergency power supply
In emergencies, the home energy storage system can be used as an emergency power supply to ensure household electricity demand.
FAQ
Q: What’s the warranty of wall mounted battery?
A: 10 years,we support extended warranty services
Q:How to become your agent?
A: Contact us through Alibaba/email, and we can talk about details to confirm.
Q: Do you support OEM/ODM?
A: Of course, we can do customized services for our partners
A: 10 years,we support extended warranty services
Q:How to become your agent?
A: Contact us through Alibaba/email, and we can talk about details to confirm.
Q: Do you support OEM/ODM?
A: Of course, we can do customized services for our partners
