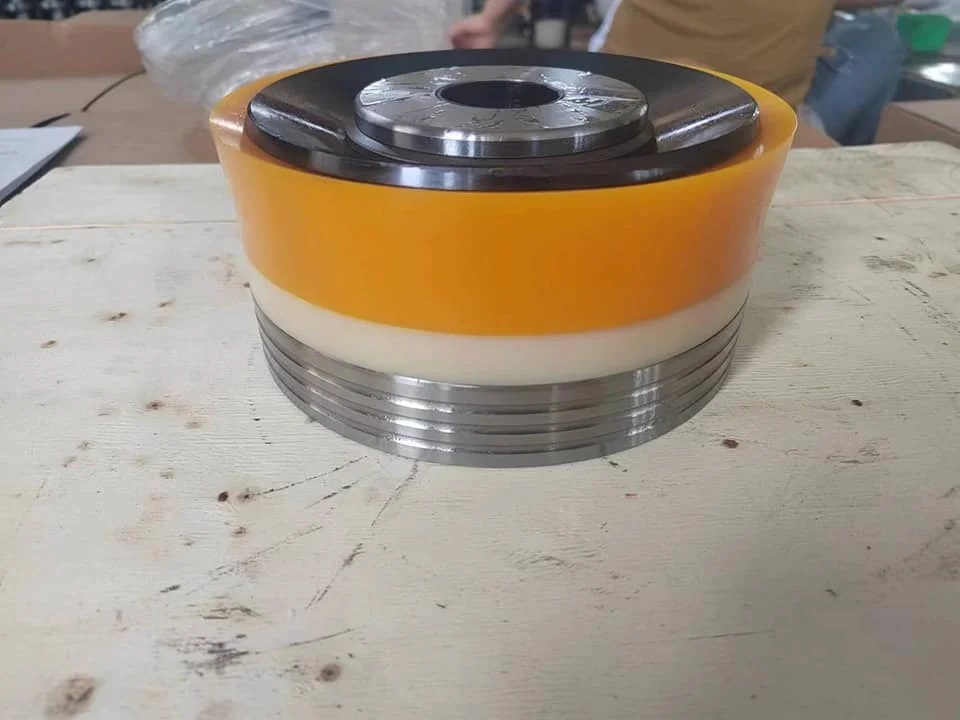

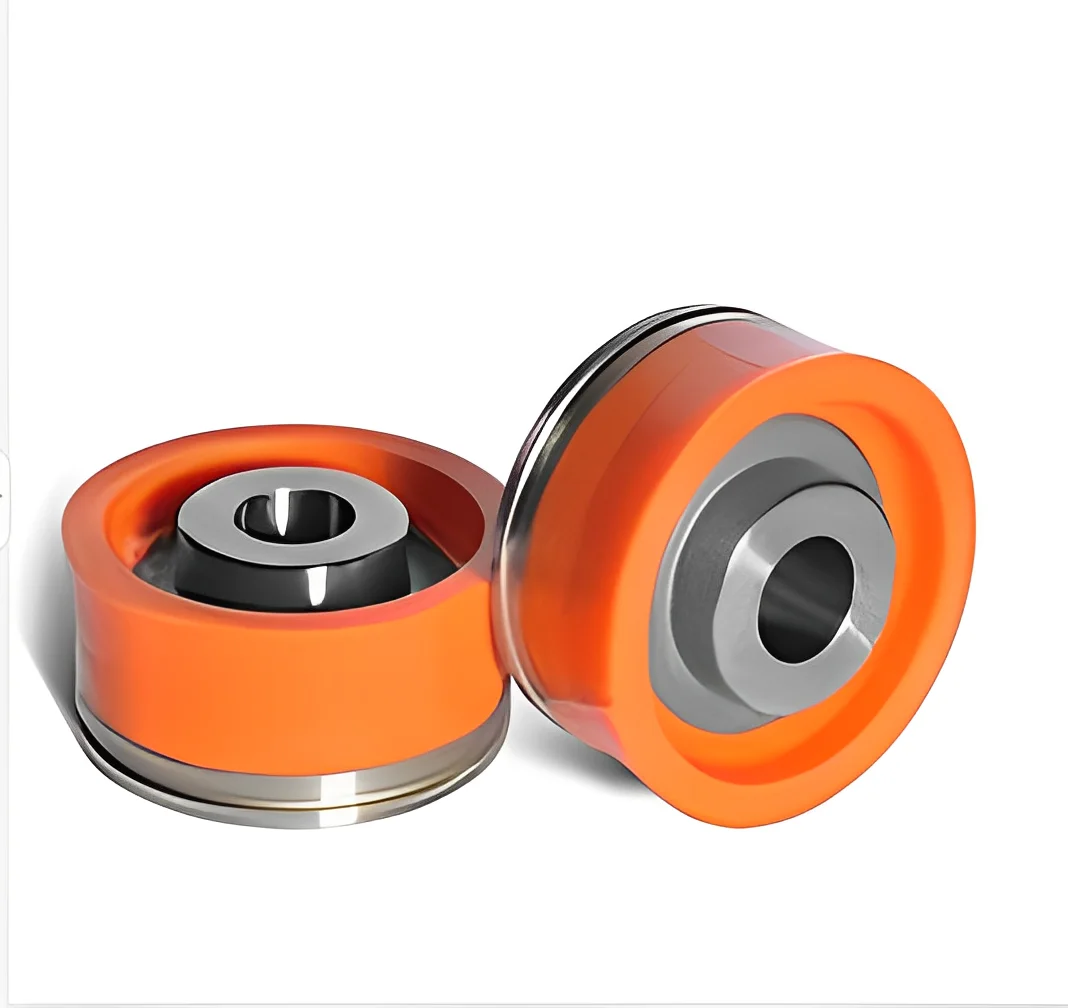

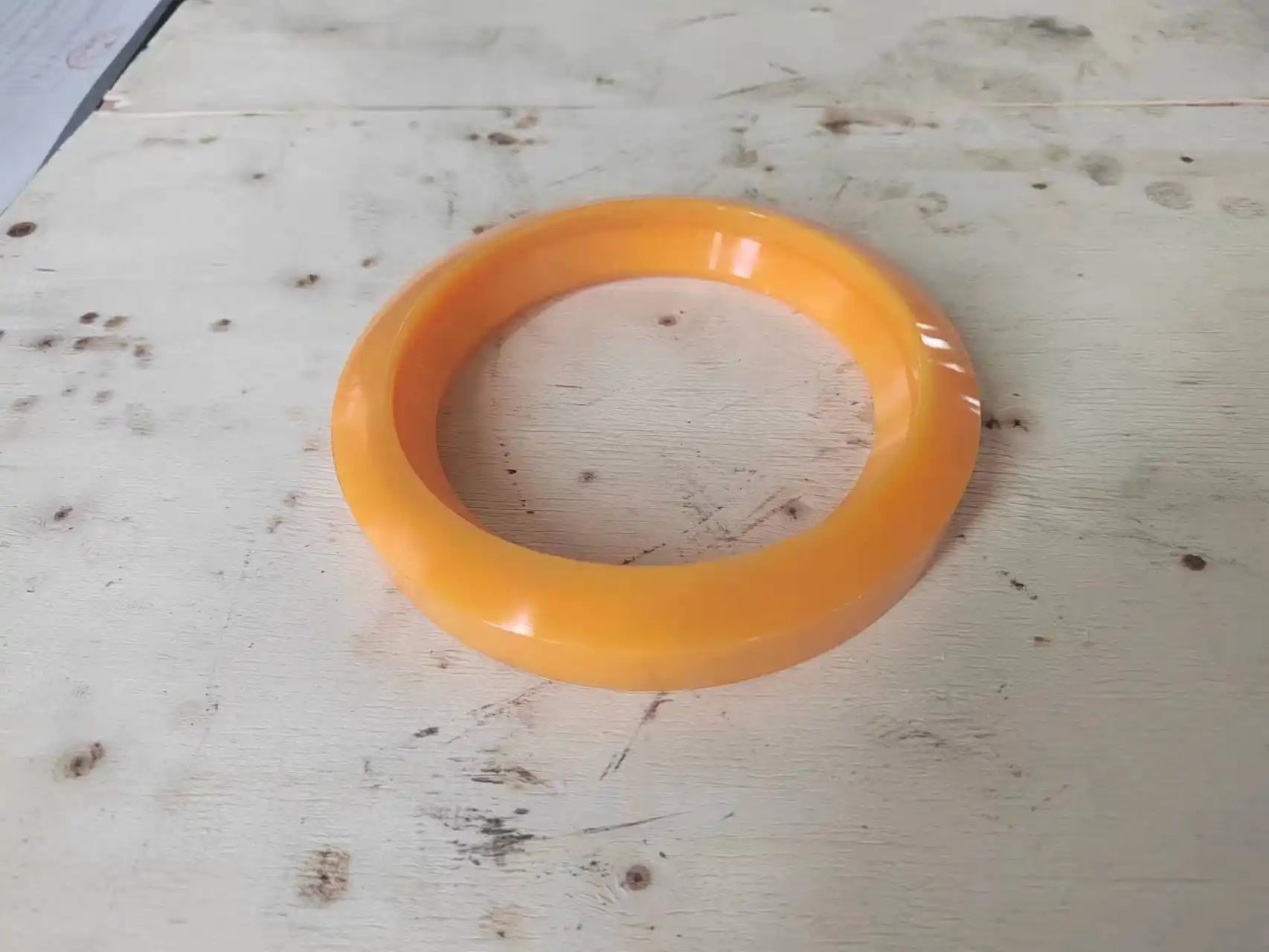

High quality Mud Pump Rubber Piston for BW250/BW150 Oilfield Oil Well Drilling
- Category: >>>
- Supplier: Shandong Sunrise Petroleum Equipment Co. Ltd.
Share on (1601071968500):
Product Overview
Description
Products Description
Single metal cylinder liner
The single metal cylinder liner has undergone carburization and high-frequency treatment, and its hardness can reach HRC58-62. It has the characteristics of high smoothness, wear resistance, corrosion resistance, and long service life, and is suitable for use in milder corrosive slurries.
Bimetal cylinder liner
The bimetallic cylinder liner is one of the most widely used and widely used hydraulic end accessories for mud pumps. The bimetallic cylinder liner combines the advantages of hot forged high wear outer sleeve and high chromium wear-resistant and corrosion-resistant inner sleeve. The outer sleeve is formed by hot pressing high-quality carbon steel in one go, and the inner sleeve is centrifugally cast from high chromium cast iron. The outer sleeve has a tensile strength of over 900000psi, and the hardness of the inner sleeve after heat treatment reaches HRC62 or above. It can withstand mud pressure of 7000psi, and its inner surface is smooth like a mirror. The size tolerance of the inner hole is strict, The normal service life can reach over 800 hours.
Ceramic cylinder liner
With the continuous expansion and worsening of human exploitation of global oil and gas resources, a large number of metal cylinder liners are frequently replaced, making it difficult to ensure the high pressure and wear requirements of drilling rigs. Ceramic cylinder liners use three major material systems: zirconia, zirconia toughened alumina (ZTA), and high-performance A-99 alumina ceramics. Its raw materials are high-purity nano zirconia and alumina micro powder, which are formed through advanced cold pressing technology, high-temperature sintering, assembly, and finally polished with high-precision grinding. It has high bending and tensile strength, high fracture toughness, and acid alkali corrosion resistance
The single metal cylinder liner has undergone carburization and high-frequency treatment, and its hardness can reach HRC58-62. It has the characteristics of high smoothness, wear resistance, corrosion resistance, and long service life, and is suitable for use in milder corrosive slurries.
Bimetal cylinder liner
The bimetallic cylinder liner is one of the most widely used and widely used hydraulic end accessories for mud pumps. The bimetallic cylinder liner combines the advantages of hot forged high wear outer sleeve and high chromium wear-resistant and corrosion-resistant inner sleeve. The outer sleeve is formed by hot pressing high-quality carbon steel in one go, and the inner sleeve is centrifugally cast from high chromium cast iron. The outer sleeve has a tensile strength of over 900000psi, and the hardness of the inner sleeve after heat treatment reaches HRC62 or above. It can withstand mud pressure of 7000psi, and its inner surface is smooth like a mirror. The size tolerance of the inner hole is strict, The normal service life can reach over 800 hours.
Ceramic cylinder liner
With the continuous expansion and worsening of human exploitation of global oil and gas resources, a large number of metal cylinder liners are frequently replaced, making it difficult to ensure the high pressure and wear requirements of drilling rigs. Ceramic cylinder liners use three major material systems: zirconia, zirconia toughened alumina (ZTA), and high-performance A-99 alumina ceramics. Its raw materials are high-purity nano zirconia and alumina micro powder, which are formed through advanced cold pressing technology, high-temperature sintering, assembly, and finally polished with high-precision grinding. It has high bending and tensile strength, high fracture toughness, and acid alkali corrosion resistance
Suitable for the following models of mud pumps
Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-2200 | ||
Rated power | HP/kw | 500/373 | 800/597 | 1000/746 | 1300/969 | 1600/1193 | 2200/1618 | |
Rated stroke | SPM | 165 | 150 | 140 | 120 | 120 | 105 | |
Stroke length | in/mm | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 | 14"/356 | |
Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 3.512 | ||
Inlet Dia. | in/mm | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 | 12"/305 | |
Outlet Dia. | in/mm | 4" Flange 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 5-1/8" Fla 5000psi | 130 | |
Valve | API5# | API6# | API6# | API7# | API7# | API8# | ||
Max line Dia. | in/mm | 6.75"/170 | 6.75"/170 | 6.75"/170 | 7"/180 | 7"/180 | 230 | |
Weight | kg | 9800 | 14500 | 18700 | 24500 | 24700 | 39000 | |
Certifications

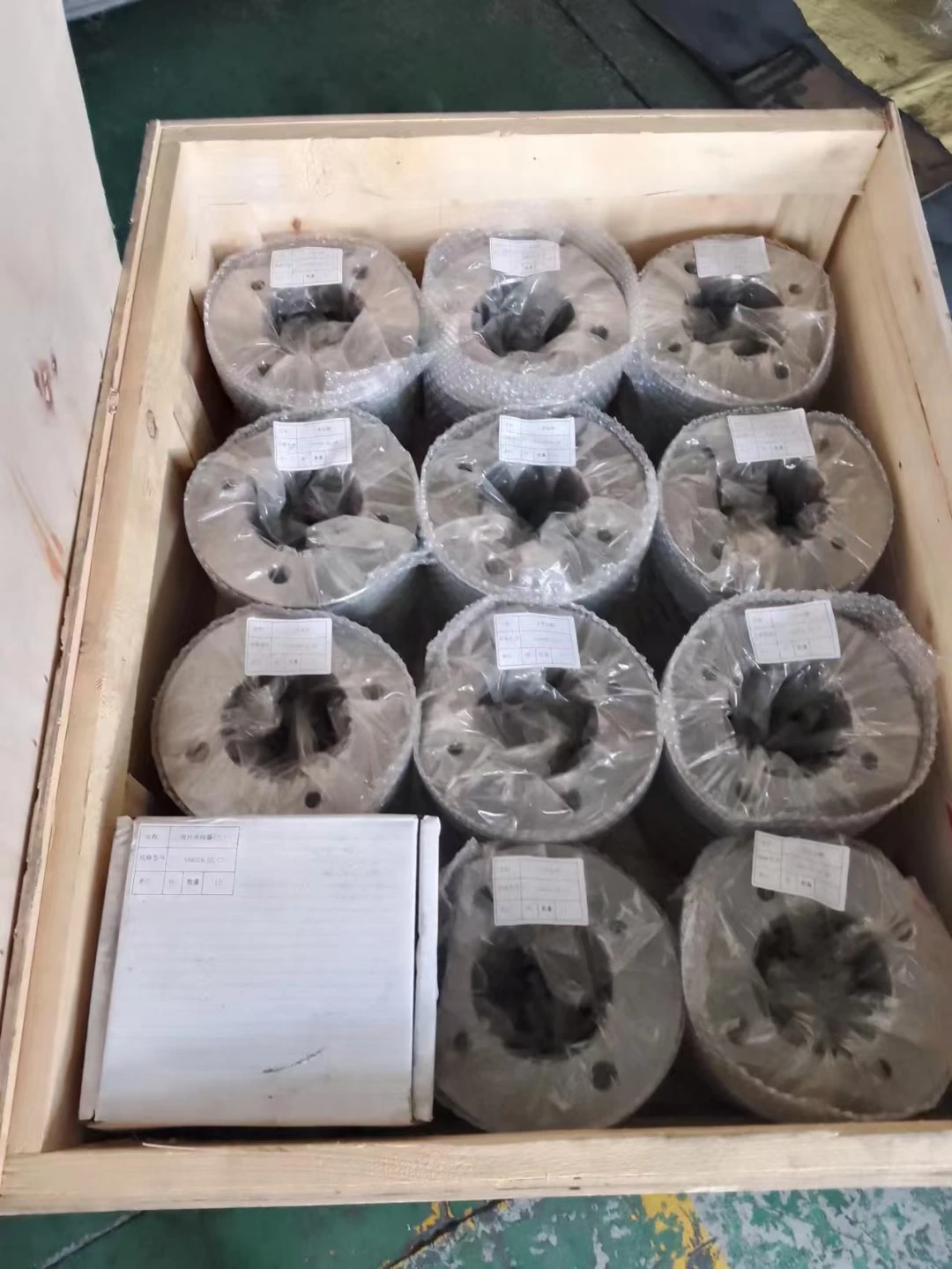

Transportation &Packaging
