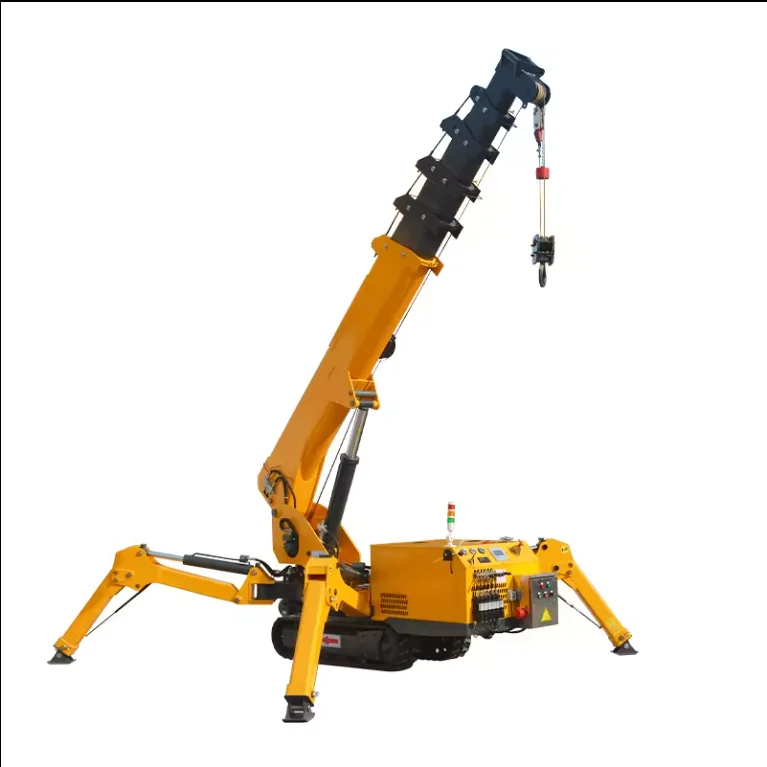

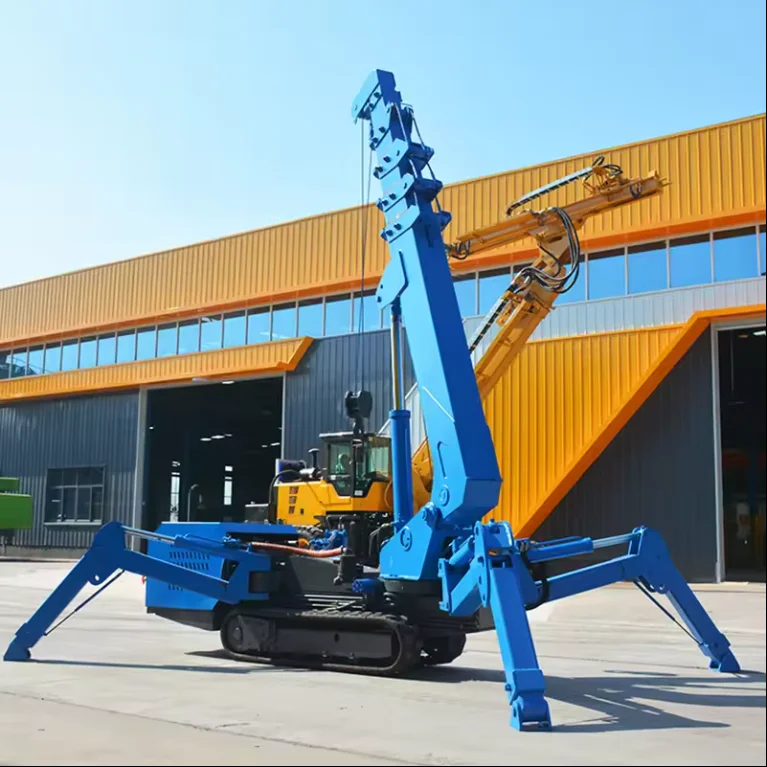

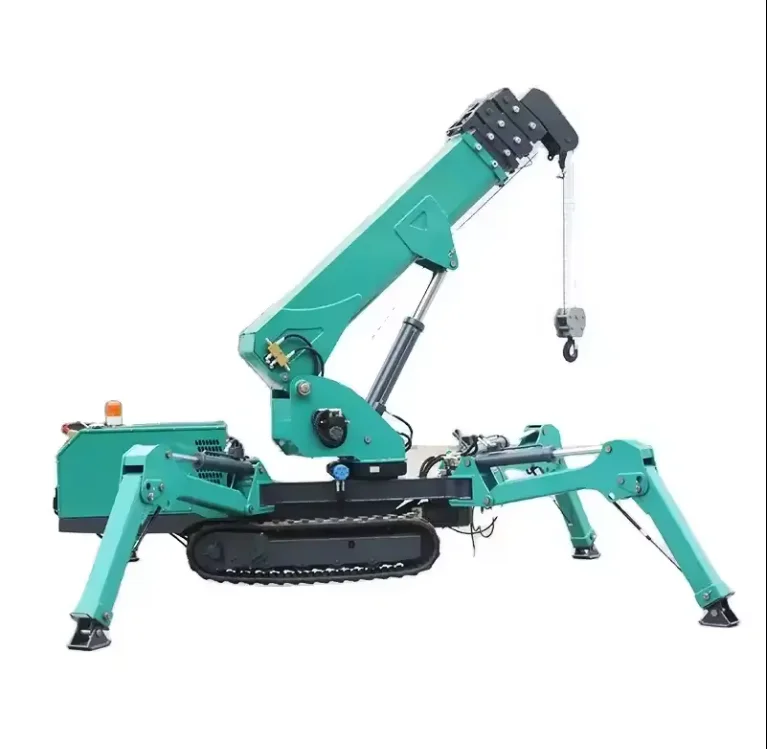

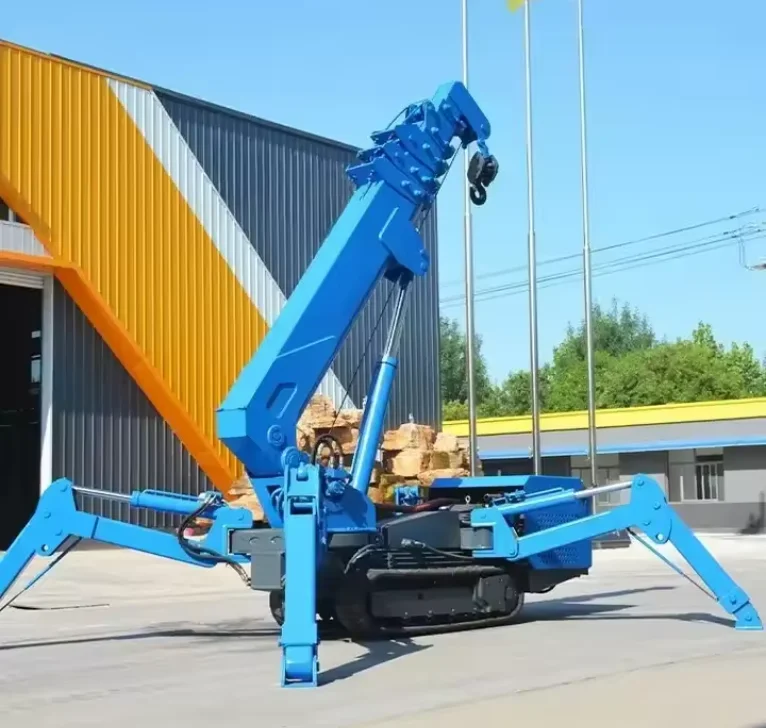

Mini Lifting Machinery Spirder Crane Movable 8ton Crawler Crane 3ton

Share on (1601072079273):


Price:$179,999.00 - $189,999.00

Quantity:


Product Overview

Description


PRODUCT DESCRIPTION


Durable Spider Crane
Spider crane miniature design, small size, strong lifting capacity.


Production range: 1.5 tons - more than 10 tons,

The most commonly used models: 3 tons -5 tons -8 tons.


The model and configuration can be customized, the design is reasonable, the operation is simple, easy to learn and understand, and the work is stress-free.
Use the wireless remote control or body switch to operate, and the operation is fast. Say goodbye to the era when you can only rely on human work in narrow spaces, which not only improves work efficiency but also ensures work safety.

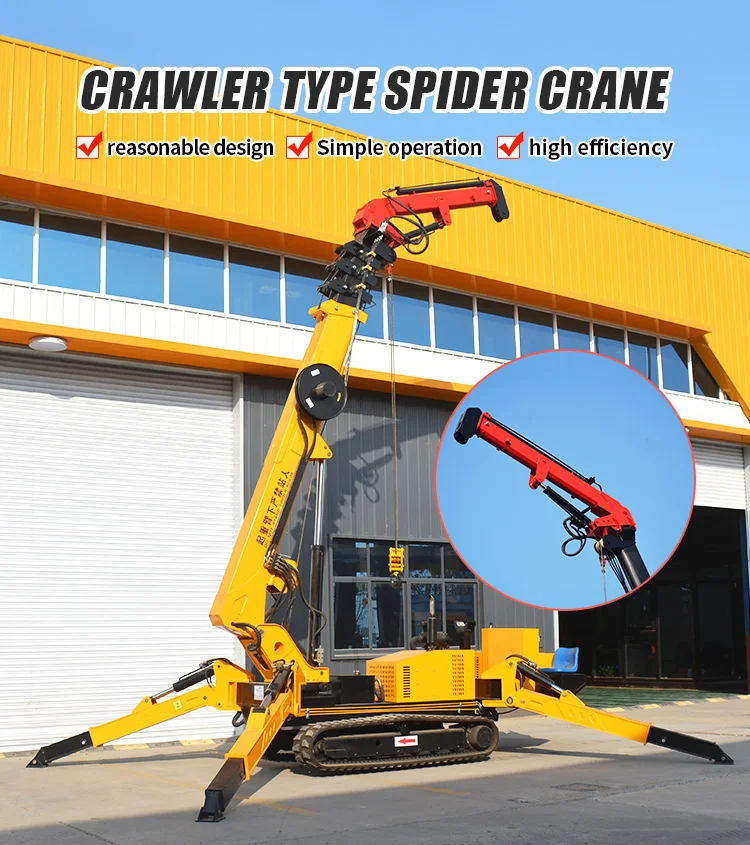

SPIRDER 12.jpg





SPECIFICATION

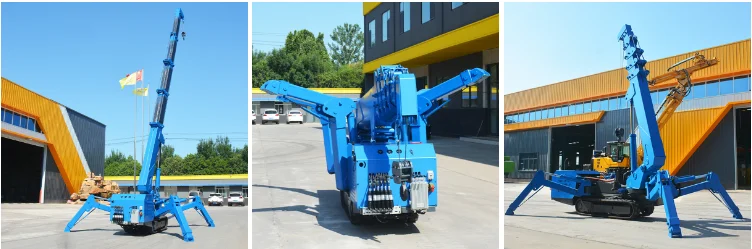

SPIRDER XIJIE.png












































































































Model


YG-3T


YG-5T


YG-8T


Specification


3t


5t


8t


Maximum working radius


8.83mx0.15t


14mx0.5t


16.5m


Maximum above-ground head


9.9mx0.7t


16.8m



Winch device


Hook Speed


0-8m/min(4 rope


12m/min(4 rope)


12m/min(4 rope)


Rope diameter


8mm-45m


11mm-80m


11mm-80m


Telescopic system


Boom Type


5-section boom, pentagonal structure


5-section boom, pentagonal structure


5-section boom, pentagonal structure


Boom Length/Time


3.1m-9.2m/20sec


12.3m/54sec


12.3m/54sec


Up and down


Boom Angle/Time


0°~78°/13sec


0°~78°/13sec


0°~78°/13sec


Slew system


Slew Angle/Speed


0-360°continuous/60sec


0-360°continuous/60sec


0-360°continuous/60sec


Traction system


Walking Way


Hydraulic motor drives


Hydraulic motor drives


Hydraulic motor drives


Walking Speed


0~2.5km/h


0~2.5km/h


0~2.5km/h


Grade Ability


(25°)36%


(25°)36%


(25°)36%


Operating characteristics


Manual operation, remote control


Manual operation, remote control


Manual operation, remote control


Transport parameters


L*W*H


2950*980*1560mm


5000*1500*1900mm


5000*1600*2180mm


Total weight


2700kg


6200kg


7200kg


The spider crane adopts rubber crawler hydraulic traveling device, and the hoisting, telescopic, undulating and rotating devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of three-dimensional modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance.


The machine is suitable for operations in narrow places where large cranes cannot be deployed.

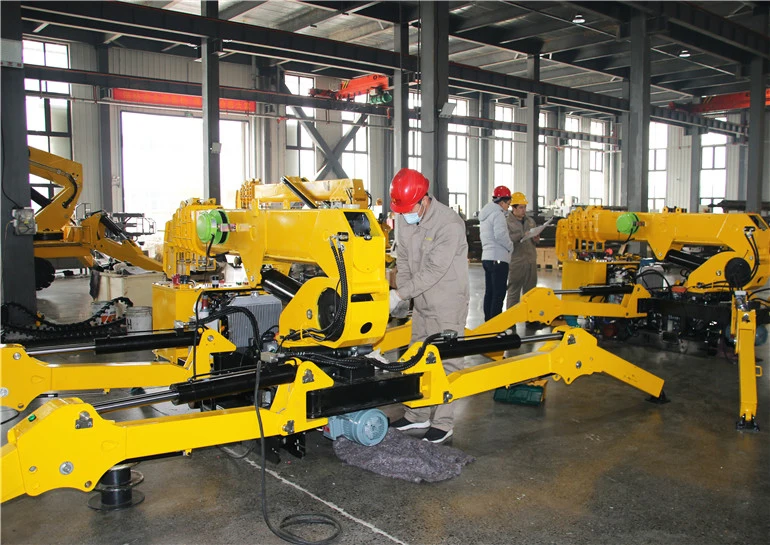

spirder 3.jpg

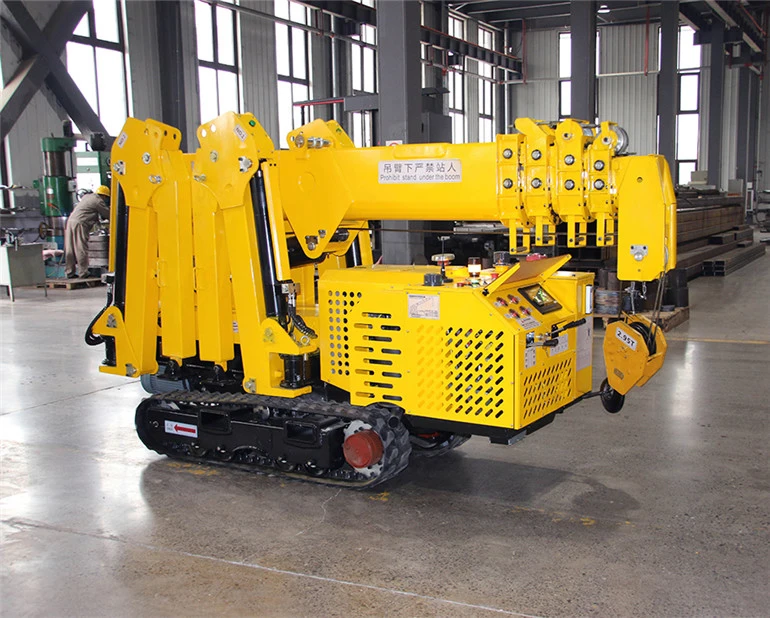

spirder 2.jpg

CONFIGURATION

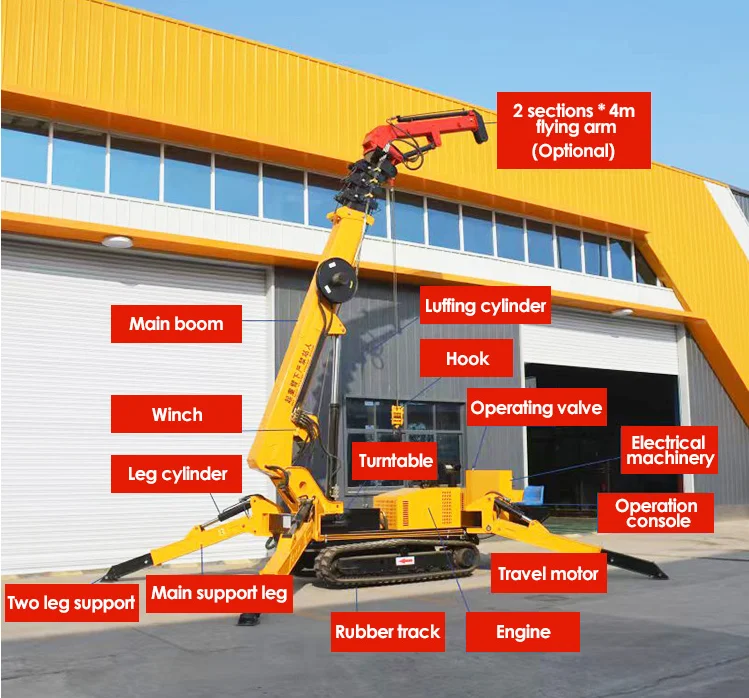

SPIRDER 13.png

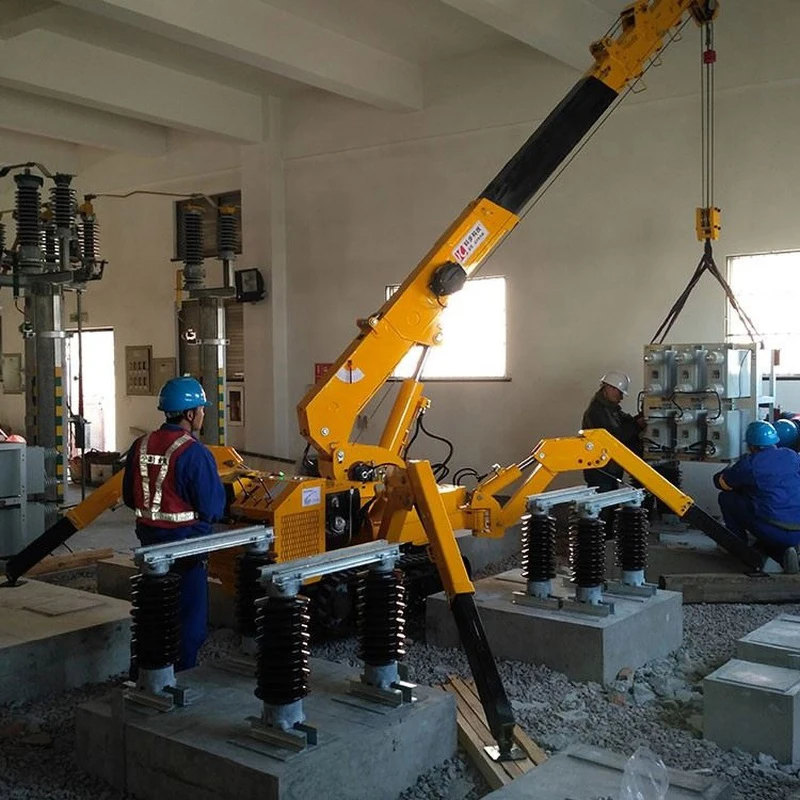

SPIRDER .jpg

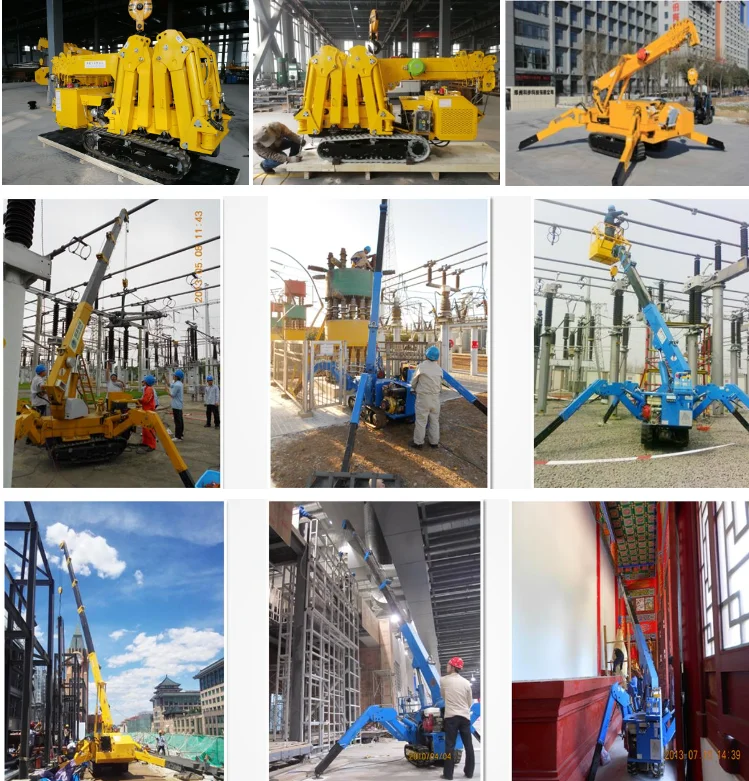

APPLICATION

SPIRDER 4.png

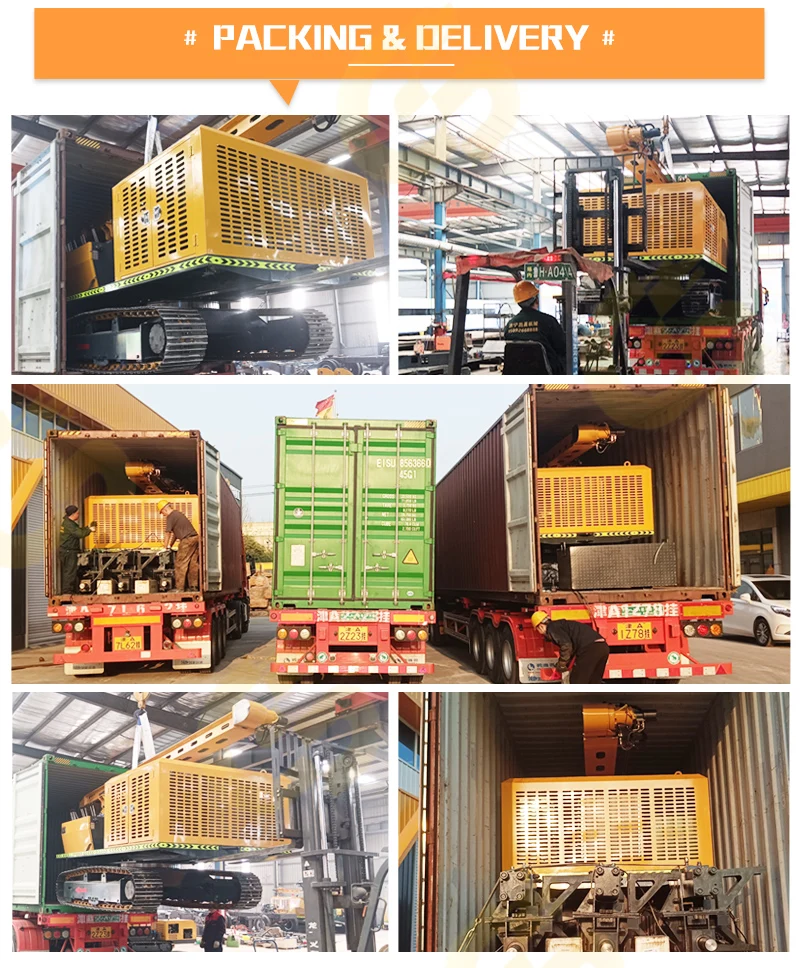

Packaging & Shipping
