Toowei Factory Direct ip67 6mm 8mm 12mm16mm installation size waterproof LED indicator lights LED light 2 pin soldering
- Category: >>>
- Supplier: Zhejiang Toowei Electronics Co. Ltd.
Share on (1601072114286):
Product Overview
Description
Products Description
Product Parameter

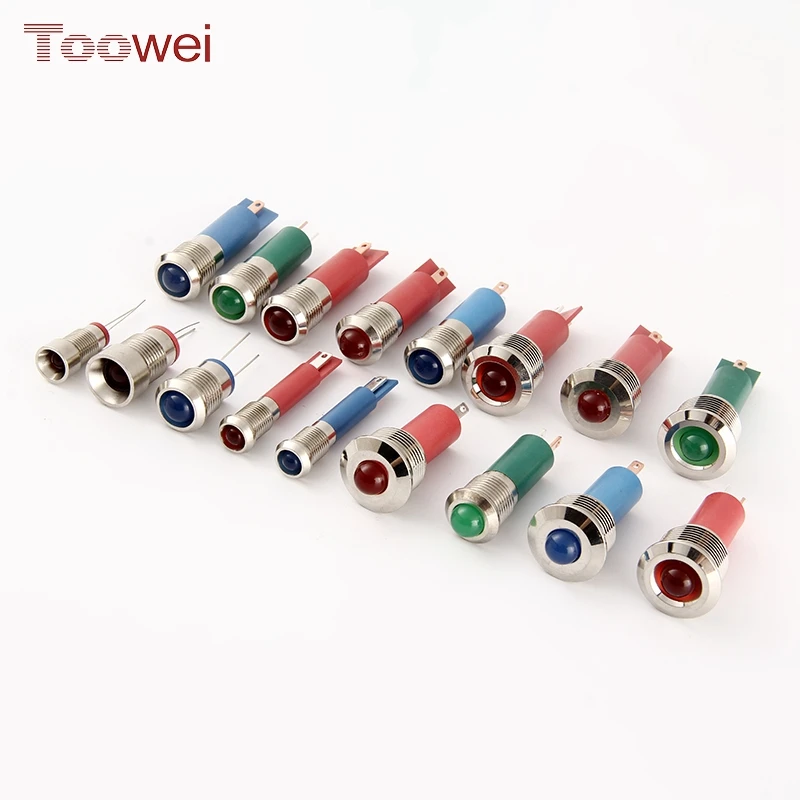

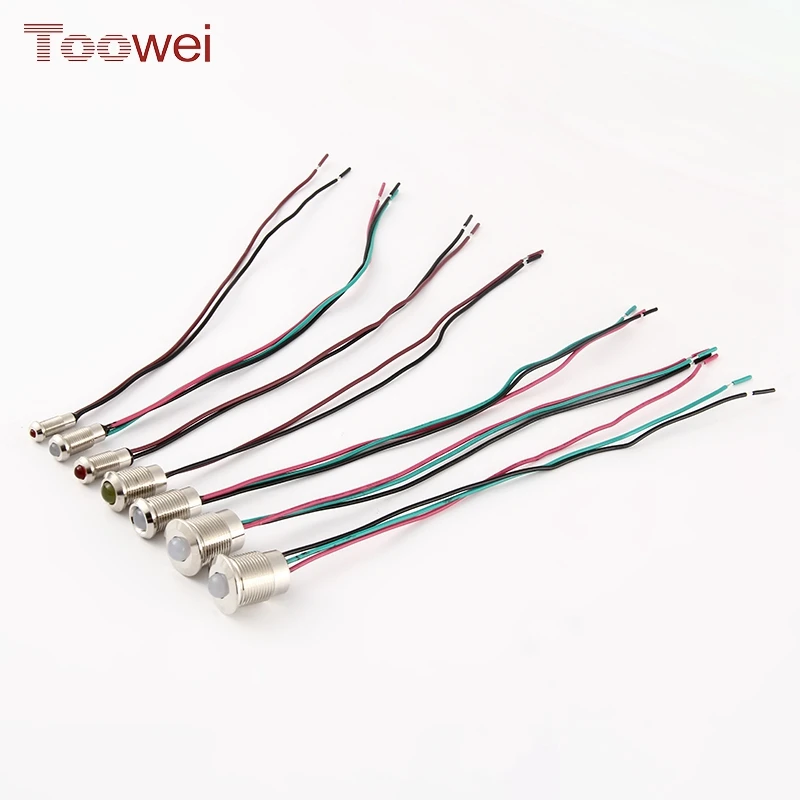

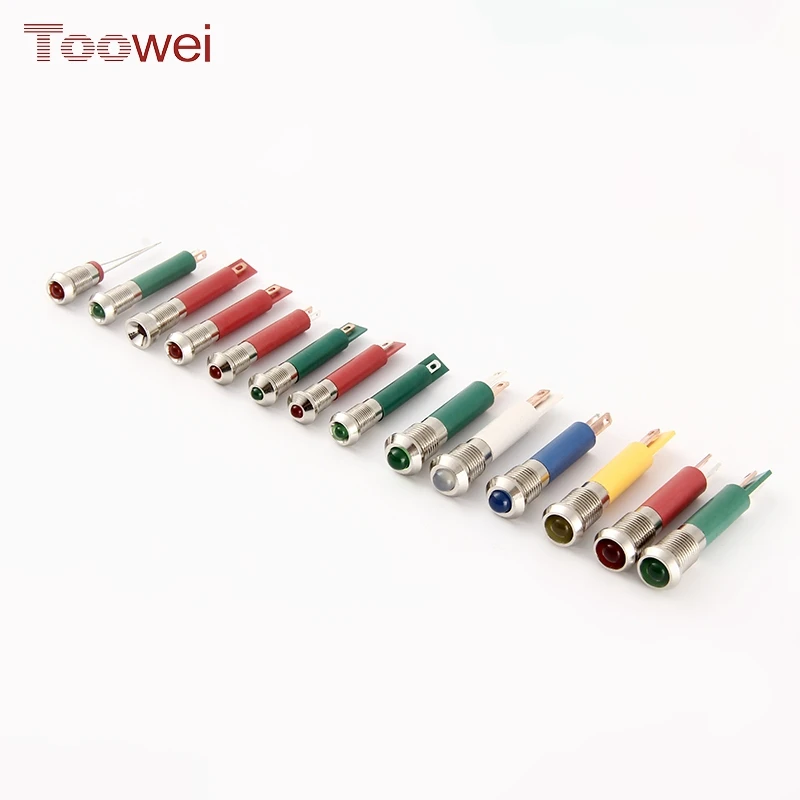

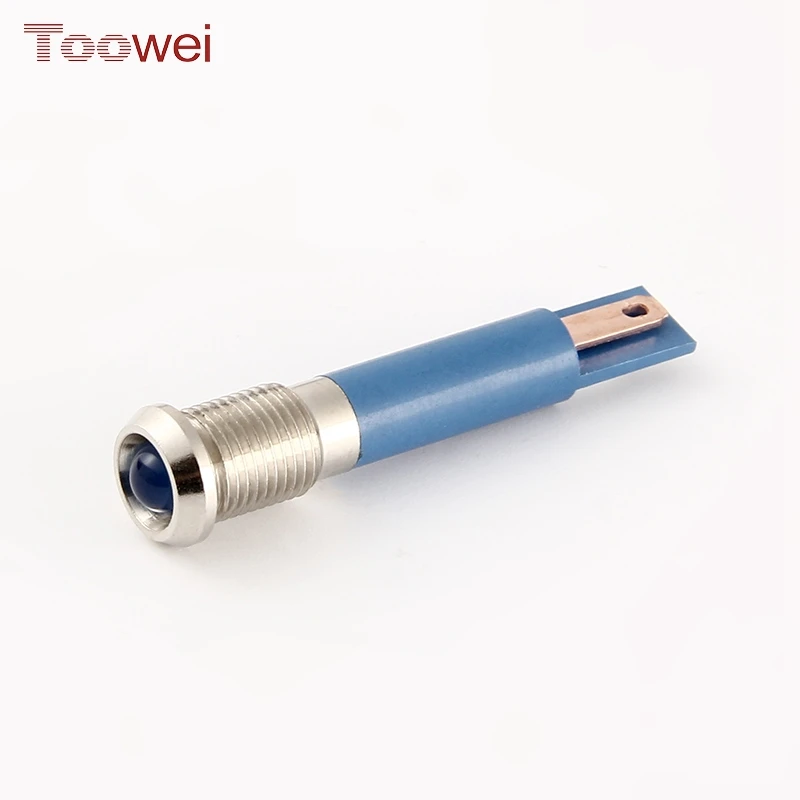

Brass alloy shell, surface electroplated bright nickel treatment, corrosion resistance, vibration resistance, impact resistance. High-brightness LED illumination, basic light color 5 (red, green, yellow, blue, white) other colors can be customized.Waterproof, oil-proof and dust-proof grade IP67 above the installation. Small size, exquisite appearance, economical andcost-effective. From the diameter of 6MM to 16MM specifications, rated voltage 2 ~ 220VDC, widely used in a variety ofelectronicand electrical equipment. |
Sea Port | Shanghai |
Supply Capacity | 100000 pcs/month |
Packing | Carton |
Color | Red, Green, Yellow, Blue, White |
Logistics model | Express delivery, By sea, Land transportation, Air transport |
1. Rating Current:20mA ; Rating voltage: 2.4v-220v
2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω
3. Withstand voltage： 1000-1500V 50/60Hz min Leakage current: 3mA
4. Bright nickel plating on the outer surface of the casing
5. Waterproof degree: IP67
6. Environment temperature: -25 ~ 85 ℃
7. Light bulb: 3mm (φ6mm)
2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω
3. Withstand voltage： 1000-1500V 50/60Hz min Leakage current: 3mA
4. Bright nickel plating on the outer surface of the casing
5. Waterproof degree: IP67
6. Environment temperature: -25 ~ 85 ℃
7. Light bulb: 3mm (φ6mm)
Light color: Red/Green/Yellow/Blue/White
8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use )
9. Installation size: 6mm
8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use )
9. Installation size: 6mm
