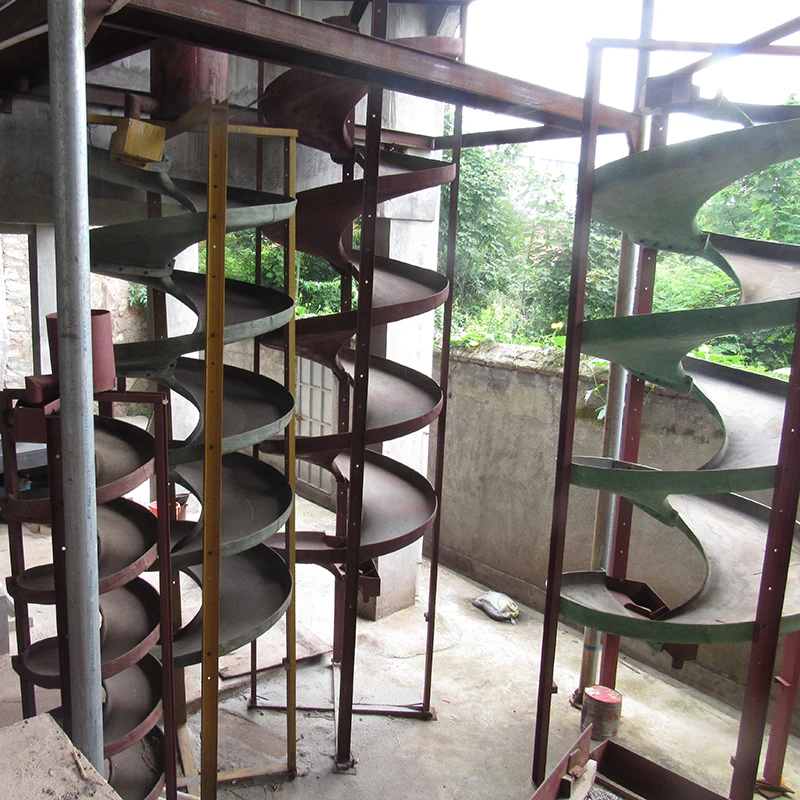

Fiberglass Spiral Concentrator Mineral Processing Spiral Separator Gravity Spiral Chute Separation Plant
- Category: >>>
- Supplier: Shicheng Gaoxuan Bearing Bush Co. Ltd.
Share on (1601072283205):
Product Overview
Description
Product Description
High Quality Spiral Chute Price

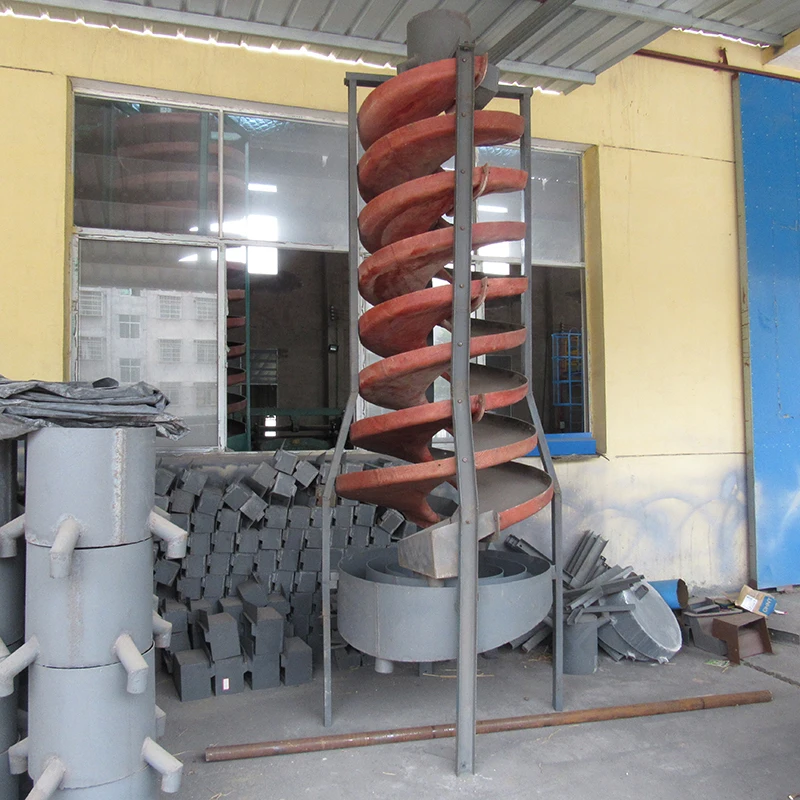

A spiral chute is sorting equipment that separates concentrate and tailings based on the particle size and density of the material. It is widely used in the separation of 0.02-0.4 mm iron ore, chromite ore, tin ore, tungsten ore, and other minerals with different specific gravity. The equipment has strong corrosion resistance, a simple structure, a large processing capacity, and a stable separation process. It is the best equipment for mining and beneficiation, especially for seaside, and riverside, Placer mining on sand beaches and streams is ideal.
Features of Spiral Chute
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.

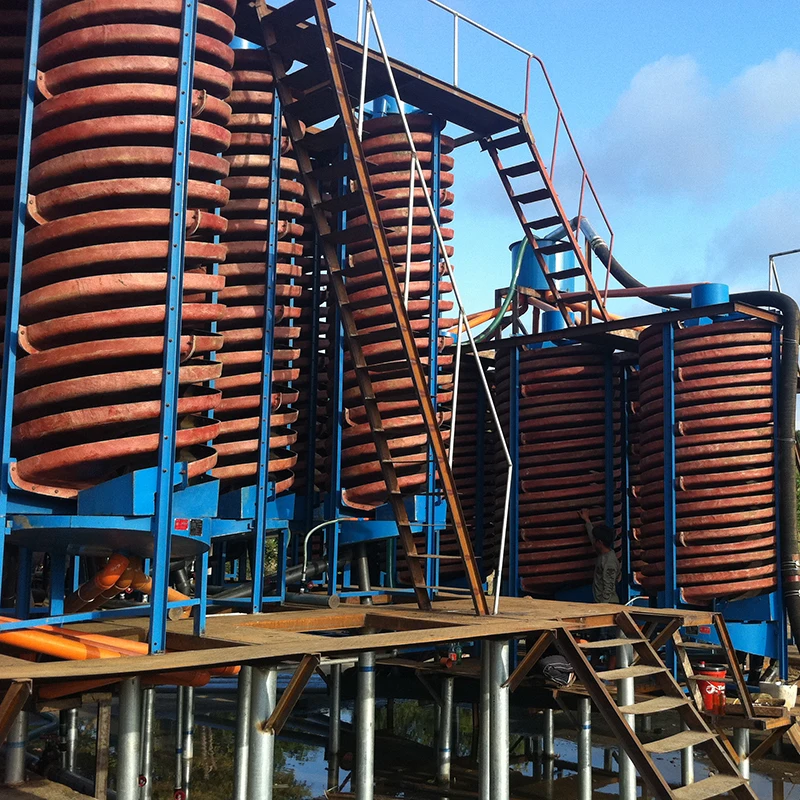

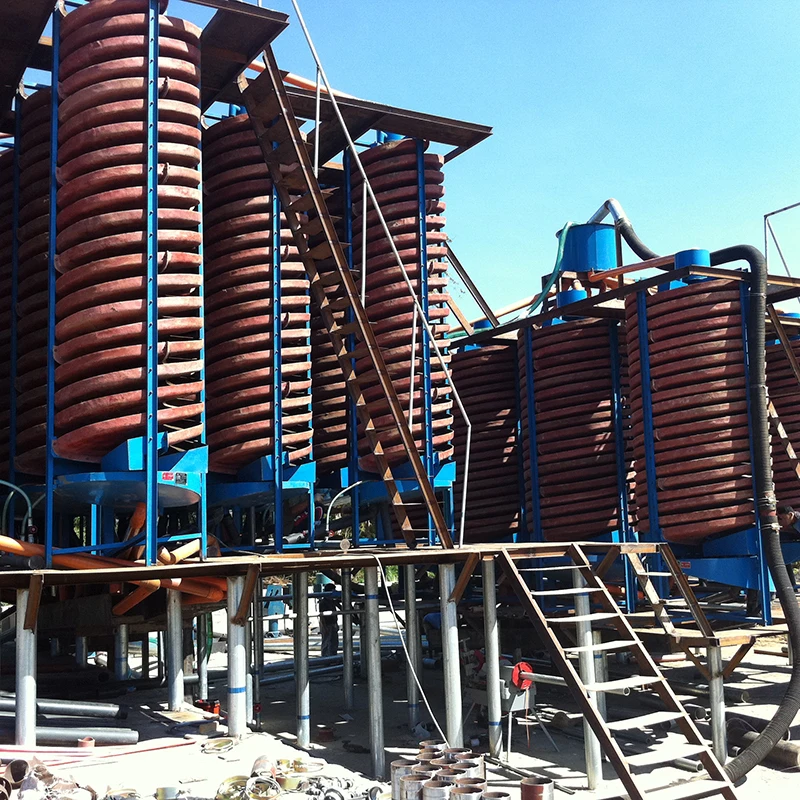

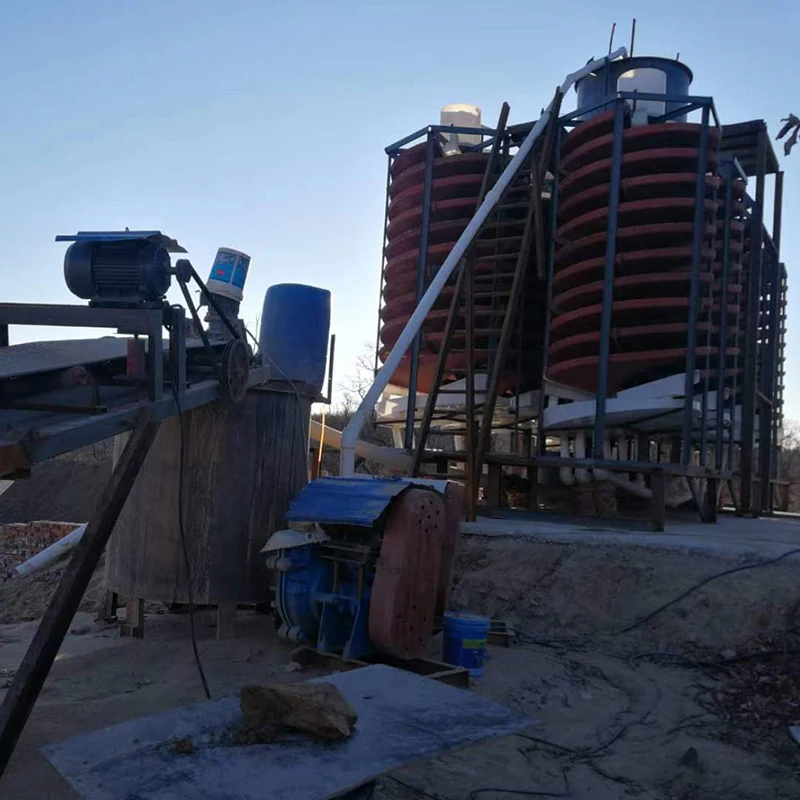

Successful cases
Specification
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
Outside Dia. (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Pitch (mm) | 1200 | 800,680,540 | 720,540,360 | 660,540,400 | 450,360,270 | 240,180 | ||
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° | ||
External size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height (mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Starts/Turns per column | 4-2 | 4-2 | 4-2 | 4-2 | 2 | 2 | ||
Feeding size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding density (%) | 20-45 | 30-60 | 25-55 | 25-55 | 25-55 | 25-55 | ||
Capacity (t/h) | 12-10 | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | ||
Weight (KG) | 1100 | 800 | 600 | 400 | 150 | 50 | ||

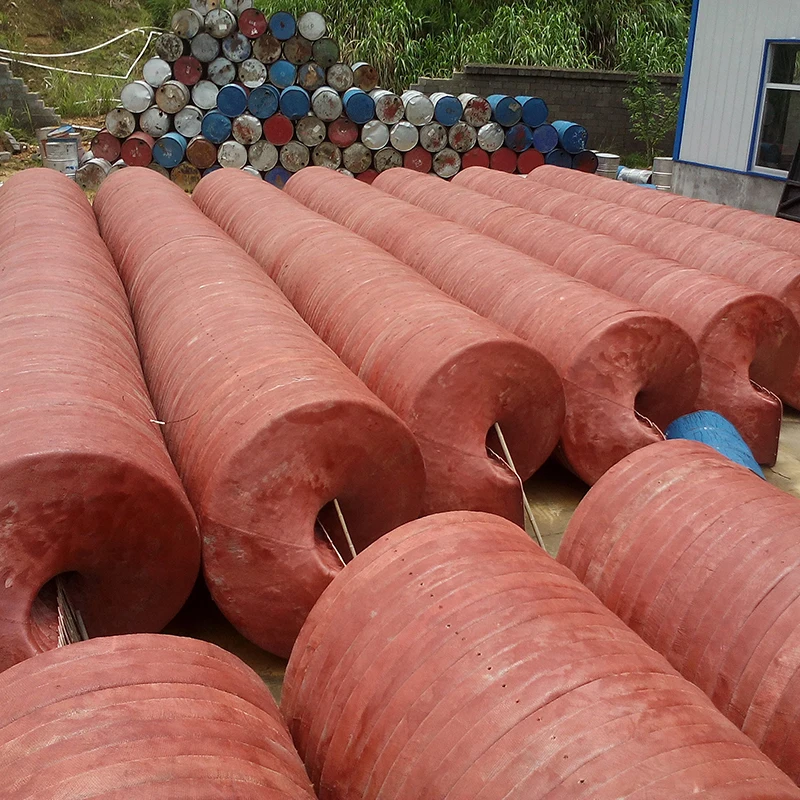

Packing & Delivery
Company Profile
Shicheng Gaoxuan Bearing Bush Co.,Ltd established in 1958 with a subsidiary corporation named Jiangxi Changyi Mining Machinery factory,located in Ganjiang River source and Wuyi mountain,is a professional supplier in producing and sale kinds of bearing bushes and mining equipments.This factory covers an area of 26000 square meters with a total fixed asset of USD3,000,000 and owns more than 200 sets of mechanical processing machines and 50 technical personnels,with an annual production ability for USD10,000,000.It's one net point of cooperation of the orginal China Equipment General Company of Ministry of Chemical Industry,as well as a fixed cooperation company of Huadong Fittings of Ministry of Metallurgy.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.
We produce high precise bearing bushes of master engines for hundreds of domestic and overseas companies of refrigerators or air-compressed machine,also produce mining machines,which contain re-election equipment,crushing equipment,screening equipment,grinding equipment,grading equipment,flotation equipment,transportation equipment,feeding equipment and kinds of beneficiation complete equipment.Its won the reputation of "Jiangxi High Quality Products".
Our main products include all kinds of alloy Bearing Bushes,Crushers,Shaking Tables,Ball(rod) mills,Spiral Chutes,Jigs,Flotation Separators,vibrating screen and so on,all of them
are exported to overseas with reliable quality,reasonable price and good services.
You are welcome to visiting us any time.

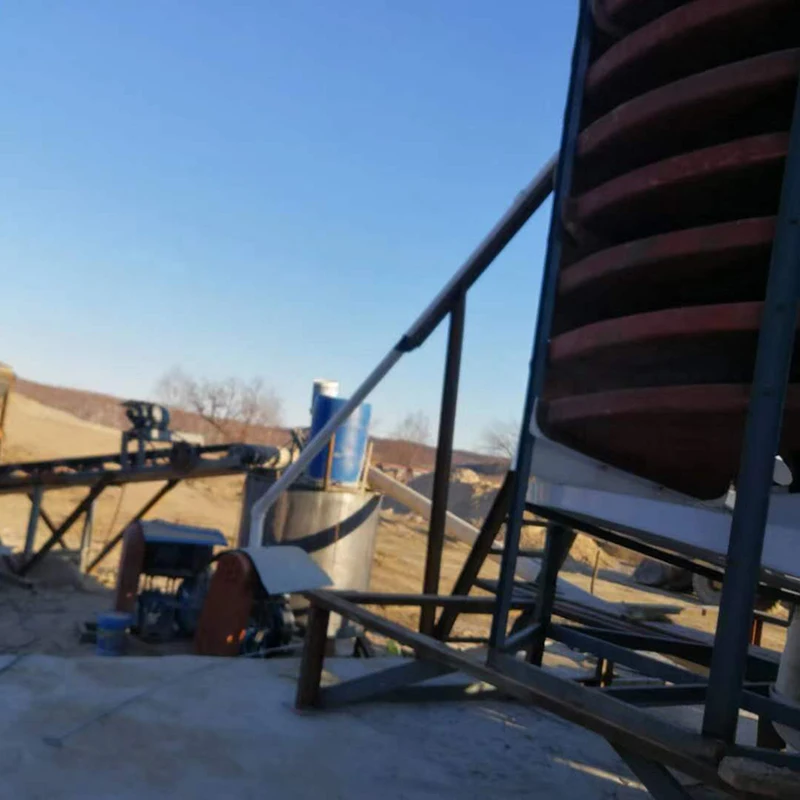

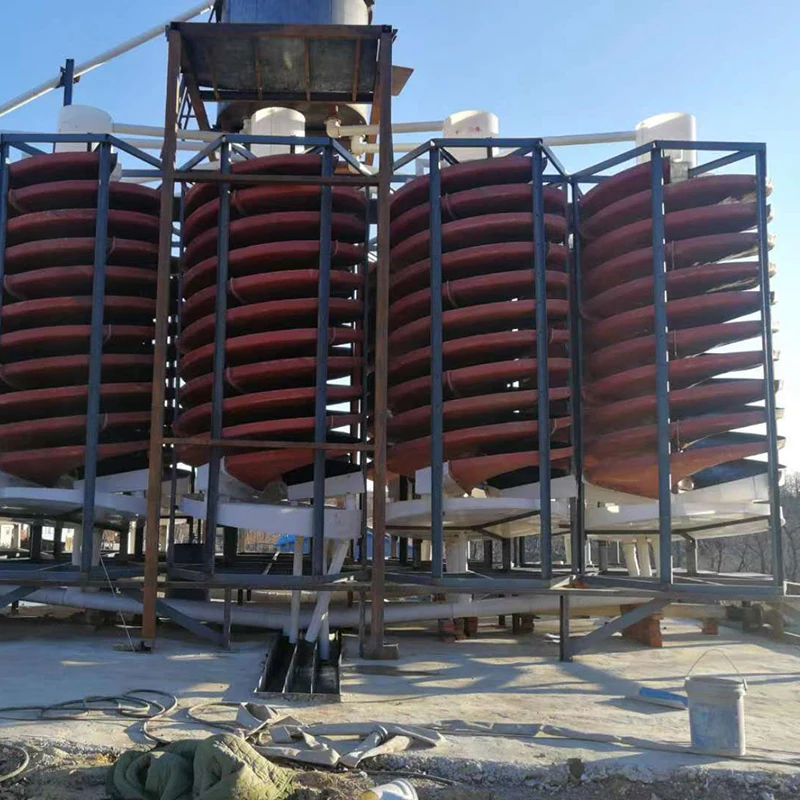

Customer Photos
Exhibition
FAQ
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit
