QT4 15 Brick Making Machinery Concrete Block Machine Automatic Interlocking Brick Making Machine Price in Zambia
- Category: >>>
- Supplier: Linyi Dongyue Imp. & Exp. Co. Ltd.Linyi Ltd.
Share on (1601072345588):
Product Overview
Description
Product Description

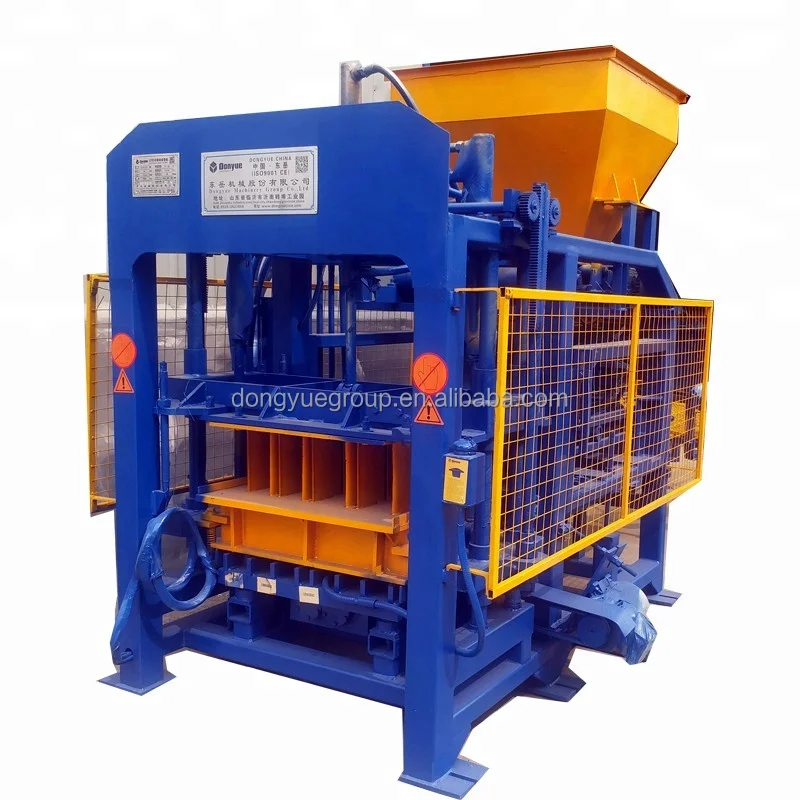

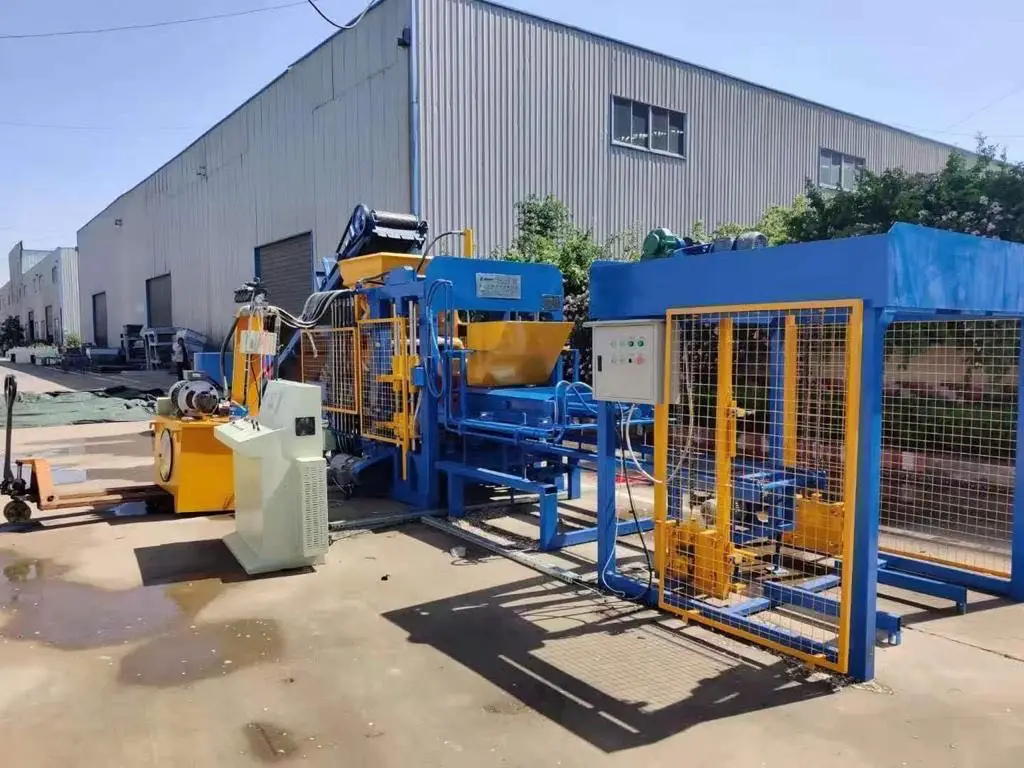

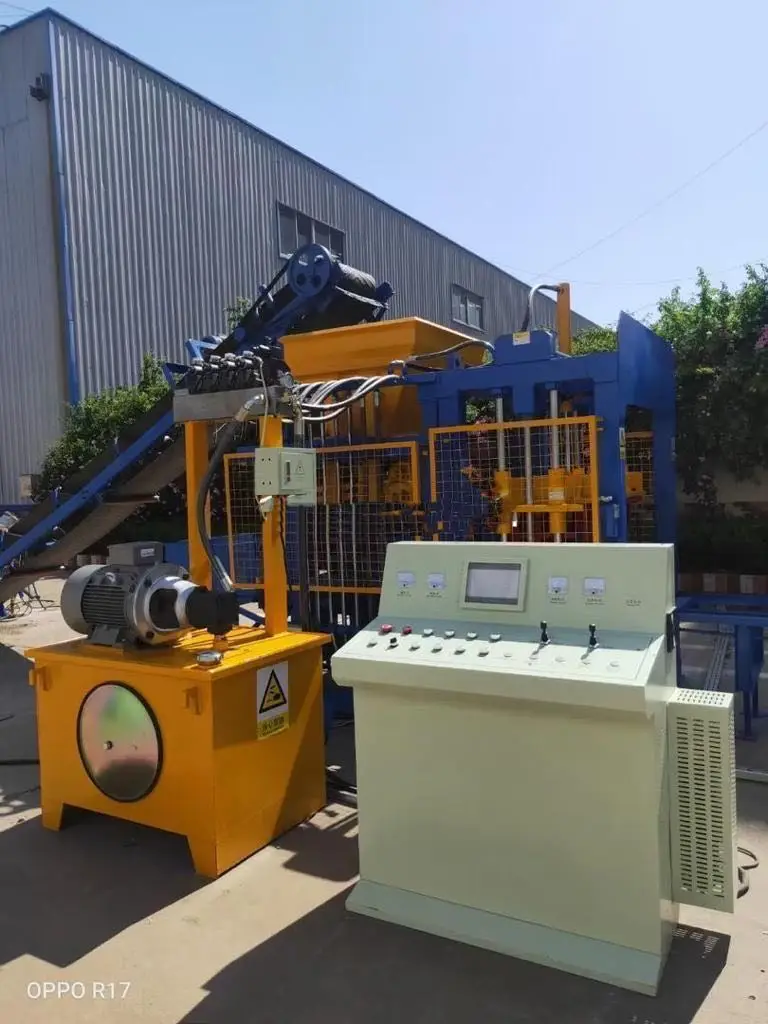

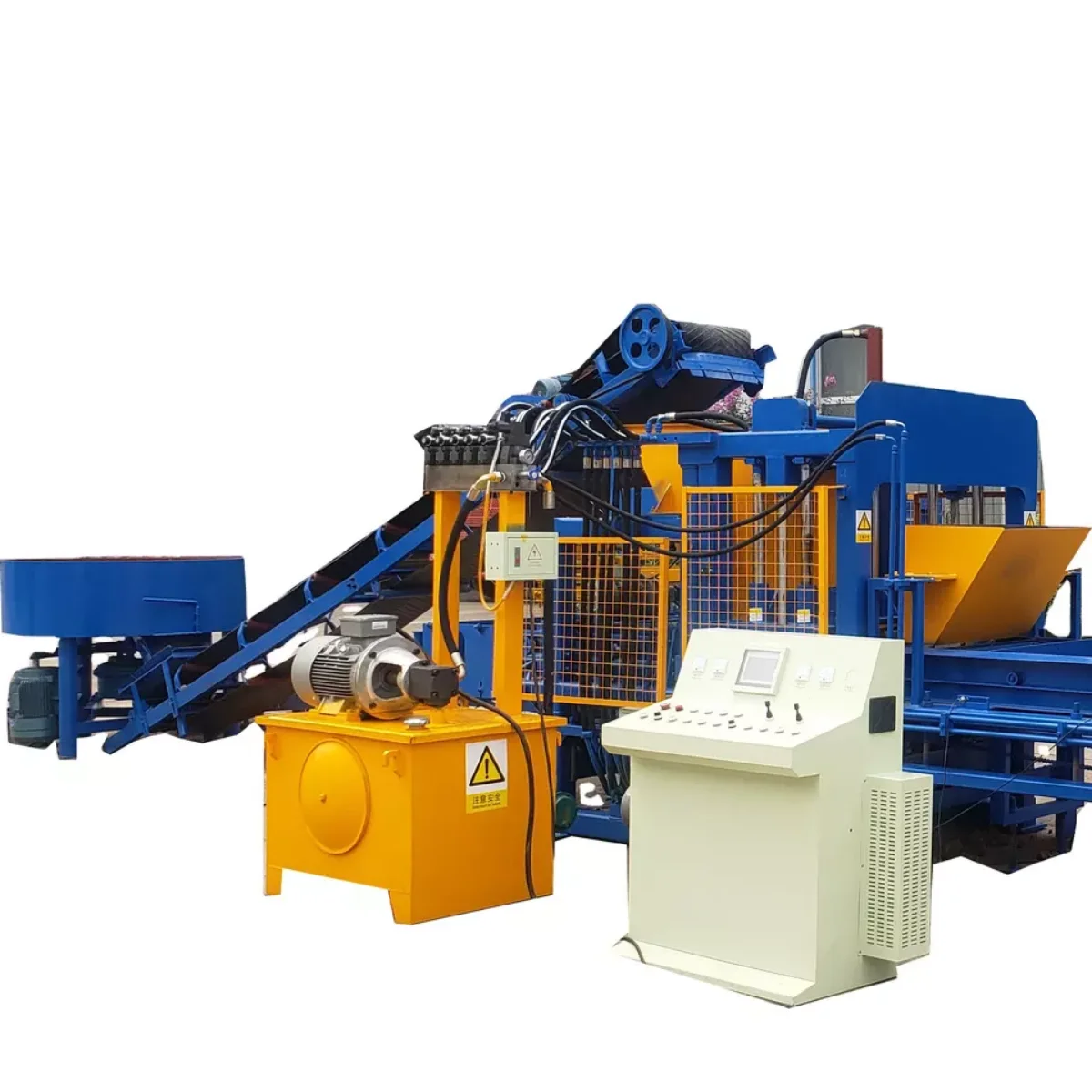

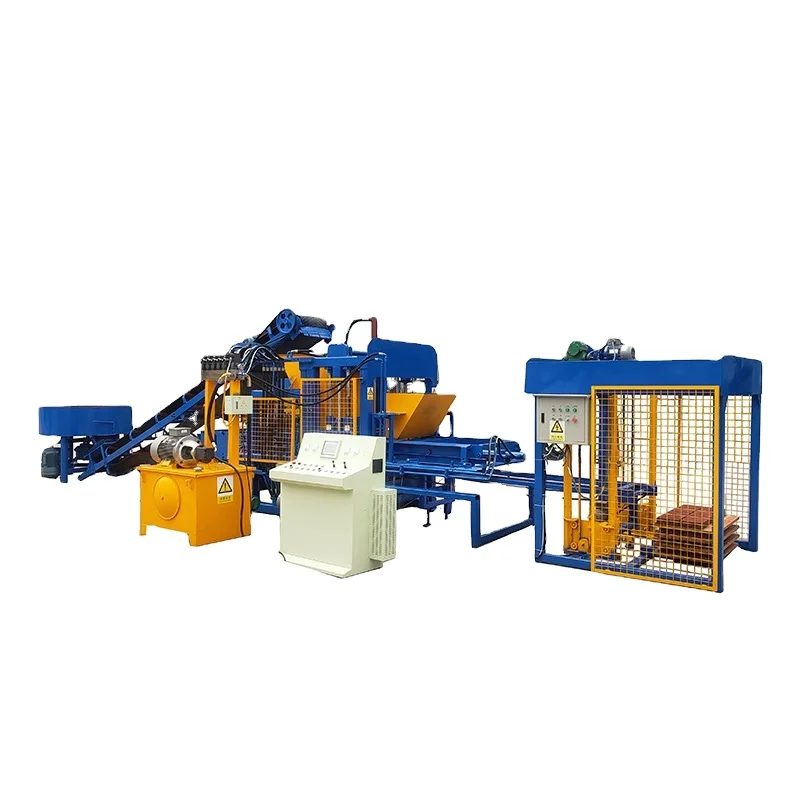

QT4-15 AUTOMATIC HYDRAULIC CONCRETE BLOCK BRICK MAKING MACHINE
QT4-15 brick making machinery concrete block machine automatic interlocking brick making machine price in zambia

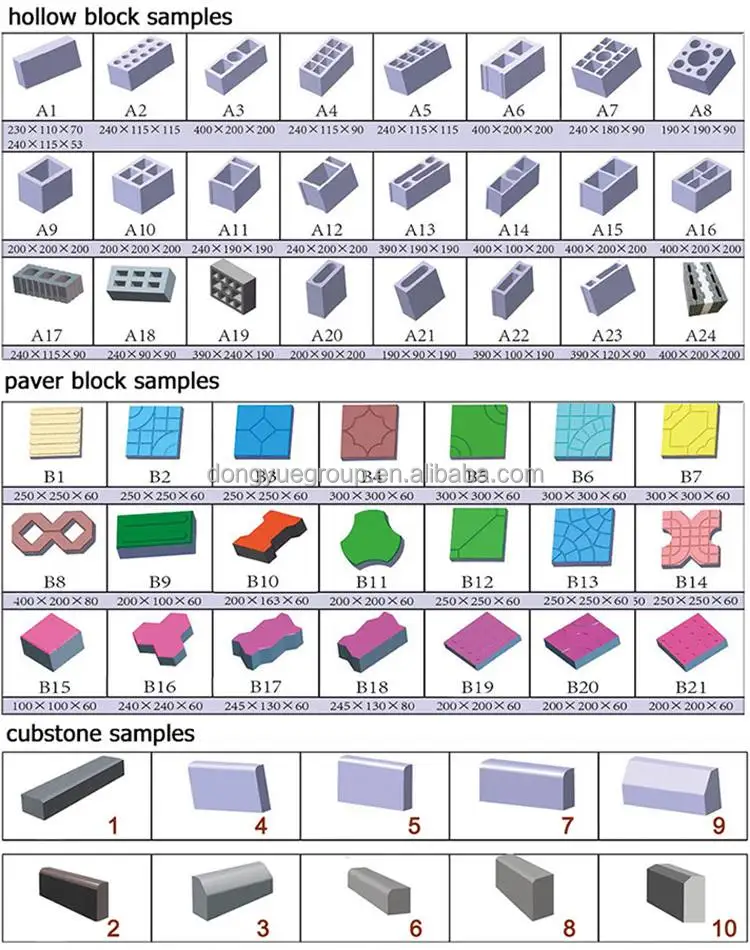

1.QT4-15 Brick Production Line is automatic brick making machine, the equipment structure is simple and practical, outlook is novel and attractive, in addition to produce permeable brick, it is particularly suited to the production of standard bricks, replacement of mold can produce many kinds of paving brick, hollow brick, curb stone etc.2. QT4-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.

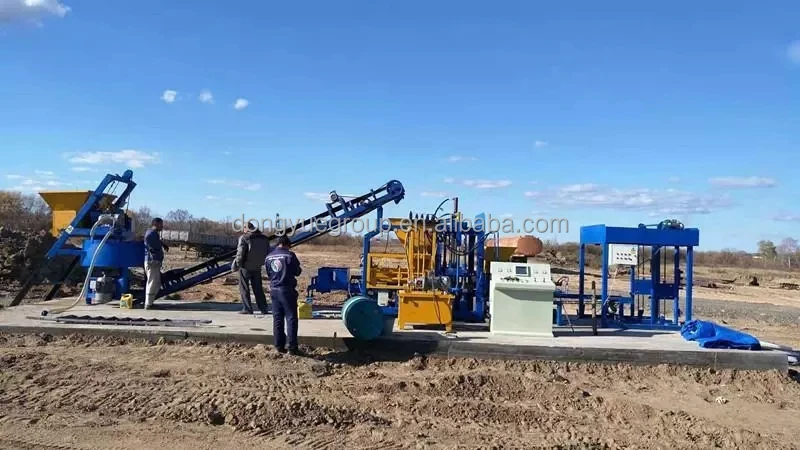

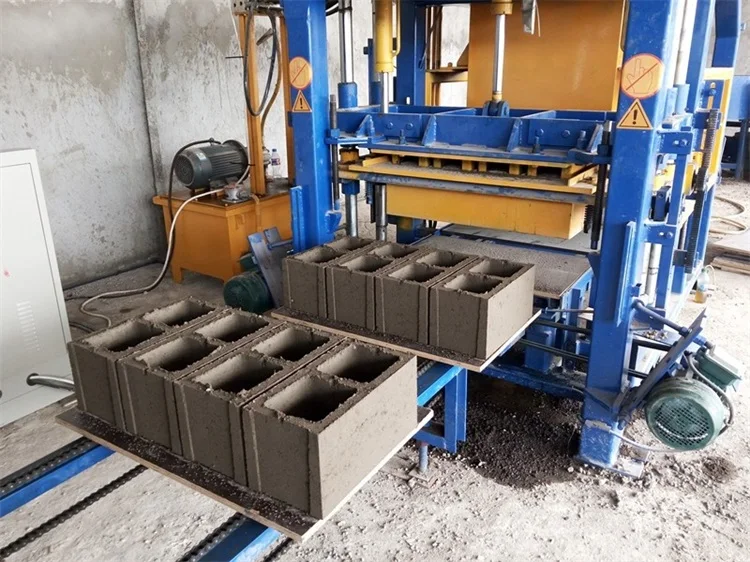

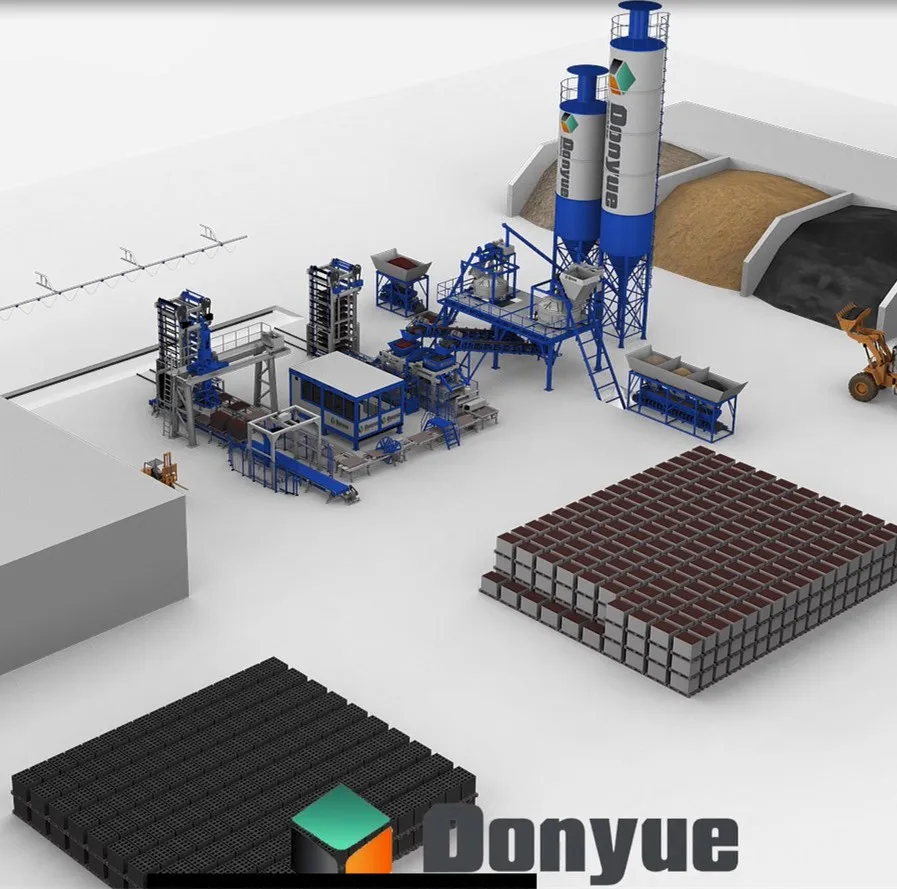

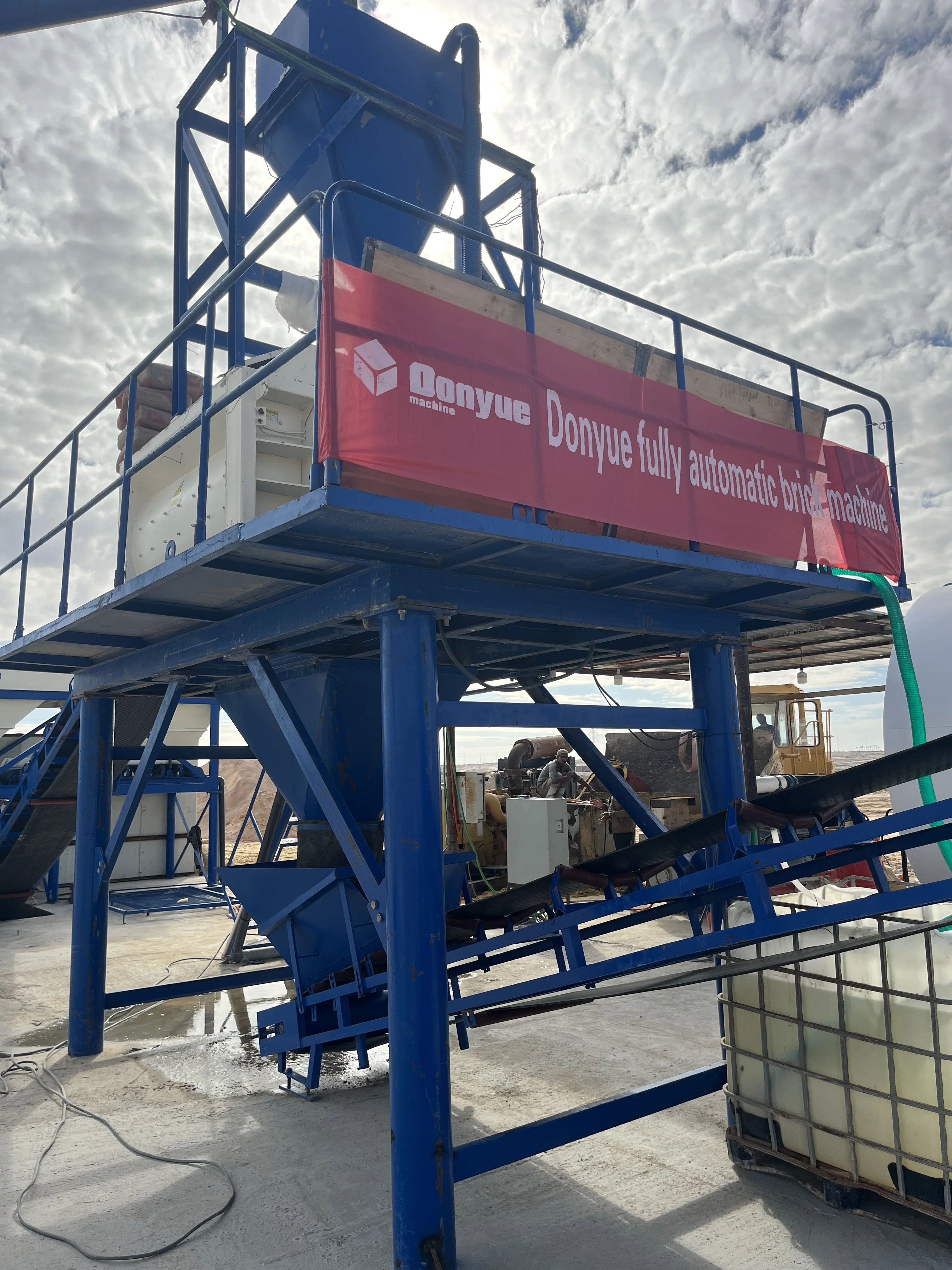

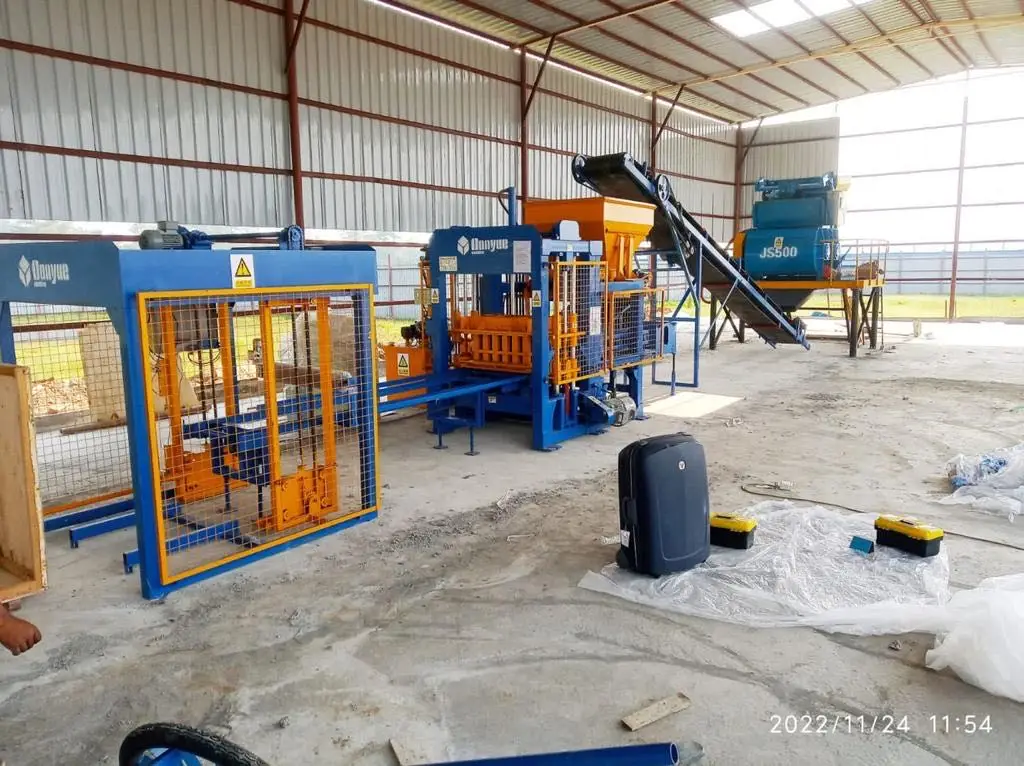

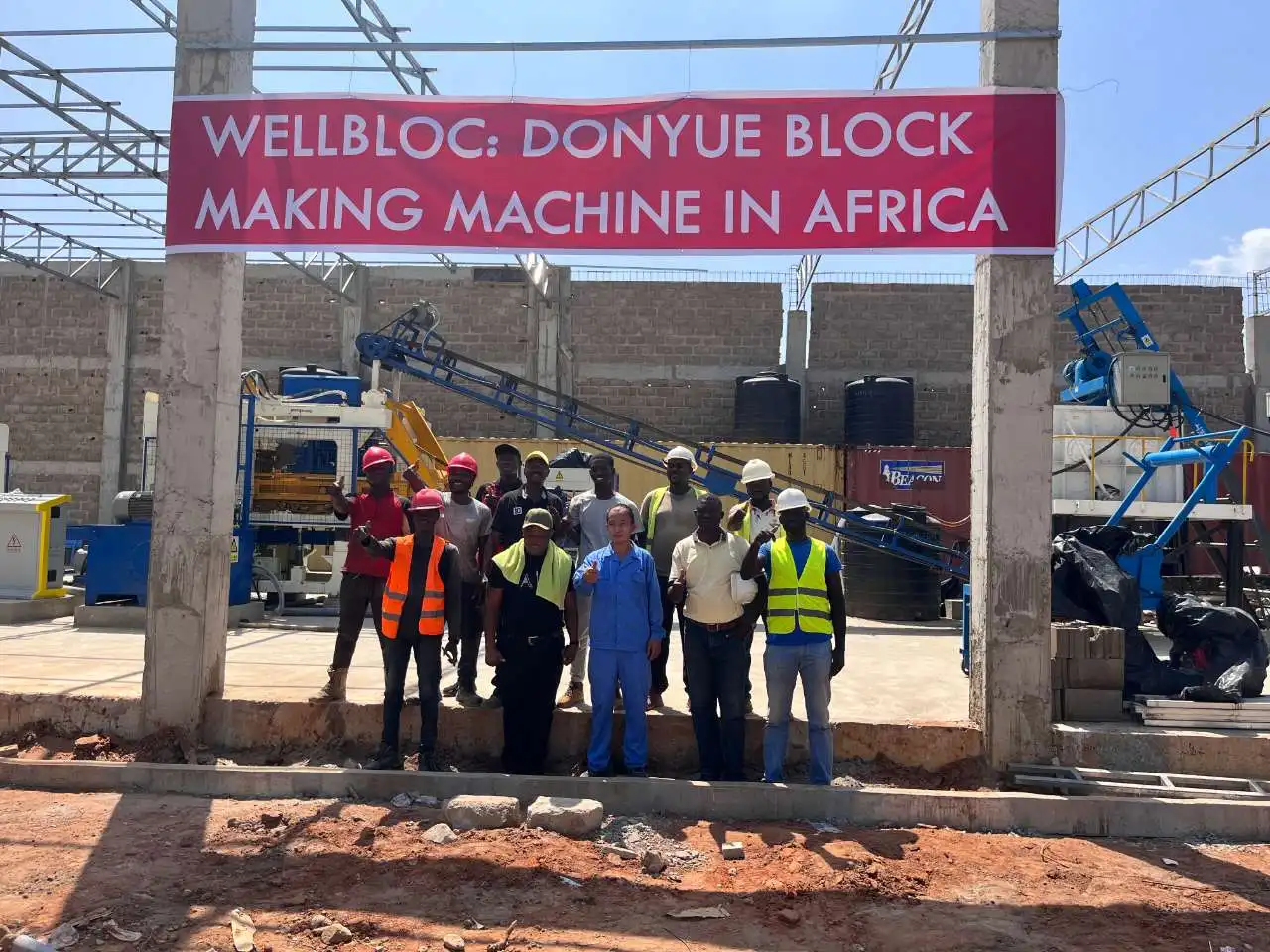

Production line at customers' site

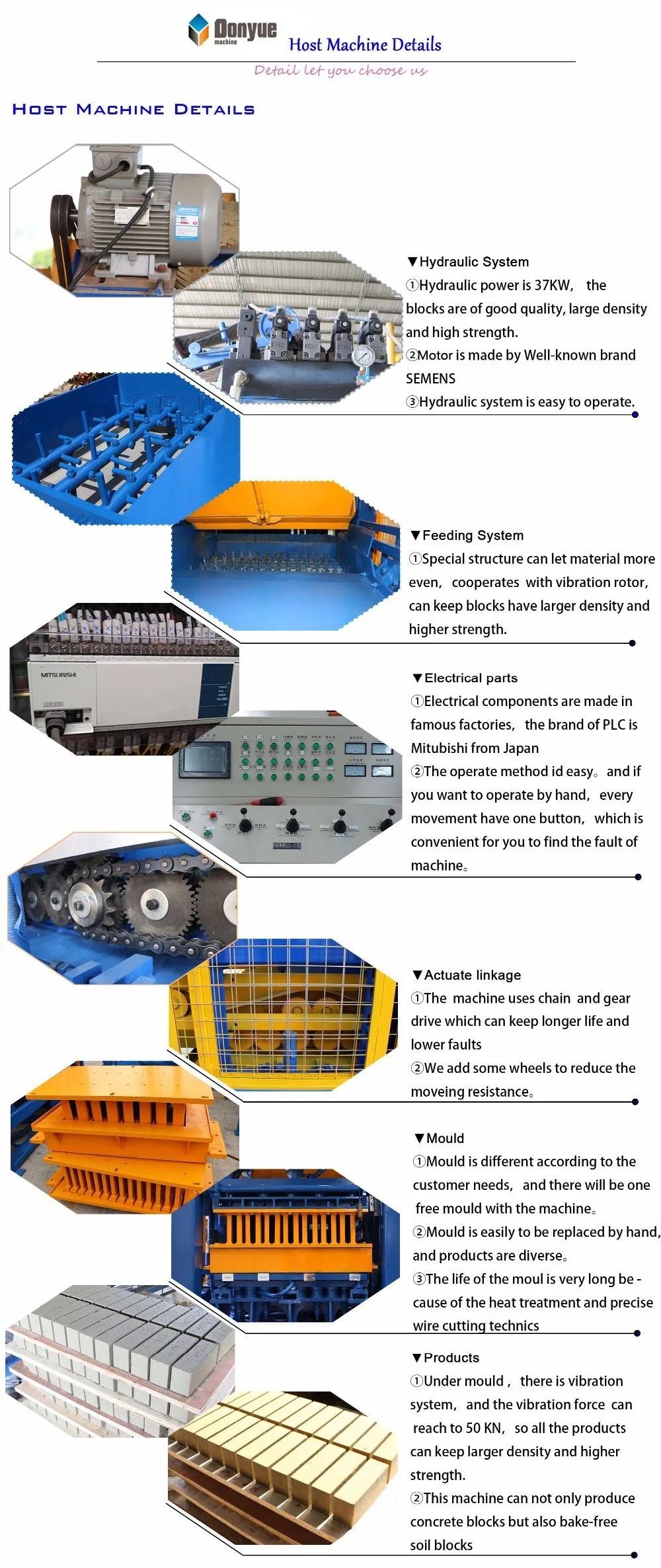

ADVANTAGES OF QT4-15 BLOCK MACHINE
QT4-15 brick making machinery concrete block machine automatic interlocking brick making machine price in zambia
1) The motor for the host machine is Germany SIEMENS brand or ABB brand2) Control PLC: we select original Japan Mitsubishi PLCcombine with independently develop machine control program, assure stable and high efficiency working status
3) The switch will use France Schneider brand and Japan Omron
4) Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.
5)Material and welding: all materials and spare parts selected according to international CE standard, Carbon dioxide protection welding will assure whole line stable running.
Specification
Dimension of host machine | 2700x1600x2500 mm | Host machine power | 24kw |
Weight of host machine | 4.5T | Vibration force | 30-50KN |
Water consumption | 4-5Ton/day | Pallet size | 880X580X22mm |
workshop area | 200-300m² | Voltage | 380/415/440V |

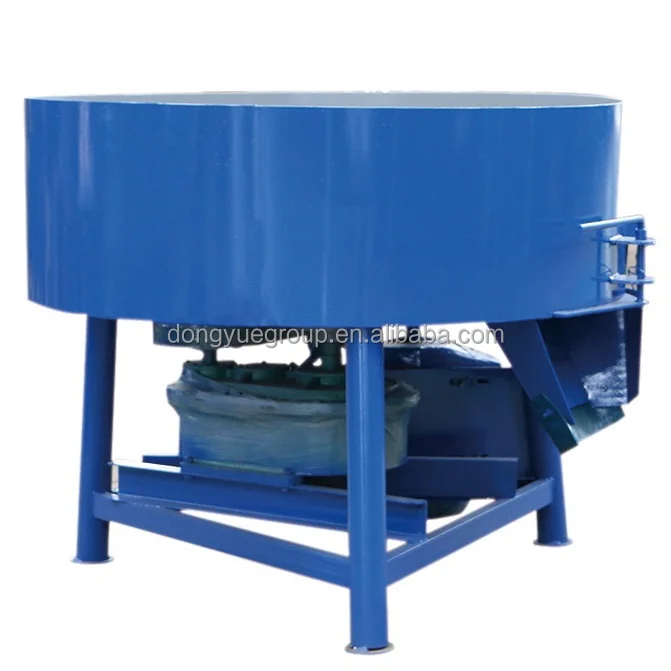

Mixer model | JQ500 | Molding area | 820x520mm |
THEORETICAL PRODUCTION CAPACITY | ||||||
Block/ Size(LxWxH) | Pcs/ Mould | Psc/ Hr | Pcs/ 8 Hr | |||
Hollow Block 400x200x200mm | 4 | 720-960 | 5760-7680 | |||
Multi hole brick 240x115x90mm | 12 | 2160-2880 | 17280-23040 | |||
Solid Brick 240x115x53mm | 26 | 4680-6240 | 37440-49920 | |||
Paver brick 200x100x60mm | 16 | 2880 | 23040 | |||
I Shape Paver 200x163x60mm | 12 | 2160 | 17280 | |||
You may like
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory
* Sample testing support.
* View our Factory
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.

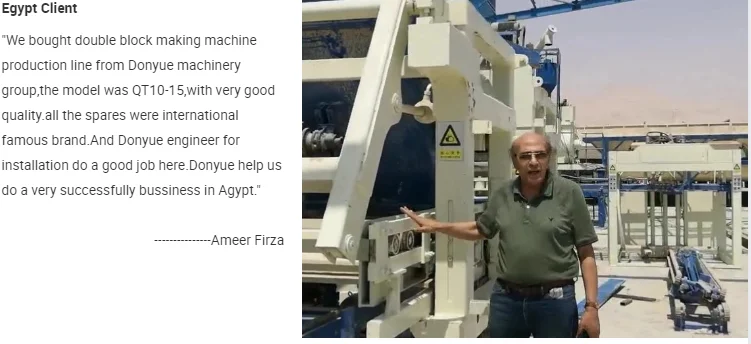

Customers Voice
Click to check the video
Click to check the video
Click to check the video

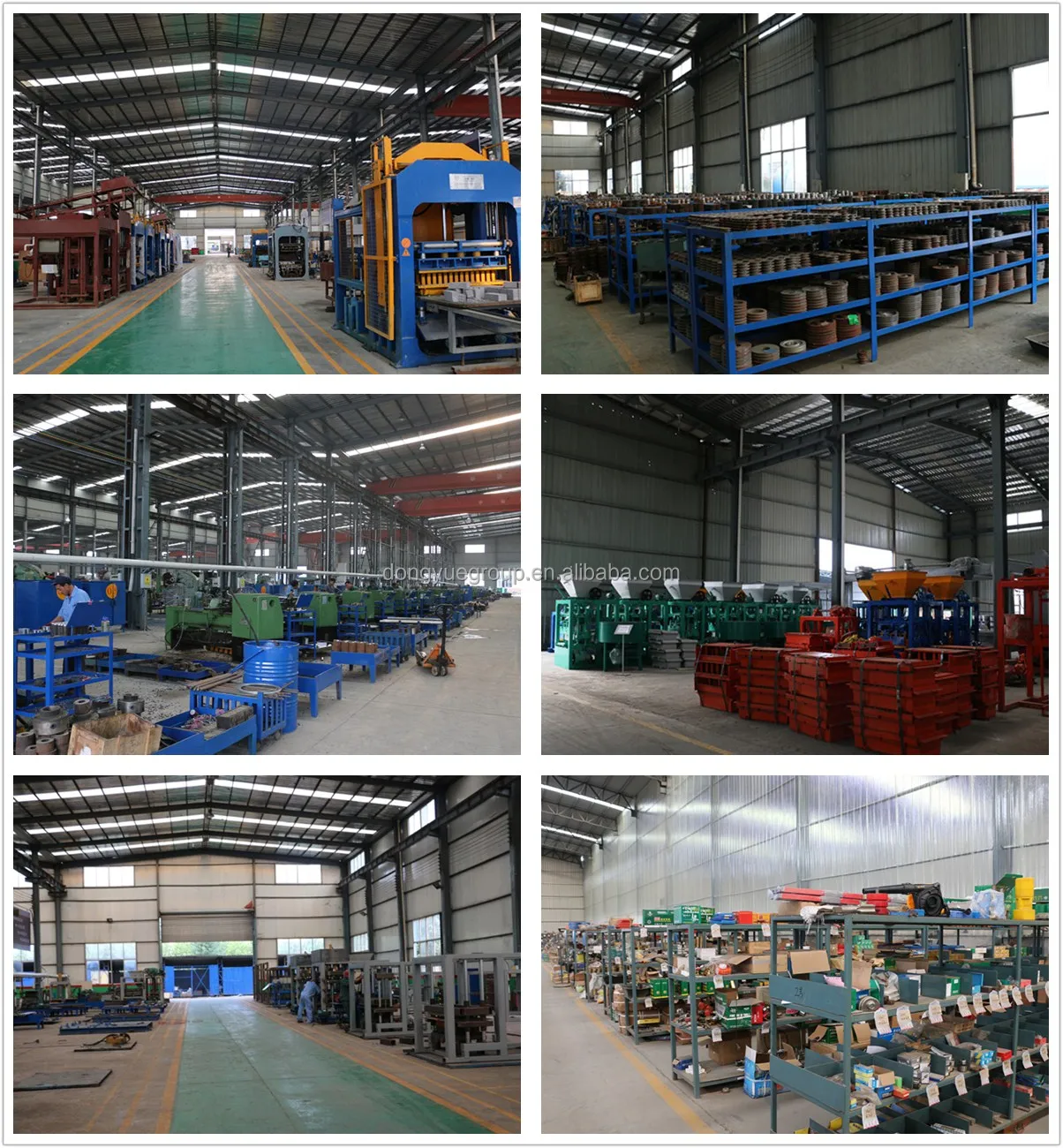

Our Company

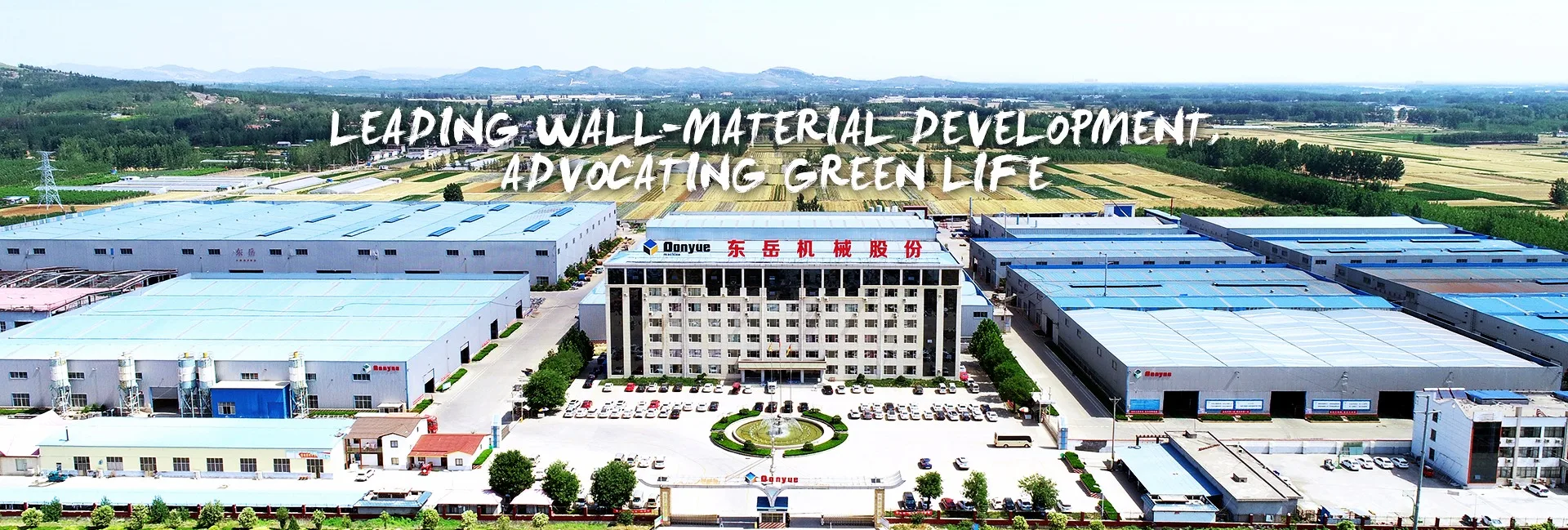

Dongyue Machinery Group
Dongyue Machinery Group was built in 1994,and now Dongyue is a national large-scale designated building materials machinery manufacturer, a coalition of researching, producing and marketing, and services with registered asset of 234 million RMB, total asset of 1 billion RMB, total area of 1,332,000square meters, and over 1500 staff.
