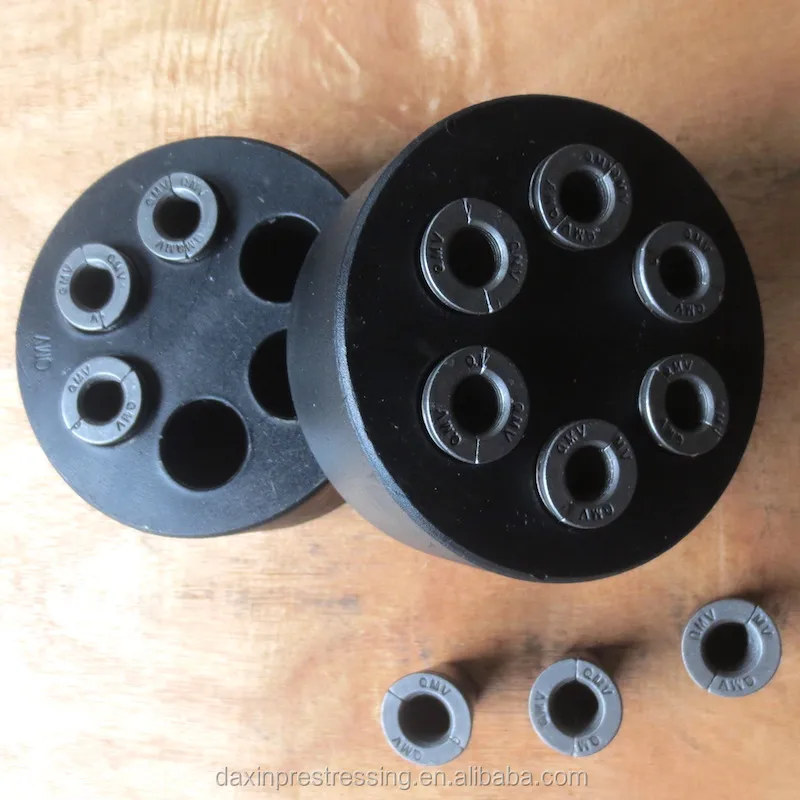

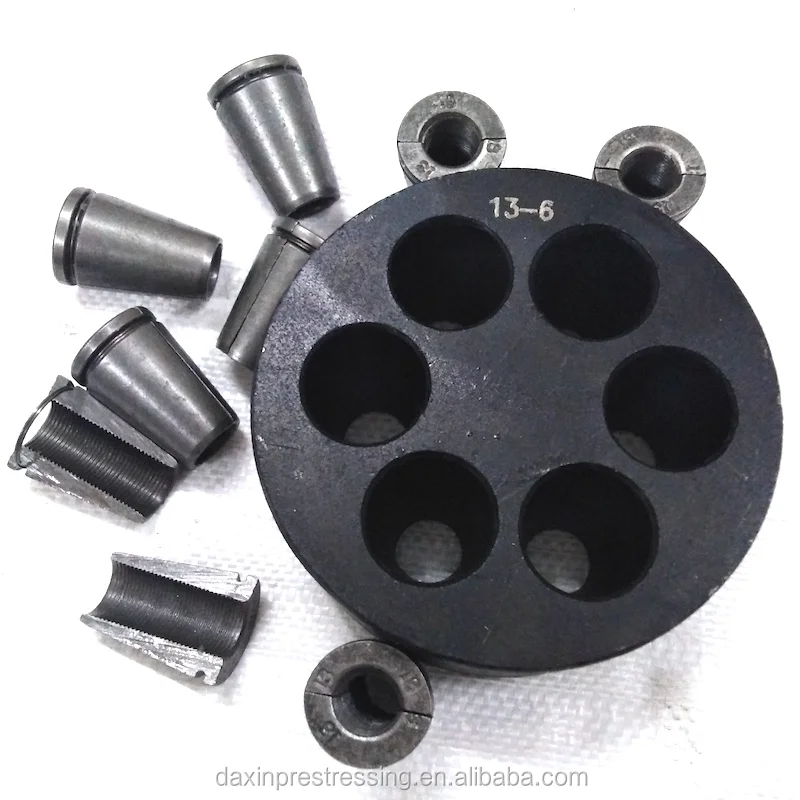

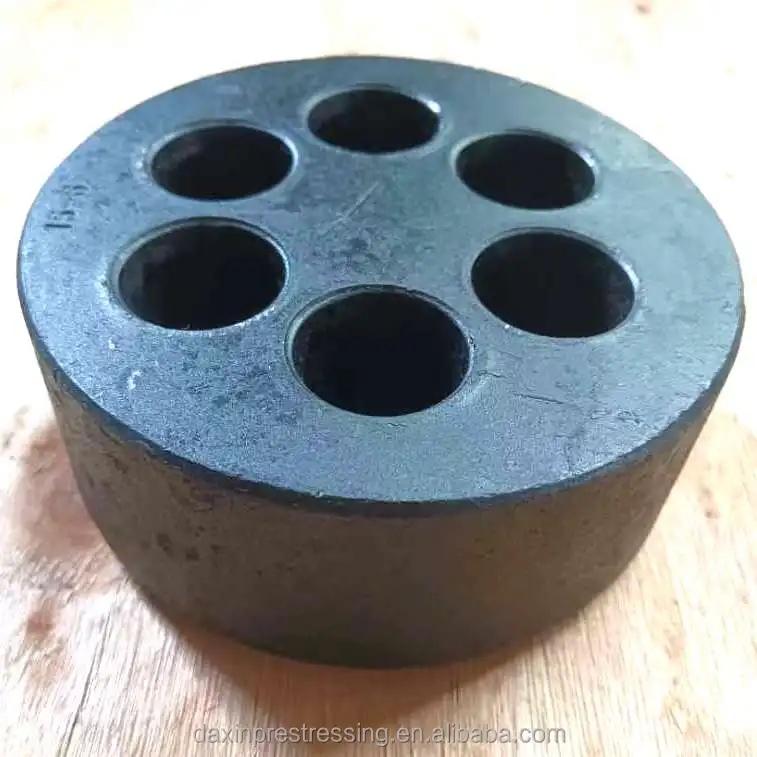

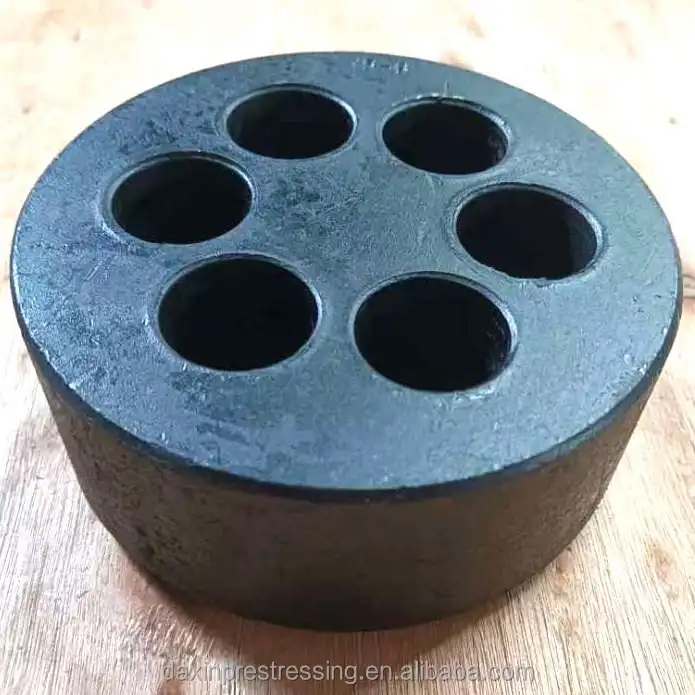

6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning
6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning

6 Holes 1524mm Prestressed Concrete Anchorage for post tensioning

Share on (1601072583046):


Price:$9.50 - $11.28

Quantity:


Product Overview

Description

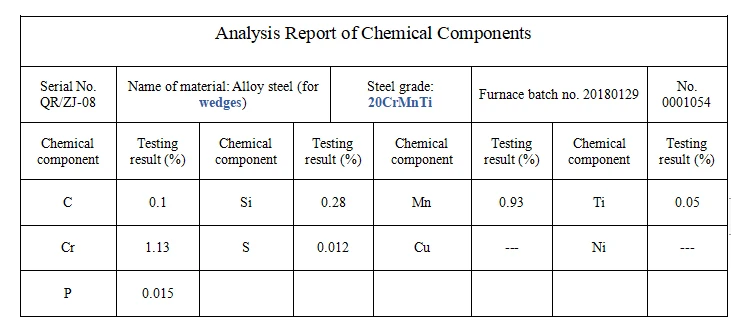

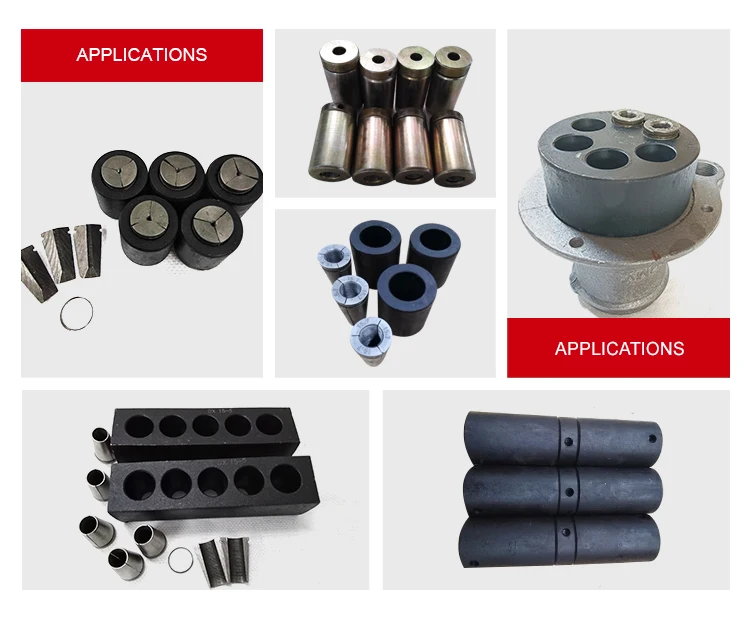

Raw material grade is 20CrMnTi , there are two types : 2 and 3 parts . widely suit for PC Wire （4mm-11mm）and PC Strand 12.7mm,15.24mm ,15.7mm ,17.8mm and 21.6mm）.

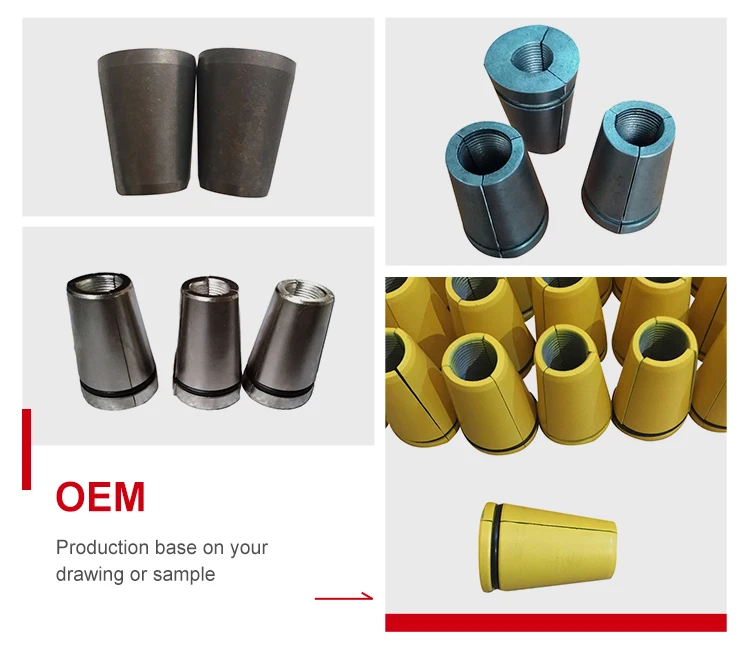

it can produced by your drawing or samples , carve your logo letters ,and samples for your testing freely.


Barrel raw material
40Cr

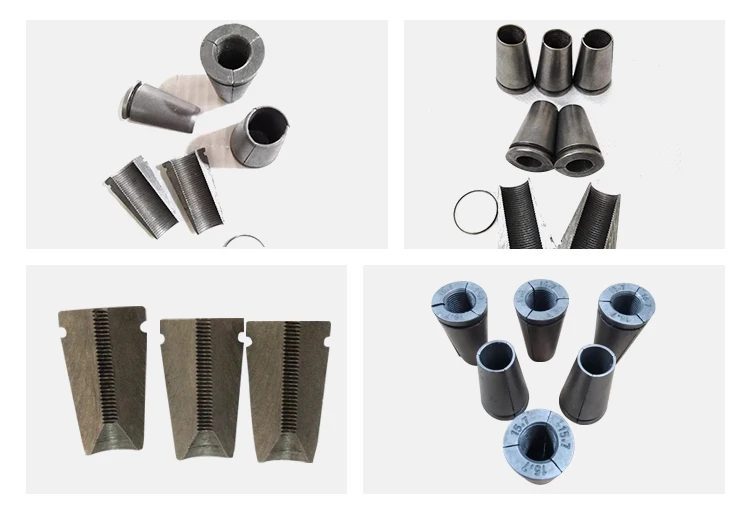

Wedge raw material
20CrMnTi;20CrMn5
Hardness of anchor(HRB)
25-35
Wedge Surface Hardness
HRA79-84
Wedge Core Hardness
HR38-46
Carburization Layer Depth
0.35-0.6mm/0.6-0.8mm
Anchor Efficiency Coefficient η a
η≥0.95
With-draw of wedge after stressing
≤6mm
Tempered
1-4
Retained Austenite
1-4
Inspection of Appearance
 Tooth Shape without Defect,Bad Teeth,Variant
Standard
 GB/T2301-2004
