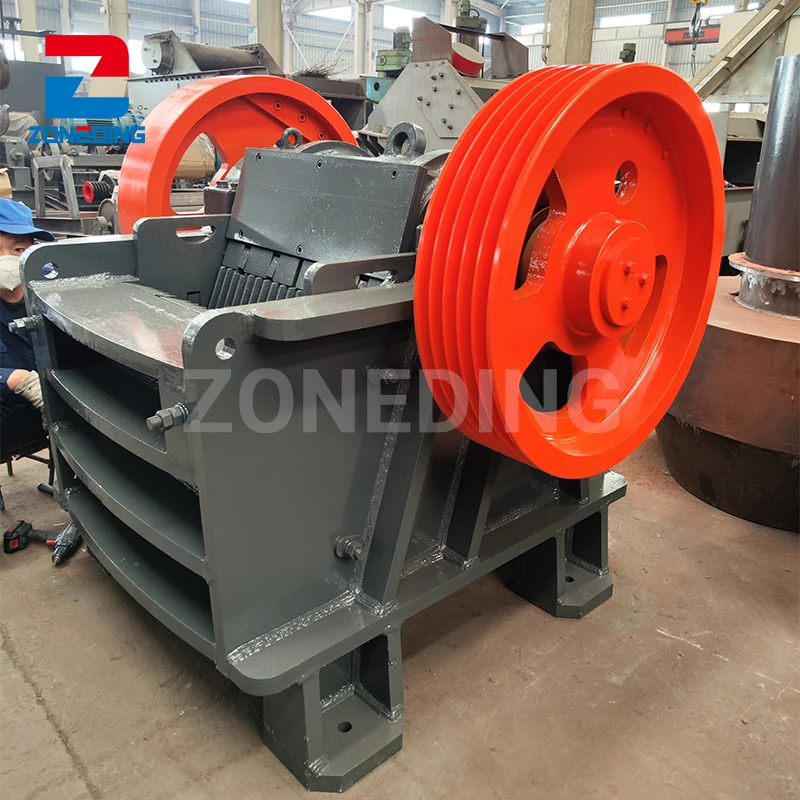

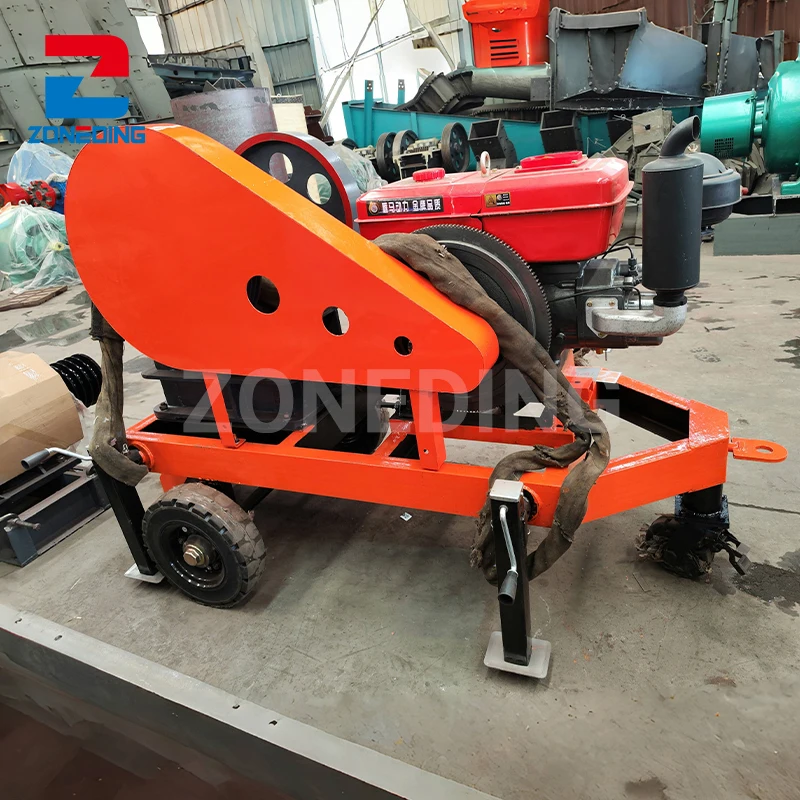

Gold Mine Portable Rock Crusher PE Jaw Crusher The Price Of Jaw Hammer Crusher With Handling Capacity Of 50~800/H
- Category: >>>
- Supplier: Zhengzhou Zhongding Heavy Duty Machine Manufacturing Co. Ltd.
Share on (1601072654425):
Product Overview
Description
Product Description
Jaw crusher is a new product absorbing world advanced technology, bases on our present traditional jaw crusher, and adopts three-dimensional design theory. Comparing with traditional jaw crusher, it has larger capacity and crushing ratio, bigger range of input size, evener product size, and easier maintenance.
Applicable materials
The compression strength of the materials to be crushed is less than 320 MPa. Whether it is metal ores (gold ore, iron ore, etc.), non-metallic ores (quartz, limestone, gypsum, etc.), rocks (granite, basalt, etc.), gangue, concrete, construction waste , glass, or cement clinker, our jaw crushers can easily crush it.
The compression strength of the materials to be crushed is less than 320 MPa. Whether it is metal ores (gold ore, iron ore, etc.), non-metallic ores (quartz, limestone, gypsum, etc.), rocks (granite, basalt, etc.), gangue, concrete, construction waste , glass, or cement clinker, our jaw crushers can easily crush it.
Globally recognized performance
Thousands of jaw crushers produced by us are installed around the world and have demonstrated excellent performance in aggregate crushing, mineral processing and recycling.
1. Superior crushing capacity: large crushing ratio (3-6), uniform output size.
2. Large feed size: up to 1,200 mm.
3. High capacity: the capacity can reach 1,200 tons/hour, meeting large-scale crushing needs.
4. Capacity: 1-2,000 t/h.
5. Low operating cost: the simple structure and optimized performance ensure the increase of output and productivity, and also reduce the cost.

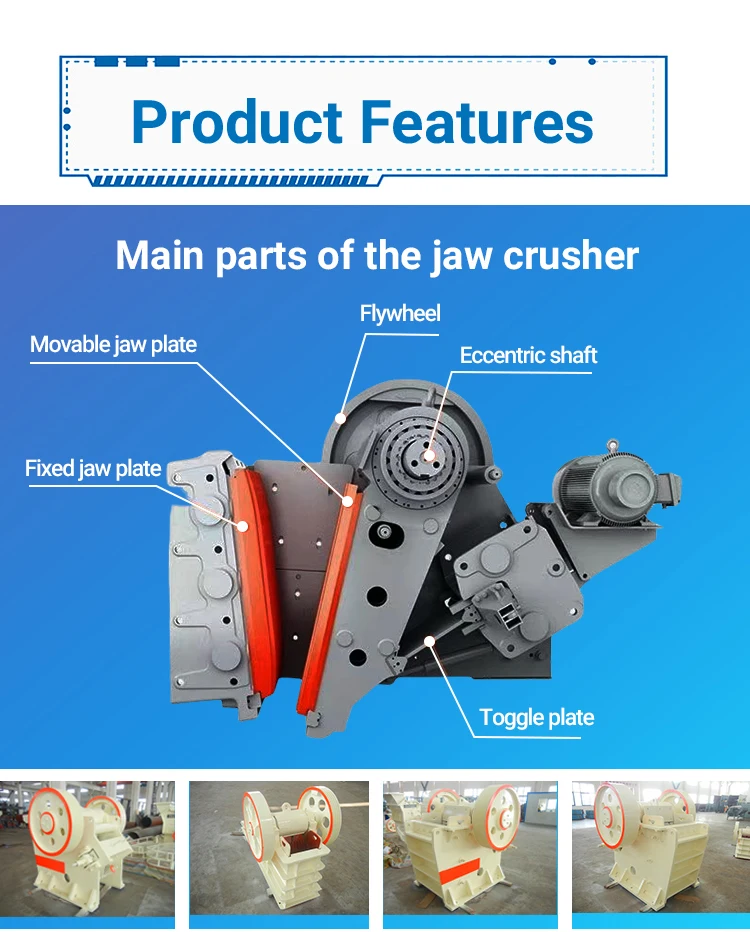

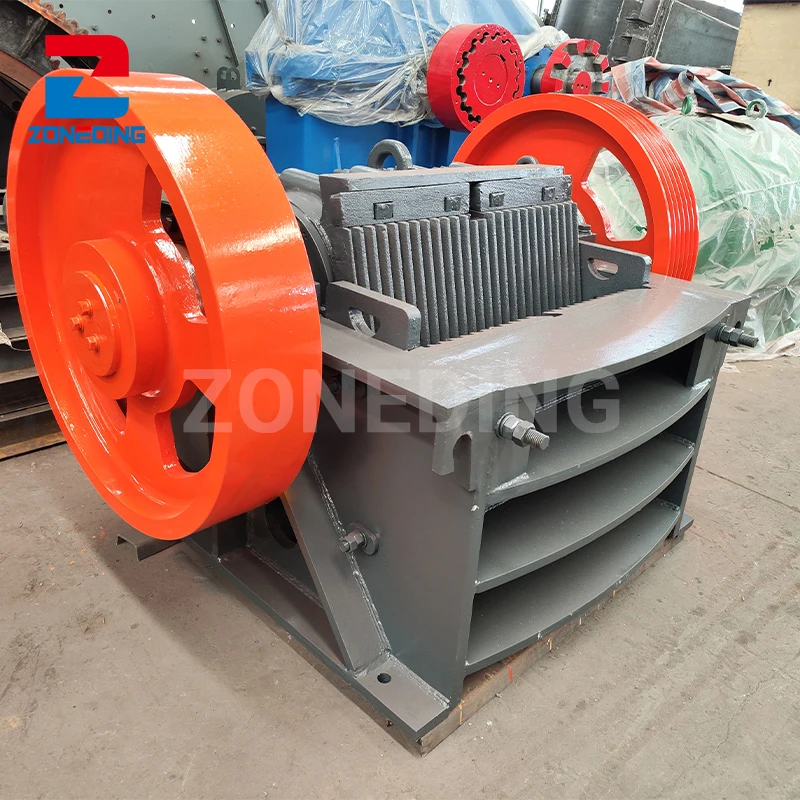

The basic structure of the jaw crusher includes the main frame, fixed jaw plate, movable jaw plate, toggle plate, eccentric shaft, flywheel, motor, etc.
Thousands of jaw crushers produced by us are installed around the world and have demonstrated excellent performance in aggregate crushing, mineral processing and recycling.
1. Superior crushing capacity: large crushing ratio (3-6), uniform output size.
2. Large feed size: up to 1,200 mm.
3. High capacity: the capacity can reach 1,200 tons/hour, meeting large-scale crushing needs.
4. Capacity: 1-2,000 t/h.
5. Low operating cost: the simple structure and optimized performance ensure the increase of output and productivity, and also reduce the cost.
The basic structure of the jaw crusher includes the main frame, fixed jaw plate, movable jaw plate, toggle plate, eccentric shaft, flywheel, motor, etc.
We have engineered each component to maximize its performance and service life:
● The crushing cavity is deep and there are no dead corners, which improves feeding and output. Large crushing ratio and uniform particle size.
● The crushing cavity is deep and there are no dead corners, which improves feeding and output. Large crushing ratio and uniform particle size.
● Welded fixed steel structure, large bearings, and forged spindle make the bearing capacity better.
● The unique flywheel design effectively reduces vibration and makes the machine run more stably.
● The discharge port can be adjusted within a wide range through gaskets to meet various particle size requirements of customers.
● Less dust, low noise, and the energy consumption can be reduced by 15%-30%.
● The unique flywheel design effectively reduces vibration and makes the machine run more stably.
● The discharge port can be adjusted within a wide range through gaskets to meet various particle size requirements of customers.
● Simple structure and special centralized lubrication system makes operation and maintenance easier.
● The wearing parts jaw plates (one fixed, one movable) are made of wear-resistant materials (high manganese steel, alloy steel, etc.) to extend the service life.● Less dust, low noise, and the energy consumption can be reduced by 15%-30%.

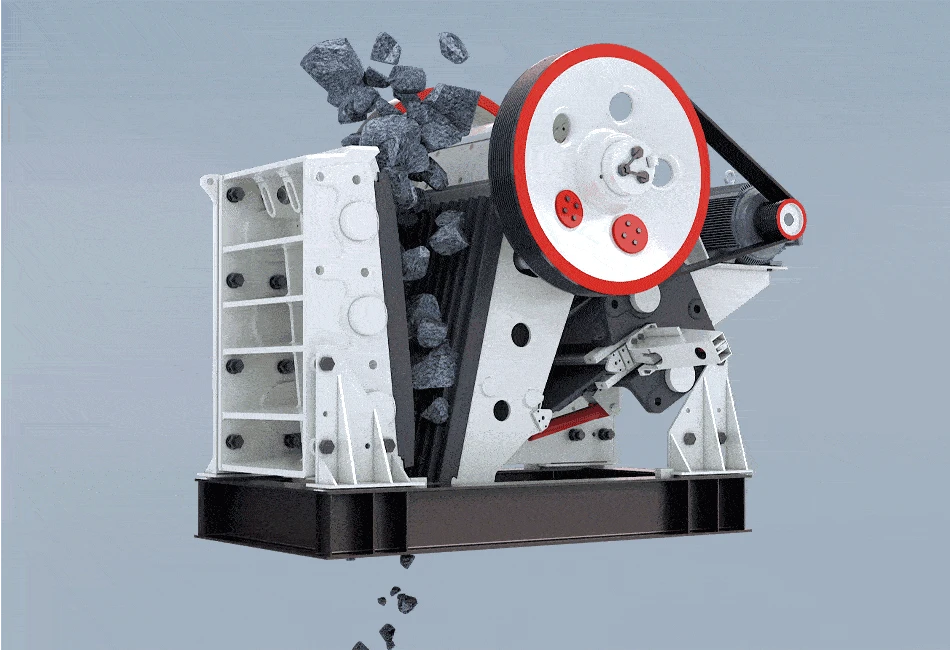

The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw.
The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Model | Inlet size (mm) | Max feed size (mm) | Outlet range (mm) | Capacity (t/h) | Motor (kw) | Weight (t) | Overall dimension (mm) |
PE-150 | 150×250 | 125 | 15-45 | 1.2-3.5 | 5.5 | 0.8 | 950×1100×1100 |
PE-250 | 250×400 | 210 | 20-60 | 5-22 | 15 | 2.8 | 1450×1350×1500 |
PE-400 | 400×600 | 350 | 40-80 | 18-60 | 30 | 7 | 1700×1800×1650 |
PE-500 | 500×750 | 425 | 50-100 | 43-102 | 55 | 10.6 | 2270×2370×2145 |
PE-600 | 600×900 | 500 | 65-160 | 51-180 | 75 | 16.5 | 3000×2500×2600 |
PE-750 | 750×1060 | 630 | 80-180 | 80-195 | 110 | 29 | 2526×2410×2780 |
PE-900 | 900×1200 | 780 | 95-180 | 140-270 | 132 | 52 | 2960×2760×3530 |
PE-1000 | 1000×1200 | 850 | 195-280 | 190-310 | 132 | 55 | 3889×2826×3025 |
PE-1200 | 1200×1500 | 1020 | 150-300 | 260-510 | 180 | 100.9 | 4930×3548×3702 |
PEX-150 | 150×750 | 120 | 18-40 | 8.5-28 | 15 | 3.8 | 1300×1750×1200 |
PEX-250 | 250×750 | 210 | 25-60 | 15-35 | 30 | 5.5 | 1400×1750×1400 |
PEX-250 | 250×1000 | 210 | 25-60 | 20-65 | 30 | 7 | 1400×1980×1440 |
PEX-250 | 250×1200 | 210 | 25-60 | 25-75 | 45 | 8.5 | 1400×2180×1440 |
PEX-300 | 300×1300 | 250 | 25-90 | 30-105 | 75 | 11 | 1560×2350×1600 |
Note: Any change of technical data shall not be advised additionally.

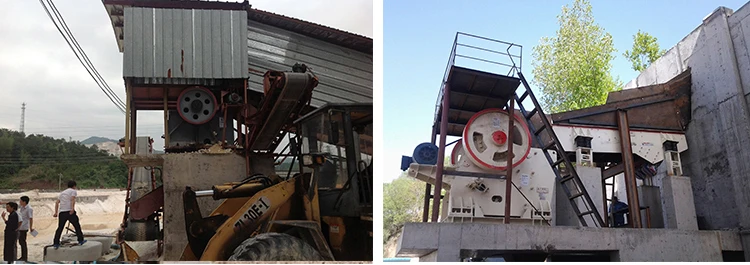

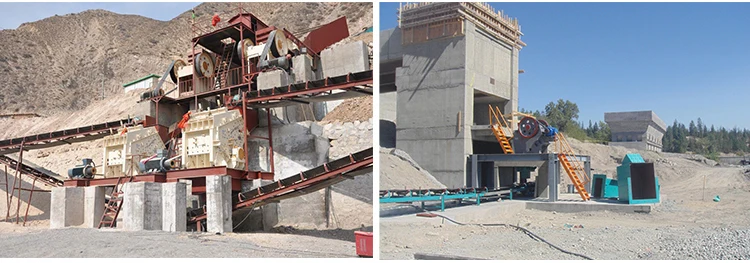

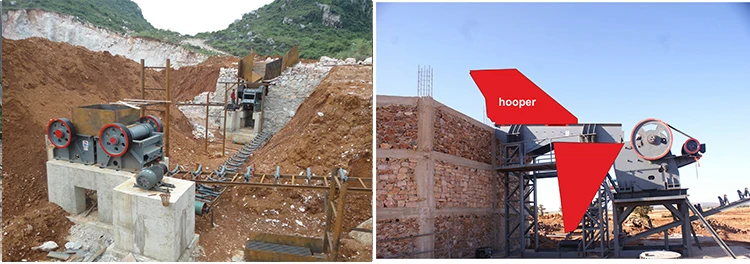

Customer Site
Company Information
Zhengzhou Zhongding Heavy Machinery Manufacturing Co., Ltd. is a professional solution provider of mineral processing, crushing, screening and drying equipment. We have long been committed to providing crushing equipment, vibrating screening equipment, washing equipment, belt conveyor equipment and other production line processes for the grinding, beneficiation, sand and aggregate industries.
Customer Visits
Why Choose Us
Technical Advantages
1. We provide customers with a full range of services, including solution design, technical process planning, and the design and manufacturing of standard and non-standard equipment.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
2. We dispatch professional technicians to the customer site to assist with shell welding, equipment installation, adjustment, and training of operators.
Price Advantages
1. We are the direct manufacturer, so we can offer you the lowest price than the market price.
2. The price of the machine can be given the largest discount based on quantity.
2. The price of the machine can be given the largest discount based on quantity.
Transportation Advantages
1.Standard container or bulk cargo transportation.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.
2.Sea transportation, air transportation, land transportation, according to customer requirements.
3.Complete shipping options and best services at lowest prices are provided: MSC, APL, COSCO, OOCL, CSCL, MSC, MSK, KLINE, etc.
4.Seaports in normal use: Qingdao, Tianjin, Shanghai.
5.We promise that your goods will be delivered to the destination promptly and safely, and will remind you before the ship arrives.

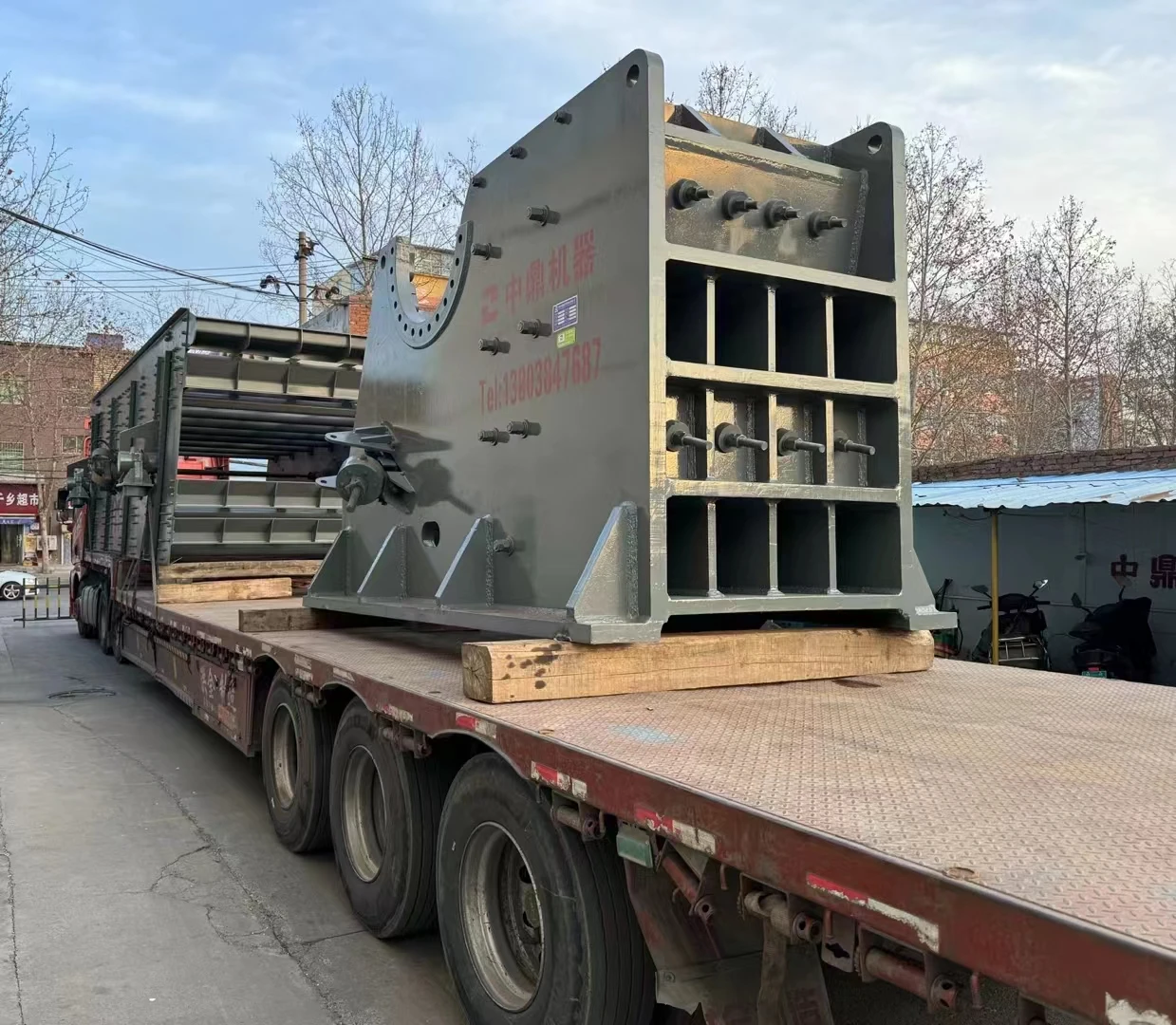

Packing & Delivery
FAQ
1. Which mineral processing method should I choose?
According to the properties of minerals, we will choose the treatment method that most suitable for you.
2. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
3. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
According to the properties of minerals, we will choose the treatment method that most suitable for you.
2. What machines are usually required for the whole production line?
Usually there are feeder, primary and secondary crushers, vibrating screen, ball mill, classifier, spiral chute, magnetic or flotation machine, dryer, etc. Equipment can be adjusted.
3. What is the final mineral concentration?
It depends on the ore grade. The final concentration of gold ore can reach 80-90%.
