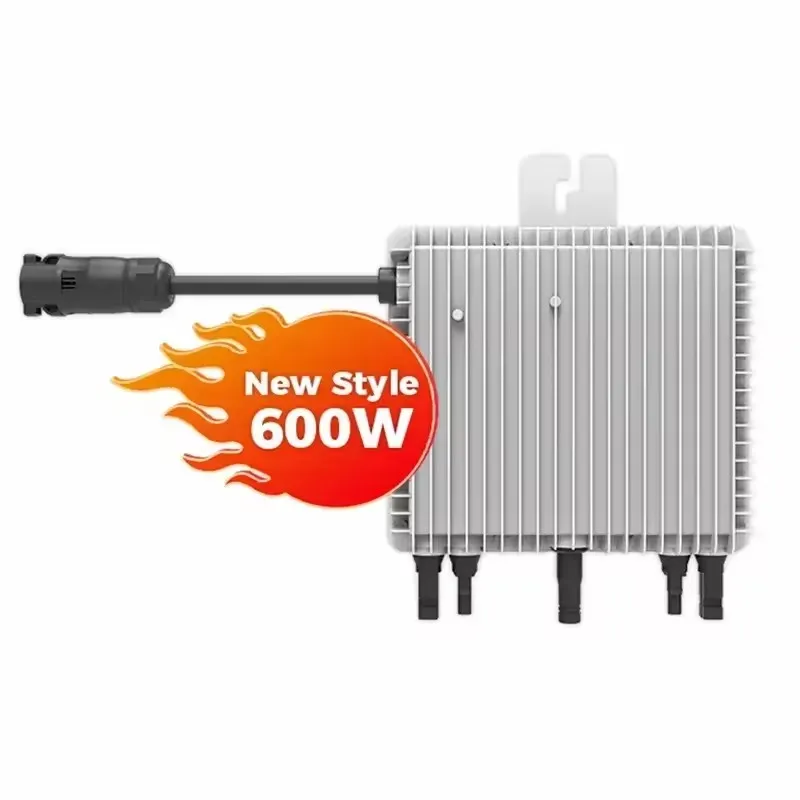

15 years warranty deye microinverter 600w 800w 2000w Sales Promotion 600W Deye Micro Inverter Sun600g3 eu 230
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1601072673262):
Product Overview
Description
Product Description
Specification
Model | SUN600G3-EU-230 | SUN800G3-EU-230 | SUN1000G3-EU-230 | |||
Input Data (DC) | ||||||
Recommended input Power (STC) | 210~400W (2 Pieces) | 210~600W (2 Pieces) | 210~600W (2 Pieces) | |||
Maximum input DC Voltage | 60V | |||||
MPPT Voltage Range | 25~55V | |||||
Operating DC Voltage Range | 20~60V | |||||
Max. DC Short Circuit Current | 2×19.5A | |||||
Max. input Current | 2×13A | |||||
Number of MPPT / Strings per MPPT | 2/1 | |||||
Output Data (AC) | ||||||
Rated output Power | 600W | 800W | 1000W | |||
Rated output Current | 2.6A | 3.5A | 4.3A | |||
Nominal Voltage Range | 230V / 184~265V | |||||
Nominal Frequency Range | 50 / 60Hz | |||||
Extended Frequency Range | 45~55Hz / 55~65Hz | |||||
Power Factor | >0.99 | |||||
Maximum units per branch | 8 | 6 | 5 | |||
Efficiency | ||||||
CEC Weighted Efficiency | 95% | |||||
Peak Inverter Efficiency | 96.5% | |||||
Static MPPT Efficiency | 99% | |||||
Night Time Power Consumption | 50mW | |||||
Mechanical Data | ||||||
Ambient Temperature Range | -40~65℃ | |||||
Size (mm) | 212W×230H×40D (Without mounting bracket and cable) | |||||
Weight (kg) | 3.5 | |||||
Cooling | Natural cooling | |||||
Enclosure Environmental Rating | IP67 | |||||
Features | ||||||
Compatibility | Compatible with 60~72 cell PV modules | |||||
Communication | Power line / WIFI / Zigbee | |||||
Grid Connection Standard | EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116, RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547 | |||||
Safety EMC / Standard | UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3 | |||||
Warranty | 10 years | |||||

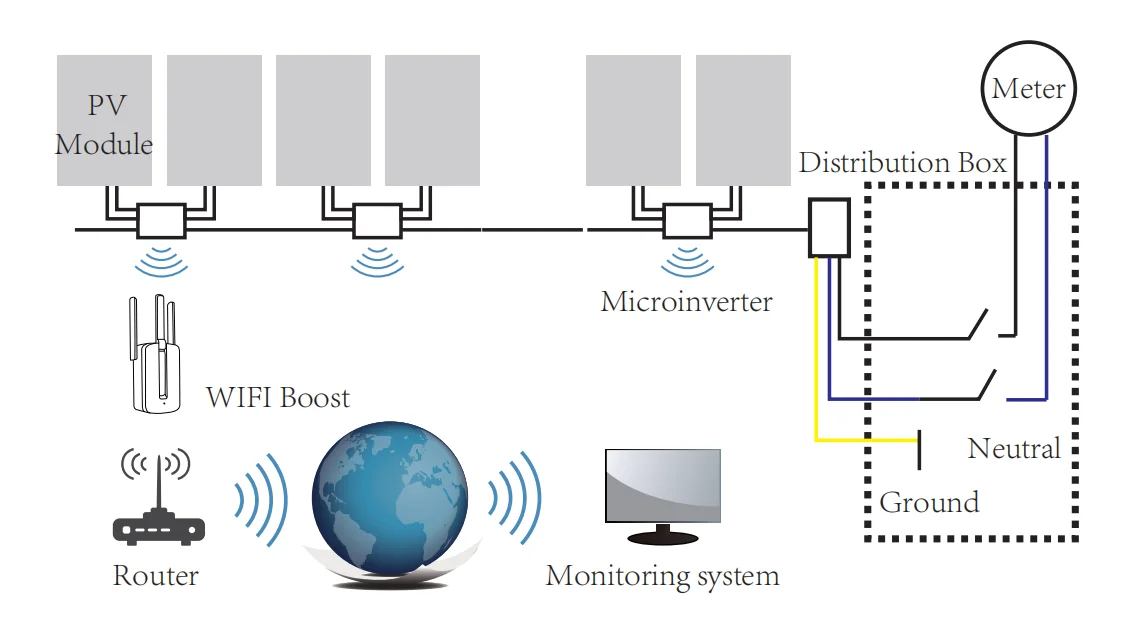

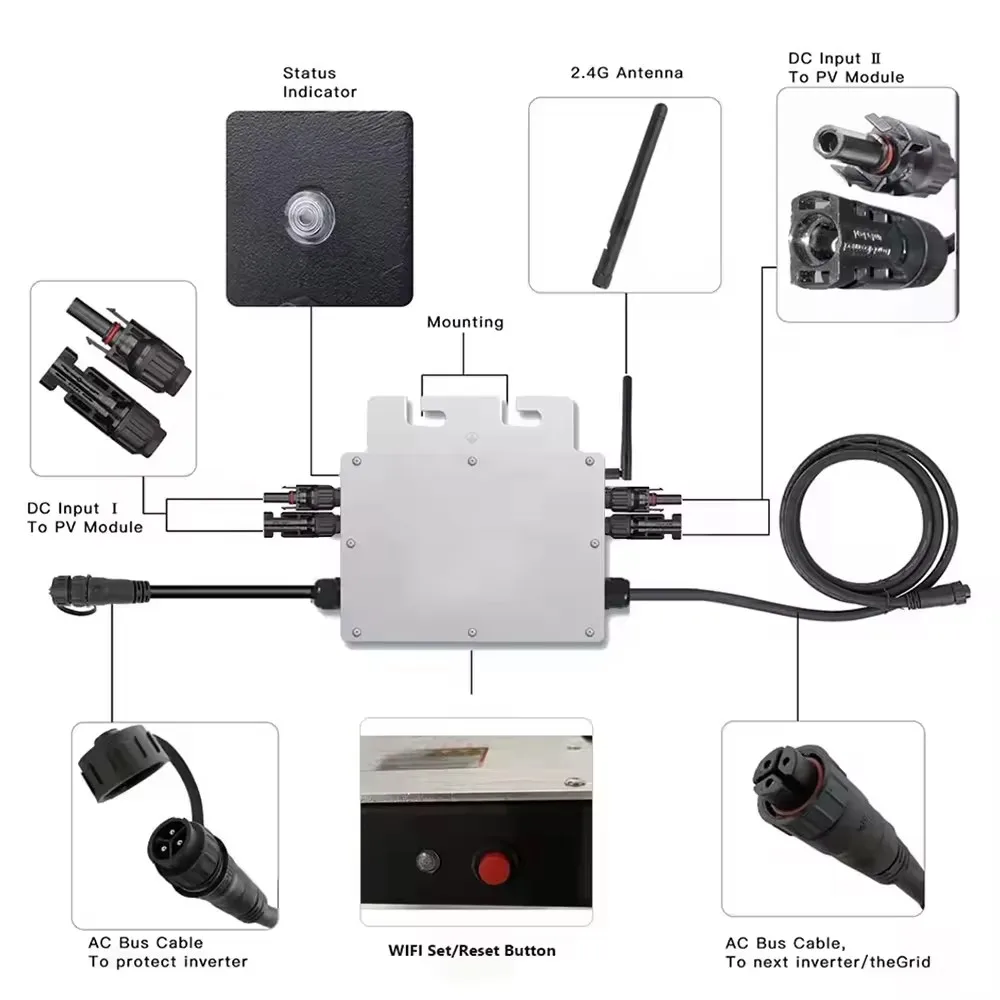

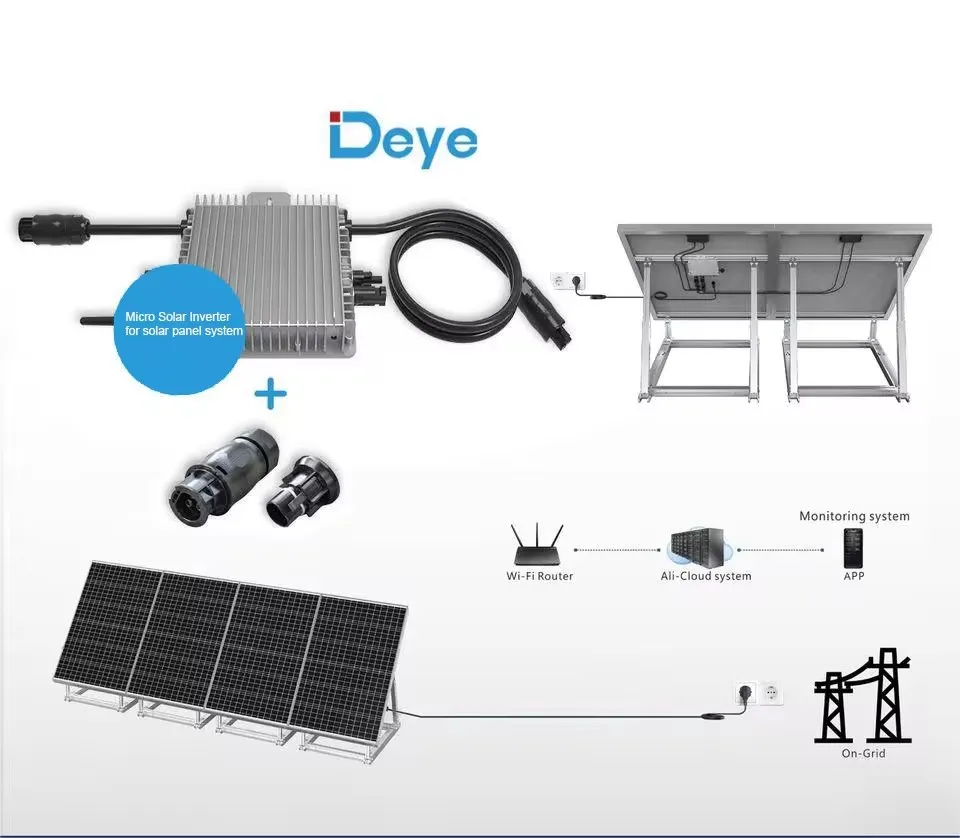

Microinverter System Introduction
The Microinverter is used in utility-interactive grid-tied applications, comprised of two key elements:
* Microinverter
* Router
This series microinverter has built-in WIFI module so it can communicate with router directly.
600 / 800 / 1000G3
* Microinverter
* Router
This series microinverter has built-in WIFI module so it can communicate with router directly.
600 / 800 / 1000G3

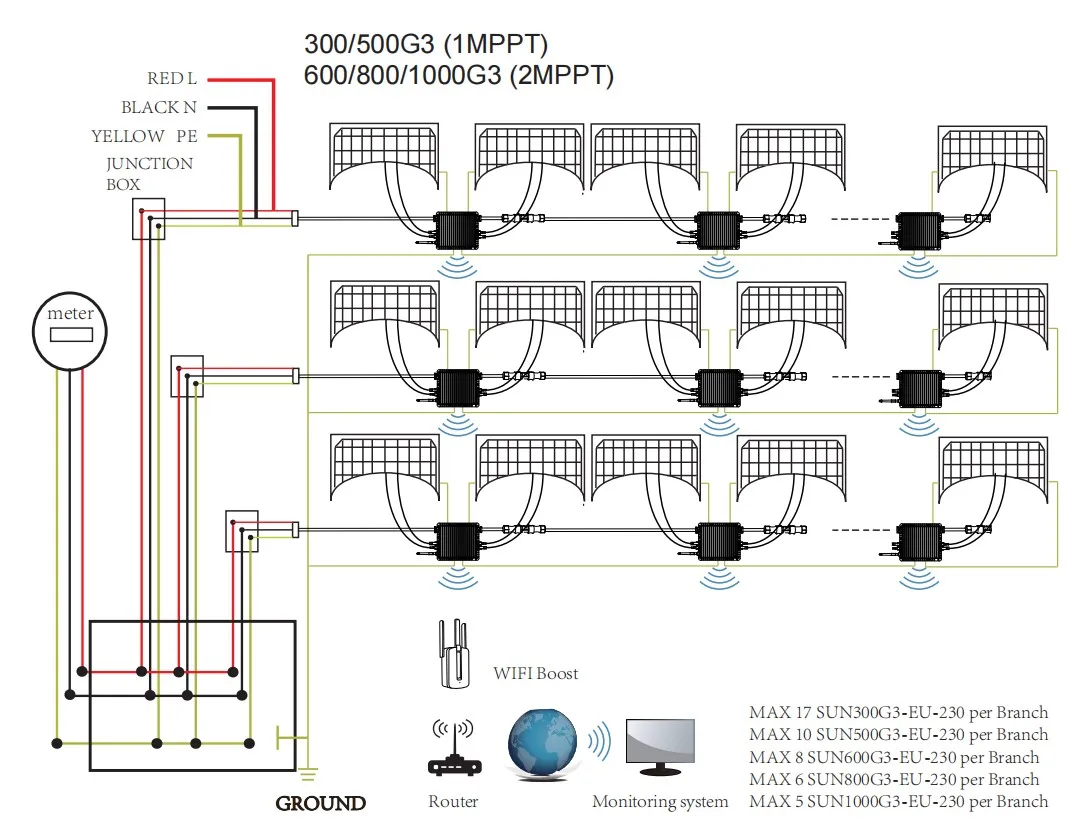

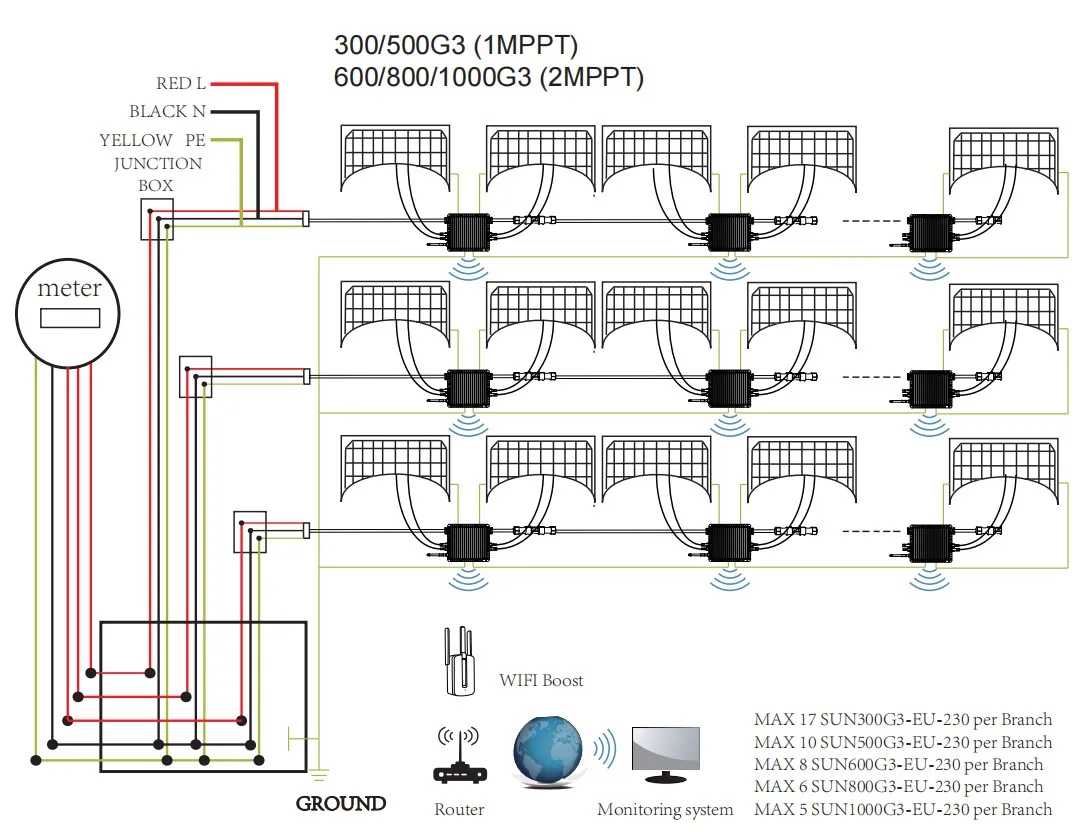

Sample Wiring Diagram Three Phase
Sample Wiring Diagram Single Phase

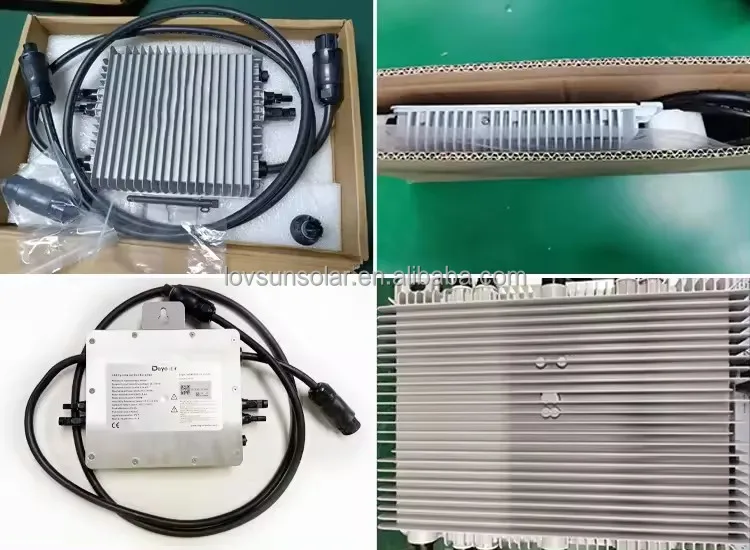

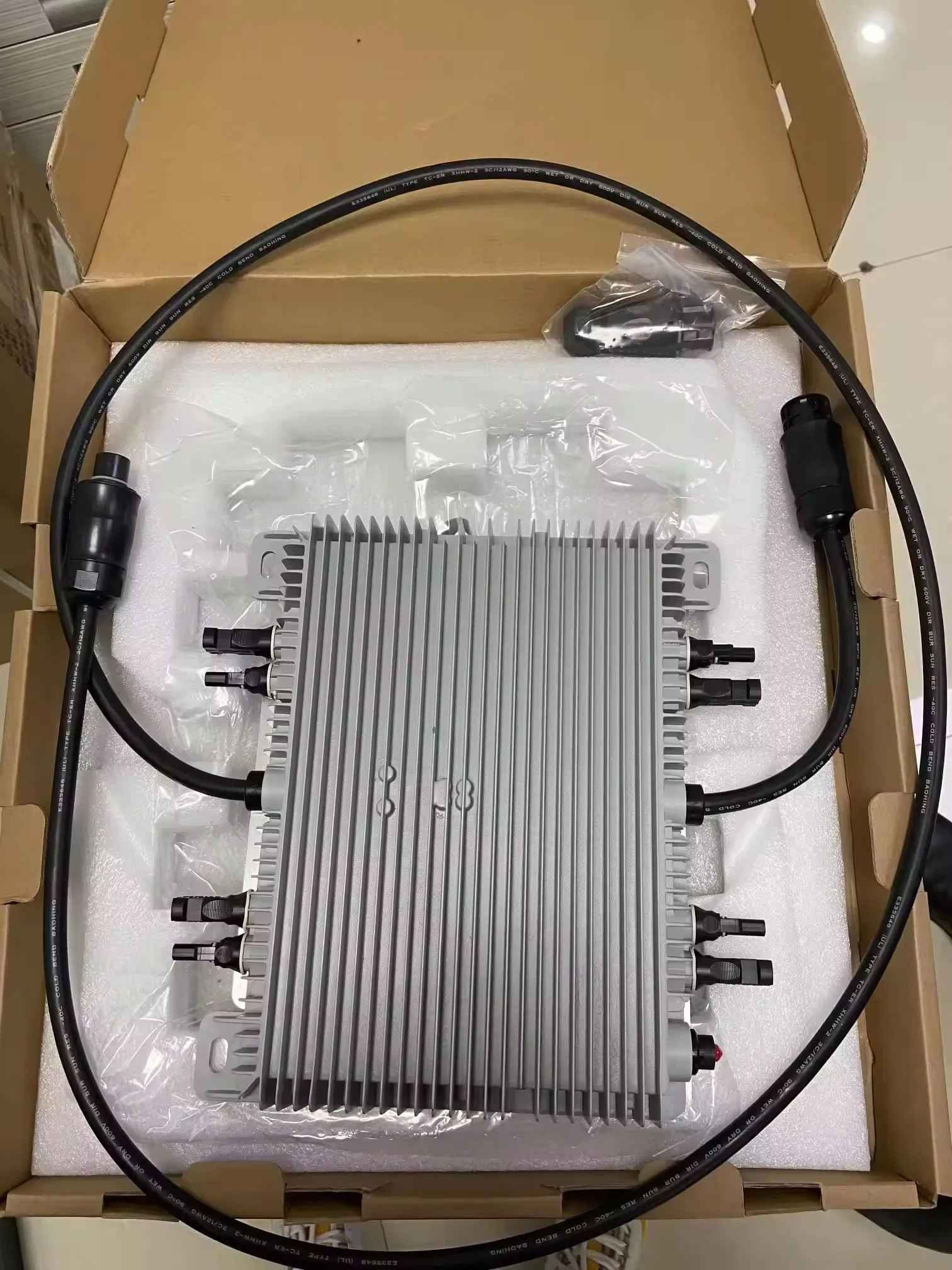

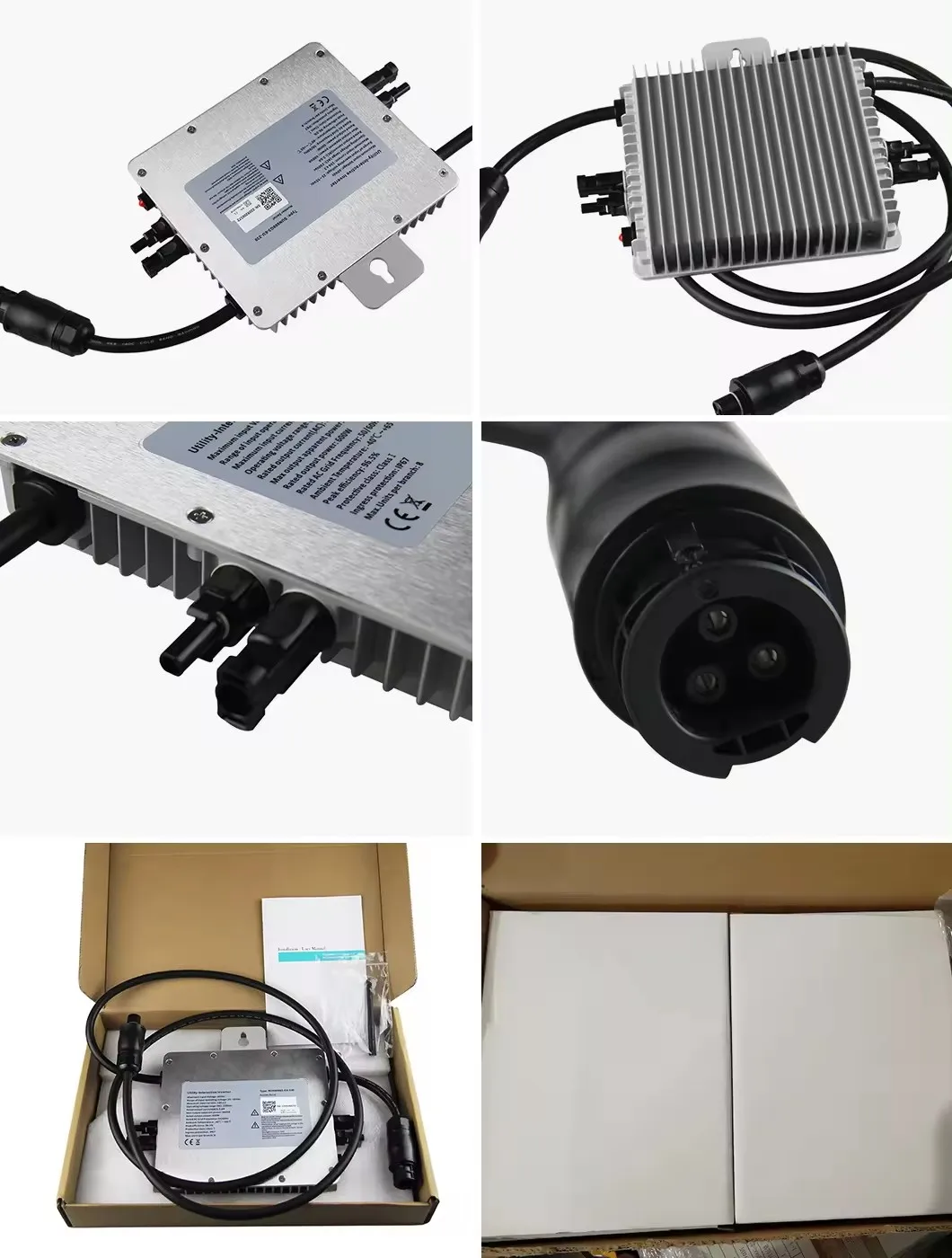

Packing
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30%T/T in advance,paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30%T/T in advance,paid the balance against copy of B/L | ||||||
CIF | |||||||
L/C | Optional L/C amount above 50,000usd, we can accept L/C at sight | ||||||
West Union | Optional for amount less than 5000usd | ||||||
paypal | |||||||
Delivery Time | 7~10 days after receiving payment for one container | ||||||
