Energy 1mwh 2mwh 3mwh 5mwh 10mwh Energy Storage Power Lithium Ion Battery 220v Integrated Bess Container Energy Storage

Product Overview

Description

Product introduction

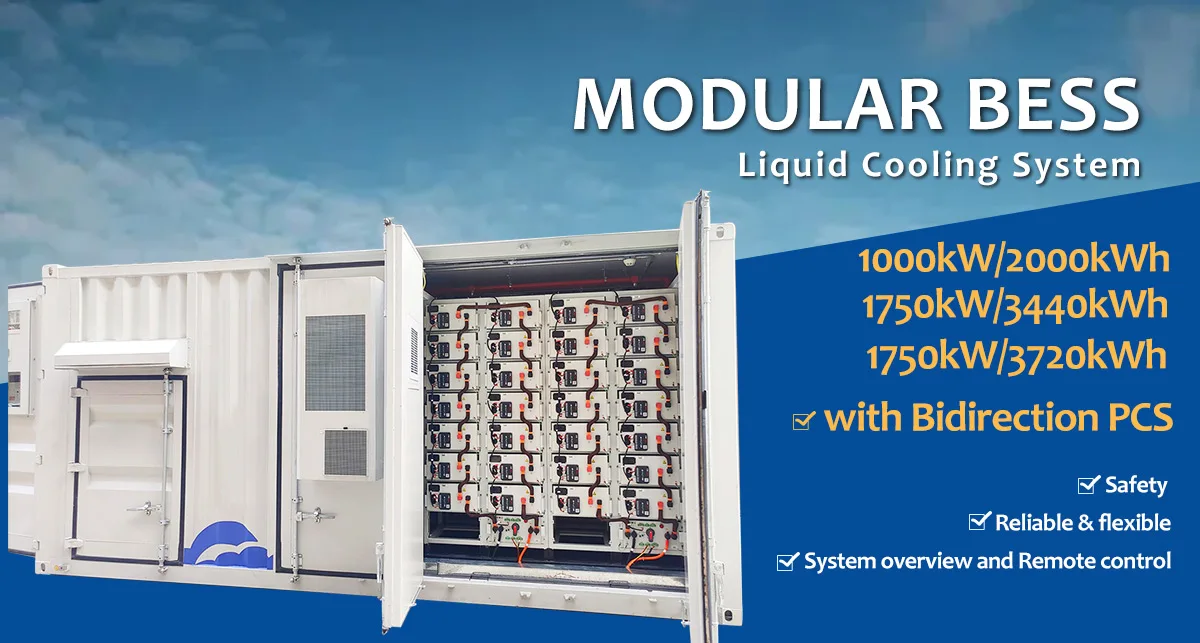

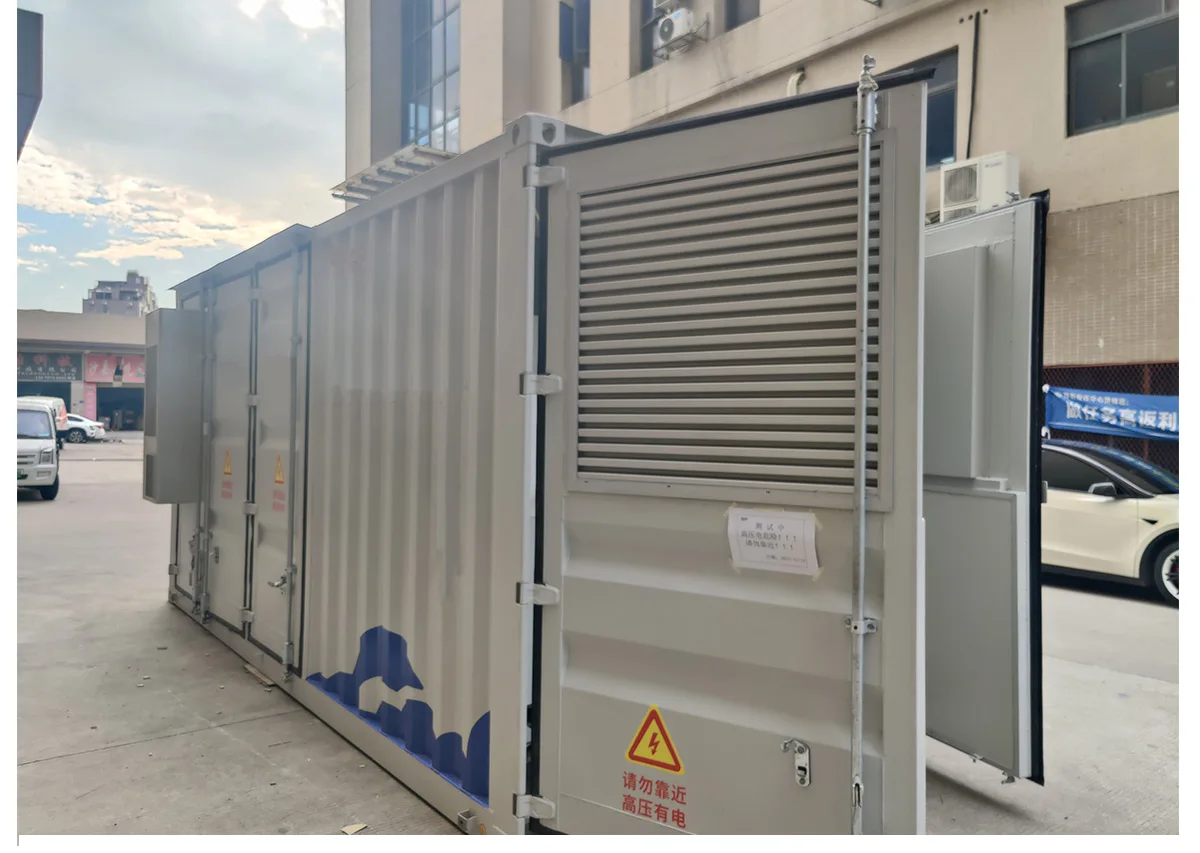

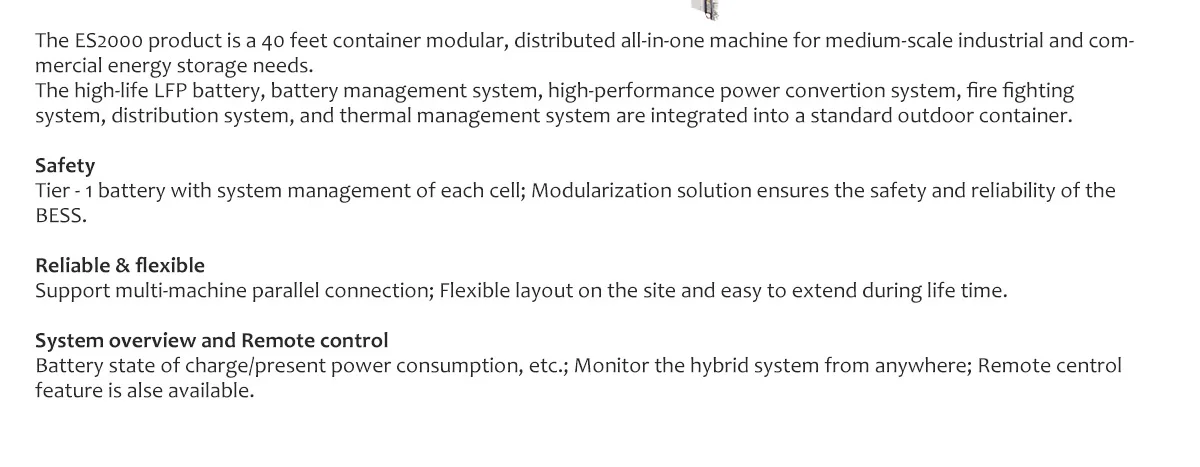

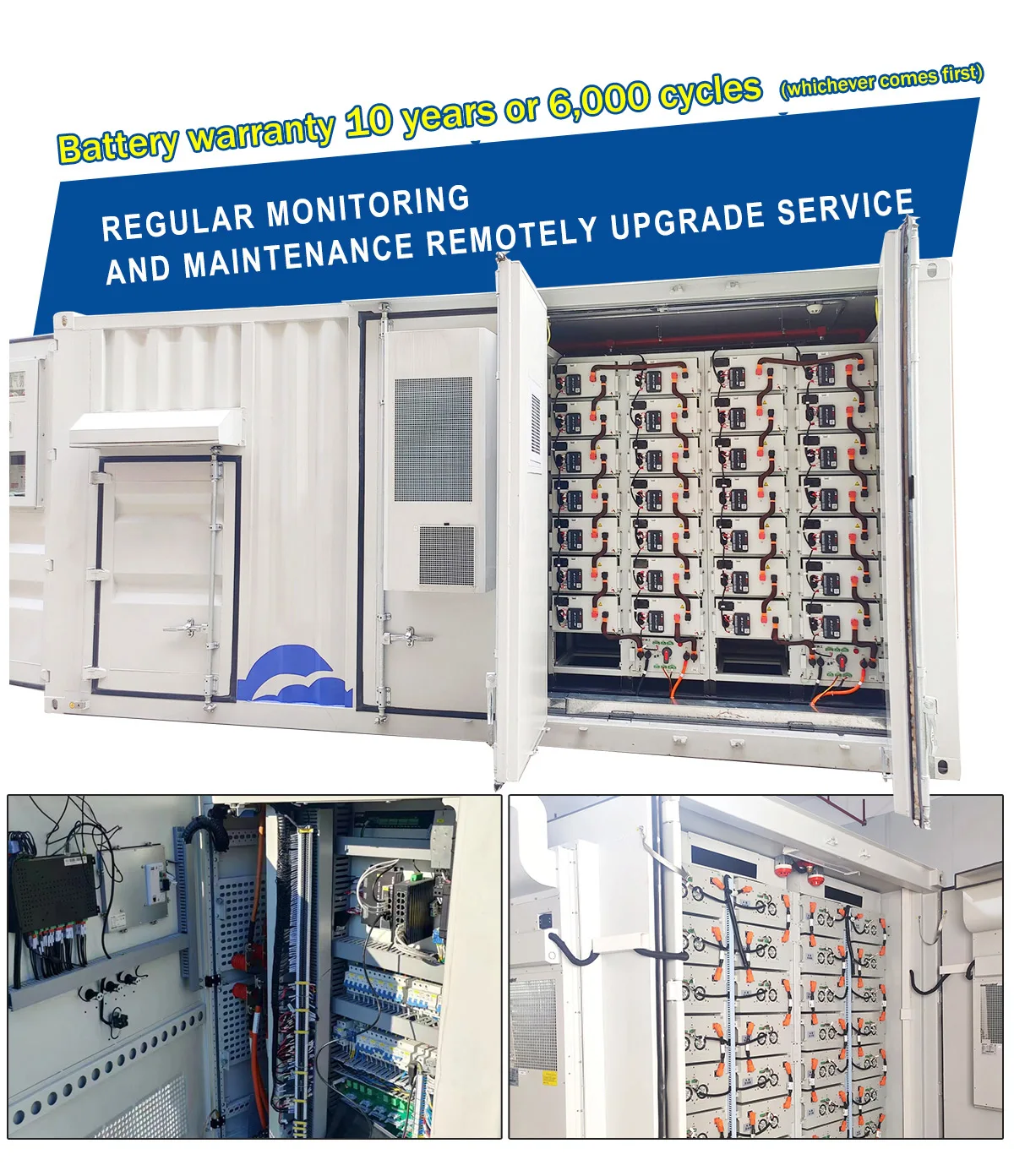

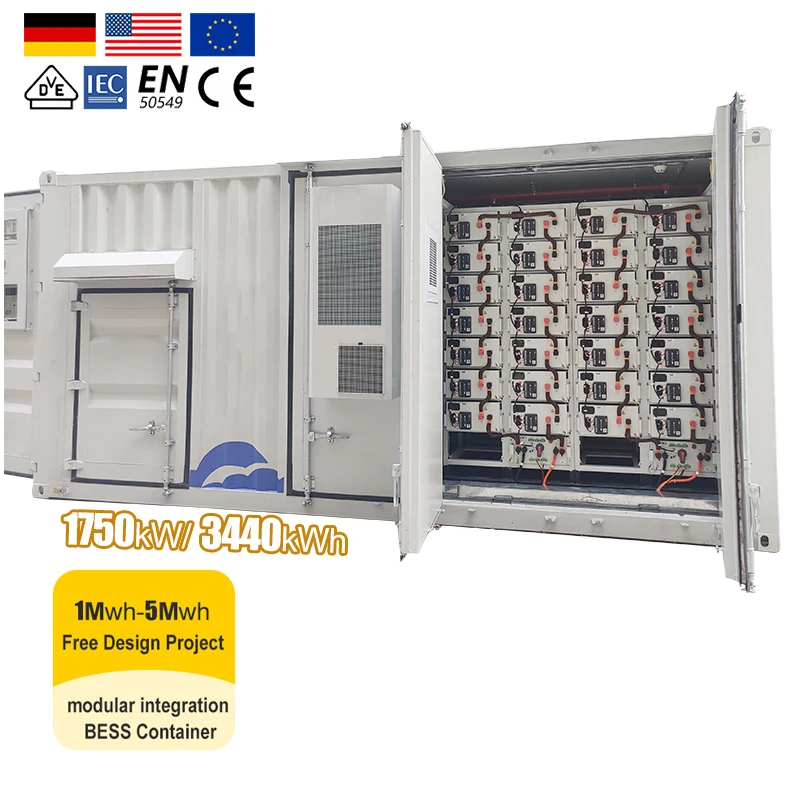

The ES2000 product is a modular, distributed all-in-one machinecarried by a 40-ft container, which is designed for medium-scaleindustrial and commercial energy storage needs.

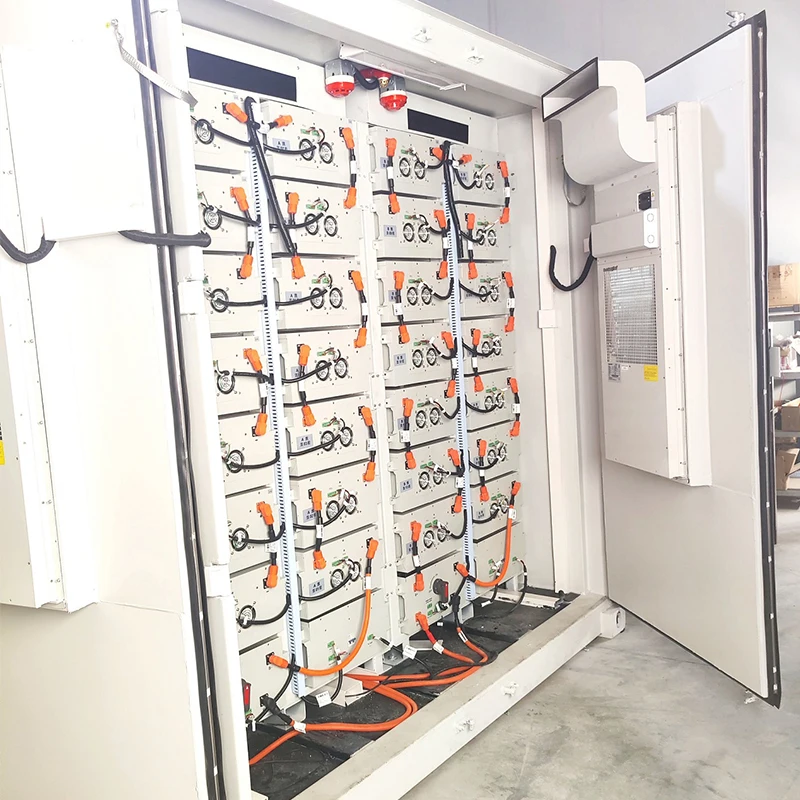

The long service life LFP battery, battery management systemhigh-performance power conversion system, fire fighting system.distribution system,and thermal management system areintegrated into a standard outdoor container.



Characteristics

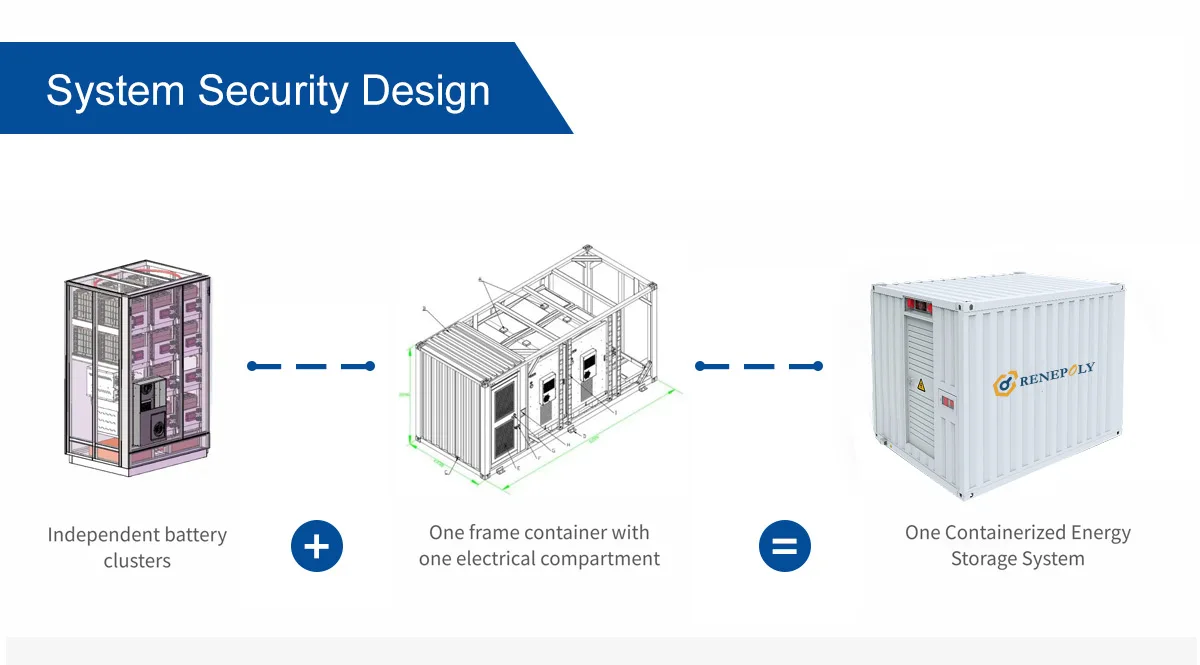

Safety: Tier -1 battery with system management of each cell; Modularizationsolution ensures the safety and reliability of the BESS.

Reliable & flexible: Support multi-machine parallel connection; Flexiblelayout on-site and easy to extend during life time.

System overview and Remote control: Battery state of charge/presentpower consumption, etc.; Monitor the hybrid system from anywhere;Remote control feature is alse available.





Technical Parameters					ES2000
AC Side(Grid Tied Scenario)
AC Output Power					1000kW
Max.AC Current					1600A
Nominal AC Voltage /Range					400V/230V(-20%%~15%)
Nominal Grid Frequency/Range					50Hz/47Hz~52H 60HZ/57Hz62HZ
Harmonic(THD)					<3%(at Nominal Power)
Power Factor at Nominal Power/Adjustable					-1~1
Colling Concept of PCS Chamber					Air-Cooling
Seamless Switching from Grid toBESS In Case of Power Outag					Optional
AC Side (Microgrid Scenairo)
Nominal AC Voltage					400V/230V
Harmonic(THD)					<1%(Resistance Load)
Nominal Frequency/Range					50Hz/45Hz~55H260HZ/55HZ~65HZ
Max.AC Power					1100kW
Batteries
Nominal Battery Voltage					716.8VDC
Battery Type					LiFePO43.2V/280Ah
Battery Pack Configuration					1P16S/14.336kwh
Battery System Configuration					10P224S
Capacity					2007.04kWh
Battery Voltage Range					627.2-806.4VDC
Max Charging/Discharging Current					1400A
Battery Disconnect					Integrated
Cooling concept of battery chamber					Air-Cooling
Normal Parameters
Dimension W*D*H					12192*2438*2591 mm
Charge/Discharge Rate					0.5C
Depth of Discharge					95%
Life Cycle					6000
Degree of Protection					IP54
System Efficiency					>90%
Fire Protection System					Perfluorhexone
Allowed Ambient Temperature					-30~60℃(>45℃ Derating)
Allowed Relative Humidity					0~95%%
Enclosure Corrosion Resistance Level					C3(C4/C5 Optional)
Weight					~18000kg
SPD					DC TYPE II/AC TYPEI

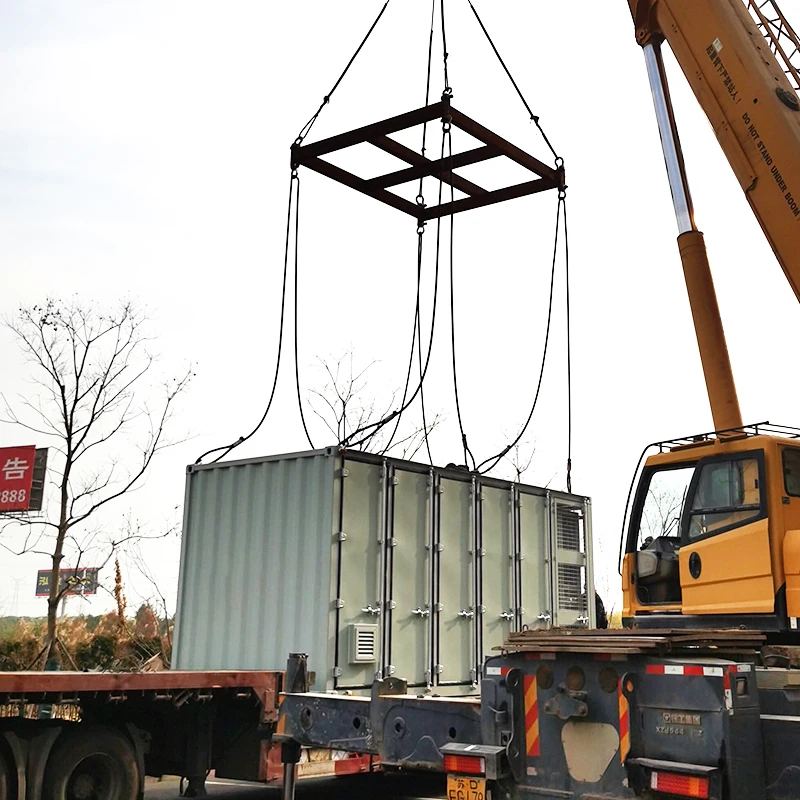

Lifting Options					Crane
Scalability					Yes,Units Can Be Connected In Parallel
Accessories (Optional)					Energy Management System,Microgrid Controller,Scada,4/5G Router,MCCB(Breakers),Power Cables,Smart Meters,Static Transfer Switch(STS),Electri Cabinet
Monitoring
Display					7 Inches Touchscreen
Communication					RS485/Ethernet
Communication Protocols					MODBUS-RTU/MODBUS-TCP
Remote Control System					EG Cloud





Renewable Energy Polygeneration for Modern Life
We penetrate intelligence into the renewable energy to meet the great challenges ofour time.

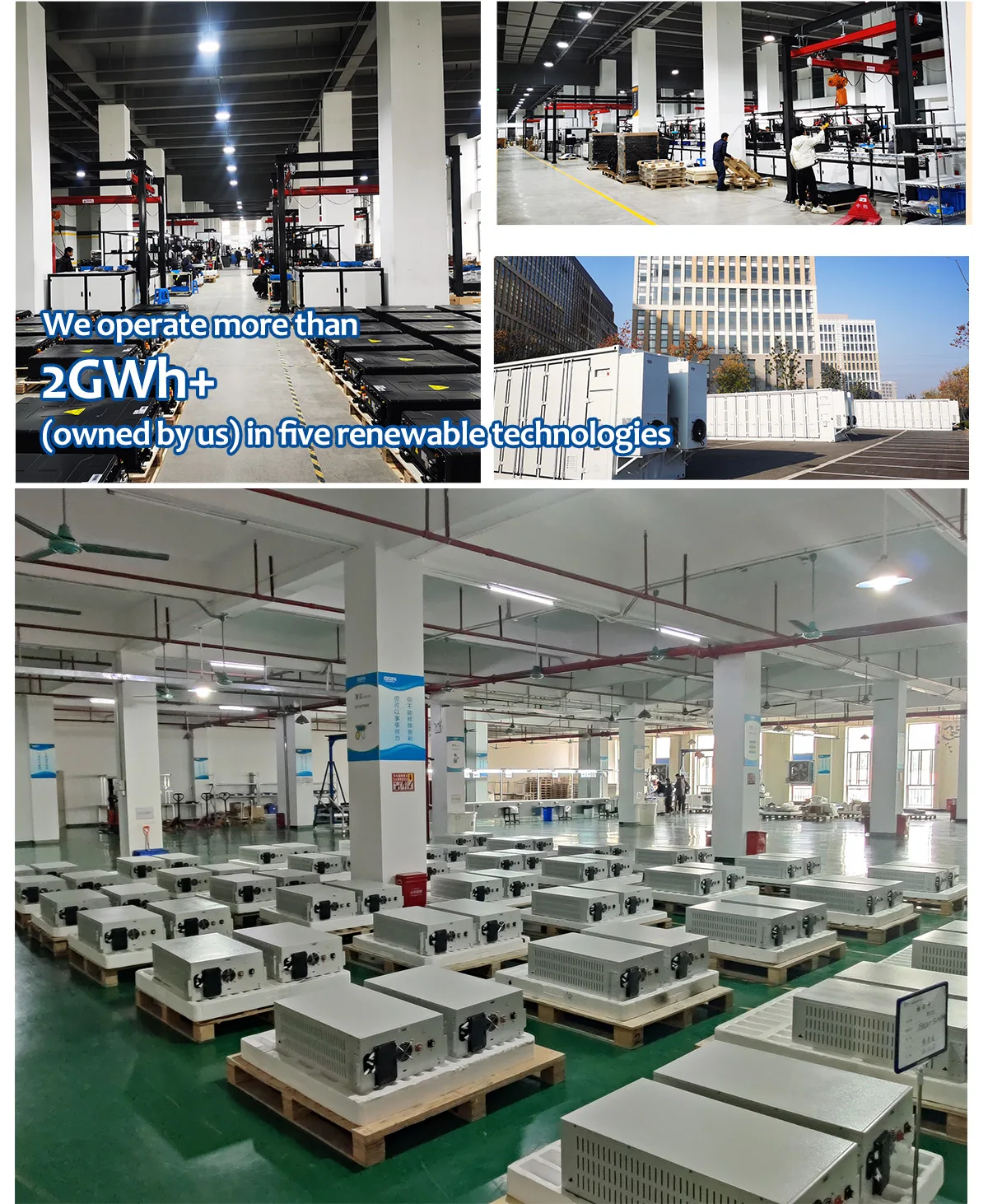

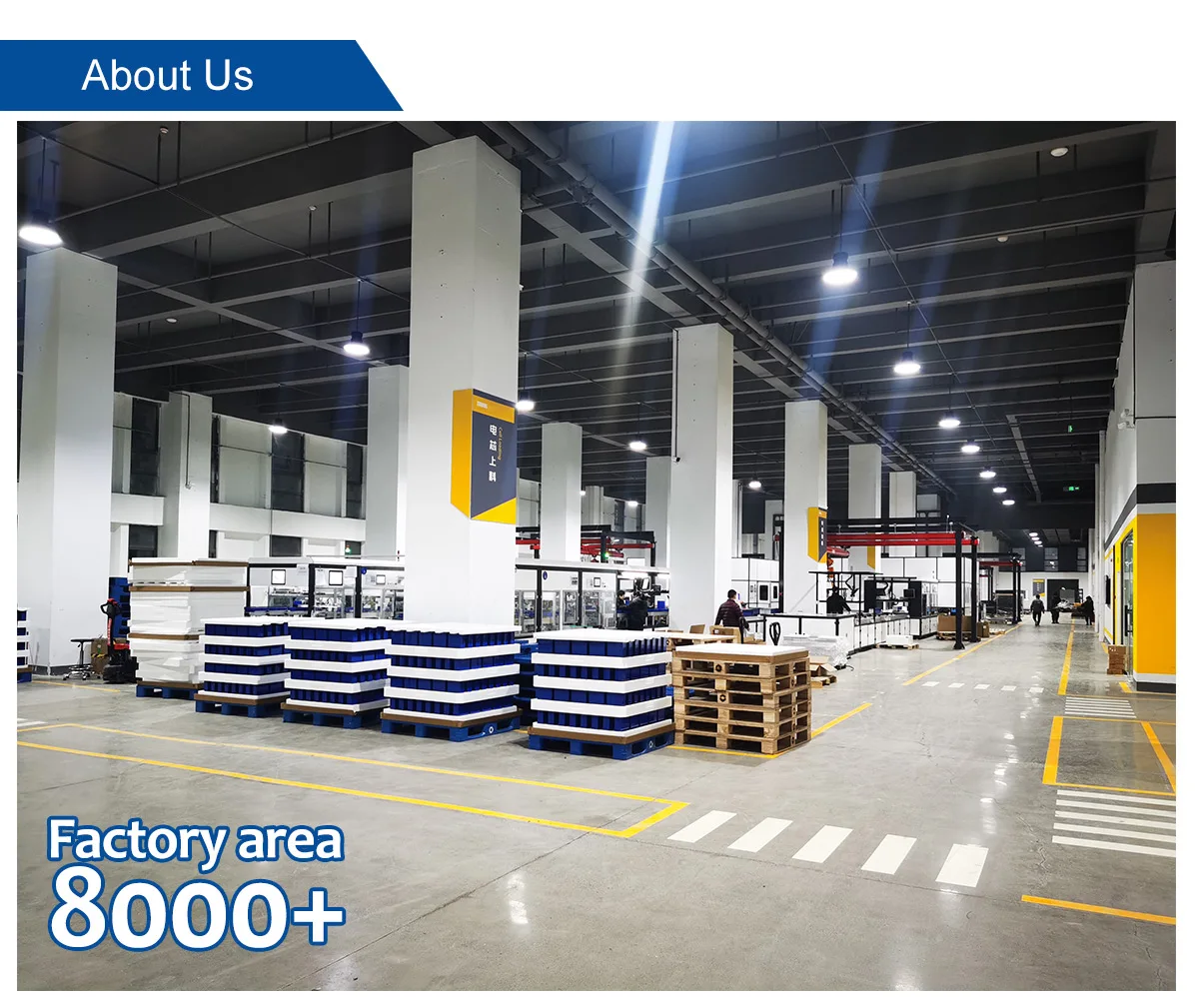

Renepoly Energy was founded in Guangzhou, China in 2016. Since its inception, the company has beencommitted to the research and development of energy stroage system & microgrid system and the expansion of Renepoly Energy has the mission of developing smart microgrid systems topracticalapplication scenarios,promote sustainable energy development in communities and regions in an efficient manner.



Business Lines

1.Engineering
Engineering of modular ESS cabinet & container,smart EMS and microgrid system



2.Manufacturing
Manufacturing the products of modular ESS cabinet &container and smart EMS

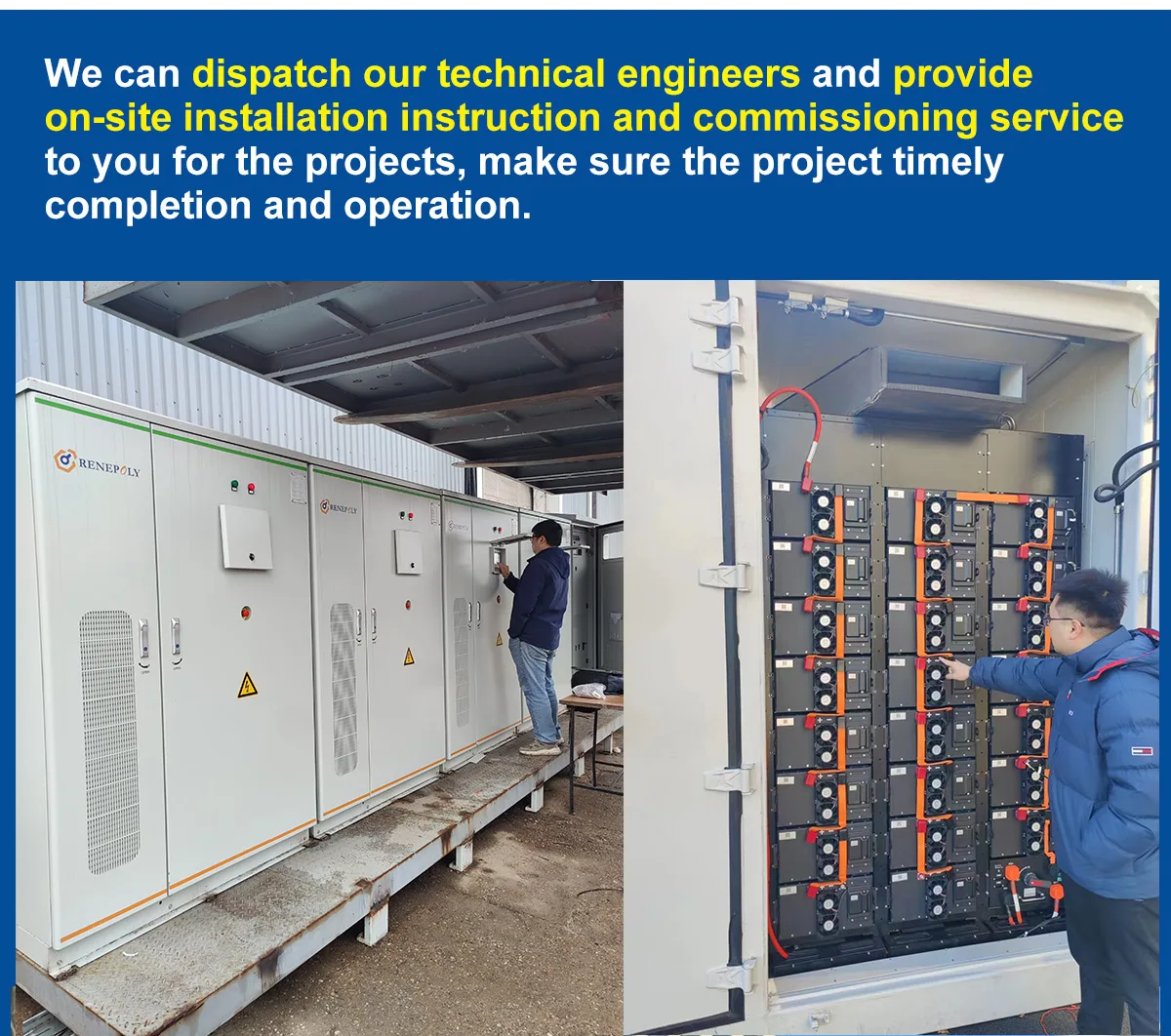

3.Construction
Construction and commissioning of ESS and microgrid projects

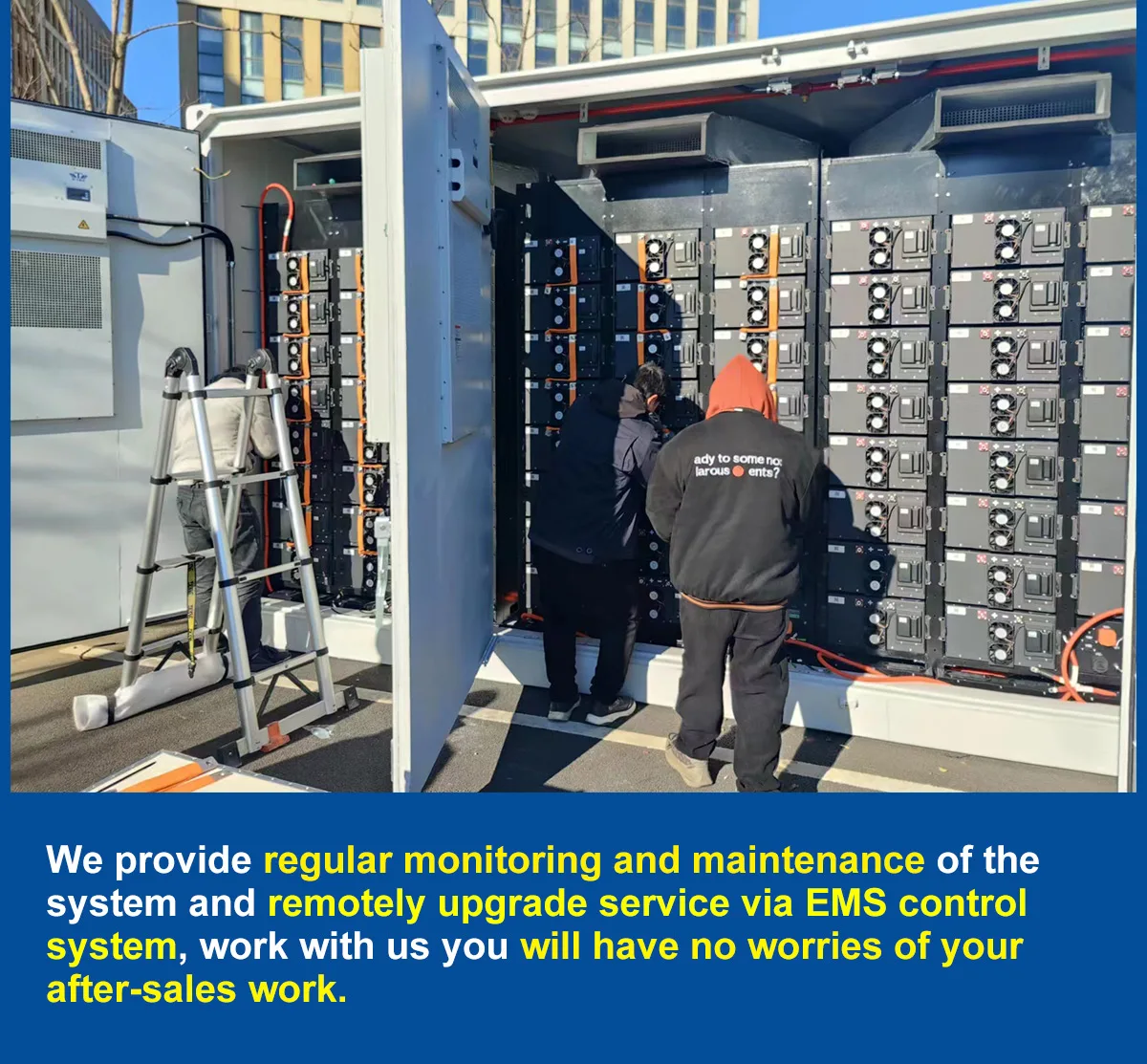

4.O&M
Operation and maintenance of ESS and microgrid projects



5.Consultancy
Technical and project management consultancy to ESS and microgrid projects



6.Analysis
Feasibility study and economic & investment analysis to ESS and microgrid projects
