10.36 inch HD Quad View system 4CH of car truck vehicle backup side motion detect alarm parking reverse camera monitor
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601072836983):
Product Overview
Description
Product Description
YDV05L10.36E+4747B set include
1) YDV05L10.36E monitor*1
2) YJ-4747B camera*4
3) 5m cable*2
4) 8m spring cable*1
5) 10m cable*1
6) remote control1er*1
7) 64G TF card*1

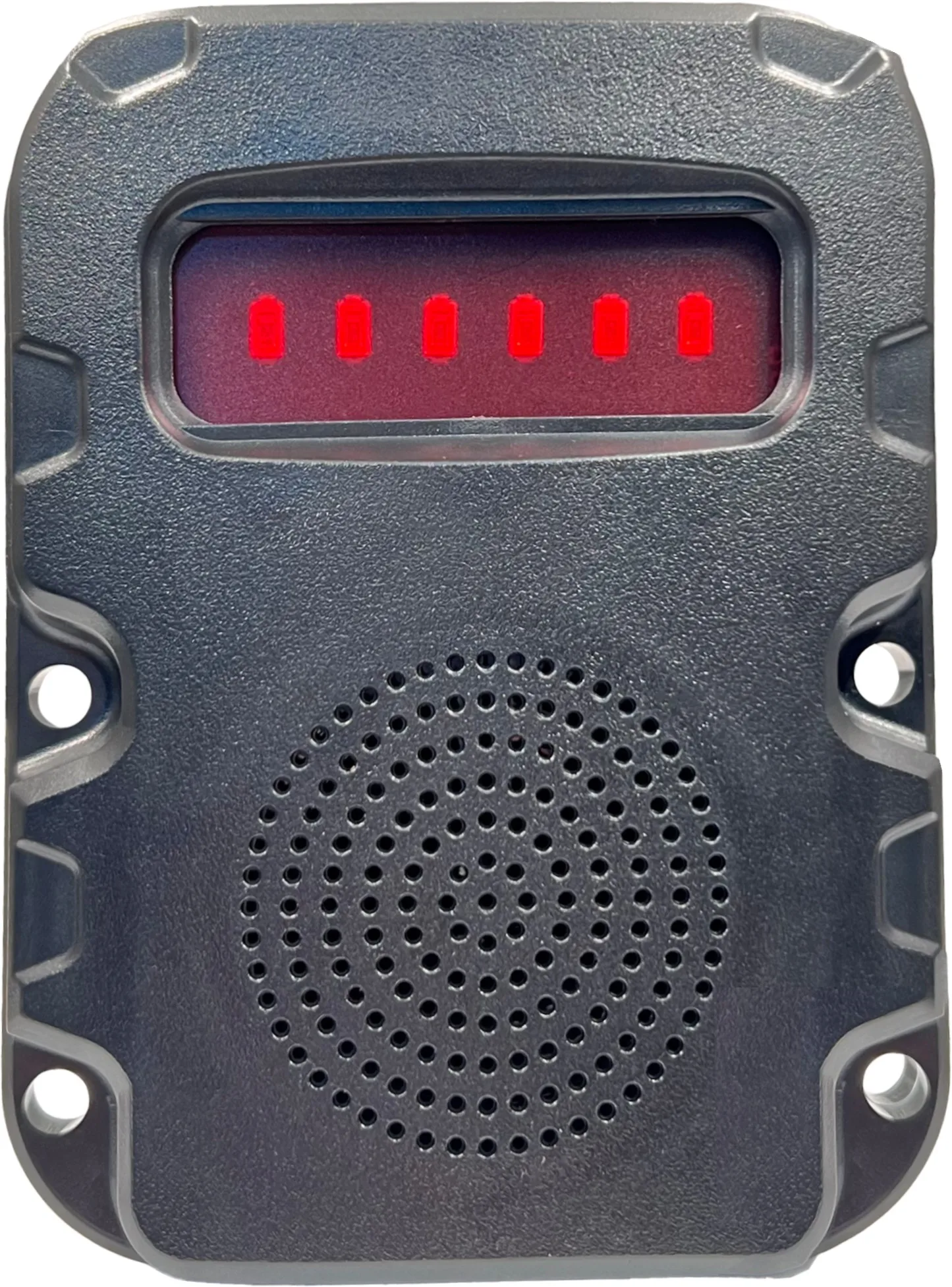

8) Sound & light alarm*1
Product specifications

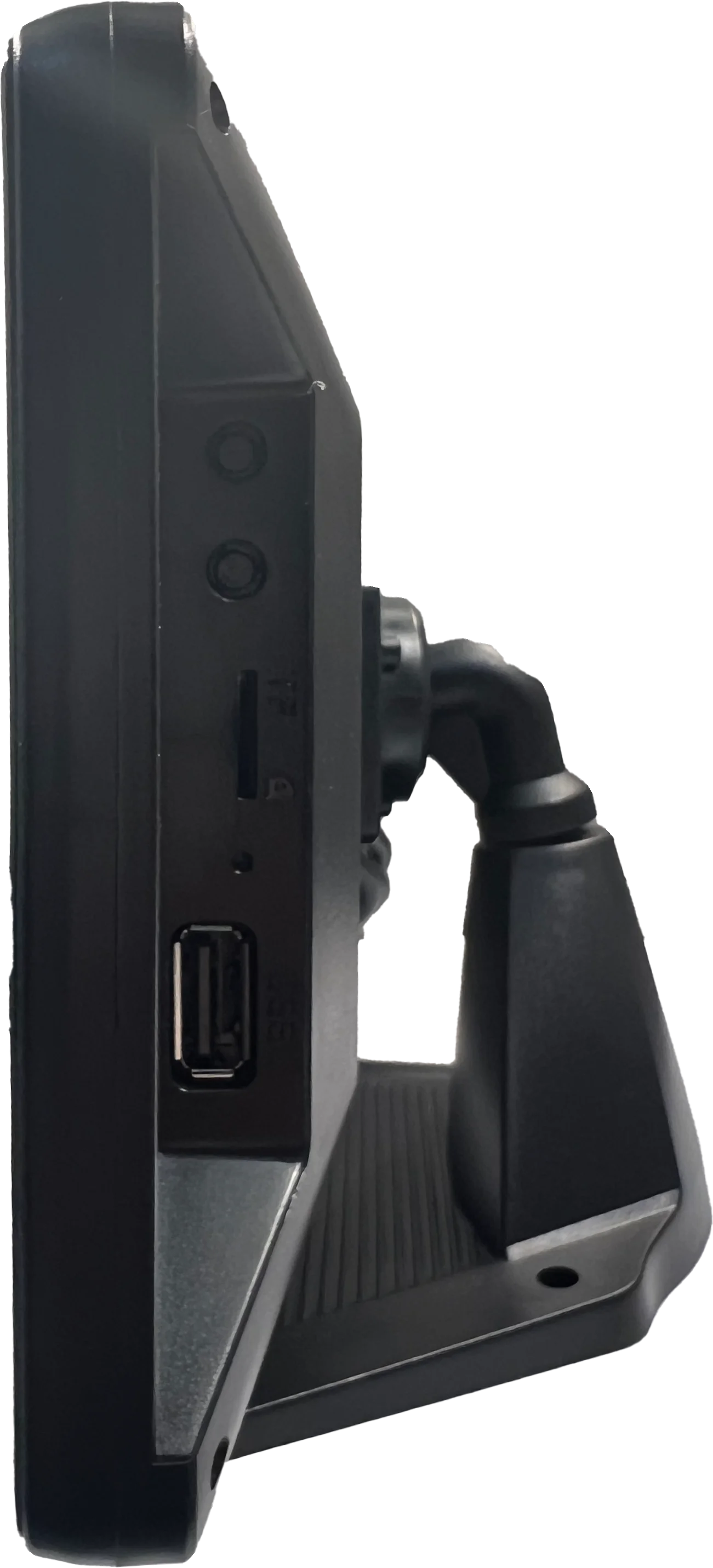

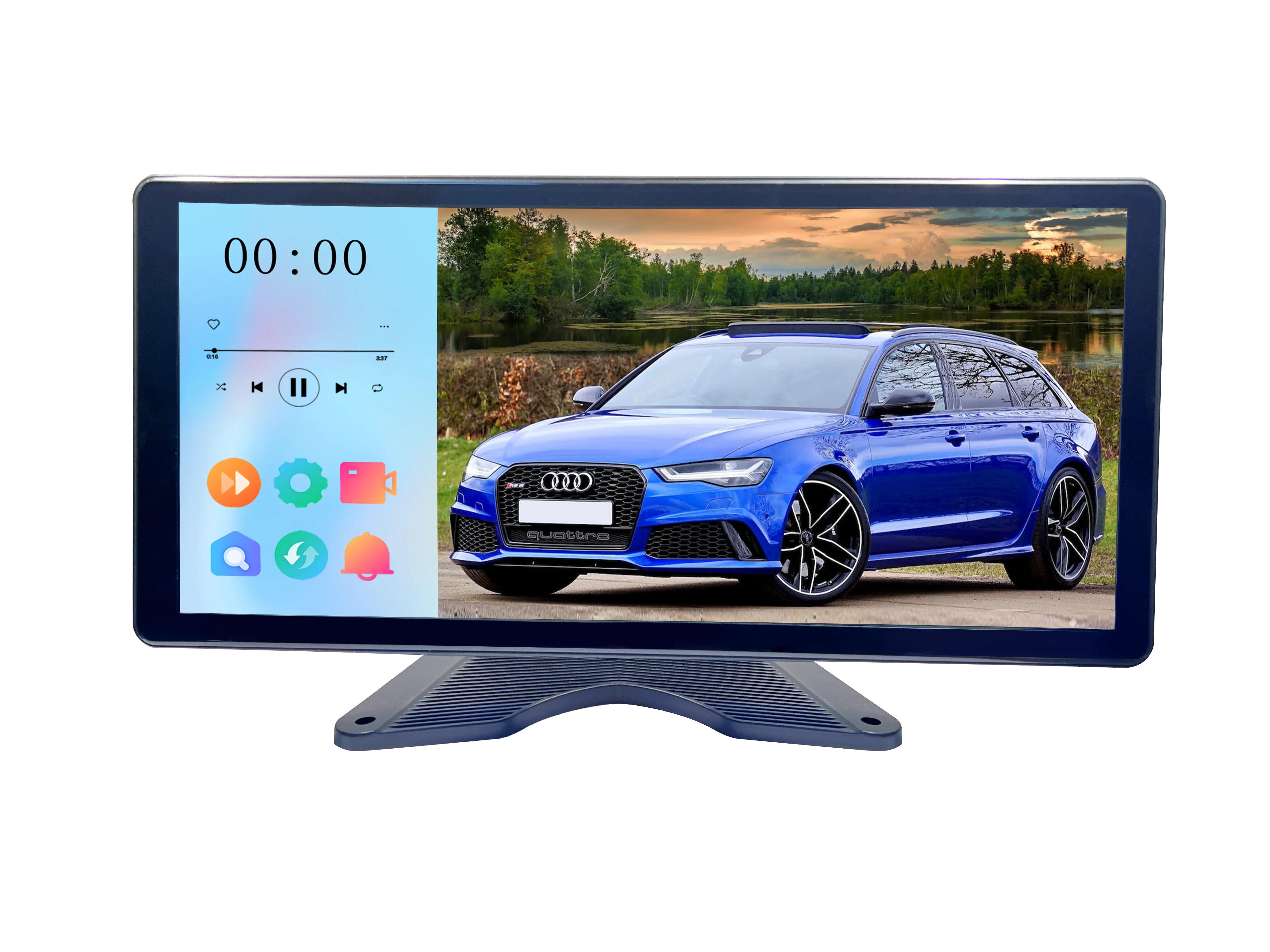

YDV05L10.36E
| Item | Function | Performance index |
| system | operation language | Simplified/Tranditional Chinese/English, etc |
| operaion interface | Graphical menu operation | |
| operation mode | touch screen | |
| video input | video input | 4CH AHD HD video input |
| recorde mode | default switch on record without loss 1s | |
| record format | H.265 video, 4 CH video save separately | |
| video display | real time display | 10.36 inch HD IPS screen 1600*720 |
| video display | 14 kinds of multi CH video display mode | |
| local playback | local play and view in any time | |
| trigger display | trigger display | switch to the corresponding camera view automatically |
| record storage | SD card | CLASS 10 U1, support the Mini. 64GB and the Maxi. 256GB |
| audio | microphone | support microphone record, menu can be set switch off |
| power | power input | Support wide voltage range from 9V to 36V, with vehicle level surge, overload, over voltage, under voltage, short circuit and other power protection circuits, suitable for various truck power environments. |
| consumption | engine detection | ACC detection cable |
| 4 Channel record | less than 10W(screen diplay and 4 CH camera record) | |
| others | working temperature | -20~+70 degree |
| heat dissipation method | passive heat dissiption | |
| rear mode | adjustable | |
| video record time | video record time can be set | |
| channel trigger delay | turn signal delay can be set |

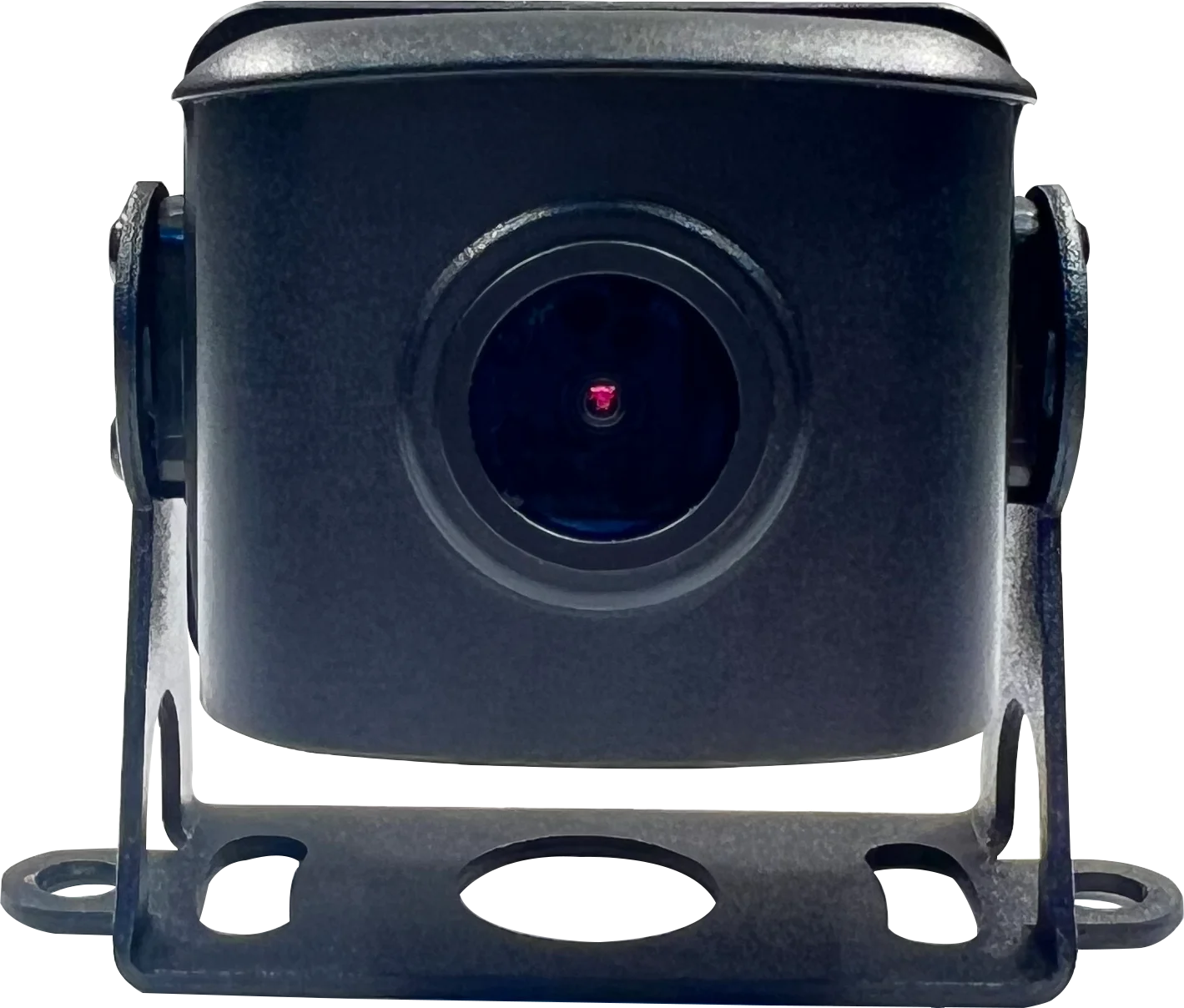

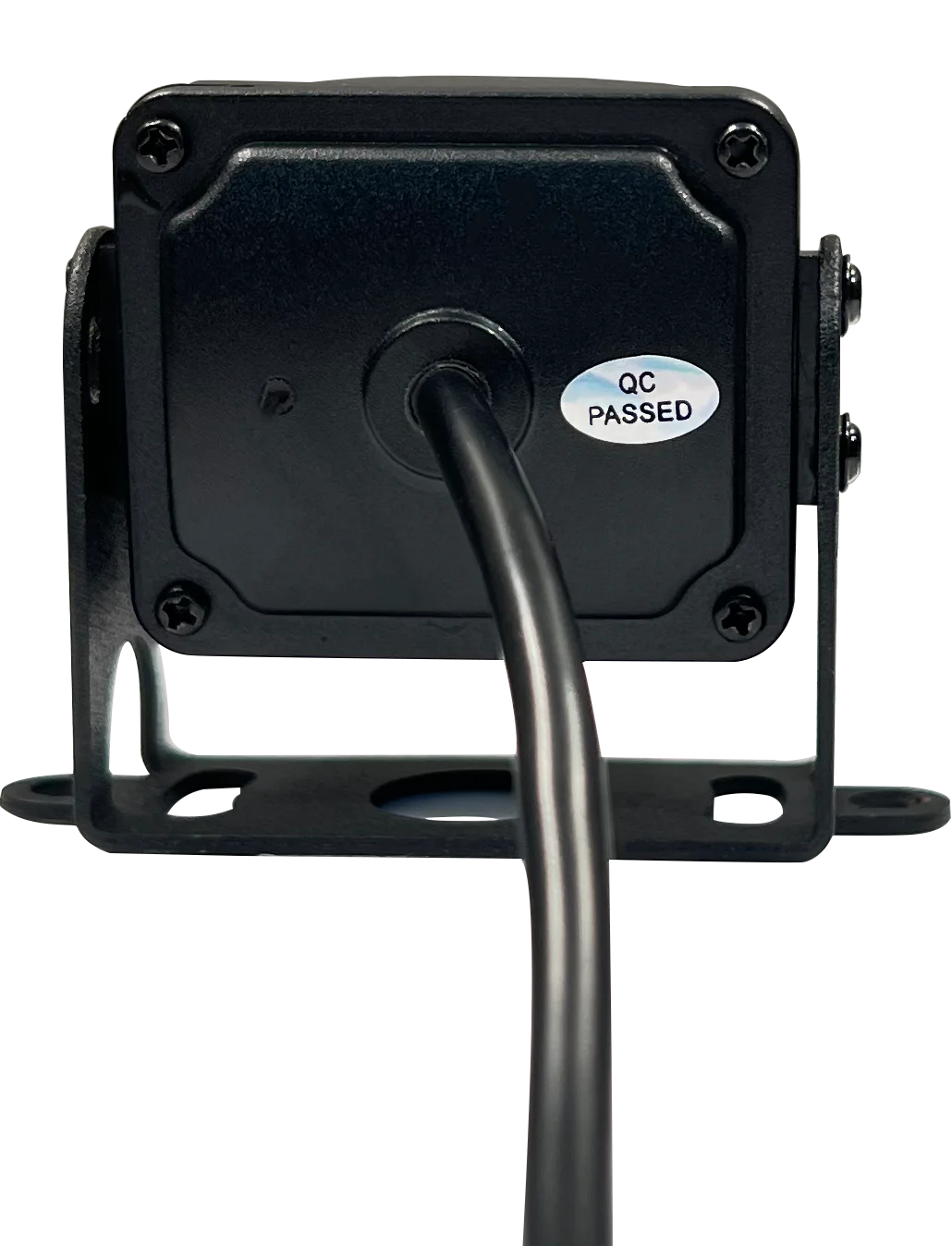

YJ4747B
| item | part | specification |
| camera | cover | zinc alloy |
| waterproof | over IP67 | |
| weight | 190g | |
| box size | 10*10*9cm | |
| audio | no audio | |
| Power consumption | DC12V less than 150mA | |
| PCB board | sensor/DSP | 1/2.7" CMOS |
| resolution | AHD 720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| electronic shutter | 1/50(1/60)~1/100,000sec | |
| white balance | auto | |
| signal to noise rate | more than 48DB | |
| gamma correction | more than 0.45 | |
| synchronization method | inner synchronization | |
| Video output amplitude | 1.0Vp-p 75Ω BNC | |
| gain control | auto | |
| working voltage | DC12V | |
| working temperature | -30℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| lens | Focal length | 2.8mm |
| matrial | 4G glass | |
| aperture | F2.0 | |
| pixel | 1MP | |
| light board | LED | N/A |
| material | N/A | |
| Power consumption | N/A | |
| night vision distance | N/A |
Company Information
FAQ
Why choose Forescene?
Q1:Are you a trading company or manufacturer ?
A:We are the manufacturer.
Q2: Your advantage?
1) We provide OEM& ODM service, specialized in car radio industry more than 10 years experience.
2) Provide customized brand and package services.
3) Every product will be tested before shipment.
4) Suitable for all kinds of cars . Have the best after-sales service and One-to-one 24 hours full-time service.
Q3:Can you ship the goods to our country?
A:Yes, you can choose express (DHL/UPS/FEDEX/EMS/ARAMEX/TNT) and by air, by sea, rail freight to most countries.
Q4:Can I test the sample?
A:Yes, we can provide samples for test. If the sample of the sampling with order, we will refund the cost of the sampling to you , but shipping costs are not included.
Q5: What is your terms of packing?
A:Generally speaking, we pack the goods in neutral boxes and cartons. If you have a legally registered patent, we can provide customized brand and package services.

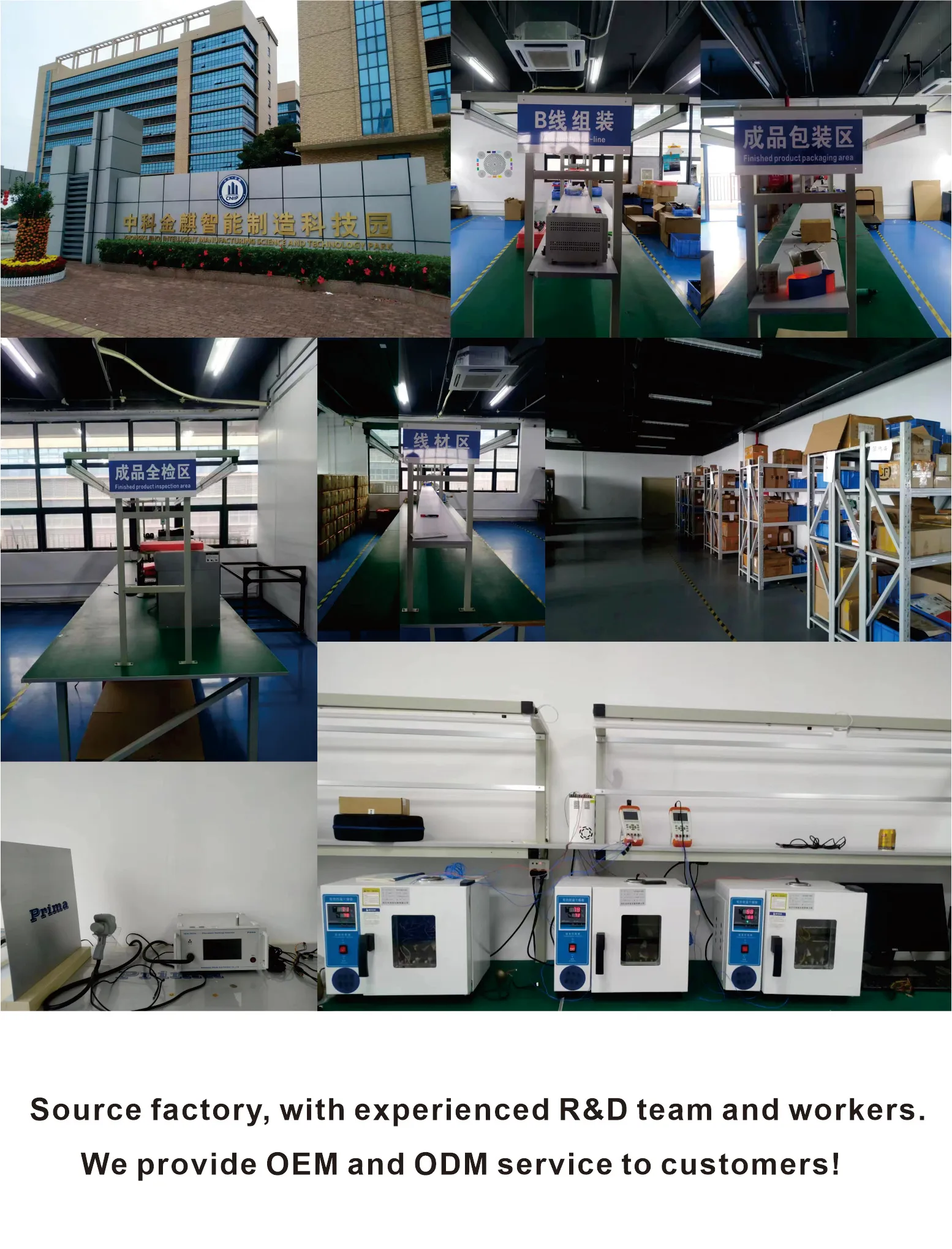

We provide OEM and ODM service to customers. We are source factory with our R&D team.
