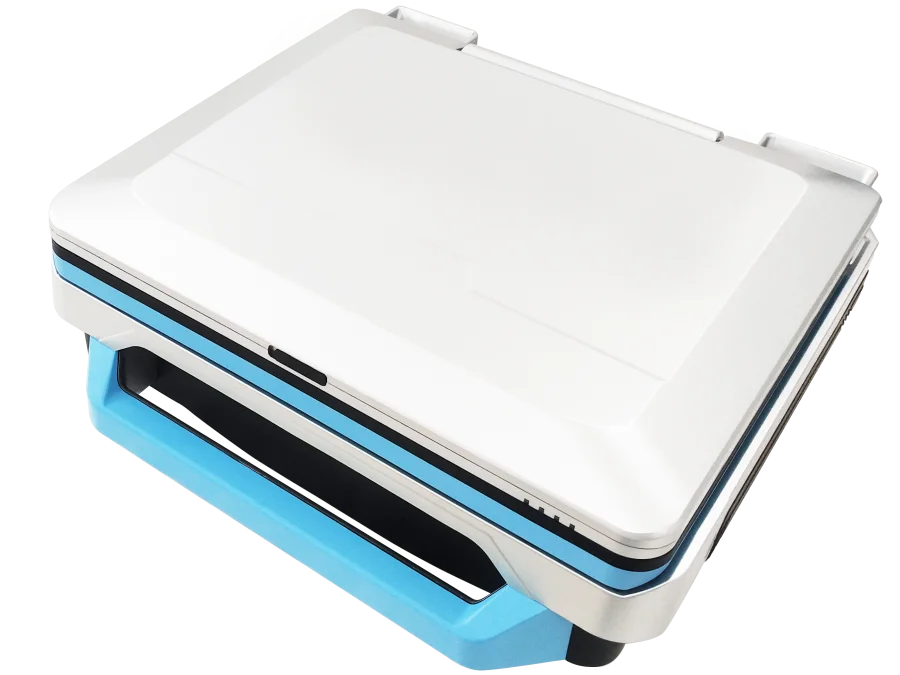

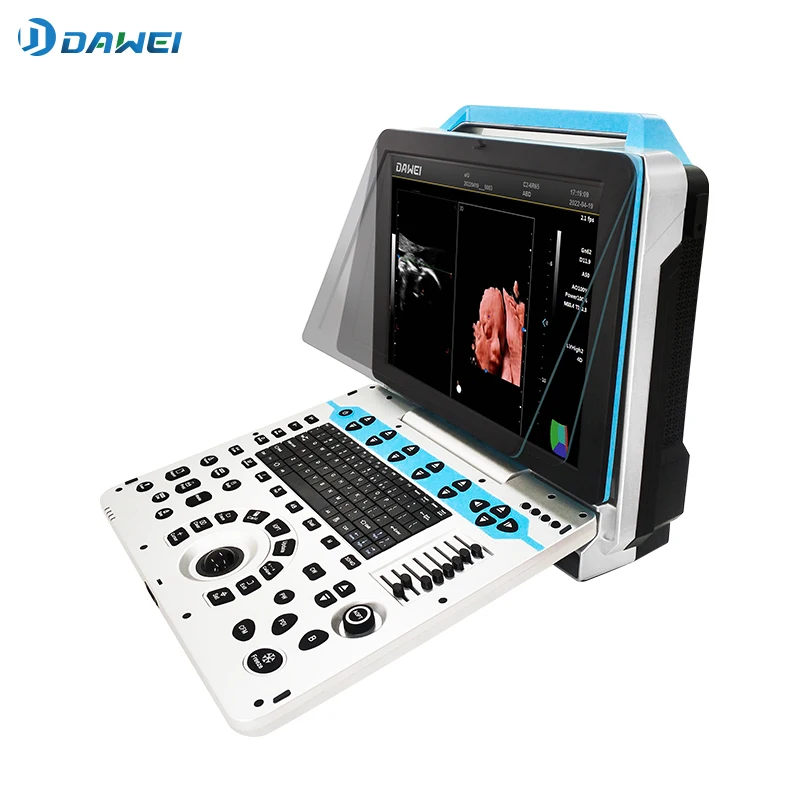

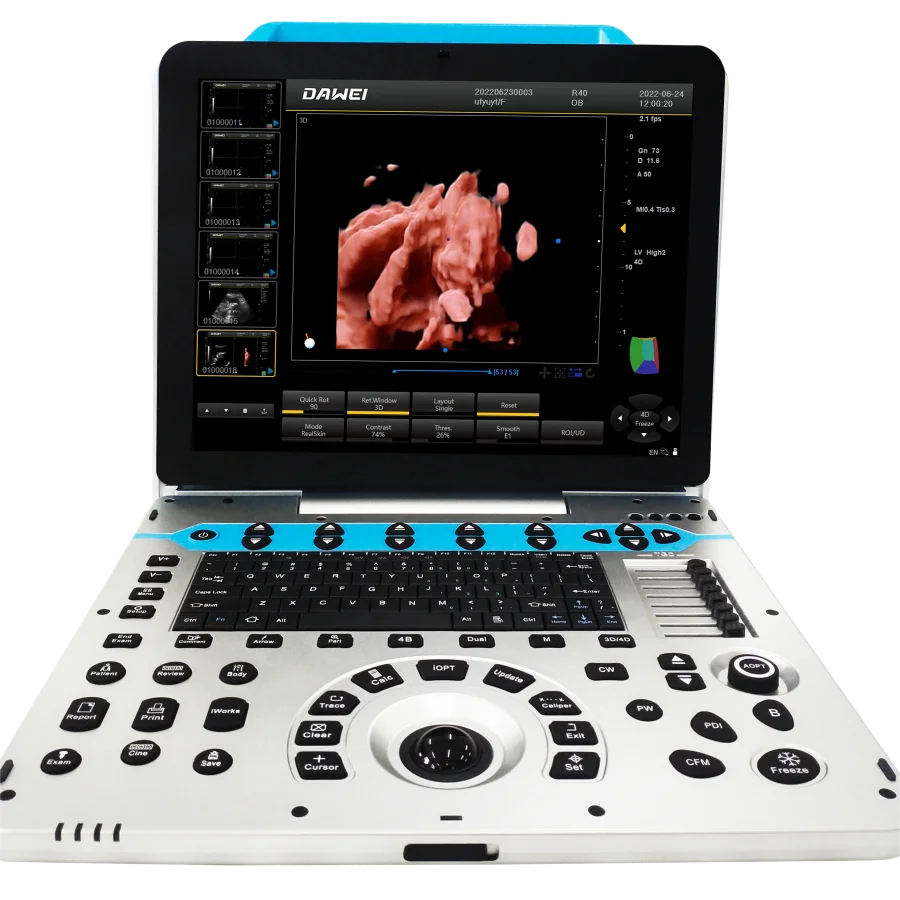

obstetrics and gynecology 3D ultrasound color doppler for pregnancy
- Category: >>>
- Supplier: Dawei Medical (Jiangsu) Co. Ltd.
Share on (1601073501263):
Product Overview
Description
Product Description
Medical 4D/5D color doppler ultrasound for preganncy

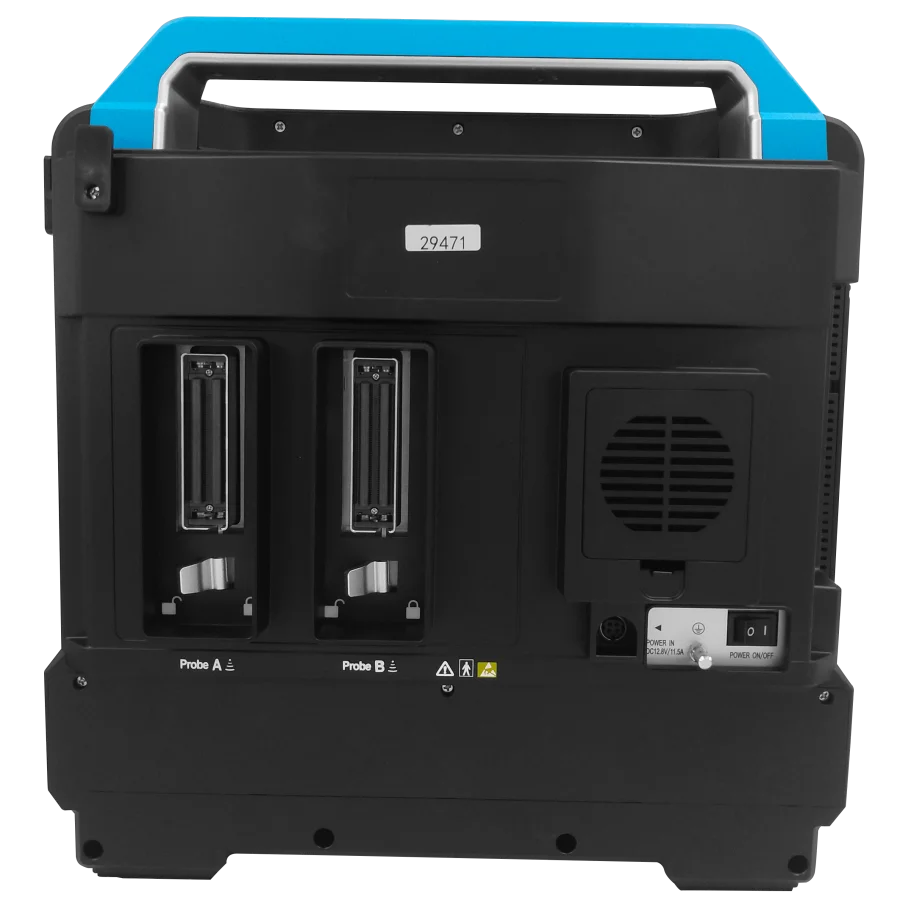

1. 2 active probe sockets
2. Stable performance
3. 15"LED screen
4. Windows 10 system
5. ISO13485,CE
6. high resolution image quality
7. professional measurement software packages: OBSTETRIC, GYNECOLOGICAL, UROLOGY, VASCULAR, SMALL ORGAN, CA RDIACS, MULTIPLE BIRTHS, ANDROLOGY , etc.
Item | Specification | ||

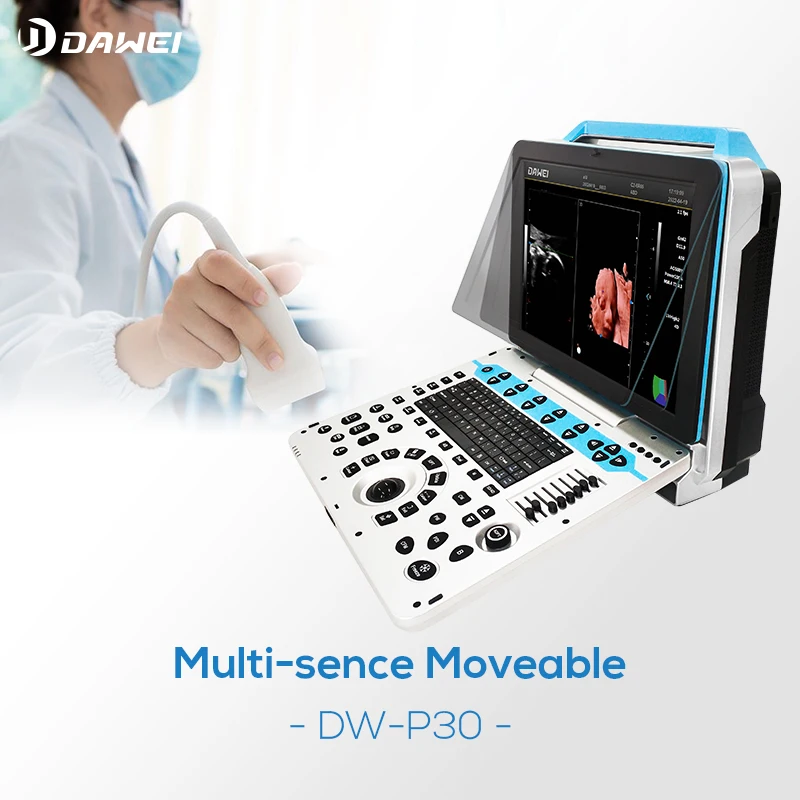

Model | DW-P30 Medical 4D/5D color doppler ultrasound for preganncy | ||
Display | 15" LED screen | ||
Power supply | (AC) 110V- 220V±22V, 50Hz±1Hz | ||
Scanning mode | Electronic linear, electronic convex, Electronic phased array | ||

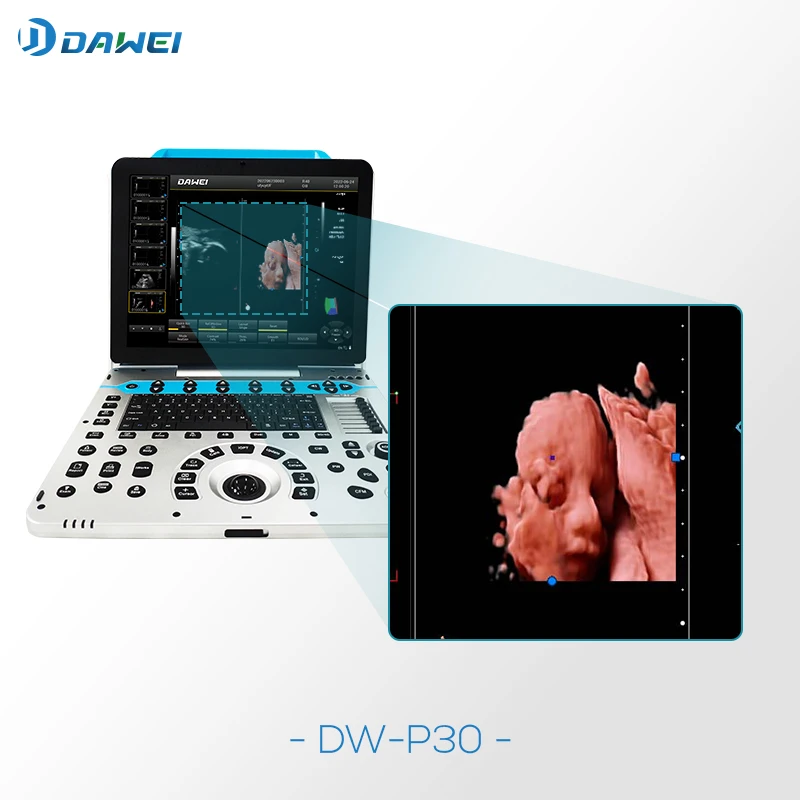

Black-and-white image | B, 2B, 4B, right/left B|M, B|D, right/left PW(D), top/down PW(D), M, B mode local amplification, linear probe trapezoidal imaging, real-time 4D imaging, 5D (real skin 4D) | ||

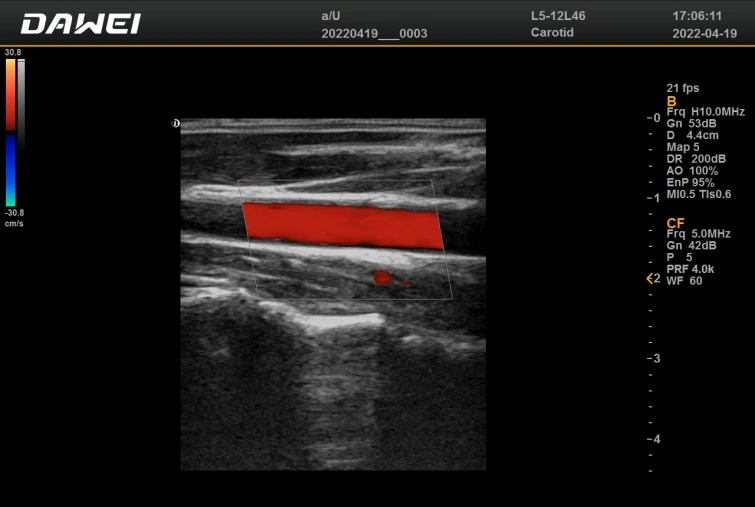

Blood flow images | spectrum: B/BC, BC/B, B/D, B/C/D CFM: B|C|D, B|C|M, B|C double real-time, PW(D)(D), CFM, CPA, CW, Trapezoid Imaging | ||
Storage | Probe parameter storage Image storage Cine loop storage Measurement results storage Report storage | ||
Input/output port | VGA output port DICOM port Network port USB port Video port |
Item | Specification | ||
Scanning mode | Electronic linear, electronic convex, Electronic phased array | ||
Formation of digital beam | ►Continuously dynamic focusing ►Dynamic aperture diameter ►Weighted sum of reception delay ►In support of semi-moment scanning, and ±10° linear reception deflection angle ►Multi-beam processing | ||
Signal processing/Doppler sound | ►Dynamic wave filtering ►Quadrature demodulation ►Total gain control ►Composite gain technology: 8-section TGC and D-AGC. ►Low-pass filter ►Secondary sampling ►Acoustic output adjustment ►Adjustable Doppler stereophonic acoustic output | ||
Image processing | ►Dynamic scope variation and logarithmic compaction ►Time filtering ►Space filtering ►Frame average ►Fringe enhancement ►Gray scale variation ►B|M- or M-mode scanning speed ►Linear density control ►Scanning angle/width control ►Image optimization ►Upward and downward Image flipping ►Multi-angle image rotation ►Options for color gray-scale bar inversion ►Combined processing of tissue and flow images ►Resolution of black-and-white images: 1024×768×8 bits (256 gray-scale) | ||
Professional measurement software packages | OBSTETRIC ANDROLOGY GYNECOLOGICAL UROLOGY PERIPHERAL VASCULAR MULTIPLE BIRTHS SMALL ORGAN ORTHOPEDIC CARDIAC | ||
Standard Configuration | Main Unit 3.5Mhz convex probe 15" LED screen USB ports DICOM 3.0 | ||
Optional Configuration | 7.5 MHZ linear probe 4D volume probe 6.5Mhz trans-vaginal probe7.5Mhz rectal probe 2.5Mhz phased array probe Printer |

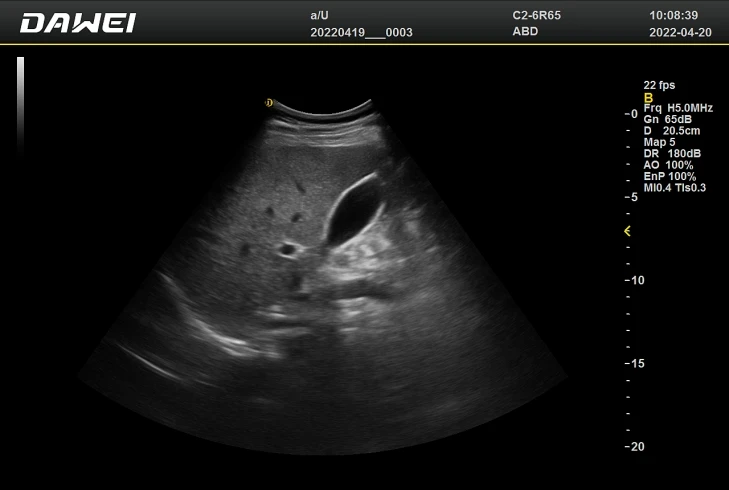

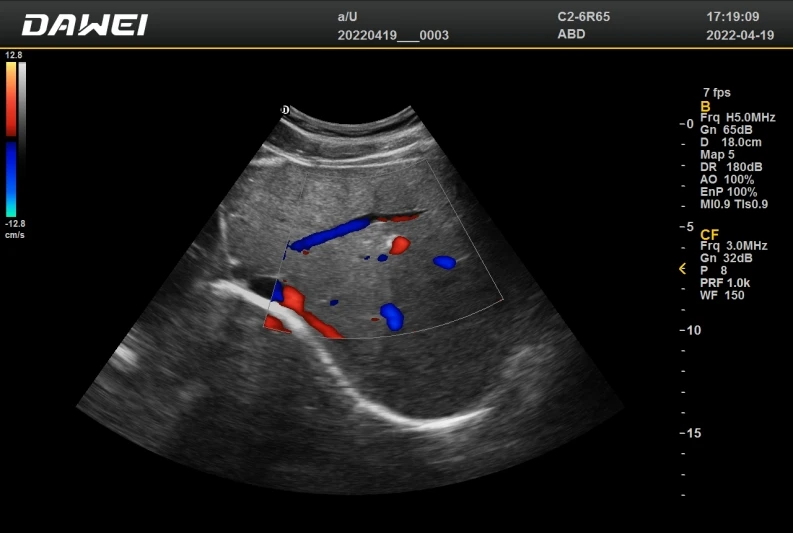

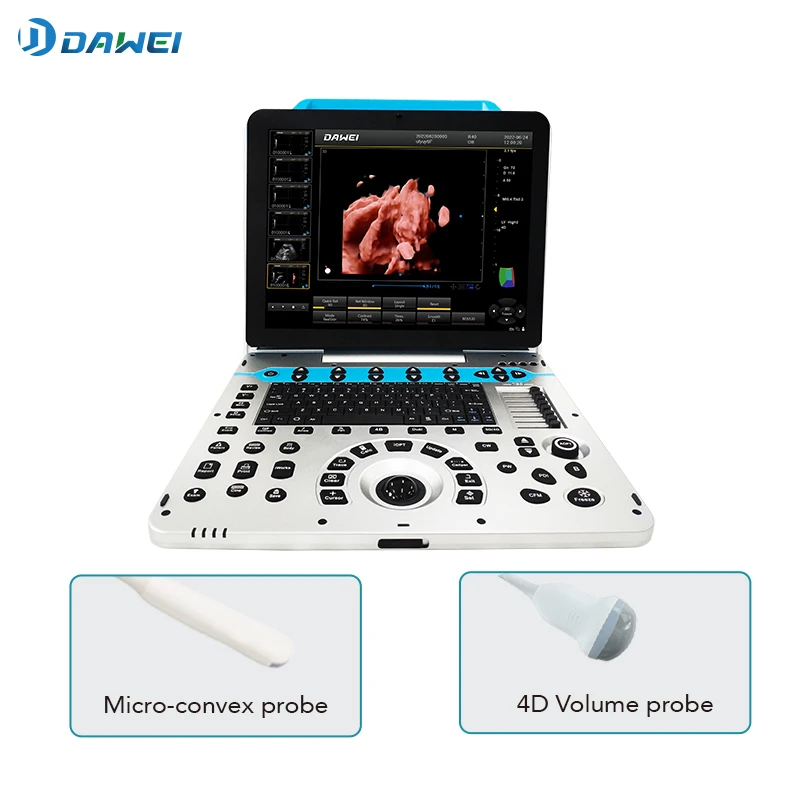

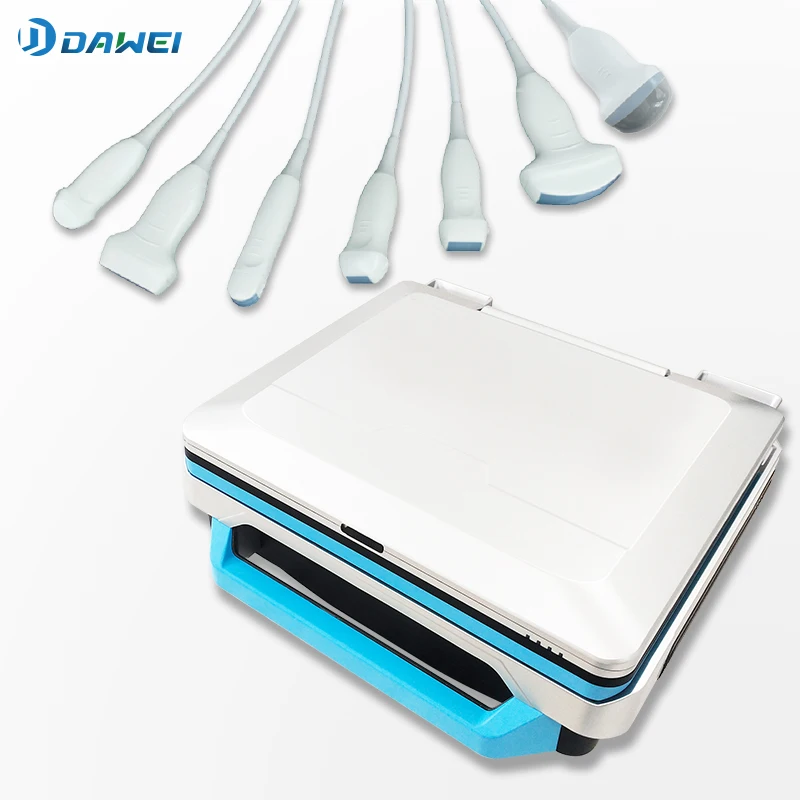

Detailed Images
Packing & Delivery

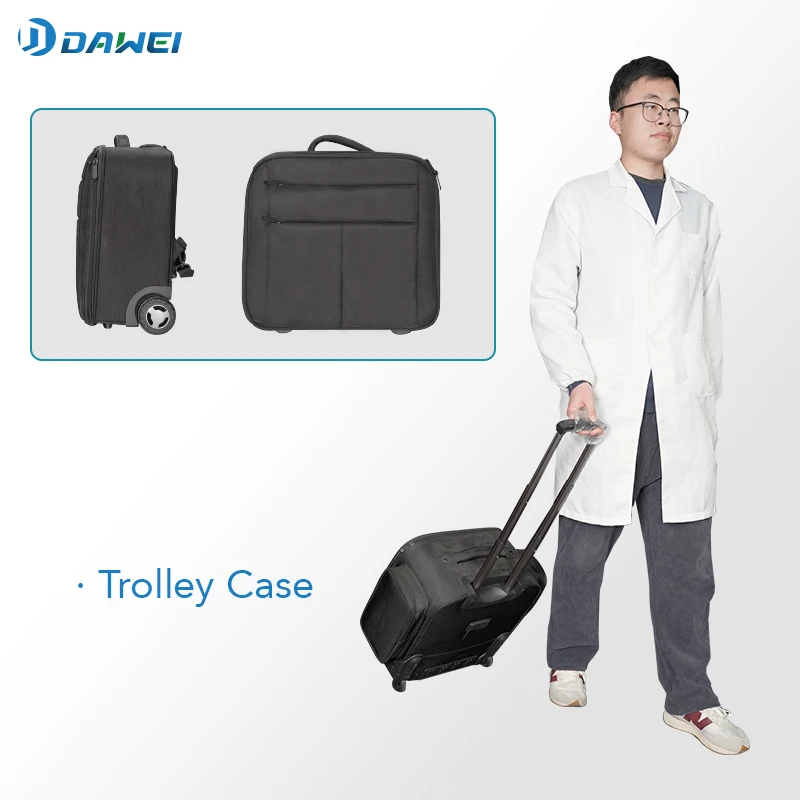

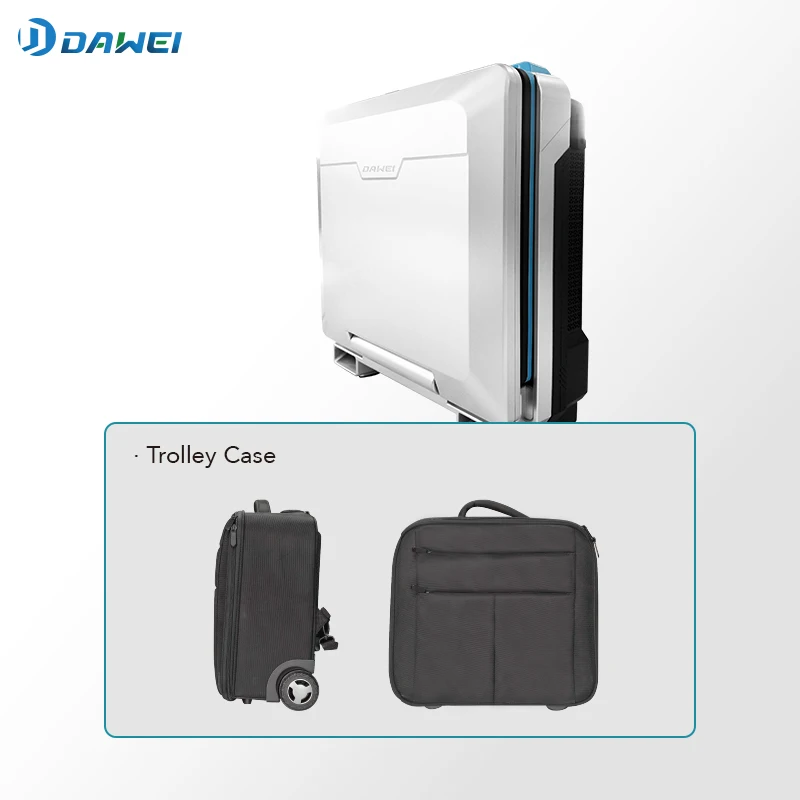

1. professional export travel case and outer carton package
2. all parts are packed with foam and stretch wrapping films to fix well
3. Delivery by courier, like DHL, TNT, UPS, FEDEX, EMS, which is door to door , takes about 5-8 days to arrive, which is suitable for portable models ultrasound machines
4. Delivery by air to aiport, takes about 5-7days, suitable for large trolley ultrasound models.
5. Delivery by sea to sea port, takes about 15-45days to arrive, with very cheap shipping cost, avaliable for large qty machines.
Package of Medical 4d ultrasound for preganancy

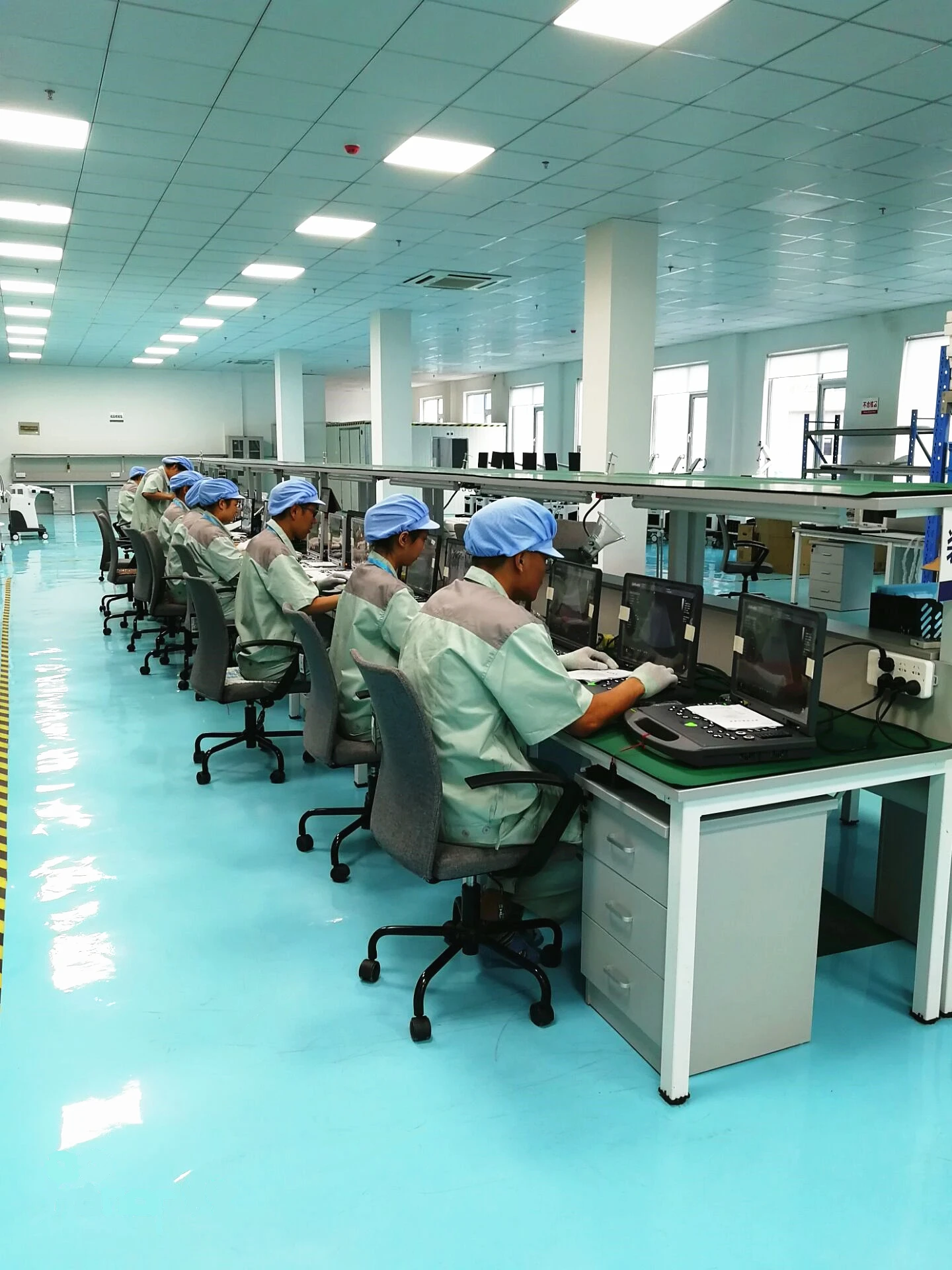

Our Company
Certifications
Exhibition

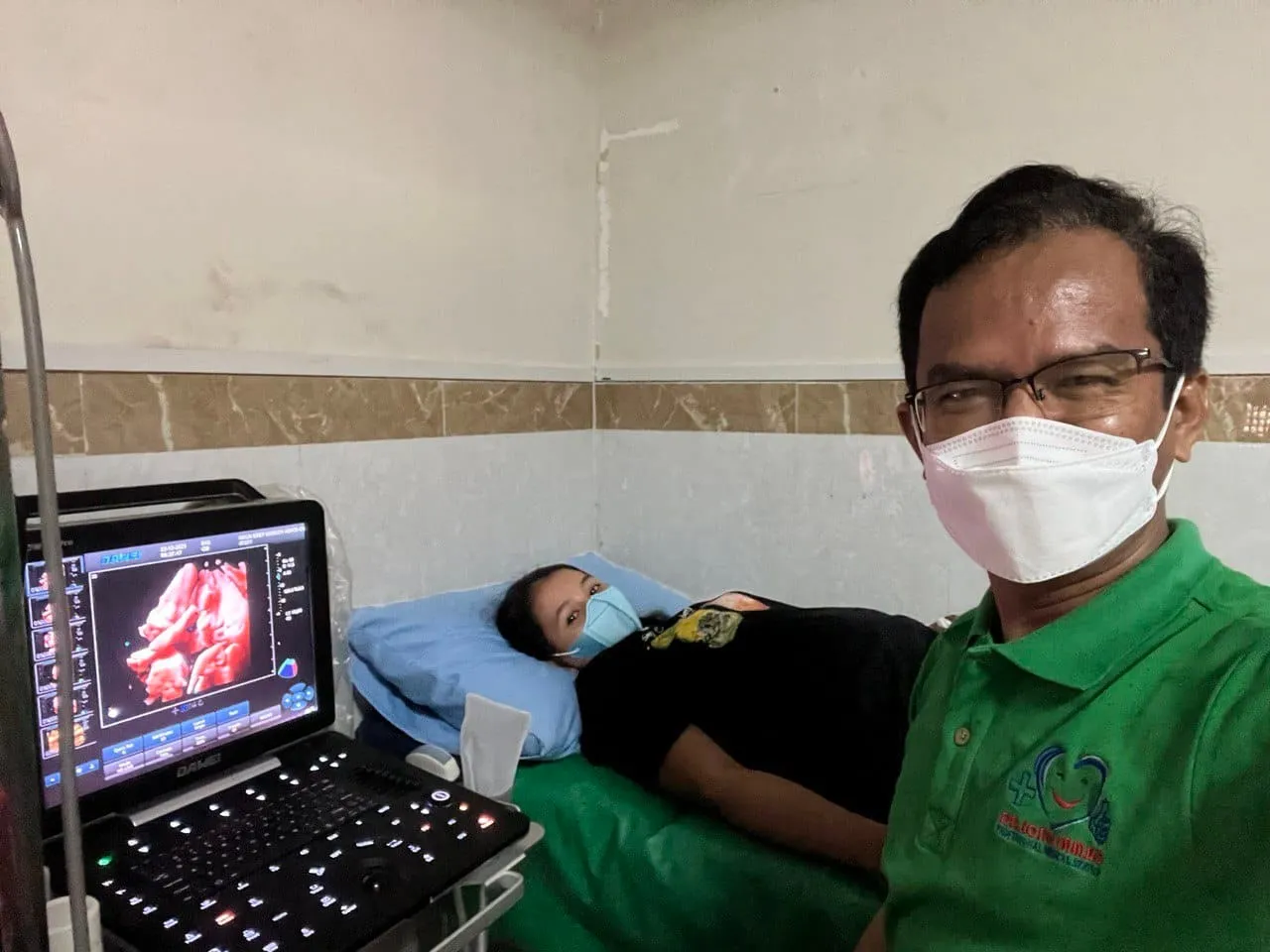

Customer’s Feedback
