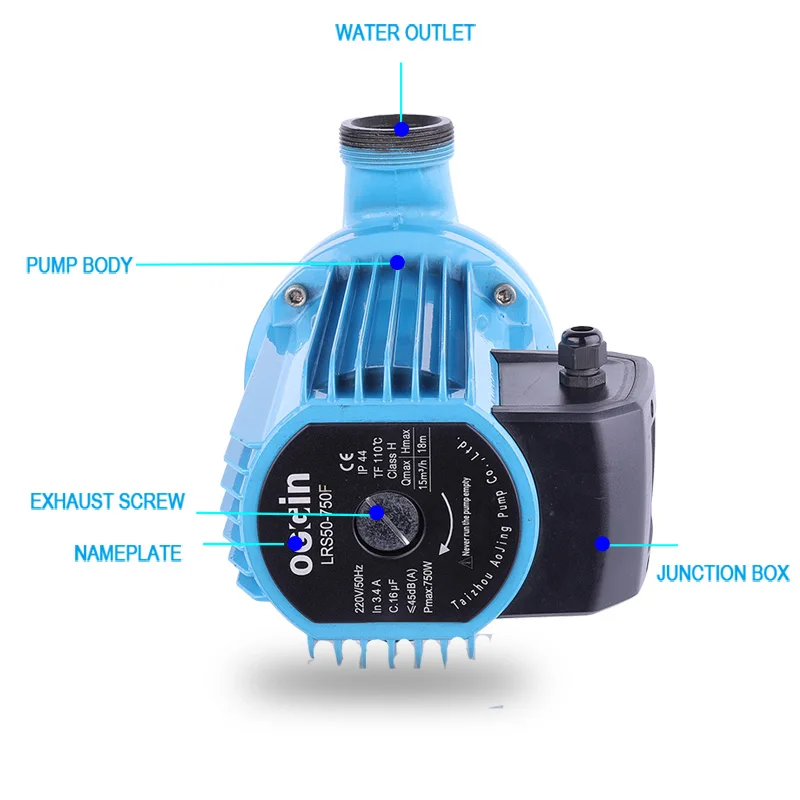

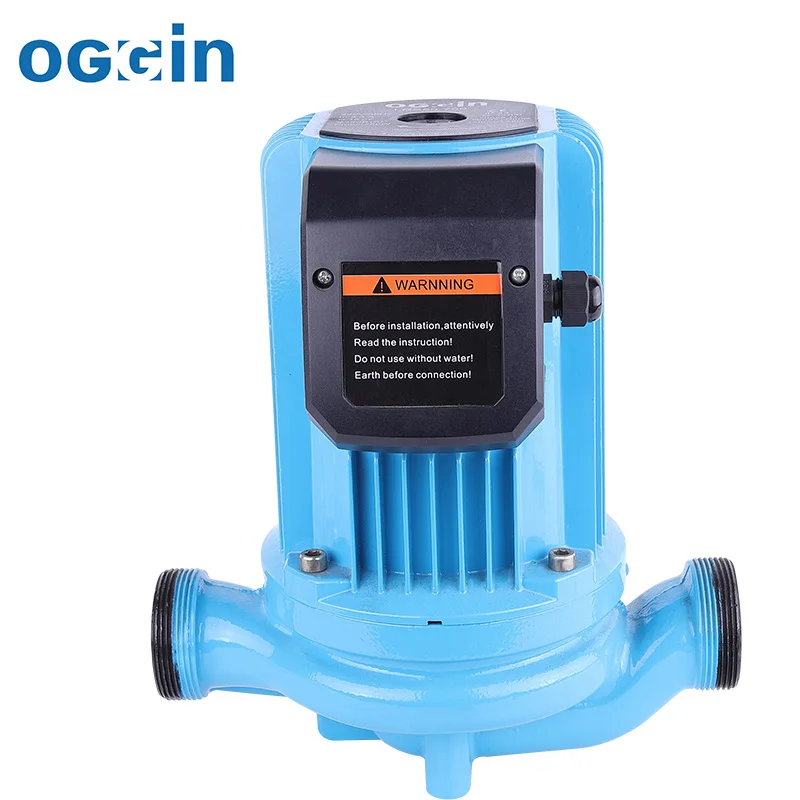

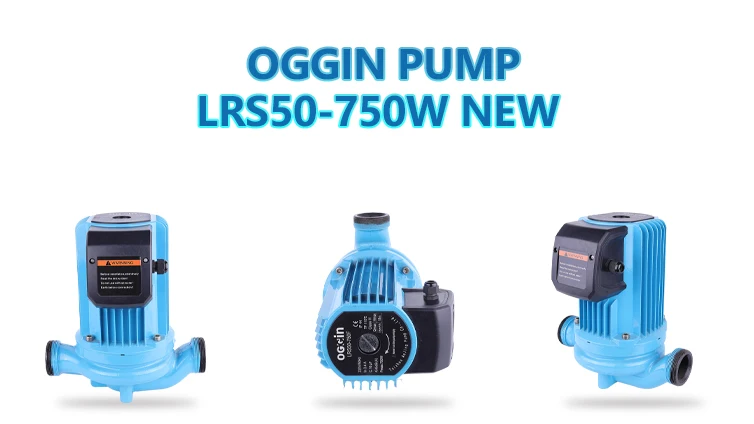

OGGIN LRS50/750F Automatic Electric Hot Water Pressure Centrifugal Circulation Pressurized Pump Brass For Home
- Category: >>>
- Supplier: Taizhou Aojing Pump Co. Ltd.
Share on (1601073545705):
Product Overview
Description
【Premium Material】- The recirculating pump uses iron pump head, aluminum pump housing and PES impeller, featuring high resistance to stain, water, corrosion, leakage. Brass fittings and water-stop also included, which
enbales several years of good resistance.
【Manual/Auto Switch】- This pump boasts both manual and auto mode with rated power 120W. It is
【Manual/Auto Switch】- This pump boasts both manual and auto mode with rated power 120W. It is
convenient for you to turn on/off the pump automatically with auto mode, while manual mode enables constant
work of the pump.
【Easy installation】- Just a wrench to connect the pump to pipeline, saving the cost of plumbers. Extraly
equipped with a common NPT1/2”adapter. The pump with constant circulating hot water prevent the pipe from
freezing, which is especially useful for extremely cold areas in winter.
【Wide Application】- Our hot water circulation pump is suitable for a wide range of application scenarios: city
【Wide Application】- Our hot water circulation pump is suitable for a wide range of application scenarios: city
buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating system, water heater system and so on.
PUMP MODEL | POWER (W) | MAX.FLOW (L/MIN) | MAX.HEAD (M) | INLET/OUTLET (IN) | NW (KG) | ||||
LRS50/750F | 750 | 180 | 15 | 2/1.5 | 18 | ||||
Materials | Fully copper motor/Ceramic bearings/Staninless steel rotor can/PP impeller Cast iron pump body/Ceramic shaft | ||||||||
Fluids | Heating water | ||||||||
Water/glycol mixtures max.mixing ratio 1:1 | |||||||||
Performance | Fluid temprature range | -10℃-+110℃ | |||||||
Max.working pressure | 10bar | ||||||||
Power | 230V/110V,50Hz/60Hz | ||||||||
Ambient temperature | 40℃ | ||||||||
Motor | Degree of protection | IP44 | |||||||
Insulation class | F | ||||||||
Mounting positions | pump shaft in the horizontal plane | ||||||||
Pump Equipment | Screwed end single head pump | ||||||||
Automatic or Manual conrol | |||||||||
Non-overloading single phase motor | |||||||||
Cast iron body 160/200mm port-to-port | |||||||||
Product Use: | This pump is applicable to the circulation and pressurization of cold and hot water below 100 ℃, especially the shower is easy to catch fire due to the difficulty of water pressure bottom ignition or unstable water pressure. |
Characteristic: | The structure uses graphite bearing, ceramic or stainless steel rotating shaft, which is wear-resistant, corrosion-resistant, natural water lubrication, low noise, full head working voltage is not loaded, as long as it is used correctly, the service life is long, and all materials inside the motor are made of high-temperature high-quality materials, It is suitable for the hot water circulation pressurization system. The pump can be equipped with a water control automatic switch, which is more convenient to use. It can adjust the speed according to the different environment and requirements of users. |
Working Conditions: | 1. Transmission medium temperature range: 0 ℃+100 ℃; 2. High ambient temperature:+40 ℃; 3. Medium requirements: clean, free of solid debris, mineral oil, viscosity and corrosivity; 4. Chemical properties: neutral, non-explosive liquid similar to water(glycol content is 30% higher); 5. Consult the manufacturer before extracting other liquids; 6. Large working pressure: 10bar 7.Small inlet pressure: Temperature is at 50 ℃ 0.05bar The temperature is at 95 ℃ 0.3bar The temperature is at 110 ℃ 1.0bar The above values are only applicable to 300m above sea level, and 0.01 bar is increased at 100m in the higher zone. In order to prevent noise caused by cavitation, a limited inlet pressure should be maintained. 8. The rated voltage is between - 10% and 10%. If the voltage is too low, it will be particularly slow or unable to start, and the heating will be fast, resulting in low head and low pressure. |
OGGIN company's traditional & core business is the production of various types of booster
pumps for different industries, such as frequency booster pumps, hot water circulation pumps,

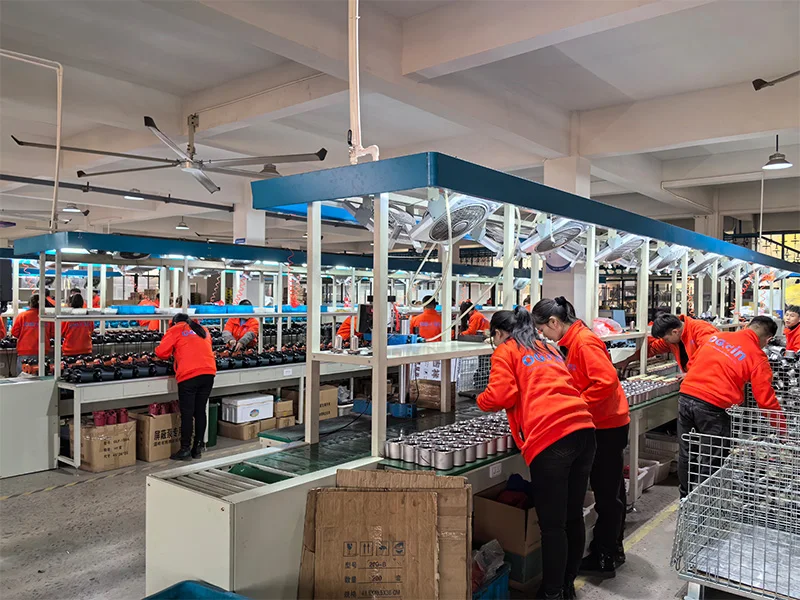

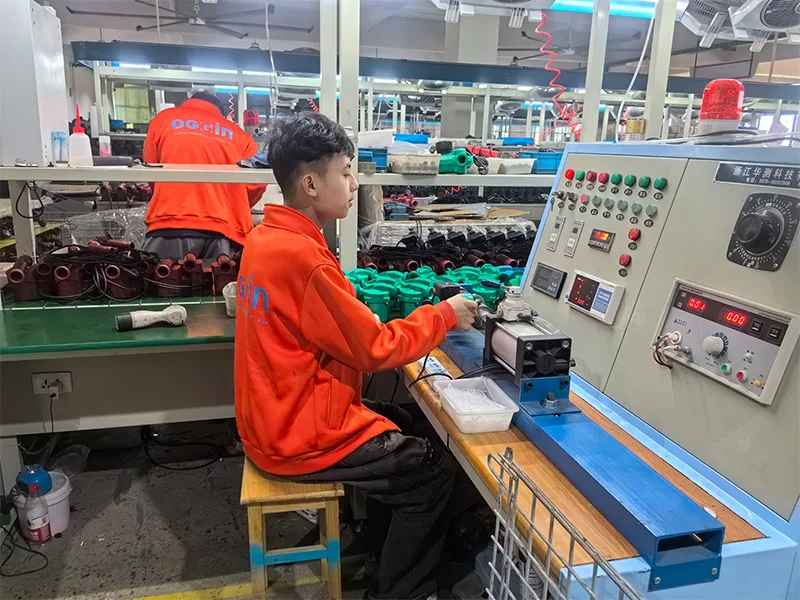

self-priming pumps, pipeline pumps, etc. We has advanced testing equipment and assembly line equipment, as well as a fully functional automatic testing laboratory, which provides good
production conditions and reliable quality assurance for the products.
Q:How can I get the quotation?
A: Leave us message with your purchase requirements and we will reply you within one hour on
A: Leave us message with your purchase requirements and we will reply you within one hour on
working time. And you may contact us directly by Trade Manager.If you are very urgent to get the
price, please tell us in your email so that we will regard you inquiry priority.
Q: Is sample order available? And can I make trial order?
A: Yes, the sample is available, and you can make trial order to check the details first.
Q:How about box?
A:300pcs for color box , below300pcs for brown carton, but with thick strong quality export carton.
Q: What about the delivery time?
A: Most standard products we can ship in 20 days and RTS products delivery within 10 days
Q:What is the port of delivery?
A:The nearest port to the factory is Ningbo port, and we also support Shanghai port. RTS products
Q: Is sample order available? And can I make trial order?
A: Yes, the sample is available, and you can make trial order to check the details first.
Q:How about box?
A:300pcs for color box , below300pcs for brown carton, but with thick strong quality export carton.
Q: What about the delivery time?
A: Most standard products we can ship in 20 days and RTS products delivery within 10 days
Q:What is the port of delivery?
A:The nearest port to the factory is Ningbo port, and we also support Shanghai port. RTS products
often use Yiwu and Guangzhou warehouses
Q: What's your MOQ?Can you customize logo on products?
A: At least 1 piece, but the more the price is lower,We can engrave your logo on the nameplate and
Q: What's your MOQ?Can you customize logo on products?
A: At least 1 piece, but the more the price is lower,We can engrave your logo on the nameplate and
carton and logo for customized
.
.
