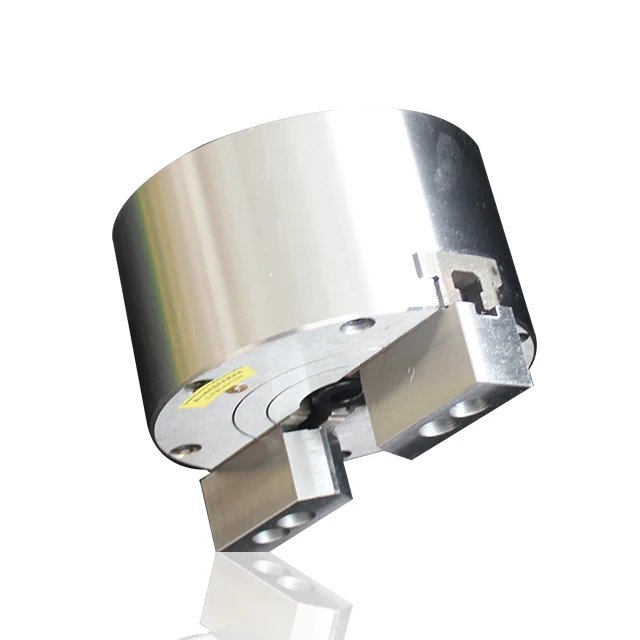

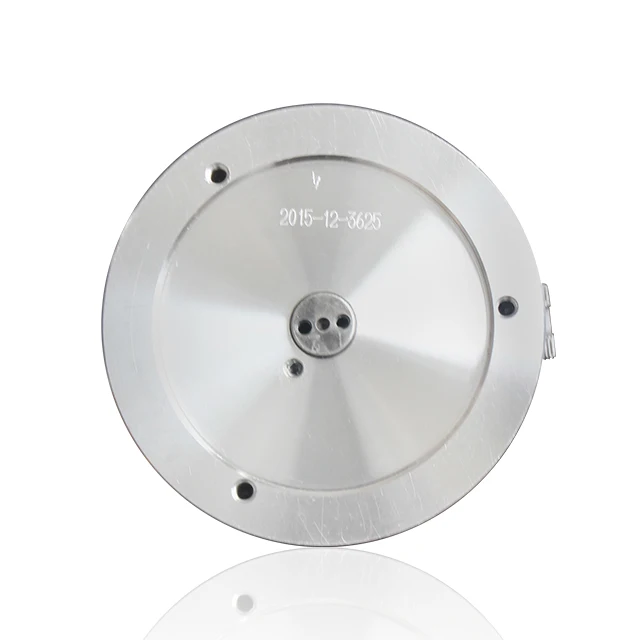

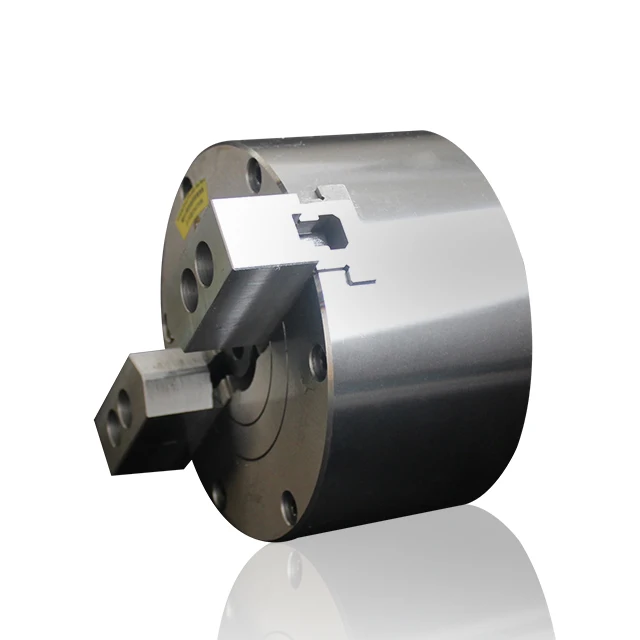

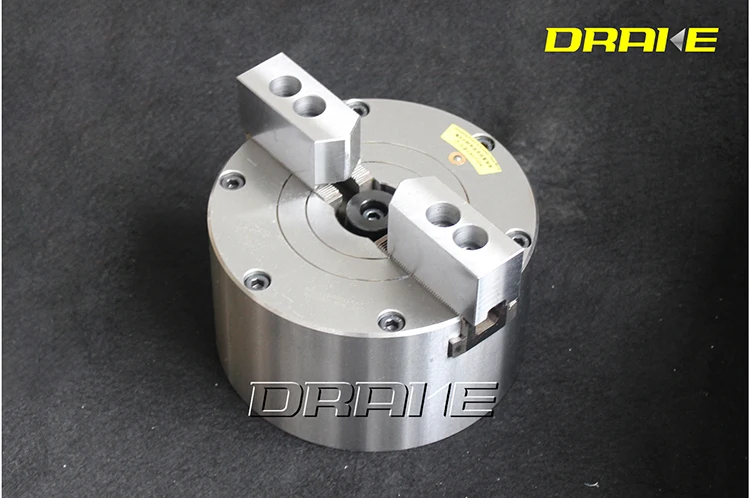

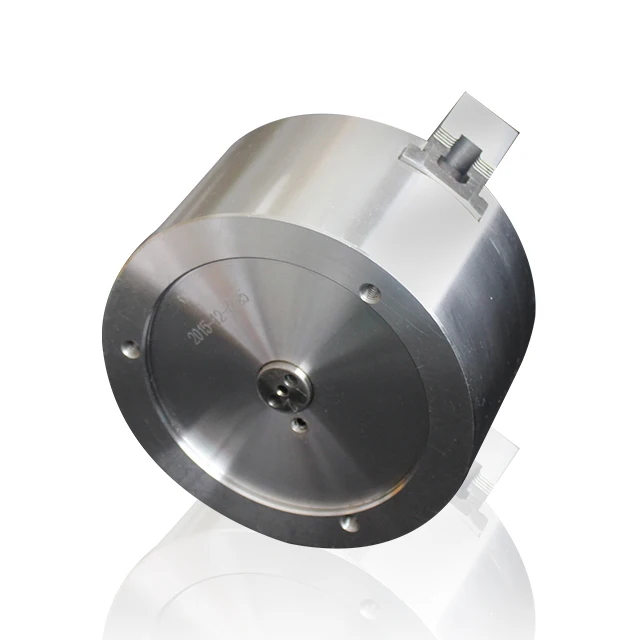

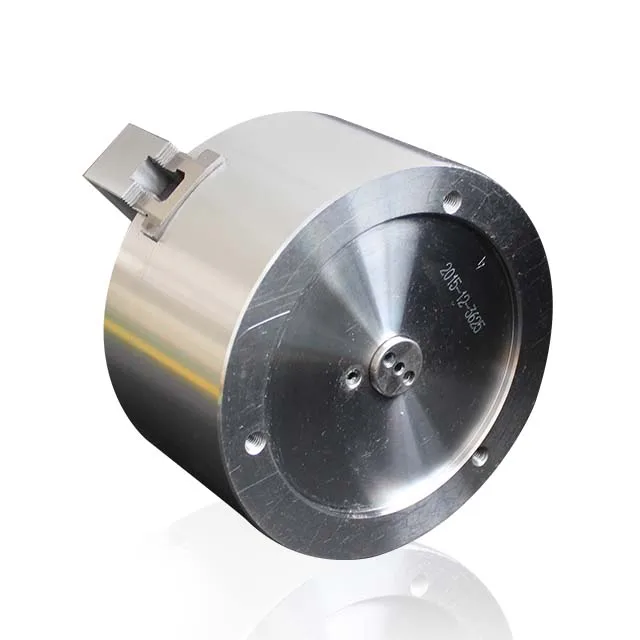

2 jaw Solid Pneumatic Chuck(bulit in) QS2 For CNC Lathe Machine Rotating Power Chuck clamping tool
- Category: >>>
- Supplier: Changzhou Drake International Trade Co. Ltd.
Share on (1601073766356):
Product Overview

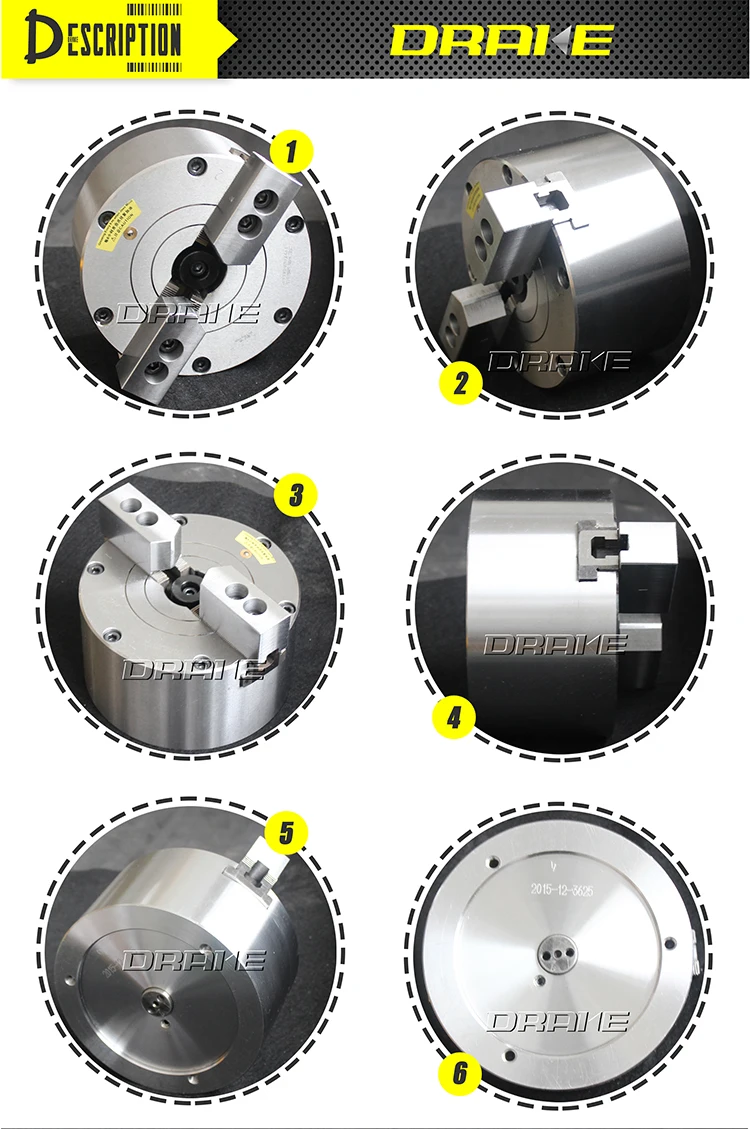

Description
Product Description
Technical Features:
1. This series of chuck comes with built-in cylinder structure, adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability.
2. Without flange connection, D connection.

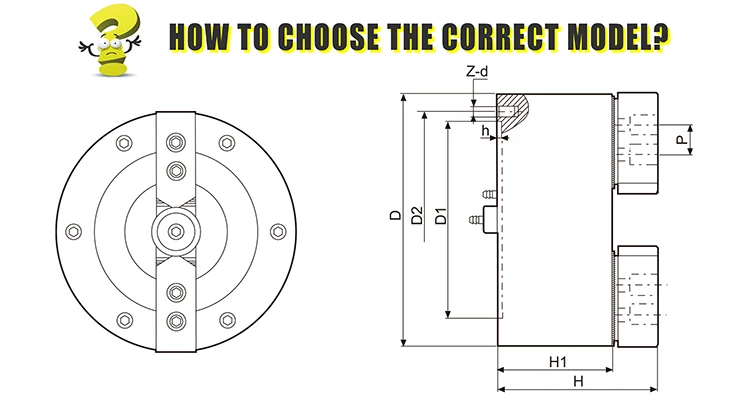

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

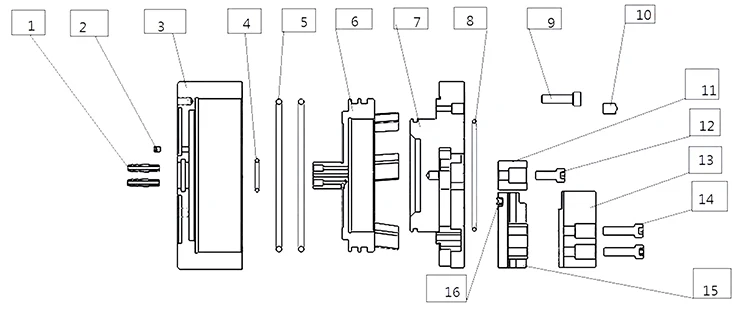

NO. | Name | NO. | Name |
1 | Hose fitting M6 | 9 | Hex.socket head bolt |
2 | Hex.socket head bolt | 10 | Grease nipple |
3 | Body | 11 | Center fixed cap |
4 | O-type sealing ring | 12 | Center fixed cap connection screw |
5 | Cylinder O-type sealing ring | 13 | Soft jaw |
6 | Plunger | 14 | Soft jaw connection screw |
7 | Cover plate | 15 | Master jaw |
8 | Cover plate O-type sealing ring | 16 | Y-type sealing ring |
It is recommended to grease chucks
at least twice a day in order to
maximize longevity
