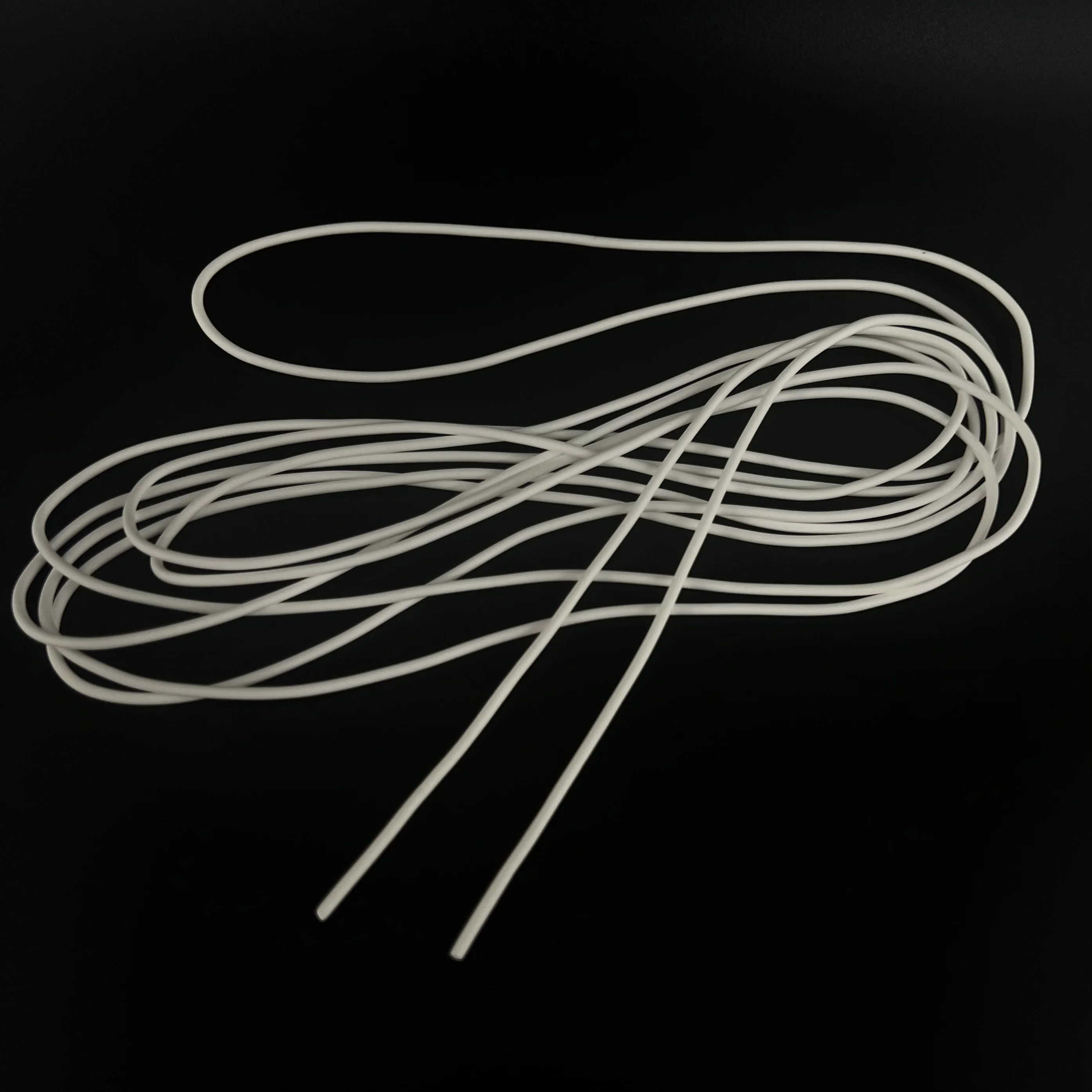

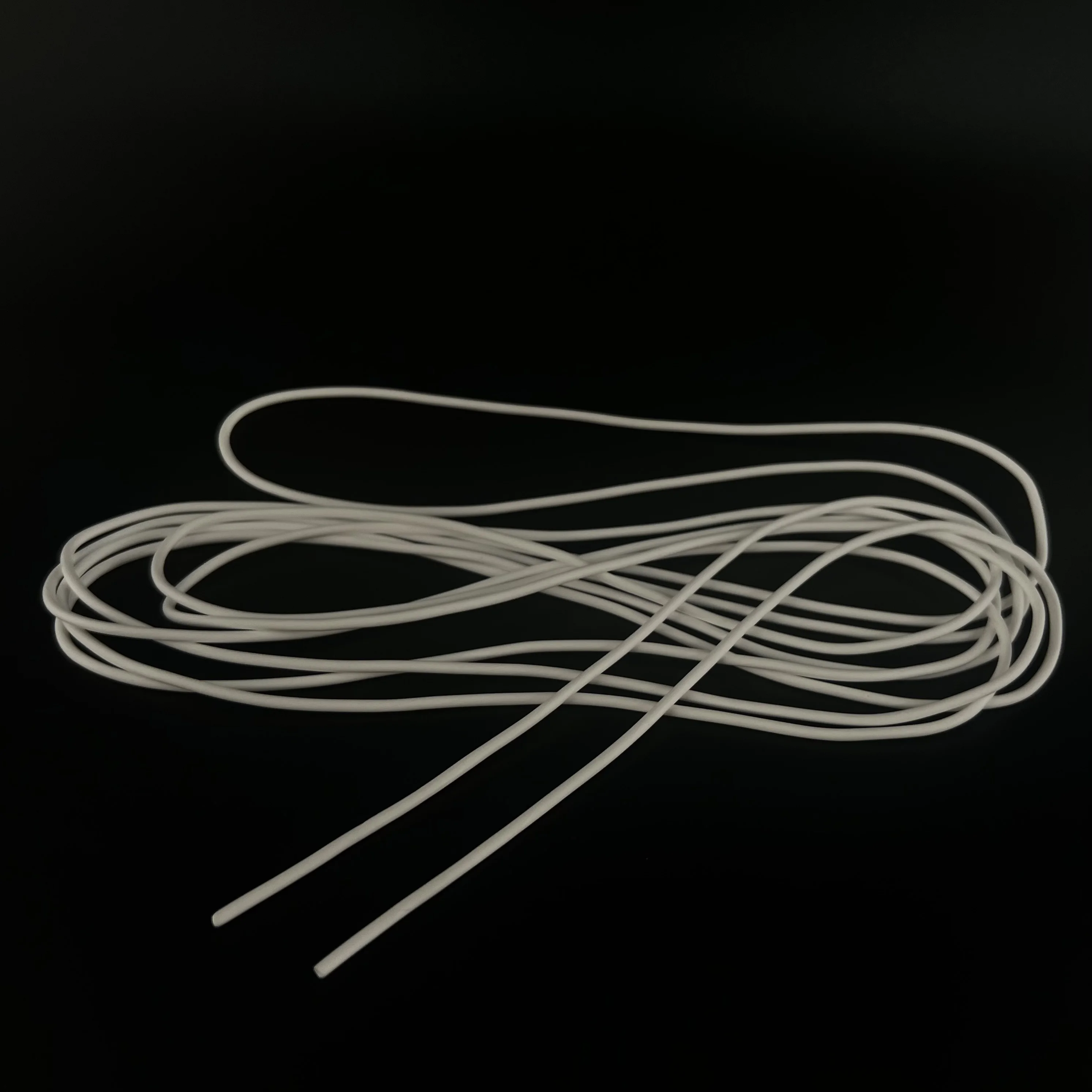

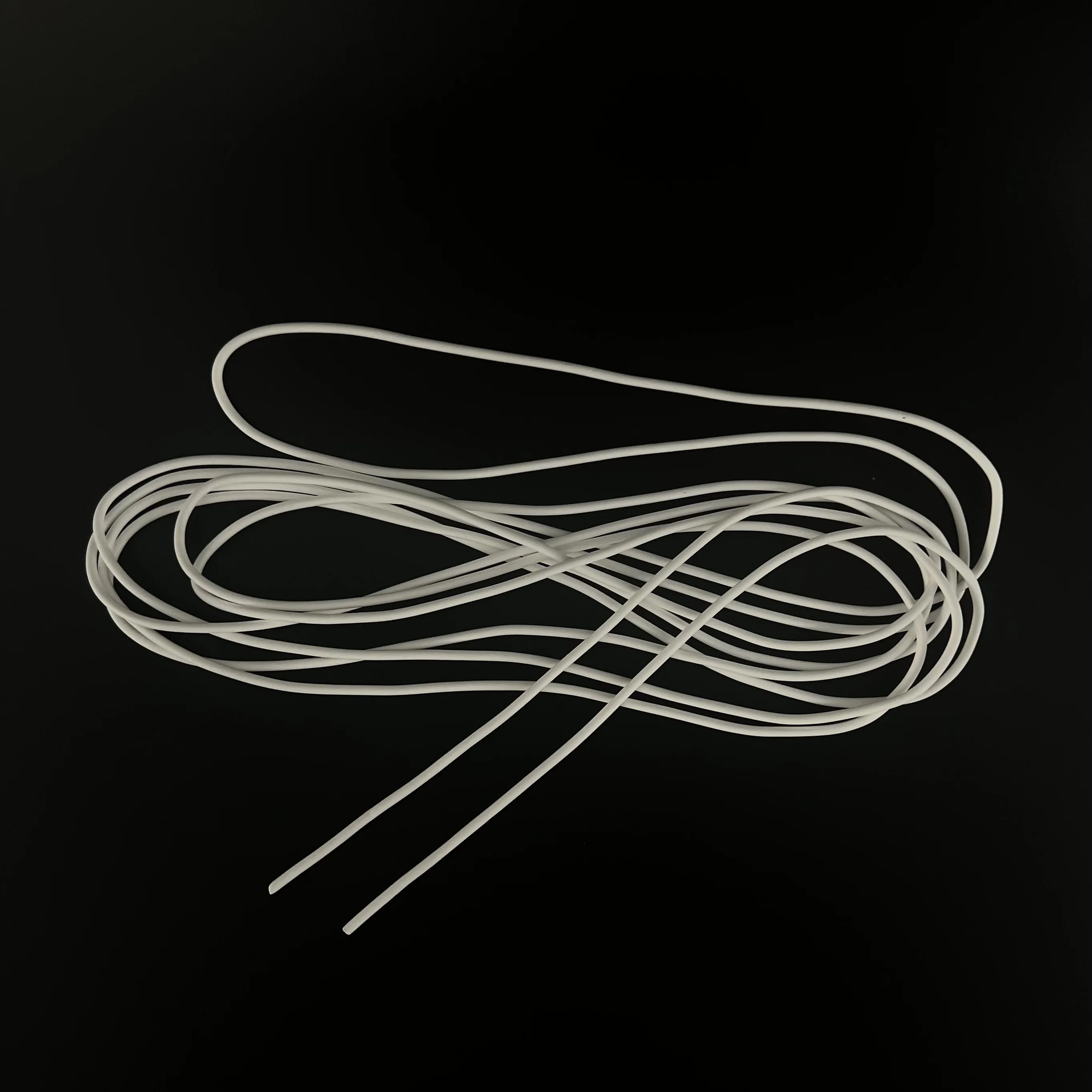

Sewage Treatment Equipment Ultra Filtration Hollow Fiber Membrane PTFE
- Category: >>>
- Supplier: Danyang Kore Precision Electronic Co. Ltd.
Share on (1601073766872):
Product Overview
Description
Company Profile
Danyang Kore Precision Electronic Co., Ltd. , headquartered in Danyang City, Jiangsu Province, high-tech Pioneer Park, registered capital of 7 million yuan, mainly engaged in PTFE hollow fiber membrane and MBR components research and development, design, production, sales and service as one of the science and technology enterprises.
Our company has a professional R & D team, Dr. Che Yanchao as a core member, has been engaged in the research and production of PTFE materials for 20 years. At the same time, advanced PTFE hollow fiber membrane processing equipment, professional R & D engineers and professional skills of the operator, to provide high-quality products.
The PTFE hollow fiber membrane filament produced by our company has the advantages of high precision and high throughput. The pure water flux is up to more than 2000LMH at 50Kpa.
Our company has a professional R & D team, Dr. Che Yanchao as a core member, has been engaged in the research and production of PTFE materials for 20 years. At the same time, advanced PTFE hollow fiber membrane processing equipment, professional R & D engineers and professional skills of the operator, to provide high-quality products.
The PTFE hollow fiber membrane filament produced by our company has the advantages of high precision and high throughput. The pure water flux is up to more than 2000LMH at 50Kpa.
Advantages of PTFE
hollow fiber membrane:
High filtration accuracy and large throughput
100% PTFE material preparation & production, better mechanical properties
Known as "plastic king", excellent resistance to strong acids, strong alkalis and strong oxidants
Proprietary hydrophilic treatment, membrane filament infiltration faster, hydrophilic energy does not decay

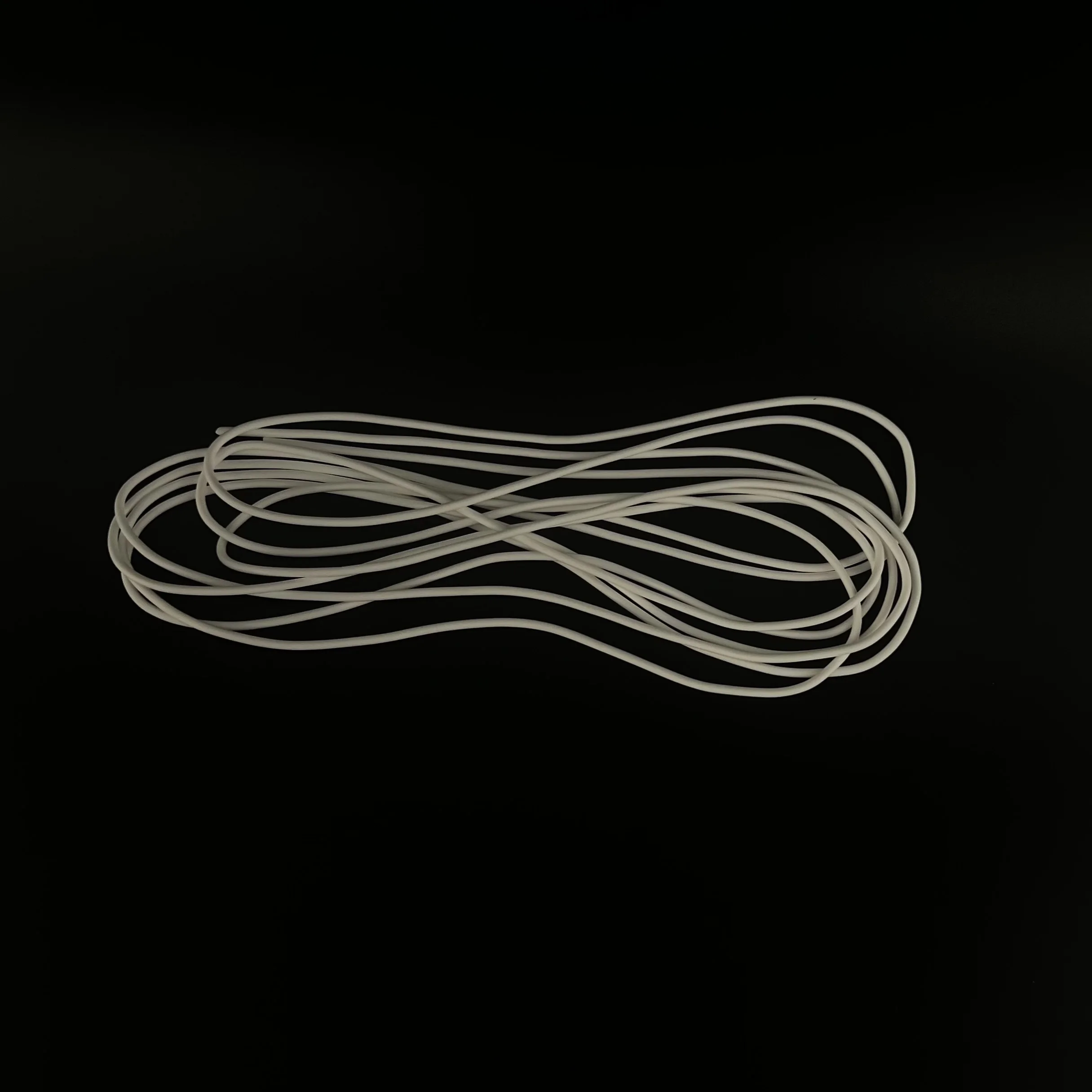

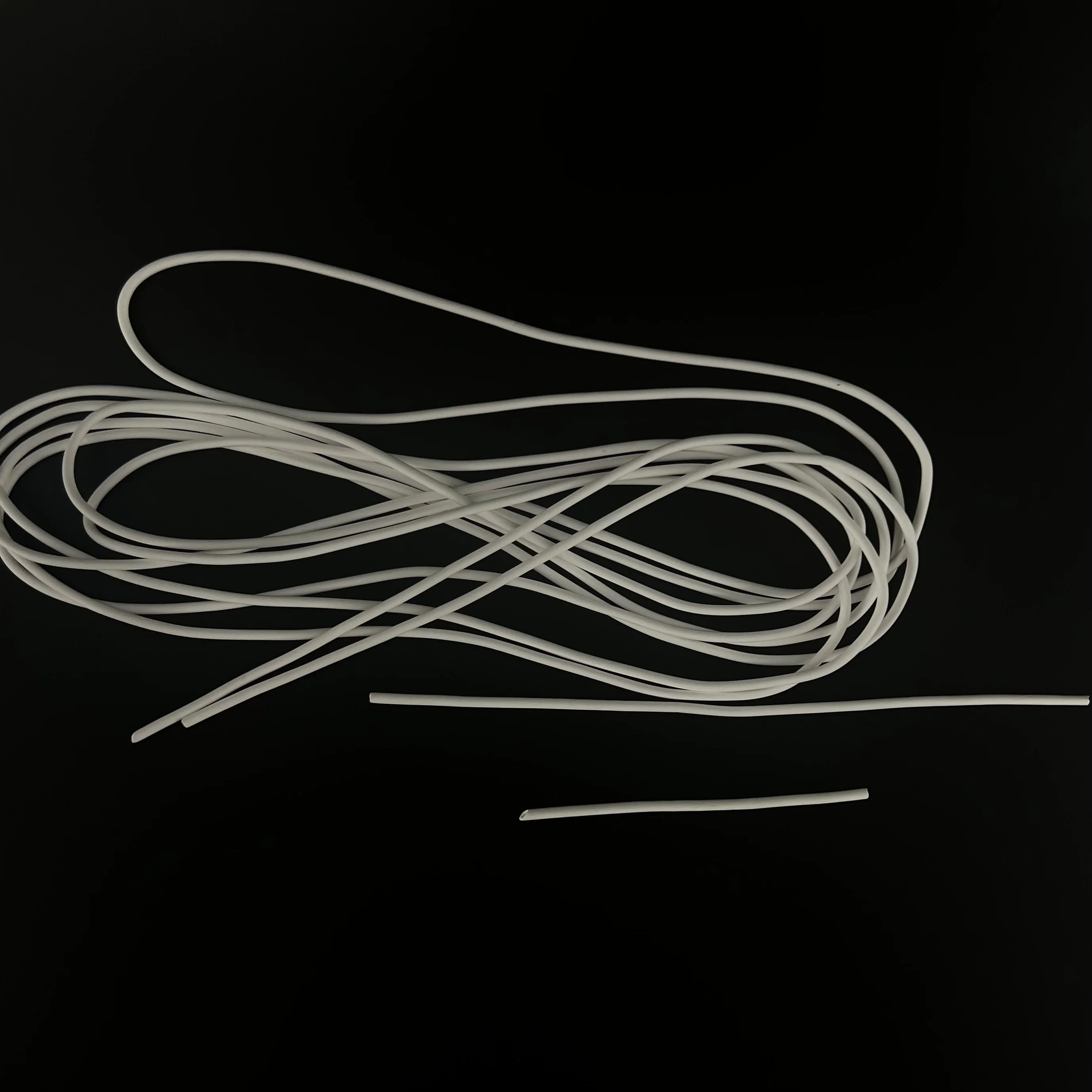

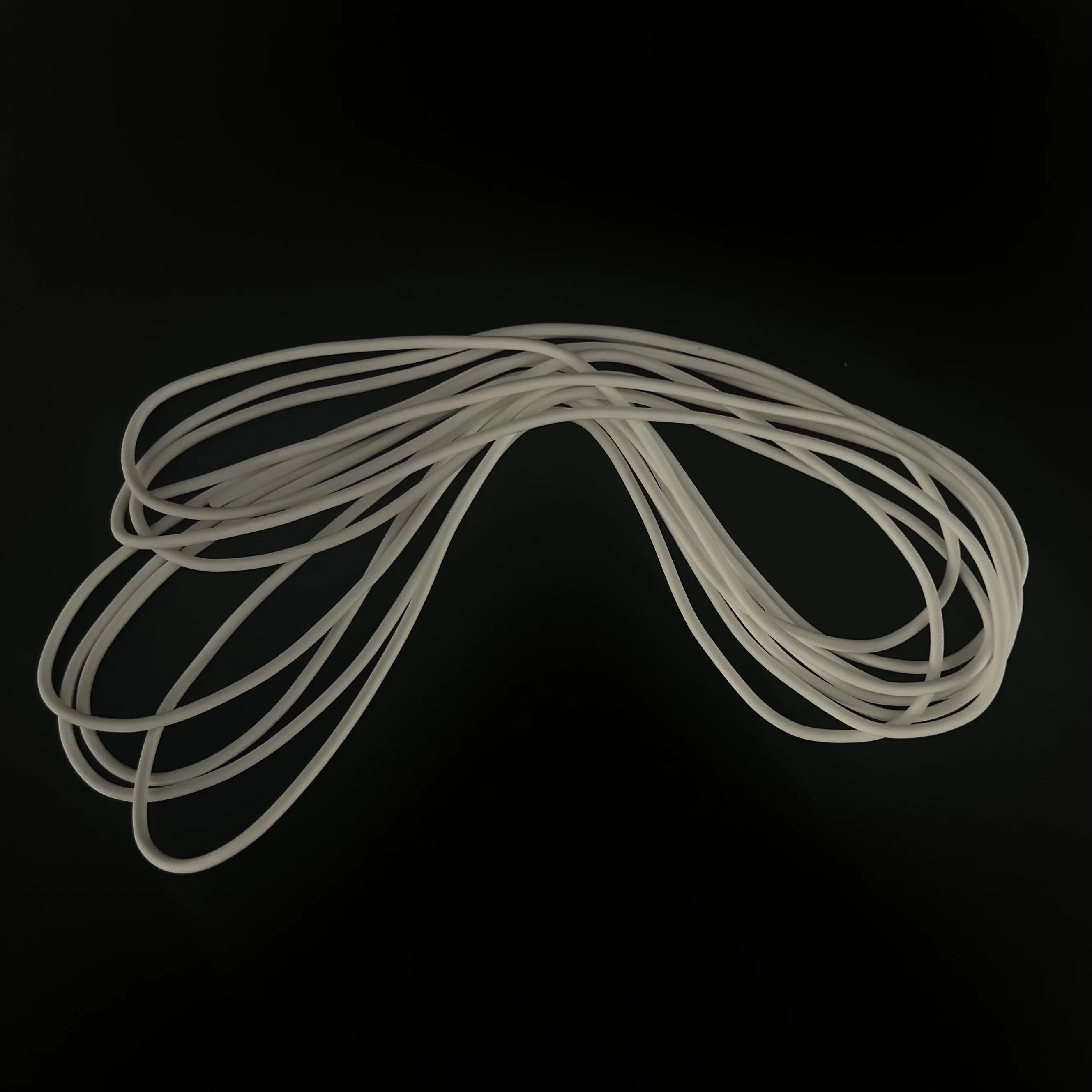

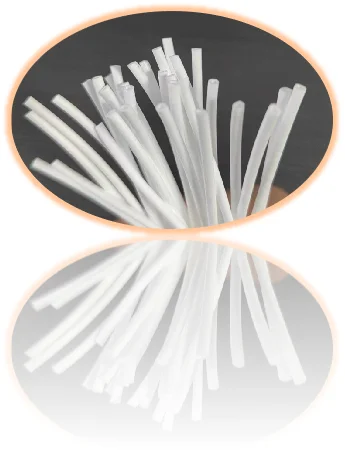

PTFE hollow fiber membrane

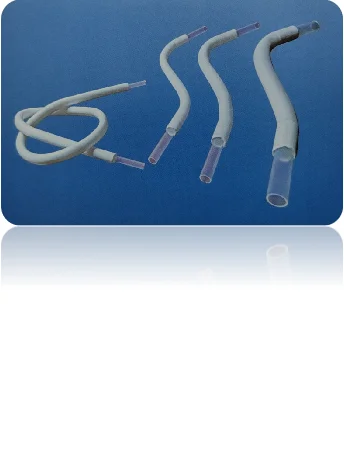

The PTFE hollow fiber membrane produced by our company is prepared by high temperature composite sintering process, including filter layer and support layer.
The membrane filament has the characteristics of high precision and large flux.
membrane pore size：0.1～0.2μm
Filter layer: PTFE material, using winding and sintering process composite molding.
poriness：75～85%
Support layer: PTFE material, using tensile process molding.
Comparison of the properties of PTFE membrane and PVDF membrane
Designation | PTFE membrane | PVDF or other hollow fiber membranes |
Service Life | More than 10 years | About 3~5 years |
Tensile Strength | ＞70N | ＜10N |
Influent pH | 0~14 | 2~12 |
Quality of water | Continuous filament (water quality guaranteed) | Broken wire, broken skin (affecting water quality) |
Preservation Method | Dry storage, easy to stop storage | Wet preservation |
Hydrophilia | Permanent hydrophilic | Hydrophilic groups are easily lost |
Resistance to risk | Resistance to oil and organic solvents | Severely affected by oil or organic solvents |
Application Fields | Treatment of industrial wastewater containing oil, solvent and other high pollution | Urban sewage, low difficulty industrial wastewater |
Application Fields
Sewage treatment field
Laboratory media processing field
Biomedical field
Electronic field
Food field
PTFE hollow fiber membrane product specifications
Type of Microporous Membrane | FC-M1 | FC-M2 | FC-M3 |
Regular Specification（D×d/mm) | φ2.35×φ1.26 | φ2.26×φ1.18 | φ2.26×φ1.18 |
Pore Size（µm） | 3.5 | 0.45 | 0.2 |
Hydrophilic or not | no | no | yes |
Tensile Strength（N） | >80 |
Material | 100% PTFE |
Operating pH | 0～14 |
Usage Temperature（℃） | 5～150 |
Application Fields | for example, FC-M3 hydrophilic membrane is usually used in domestic water filtration, laboratory sewage filtration, heat insulation sheath and so on |

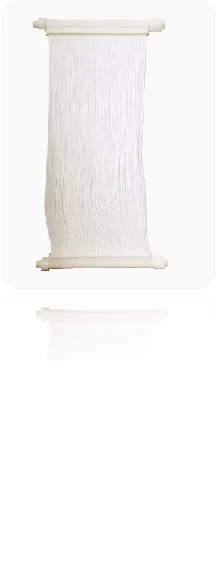

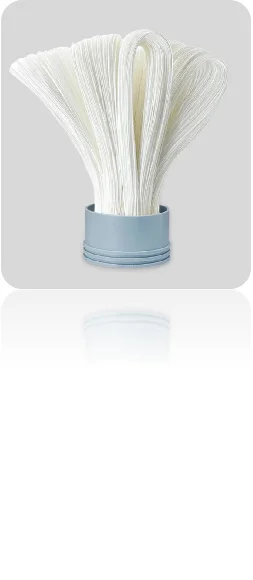

Typical application cases of FC-M3 PTFE hollow fiber membrane

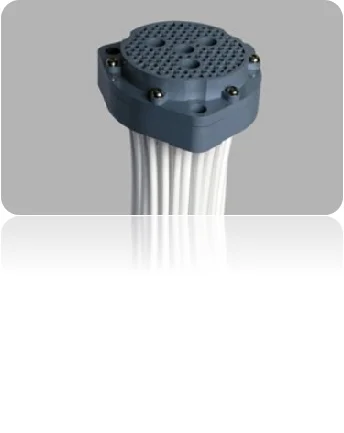

Household microfilter Chlor-alkali filter assembly Household microfilter Laboratory micro filter
Exhibition
Certificate
FAQ
1. Who are we?Danyang Kore Precision Electronic Co., Ltd. , headquartered in Danyang City, Jiangsu Province, high-tech Pioneer Park,registered capital of 7 million yuan, mainly engaged in PTFE hollow fiber membrane and MBR components research and development,design, production, sales and service as one of the science and technology enterprises.
2. What is the mode of transportation?
It can be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
3. Why should you buy from us not from other suppliers?
Passed IATF16949:2016, High-tech enterprises, 16 years manufacturing
4. What is the lead time?
Usually about three days.
5.What's the minimum order quantity?
1000m.
