Safety fire fighting SCBA
SCBA Application
• Self Contained Breathing Apparatus (SCBA) is a positive pressure air breathing apparatus for protecting humans' respiratory system during emergency rescue and relief work.
• Self Contained Breathing Apparatus SCBA can be widely applied in the place of hypoxia, high or unknown concentrations of toxic gases, endangering human health. Such as fire-fighting, petroleum and petrochemical, metallurgy and chemical industry, ship, mining, the public emergency.
SCBA Components

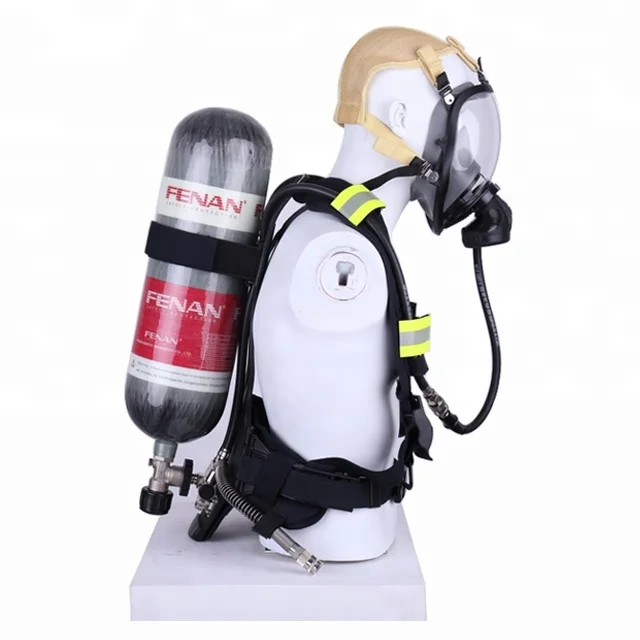

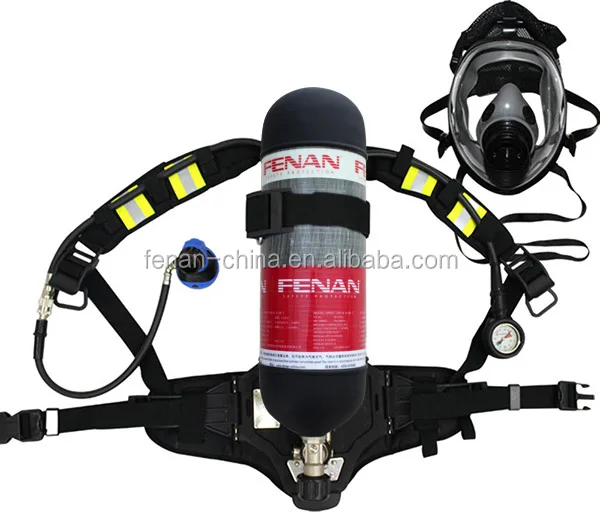

Self Contained Air Breathing Apparatus (SCBA) is composed of carbon-fiber cylinder, cylinder valve, reducer, medium-pressure tube, fast joint, demand valve, full face mask, high-pressure tube, alarming device, pressure gauge and back pack.
Product Information
Model | RHZKF 6.8/30 series | ||
Full Face Mask | Material | Silicone | |
Visual field | ≥90% | ||
Service life | 15 years | ||
Advantage | Permanent double anti-fogging, Scratch and abrasion resistant lens | ||
Colors for option | Black | ||
Oil mist transmittance | ≤0.005% | ||
Exhalation resistance | ≤ 0.76bar | ||
Inhalation resistance | ≤ 0.25bar (30L/min) | ||
Gas Cylinder | Material | Steel or Carbon fiber composite | |
Volume | 6L, 6.8L, 9L for options | ||
Working pressure | 300bar | ||
Alarm pressure | (55±5)bar | ||
Operating temperature | -30°c--60°c | ||
Service time | 45-60 mins | ||
Back Plate | Material | Aramid or FR material | |
Use | Comfortable, Flexible and light-weight | ||
Achieve 180 degrees bending | |||
Demand Valve | Maximum air supply rate | More than 500L/min | |
Reducer | Balanced pressure reducing design | ||
Adopt medium pressure alarm | |||
With/without second breathing pipe | |||
Upgradable | Communication system, digital pressure gauge, HUD, other size cylinder, etc. | ||
Products Details

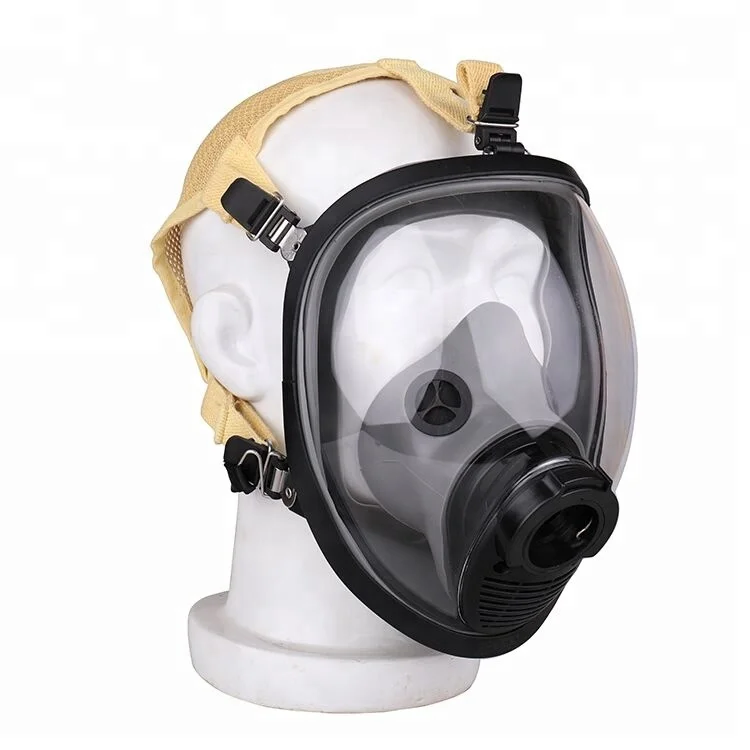

1. SCBA Full face Mask
• Made of silicone
• Permanent double anti fogging
• Wide field of vision, the vision rate reaches above 91%
• Scratch and abrasion resistent lens
• Optional cylindrical full face mask
• Permanent double anti fogging
• Wide field of vision, the vision rate reaches above 91%
• Scratch and abrasion resistent lens
• Optional cylindrical full face mask

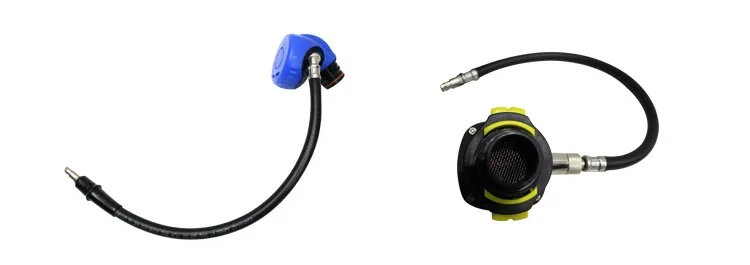

2. SCBA Demand Valve
• The amount of breathing apparatus air supply is according to users' inspiratory capacity.
• Hand-held, small and light, good down vision.
• Optional French demand valve.
• Hand-held, small and light, good down vision.
• Optional French demand valve.

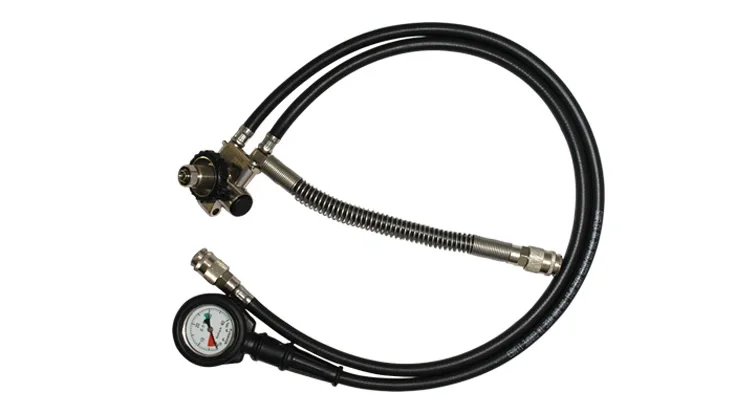

3. SCBA Reducer
• Balanced pressure reducing design, keeps the Medium Pressure system at 7.5 bars.
• The output flow rate is greater than 1000 L/min.
• The output flow rate is greater than 1000 L/min.

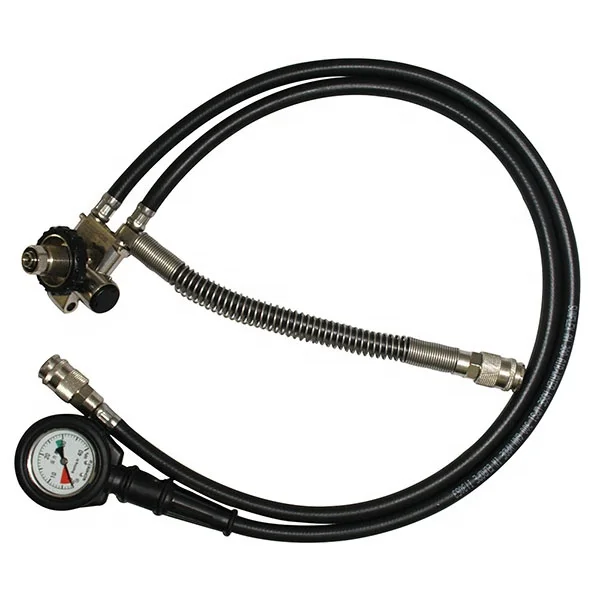

4. SCBA Alarming Device & Pressure Gauge
• The sound is ≥90dB, not weakening with reduced pressure.
• Waterproof and shockproof designing.
• Easy to read and can be used in dark.
• Waterproof and shockproof designing.
• Easy to read and can be used in dark.

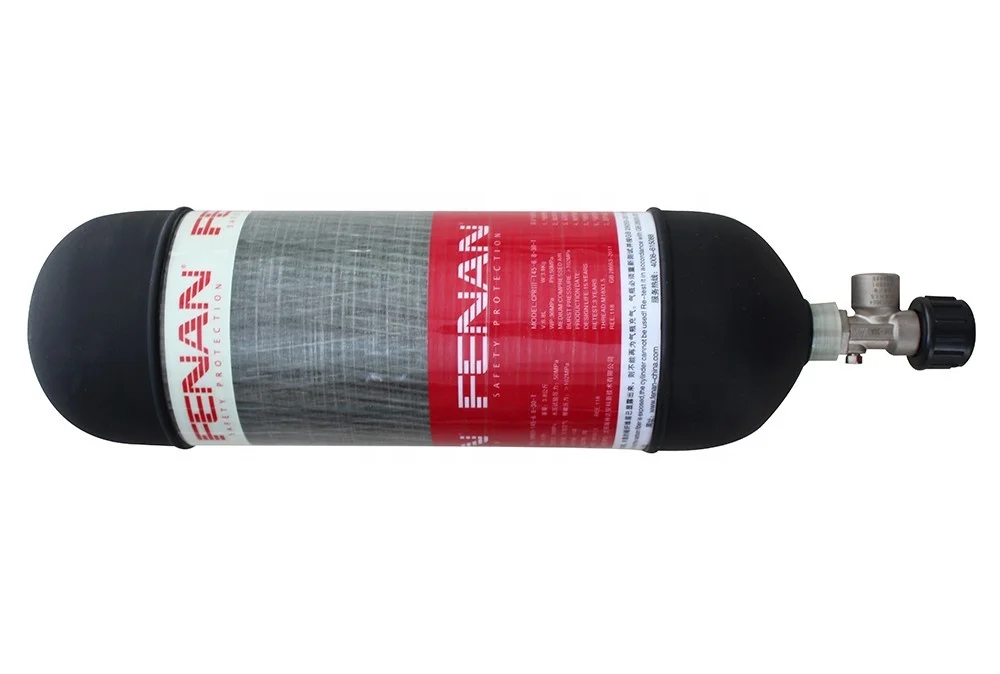

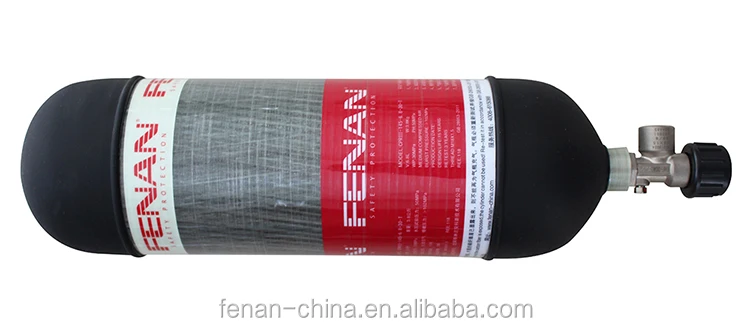

5. SCBA Carbon-fiber Cylinder
• With cylinder protection pad and fluorescence sticker.
• The locking hand-wheel of breathing apparatus prevents the cylinder valve from being closed accidentally.
• Optional 6.8L, 9L and 12L carbon-fiber cylinder.

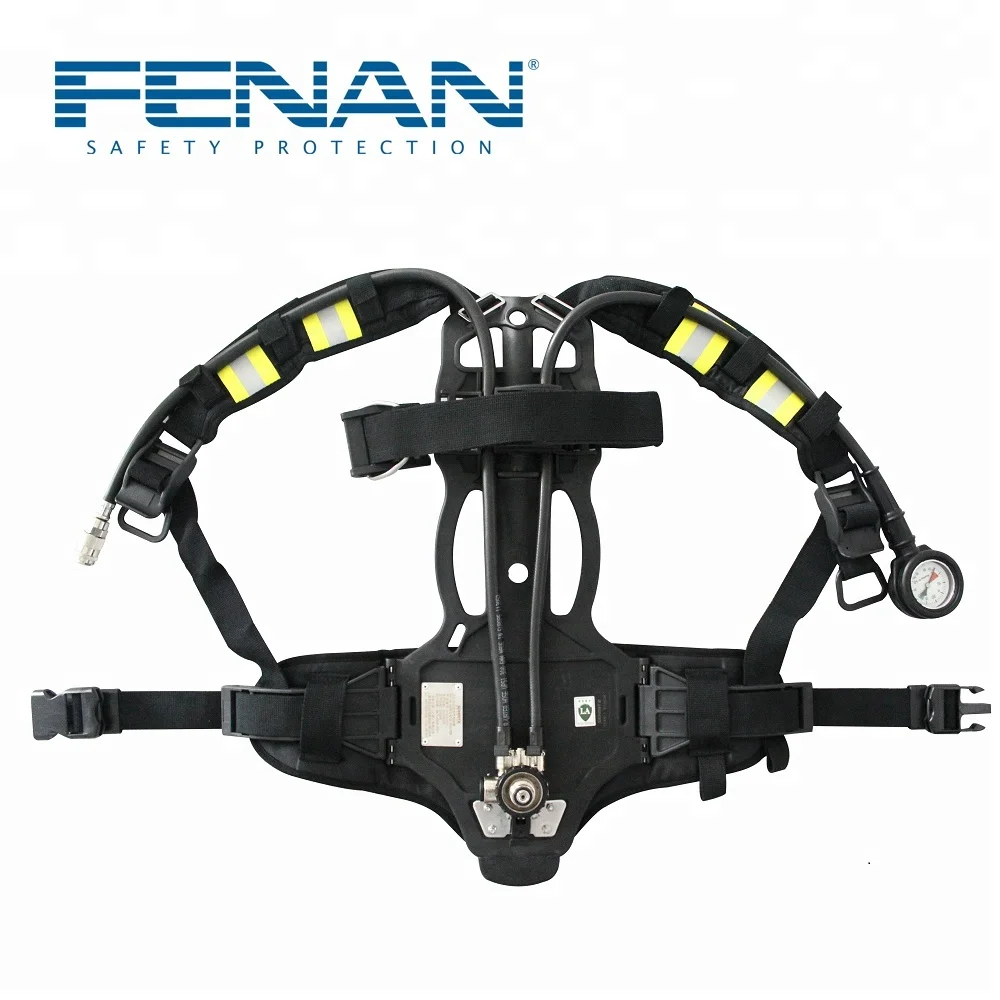

6. SCBA Back Pack
• Waterproof and shockproof designingThe backpack of breathing apparatus SCBA is based on the figures of human beings, perfectly
fits to the body.
• Waterproof and shockproof designingThe special wing design of the waist belt greatly decentralize the weight points, which
improve the flexibility of the users.
• Waterproof and shockproof designingFlame proof shoulder straps coated with fluorescent stripes, so the breathing apparatus can
be distinguished in dark conditions, and easily unpicked and washed.
• Waterproof and shockproof designingLight-weight backpack is only at 0.416kg.
fits to the body.
• Waterproof and shockproof designingThe special wing design of the waist belt greatly decentralize the weight points, which
improve the flexibility of the users.
• Waterproof and shockproof designingFlame proof shoulder straps coated with fluorescent stripes, so the breathing apparatus can
be distinguished in dark conditions, and easily unpicked and washed.
• Waterproof and shockproof designingLight-weight backpack is only at 0.416kg.
APPLICATIONS
About FENAN
Product packaging
FAQ
What is your delivery time?
Sample will be prapared with 3 days, delivery time depends on your order..
What is your payment methods?
T/T, L/C, Paypal, West Union, Cash are accepted.
About the samples terms:
The samples cost and freight need to be covered by you.
We will refund the sample fee during the next order.
Can you customize the products as per our requests?
Yes, we offer OEM and ODM services.
a. Print Customer Logo on the product
b. Customeized products.
c. Customized packing
After Sale Service:
a. All products will have been strictly Quality Control in workshop before packing.
b. All products will be well packed before shipping.
c. All our products have 1 year warranty and we sure the product will be free from maintenance within warranty period.
Sample will be prapared with 3 days, delivery time depends on your order..
What is your payment methods?
T/T, L/C, Paypal, West Union, Cash are accepted.
About the samples terms:
The samples cost and freight need to be covered by you.
We will refund the sample fee during the next order.
Can you customize the products as per our requests?
Yes, we offer OEM and ODM services.
a. Print Customer Logo on the product
b. Customeized products.
c. Customized packing
After Sale Service:
a. All products will have been strictly Quality Control in workshop before packing.
b. All products will be well packed before shipping.
c. All our products have 1 year warranty and we sure the product will be free from maintenance within warranty period.
