High Pressure 200bar Valve Pressure Regulating Valve for Oxygen /Co2/Argon/Helium/Nitrogen/Acetylene Gas Cylinder Valve
- Category: >>>
- Supplier: Shanghai Wonder Gas Co. Ltd.
Share on (1601074349019):
Product Overview
Description
Product Description
Cylinder valve refers to the valve installed on the cylinder to control the gas cut and flow.Also called "bottle valve".Cylinder valves of different structures are generally used for cylinders with different media.Their common characteristics are mostly manual, simple structure, small size, high strength, operating temperature of -40~60℃, material can adapt to the physical and chemical characteristics of the medium and commonly used copper.

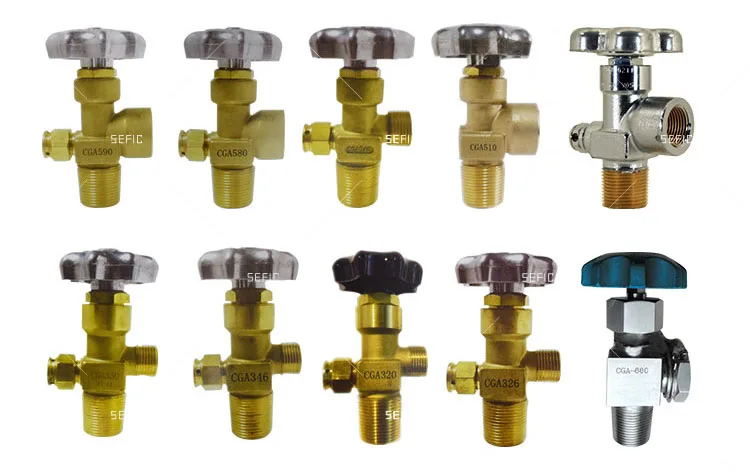

CGA valve is the American standard valve series, very versatile, Oxygen, Argon, CO2, Hydrogen, Helium and other kinds of gas valves, for medical, industrial, welding and other industries.
1. TYPE: CGA Series
2. MEDIUM AVAILABLE: Oxygen, Argon, CO2, Hydrogen, Helium
3. INLET THREAD: 3/4-14-NGT
4. OUTLET THREAD: Internal thread CGA580
5. SAFETY DEVICE(Mpa): 28±2
6. WP(Mpa:15
7.DN(mm):4
Specification:

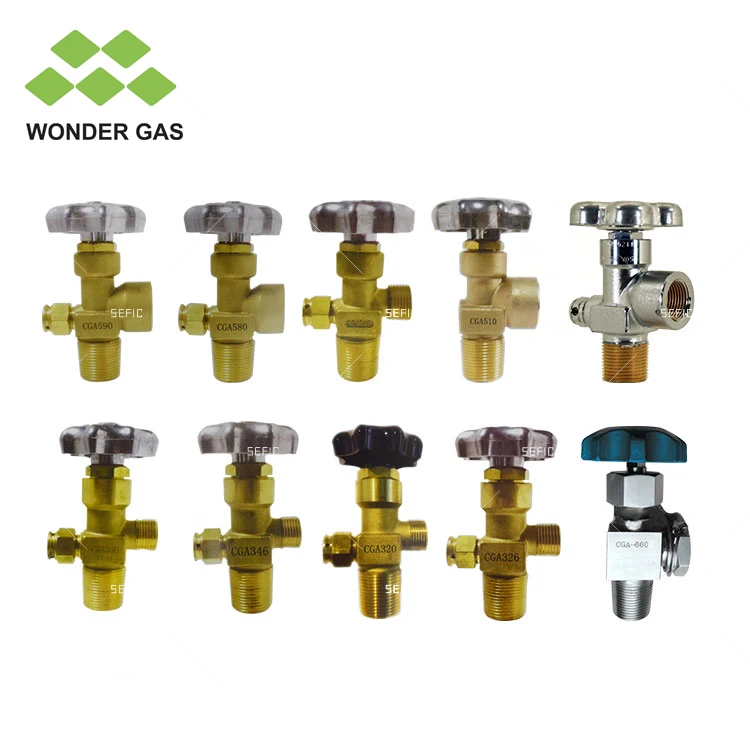

| CGA Cylinder Valve Products Series | ||||||
| TYPE | MEDIUM | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) |
| CGA200 | CH | 3 | 3/8-18-NGT | CGA200 | 100°C±5°C | 3 |
| CGA300 | CH | 3 | 3/4-14-NGT | .825-14NGD-RH | / | 4 |
| CGA320 | CO2 | 15 | 3/4-14-NGT | CGA320 | 21±1.5 | 4 |
| CGA320A | O2 | 15 | 1-11 1/2-NGT | CGA320 | 21±1.5 | 4 |

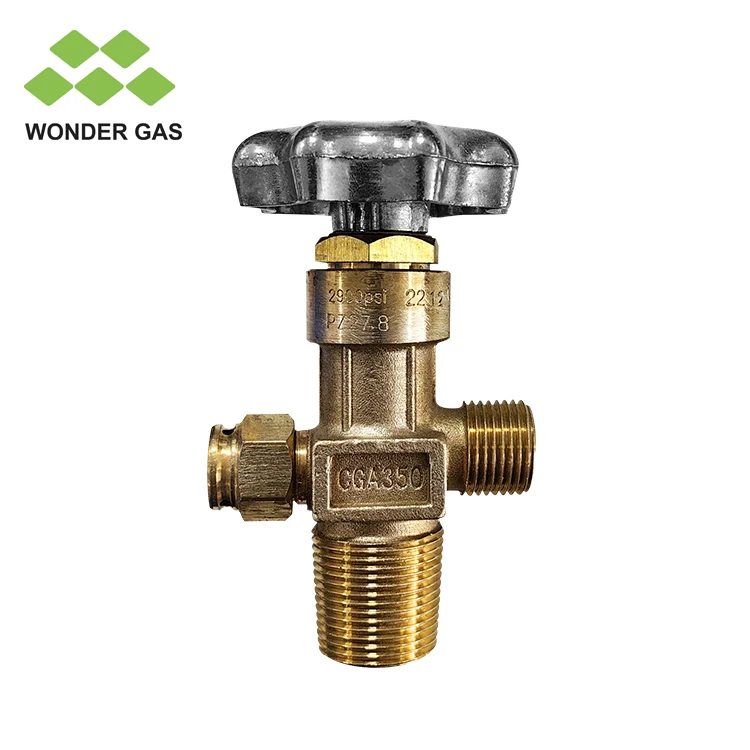

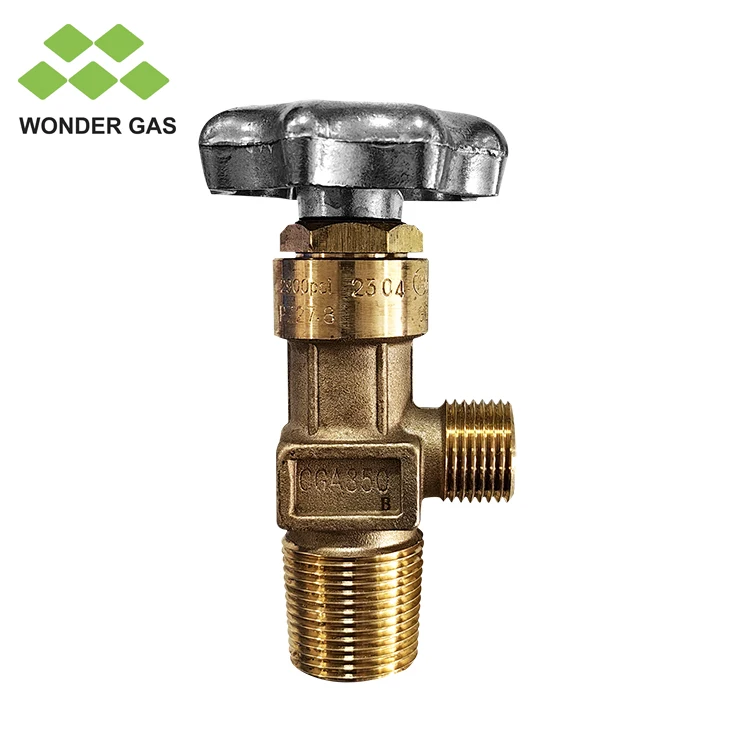

| CGA350 | CO2 | 15 | 3/4-14-NGT | CGA350 | 21±1.5 | 7 |

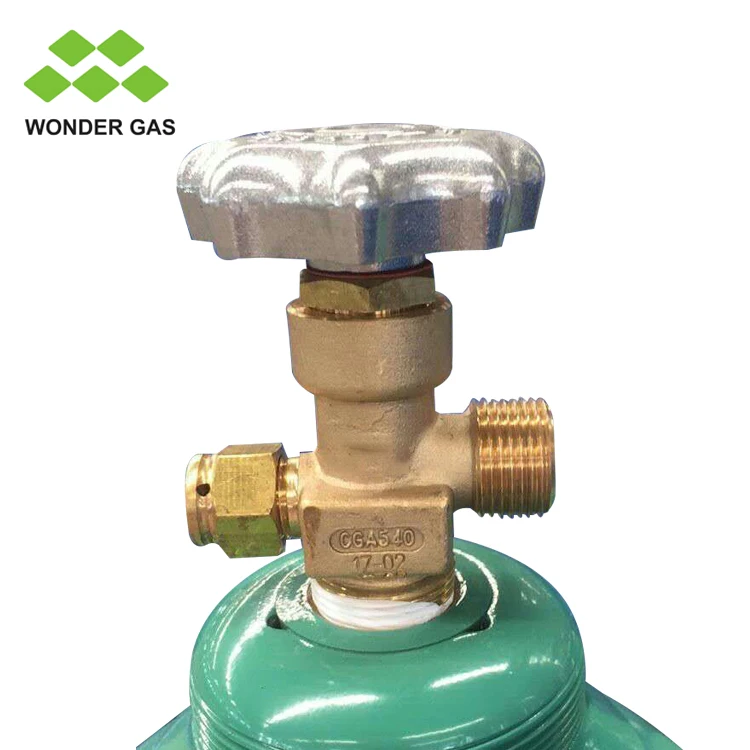

| CGA540 | O2,N2 | 15 | 3/4-14-NGT | CGA540 | 21±1.5 | 4 |
| CGA540B | O2,N2 | 15 | GB8335 PZ27.8 | CGA540 | 21±1.5 | 4 |
| CGA540C | O2,N2 | 15 | 1-11 1/2-NGT | CGA540 | 21±1.5 | 4 |
| CGA540D | O2,N2 | 20 | 3/4-14-NGT | CGA540 | 28±2 | 4 |
| CGA555 | O2,N2 | 15 | GB8335 PZ27.8 | CGA555 | 21±1.5 | 4 |

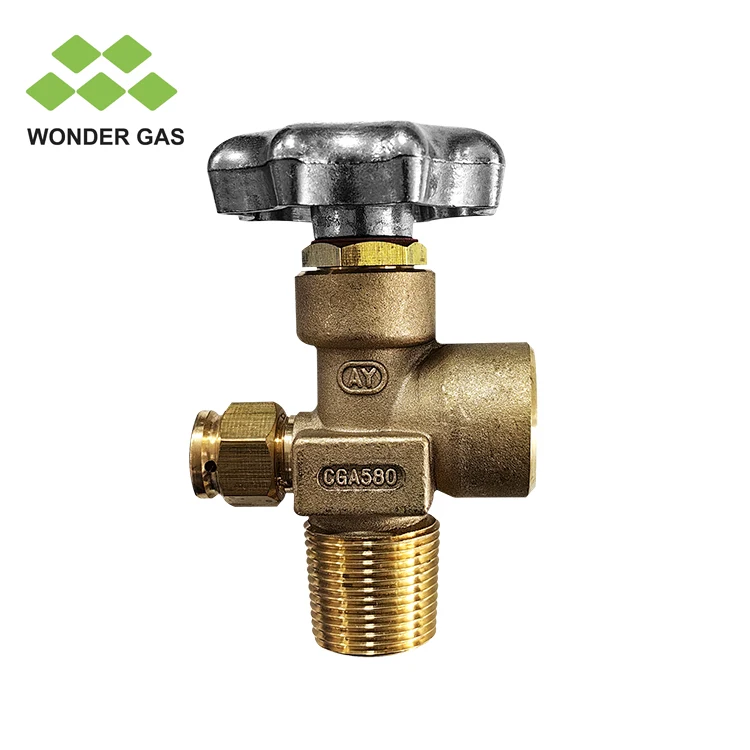

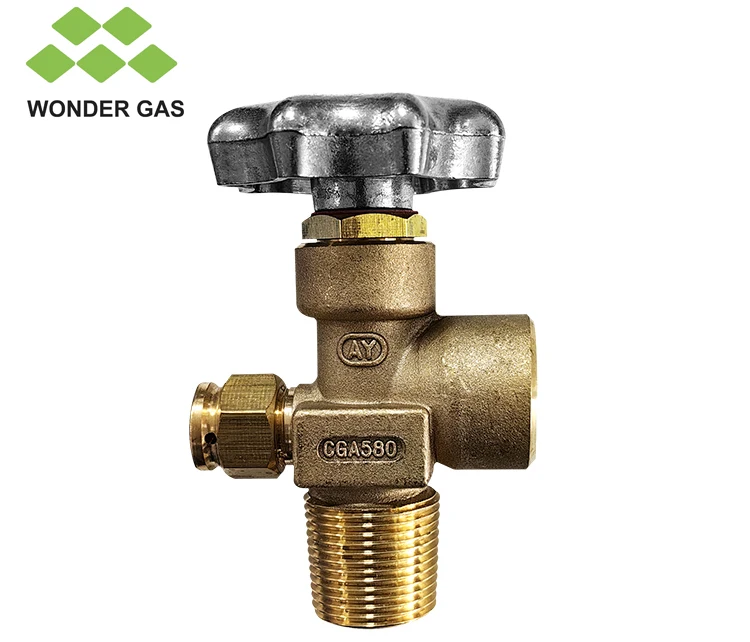

| CGA580 | He,Ne,Ar,Xe | 15 | 1-11 1/2-NGT | Internal thread CGA580 | 21±1.5 | 4 |
| CGA580A | Ar | 20 | 3/4-14-NGT | Internal thread CGA580 | 28±2 | 3 |
| CGA590 | O2,N2 | 15 | 3/4-14-NGT | Internal thread CGA980 | / | 3 |
| CGA870-1 | O2 | 15 | 1/2-NGT | φ7 Clip -4.7 Dowel pin | 21±1.5 | 2.5 |
| CGA870-2A | O2 | 15 | GB8335 PZ27.8 | φ7 Clip -4.7 Dowel pin | / | 2.5 |
| CGA870-2B | O2 | 15 | GB8335 PZ27.8 | φ7 Clip -6 Dowel pin | / | 2.5 |
| CGA870-2C | N2O | 15 | GB8335 PZ27.8 | φ7 Clip -6 Dowel pin | / | 2.5 |
| CGA870-3 | O2 | 15 | 1/2-NGT | φ7 Clip -4.7 Dowel pin | / | 2.5 |
| CGA870-4 | O2 | 15 | BS341 1-1/14 | φ7 Clip -4.7 Dowel pin | / | 2.5 |
| CGA870-4A3 | O2 | 15 | 3/4-16-UNF | φ7 Clip -4.8 Dowel pin | 73°C±3°C | 1.5 |
| CGA910 | N2O | 15 | 3/4-14-NGT | φ7 Clip -4.7 Dowel pin | / | 2.5 |
| CGA870B | O2 | 15 | 3/4-16-UNF | φ7 Clip -4.8 Dowel pin | / | 1.5 |
| CGA670 | CI2 | 2 | 3/4-14-NGT | External thread CGA670 | / | 7 |

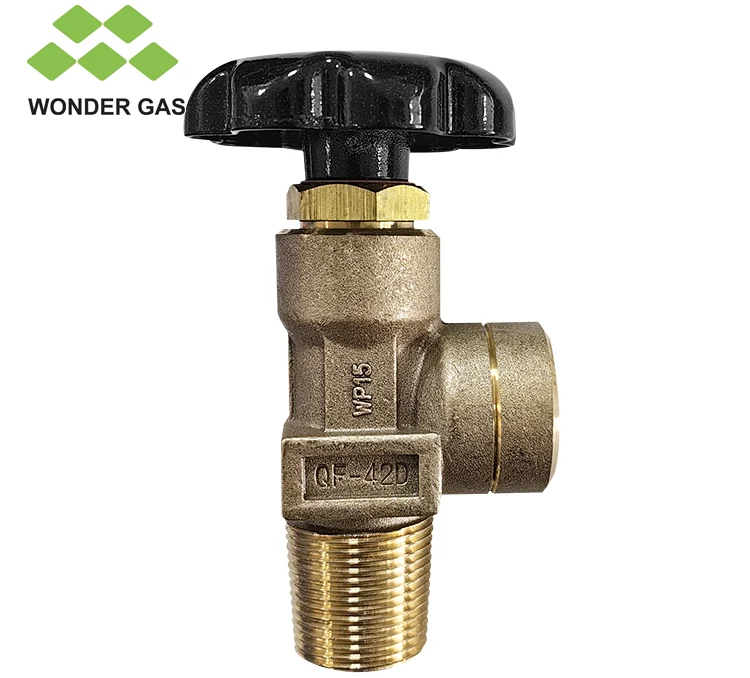

QF Series valve:
1. TYPE: QF Series
2. MEDIUM AVAILABLE: Oxygen/CO2/Acetylene
3. INLET THREAD: GB8335 PZ27.8
4. OUTLET THREAD: G5/8
5. SAFETY DEVICE(Mpa):21±1.5
6. WP(Mpa:15
7.DN(mm):4
CO2 valve series is designed for CO2 gas valve with China, Japan, Britain, Germany and other standard threads. Mainly used for fire protection and food industries.
Oxygen valve has various national standards, such as China, Japan, Germany, Brtain and other countries thread standard. Work pressure has 150bar and 200bar, mainly used in medical and industrial welding.
Acetylene cylinder valves are specifically applicable to acetylene gas, the material is brass with various countries thread standard, mainy for lighting, industrial welding and oxy-acetylene flame.
Specification:
| QF Cylinder Valve Products Series | |||||||
| TYPE | MEDIUM AVAILABLE | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) | STRUCTURAL STYLE |

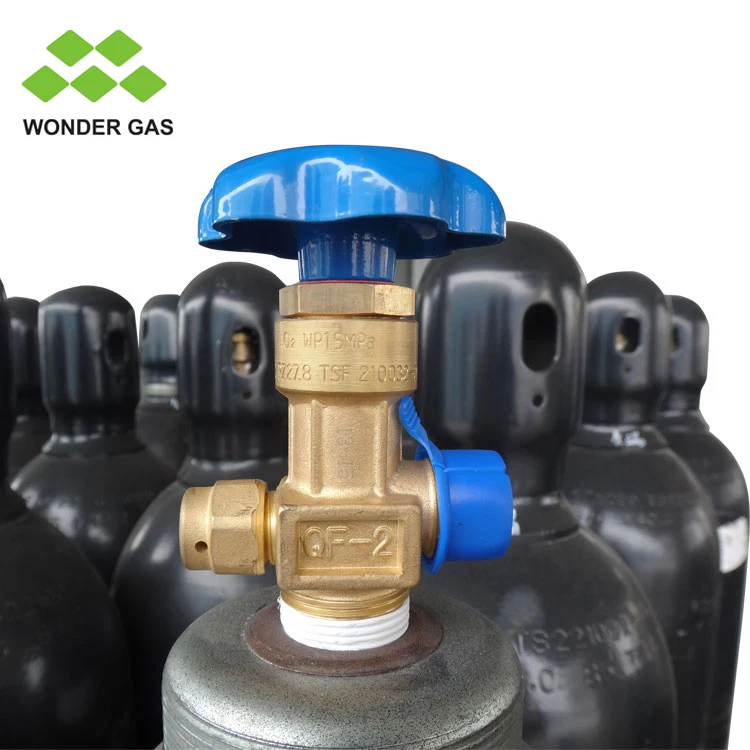

| QF-2 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2B | O2,N2 | 15 | GB8335 PZ27.8 | G5/8-LH | 21±1.5 | 4 | Valve type |
| QF-2B1 | O2,N2 | 15 | G1/2 | W22×1/14 | 21±1.5 | 4 | Valve type |
| QF-2C | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2D | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 21±1.5 | 4 | Valve type |
| QF-2E | O2,N2 | 15 | JIS B 8246 V1 φ20 | W22×1/14 | / | 4 | Valve type |
| QF-2F | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2G | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |
| QF-2M | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | 21±1.5 | 4 | Valve type |
| QF-2P | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G3/4 | 21±1.5 | 4 | Valve type |
| QF-5 | O2,N2 | 20 | GB8335 PZ27.8 | G5/8 | 28±2 | 4 | Valve type |
| QF-6 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | / | 4 | Valve type |
| QF-7 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | / | 4 | Needle form |
| QF-8 | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | / | 4 | Shaft type |
| QF-12 | O2,N2 | 15 | GB8335 PZ19.2 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-20 | O2,N2 | 15 | GB8335 PZ19.2 | G1/2 | 21±1.5 | 2 | Diaphragm type |
| QF-21 | O2,N2 | 15 | GB8335 PZ19.2 | W21.8×1/14 | 21±1.5 | 2 | Diaphragm type |
| QF-22 | O2,N2 | 15 | GB8335 PZ27.8 | W21.8×1/14 | 21±1.5 | 4 | Valve type |
| QF-25 | O2 | 15 | GB8335 PZ19.2 | φ7 Hose | / | 2 | Needle form |
| QF-27 | O2,N2 | 15 | JIS B 8246 V1 | W22×1/14 | 21±1.5 | 3 | Valve type |
| F-1 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-2 | O2,N2 | 15 | JIS B 8246 V2 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-3 | O2,N2 | 15 | BS341 1×1/14 | Internal thread G5/8 | 21±1.5 | 4 | Shaft type |
| DF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |

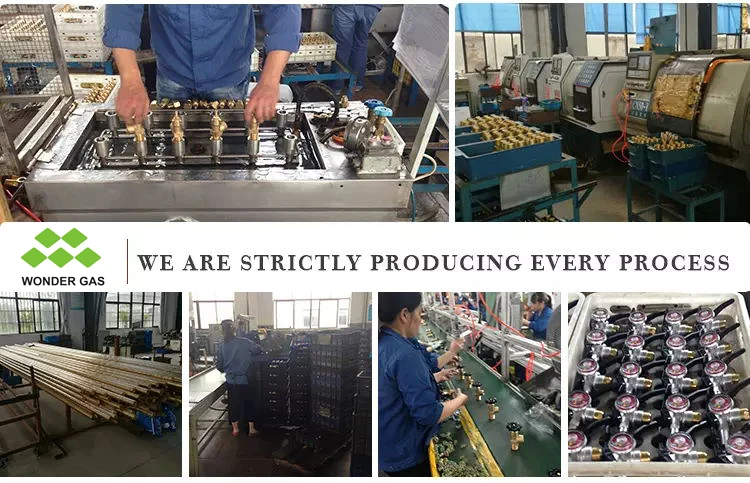

Production process
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries)
by opening, closing, or partially obstructing various passageways.

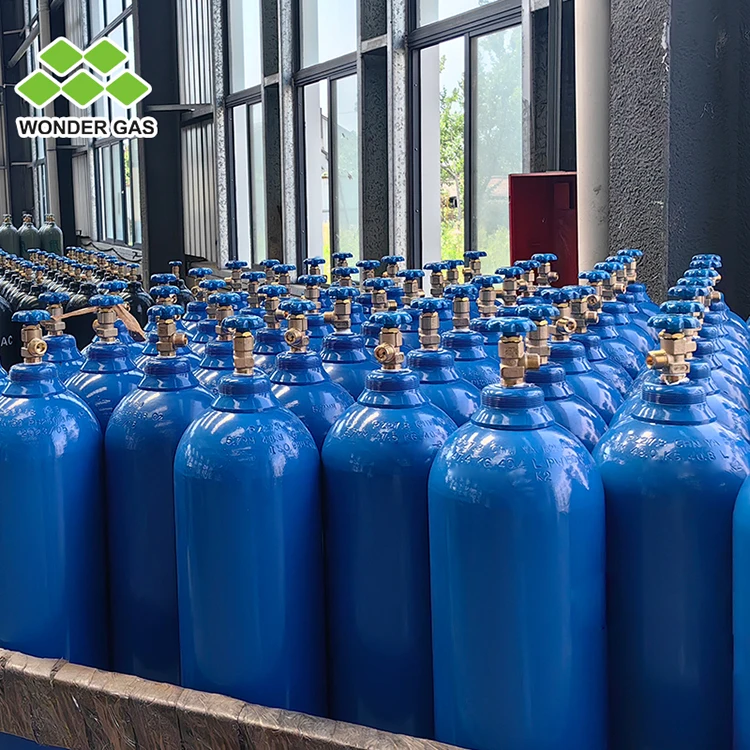

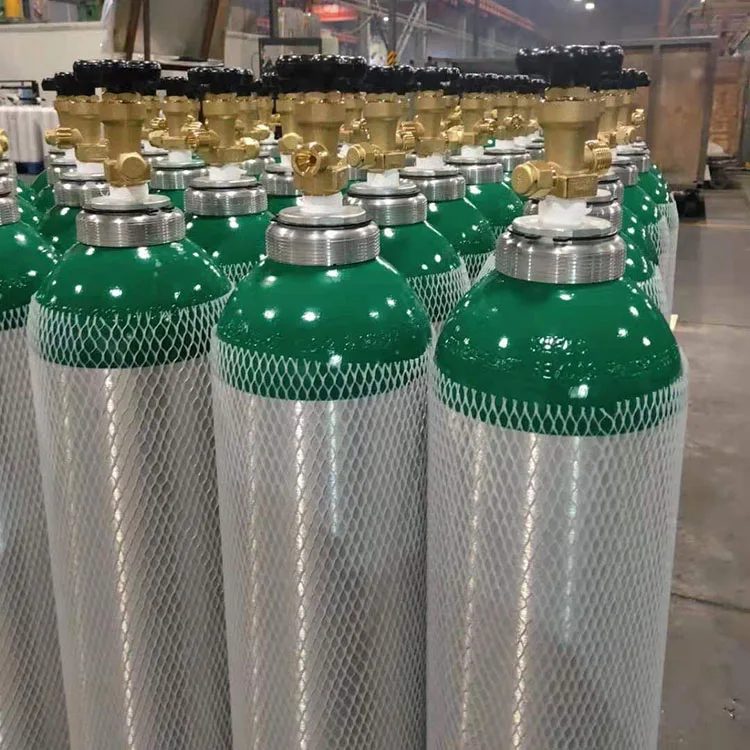

Valve Usage / On Steel Cylinder / On Aluminum Cylinder
Company Information

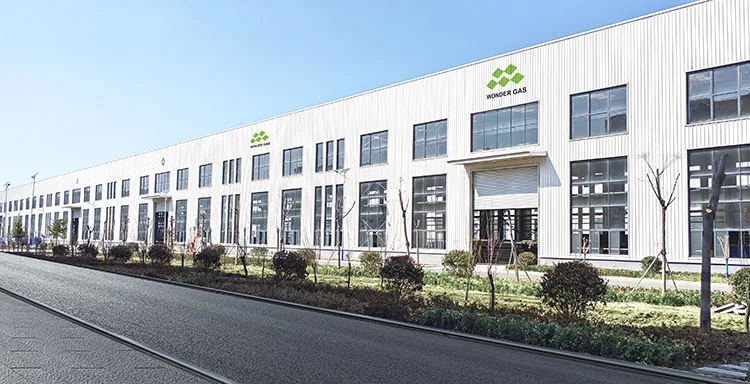

Located in Shanghai,Wonder Gas is a professional manufacturer of gas cylinder and gas equipment. We have more than 30-year experience in gas industry and have reputation in this field.
Our main products : Steel gas cylinders , such as
oxygen cylinder,nitrogen cylinder,argon cylinder,co2 cylinder,acetylene cylinder,helium cylinder etc.There are also valves, regulator and related Accessories.
Our main products : Steel gas cylinders , such as
oxygen cylinder,nitrogen cylinder,argon cylinder,co2 cylinder,acetylene cylinder,helium cylinder etc.There are also valves, regulator and related Accessories.
Our products have won praise from customers worldwide. And our products have been exported to US. Euro countries, such as Germany, Portugal, Romania, Bulgaria.
South America such as Chile, Peru, Bolivia, Africa such as Angola, South Africa.We can supply all kinds of gas cylinders with ISO,TUV, TPED, CE and DOT certification.
South America such as Chile, Peru, Bolivia, Africa such as Angola, South Africa.We can supply all kinds of gas cylinders with ISO,TUV, TPED, CE and DOT certification.

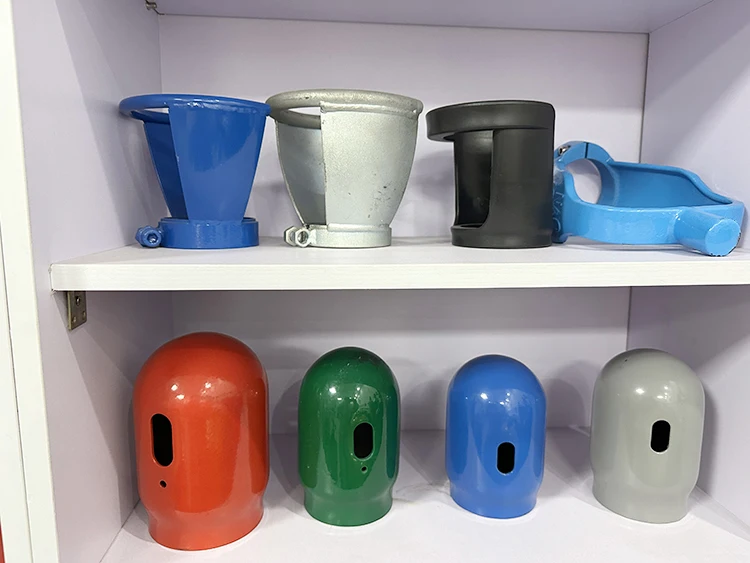

We also offer other accessories for gas cylinders, carrying handles and caps, etc.
