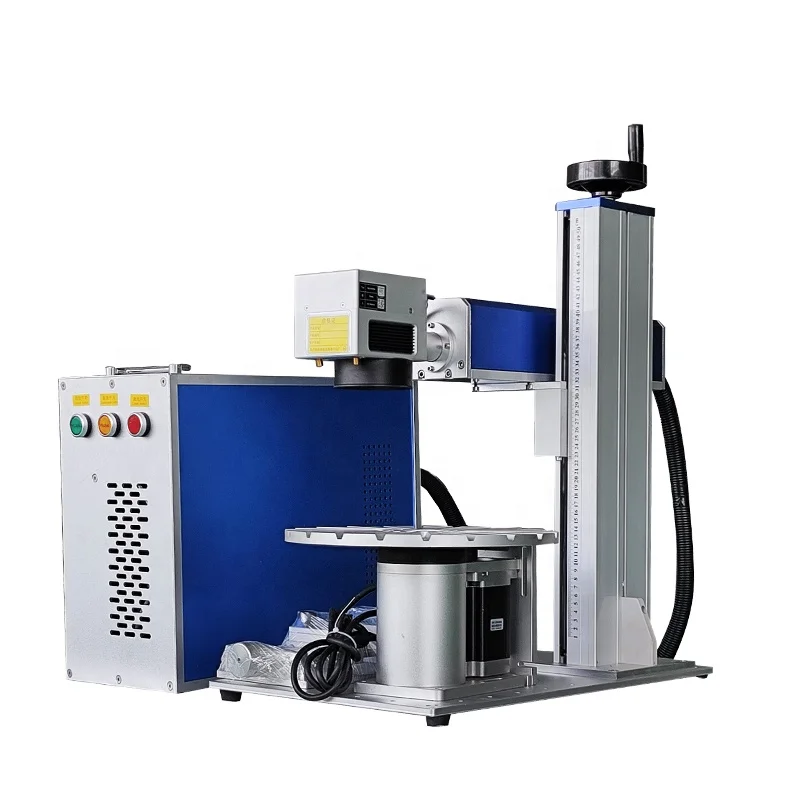

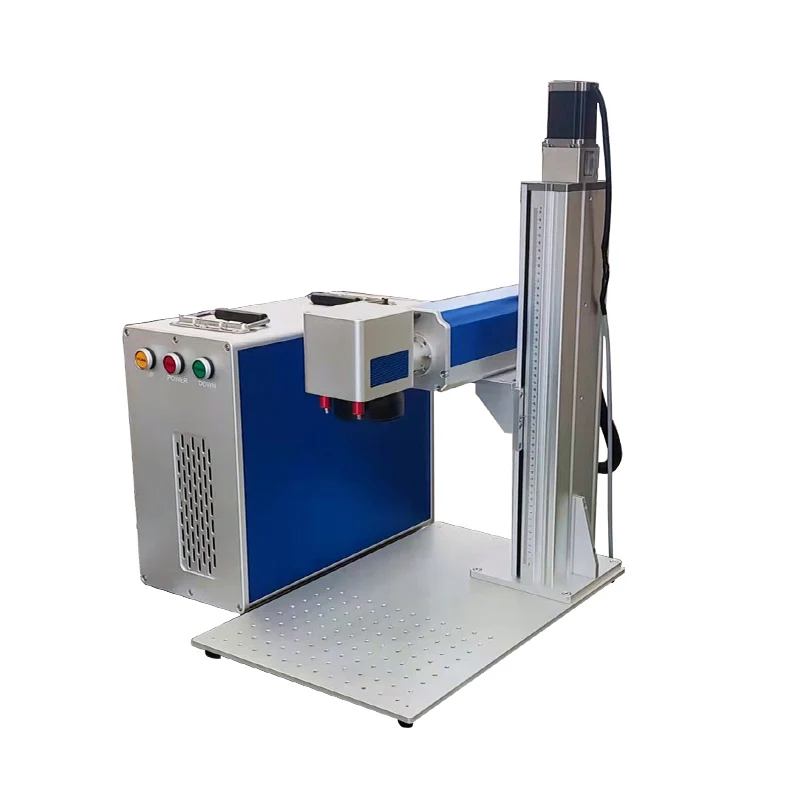

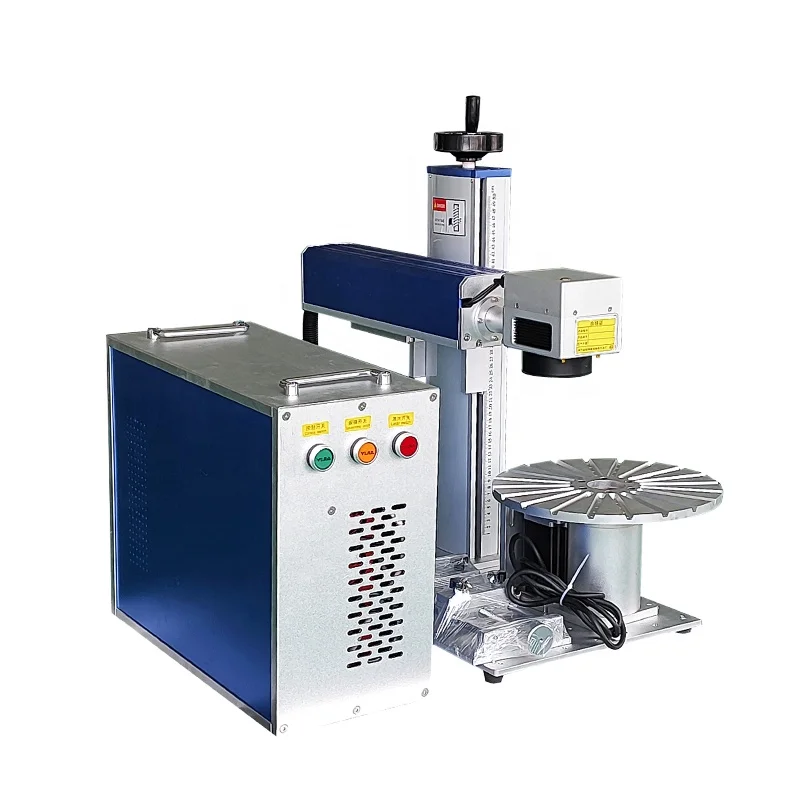

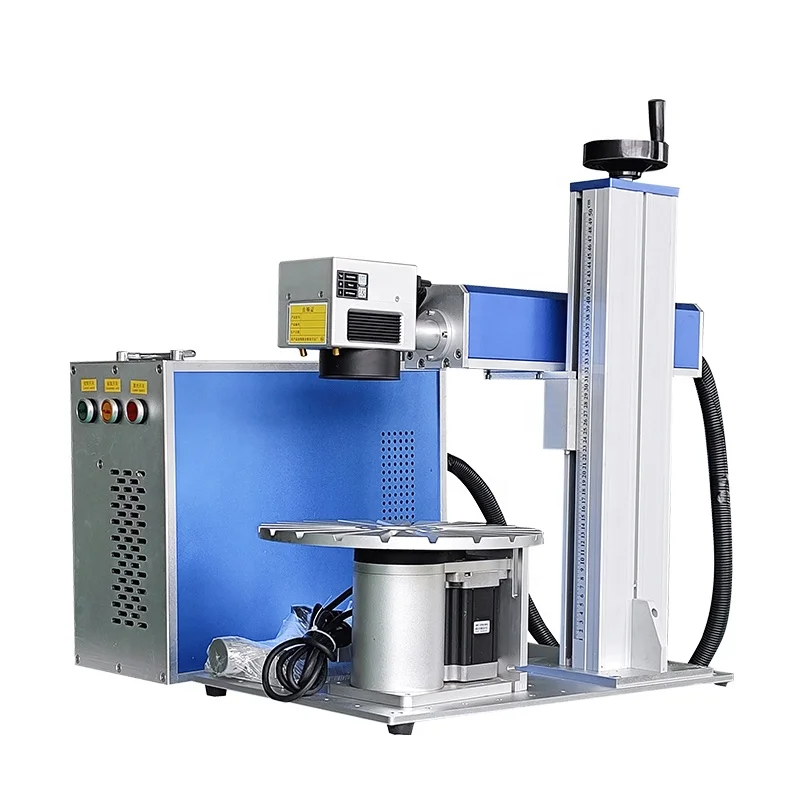

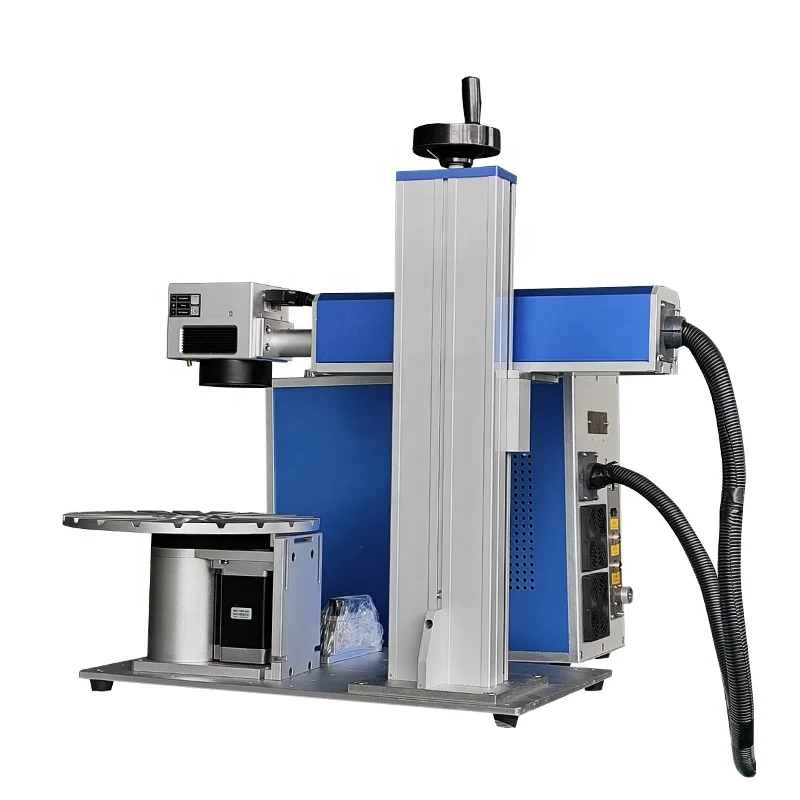

JPT MOPA M7 60W Fiber Laser Metal Cutting Marking Machine 100W 70W 50W 30W 20W Raycus Jewelry Engraving Engraver
- Category: >>>
- Supplier: Liaocheng Les Laser Equipment Ltd.
Share on (1601074655307):
Product Overview
Description
Products Description
How to Choose The Different Laser Watt?
Here is difference between 20w, 30w and 60w:
Here is difference between 20w, 30w and 60w:
① 30w is more durable than 20w , and 60w is more durable than 30w
② if marking same content on same materials, 60w marking speed is faster than 20w/ 30w
③ if marking same depth on same material, 60w marking time is shorter than 20w/ 30w
Detailed Application:
①The 20W machine is mainly used for surface marking of plastic, stainless steel, aluminum and so on.
②If the customer wants to engrave deeply, then a 30W machine will be a better choice. For all materials, aluminum is the easiest to achieve deep engraving, 30w machine will be a better choice.
③If you want to do deep marking on brass,silver, or gold or cut it, you need to choose the 60watt. As you know, these materials are high-reflective materials.
② if marking same content on same materials, 60w marking speed is faster than 20w/ 30w
③ if marking same depth on same material, 60w marking time is shorter than 20w/ 30w
Detailed Application:
①The 20W machine is mainly used for surface marking of plastic, stainless steel, aluminum and so on.
②If the customer wants to engrave deeply, then a 30W machine will be a better choice. For all materials, aluminum is the easiest to achieve deep engraving, 30w machine will be a better choice.
③If you want to do deep marking on brass,silver, or gold or cut it, you need to choose the 60watt. As you know, these materials are high-reflective materials.
Machine default working area:175x175mm
If you need the working area of other models, please tell me and I will note different working areas for you.
The machine can choose the working area model:
70x70mm
110x110mm
150x150mm
175x175mm
200x200mm
220x220mm
300x300mm
You can choose one or more models that suit your area. Depending on the required working area or the more working area required, the price of the machine is different, please contact me for confirmation.

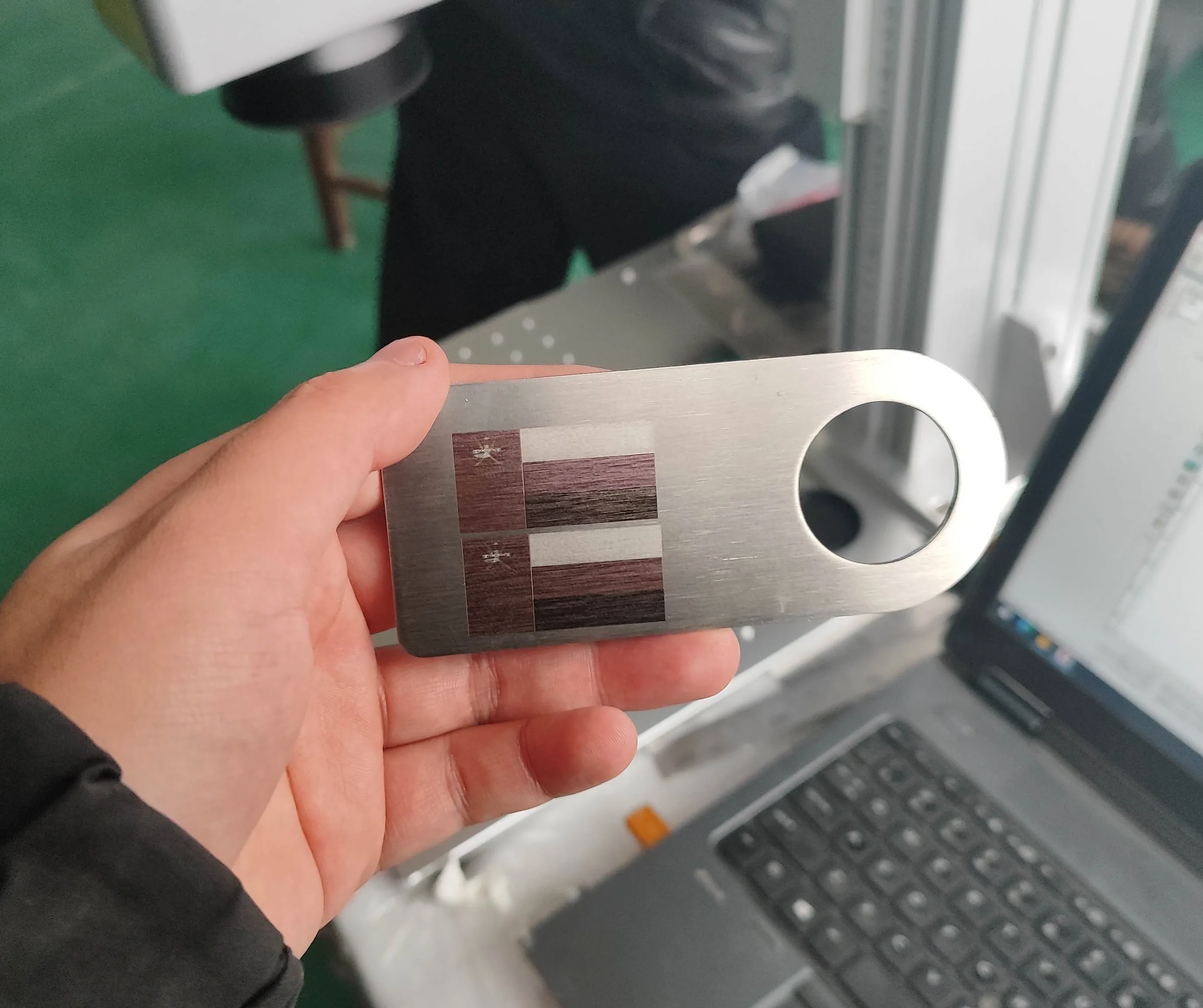

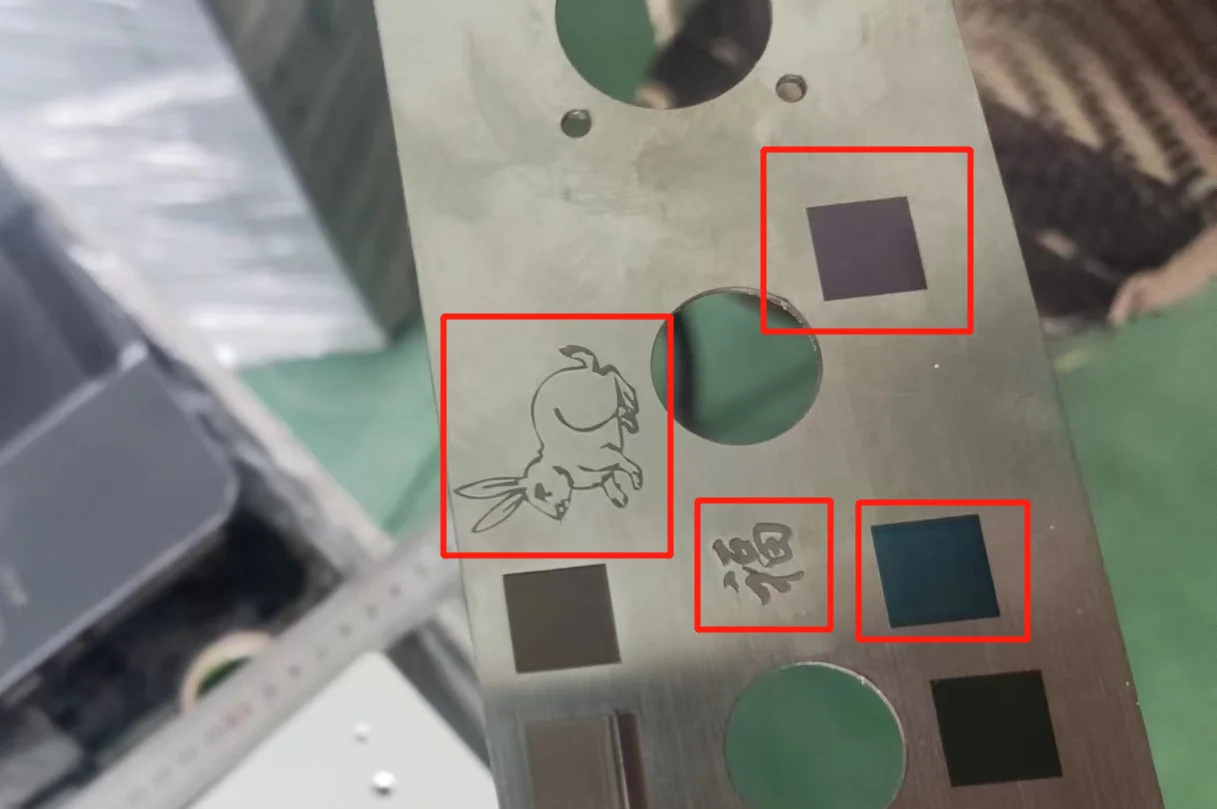

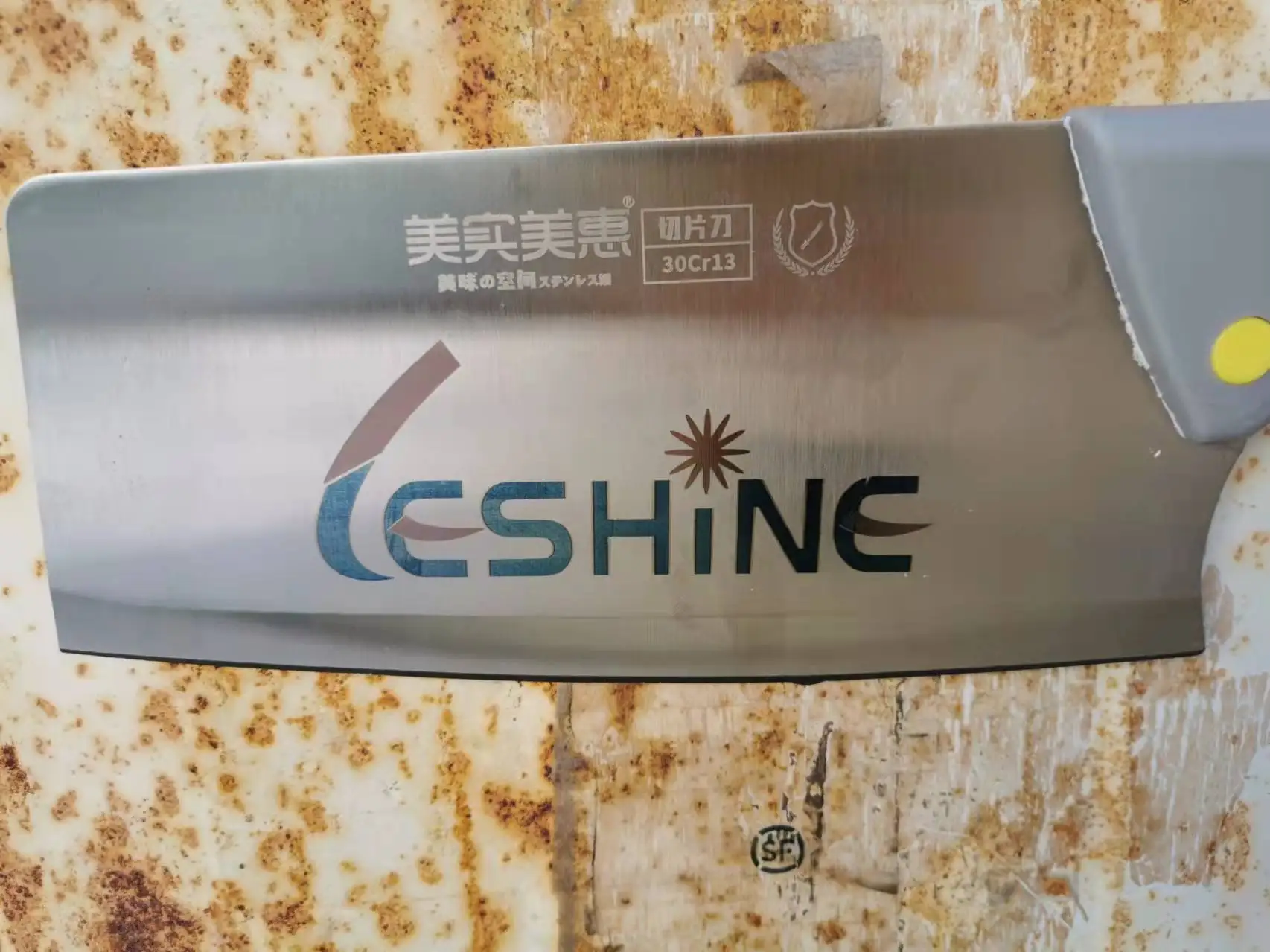

Machine finished sample
Machine parameters
Product Name | Mopa Fiber Laser Marking Machine | ||||||
Laser Source Brand | JPT M7 Mopa Laser Source | ||||||
Machine Power | 60w | ||||||
Laser Wavelength | 1064nm | ||||||
Machine Control | Genuine EZCAD 2.14.16 Control Card | ||||||
Work Area | 70x70mm/110x110mm/150x150mm/175x175mm/200x200mm/300x300mm (custom made) | ||||||
Maximum pulse energy | 1.5mj | ||||||
Frequency adjustable range | 1--4000KHZ | ||||||
Pulse Width | 2 ~ 500ns | ||||||
Output power instability | < 5% | ||||||
Cooling method | Air Cooling | ||||||
Power adjustment range | 0 ~ 100% | ||||||
Beam diameter | 7±0.5mm | ||||||
Product configuration

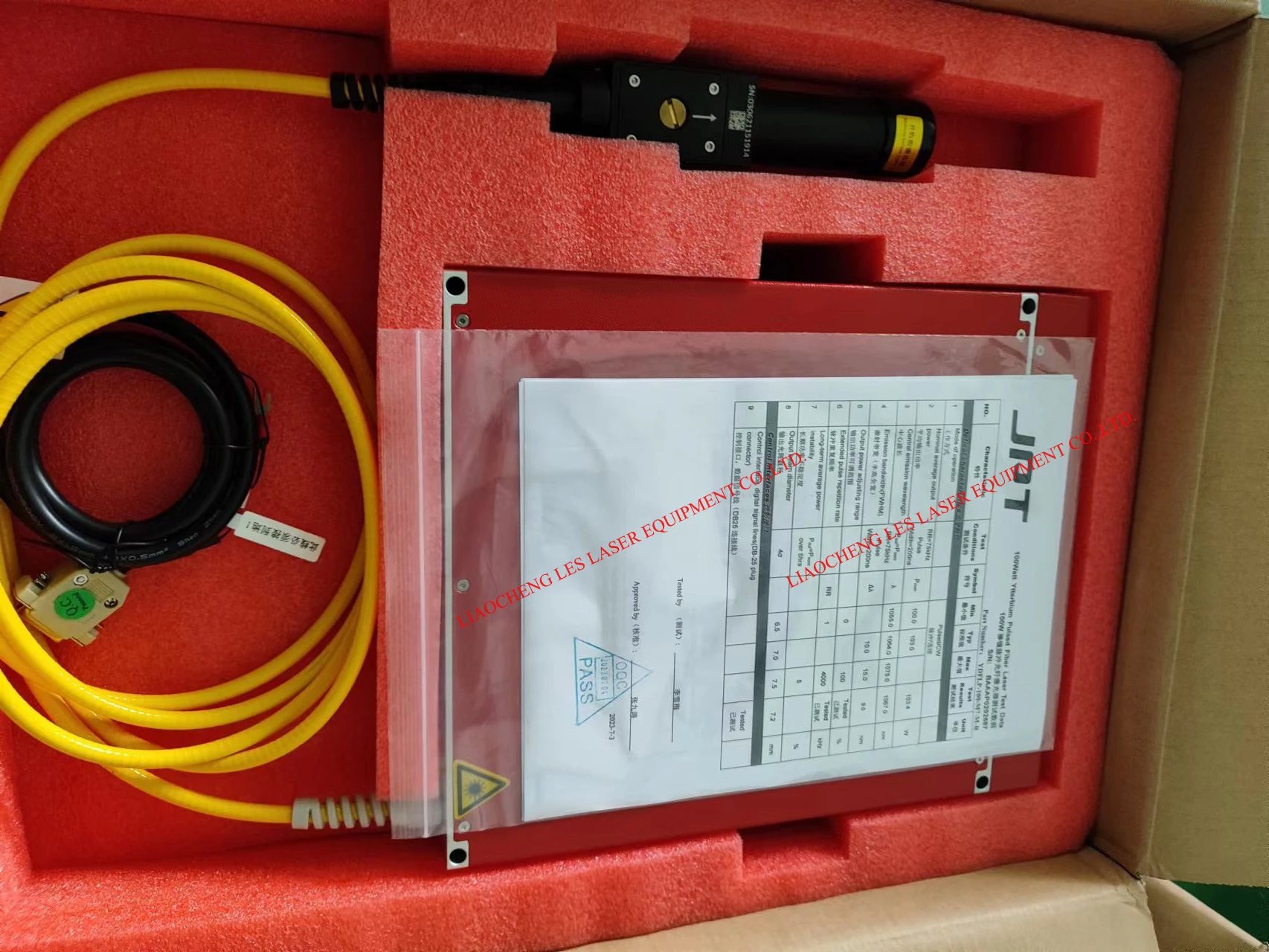

JPT M7 Mopa Laser Source
--Ultra high quality Mopa Laser Source with long service life and good laser quality.

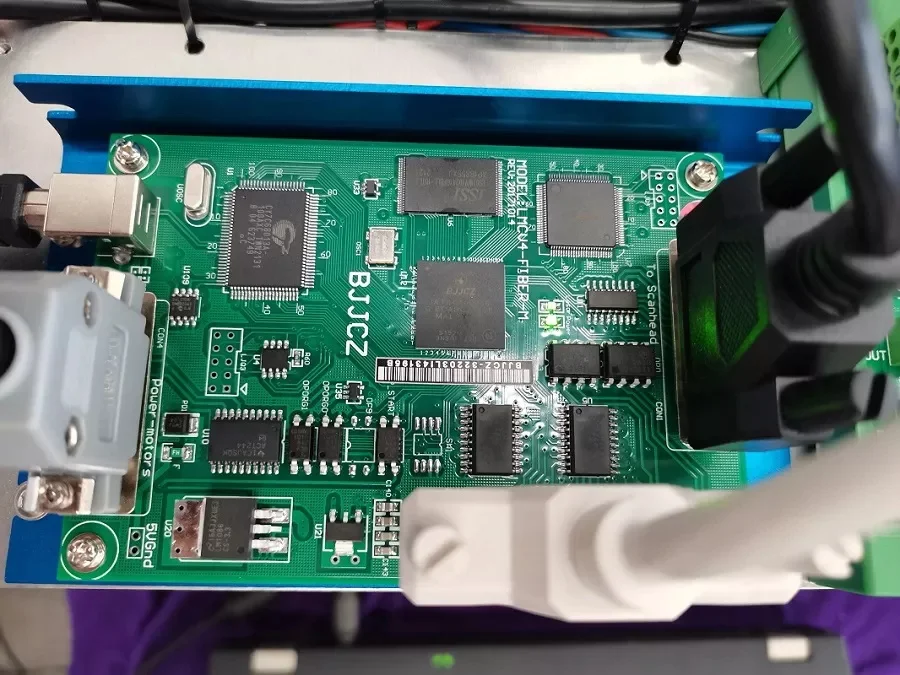

Genuine EZCAD Cotrol
--Fully functional and supports multiple languages.

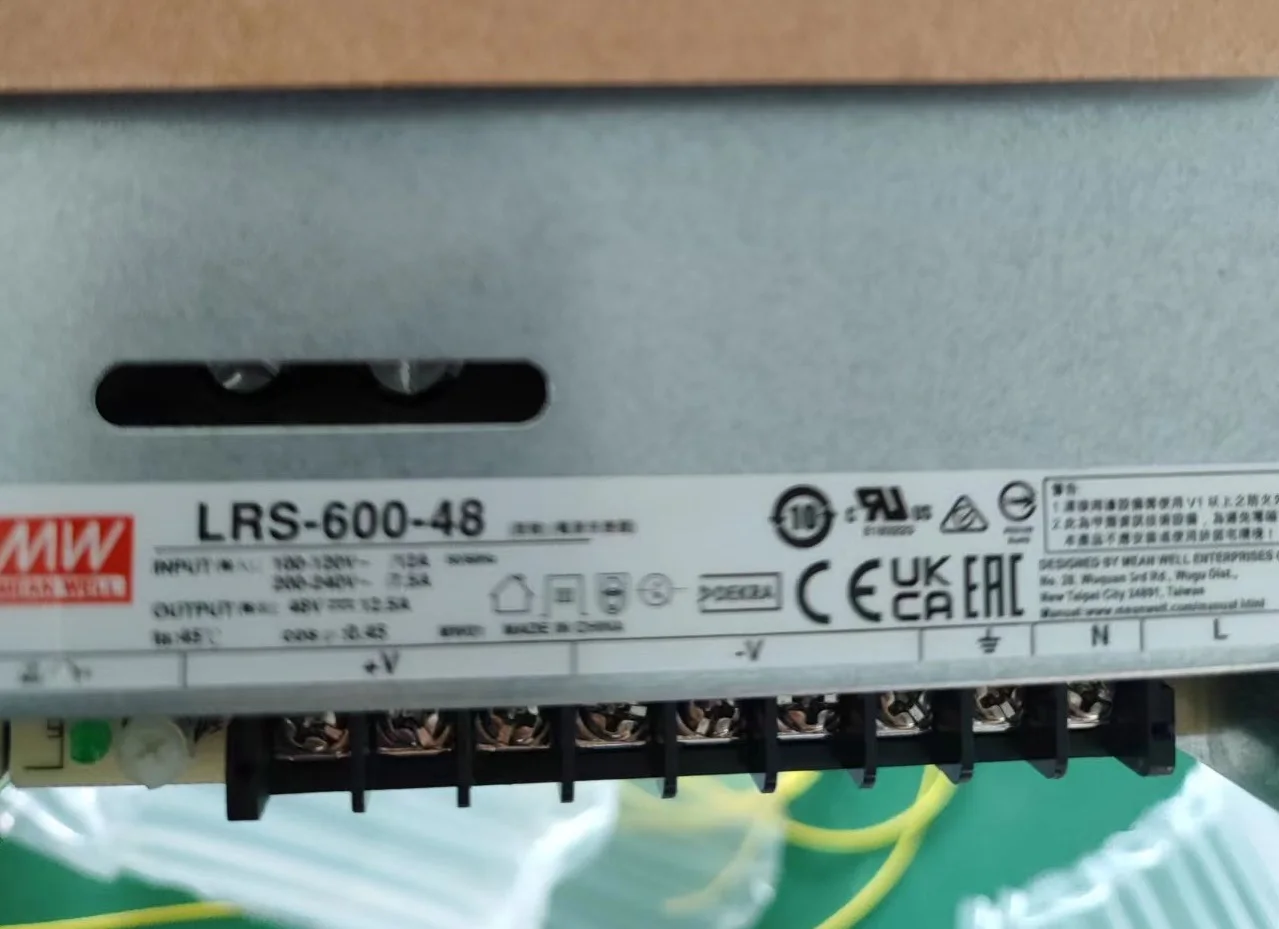

600W High Power Development Power Supply
--It can provide a stable power supply for the machine and maintain the stable work of the machine for a long time.

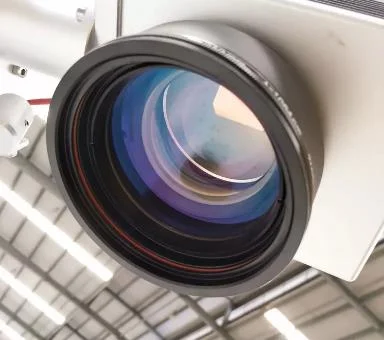

Opex F-theta-Lens
--It is a very good laser machine lens brand in the Chinese market, it can reflect high-quality beam quality, to provide you with good marking effect.

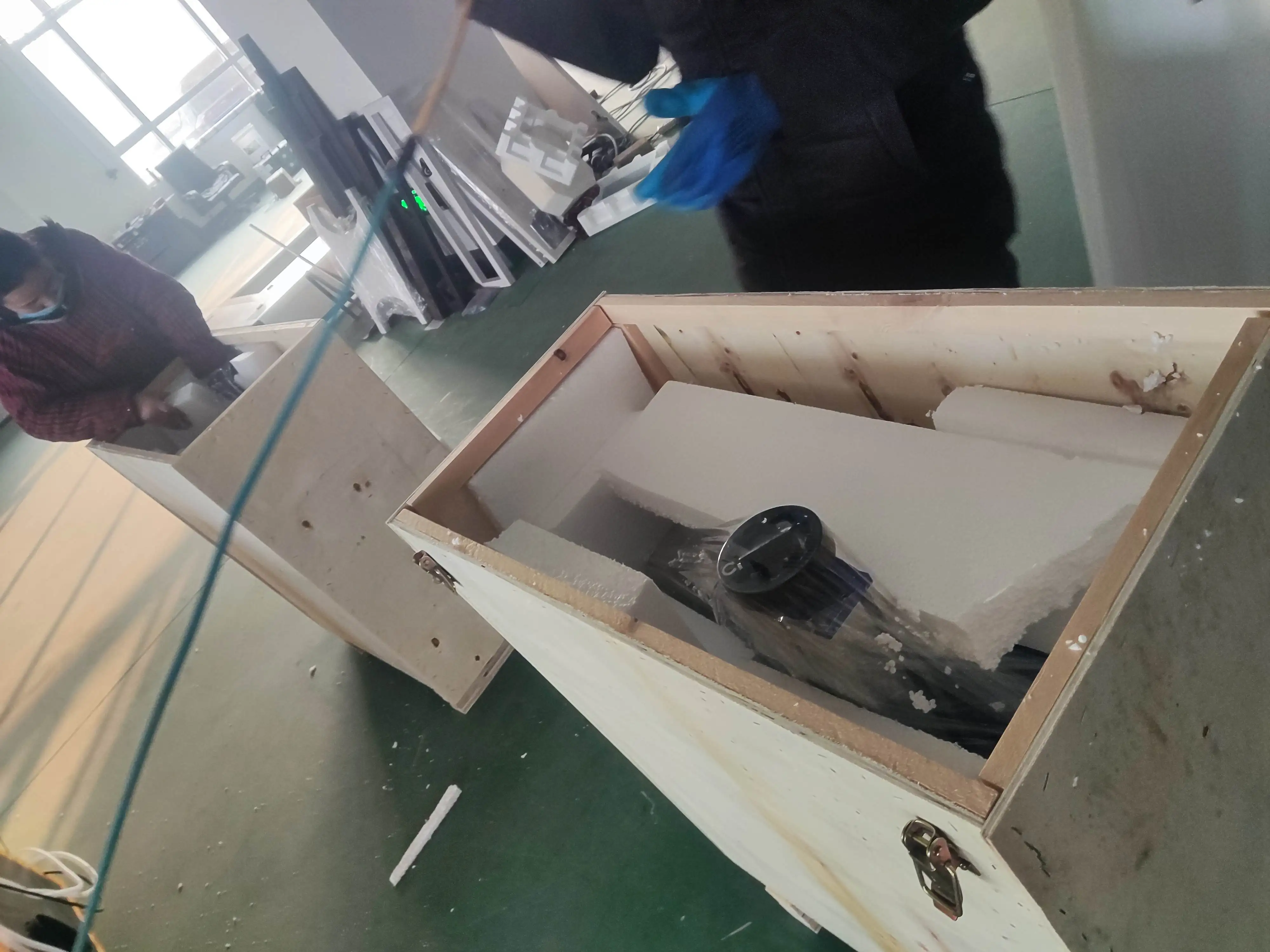

Product packaging
1.--We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking.For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.--Air-WorthyPacking or Sea Packing which comply with international standard.
Machine standard accessories:
Foot Switch
220v/110v (Power Line)
USB Flash Drive
USB Cable
Anti-radiation glasses
Locating bar X2
