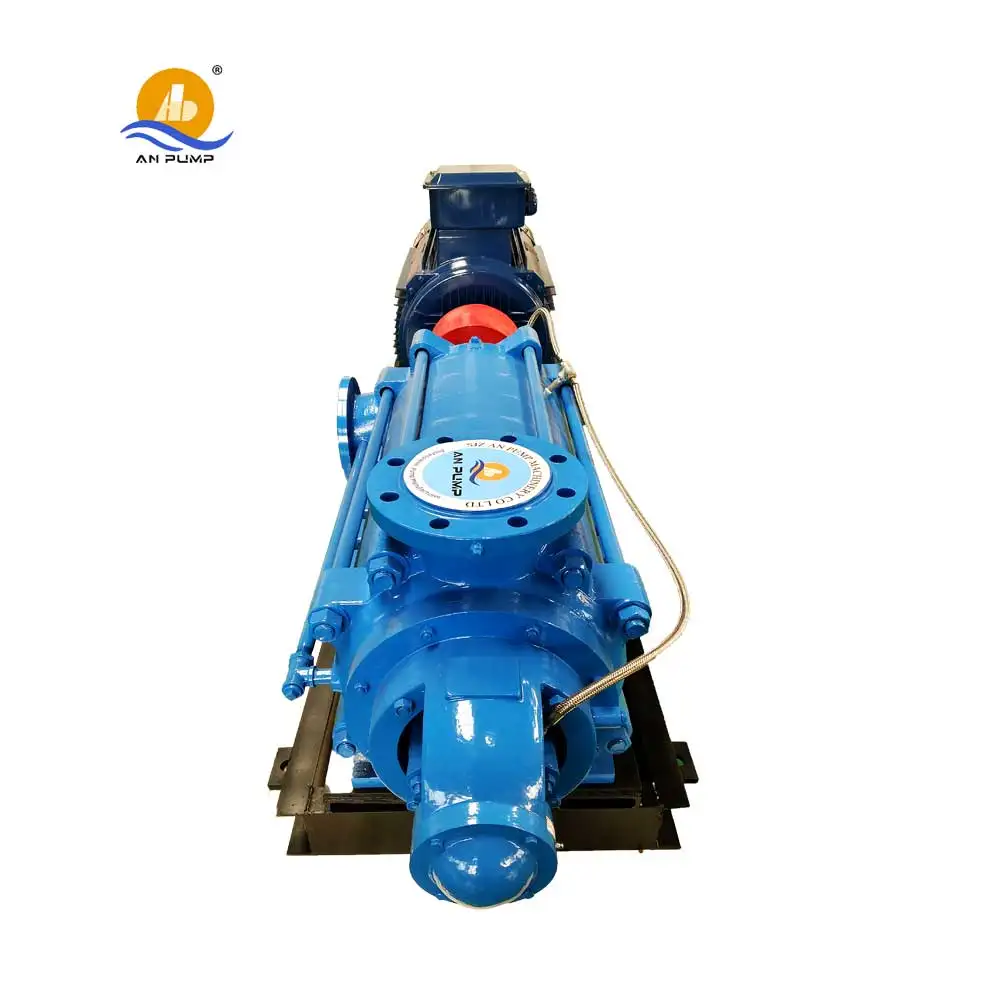

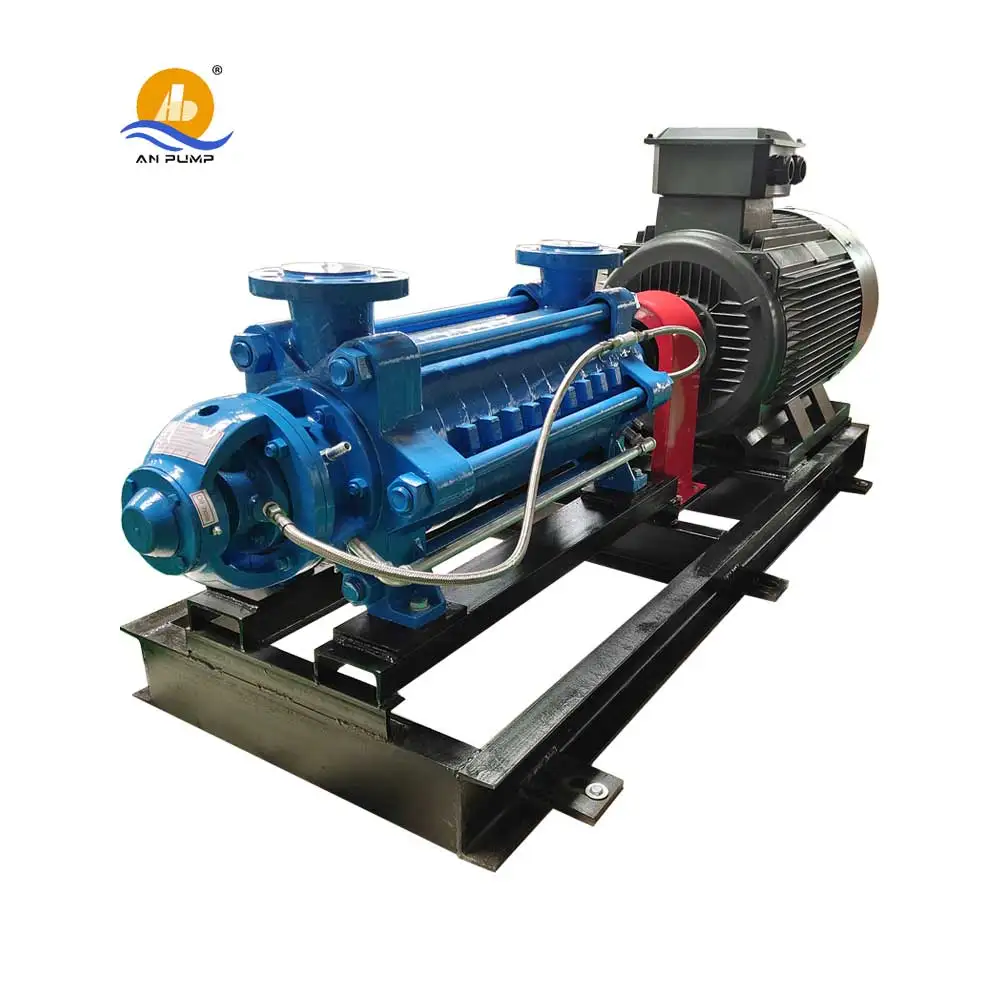

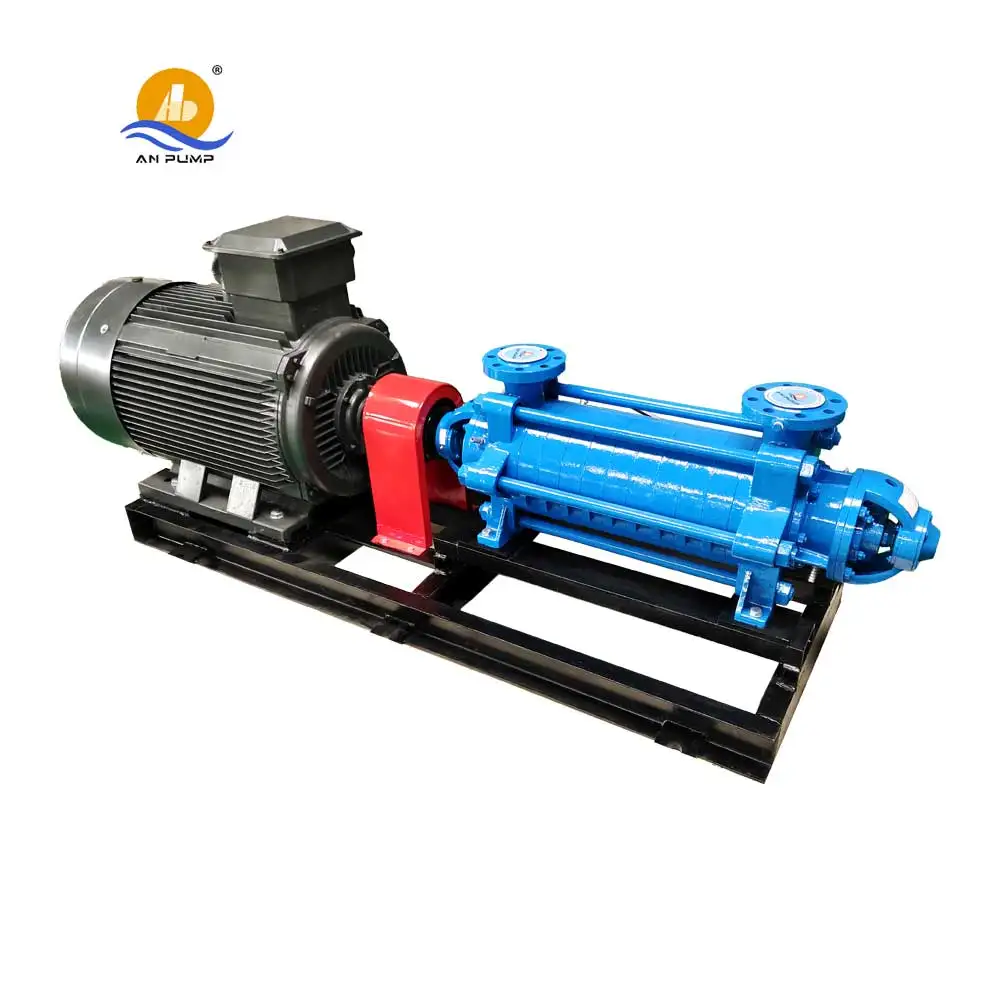

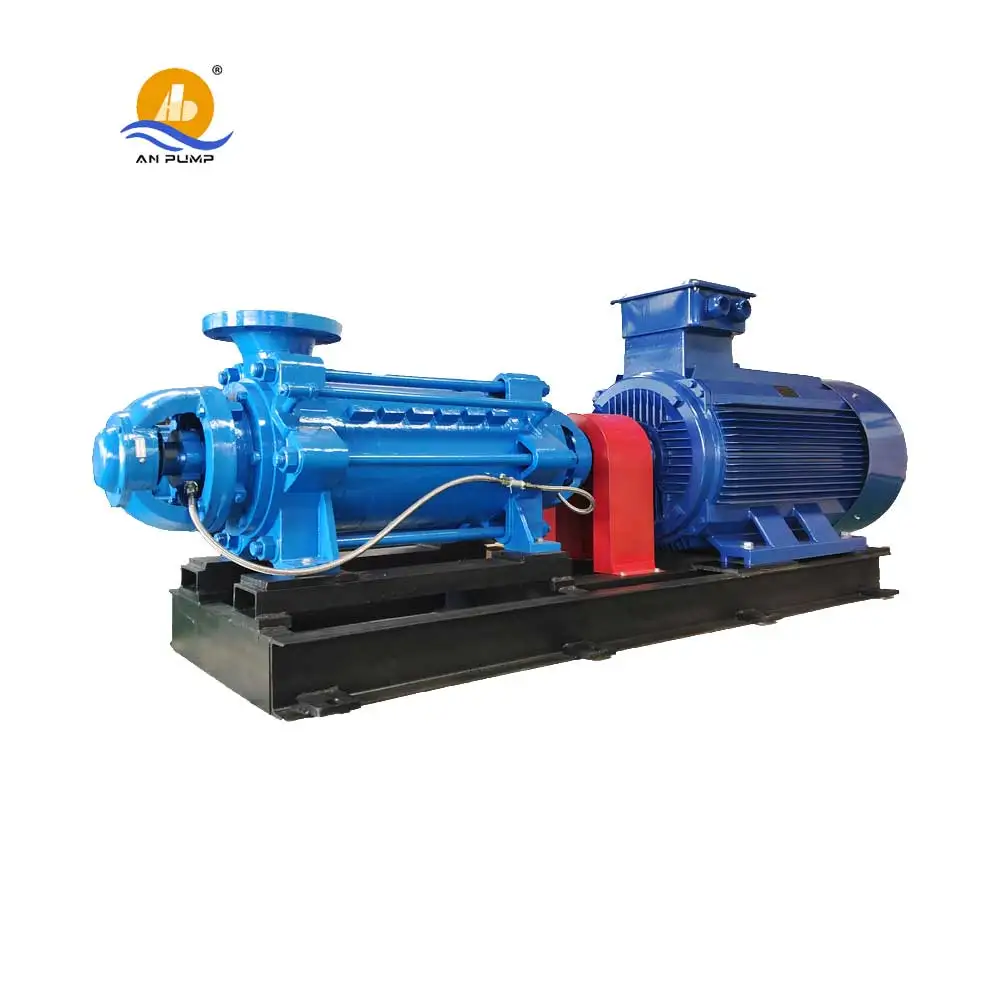

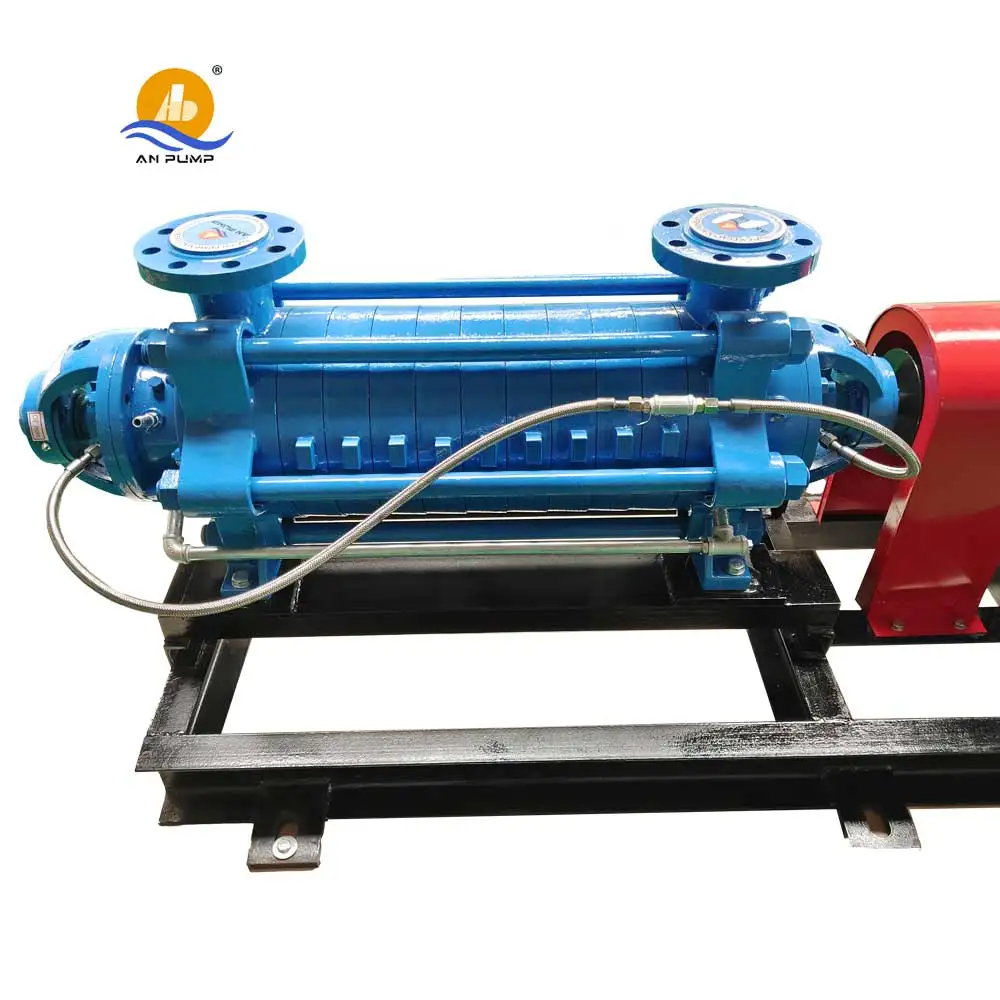

Horizontal Multistage Centrifugal Boiler Feed Water Transfer Pump

Model QD (G) pump is a horizontal multi-stage centrifugal pump and suitable for transporting pure water (with the contained foreign matters' content less than 1% and graininess less than 0. 1mm) and other liquids of both physical and chemical natures similar those of pure water.

QD model boiler water supply pump is applicable to transport medium with temperature of not higher than 105℃, and is also applicable for small boiler water supply or transporting medium similar to hot water.

The performance range of model QD series

Flow : 3.75-185 m3/h

Corollary power: 4.0-400kW

Head: 69-1000m

Inlet diameter: 40-150mm

QD(G )model hypo-high-pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 160℃, and is also applicable for small boiler water supply or transporting medium similar to hot water

Performance range of mode QDG series

Flow:15-300m3/h

Corollary power: 75-1250kw

Head: 390-1050m

Inlet diameter: 65-200mm

Construction

  low pressure  multistage centrifugal pump

high pressure  multistage centrifugal pump

standard  multistage centrifugal pump
