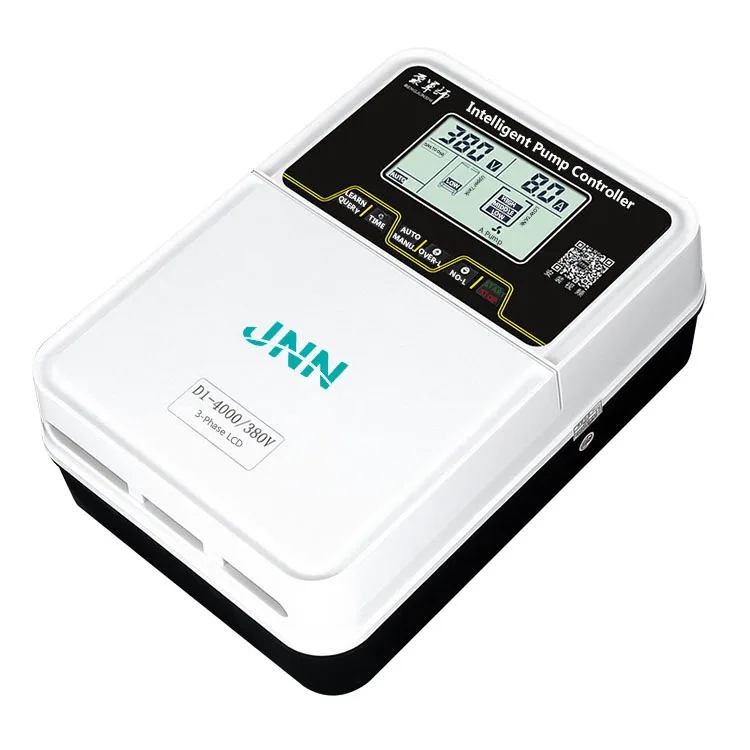

1.Description of Pump Controller
D1 LCD display pump controller for single pump adopts the original imported microcomputer single chip technology which guarantees powerful functions,and has the advantage as easy and convenient intallation and operation.Unique non-contact induction technology enables no need of probes to achieve shutdown protection when the pump is running dry due to lack of water,thus realizing fully intelligent and unmanned operation.
It is a device designed to control and protect the operation of various water pumps up to7.5KW,such as subermersible pump,centrifugal pump,multistage pump,deep-well pump,sewage pump,booster pump,pipeline pump,ground pump and etc.



2.Typical Applications for pump Controller
* Agricultural irrigation/ pumping
* Waste water treatment
* Pressure Booster Systems
* Drainage System
* Flood Control
* Water Tanks/Wells
* Cooling Towers
* Fishing Boat




3.Specifications of the water Pump Control Panel


Type
D1
Model
D1-4KW
D1-7.5KW
Rated Power
0.75-4KW
1.1-7.5KW
Rated Input Voltage
380+10%/50Hz or 60Hz
Qty.of Controlled Pump
Single pump
Display
LCD display

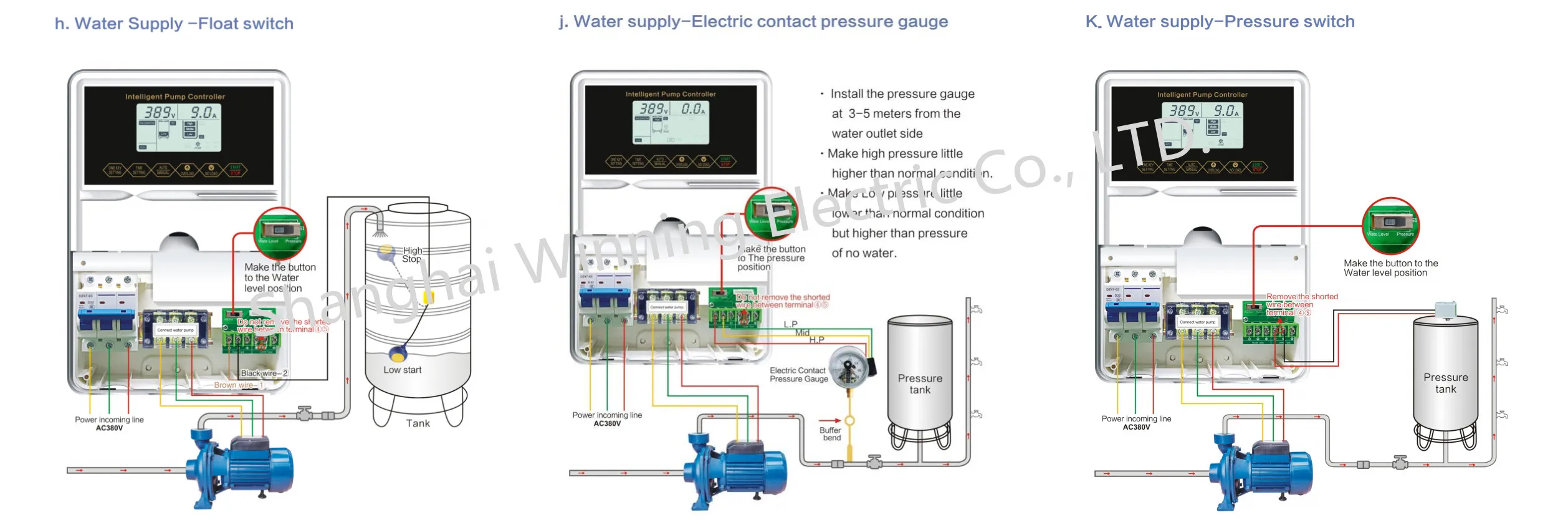

Signal Transmission Mode

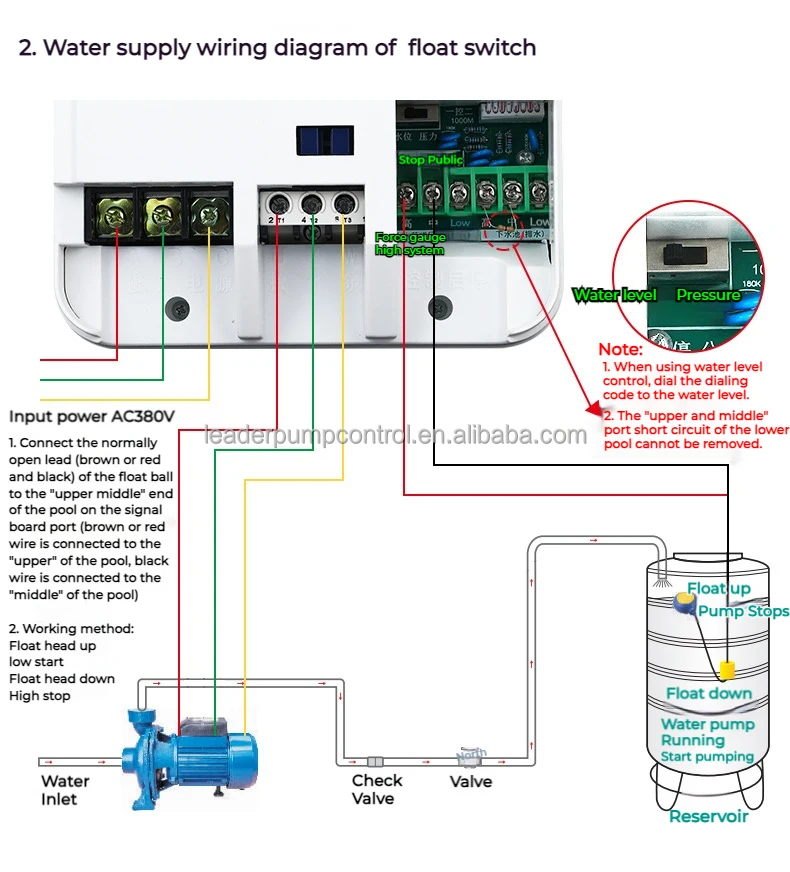

Level float switch

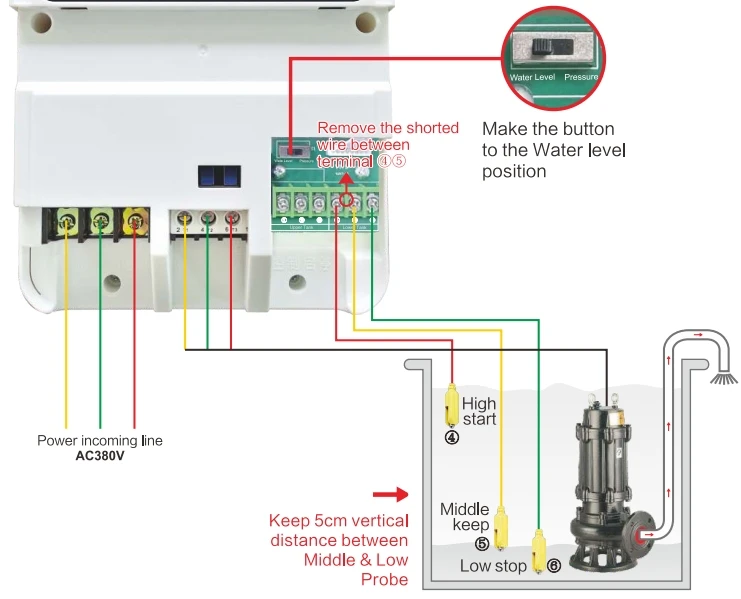

Level probe

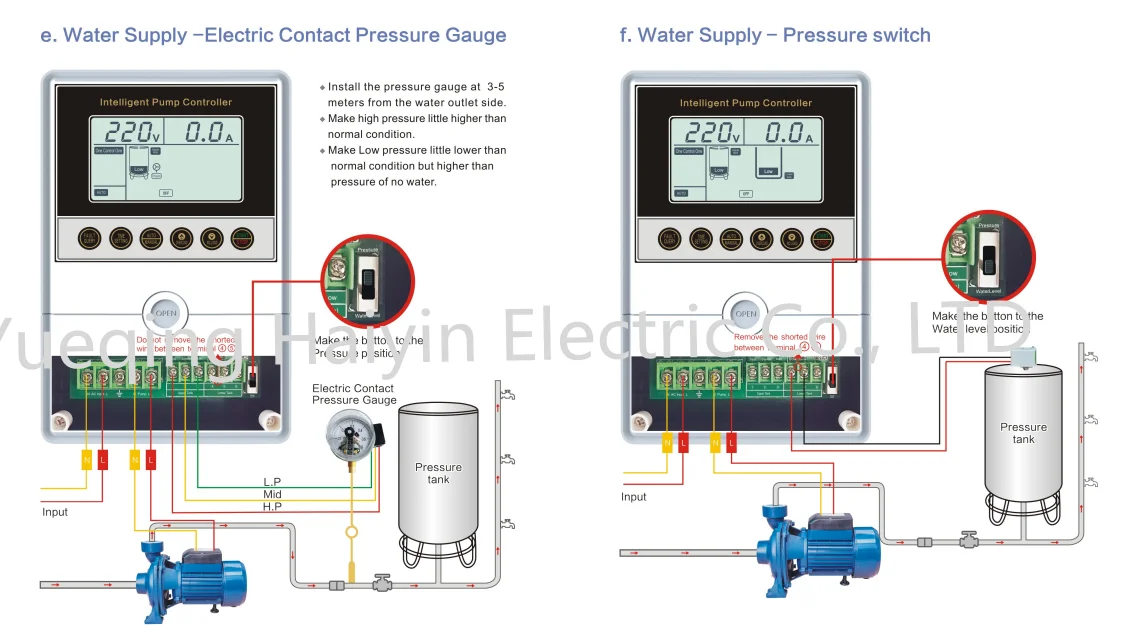

Pressure switch
Electric contact pressure gauge
Water Level Indication
High/Middle/Low
Max.Control Distance
≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range
304V-456V(adjustable)
Protections
Pump stalled protection
Dry run protection
Over-load protection
Under-voltage protection
Over-voltage protection
Open phase protection
Short circuit protection
Main Functions
Time setting
Fault detection
Anti-rust inspection
Automatic restart after power recovery

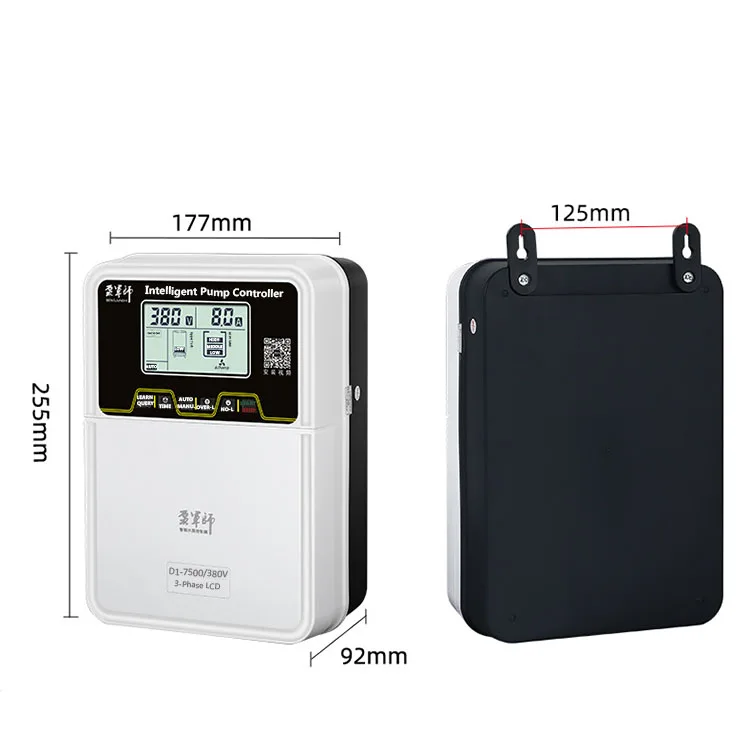

Product Size
273x187x92mm
Working temperature
Working humidity
Degree of protection
Install position
-25ºC-- +55ºC
20%--90%RH, no drips concreted
IP22
Wall mounting






















1)How to convert HP into KW ?
The conversion formula as :1HP=0.74KW
for example: 3HP=3x0.74KW=2.22KW.

2)How to choose the power of your pump controller?
Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose
7.5KW.For Submersible pumps which used in the deep well,please check with us first .

3)Can I have the samples of your pump controller ?
Yes, we can send you the pump controller samples for your testing .

4)Can you provide OEM or ODM ?
Yes,we can make the ordes according to your detailed request.

5)what is your delivery time?
It takes 3-5 days for sample orders,and 15-20 days for orders.
