Vacuum Reactor 5000L Stainless Steel Chemical Reactor With Urea Formaldehyde Glue Melamine WF Glue
- Category: >>>
- Supplier: Foshan Jct Machinery Co. Ltd.
Share on (1601074686956):
Product Overview
Description
adhesive reactor fevicol adhesive machine neoprene contact adhesibe mixer
Product Description
Introduction Of Machine

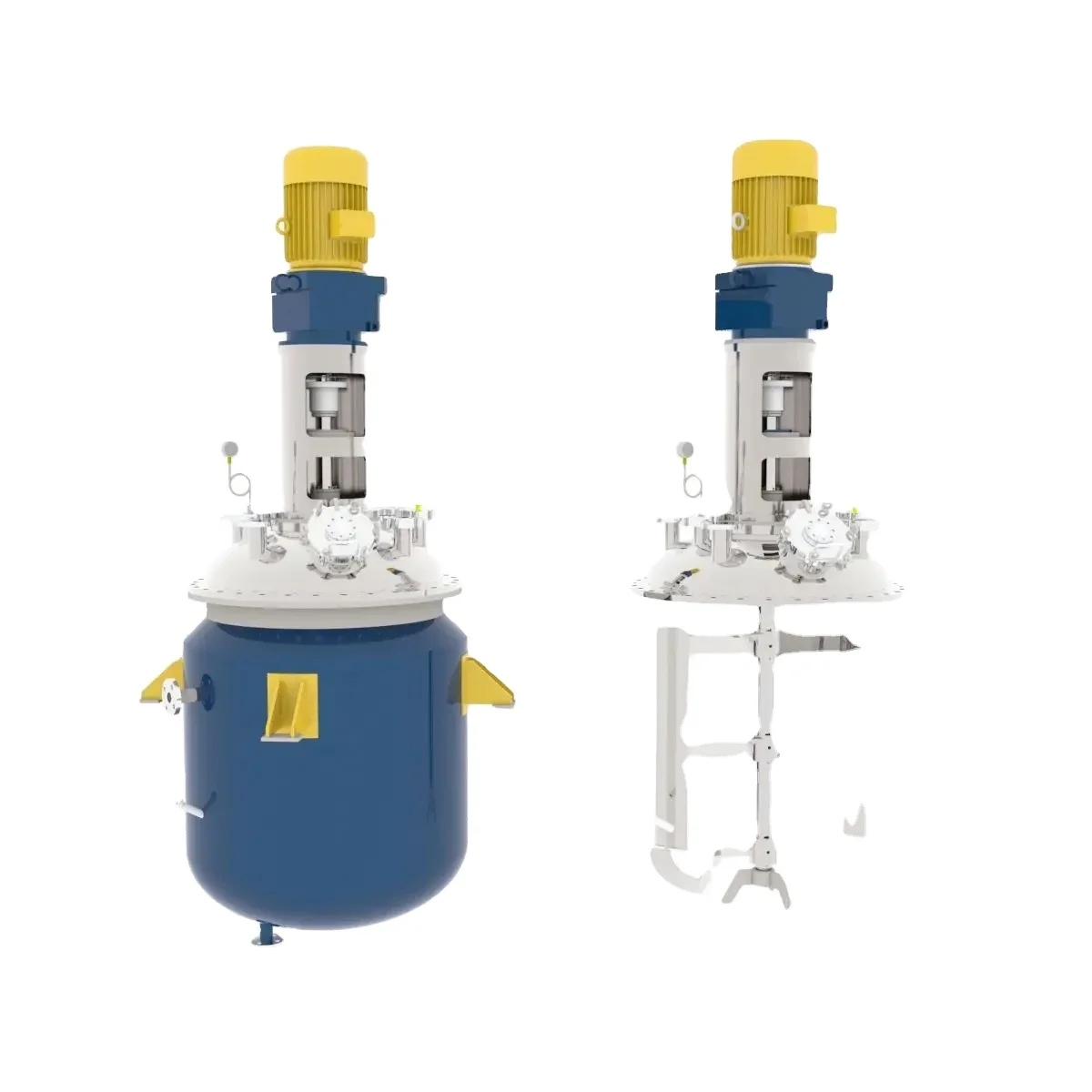

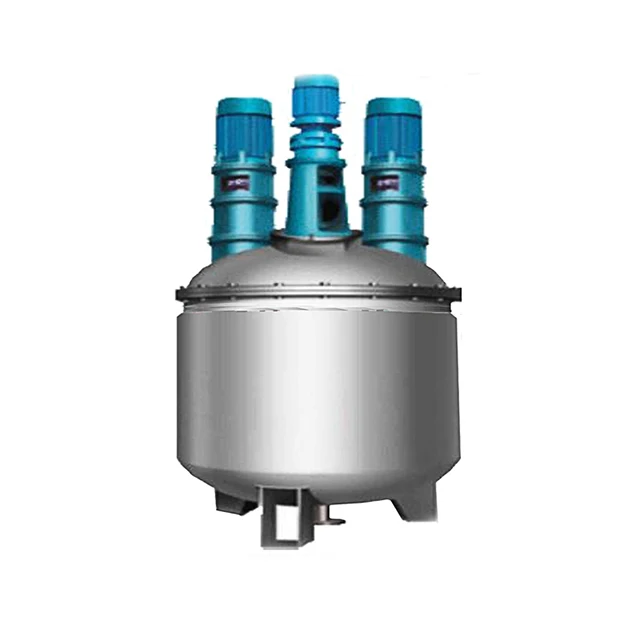

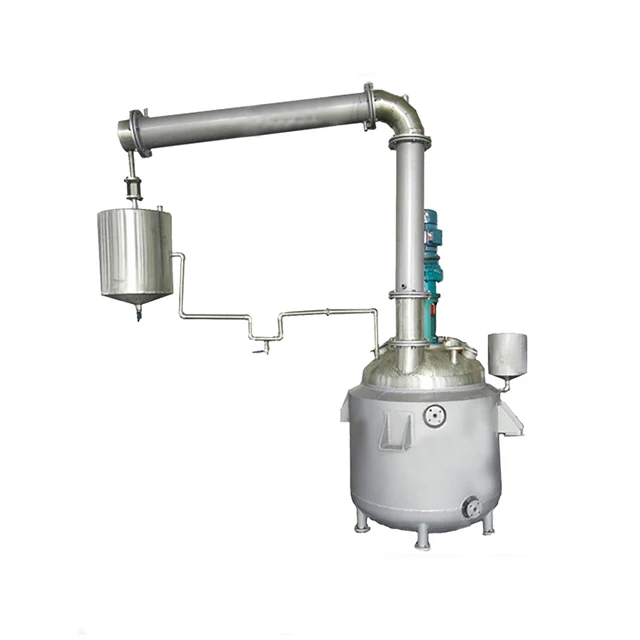

Stainless Steel Reactor is the main machine for making viscous raw materials, such as resin, paint, glue, acrylic glue,silicone oil, etc.
Applications:
1. Resin: Polyurethane resin, Polyester resin, Alkyd resin, Unsaturated polyester resin, Saturated reisn, Acrylic resin, Phenolic resin, Urea-formaldehyde resin, Epoxy resin, Amino resin, etc.
2. Paint: White latex, Water based paint, Oil based paint, Curing agent (hardener), Thinner, etc.
3. Glue: Acrylic emulsion glue, Urea-formaldehyde glue, Epoxy potting glue, Polyurethane sealant/ adhesive, Water based polyurethane, Liquid nails (Free-nail glue), etc.
4. Silicone oil: Silicone oil, Scrap silicone cracking for silicone oil, etc.
5. Simple Description Of Reactor
1). Different capacity design from 50L to 50,000L.
2). Made of stainless steel 304/ 316L, or other material (decide by client).
3). Have jacket and coil-pipe style.
4). Vacuum and high-pressure are available.
5). Super mixer for most chemicals / food materials mixing and reacting.
6). Widely used in producing resins, adhesives, paints, cosmetics, pharmaceuticals and
other chemical productions.
7). Can be heated by oil or water or steam, temperature range: 0 - 500 centigrade.
8). With different mixing paddles, can be designed as requirements.
9). Supply whole production line for different products, also including producing
technology. Stainless Steel Reactor
The main parameter of Reactor
Type | Volume | Heating Mode | Structure | Paddles | Remarks |
FYF-100 | 115L | Electric heating Or Steam heating Or Water heating Or Oil heating | Jacketed Or Coil-pipe (inner & outer) | Anchor & Ribbon paddels And also equipped with square blades. Also can equip with dispersing disk. | The motor of the Reactor depends on products' viscosity. The Reactor are made of SS304 by default, but can be made of SS316 or Carbon steel also. Heating mode can be chosen as actual needs. |
FYF-200 | 220L | ||||
FYF-300 | 330L | ||||
FYF-500 | 535L | ||||
FYF-1000 | 1050L | ||||
FYF-2000 | 2080L | ||||
FYF-3000 | 3120L | ||||
FYF-4000 | 4120L | Oil heating Or Steam heating (Seldom use water and electricity heating) | |||
FYF-5000 | 5150L | ||||
FYF-6000 | 6150L | ||||
FYF-8000 | 8180L | ||||
FYF-10000 | 10200L | ||||
FYF-12000 | 12200L | ||||
FYF-20000 | 20200L | ||||
FYF-50000 | 50300L |
You can customize all the machine parts!
6. JCT Reactor pictures:
Factory Records JCT Machiery

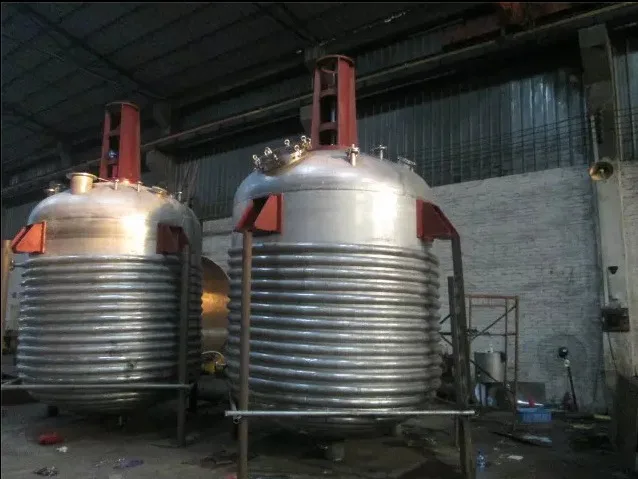

Reactor in the factory.
Reactor JCT Machinery

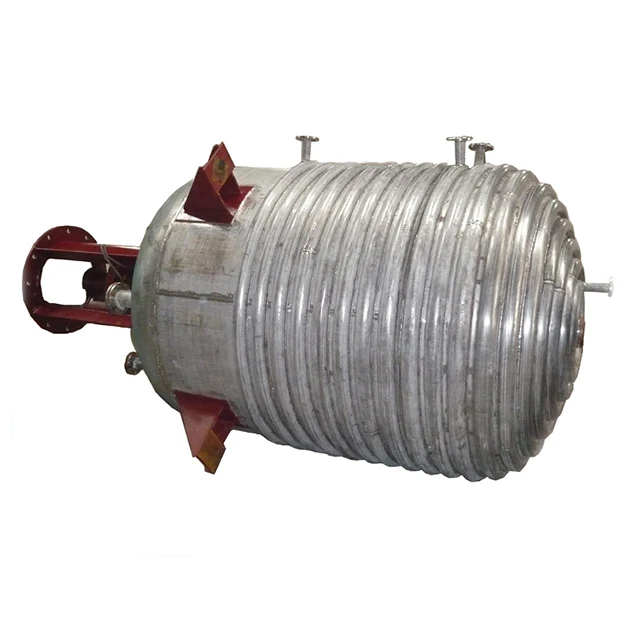

Coil-pipe Reactor JCT Machinery
Reactor Paddles JCT Machinery
Differnt mixing paddle style of reactor.
Packaging & Shipping
Standard exporting packing.
1. 100L~500L Adhesive making machine: Quality inspection - Wooden package - Truck loading - Container - Deliver by sea.
2. 1000L~10000L Adhesive making machine: Quality inspection - Plastic bag/ Film materials package - Truck loading - Container - Deliver by sea.
3. 10000L~40000L Adhesive making machine: Quality inspection - Film materials package/ Nude package - Truck loading - Container - Deliver by sea.
Machine Delivery JCT Machinery
Our Services
Our Services JCT Machinery
Company Information
1). Profession: Stainless Steel Reactor
We have focused on this area for over 10 years, and the boss of JCT is a professional
engineer who has 20 years’ experience in what we are concentrating on!
2). Powerful team:
A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.
3). Achievement:
JCT was set up at 2004, through about 10 years’ endeavor, our products has been sold to
most important industrial district in China, such as Guangdong, Shangdong, Jiangsu,
Zhejiang, Fujian and so on.
And we have edged ourselves into the top 5 in China.
From 2009, JCT started the international marketing. Now, we have set our feet in North
America, Europe,South Aria, Africa etc. Stainless Steel Reactor
