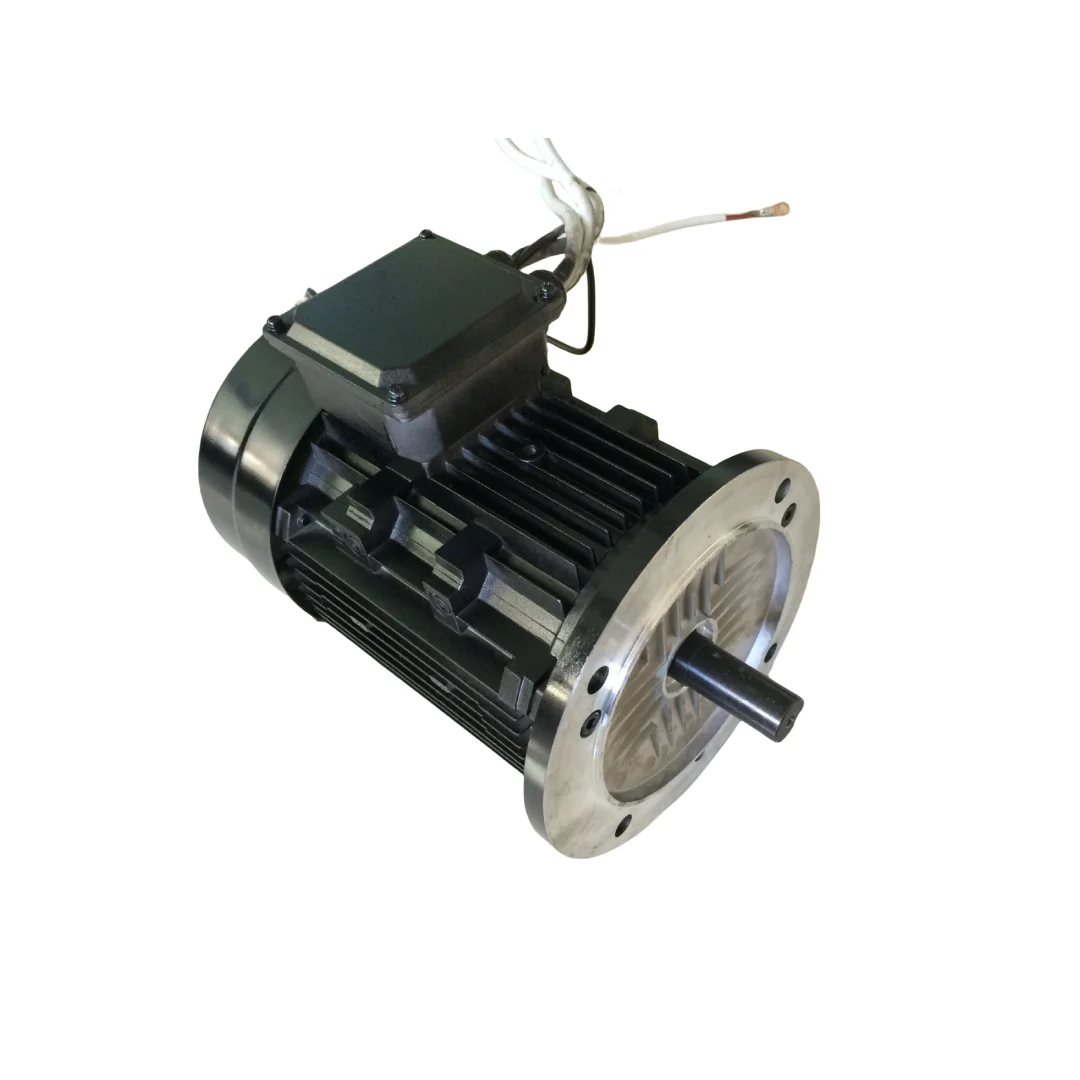

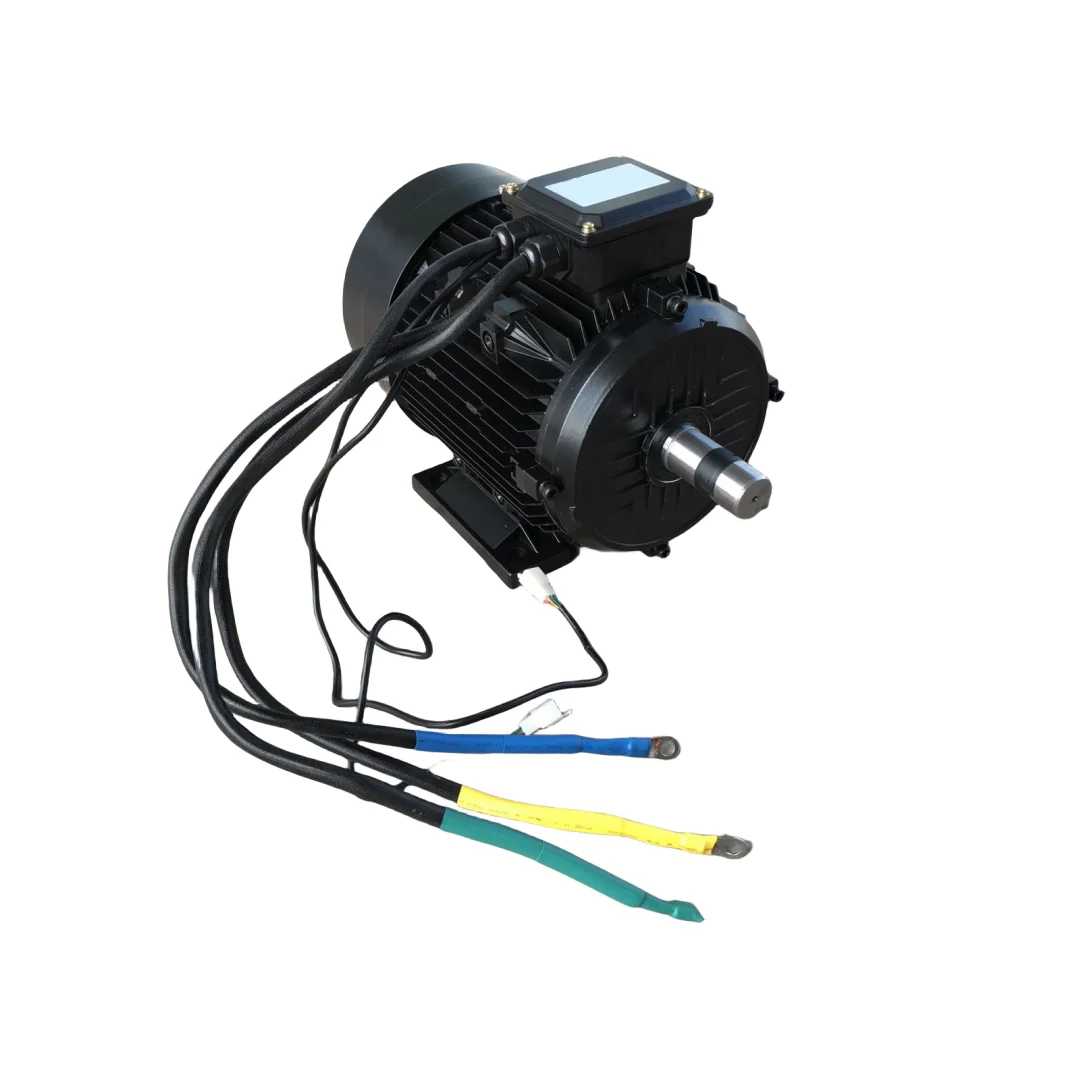

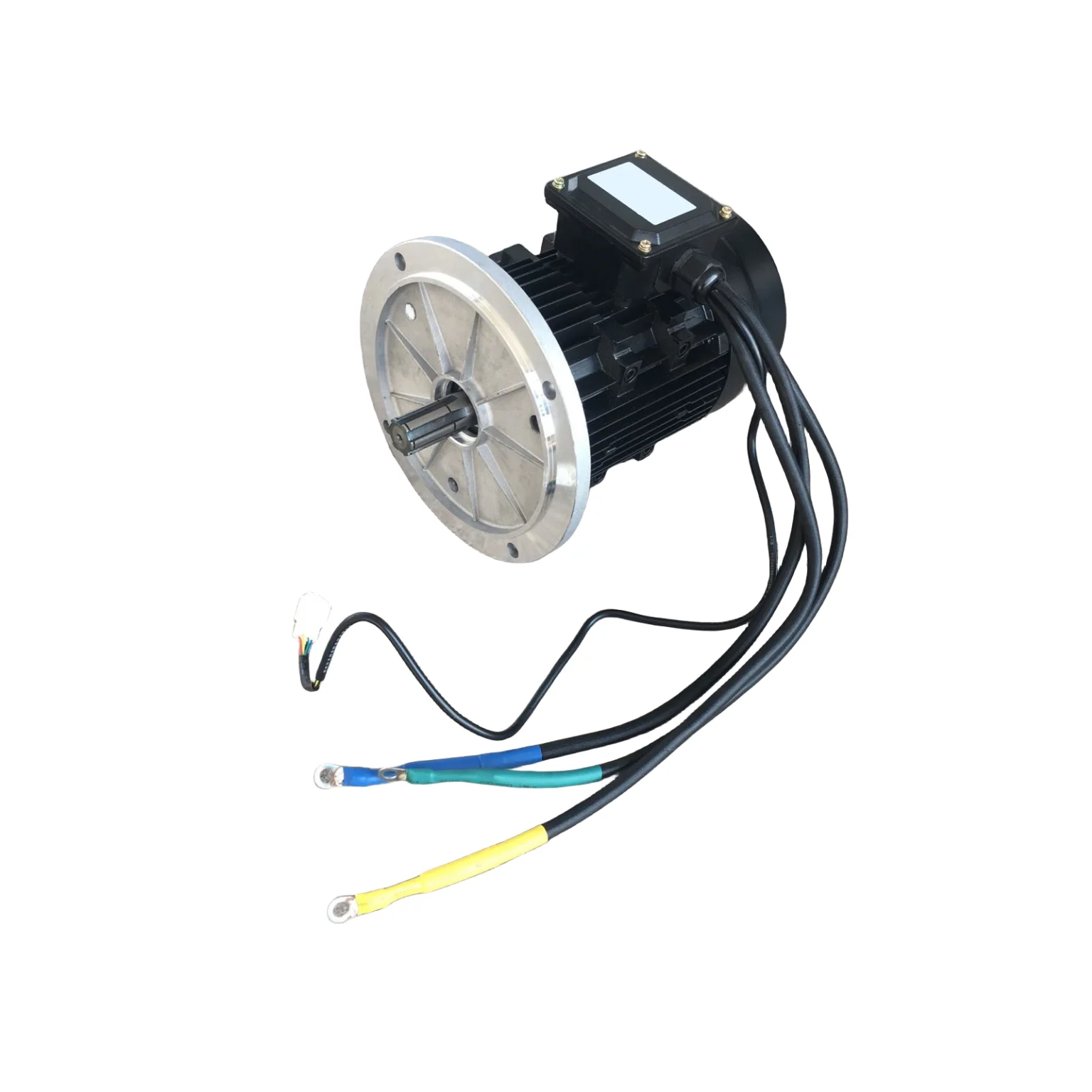

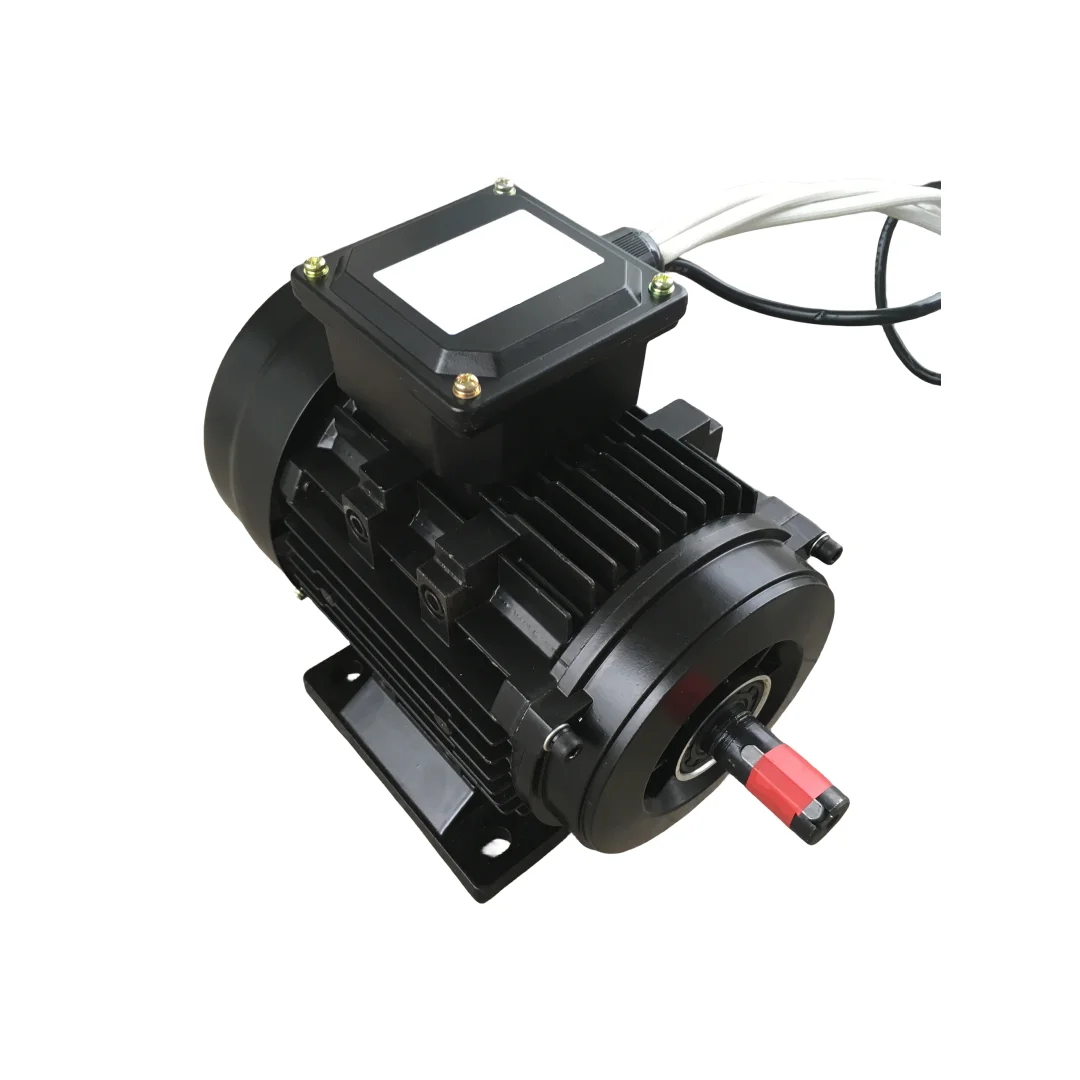

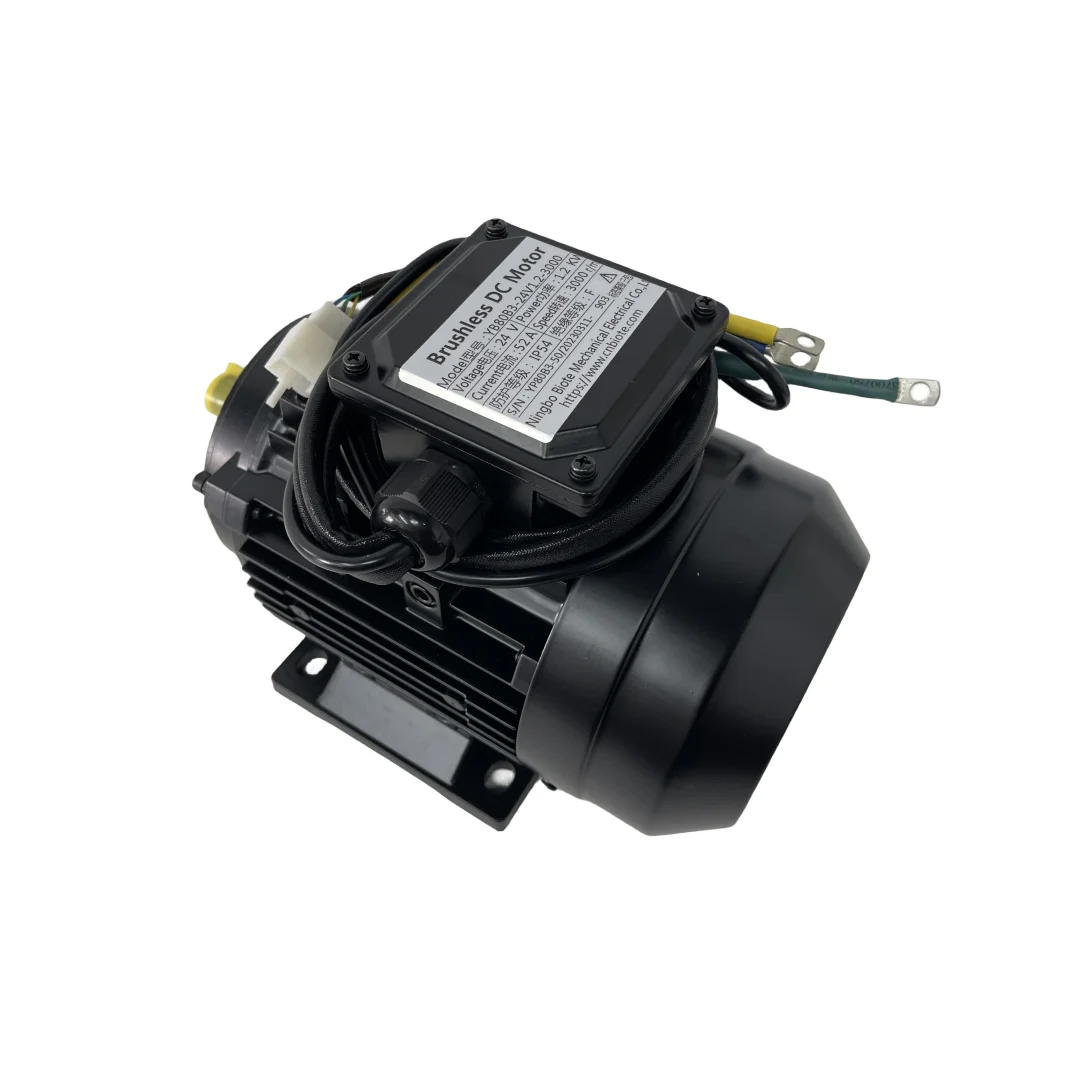

90mm Motor Frame 24V 1.8KW 1500RPM Brushless DC Motor for DC Hydraulic Pump BLDC Motor
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1601074717873):
Product Overview
Description
Products Description
Large starting torque, small starting current
Better speed versus torque characteristics
High dynamic response
High efficiency
Long operating life, maintenance-free
Long operating life, maintenance-free
Noiseless operation
Higher speed ranges
Type | Voltage (VDC) | Power (KW) | Speed (r/min) | Current (A) | Torque (N.m) |
YB80B3/5-24V0.55-1200 | 24 | 0.55 | 1200 | 25 | 4.4 |
YB80B3/5-24V0.75-1500 | 24 | 0.75 | 1500 | 34 | 4.8 |
YB80B3/5-24V1.1-1500 | 24 | 1.1 | 1500 | 50 | 7.0 |
YB80B3/5-24V1.2-3000 | 24 | 1.2 | 3000 | 55 | 3.8 |
YB80B3/5-24V1.5-2000 | 24 | 1.5 | 2000 | 69 | 7.1 |
YB80B3/5-48V0.75-1500 | 48 | 0.75 | 1500 | 17 | 4.8 |
YB80B3/5-48V1.1-1500 | 48 | 1.1 | 1500 | 25 | 7.0 |
YB80B3/5-48V1.2-3000 | 48 | 1.2 | 3000 | 28 | 3.8 |
YB80B3/5-48V2.2-3000 | 48 | 2.2 | 3000 | 50 | 7.0 |
YB90B3/5-24V1.5-1500 | 24 | 1.5 | 1500 | 69 | 9.5 |
YB90B3/5-24V1.8-1500 | 24 | 1.8 | 1500 | 83 | 12.7 |
YB90B3/5-36V1.5-1500 | 36 | 1.5 | 1500 | 46 | 9.5 |
YB90B3/5-36V2.0-1500 | 36 | 2.0 | 1500 | 61 | 12.7 |
YB90B3/5-48V1.5-1500 | 48 | 1.5 | 1500 | 34 | 9.5 |
YB90B3/5-48V2.0-1500 | 48 | 2.0 | 1500 | 46 | 12.7 |
YB90B3/5-48V2.5-2800 | 48 | 2.5 | 2800 | 57 | 8.5 |
YB90B3/5-48V3.0-2800 | 48 | 3.0 | 2800 | 69 | 10.2 |
YB90B3/5-60V1.5-1500 | 60 | 1.5 | 1500 | 28 | 9.5 |
YB90B3/5-60V2.0-1500 | 60 | 2.0 | 1500 | 37 | 12.7 |
YB90B3/5-60V3.0-3000 | 60 | 3.0 | 3000 | 55 | 9.5 |
YB90B3/5-72V2.0-1500 | 72 | 2.0 | 1500 | 31 | 12.7 |
YB100B3/5-36V2.2-1500 | 36 | 2.2 | 1500 | 67 | 13.9 |
YB100B3/5-48V2.2-1500 | 48 | 2.2 | 1500 | 50 | 13.9 |
YB100B3/5-48V3.0-1500 | 48 | 3.0 | 1500 | 69 | 19.0 |
YB100B3/5-48V4.0-3200 | 48 | 4.0 | 3200 | 92 | 12.0 |
YB100B3/5-48V4.0-2000 | 48 | 4.0 | 2000 | 92 | 19.0 |
YB100B3/5-60V2.2-1500 | 60 | 2.2 | 1500 | 40 | 13.9 |
YB100B3/5-60V3.0-1500 | 60 | 3.0 | 1500 | 55 | 19.0 |
YB100B3/5-60V5.0-2800 | 60 | 5.0 | 2800 | 92 | 17.0 |
YB100B3/5-72V5.0-3200 | 72 | 5.0 | 3200 | 76 | 14.8 |
YB100B3/5-72V6.3-3200 | 72 | 6.3 | 3200 | 96 | 18.7 |
YB100B3/5-96V3.0-1500 | 96 | 3.0 | 1500 | 34 | 19.0 |
YB112B3/5-48V4.0-1500 | 48 | 4.0 | 1500 | 92 | 25.3 |
YB112B3/5-48V5.0-1800 | 48 | 5.0 | 1800 | 115 | 26.4 |
YB112B3/5-60V4.0-1500 | 60 | 4.0 | 1500 | 73 | 25.3 |
YB112B3/5-60V5.0-1800 | 60 | 5.0 | 1800 | 92 | 26.4 |
YB112B3/5-72V5.5-1500 | 72 | 5.5 | 1500 | 84 | 34.8 |
YB112B3/5-72V6.3-2000 | 72 | 6.3 | 2000 | 96 | 30.0 |
YB112B3/5-72V7.5-2800 | 72 | 7.5 | 2800 | 115 | 25.4 |
YB112B3/5-96V7.5-2800 | 96 | 7.5 | 2800 | 86 | 25.4 |
YB112B3/5-110V4.0-1500 | 110 | 4.0 | 1500 | 40 | 25.3 |
YB112B3/5-110V5.5-1500 | 110 | 5.5 | 1500 | 55 | 34.8 |
YB132B3/5-48V6.3-1500 | 48 | 6.3 | 1500 | 144 | 40 |
YB132B3/5-72V6.3-1500 | 72 | 6.3 | 1500 | 96 | 40 |
YB132B3/5-72V9.0-1500 | 72 | 9.0 | 1500 | 138 | 57 |
YB132B3/5-96V6.3-1500 | 96 | 6.3 | 1500 | 72 | 40 |
YB132B3/5-96V9.0-1500 | 96 | 9.0 | 1500 | 103 | 57 |
YB132B3/5-96V10.0-3000 | 96 | 10.0 | 3000 | 115 | 32 |
YB132B3/5-110V5.5-1500 | 110 | 5.5 | 1500 | 55 | 35 |
YB132B3/5-110V7.5-1500 | 110 | 7.5 | 1500 | 75 | 48 |
YB132B3/5-120V11.0-3000 | 120 | 11.0 | 3000 | 101 | 35 |
YB132B3/5-120V15.0-3200 | 120 | 15.0 | 3200 | 138 | 45 |
Related products
Company Profile
Ningbo Biote Mechanical Electrical Co., Ltd. produces AC motors, DC motors, Brushless DC motors and gear reducers with high efficiency performance. Our products are applied to automation machine, packing machine, food production, medical service, furniture and any kind of industries for innovation in motion.
We produce a variety of specifications, including induction motors, speed control motors, dc brushless motors, dc brushed motors and gear reducers, Biote products can offer a wide selection with reliable performance to meet specific requirements or system motion in Various industries.
We produce a variety of specifications, including induction motors, speed control motors, dc brushless motors, dc brushed motors and gear reducers, Biote products can offer a wide selection with reliable performance to meet specific requirements or system motion in Various industries.
Certifications
FAQ
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
