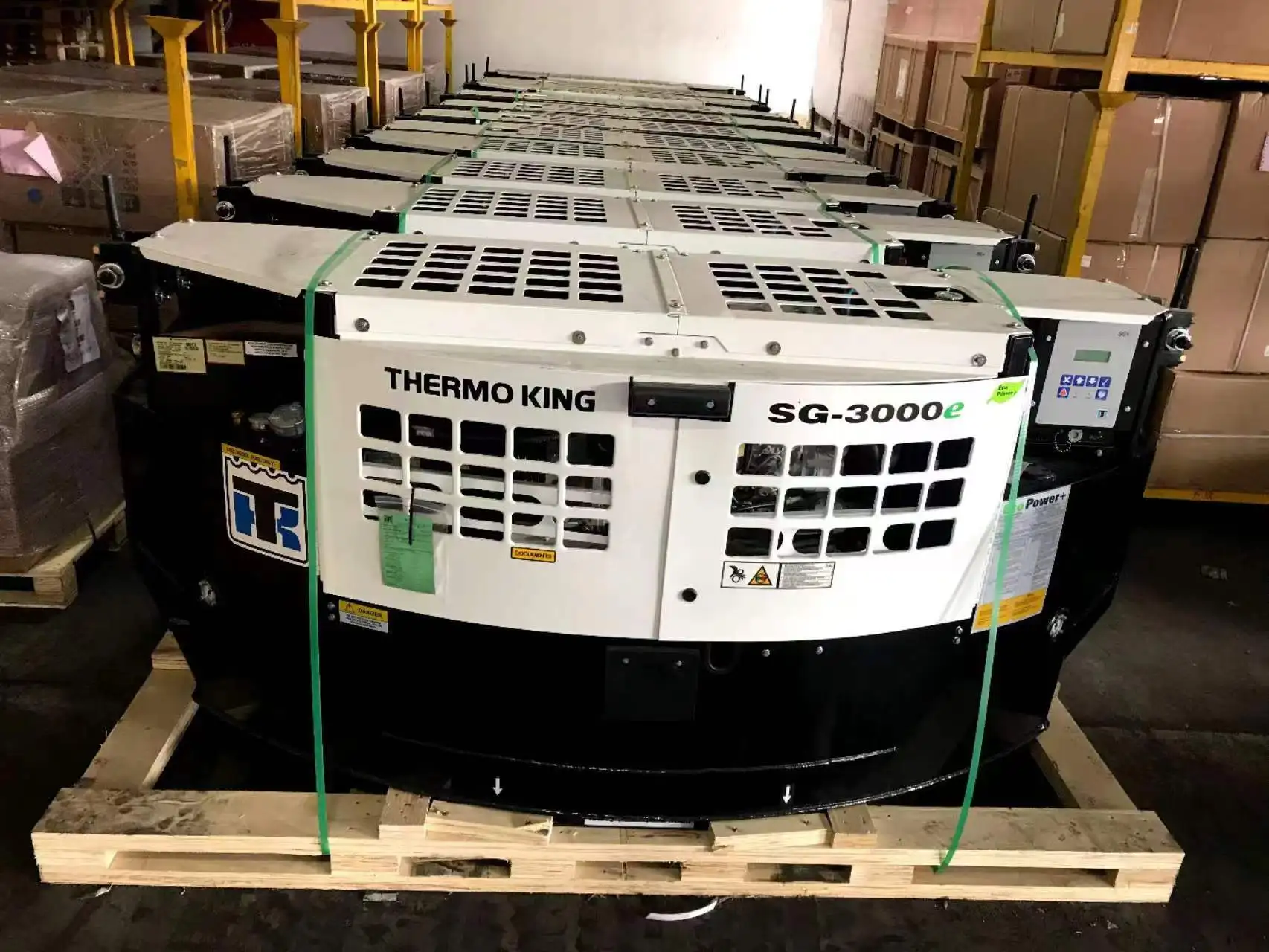

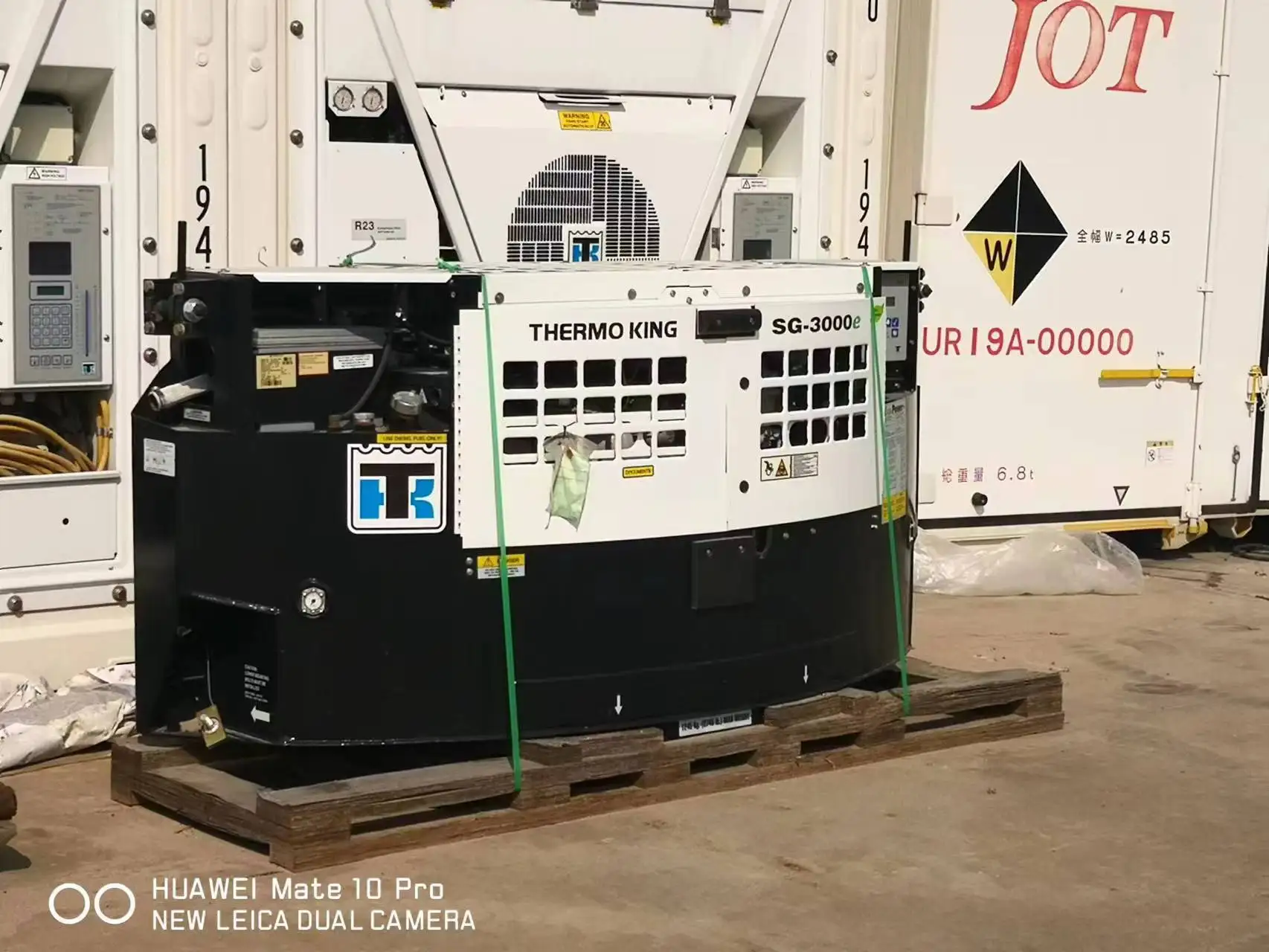

Thermo King Refrigerated Container Use Diesel Power Generator Clip on Underslung Reefer Genset thermo king reefer parts
- Category: >>>
- Supplier: Tianjin Cimic Imp& Exp Co. ltd.
Share on (1601074720455):
Product Overview
Description
Product Description
Reefer containers are temperature controlled, which allows for easy transportation of temperature-sensitive cargo such as perishables and pharmaceuticals. When stored, reefer containers are typically plugged into an electrical socket, to ensure that the refrigeration unit is adequately powered.

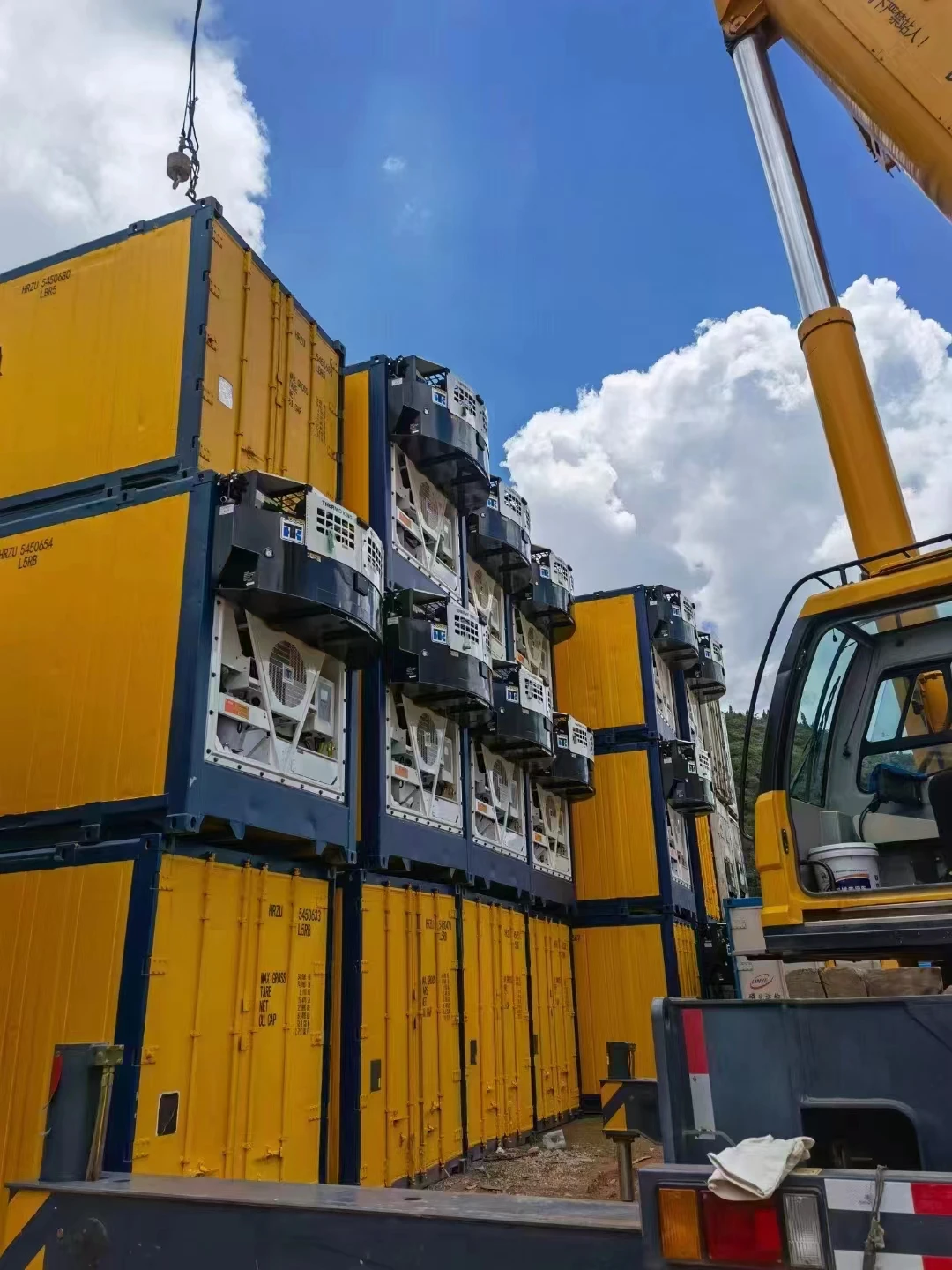

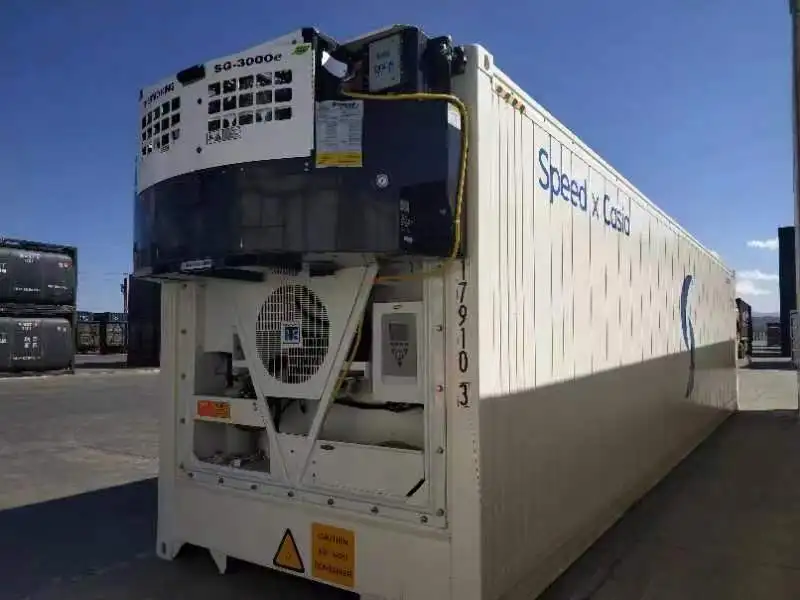

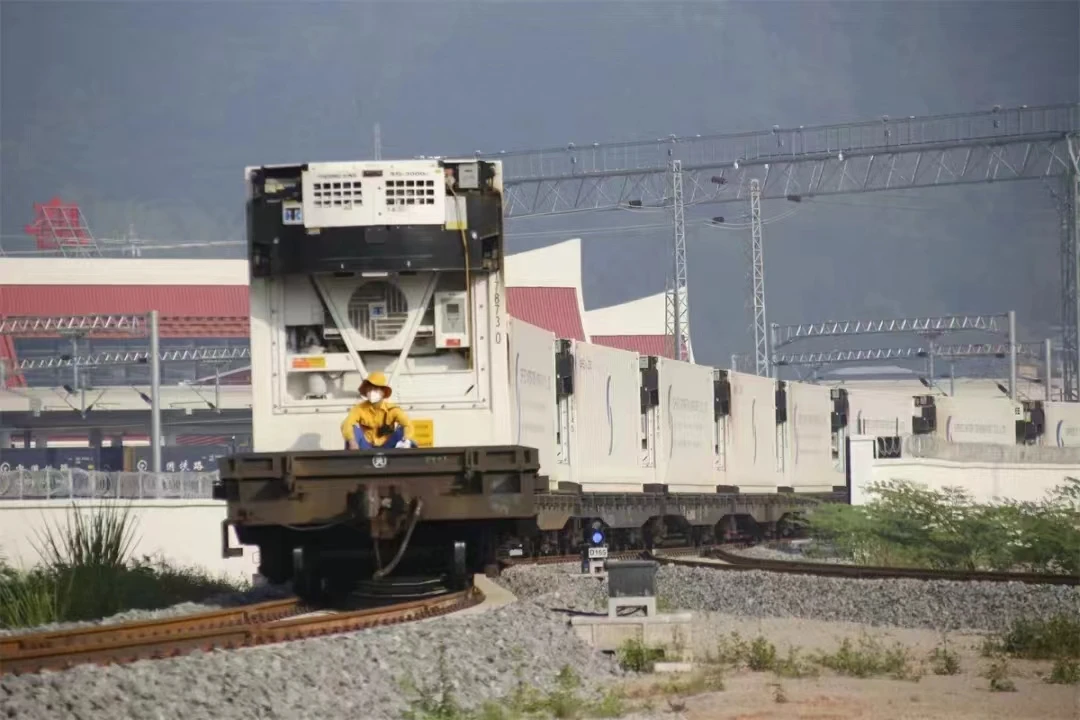

A genset (generator set) is an external generator that powers the refrigeration unit of a reefer container. Gensets are typically used in situations when reefer containers are stored or transported on a vessel, train or truck, and require an external power source.It is designed for mounting to the upper front structure of an ISO container.The design
A genset (generator set) is an external generator that powers the refrigeration unit of a reefer container. Gensets are typically used in situations when reefer containers are stored or transported on a vessel, train or truck, and require an external power source.It is designed for mounting to the upper front structure of an ISO container.The design
incorporates a quick connection to the upper container corner castings with mounting clamps. Additional attaching points on the container vertical structural members provide a secure mounting arrangement.
How Gensets Work on Reefer Containers?
Gensets power the refrigeration unit of a reefer container, to ensure that the inside of the container remains cool when in
storage or during transit. To do so, they are powered through electricity and fuel.
When a reefer container is stored at the port or a facility, gensets are typically powered by electricity. They are simply plugged in, and the genset draws power from the electrical grid.
Gensets power the refrigeration unit of a reefer container, to ensure that the inside of the container remains cool when in
storage or during transit. To do so, they are powered through electricity and fuel.
When a reefer container is stored at the port or a facility, gensets are typically powered by electricity. They are simply plugged in, and the genset draws power from the electrical grid.
Specification
General description | Value | |
CE Compliance | Compliant with the Machinery Directive 89/392/EEC amending Directive 91/368/EEC, Electro Magnetic Compatibility Directive 89/336/EEC, and Low Voltage Directives 73/23/ EEC and 93/68/EEC. | |
Ambient Temperature Range | Operation and Starting: -29°C to 50°C (-20°F to 122°F) Running: -40°C to 50°C (-40°F to 122°F) | |
Output Power Rating | 18KW Designed to supply operating power for container refrigeration units complying with ISO 1496-2 | |
Sound Pressure Level | 74 dBA. 5 point average at 7m | |

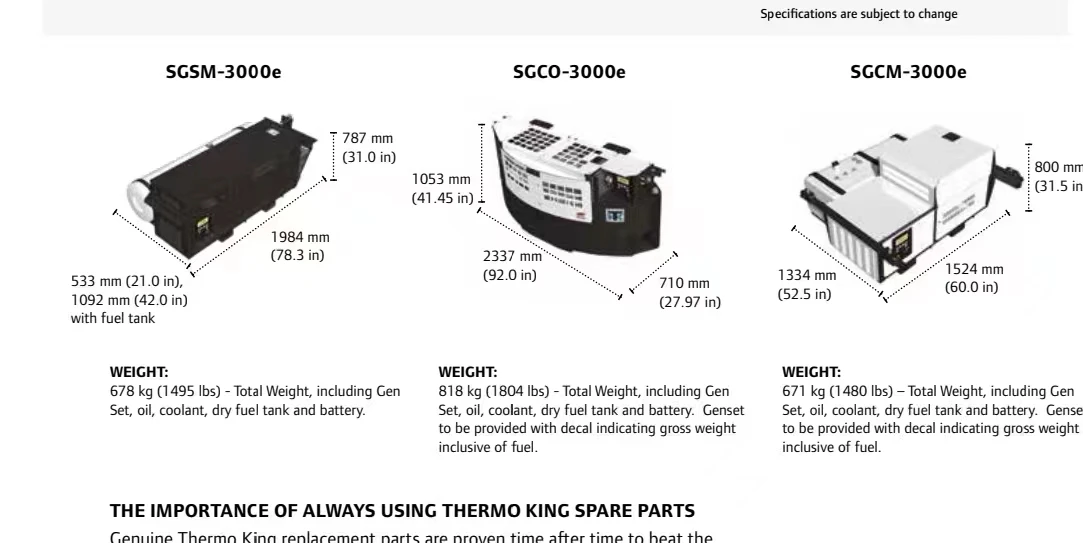

Dimensions | Width: 2321 mm (91.3 in) Height: 1181 mm (46.5 in) Depth: 763 mm (30 in) | |
Weight | 818 kg (1804 lbs) - Total Weight, including Gen Set, oil, coolant, dry fuel tank and battery. Genset to be provided with decal indicating gross weight inclusive of fuel. | |
ENGINE | ||
Type | TK 486VG direct injection | |
Cylinder Arrangement | No. 1 at flywheel end | |
Bore | 86 mm (3.39 in) nominal | |
Displacement | 2.09 liter (128 in3) | |
Horsepower | 30.1hp, (22.5kW) | |
Oil Pressure (hot) | More than 127 kPa (18.5 psi) @ 1800 rpm | |
Oil Base (Pan) Capacity | 12.3 liters (13 quarts) | |
Engine Rotation | Clockwise (viewed from pulley end) | |
Engine Water Pump | Pulley ratio 1.3 to 1 | |
Protection | Low oil level and high coolant temperature | |
Serviceability | Starter motor/injector pump mounted on front side of engine | |
Paint | Thermo King Grey Pinnacle 460 Urethane | |
Timing System | Gear drive for camshaft and injection pump | |
Compression Pressure | More than 2942 kPa (427 psi) @ 250 rpm | |
Firing Order | 1-3-4-2 | |
Nozzle Injection Pressure | 21600-22600 kPa (3100 – 3300 psi) | |
Emission | NRMM Stage III A compliant | |
Company Profile
TIANJIN CIMIC IMP AND EXP LTD, established in 2018 , is a professional engaged in the research, development, sale and service of Logistic equipment, such as shipping containers,semi trailers and all kinds of trucks. We are located in Tianjin city and Suzhou city, with convenient transportation access, which is only 100km to the seaport. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirement and ensure full customer satisfaction. In addition, we have obtained BV shipping certificate and ISO quality certificates. Our annual export value is 3 million Dollars. Our products are exported to all over the world, mainly market is Africa Europe and America. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application.
CIMIC as a preferred supplier, provide first-class reefer logistics equipment and top-class service, as well as solutions for the modern logistics equipment in the global market;
CIMIC pays attention to the construction of internal control system and passed the ISO9001 certification. ALL the production processes including the design, procurement, manufacture, test, storage, transportation, after-sales service etc. are strictly controlled, and keep long term close cooperation relationship with BV,ABS,CCS and GL classification society, and KCC, Kansai Chugoku paint suppliers, to ensure provide customers with best quality products and services.

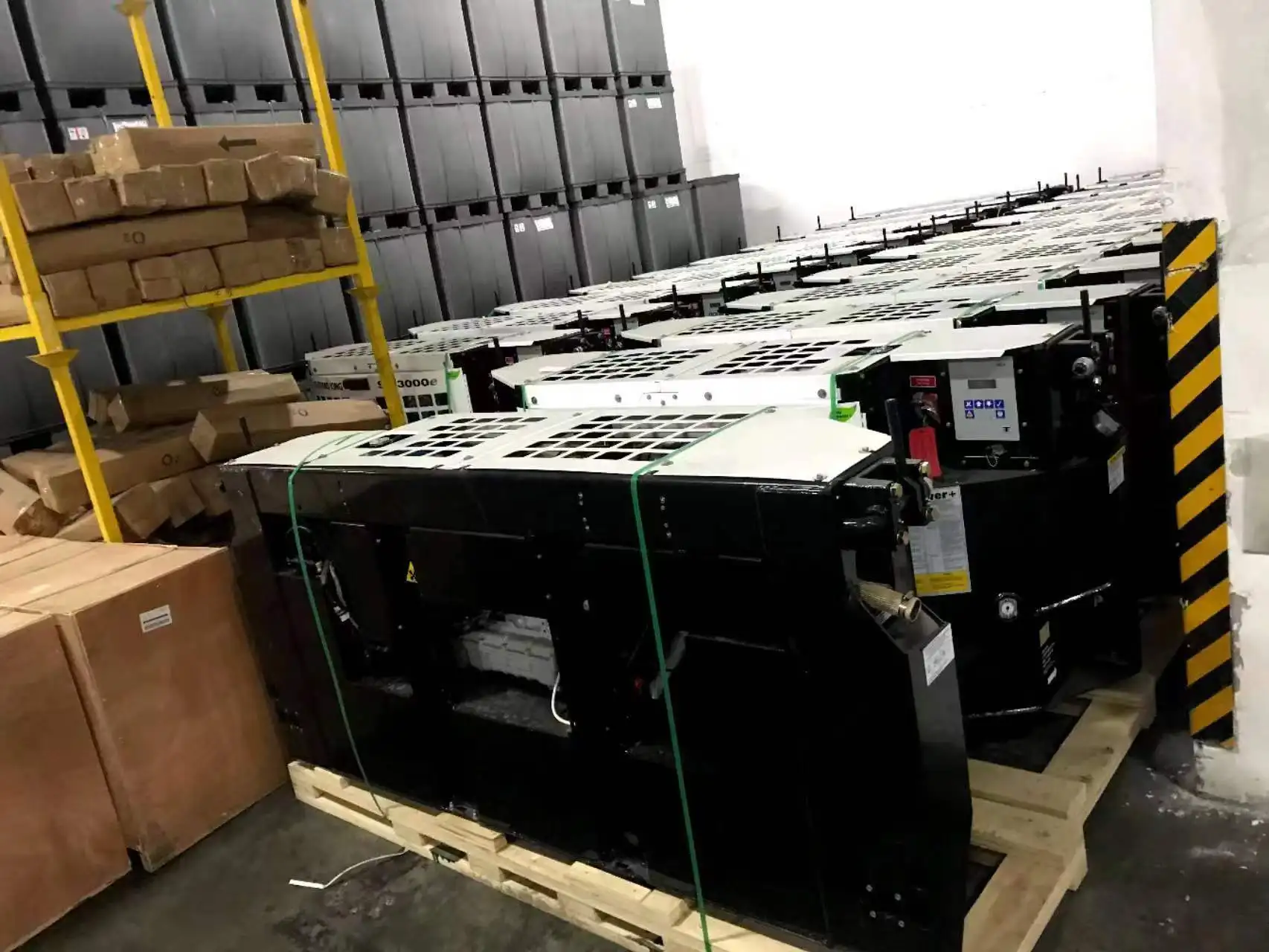

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1:How does a reefer container work?
A1:Reefer containers have a refrigerated unit on one end. They work by allowing air to circulate around the container, keeping it at a constant temperature. Reefers can maintain any temperature between -30°C and +30°C.
Q2:Can we choose the cooling unit?
A2:Sure, you could choose one from Thermo King,Daikin and Carrier.
Q3、What is your Classification societies?
A3: A.B.S (U.S.A.)、B.V (France)、G.L (Germany)、C.C.S China Classification Society (P.R.C.)、K.R Korean of Shipping (Korea) and L.R Lloyd’s Register (Britain).
Q4:Can we print our Logo on cartainers?
A4:Yes u can design and painting your logo as your request.
Q5:What is the payment terms that you can accept?
A5:Generally T/T 50% deposit before producation and 50% before shipment.Other payment terms please contact me for more details.
Q6: What's your MOQ?
A6: 1 piece for 20ft super freezer container.
A1:Reefer containers have a refrigerated unit on one end. They work by allowing air to circulate around the container, keeping it at a constant temperature. Reefers can maintain any temperature between -30°C and +30°C.
Q2:Can we choose the cooling unit?
A2:Sure, you could choose one from Thermo King,Daikin and Carrier.
Q3、What is your Classification societies?
A3: A.B.S (U.S.A.)、B.V (France)、G.L (Germany)、C.C.S China Classification Society (P.R.C.)、K.R Korean of Shipping (Korea) and L.R Lloyd’s Register (Britain).
Q4:Can we print our Logo on cartainers?
A4:Yes u can design and painting your logo as your request.
Q5:What is the payment terms that you can accept?
A5:Generally T/T 50% deposit before producation and 50% before shipment.Other payment terms please contact me for more details.
Q6: What's your MOQ?
A6: 1 piece for 20ft super freezer container.
