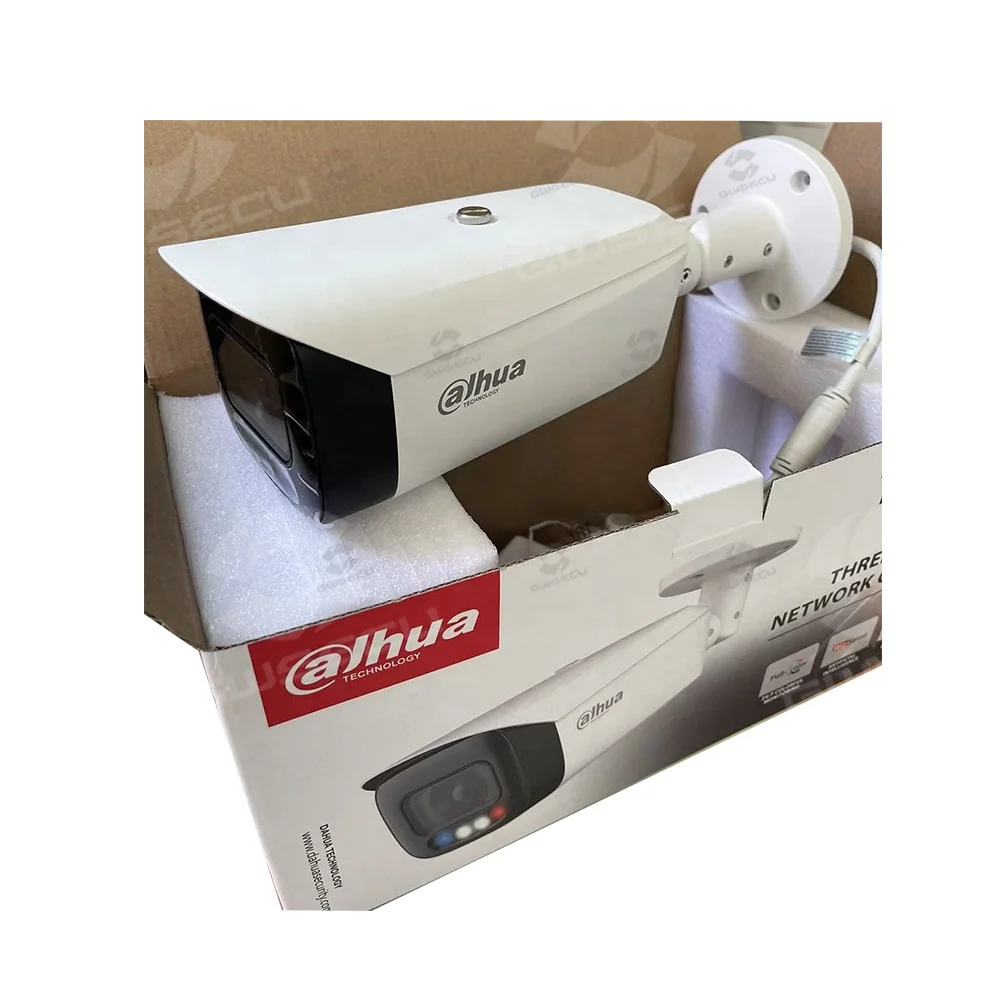

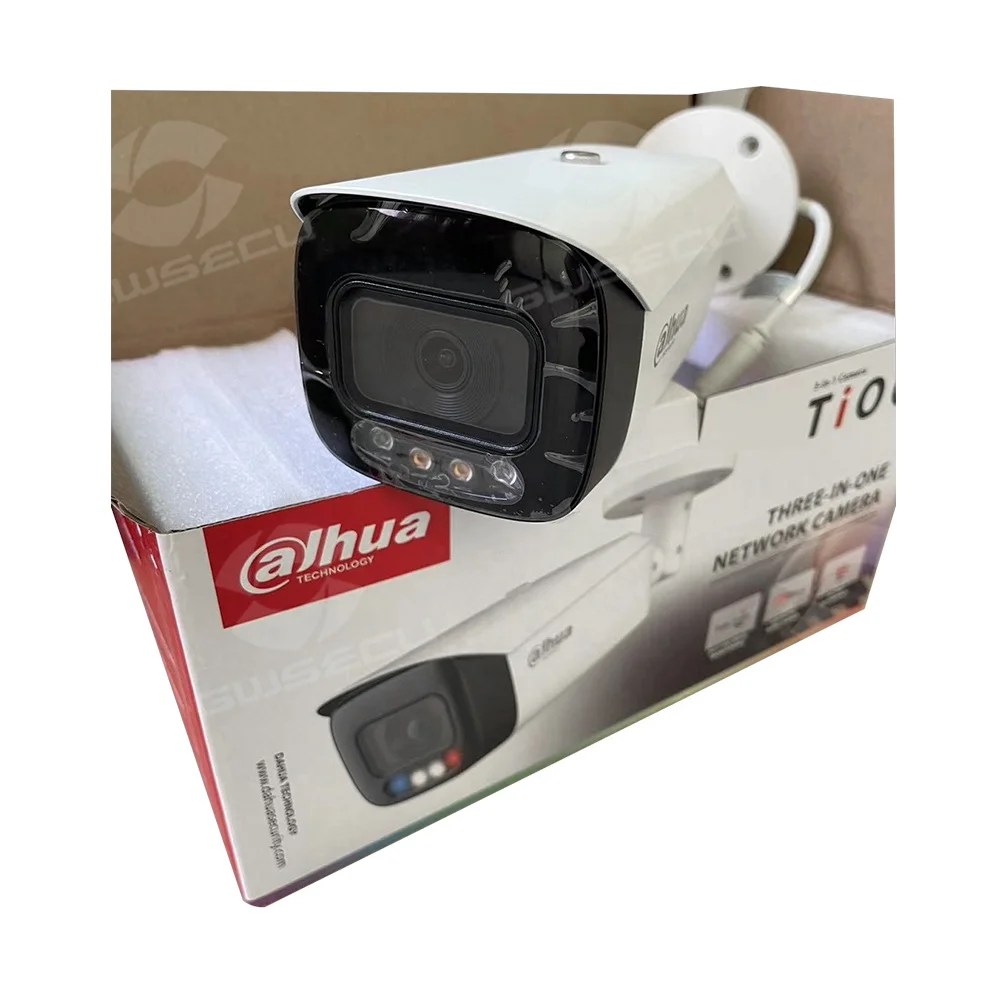

IPC HFW3849T1 AS PV Dahua Wizsense TiOC 8MP Smart Dual Light Active Deterrence 4K Full Color PoE IP Camera two way audio
- Category: >>>
- Supplier: Shenzhen Guowei Security Electronic Co. Ltd.
Share on (1601074733848):
Product Overview
Description
Product Description
IPC-HFW3849T1-AS-PV
8MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera
8MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera
* The parameters and datasheets below can only be applied to 3849-PV-S4 series.
> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.

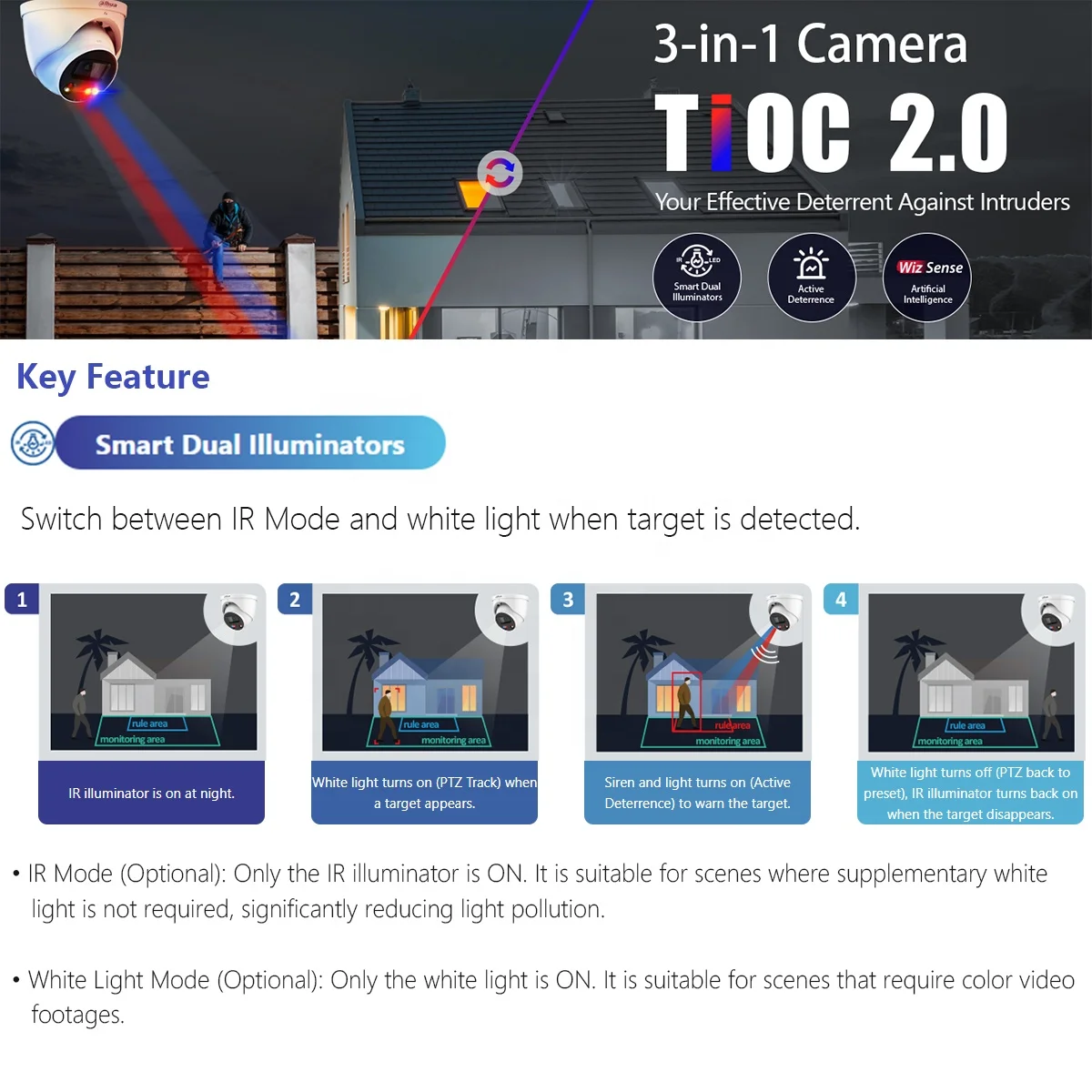

> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card
error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-click arming/disarming through alarm input.
> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card
error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> One-click arming/disarming through alarm input.
Camera | ||
Image Sensor | 1/2.8" CMOS | |
Max. Resolution | 3840 (H) × 2160 (V) | |
ROM | 128 MB | |
RAM | 512 MB | |
Scanning System | Progressive | |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) | |
0.0004 lux@F1.0 (B/W, 30 IRE) | ||
0 lux (illuminator on) | ||
S/N Ratio | ﹥ 56 dB | |
Illumination Distance | 30 m (98.43 ft) (IR) | |
30 m (98.43 ft) (warm light) | ||
Illuminator On/Off Control | Auto/Manual | |
Illuminator Number | 2 (IR LED) | |
2 (warm light) | ||
Pan/Tilt/Rotation Range | Pan: 0°–360° | |
Tilt: 0°–90° | ||
Rotation: 0°–360° | ||
Lens | ||
Lens Type | Fixed-focal | |
Mount Type | M12 | |
Focal Length | 2.8 mm; 3.6 mm | |
Field of View | 2.8 mm: H: 106°; V: 55°; D: 125° | |
3.6 mm: H: 85°; V: 45°; D: 100° | ||
Iris Type | Fixed | |
Close Focus Distance | 2.8 mm: 2.0 m (6.56 ft) | |
3.6 mm: 2.8 m (6.23 ft) | ||
DORI Distance | Lens | |
2.8 mm | ||
3.6 mm | ||
Intelligence | ||
IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) | |
SMD 4.0 | Less false alarm, longer detection distance | |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |
Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events | |
AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. | |
Video | ||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | |
Smart Codec | Smart H.265+; Smart H.264+ | |
AI Coding | AI H.265; AI H.264 | |
Video Frame Rate | Main stream: 3840 × 2160@(1 fps–30 fps) | |
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) | ||
Third stream:1920 × 1080@(1 fps–30 fps) | ||
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity | ||
Stream Capability | 3 streams | |
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
Bit Rate Control | CBR/VBR | |
Video Bit Rate | H.264: 32kbps–8192 kbps | |
H.265: 12kbps–8192 kbps | ||
Day/Night | Auto (ICR)/Color/B/W | |
BLC | Yes | |
HLC | Yes | |
WDR | 120 dB | |
Scene Self-adaptation | Yes | |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |
Gain Control | Auto; manual | |
Noise Reduction | 3D NR | |
Motion Detection | OFF/ON (4 areas) | |
Region of Interest (RoI) | Yes (4 areas) | |
Smart Illumination | Yes | |
Defog | Yes | |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | |
Mirror | Yes | |
Privacy Masking | 8 areas | |
Alarm | ||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | |
Network | ||
Network | RJ-45 (10/100 Base-T) | |
SDK and API | Yes | |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | |
Interoperability | ON VIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP | |
User/Host | 20 (Total bandwidth: 72 M) | |
Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS | |
Browser | IE: IE8/9/11 | |
Chrome | ||
Firefox | ||
Management Software | Smart PSS; DSS; DMSS | |
Mobile Phone | iOS; Android | |
Certification | ||
Certification | CE-LVD: EN 62368-1; | |
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; | ||
FCC: 47 CFR FCC Part 15, Subpart B; | ||
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; | ||
Port | ||
Audio Input | 1 channel (RCA port) | |
Audio Output | 1 channel (RCA port) | |
Alarm Input | 1 channel in: 5mA 3V–5 VDC | |
Alarm Output | 1 channel out: 300mA 12 VDC | |
Power | ||
Power Supply | 12V DC/PoE (802.3af) | |
Power Consumption | Basic: 4.5 W (12 VDC); 5.5 W (PoE) | |
Max. (pulling stream+warning light+speaker+warm light on): 7.6 W (12 VDC); 9.1 W (PoE) | ||
Environment | ||
Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH | |
Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
Protection Grade | IP67 | |
Structure | ||
Casing | Metal + plastic | |
Dimensions | 288.4 mm × 94.4 mm × 84.7 mm | |
(11.35" × 3.72" × 3.33") (L × W × H) | ||
Net Weight | 1.0 kg (2.20 lb) | |
Gross Weight | 1.23 kg (2.71 lb) | |
Why Choose Us
Our company
As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.
We're also Da hua distributor for the brand products as always. Origin English firmware version and 2 years warranty service. Welcome to contact us for more information.
1- Original international version products and support future firmware upgrade if necessary.
2- Online technical support to help you design the system and recommend most cost-effective and suitable products.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.
5- OEM Service available to put your company brand on the products and package box.
6- Two years worry-free warranty service.
1- This a Surveillance Projects installed in Melborne, Australia. Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested Dahua DH-SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.

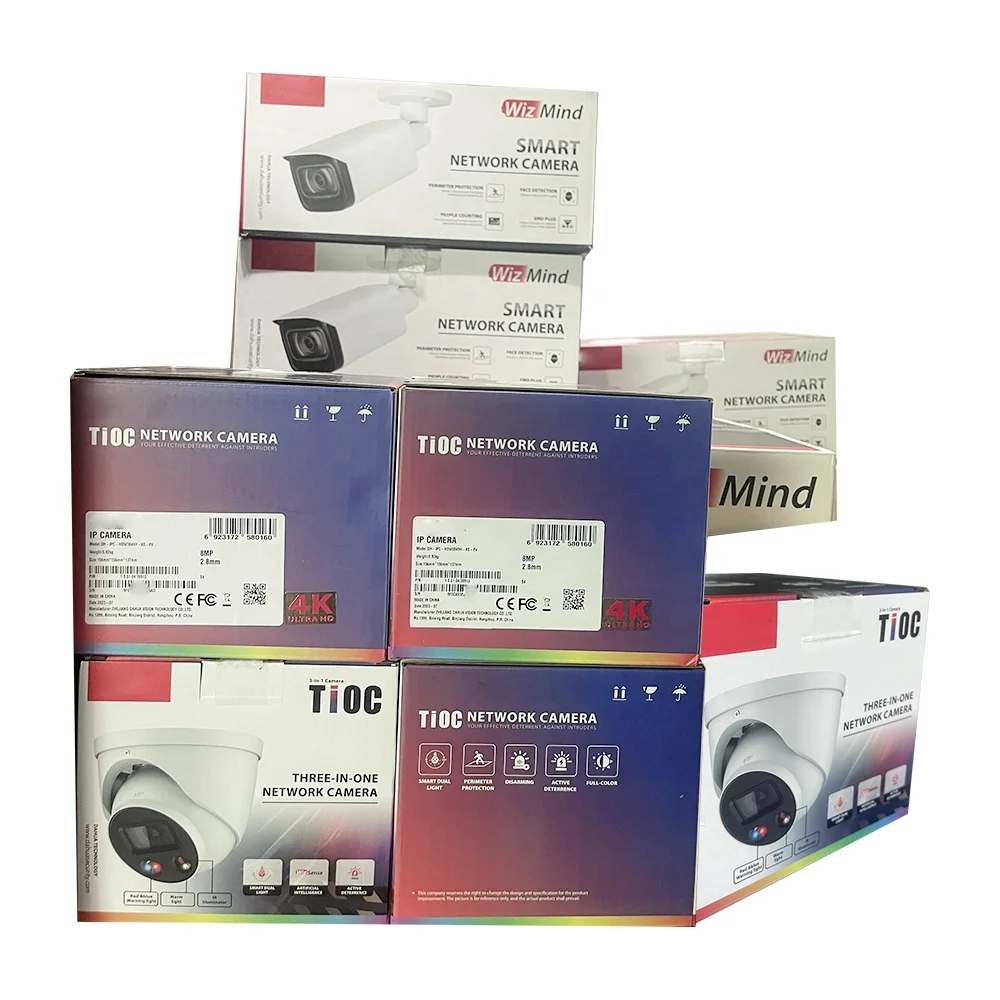

We pack the goods well just make sure our customer receive all items in good condition.
