Carplay AI Box Android 14 13 4G 64G LTE GPS WIFI Toyota Honda Nissan Mazda Subaru Lexus Volkswagen ISUZU Hyundai Kia Volkswagen
- Category: >>>
- Supplier: Shenzhen Xiaoqiang Intelligence Technology Co. Ltd.
Share on (1601074742376):

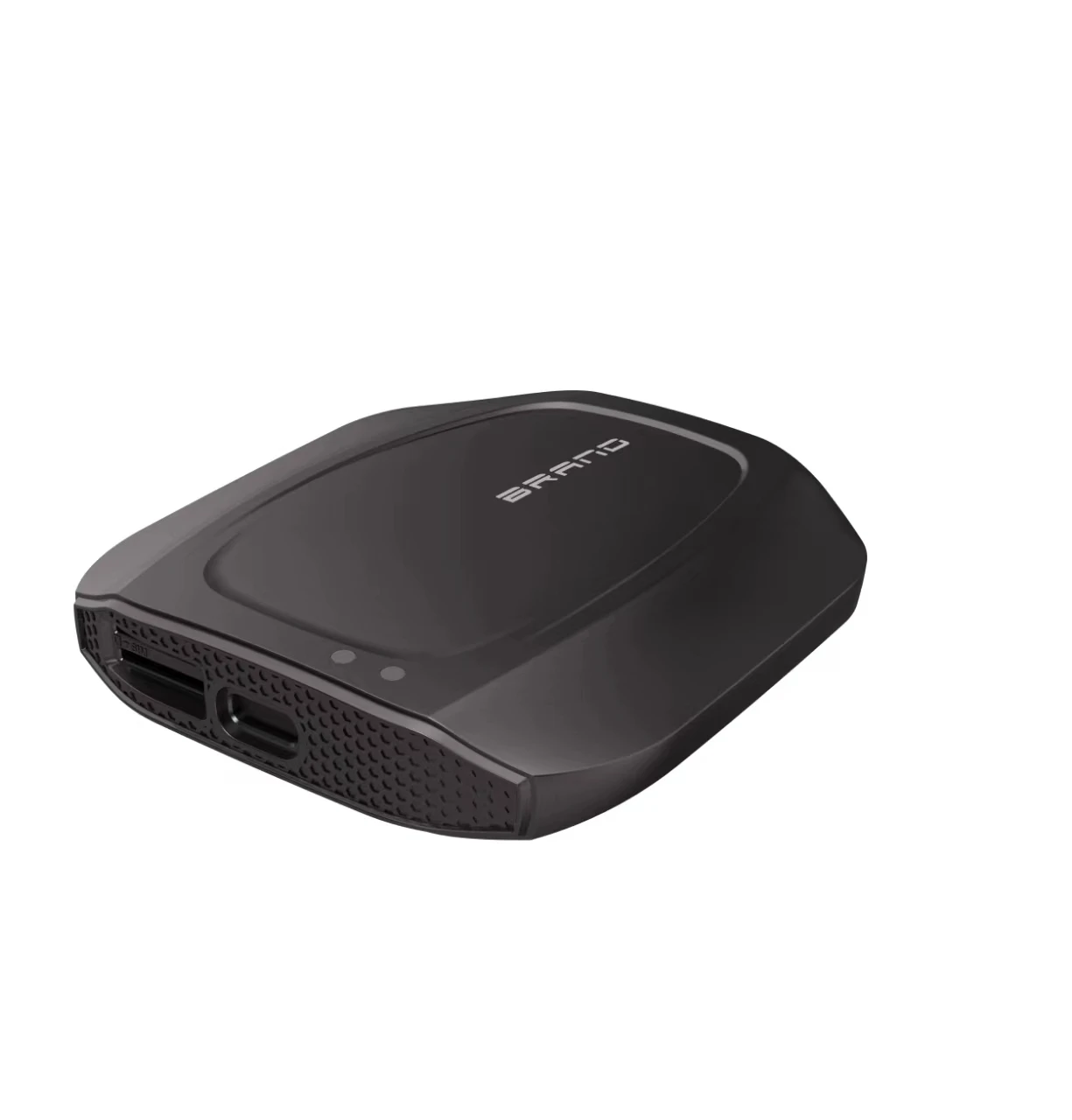

Product Overview
Description
Products Description

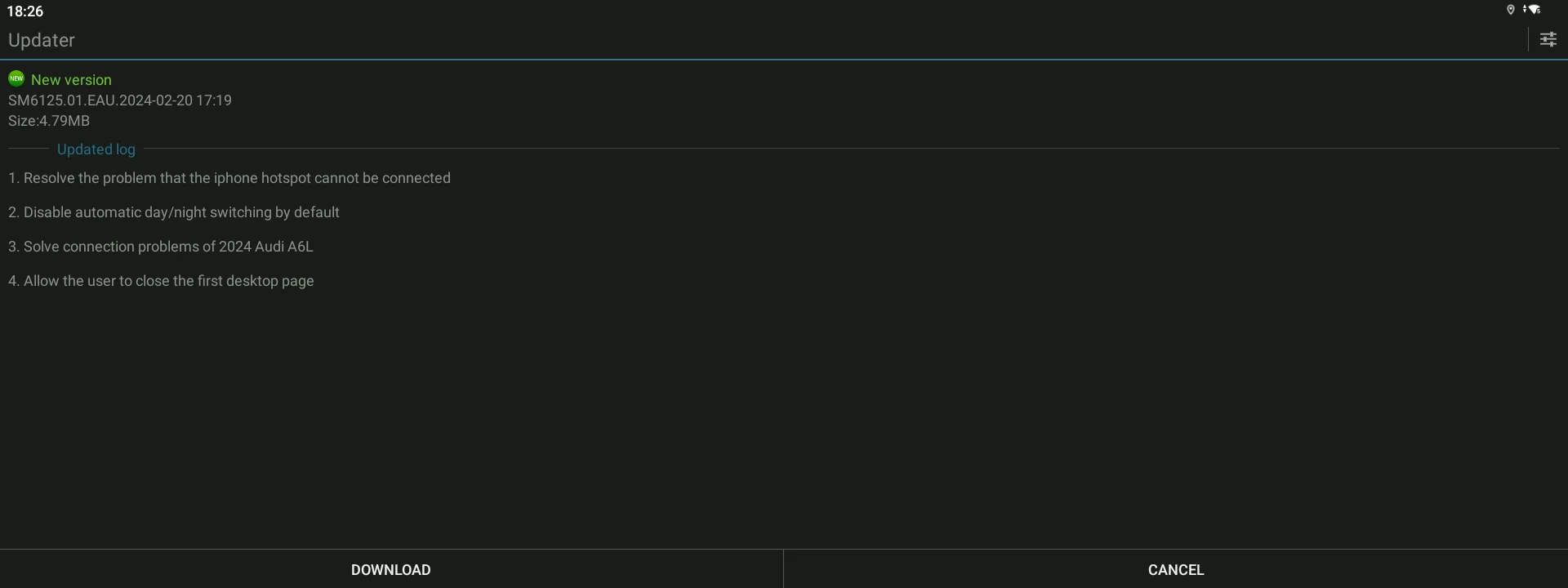

OTA
OTA - Frequently updated versions over the air.
Product Paramenters
Ultra 1.0 | UFO 2.0 | Ultra 3.0 | Rocket | |
Model | APM1688 | APM1288S | APM1688S | APM1888 |
CPU | Snapdragon 662 (SM6115) Qualcomm octa-core processor, Cortex-A73*4 @2.0GHz + Cortex-A53*4 @1.8GHz | Snapdragon 665 (SM6125) Qualcomm octa-core processor, Cortex-A73*4 @2.0GHz + Cortex-A53*4 @1.8GHz | Snapdragon 680 (SM6225) Qualcomm octa-core processor, Cortex-A73*4 @2.4GHz + Cortex-A53*4 @1.9GHz | Qualcomm QCM6490 octa-core 5G SoCprocessor, Cortex-A78*1 @2.71GHz + Cortex-A78*3 @2.4GHz + Cortex-A53*4 @1.9GHz |
GPU | Qualcomm Adreno 610 | Qualcomm Adreno 610 | Qualcomm Adreno 610 | Qualcomm Adreno 643L |
Memory | LPDDR4X-3733 | LPDDR4X-3733 | LPDDR4X-4266 | LPDDR5-6400 |
Process | 11 nanometers | 11 nanometers | 6 nanometers | 6 nanometers |
WI-FI | Wi-Fi 6.0 Ready 2.4GHz & 5GHz, 802.11a/b/g/n/ac/ax-ready | Wi-Fi 5.0 2.4GHz & 5GHz, 802.11a/b/g/n/ac | Wi-Fi 6.0 Ready 2.4GHz & 5GHz, 802.11a/b/g/n/ac/ax-ready | WIFI 6.0 Enhance 2.4GHz & 5GHz & 6GHz, 802.11a/b/g/n/ac/ax, Support DBS, 2×2 MU-MIMO |
Master BT (Qualcomm processor internal Bluetooth) | 5.1 | 5.0 | 5.1 | 5.2 |
Slave BT (processor external onboard Bluetooth chip) | Realtek BTV8761, BT5.0 | Realtek BTV8761, BT5.0 | Realtek BTV8761, BT5.0 | Realtek BTV8761, BT5.0 |
2G GSM/EDGE | Supported | Supported | Supported | Supported |
3G WCDMA | Supported | Supported | Supported | Supported |
4G LTE | Supported | Supported | Supported | Supported |
5G SA/NSA | no | no | no | Supported |
GNSS | Supports GPS, GLONASS, BeiDou, NavIC, Galileo positioning systems | Supports GPS, GLONASS, BeiDou, Galileo positioning systems | Supports GPS, GLONASS, BeiDou, NavIC, Galileo positioning systems | Supports GPS, GLONASS, BeiDou, NavIC, Galileo, QZSS and SBAS positioning systems |
Storage | 4GB+64GB or 8GB+128GB | 4GB+64GB or 8GB+128GB | 4GB+64GB or 8GB+128GB | Only 8GB+128GB |
Micro SD Card | card slot | card tray | card slot | card tray |
SIM Card | card slot | card tray | card slot | card tray |
Mini HDMI | no | yes | no | yes |
LED | Blue and Red | Colorful Ambient Light | Blue and Red | Colorful Ambient Light |
Antutu Benchmarks | 210000 | 210000 | 300000 | 600000 |
CPU Process | 11 nanometers | 11 nanometers | 6 nanometers | 6 nanometers |
Release date | Q3/2022 | Q1/2023 | Q4/2023 | Q2/2023 |
Android Version | 13 | 13 | 13 | 13 |
About the frequency bands of mobile networks
LTE telecommunications networks operate on a specific combination of frequency bands and bandwidth.
The following are the frequency bands supported by various NAVLYNX CarPlay AI Box models and versions in different regions. Basically it is divided into 3 versions: EAU version, NA version, and JP version.
EAU Version:
For Europe/Asia/Australia middle East South America. Except for North America and Japan, other regions are supported.
NA version: For North America
NA version: For North America
JP version: For Japan
ApplePie Mini Ultra 1.0 (662) ApplePie UFO 2.0 (665) ApplePie Mini Ultra 3.0 (680) | ApplePie Rocket (6490) | |
EAU (Eurasian version) | GSM/EDGE: 850/900/1800MHz WCDMA: B1,B5,B8 LTE-FDD: B1,B3,B5,B7,B8,B20,B28(B28A,28B) LTE-TDD: B38,B39,B40,B41 Hierarchical frequency bands: B1,B3,B7,B38,B39,B40,B41 | GSM/EDGE: 900/1800 MHz LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B39/B40/B41/B42LTE MIMO: DL 4 × 4 MIMO, B1/B3/B7/B38/B40/B41/B42 5G SA/NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 5G MIMO: DL 4 × 4 MIMO, n1/n3/n7/n38/n40/n41/n77/n78 UL 2 × 2 MIMO, n41/n77/n78 |
NA (North American version) | GSM/EDGE: 850,900,1900 WCDMA: B2,B4,B5,B8 LTE-FDD: B2,B4,B5,B7,B8,B12,B13,B17,B25,B26 LTE-TDD: B38,B41(2555-2655MHz) 1. The B41 frequency band of Chinese telecom operators refers to 2555-2655MHz (100M) The B41 frequency band of US telecom operator Sprint refers to 2496-2690MHz (194M) 2. Hierarchical frequency bands: B2, B4, B7, B38, B41 | No development yet |
JP (Japan version) | GSM/EDGE: 850,900,1800 WCDMA: B1,B5,B8,B19,B6 LTE-FDD: B1,B3,B5,B9,B18,B19,B26,B7,B8,B20,B28(B28A,28B) LTE-TDD: B38,B39,B40,B41 | No development yet |

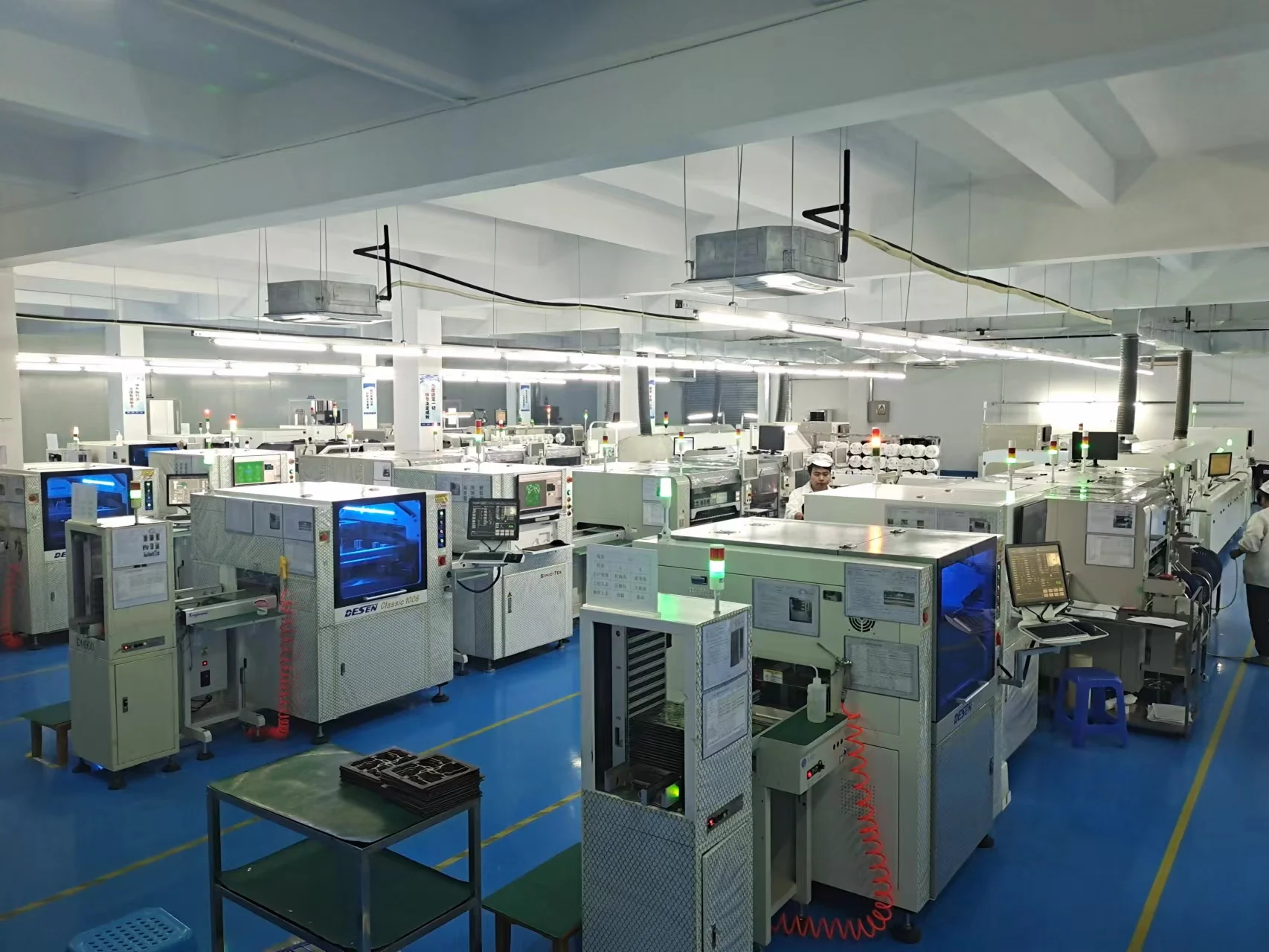

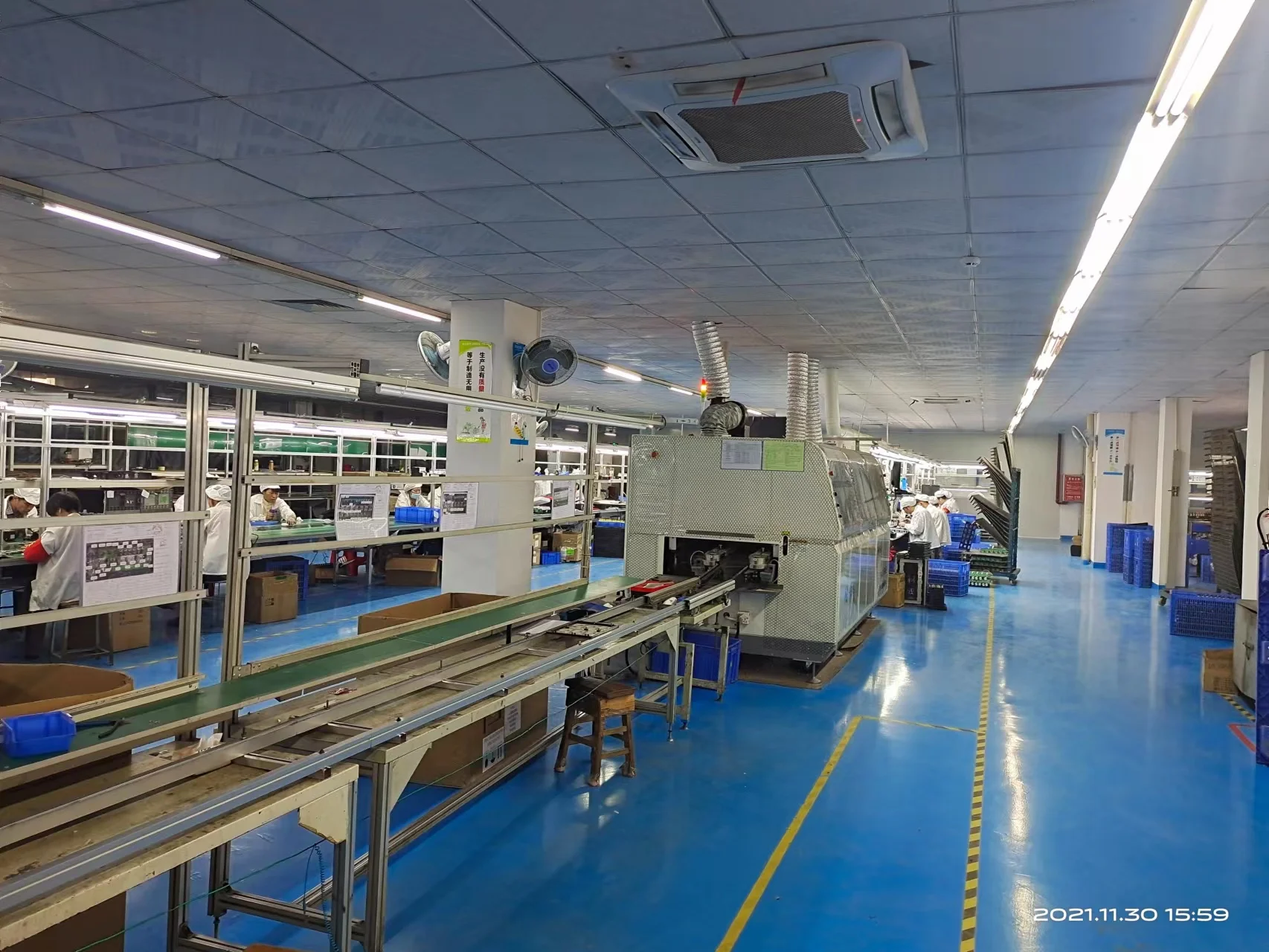

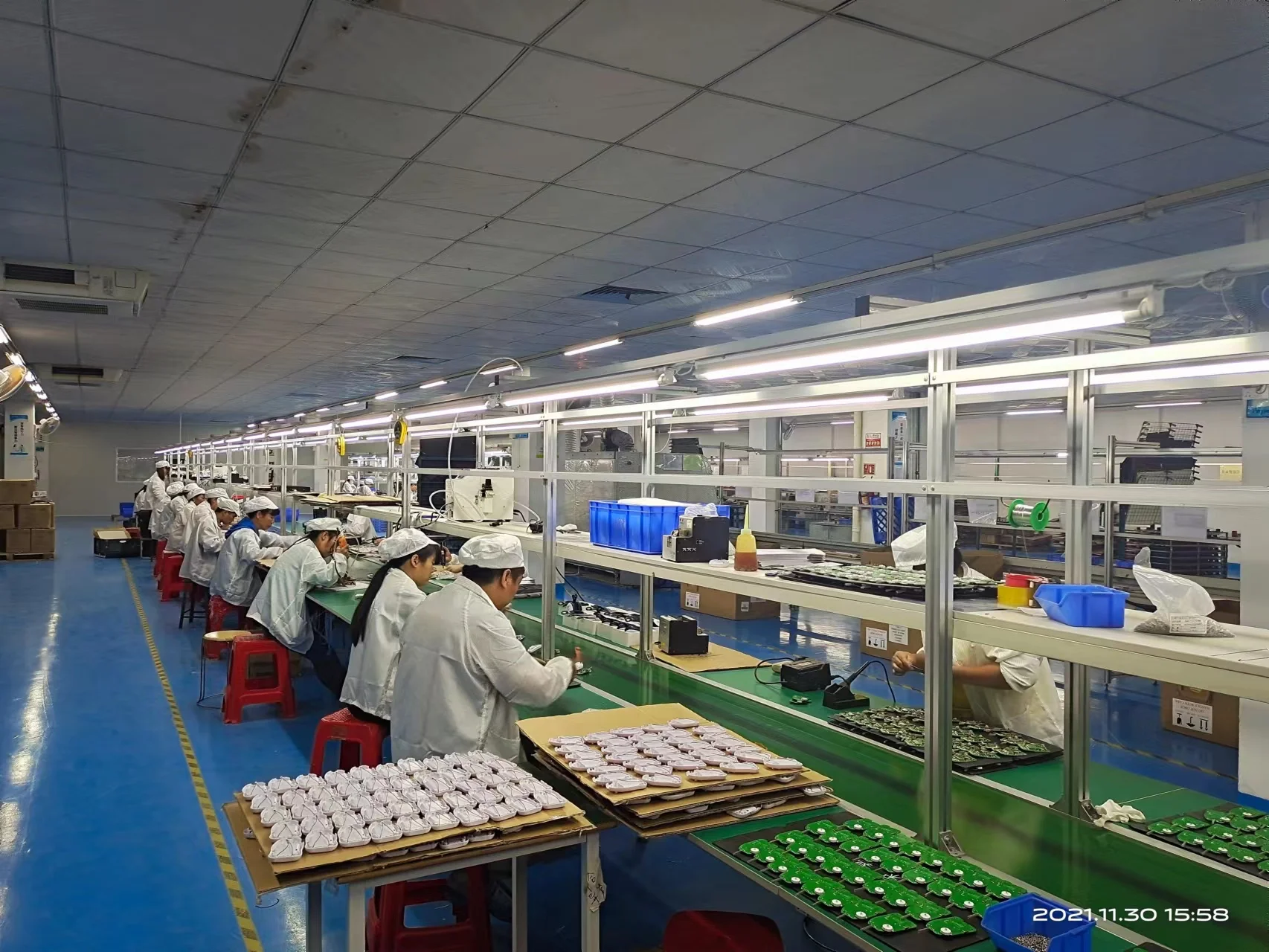

Manufacturing Technique

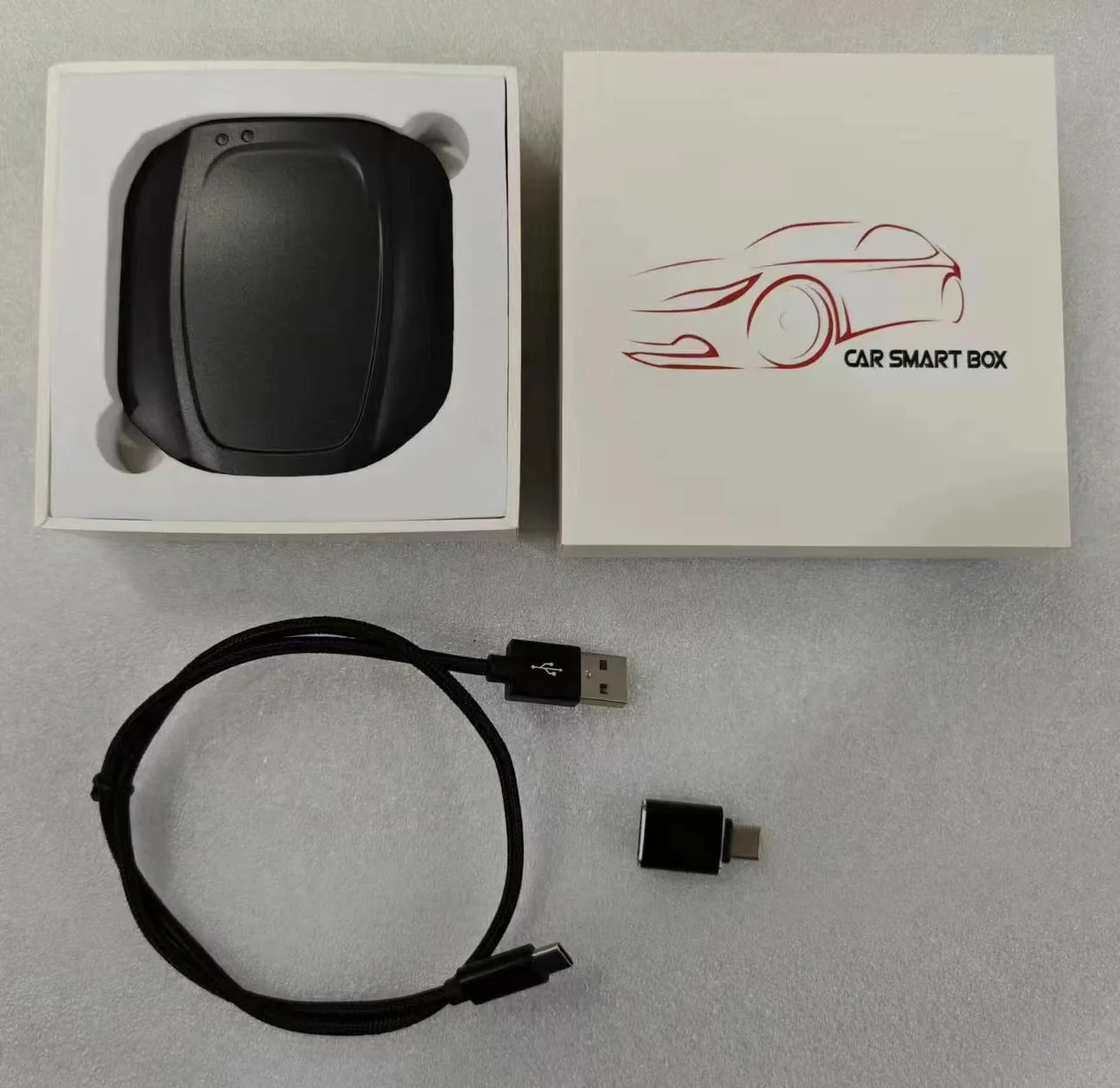

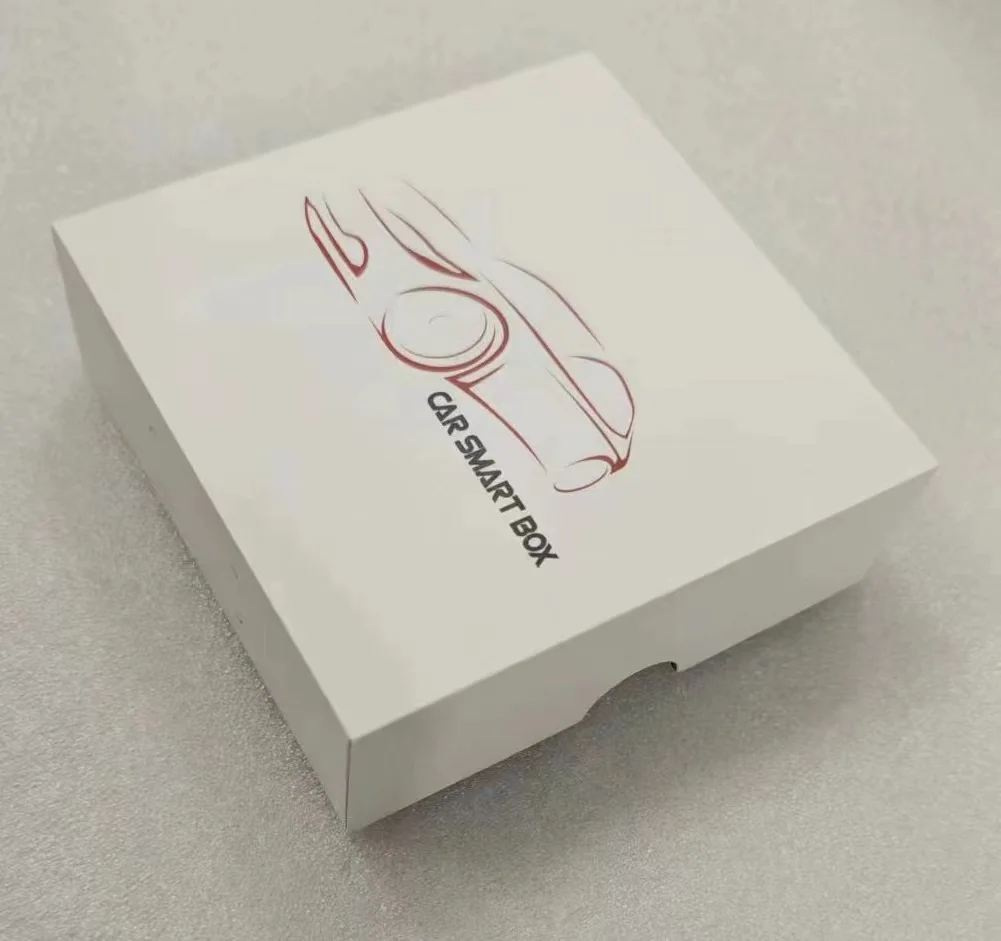

Product packaging
Leadtime
Generic version | Logo customized | Software customization | Hardware customization | |
1～500 | 5 | Negotiate | Negotiate | Negotiate |
500～2000 | 15 | Negotiate | Negotiate | Negotiate |
More than 2000 | 20 | Negotiate | Negotiate | Negotiate |

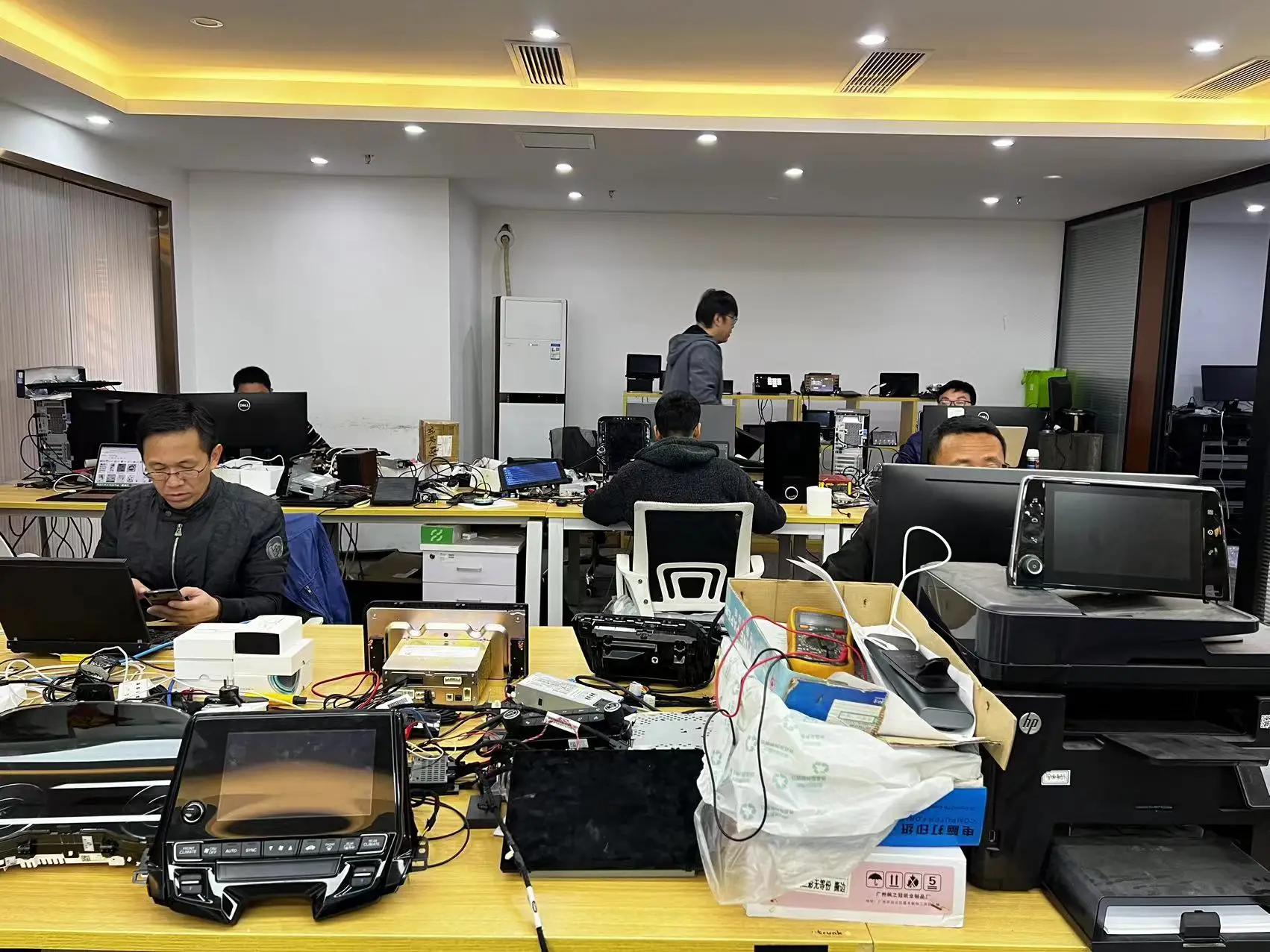

Company Profile
