Tuerca Mordaza Strut Channel Spring Nuts unistrut Nuts ECROU A RESSORT
- Category: >>>
- Supplier: Hebei Xinyiqiang Hardware Products Co. Ltd.
Share on (1601074757561):
Product Overview
Description
Product Description
Strut channel is a standardized formed structural system used in the building and electrical industries for lightweight structural support, typically to support wiring, piping or mechanical components such as air conditioning or ventilation systems.
Struts are usually formed from sheet metal folded into an open channel shape with inwardly bent lips to provide additional rigidity and serve as a location for mounting interconnecting components. An increasing number of struts are made of fiberglass, a highly corrosion-resistant material known for its lightweight strength and rigidity. Struts usually have some type of hole in the base to facilitate interconnection or to fasten the stanchion to the underlying building structure.
The main advantage of post channels in construction is that there are many options available for quickly and easily attaching lengths and other items to post channels using a variety of specialized post specific fasteners and bolts. They can be assembled very quickly with a minimum of tools and a moderately trained workforce, which in many applications reduces costs significantly. Pillar channel installations can often also be modified or added on with relative ease, if desired. For most applications, the only alternative to strut channels is custom fabrication using rebar and other commodity components, requiring welding or extensive drilling and bolting, but without the aforementioned advantages.
The basic typical strut channel forms a box measuring approximately 41 mm x 41 mm (1 5/8 in x 1 5/8 in). Several additional sizes and combination shapes are also manufactured.
Struts are usually formed from sheet metal folded into an open channel shape with inwardly bent lips to provide additional rigidity and serve as a location for mounting interconnecting components. An increasing number of struts are made of fiberglass, a highly corrosion-resistant material known for its lightweight strength and rigidity. Struts usually have some type of hole in the base to facilitate interconnection or to fasten the stanchion to the underlying building structure.
The main advantage of post channels in construction is that there are many options available for quickly and easily attaching lengths and other items to post channels using a variety of specialized post specific fasteners and bolts. They can be assembled very quickly with a minimum of tools and a moderately trained workforce, which in many applications reduces costs significantly. Pillar channel installations can often also be modified or added on with relative ease, if desired. For most applications, the only alternative to strut channels is custom fabrication using rebar and other commodity components, requiring welding or extensive drilling and bolting, but without the aforementioned advantages.
The basic typical strut channel forms a box measuring approximately 41 mm x 41 mm (1 5/8 in x 1 5/8 in). Several additional sizes and combination shapes are also manufactured.
Product Name | Strut channel nut | Style | U-shaped |
Brand | XYQ.. | Colour | |
Texture | .. | Place of Product | Hebei Province,China |
Fabric | .. | Modes of packing | Packed in three cartons |
Size | Sofa: 1-5/8" * 2-7/16 | After sale service |
Basic strut channel comes in the open box section 41×41 mm (1 5/8 by 1 5/8 inch) square cross section. A half height 41×21 mm (1-5/8 inch wide, 13/16 inch tall) cross section version is also available, used mostly where mounted directly to a wall as it has
significantly less stiffness and ability to carry loads across an open space or brace. A deep channel 62×41 mm (2 7/16 inches tall
and 1 5/8 inch wide) is also manufactured.
significantly less stiffness and ability to carry loads across an open space or brace. A deep channel 62×41 mm (2 7/16 inches tall
and 1 5/8 inch wide) is also manufactured.
Material Description
or 0.0747 inch, respectively).Several variations are available with different hole patterns for mounting to walls and supports.Solid channel has no holes predrilled, and must either be drilled on site or mounted in another fashion. Punched channel has round holes, large enough for an M16 or 5/8 inch threaded steel rod or bolts, punched in the top of the channel at regular 48 mm (1 7/8 inch) centers. Half-slot channel has short, rounded end rectangular slots punched out on 50 mm (2 inch) centers. Slot channel has longer slots on 100 mm (4 inch) centers. In metric system based products, the eyelets are about 11×13 mm.
1),An overhead electrical wire hanger manufactured from two lengths of strut channel and two lengths of threaded rod.
2),A length of standard half-slotted strut channel used as a brace, connected to a length of half-channel mounted directly to a wall, joined with a purpose-built channel connecting steel angle.
3),A shelf supporting electrical conduit and pipe, manufactured from strut channel.

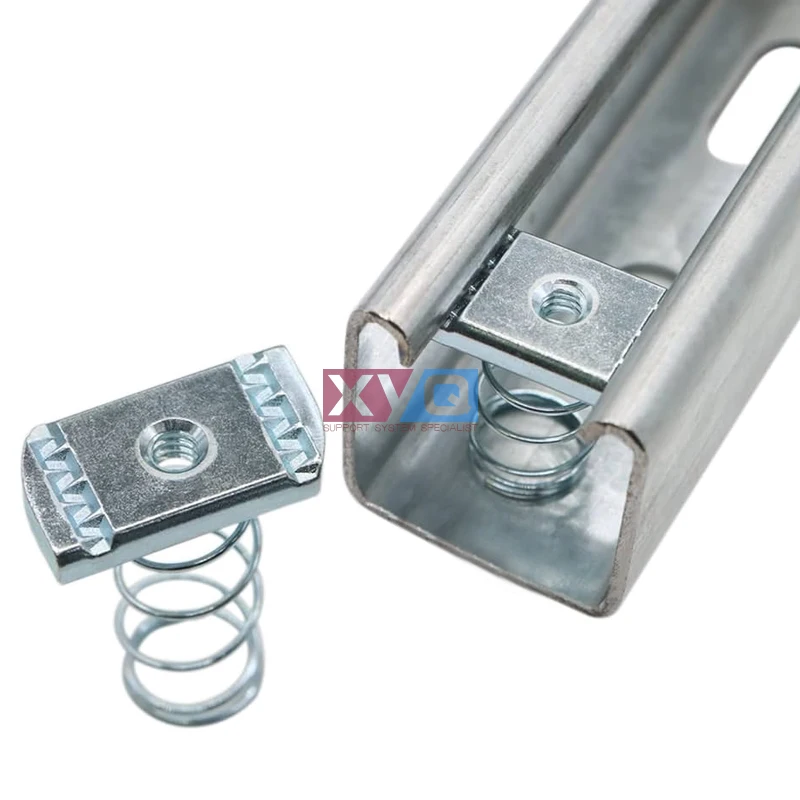

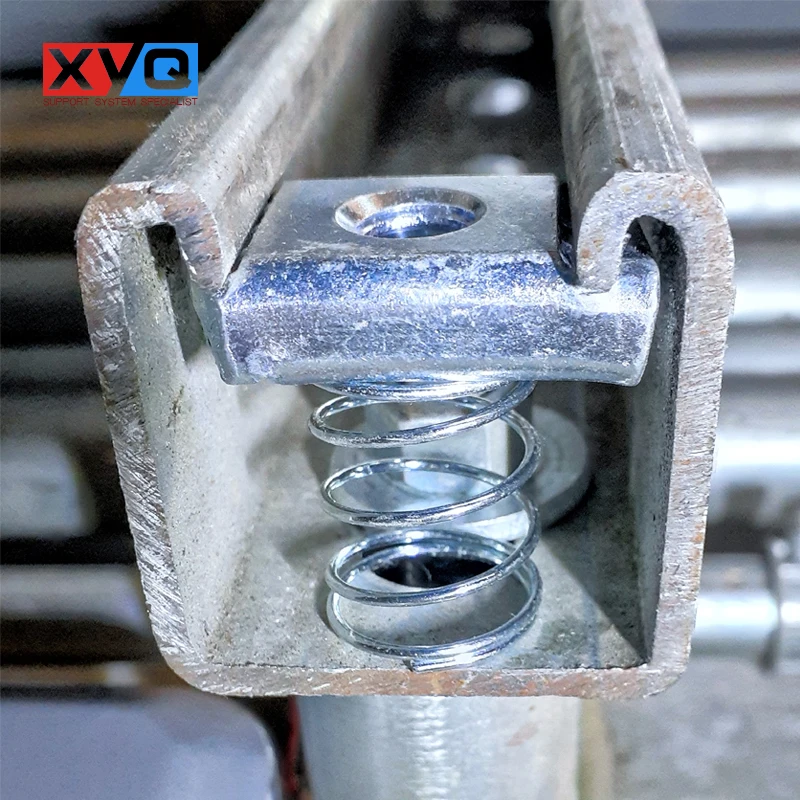

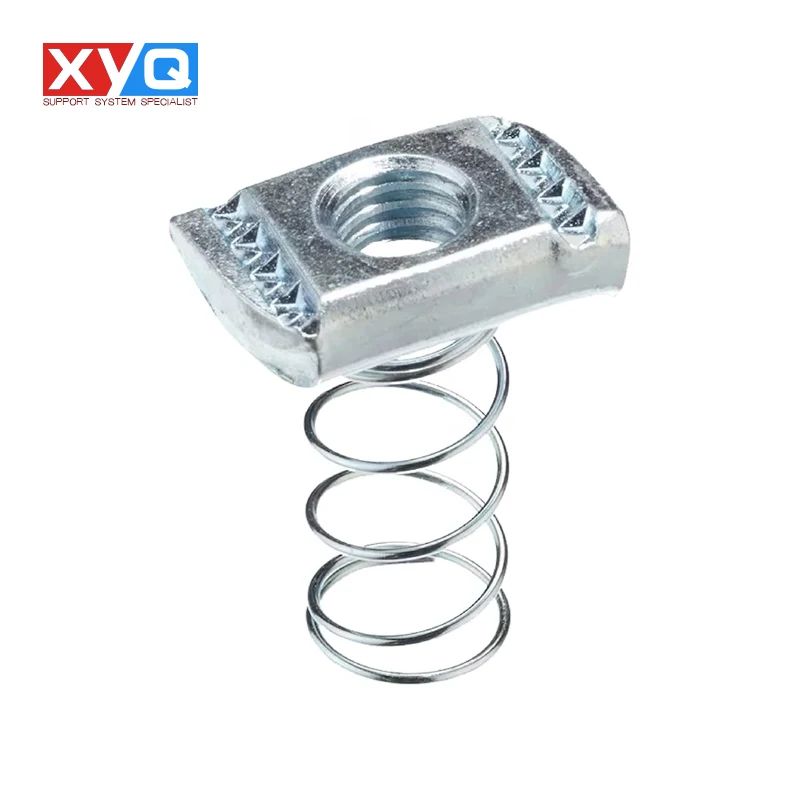

4),Spring-loaded nut placed inside the channel allows connections with bolts
FAQ
1. Design and engineering
A. A team of experienced and trained designers, including CAD designers and 3D designers, have the ability to deliver outstanding designs for your project.
B We look forward to providing exceptional designs and advice for your project.
2. How to buy your ideal products?
A: You can provide your drawing to us, and we will produce it as your drawing. Or we can design according to your requirements if you don't have a clear plan.
3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
4. What is the delivery time?
A: It depends on the order quantity. Generally, the delivery time will be 15-30 days.
5. Package information?
A: For the inner box and master carton are made according to international standards, and we can make special design for you if necessary. And if necessary, it will be packed on a pallet to avoid any damage.
B: no more than 35kg per carton, about 1000kg per pallet.
6. How long does it take to make a sample? It's free?
A: We usually have stock for general sizes, so we can always ship within 1-3 days. In general, the buyer pays the sample fee and the freight.
A. A team of experienced and trained designers, including CAD designers and 3D designers, have the ability to deliver outstanding designs for your project.
B We look forward to providing exceptional designs and advice for your project.
2. How to buy your ideal products?
A: You can provide your drawing to us, and we will produce it as your drawing. Or we can design according to your requirements if you don't have a clear plan.
3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
4. What is the delivery time?
A: It depends on the order quantity. Generally, the delivery time will be 15-30 days.
5. Package information?
A: For the inner box and master carton are made according to international standards, and we can make special design for you if necessary. And if necessary, it will be packed on a pallet to avoid any damage.
B: no more than 35kg per carton, about 1000kg per pallet.
6. How long does it take to make a sample? It's free?
A: We usually have stock for general sizes, so we can always ship within 1-3 days. In general, the buyer pays the sample fee and the freight.
