MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications
MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications

MM Wave Radar Sensor with Human Presence Detection for Smart Building Applications

Share on (1601074860077):


Price:

Quantity:


Product Overview

Description





Specification





Input
Operating Voltage
12-24V DC
Operating Current
75mA MAX@12V

Output
Operating Mode
RS485 A/B
Working Agreement
Standard Modbus RTU



Induction parameters
Operating Frequency
60 GHz, AloT millimeter wave
communications baud rate
115200, 8 data bits, 1 stop bit, no parity
Emission power
12 dBm Max
Detection range
Radius 2m
Detection Sensitivity
Three adjustable levels
Installation Height
2.2-3.0m, maximum sensing radius 2m

Environment
Operating Temperature/Humidity
-15°C... +55C
Storage Temperature/Humidity
-25°C... +70°C




Other
Input
24 Gauge Leads 20mm, Red, Black, White, Green
Protection level
IP22
Product Category
Class III Electrical
Installation Requirements
Magnetic + adhesive independent mounting
Packaging Requirements
White box + flat card + outer box (K=A)
Net Weight
150g
Warranty
3 years


Product Features
1. To achieve the function of personnel fall detection
2. Not affected by temperature, humidity, noise, airflow, dust, light and other environmental influences.
3. Ceiling-mounted (magnet & adhesive)
4. Support embedded installation (need to purchase additional matching accessories)


Functionality

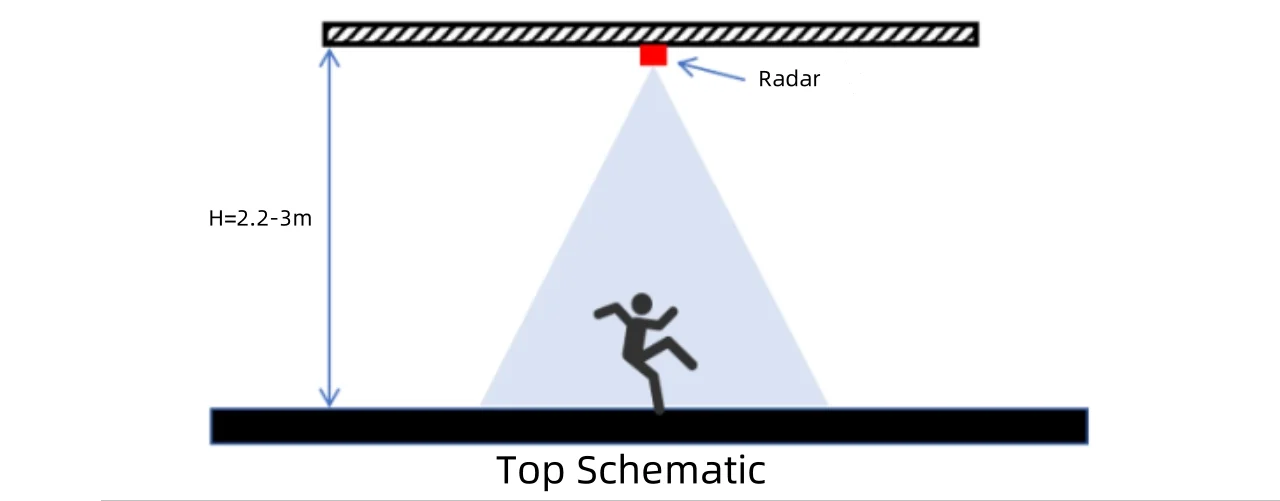

Top mounting height 2.2-3.0m, maximum sensing radius 2m




Please Contact Us For More Details!!!
