Roller glass coating machine
US $10000-$13000
Insulating Glass Double Glazing Glass Manual Two Component Sealant Spreading Machine
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (1601074872379):
Product Overview
Description
Product Description
1. The wholly pneumatic machine’s main parts (including A and B component glue pump, gelatinize gun and safety valve) are imported from Korea, or made of high-tension and quality stainless steel with thermal treatment, the reliability and durability of the machine is greatly improved.
2. The machine’s curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.
3. The fluid flow rate stability is ensured and mixing effect improved. The system is also equipped with a pipes overload protection device, which makes it to be more safety for operation.
4. The A and B component glue pump and proportional pump’s high pressure valve are made of ground special leakage-free alloy.
5. The special and convenient mix device can ensure the high precise mixture performance.
2. The machine’s curing agent system is fully closed, which can prevent the agent from exposing to air and getting solidified.
3. The fluid flow rate stability is ensured and mixing effect improved. The system is also equipped with a pipes overload protection device, which makes it to be more safety for operation.
4. The A and B component glue pump and proportional pump’s high pressure valve are made of ground special leakage-free alloy.
5. The special and convenient mix device can ensure the high precise mixture performance.
Technical Parameter
Mix ratio | 6:1~14:1 changeable |
Max. amount of extruded glue | 4L/min |
Pump A platen diameter | 55 gallon(200L) φ565mm |
Pump B platen diameter | 5 gallon (20L) φ285mm |
Max. air consumption | 0.8 CBM/min |
Max. extruding pressure | 19Mpa |
Air supply | 0.5~0.8Mpa |
Overall dimensions | 1100 x 950 x 2500mm |
Detailed Images

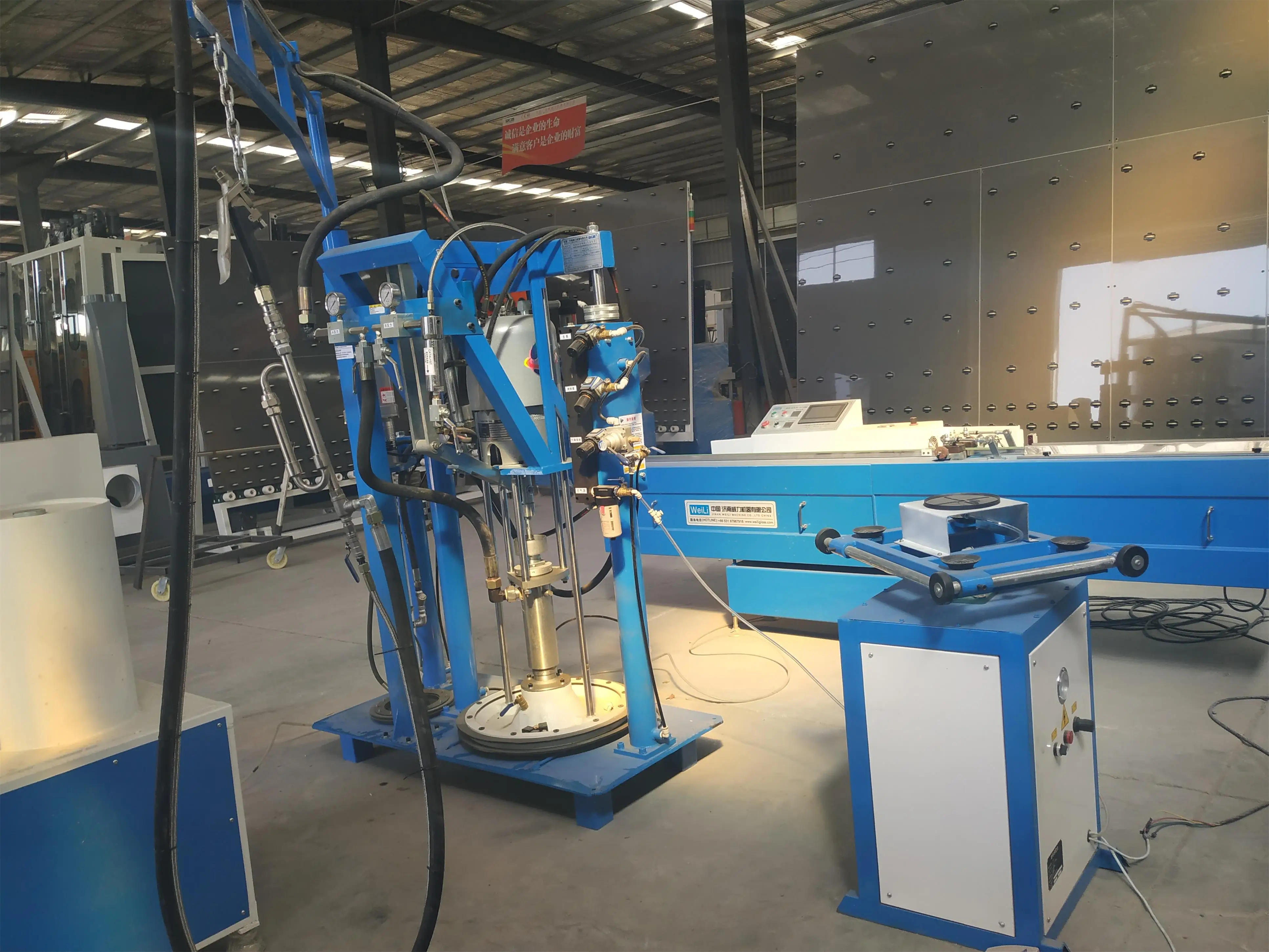

The A and B component glue pump and proportional pump’s high pressure valve are made of ground special leakage-free alloy. The special and convenient mix device can ensure the high precise mixture performance.
The internationally prevailing stationary reciprocating mixer is used in the machine, with the specially designed needle valve, the mixture result is excellent. The special material with elasticity is used to make the dispensing nozzle, the production of insulating glass is more convenient, simple and elegant.
Related Products
Packing&Shipping
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
After Sales Service
* Provide factory layout according to your factory size in advance.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field installation commissioning and training.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field maintenance and repair service.
* Field installation commissioning and training.
Company Introduction
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
