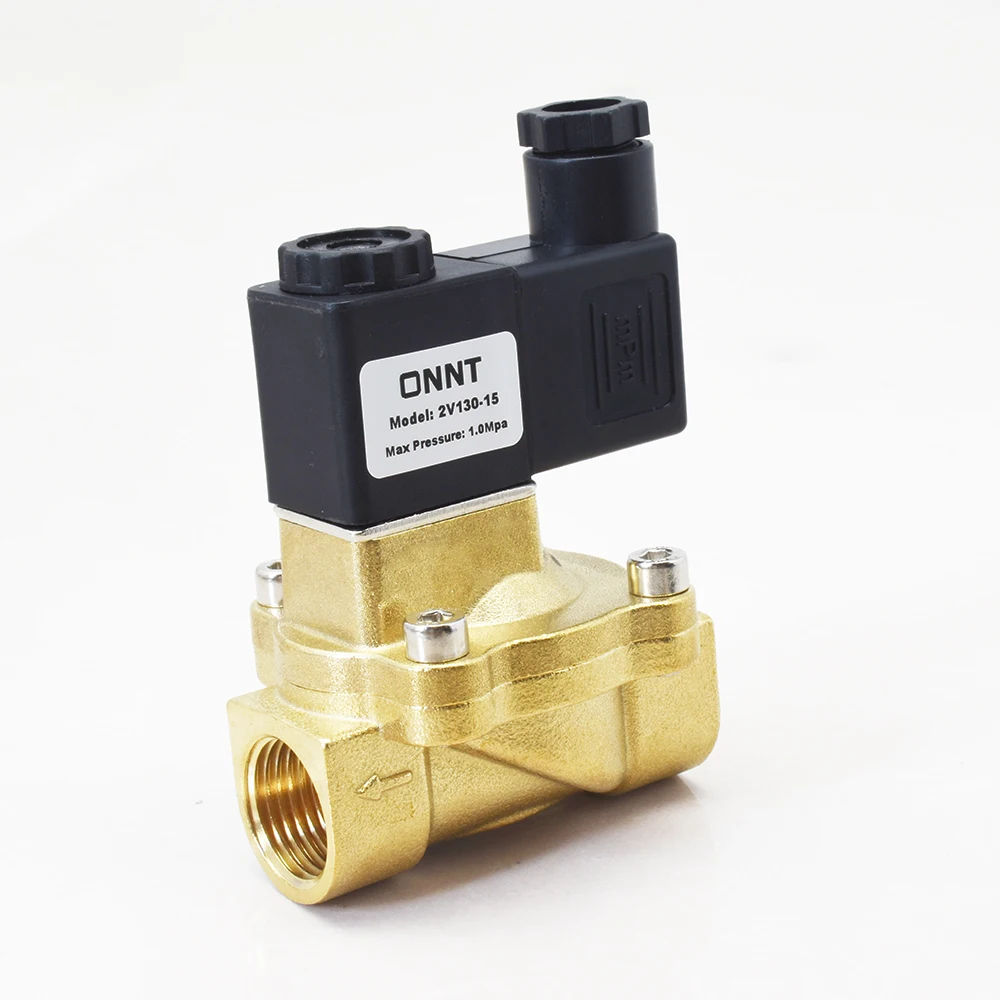

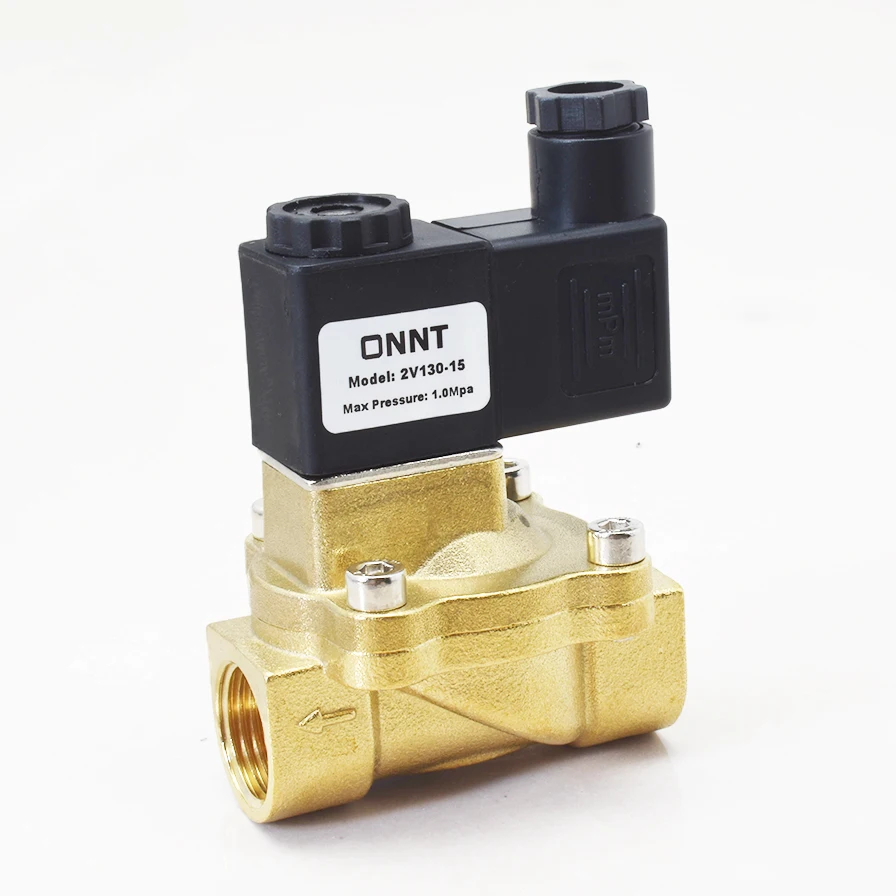

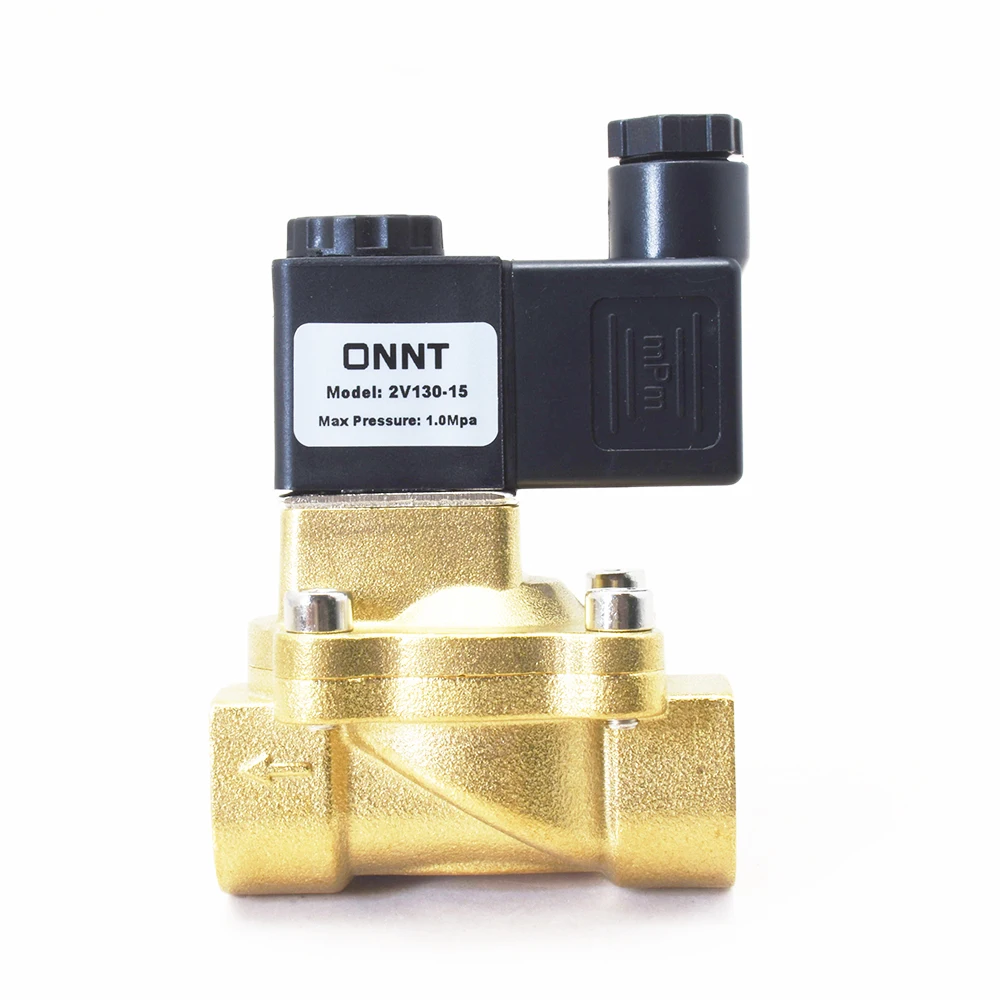

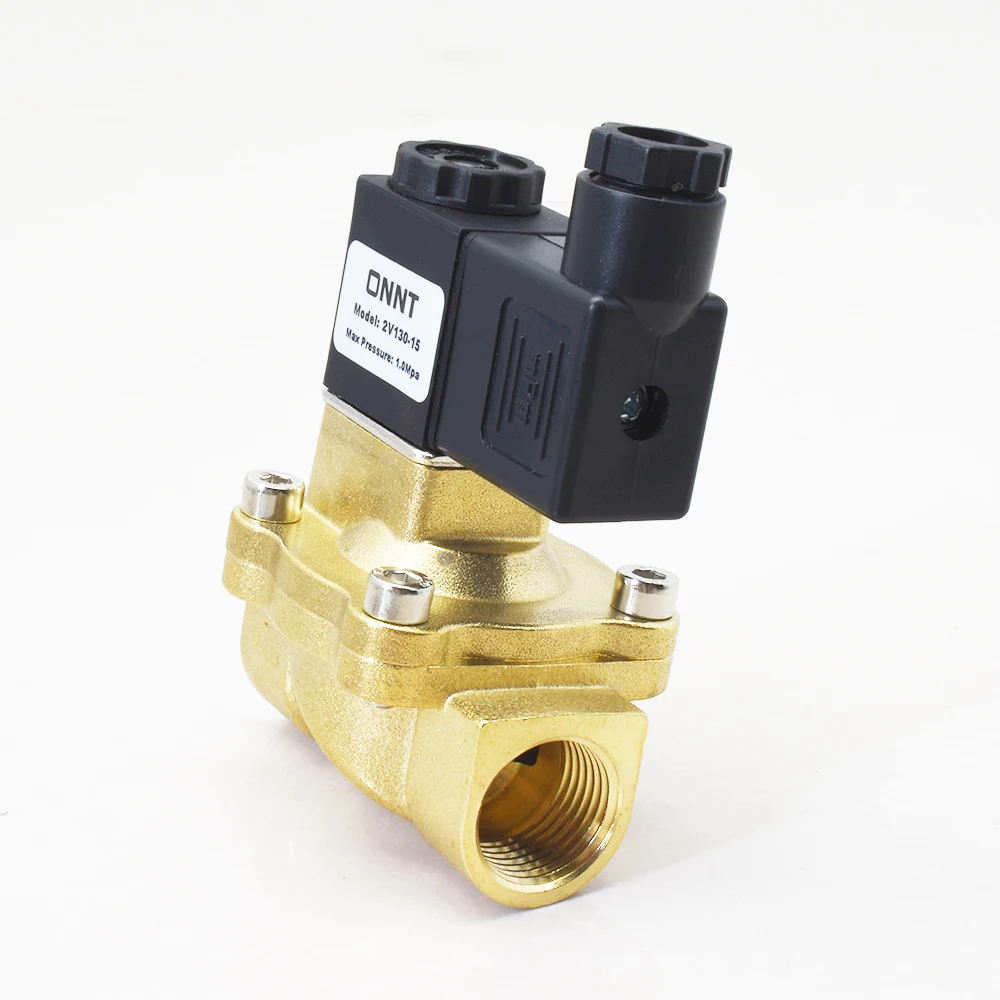

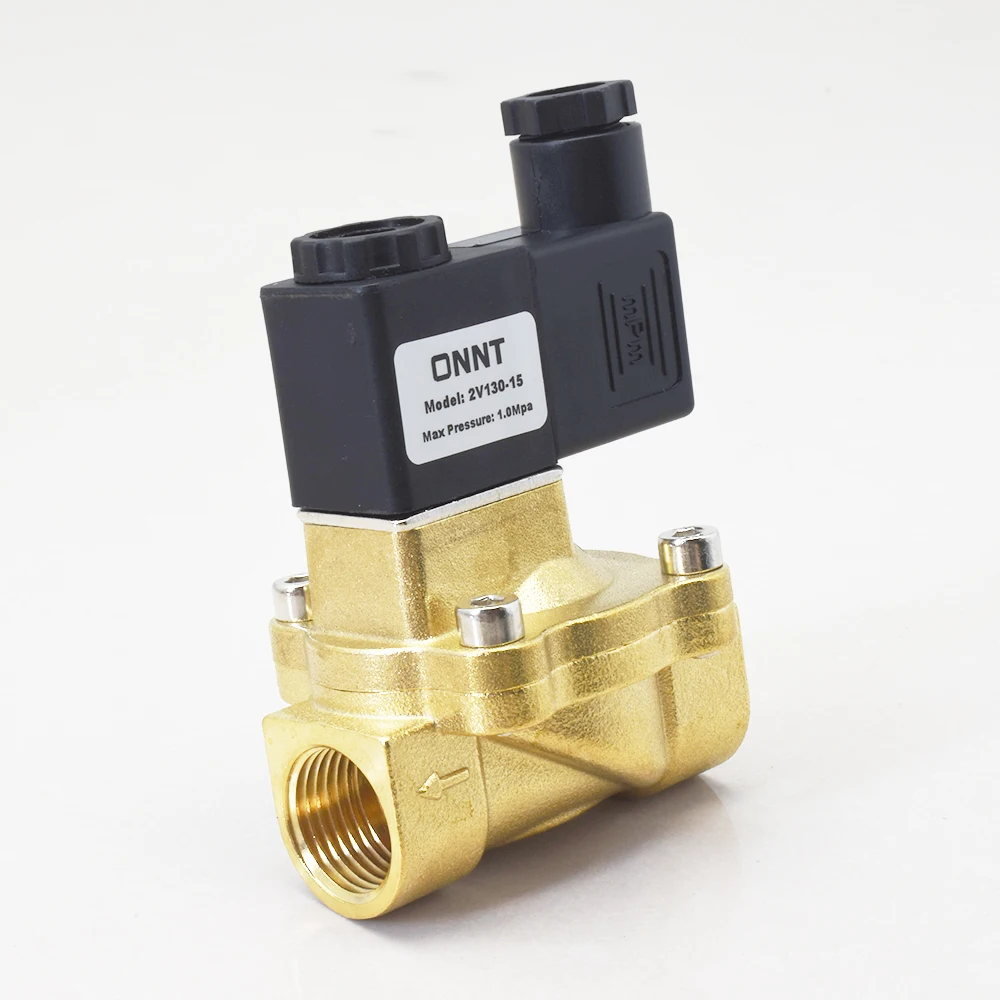

Brass Solenoid Air Valve 110V 12V 220V 24 Volt 1/2 Inch 2 Way Normally Closed Solenoid Valve 2V130 15
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1601074877531):
Product Overview
Description
1/2'' 3/4'' 1'' 1-1/4'' 1-1'' 2W Normal Open Solenoid Valve 2WK High Quality Normally Open Water Solenoid Valve 24V DC 220V AC

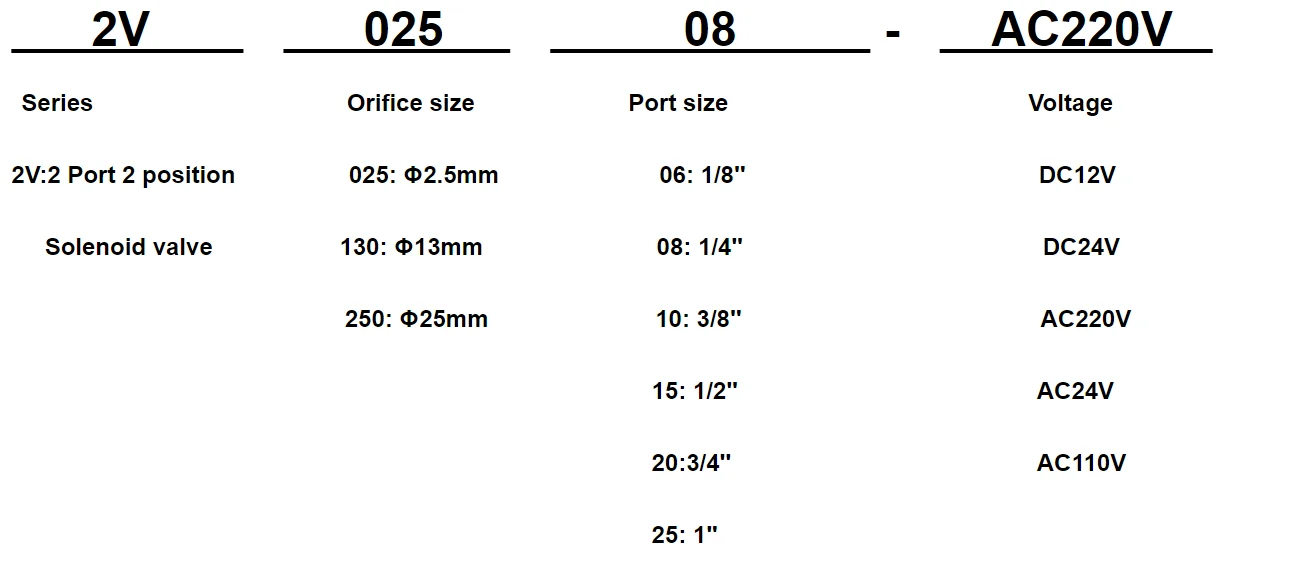

Ordering Code:
Specifications
Model | 2V025-06 | 2V025-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 | |||||
Fluid | Air,Water,Oil (filterd through 40u filter element) | ||||||||||
Acting | Direct acting | Internally piloted acting | |||||||||
Initial state | Normally closed type | ||||||||||
Effective area(mm²) | 2.5 | 2.5 | 13.0 | 13.0 | 25.0 | 25.0 | |||||
CV Value | 0.23 | 0.25 | 6.20 | 6.2 | 13 | 13 | |||||
Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | |||||
Viscosity limit | Under 20 CST | ||||||||||
Pressure range | 0~1.0MPa(0~145psi) | 0.05~1.0MPa(7~145psi) | |||||||||
Proof pressure | 1.5MPa(215psi) | ||||||||||
Material body | Brass with zinc plated | Brass | |||||||||
Seal material | VITON | NBR | |||||||||
Activating time | 0.05 sec and below | ||||||||||

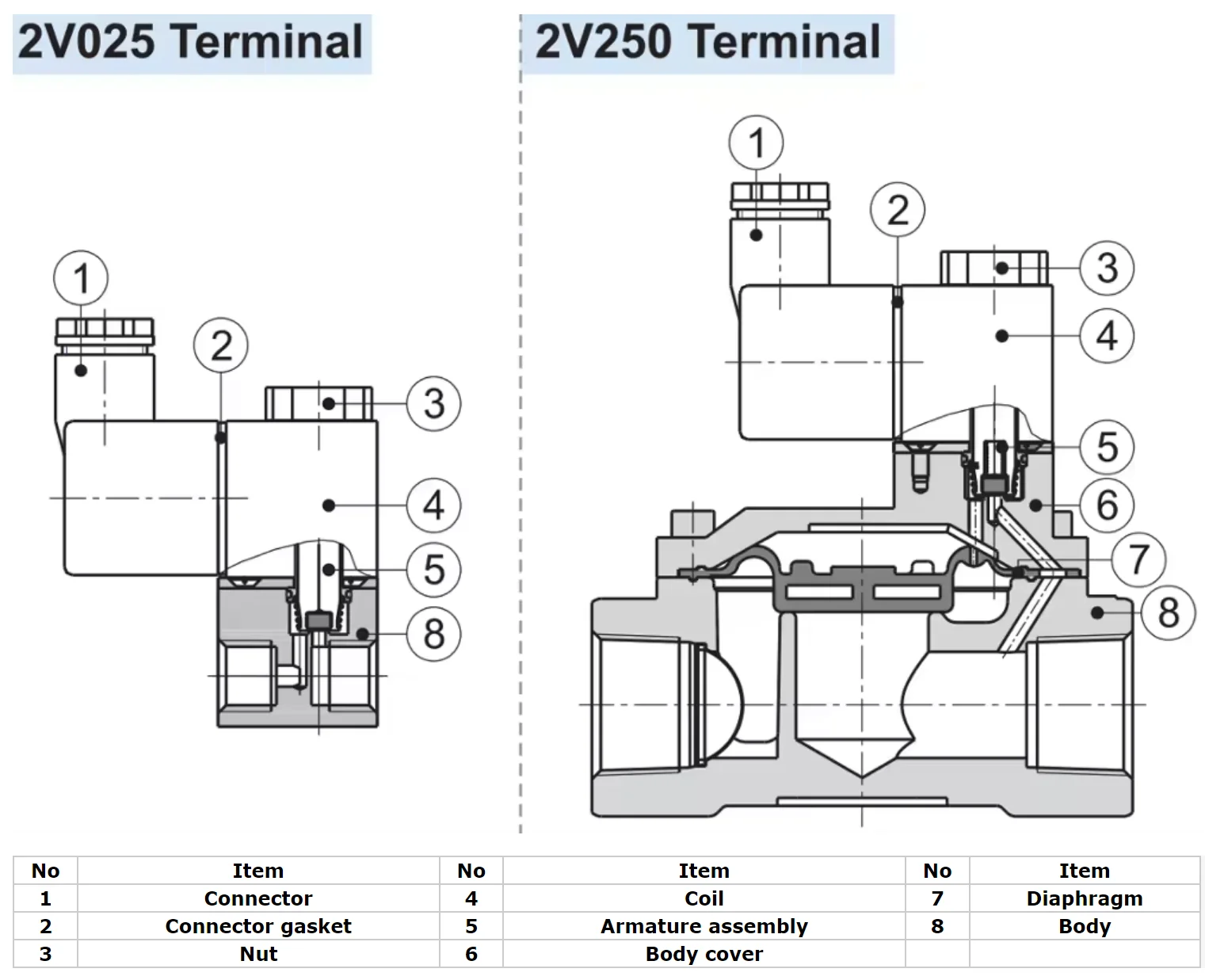

Product Details:

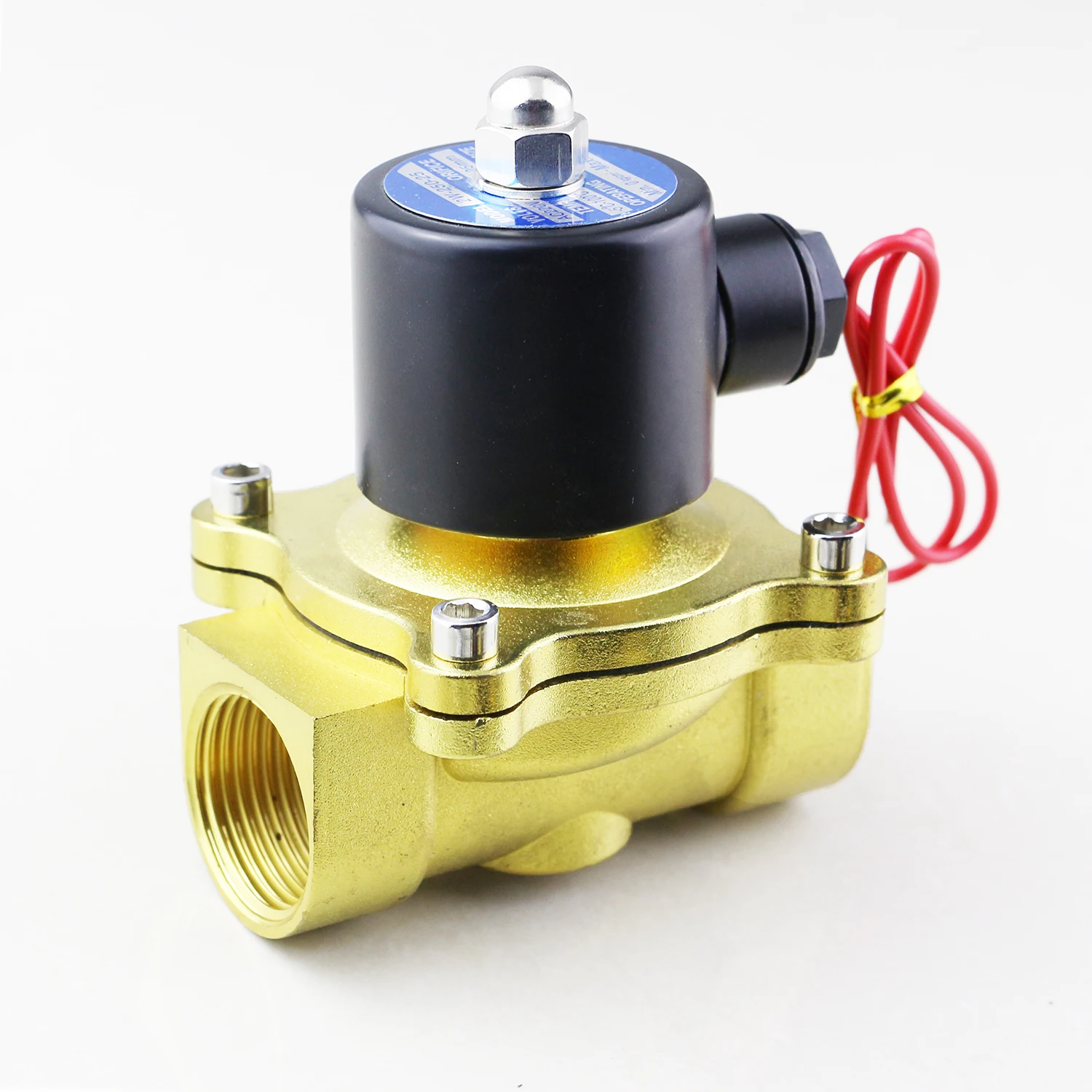

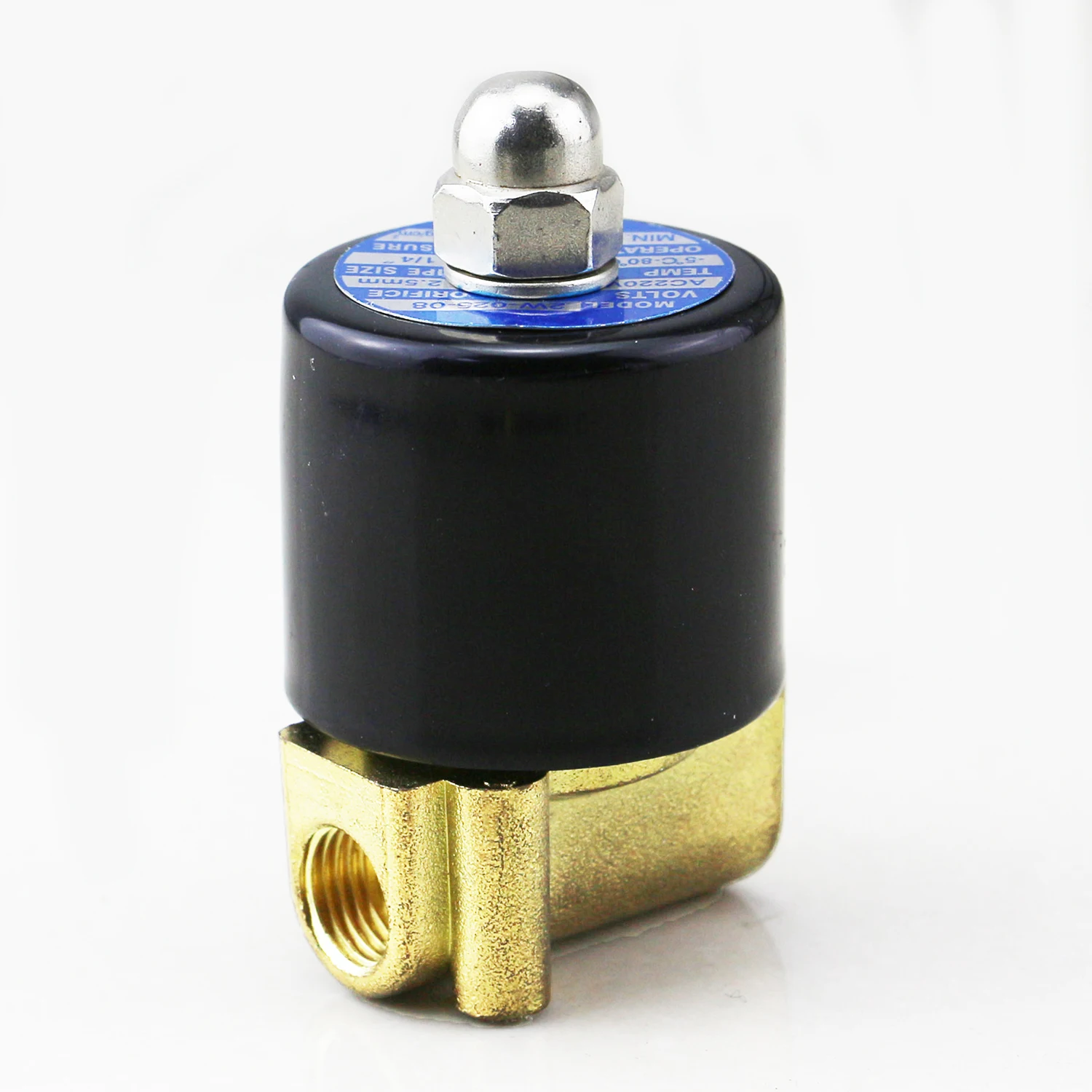

More products:

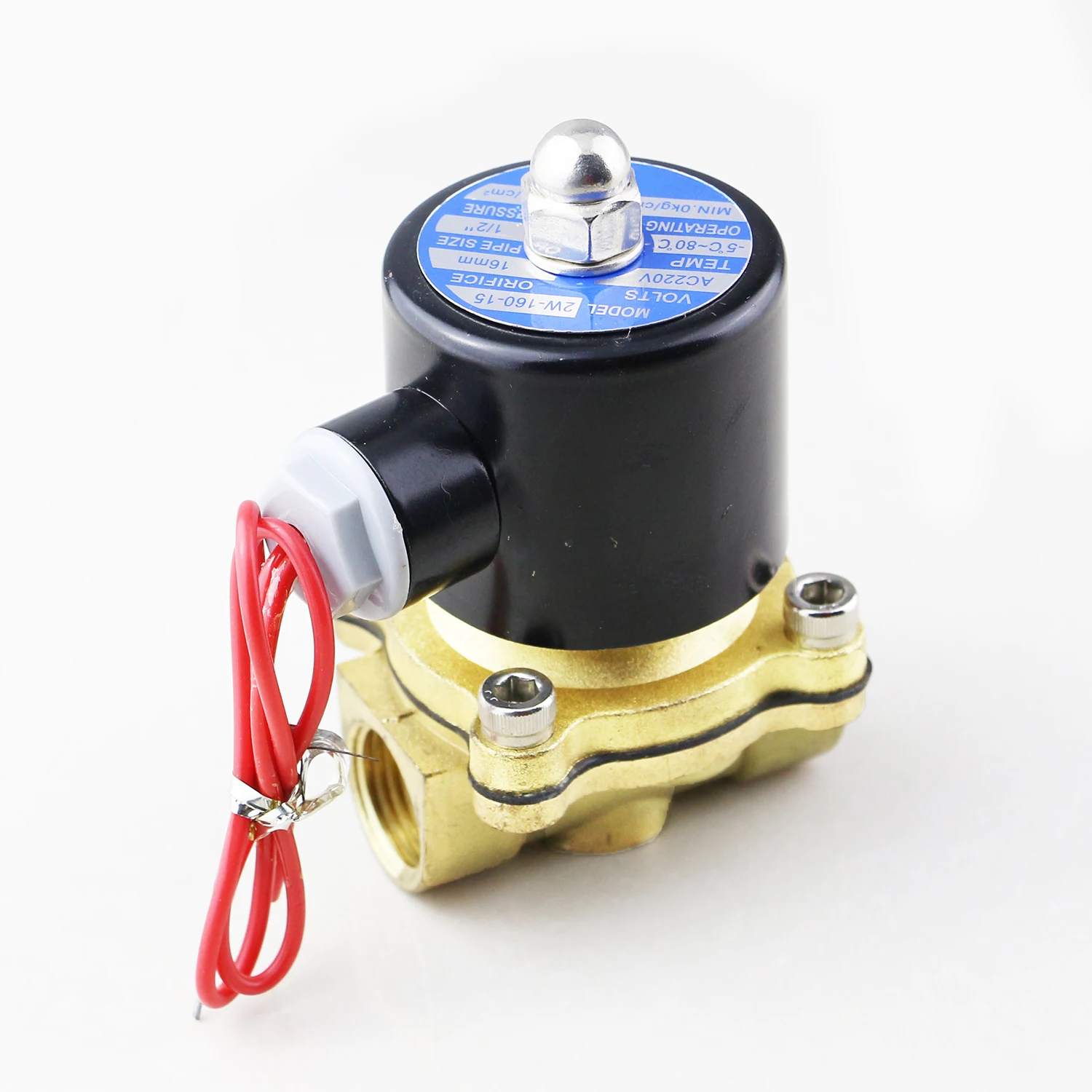

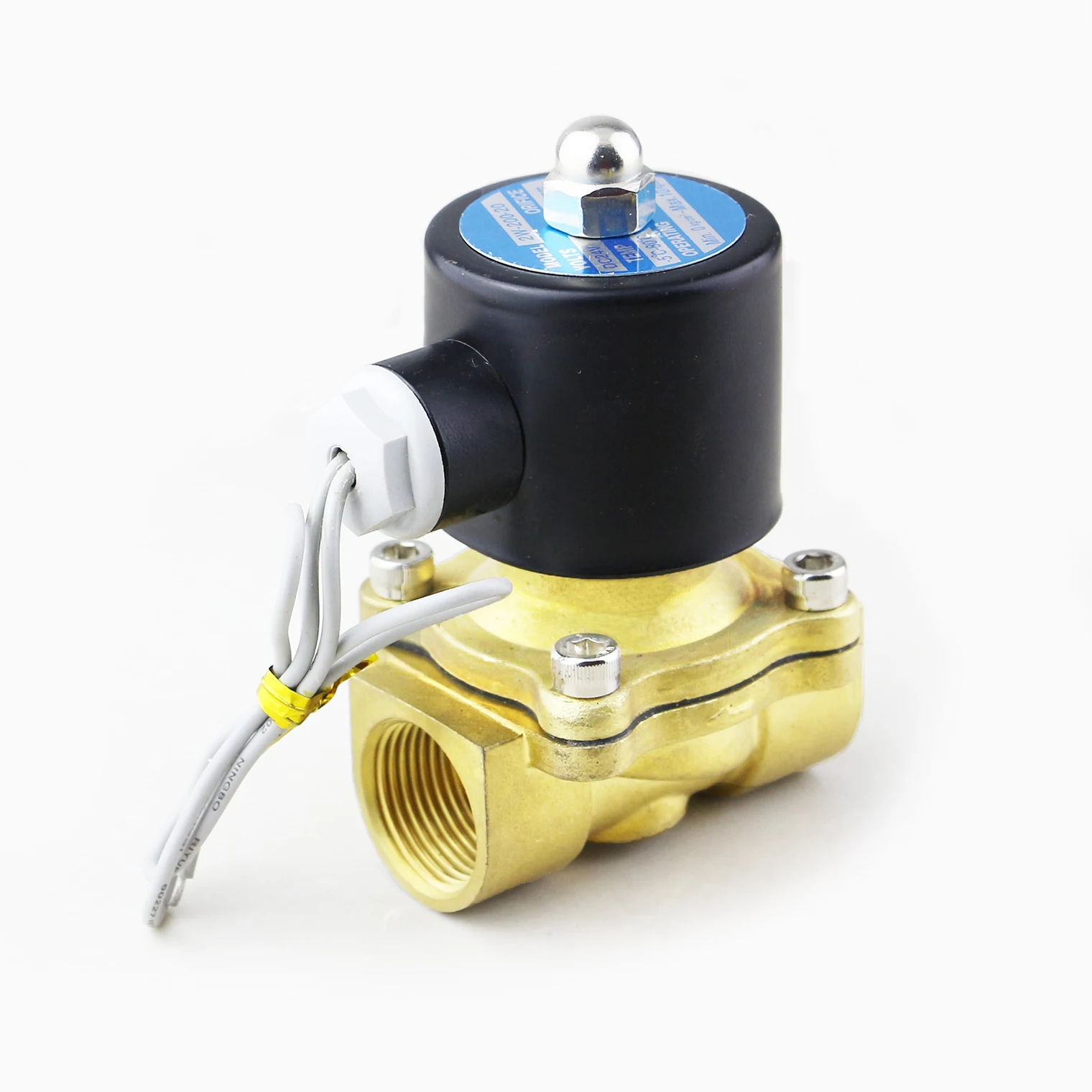

2W025-08 2W160-15 2W200-20 2W250-25
(G1/4) (G1/2) (G3/4) (G1)
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Solenoid Valve by one box packing.
Q: What Voltage you can offer
A: AC220V/DC24V/DC12V/AC110V/AC24V
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Solenoid Valve by one box packing.
Q: What Voltage you can offer
A: AC220V/DC24V/DC12V/AC110V/AC24V
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
