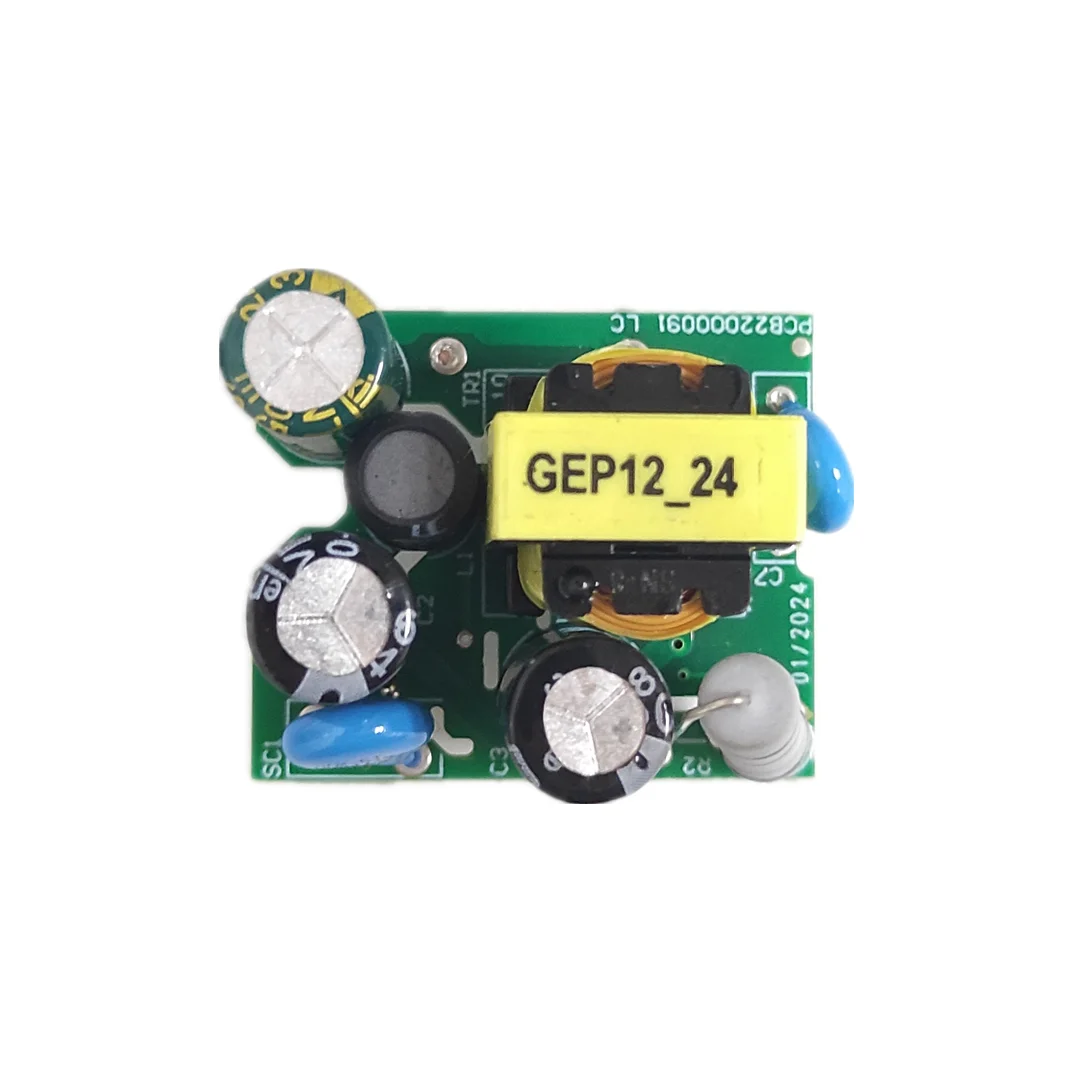

Mini size PCBA AC 100 240V open frame SMPS 5V 6V 12V power adapter DC 24V 4W power supply board for CCTV System Digital Camera
- Category: >>>
- Supplier: Shenzhen Gofern Electronic Co. Ltd.
Share on (1601074946244):
Product Overview
Description
Mini size PCBA AC-100-240V open frame SMPS 5V 6V 12V power adapter DC 24V 4W power supply board for CCTV System Digital Camera
Product Description
Fatures:
* Low power consumption, high reliability
* Protections: Short circuit/Over load/Over voltage
* Cooling by free air convection
* 100% full loading burn-in test
* 2 years warranty
* AC86-264V input
| OUTPUT | DC VOLTAGE | 24V |
| OUTPUT POWER | 4W | |
| CURRENT RANGE | 0.16A | |
| RIPPLE & NOISE(max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | ±10% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| VOLTAGE TOLERANCE | ±2.0% | |
| SETUP,RISE TIME | 800ms, 50ms at full load | |
| HOLD UP TIME | 60ms | |
| INPUT | VOLTAGE RANGE | 100-240VAC |
| AC CURRENT(Typ.) | 0.35A/ 116VAC 0.18A/ 240VAC | |
| FREQUENCY RANGE | 47-63Hz | |
| EFFICIENCY(Typ.) | 78% | |
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |
| LEAKAGE CURRENT | <0.5mA/240VAC | |
| PROTECTION | OVER LOAD | 115%~135% of rated output voltage |
| SHORT CIRCUIT | voltage off and reset input for recovers | |
| ENVIRONMENT | WORKING TEMP. | -0℃ ~ +45℃ (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃ | |
| COOLING METHOD | BY FREE AIR CONVECTION | |
| SAFTY & EMC | WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |
| SAFTY STANDARDS | Refer to CE EN60950-1 | |
| EMC STANDARDS | Refer to EN55022,EN55024,EN61000 | |
| OTHERS | DIMENSION | L30.5*W25.5MM |
| WEIGHT | 200PCS/Carton/2.9KG | |
| SHELL MATERIAL | NONE |

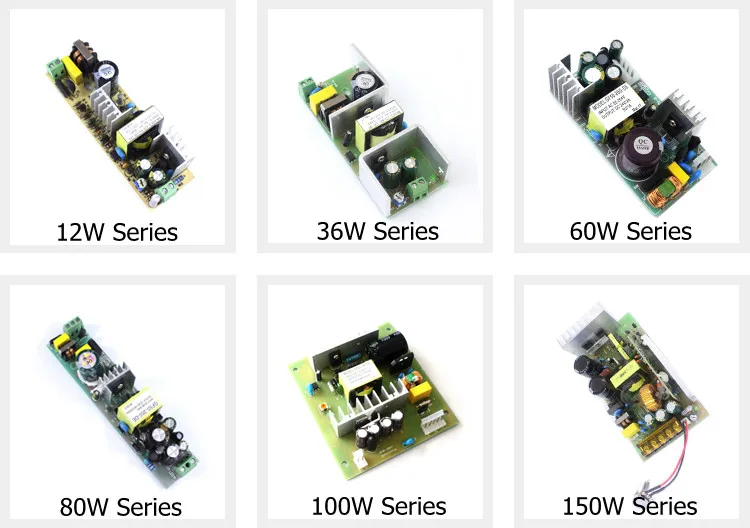

Related Products
Application
Company Information
Shenzhen Gofern Electronic Co., Ltd. was established in 2006 and is located in Shenzhen of China. We are a professional manufacturer specialized in the development and production for switching power supplies , including industry power supply, communication device power supply, din rail power supply, UPS power supply, power adapters. We committed to offer good quality a complete set of products to every customer. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Our Client
Certifications
Packaging & Shipping
FAQ
MOQ-
No limited
Many power models-
5 Watts - 1800 Watts
Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).
New Design-
We have professional engineer to make new design as your speical requirment.
Good quality-
We have the best professional and experienced engineer and the strict QC system.
Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.
Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.
Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.
Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
