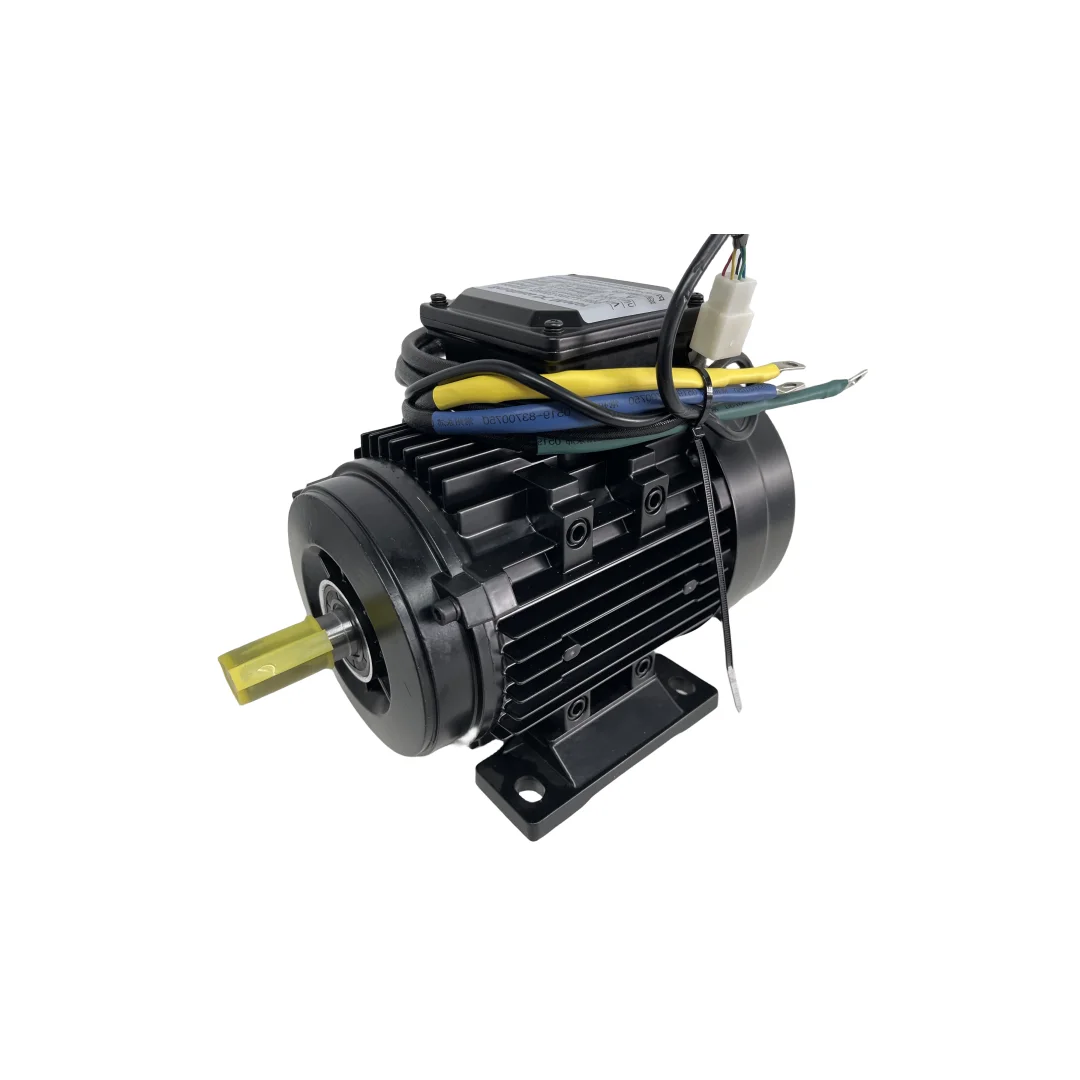

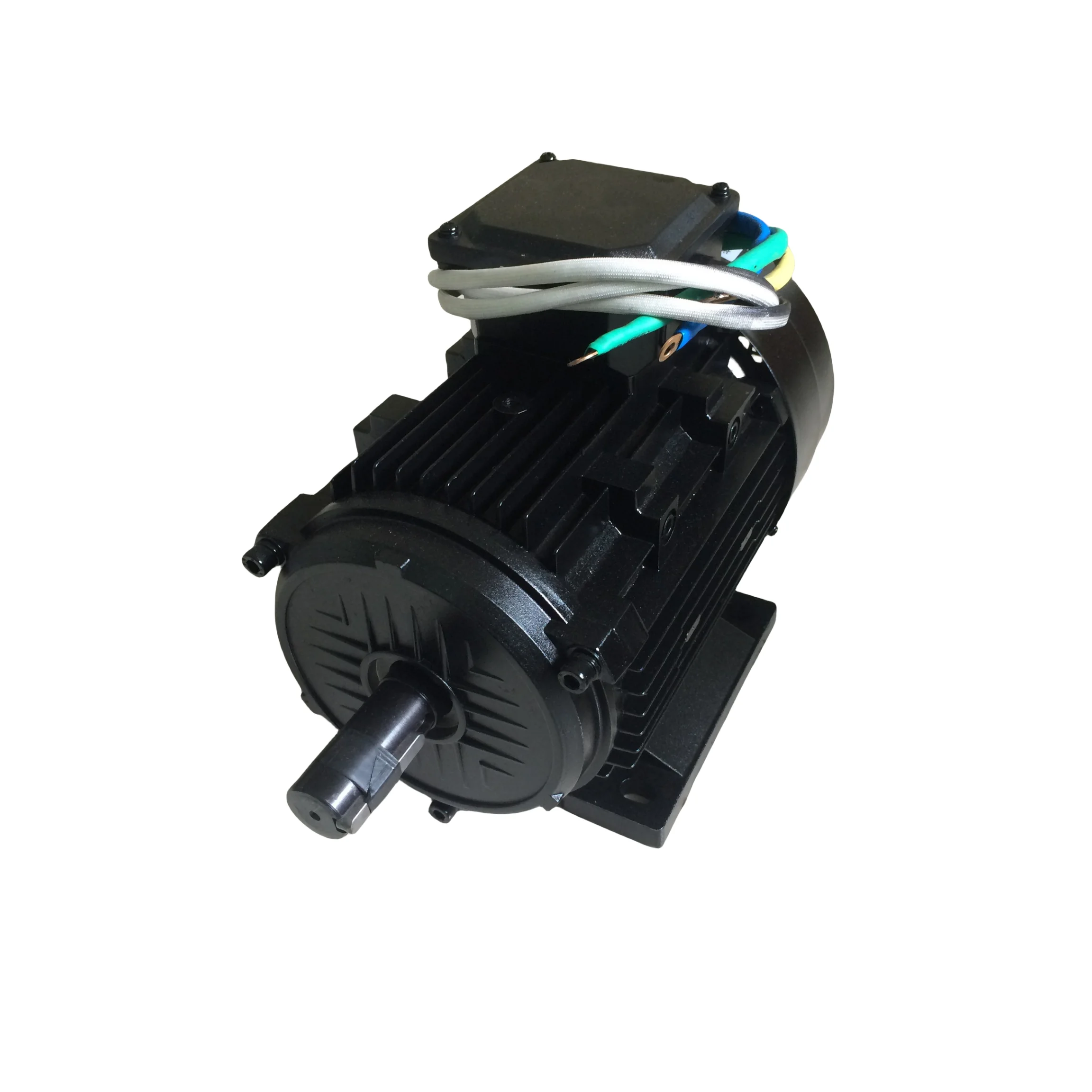

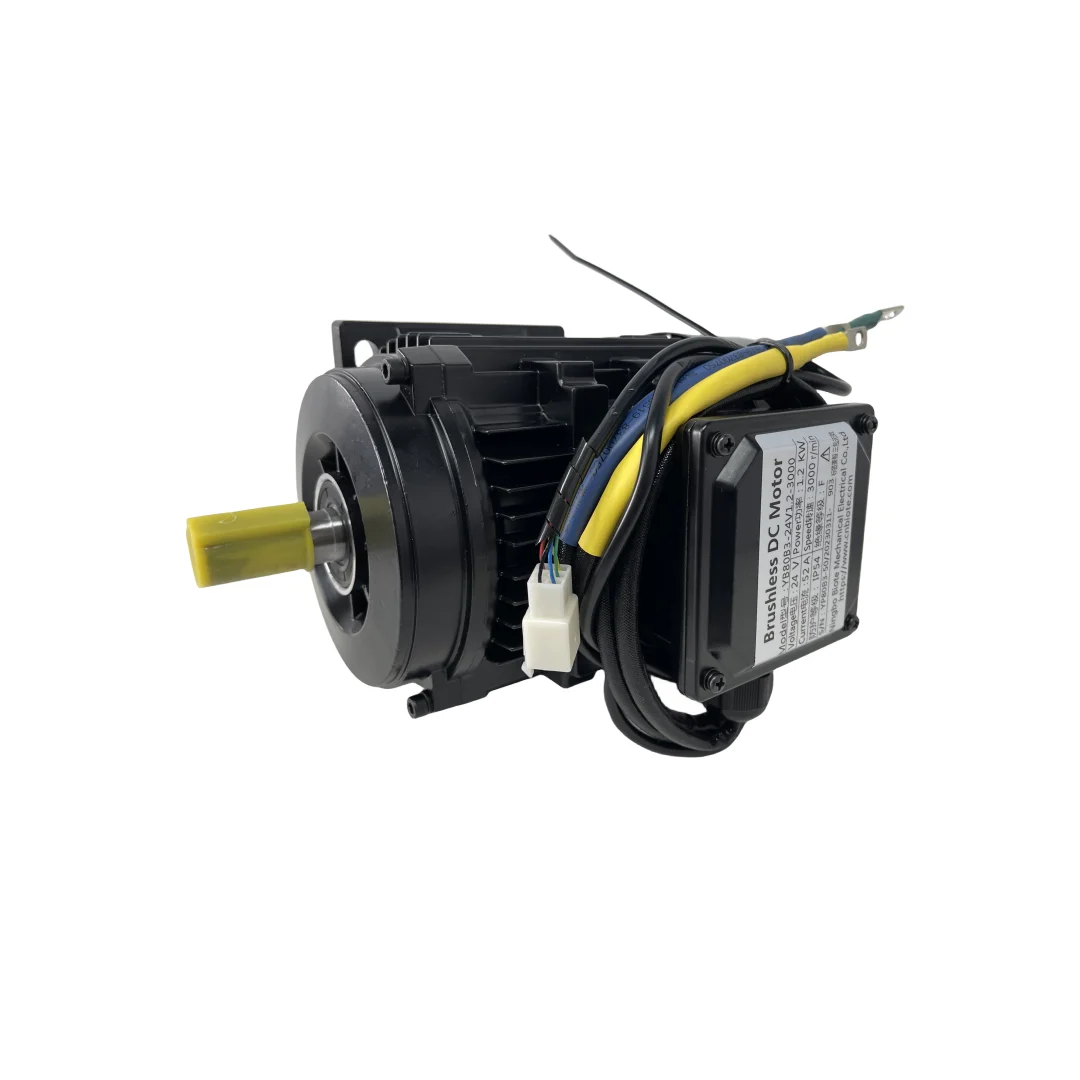

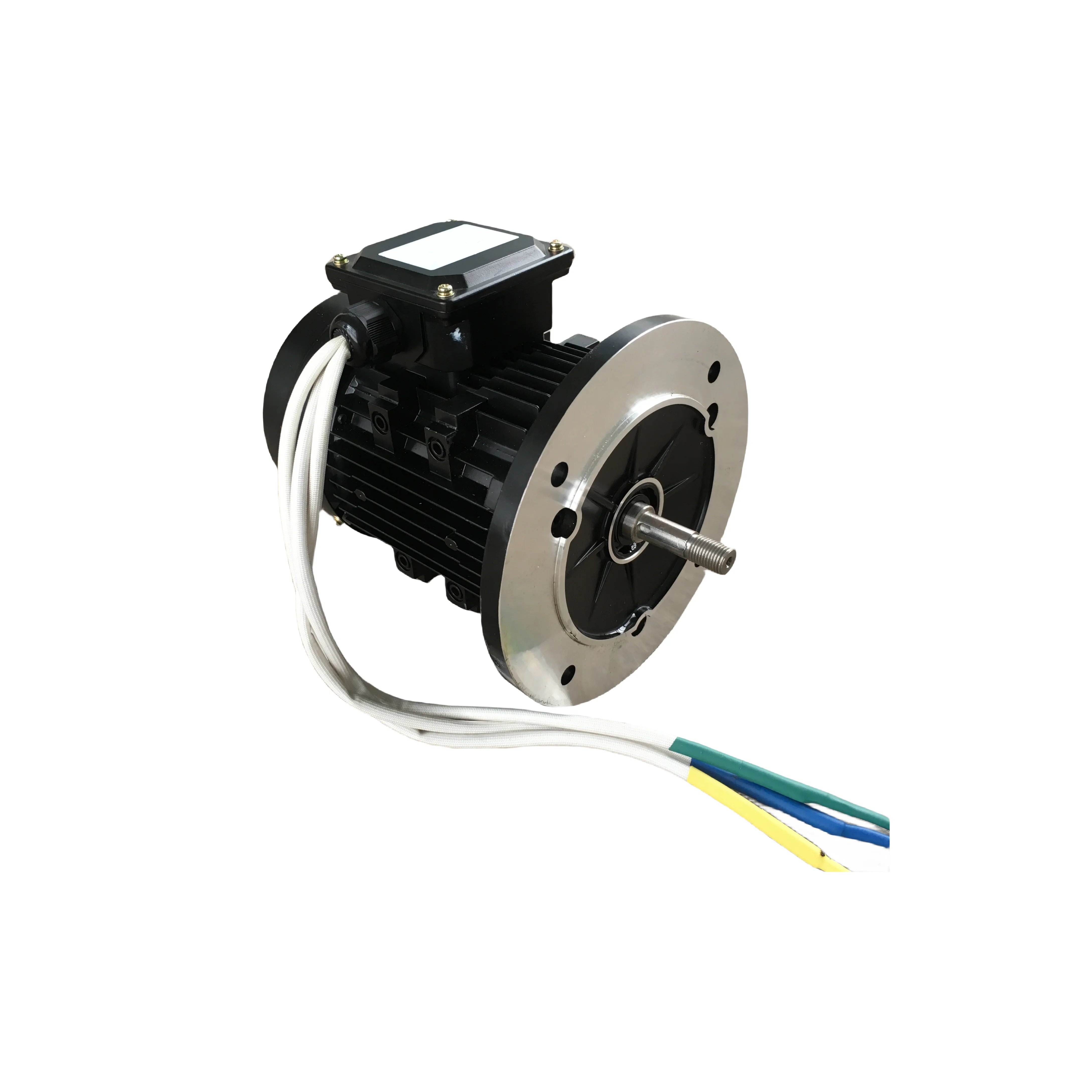

132mm Motor Frame Brushless DC Motor BLDC Motor 72V 6.3KW 1500RPM for Industrial DC Traction Drive Control
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1601074947277):
Product Overview
Description
Product Details
Large starting torque, small starting current
Better speed versus torque characteristics
High dynamic response
High efficiency
Long operating life, maintenance-free
Long operating life, maintenance-free
Noiseless operation
Higher speed ranges
Type | Voltage (VDC) | Power (KW) | Speed (r/min) | Current (A) | Torque (N.m) |
YB80B3/5-24V0.55-1200 | 24 | 0.55 | 1200 | 25 | 4.4 |
YB80B3/5-24V0.75-1500 | 24 | 0.75 | 1500 | 34 | 4.8 |
YB80B3/5-24V1.1-1500 | 24 | 1.1 | 1500 | 50 | 7.0 |
YB80B3/5-24V1.2-3000 | 24 | 1.2 | 3000 | 55 | 3.8 |
YB80B3/5-24V1.5-2000 | 24 | 1.5 | 2000 | 69 | 7.1 |
YB80B3/5-48V0.75-1500 | 48 | 0.75 | 1500 | 17 | 4.8 |
YB80B3/5-48V1.1-1500 | 48 | 1.1 | 1500 | 25 | 7.0 |
YB80B3/5-48V1.2-3000 | 48 | 1.2 | 3000 | 28 | 3.8 |
YB80B3/5-48V2.2-3000 | 48 | 2.2 | 3000 | 50 | 7.0 |
YB90B3/5-24V1.5-1500 | 24 | 1.5 | 1500 | 69 | 9.5 |
YB90B3/5-24V1.8-1500 | 24 | 1.8 | 1500 | 83 | 12.7 |
YB90B3/5-36V1.5-1500 | 36 | 1.5 | 1500 | 46 | 9.5 |
YB90B3/5-36V2.0-1500 | 36 | 2.0 | 1500 | 61 | 12.7 |
YB90B3/5-48V1.5-1500 | 48 | 1.5 | 1500 | 34 | 9.5 |
YB90B3/5-48V2.0-1500 | 48 | 2.0 | 1500 | 46 | 12.7 |
YB90B3/5-48V2.5-2800 | 48 | 2.5 | 2800 | 57 | 8.5 |
YB90B3/5-48V3.0-2800 | 48 | 3.0 | 2800 | 69 | 10.2 |
YB90B3/5-60V1.5-1500 | 60 | 1.5 | 1500 | 28 | 9.5 |
YB90B3/5-60V2.0-1500 | 60 | 2.0 | 1500 | 37 | 12.7 |
YB90B3/5-60V3.0-3000 | 60 | 3.0 | 3000 | 55 | 9.5 |
YB90B3/5-72V2.0-1500 | 72 | 2.0 | 1500 | 31 | 12.7 |
YB100B3/5-36V2.2-1500 | 36 | 2.2 | 1500 | 67 | 13.9 |
YB100B3/5-48V2.2-1500 | 48 | 2.2 | 1500 | 50 | 13.9 |
YB100B3/5-48V3.0-1500 | 48 | 3.0 | 1500 | 69 | 19.0 |
YB100B3/5-48V4.0-3200 | 48 | 4.0 | 3200 | 92 | 12.0 |
YB100B3/5-48V4.0-2000 | 48 | 4.0 | 2000 | 92 | 19.0 |
YB100B3/5-60V2.2-1500 | 60 | 2.2 | 1500 | 40 | 13.9 |
YB100B3/5-60V3.0-1500 | 60 | 3.0 | 1500 | 55 | 19.0 |
YB100B3/5-60V5.0-2800 | 60 | 5.0 | 2800 | 92 | 17.0 |
YB100B3/5-72V5.0-3200 | 72 | 5.0 | 3200 | 76 | 14.8 |
YB100B3/5-72V6.3-3200 | 72 | 6.3 | 3200 | 96 | 18.7 |
YB100B3/5-96V3.0-1500 | 96 | 3.0 | 1500 | 34 | 19.0 |
YB112B3/5-48V4.0-1500 | 48 | 4.0 | 1500 | 92 | 25.3 |
YB112B3/5-48V5.0-1800 | 48 | 5.0 | 1800 | 115 | 26.4 |
YB112B3/5-60V4.0-1500 | 60 | 4.0 | 1500 | 73 | 25.3 |
YB112B3/5-60V5.0-1800 | 60 | 5.0 | 1800 | 92 | 26.4 |
YB112B3/5-72V5.5-1500 | 72 | 5.5 | 1500 | 84 | 34.8 |
YB112B3/5-72V6.3-2000 | 72 | 6.3 | 2000 | 96 | 30.0 |
YB112B3/5-72V7.5-2800 | 72 | 7.5 | 2800 | 115 | 25.4 |
YB112B3/5-96V7.5-2800 | 96 | 7.5 | 2800 | 86 | 25.4 |
YB112B3/5-110V4.0-1500 | 110 | 4.0 | 1500 | 40 | 25.3 |
YB112B3/5-110V5.5-1500 | 110 | 5.5 | 1500 | 55 | 34.8 |
YB132B3/5-48V6.3-1500 | 48 | 6.3 | 1500 | 144 | 40 |
YB132B3/5-72V6.3-1500 | 72 | 6.3 | 1500 | 96 | 40 |
YB132B3/5-72V9.0-1500 | 72 | 9.0 | 1500 | 138 | 57 |
YB132B3/5-96V6.3-1500 | 96 | 6.3 | 1500 | 72 | 40 |
YB132B3/5-96V9.0-1500 | 96 | 9.0 | 1500 | 103 | 57 |
YB132B3/5-96V10.0-3000 | 96 | 10.0 | 3000 | 115 | 32 |
YB132B3/5-110V5.5-1500 | 110 | 5.5 | 1500 | 55 | 35 |
YB132B3/5-110V7.5-1500 | 110 | 7.5 | 1500 | 75 | 48 |
YB132B3/5-120V11.0-3000 | 120 | 11.0 | 3000 | 101 | 35 |
YB132B3/5-120V15.0-3200 | 120 | 15.0 | 3200 | 138 | 45 |
