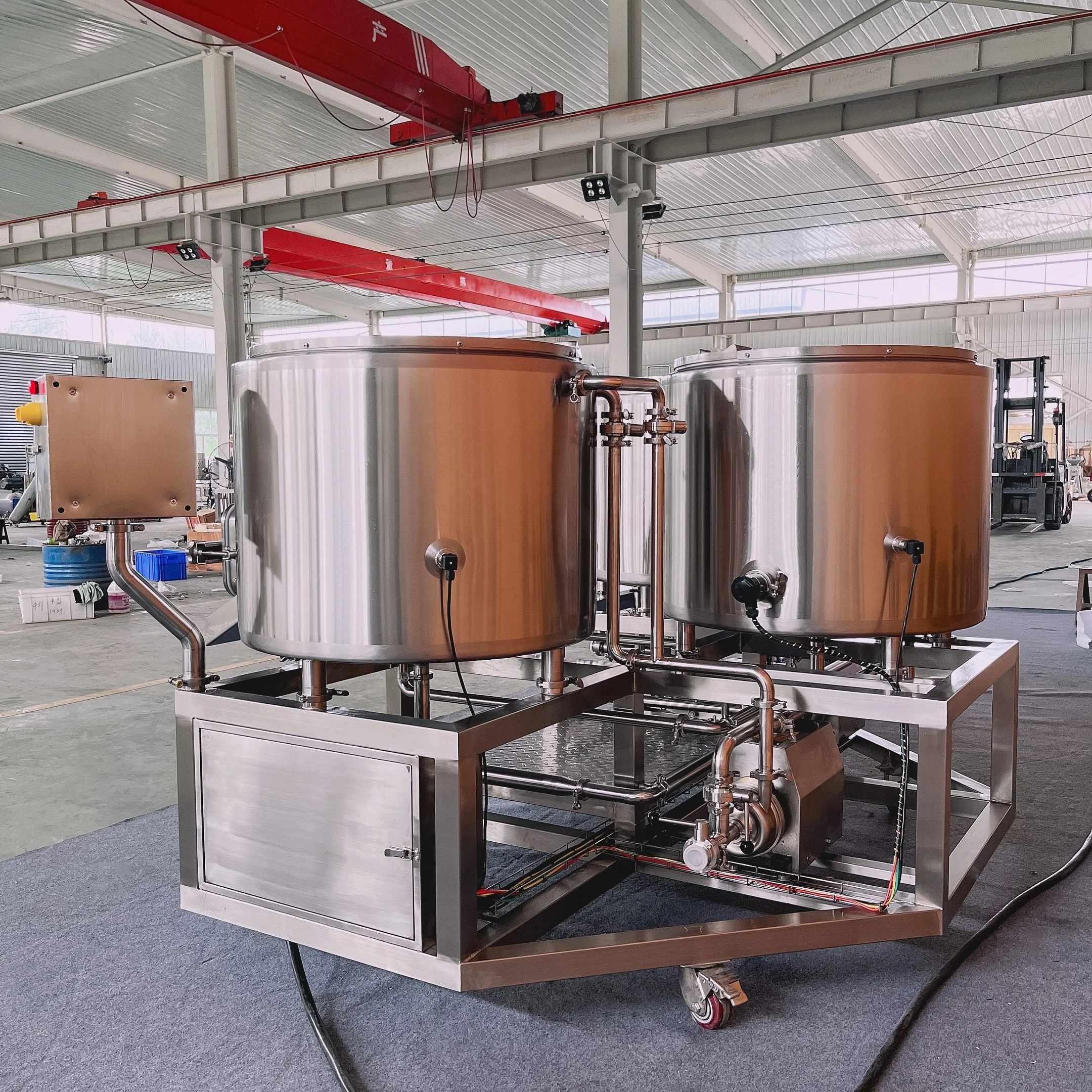

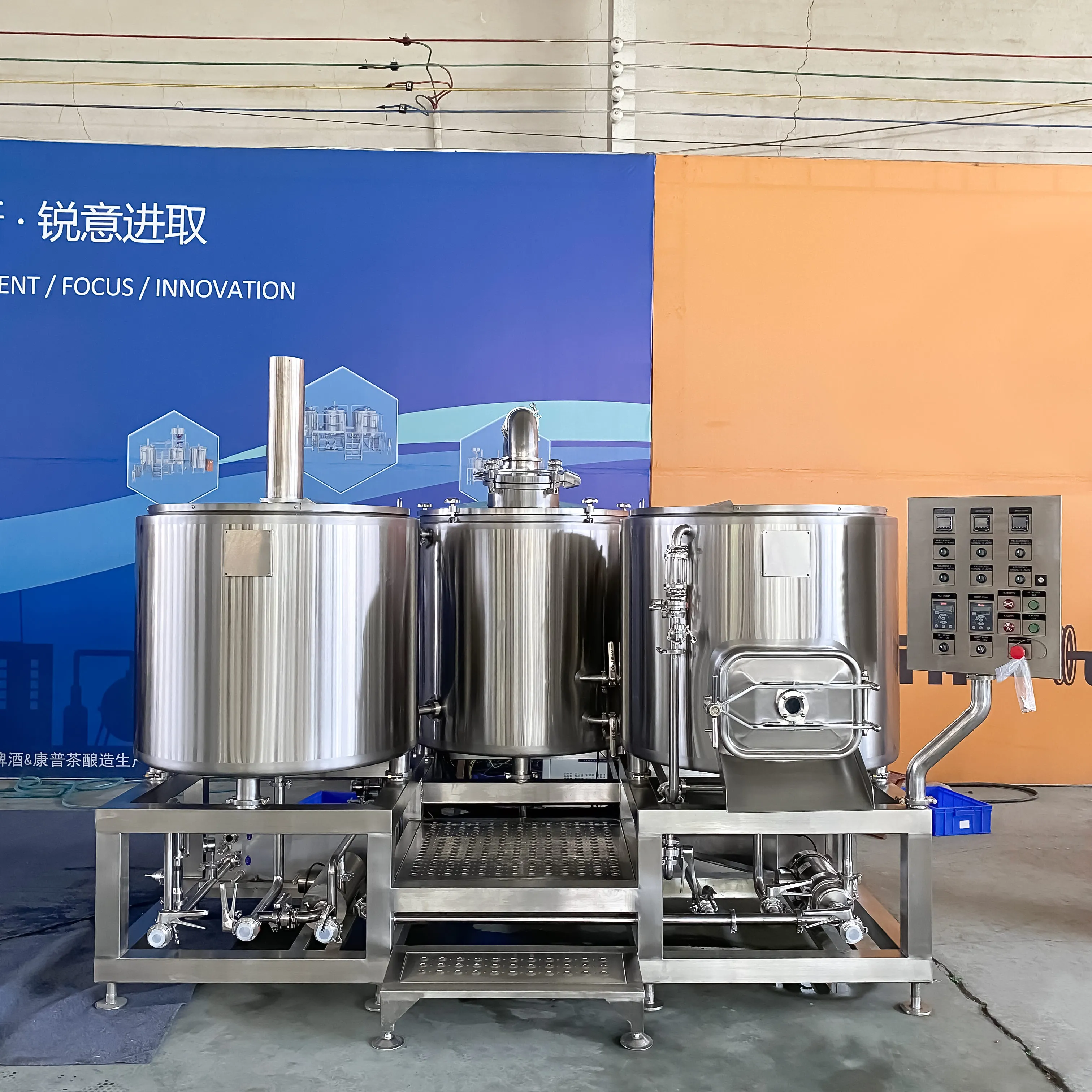

CARRY 200L STAR Series 3 vessel Brewhouse Micro Home Brewing System Turnkey Project suitable for novice winemakers
- Category: >>>
- Supplier: Shandong Carry Equipment Co. Ltd.
Share on (1601075005204):
Product Overview
Description
> Applicable people
This is designed for microbrewers who want to star own brewery and want to expand brand specially.
> Smart
Mini scale industrial brewing equipment, with all the scaled down parts&fittings, you will full in love with this optimized Brew center.
> Turnkey Solution
> Turnkey Solution
Installed& wiring ready on a fully welded frame platform, nothing can be easier for your pilot beer brewing jobs.

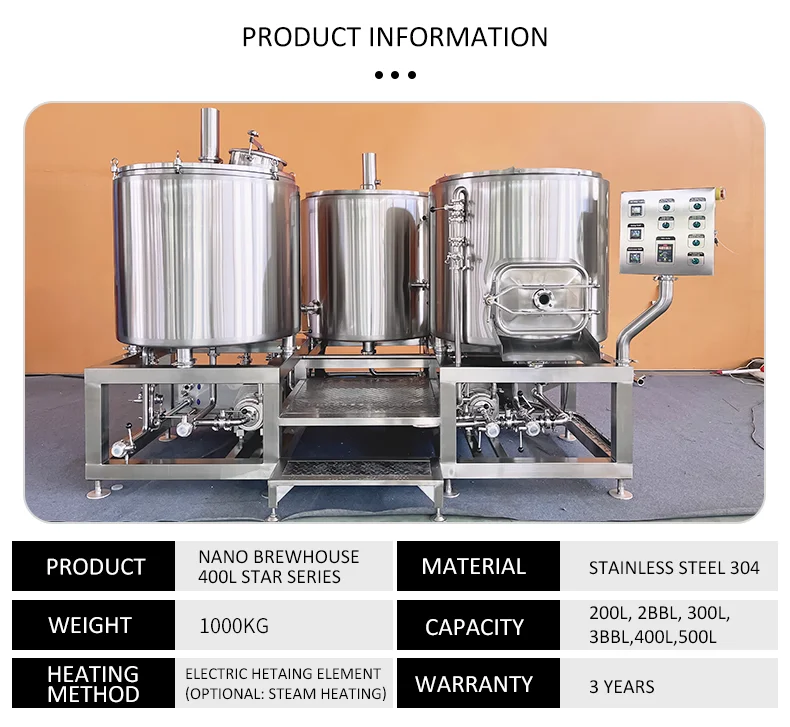

PRODUCT OVERVIEW
PRODUCT DETAILS

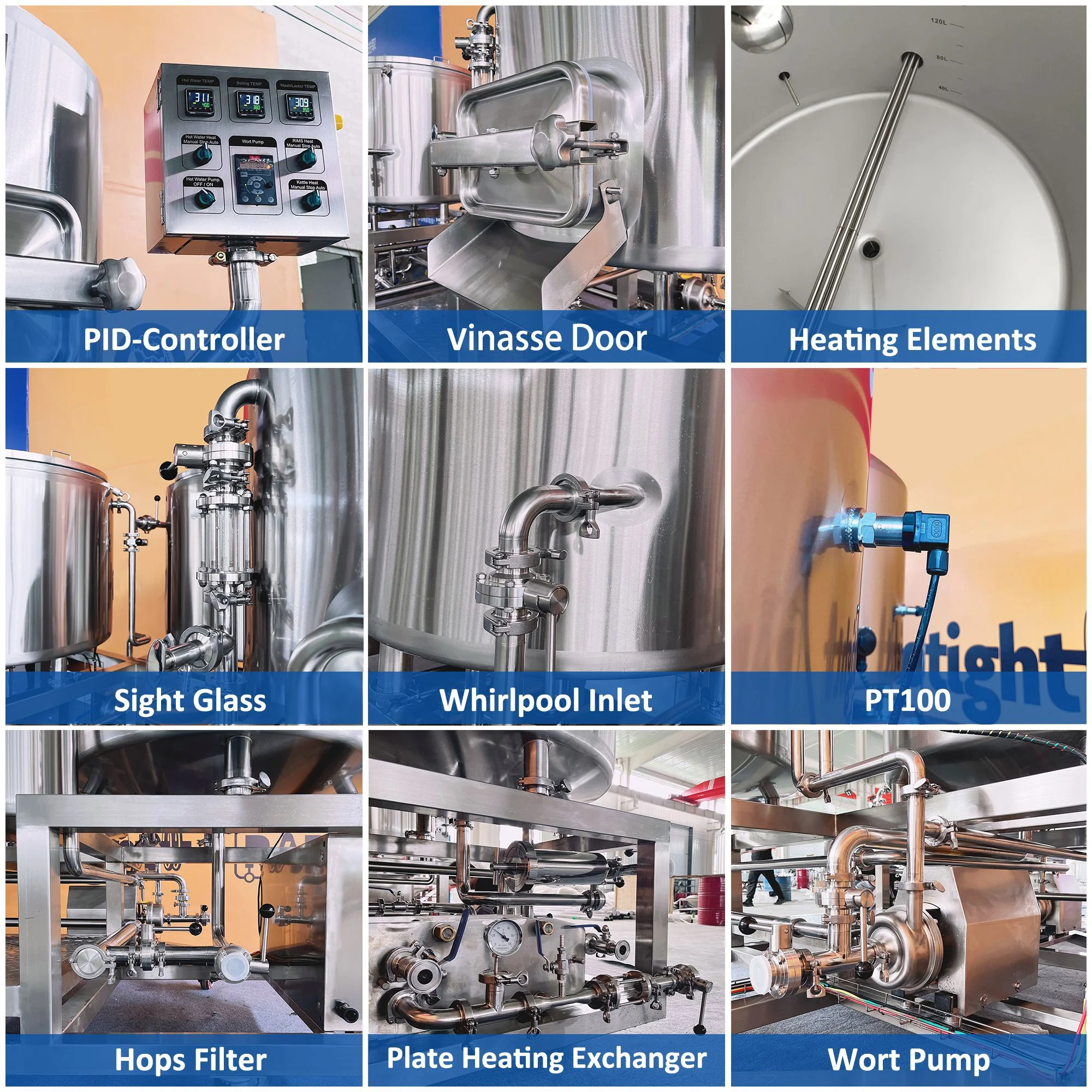

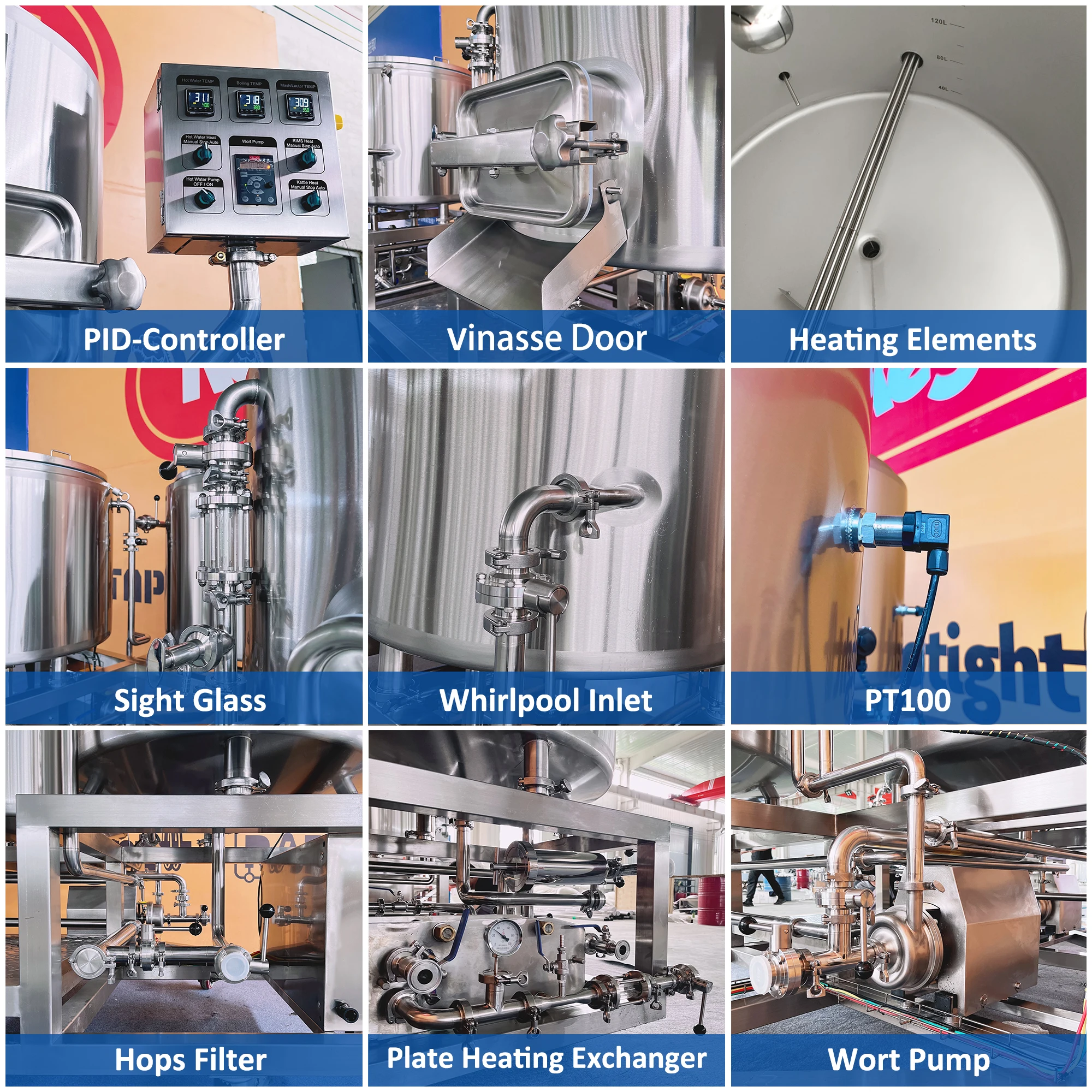

• 1 - Mash/Lauter Tank:
1. Effective volume=200L, max volume=280L
2. Atmospheric manual open top lid
3. Tri-clamp Spary Ring Tube
4. Wort backflow pipeline equip with Sight glass
5. Removable false bottom

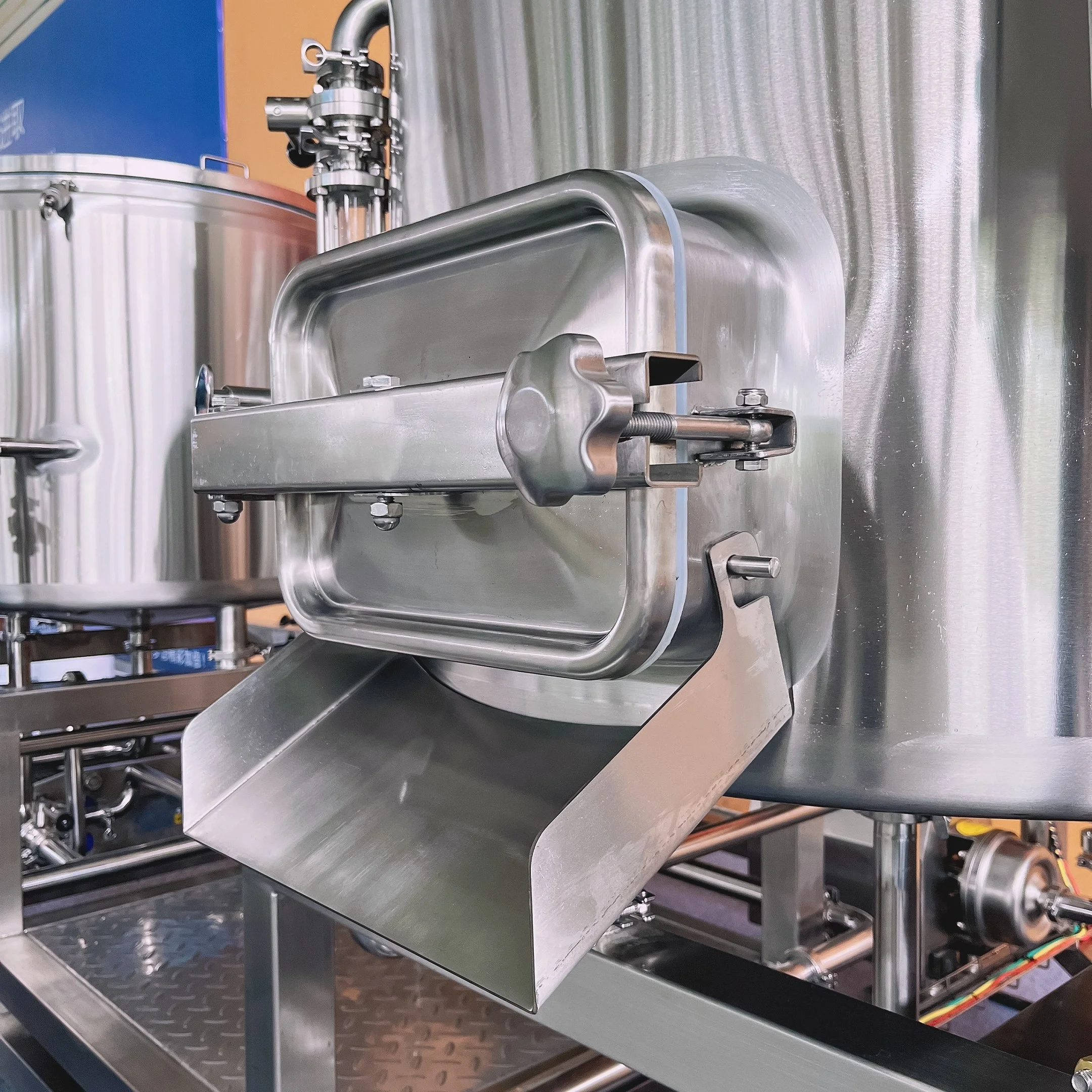

6. Grain out door & Grain Chute& Manual rake
7. Temperature Probe&PT-100
8. With level mark inside of tank
2. Atmospheric manual open top lid
3. Tri-clamp Spary Ring Tube
4. Wort backflow pipeline equip with Sight glass
5. Removable false bottom
6. Grain out door & Grain Chute& Manual rake
7. Temperature Probe&PT-100
8. With level mark inside of tank
• 2 - Kettle/Whirlpool Tank:
1. Effective volume=200L, max volume=280L
2. Atmospheric manual open top lid
3. 12kw electric element
4. Tangent whirlpool inlet
5. Add baffle near the whirlpool outlet
6. whirlpool outlet to be more outwardly from bottom drain port
7. Tri-clamp CIP Ball on the lid
8. Temperature Probe & PT-100
9. with level mark inside of tank
2. Atmospheric manual open top lid
3. 12kw electric element
4. Tangent whirlpool inlet
5. Add baffle near the whirlpool outlet
6. whirlpool outlet to be more outwardly from bottom drain port
7. Tri-clamp CIP Ball on the lid
8. Temperature Probe & PT-100
9. with level mark inside of tank
• 3 - Hot Liquor Tank:
1. Effective volume=200L, max volume=280L
2. Atmospheric manual open top lid
3. 12kw electric element
4. With 1T/H Hot water pump
5. Temperature Probe&PT-100
6. with level mark inside of tank etc.
2. Atmospheric manual open top lid
3. 12kw electric element
4. With 1T/H Hot water pump
5. Temperature Probe&PT-100
6. with level mark inside of tank etc.
If you want to know more configuration of this equipment, don't hesitate to come and inquire!
OTHER SYSTEM
Leo Series 2-vessel:
Left: Mash/Lauter tank
Right: Kettle/Whirlpool tank
*Transparent glass manhole
*Top mounted Grain raker(VFD Speed control)
*Outdoor condensing pipe to prevent liquid back-flow
*PID control cabinet
*Yeast adding tank
*Platform with stairs and guardrails
*Wort pump
*Balance tank

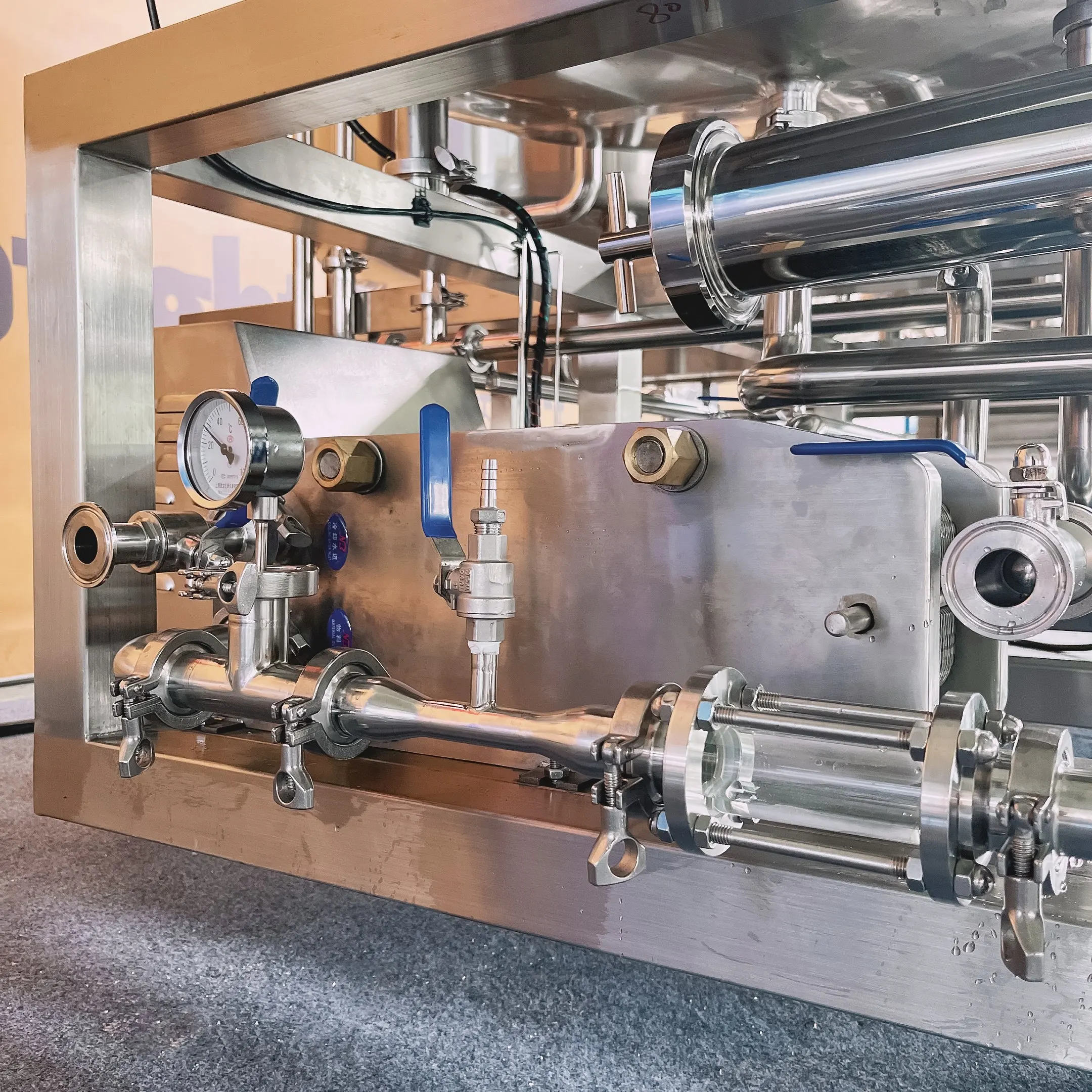

*PHE
*etc.
Combined 2-vessel Brewhouse
Left: Mash/lauter and whirlpool tank
Right: Kettle tank
*Transparent glass manhole
*Top mounted Grain raker(VFD Speed control)
*Indoor condensing pipe to prevent liquid back-flow
*PID control cabinet
*Yeast adding tank
*Platform with stairs and guardrails
*Wort pump
*Balance tank
*PHE
*etc.
*Top mounted Grain raker(VFD Speed control)
*Indoor condensing pipe to prevent liquid back-flow
*PID control cabinet
*Yeast adding tank
*Platform with stairs and guardrails
*Wort pump
*Balance tank
*PHE
*etc.
NOVA Series 2-vessel Brewhouse
Left: Kettle/Whirlpool tank
Right: Mash/Lauter tank
*NO2 assisted manual open top lid
*Top mounted Grain raker(VFD Speed control)
*NO2 assisted manual open top lid
*Top mounted Grain raker(VFD Speed control)
*Indoor condensing pipe to prevent liquid back-flow
*PID control cabinet
*Yeast adding tank
*Platform with stairs and guardrails
*Wort pump
*Balance tank
*PHE
*etc.
*PID control cabinet
*Yeast adding tank
*Platform with stairs and guardrails
*Wort pump
*Balance tank
*PHE
*etc.

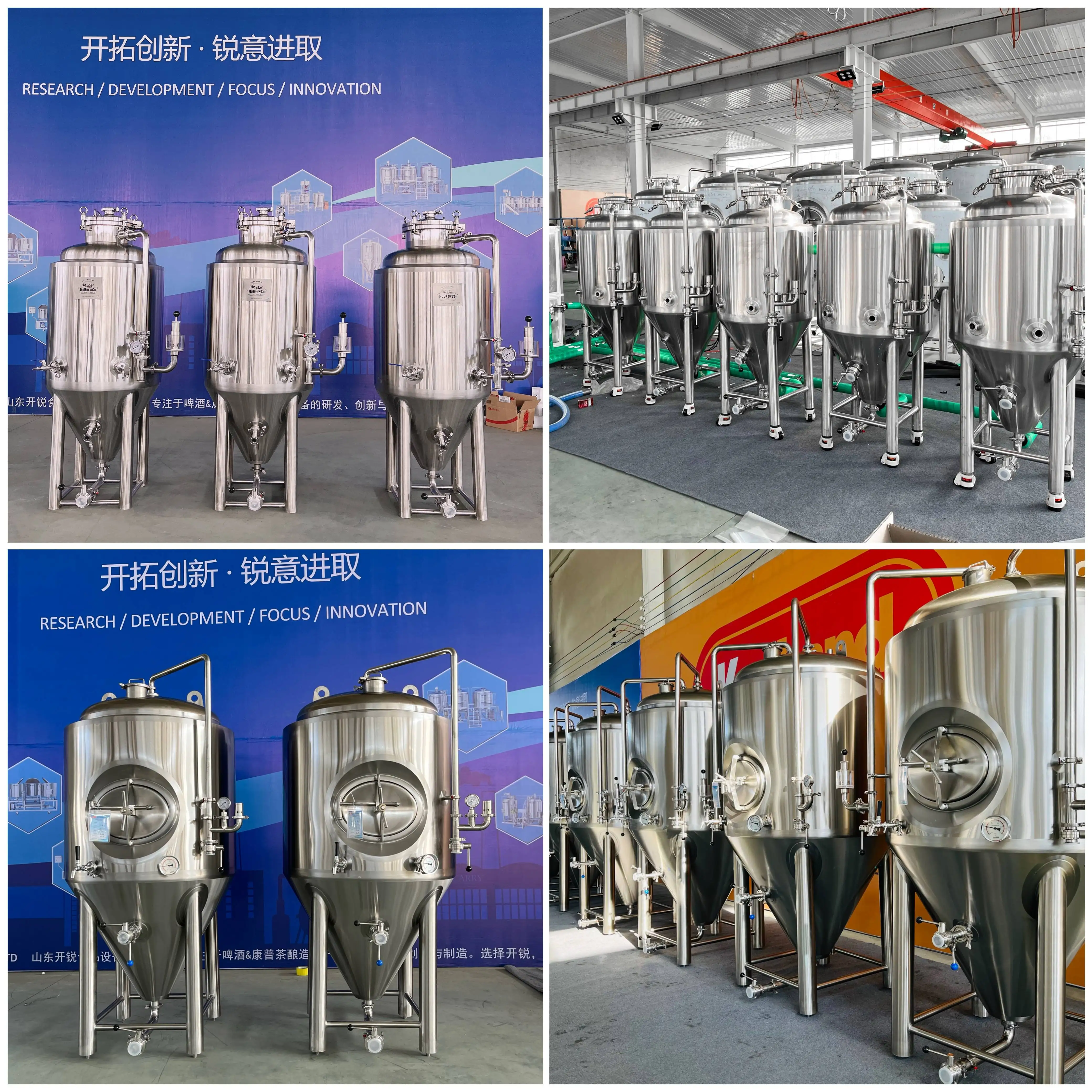

1. Fermentation Tank (100L ~50HL)
*360° spray ball equip with CIP arm
*Pressure Relief valve on the top
*Spunding valve & Pressure gauge on CIP arm *Sampling Valve
*Temperature Gauge
*Standard Rotary Racking arm connect with *Beer outlet
*Bottom Drain port
*Glycol cooling jacket with Tri-clamp
*inlet&outlet
*Temperature Probe & PT-100
*4 x strong duty legs with leveling pads *Optional: Carbonation stone & fittings,etc.
*Spunding valve & Pressure gauge on CIP arm *Sampling Valve
*Temperature Gauge
*Standard Rotary Racking arm connect with *Beer outlet
*Bottom Drain port
*Glycol cooling jacket with Tri-clamp
*inlet&outlet
*Temperature Probe & PT-100
*4 x strong duty legs with leveling pads *Optional: Carbonation stone & fittings,etc.
2. Brite Tank (100L ~50HL)
*Side Manway
*360° spray ball equip with CIP arm
*Pressure gauge & Spunding valve on CIP arm
*Sample Valve
*Sample Valve
*Temperature probe: PT-100
*Carbonation Stone equipped on tank
*Cooling jacket: Dimpled plate on cone and side
*Bottom drain port
*Bottom drain port
*Level Tube
*4 x strong duty legs with leveling pads
3. CIP Cleaning system (50L-500L)
*Disinfection tank
* The size of the tanks you will be cleaning
* The geometry of the tanks (conical vs. dish bottom)
* The rated flow rate for the spray balls or nozzles that came with your tanks.
*Alkali tank
*Cleaning Pump
*PID Control panel
*2*2m Wort Hose
*Cleaning Pump
*PID Control panel
*2*2m Wort Hose
What size Mobile CIP Cart is right for you?
* The size of the tanks you will be cleaning
* The geometry of the tanks (conical vs. dish bottom)
* The rated flow rate for the spray balls or nozzles that came with your tanks.
AUXILIARY MACHINE
1. 4&6&8 Head bottle filling machine
1.Dimension=2.73x0.85x2.20M, gross weight=245KG
2.Bottling capacity：320~420 pcs/h
3.Power supply: Single phase 110-240V 50/60Hz
4.Power consumption：200W
4.Power consumption：200W
5.Beer Source Pressure: 0.15Mpa
6.CO2 Regulator Pressure range: 0.15-0.2Mpa 7.Siemens PLC 200 smart
8.Beer bottle type: 300ml/500ml /750ml(customized)
8.Beer bottle type: 300ml/500ml /750ml(customized)

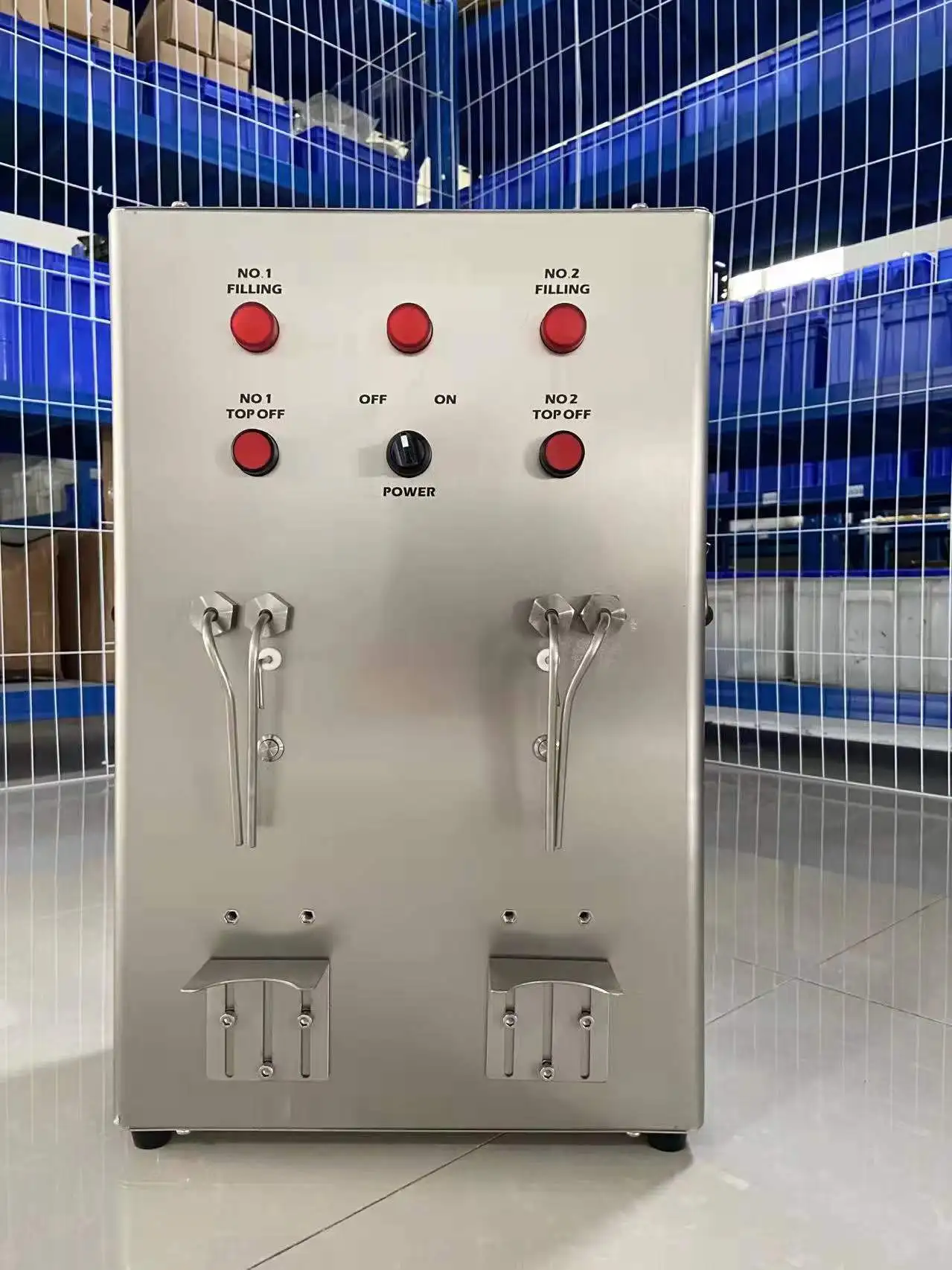

2. Double head-CAN filling machine
1.Dimension=0.55x0.40x0.80m, gross weight=20kg
2.Filling capacity: 3-4PCS/MIN/STATION | total 2 Stations
3.Filling Speed: 330ml-15s, 550ml - 20s 4.Power supply: Singel Phase 110V-240VAC 50/60Hz is default
5.Power consumption: 100w 6.Main Material is 304 Stainless steel
7.Beer Source Pressure:0.08-0.15MPa (12-22psi)
8.Co2 Pressure: 0.05-0.08MPa (9-12psi)
9.CO2 Regulator 20 psi from plant system connected to canning system with 3/8 OD barbed fitting
10.Installation source: CO2, Ice water (-2℃~ -1℃)
11.CanVolume type: 330ml-568ml
ABOUT US
* About Shandong Carry Equipment Co., Ltd.
Founded in 2017, Carry Brewtech has been supplying all kinds of customized Brewhouse,Fermenter, Bright tank, brewery auxiliaries, and system turnkey solutions to more than 800 customers all over the world,industries including Beer,Kombucha, Wine, Gin, Rum, etc.
FEEDBACK FROM CUSTOMER
PACKAGING & SHIPPING
FAQ
1. Who are we?
Carry Beer Equipment Co., Ltd. is located in Jinan, Shandong Province. It has ten years of experience in offlinebeer equipment production and has served over 300 customers from 50 countries worldwide. It has accumulated a large amount ofcustomer trust and sold a total of 700 beer equipment both online and offline within ten years, all of which have received high praise from customers
2. Our Advantages
A ：strict production process, production standards in accordance with EU standards
B ：Complete production qualifications and certificates
2. Our Advantages
A ：strict production process, production standards in accordance with EU standards
B ：Complete production qualifications and certificates
C：The variety of equipment can meet the different needs of different buyers for beer brewing.
D ：Wearable parts warranty for 1 year, equipment warranty for 3 years+
3. What can we do for you?
A one-stop solution to customize the most suitable equipment for you according to your needs, with pre-sales one-on-one engineer service and 24-hour online after-sales Q&A
4.Why did you choose us?
3. What can we do for you?
A one-stop solution to customize the most suitable equipment for you according to your needs, with pre-sales one-on-one engineer service and 24-hour online after-sales Q&A
4.Why did you choose us?
With ten years of experience in beer equipment production, we are more professional and possess an excellent service attitude. We have served 500 customers from over 40 countries around the world and developed exclusive solutions. In the past year, a total of 200 beer equipment have been sold.
5. What can we provide
Acceptable delivery conditions: FOB, CFR, CIF, EXW, FCA, DDU, express delivery Accepting payment
currencies: US dollars, euros, Japanese yen, Canadian dollars, Australian dollars, Hong Kong dollars, British pounds, Chinese yuan, Swiss francs; Accepted payment types: T/T, L/C, D/P D/A, credit card, PayPal, Western Union remittance, cash, custody;Oral: English, Chinese, Spanish, Japanese, German, French, Russian, Korean
5. What can we provide
Acceptable delivery conditions: FOB, CFR, CIF, EXW, FCA, DDU, express delivery Accepting payment
currencies: US dollars, euros, Japanese yen, Canadian dollars, Australian dollars, Hong Kong dollars, British pounds, Chinese yuan, Swiss francs; Accepted payment types: T/T, L/C, D/P D/A, credit card, PayPal, Western Union remittance, cash, custody;Oral: English, Chinese, Spanish, Japanese, German, French, Russian, Korean
