Growatt ARK HV LiFePO4 Lithium Battery 7.68kWh 10kWh 12.8kWh 15.36kWh 18kWh 20.48kWh 23kWh 25.6kWh Solar Energy Storage System
- Category: >>>
- Supplier: Anhui GP New Energy Co. Ltd.
Share on (1601075020490):
Product Overview
Description
OVERVIEW
Brands & Series

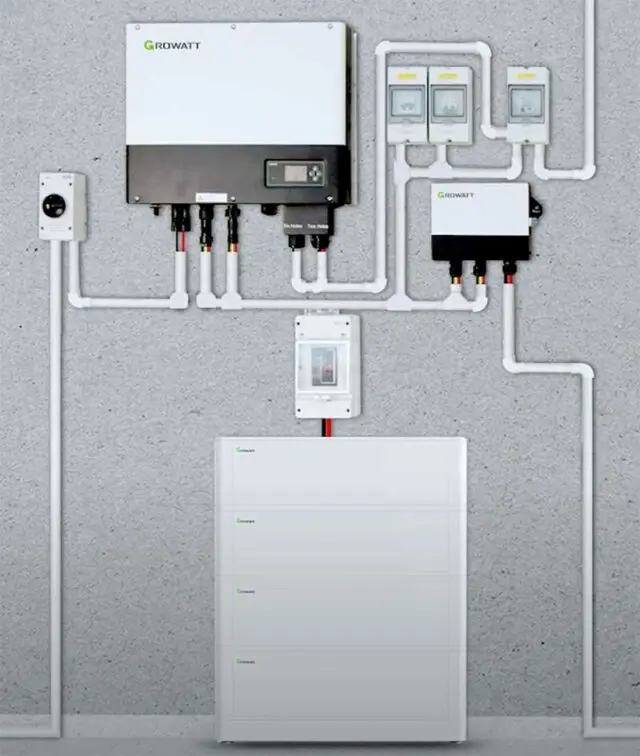

How It Works

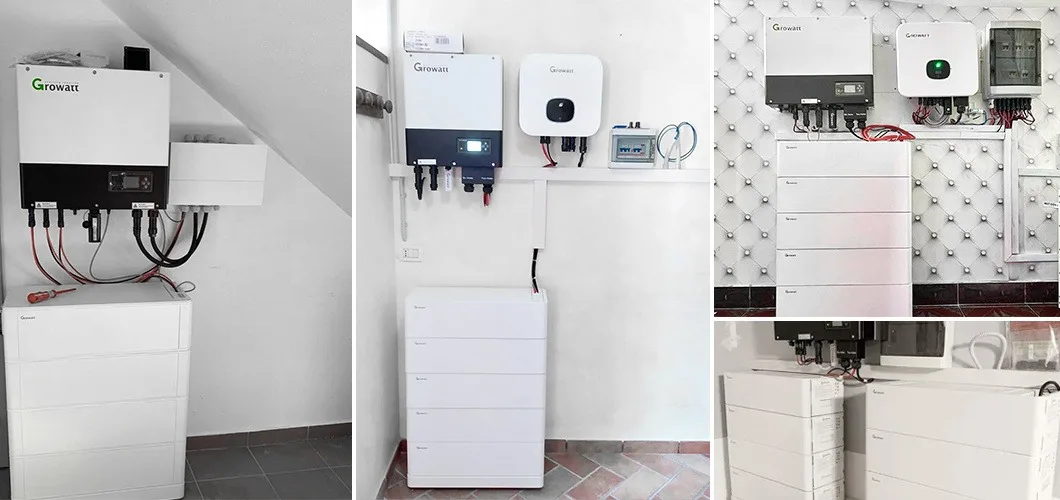

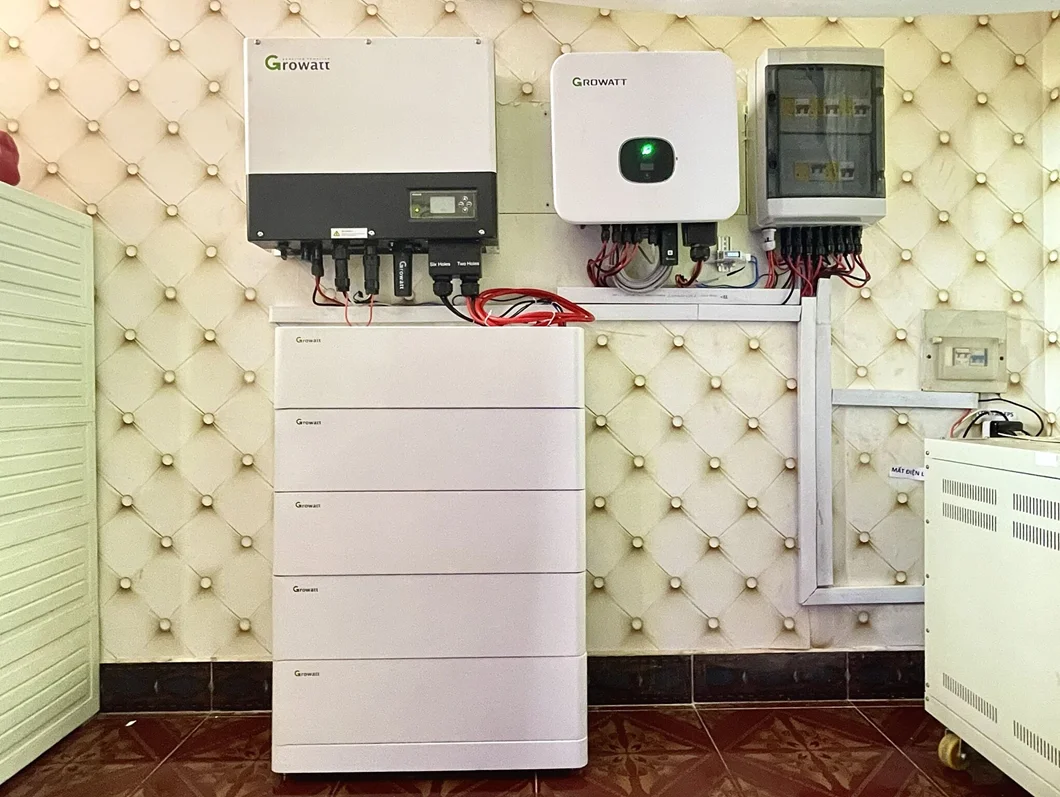

Product Cases
Products Description
Product Parameters
Growatt Battery | ARK7.6H | ARK10.2H | ARK12.8H | ARK15.3H | |||
Battery Module | ARK2.5-A1 (2.56KWH,51.2V,28KG) | ||||||
Number of Modules | 3 | 4 | 5 | 6 | |||

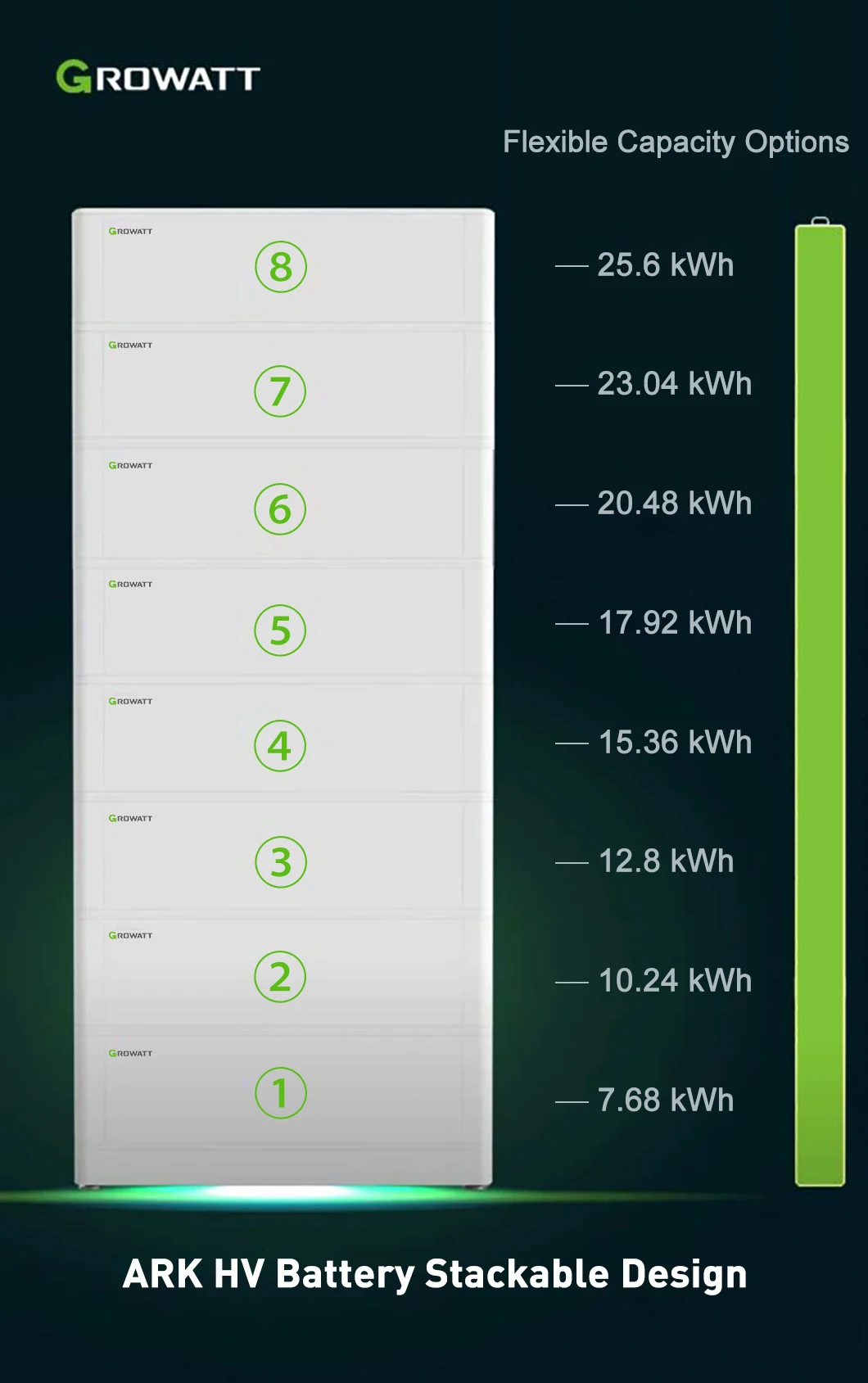

Energy capacity | 7.68KWH | 10.24KWH | 12.8KWH | 15.36KWH | |||
Usable capacity | 6.9KWH | 9.21KWH | 11.52KWH | 13.81KWH | |||
Norminal voltage | 153.6V | 204.8V | 256V | 307.2V | |||
Operating voltage range | 141.6-170.4V | 188.8-227.2V | 236-284V | 283.2-340.8V | |||
Dimension(W*D*H) | 650/260/725mm | 650/260/905mm | 650/260/1085mm | 650/260/1265mm | |||
Weight | 91kg | 118kg | 145kg | 172kg | |||
Growatt Battery | ARK17.9H | ARK20.4H | ARK23.0H | ARK25.6H | ||||
Battery Module | ARK2.5-A1 (2.56KWH,51.2V,28KG) | |||||||
Number of Modules | 7 | 8 | 9 | 10 | ||||
Energy capacity | 17.92KWH | 20.48KWH | 23.04KWH | 25.6KWH | ||||
Usable capacity | 16.12KWH | 18.43KWH | 20.73KWH | 23.4KWH | ||||
Norminal voltage | 358.4V | 409.6V | 460.8V | 512V | ||||
Operating voltage range | 330.4-397.6V | 377.6-454.4V | 424.8-511.2V | 472-568V | ||||
Dimension(W*D*H) | 650*260*1445mm | 650*260*1625mm | 650*260*1805mm | 650*260*1985mm | ||||
Weight | 199kg | 226kg | 253kg | 280kg | ||||
General | ||||||||
Battery type | Gobalt Free Lithium Iron Phosphate(LFP) | |||||||
Standard Charge/Discharge Current | 25A/0.5C | |||||||
IP Protection | IP65 | |||||||
Installation | Wall-Mounted or Floor Installation*2 | |||||||
Operation Temperature | -10-50°C* | |||||||
Warranty | 10Years | |||||||
BMS Controller | HVC60051-A1 | |||||||
Weight | 8kg | |||||||
Communication Port | CAN | |||||||
Dimension(W*D*H) | 650*260*185mm | |||||||
BMS Monitoring Parameters | SOC,System Voltage,current, cell voltage,cell temperature,PCBA temperature measurement | |||||||
Certification&Licensing | IEC 62619(cell&pack),CE,CEC,RCM,UN38.3 | |||||||
Packing & Delivery
Company Profile
ANHUI GP NEW ENERGY CO., LTD
We, Anhui GP New Energy Co., Ltd (Great Pack) focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, solar energy batteries, are the leading Lifepo4 battery supplier in China, who committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives!
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Our team has over 8 years of experience in the lithium battery field, and supplies One Step Power Solution suggestions to help you to save time & capital and achieve advanced technologies and excellent OEM/ODM service.
Quality is life, Great Pack is committed to supplying high-quality batteries and the best service to our clients all over the
world. Our battery has passed CE, UN38.3, RoHS, and MSDS certificates. We are committed to becoming a leading solution provider to go global in the Solar lithium battery industry.
Exhibition
Certifications
FAQ
What is LiFePO4 battery?
LiFePO4 is a battery cathode material with the advantages of high safety, long cycle life and lower cost. Application scenarios include electric vehicles, energy storage systems, and power tools.
ls the battery BMS included?
Yes. It's advanced BMS included and very safe to use. Battery BMS (Battery Management System) is a battery management system used to monitor, protect, and equalize battery packs to extend battery life and ensure battery safety.
Does the battery have overcharge and over-discharge protection?
Yes. We use advanced BMS and it can protect the battery well from overcharge and over-discharge.
Can I charge a LiFePO4 battery with a solar panel?
Yes, LiFePO4 batteries are well-suited for off-grid solar systems due to their high energy density, long cycle life, and superior performance.
Do you provide an after-sales service?
Always a pre-production sample before mass production; always final inspection before shipment. the warranty for lithium battery is 10 years, if any quality problems on our side in this period, we can send a new one as a replacement.
