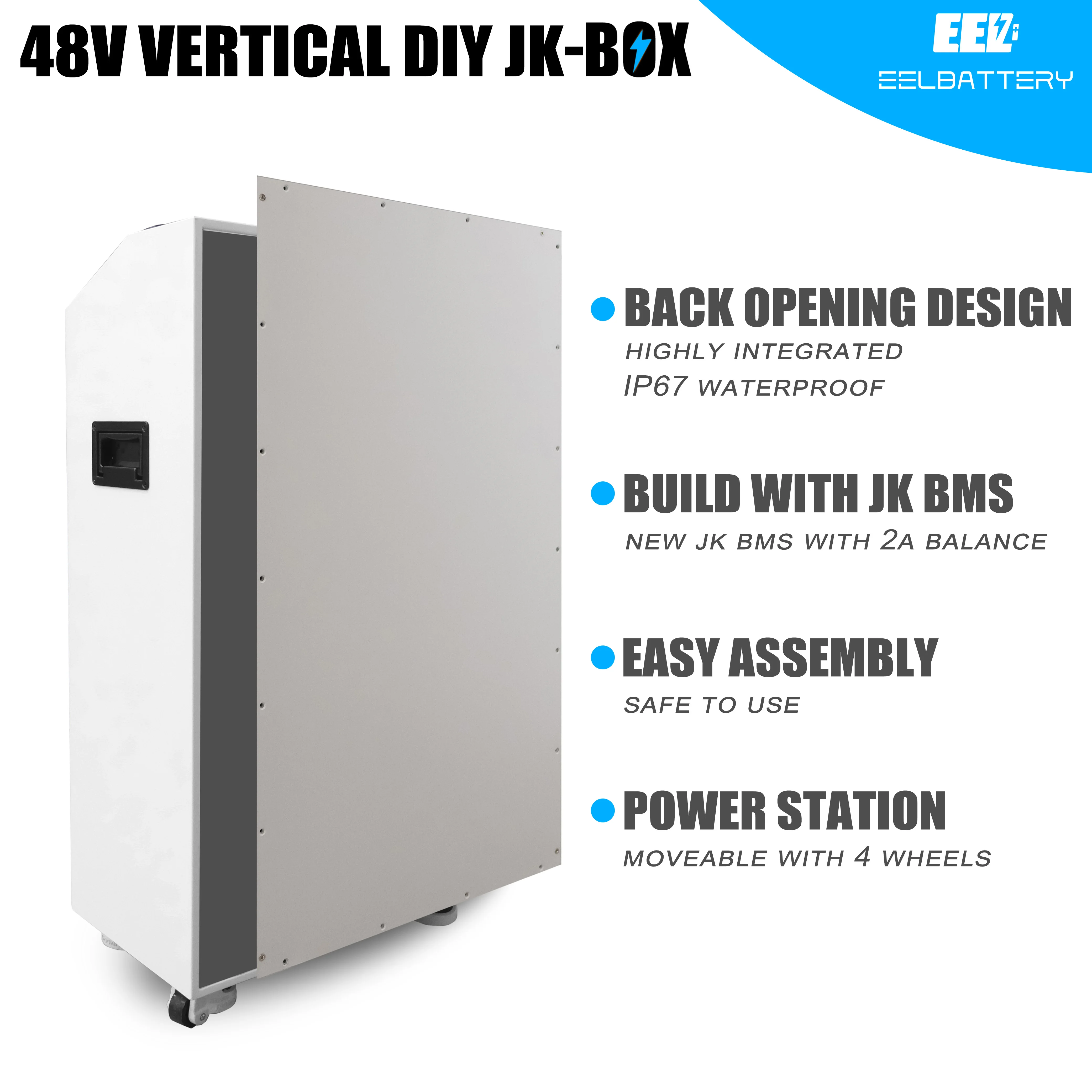

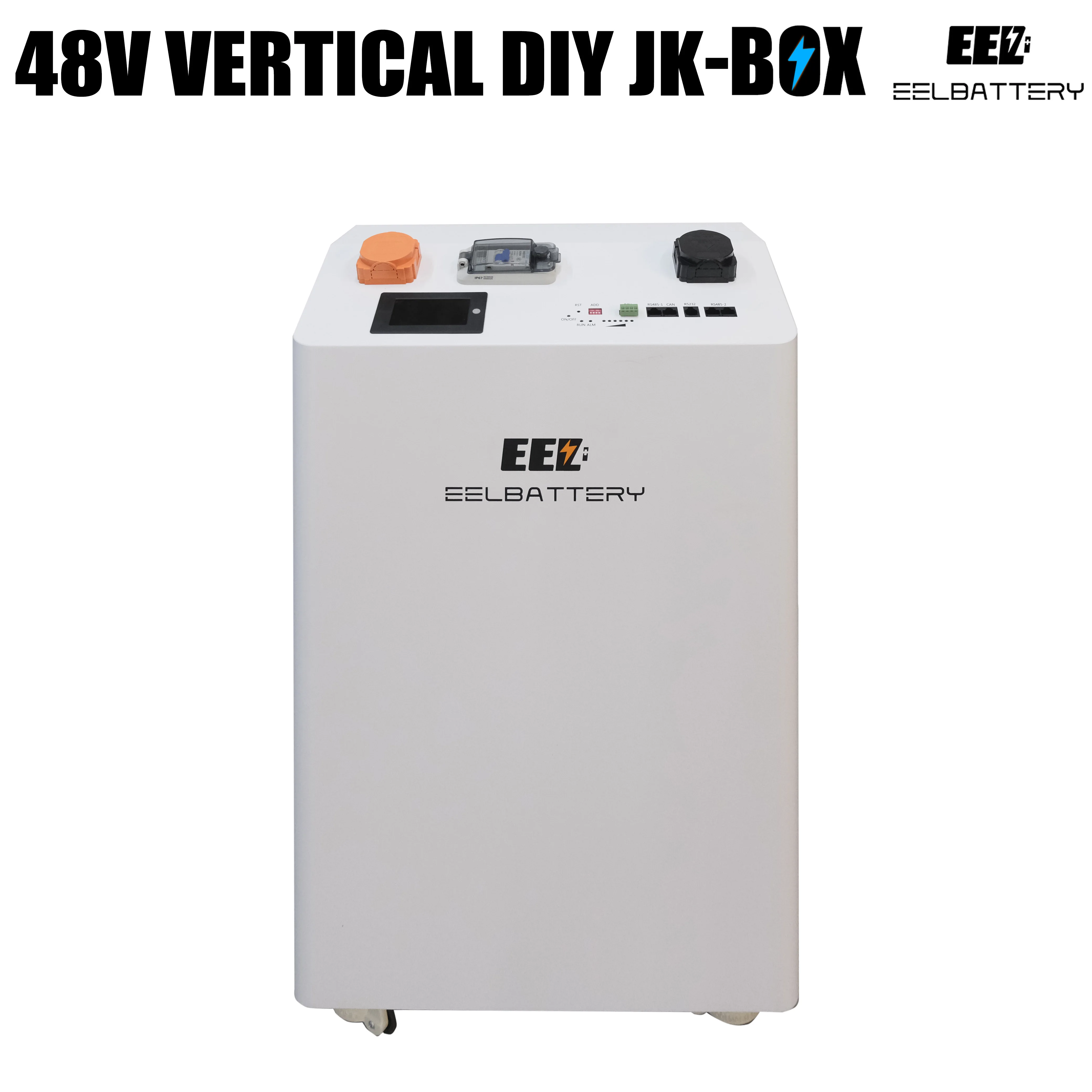

EEL JK Standing box 48V 280AH with 200A JK BMS 15kwh Lifepo4 280ah DIY Battery case 48V Solar Energy Storage with JK BMS
- Category: >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (1601075023337):
Product Overview
Description
Product Parameters
Item | value |
Place of Origin | China |
Guangdong | |
Brand Name | EEL |
Model | DIY 48V 16S LFP JK BMS battery case |
Battery Type | UPS RV Electric Boat Household Solar energy storage system |

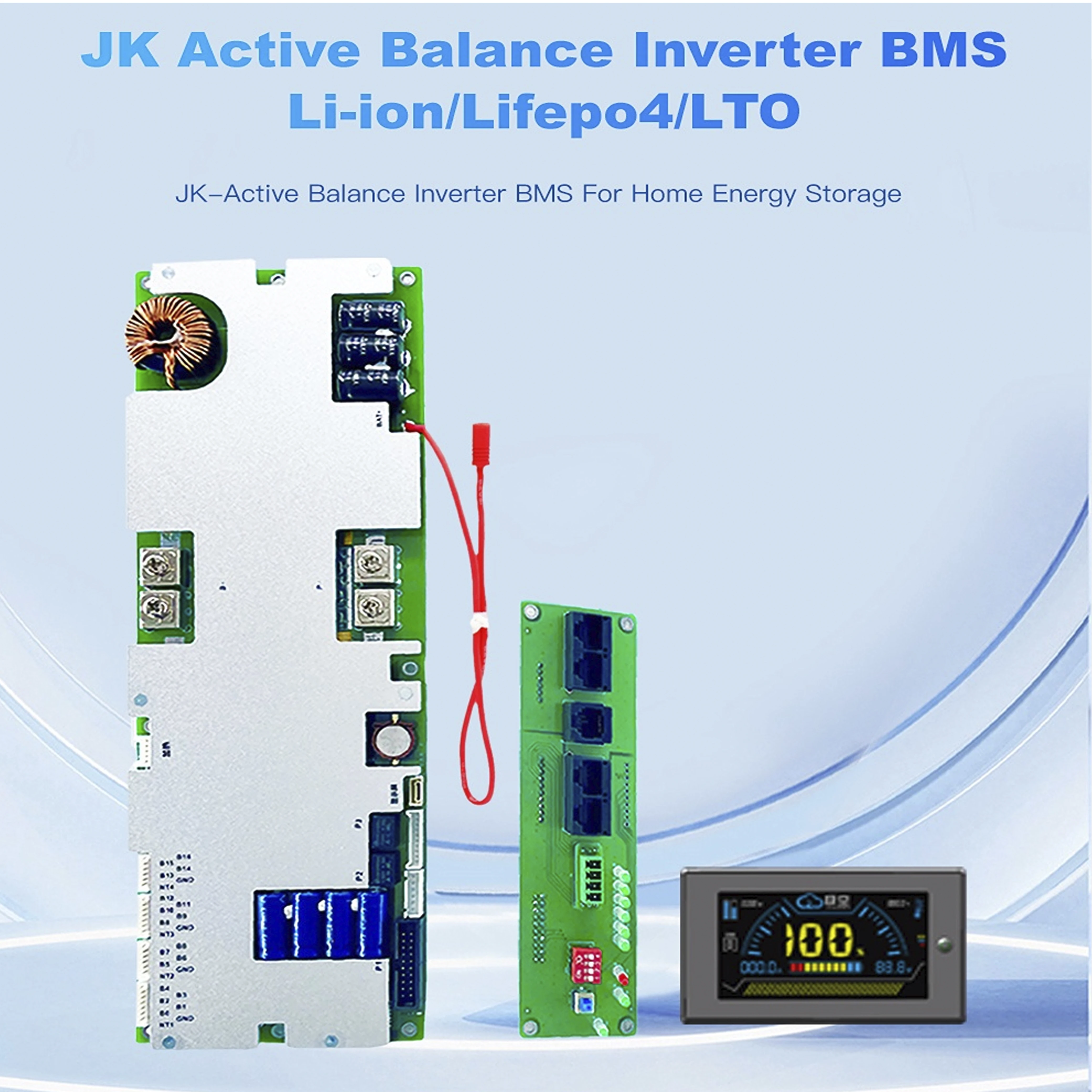

BMS | 48V 16S 200A BMS(New version V16 10E Version) |
Bluetooth(optional) | |
USB adapter(optional) | |
Fuse | 100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse |
200/230ah case weight | 25kgs |
280/302ah case weight | 29kgs |
200/230ah case Size | 685*450*270mm |
280/302ah case Size | 825*450*270mm |
Material | iron |
Nominal Voltage | 48V/51.2V |
Continuously charging/discharging current of bms | 100A 150A 200A |
Communication protocol | CANBUS（default）or RS485 |
Custom function | Heating function、External switch |
Compatible inverter brand | Super compatibility (for >98% of inverters on the market) |
Working temperature | -20℃-70℃ |
Application | UPS RV Electric Boat Household Solar energy storage system |
OEM/ODM | Support customization |
Warranty | 1 year |
Note!!! | If Bluetooth and USB adapter are required, corresponding options must be added to the order. Pls add as many as needed. THX |
Super compatible application
It is suitable for the common mainstream inverters on the market, and the communication methods include CAN and RS485, with strong compatibility

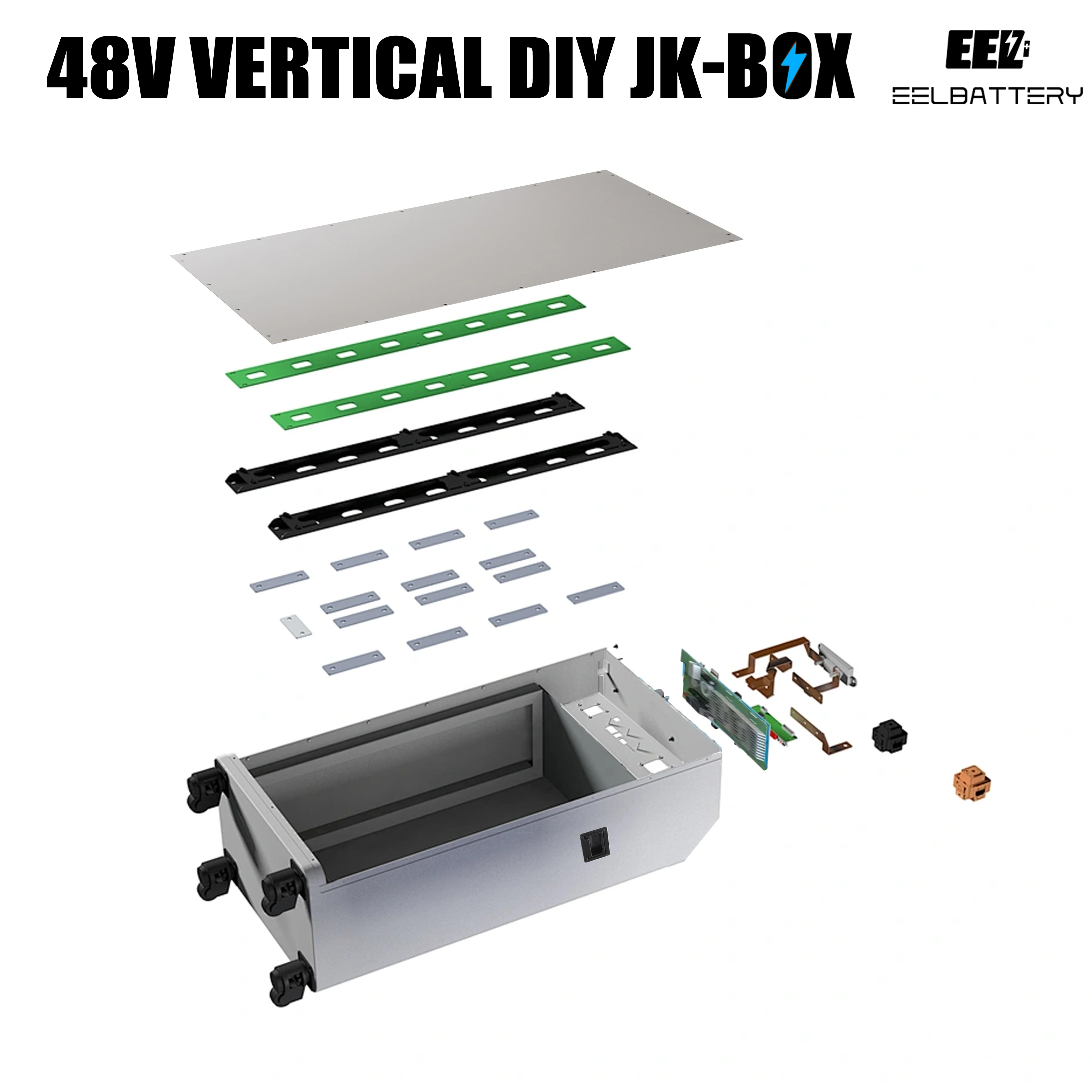

Part List
Parts List(does not come with the battery cells)
1*Blanket for hanging
1*fuse(100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover）
10 * Epoxy sheet (Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Stripe
1 * Weak electric switch
1 * 48V 16S 10E BMS+2*BMS wires
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap

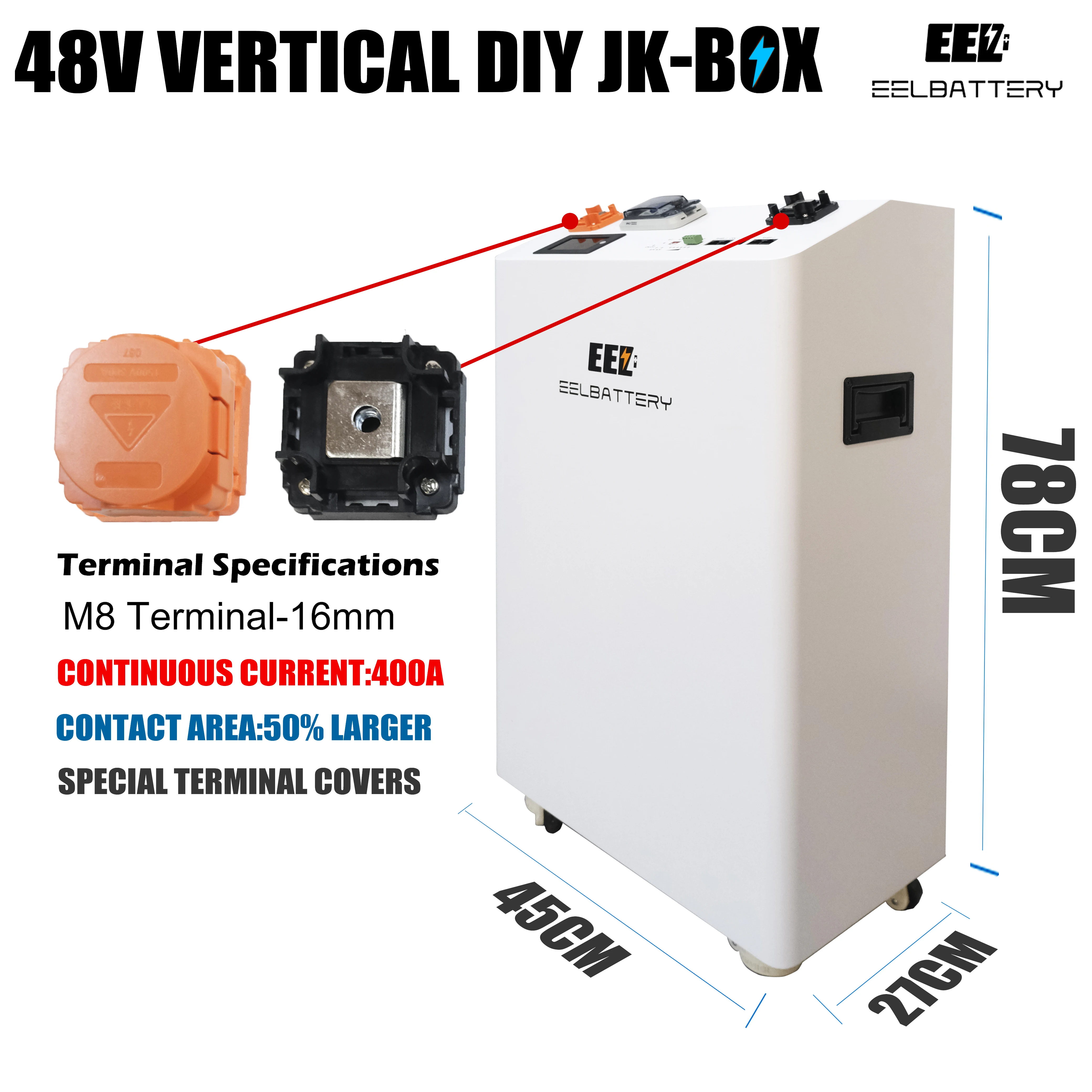

2* Battery Terminals with protective cover(P+ Terminal and P- Terminal)
1*Adapter board+2*wires(Adapter and BMS connection)
5* Long Flexible bus bars (BMS connection)
15 * Flexible bus bars (Cell connection)
8 *EVA Tape (Between cells)
16*Epoxy sheet (for cells insulation)
Other Small Accessories
1*fuse(100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover）
10 * Epoxy sheet (Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Stripe
1 * Weak electric switch
1 * 48V 16S 10E BMS+2*BMS wires
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap
2* Battery Terminals with protective cover(P+ Terminal and P- Terminal)
1*Adapter board+2*wires(Adapter and BMS connection)
5* Long Flexible bus bars (BMS connection)
15 * Flexible bus bars (Cell connection)
8 *EVA Tape (Between cells)
16*Epoxy sheet (for cells insulation)
Other Small Accessories
Attention
the standard configuration does not come with Bluetooth(Bluetooth module set in LCD screen), and RS 485 adapter , if you need them, please remember to add them to order together, or send a message to me
Packing&Shipping
EEL Battery CO.,Ltd is a specialized company which dedicated to R&D,production and marketing of LiFePO4 battery pack,18650 lithium battery pack,ebike battery,LiFePO4 cell,li-ion polymer battery products.After 10years of rapid development,EEL has accumulated core technology and comprehensive solution for power battery products,meanwhile we have obtained the approval and praise of customers from all over the world.Most of our battery models have MSDS,UN38.3,CE,UL1642 certificates.Depending on professional R&D engineers,enthusiastic sales team and reliable after-sales service,our battery products are widely used in the field of off-grid solar power system,solar street light,RV,electric vehicles,golf cart,power tool,backup power,medical device.
Our goal is to provide competitive,safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.Believe in us,EEL will be your trustworthy partner in battery business!
Certificates

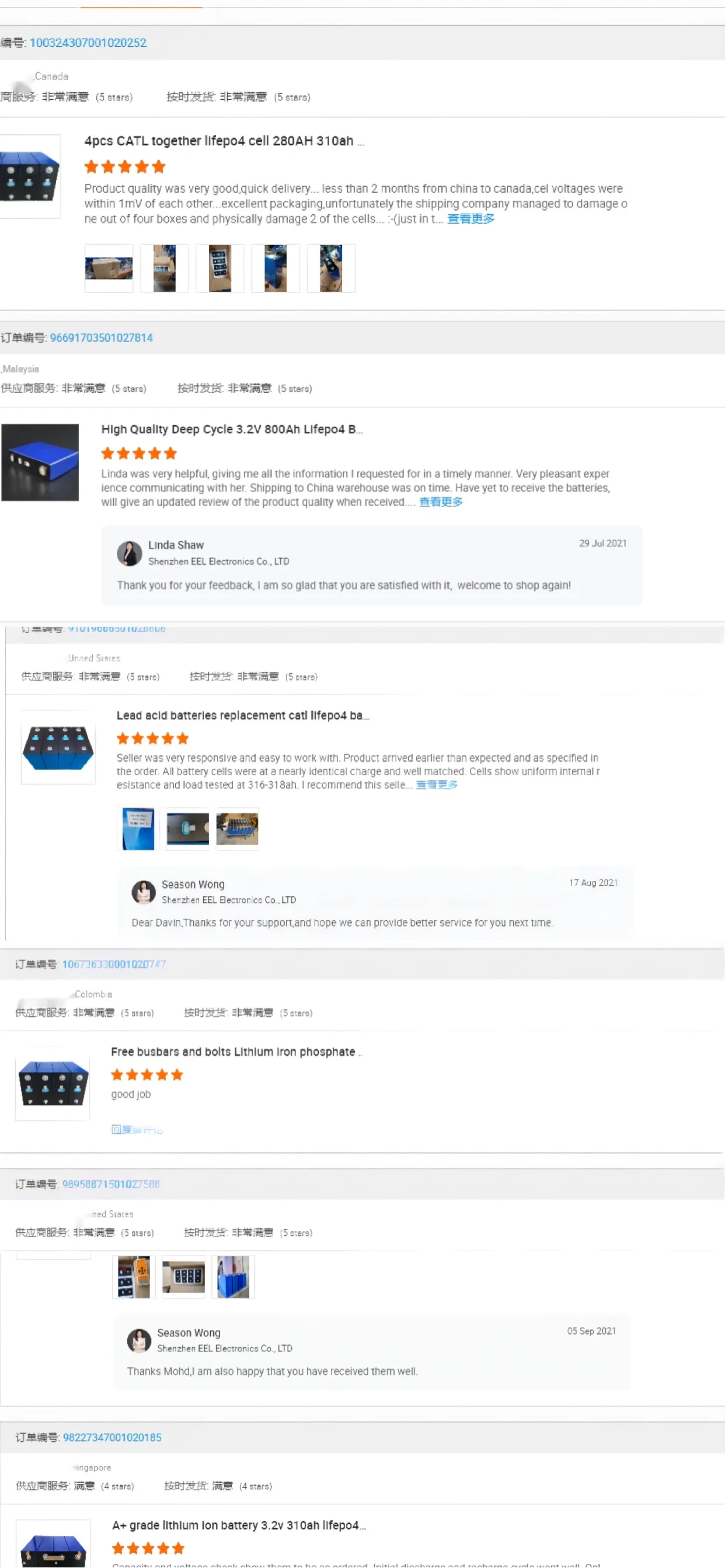

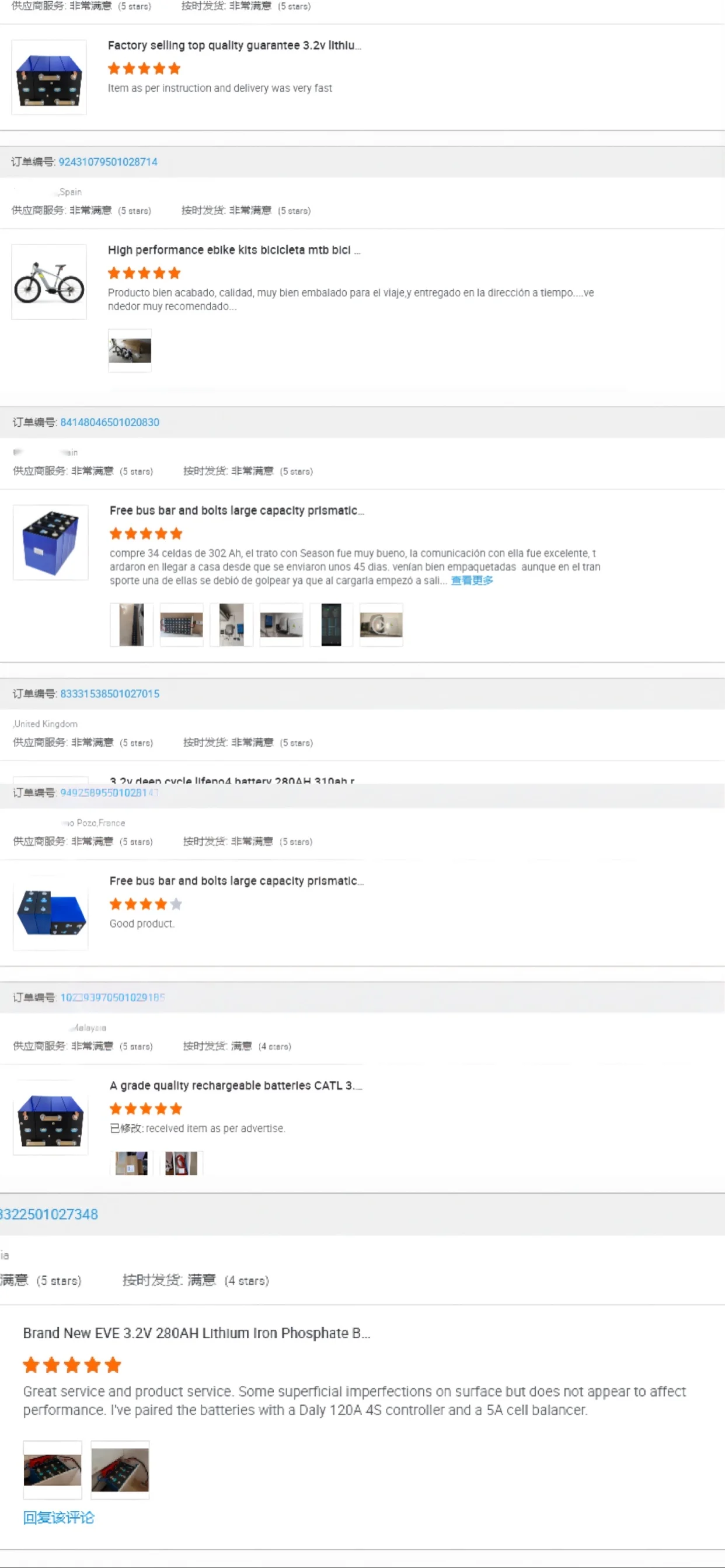

Customer Feedbacks
FAQ
Q： What BMS is in the 48V battery box?
A: We use the 100/150/200A BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: Yes, the BMS is 200USD/each, we can remove this price for you if you want to place the order.
Q:If I want to build a 48V server rack system, what should I choose?
A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: How to set up the system?

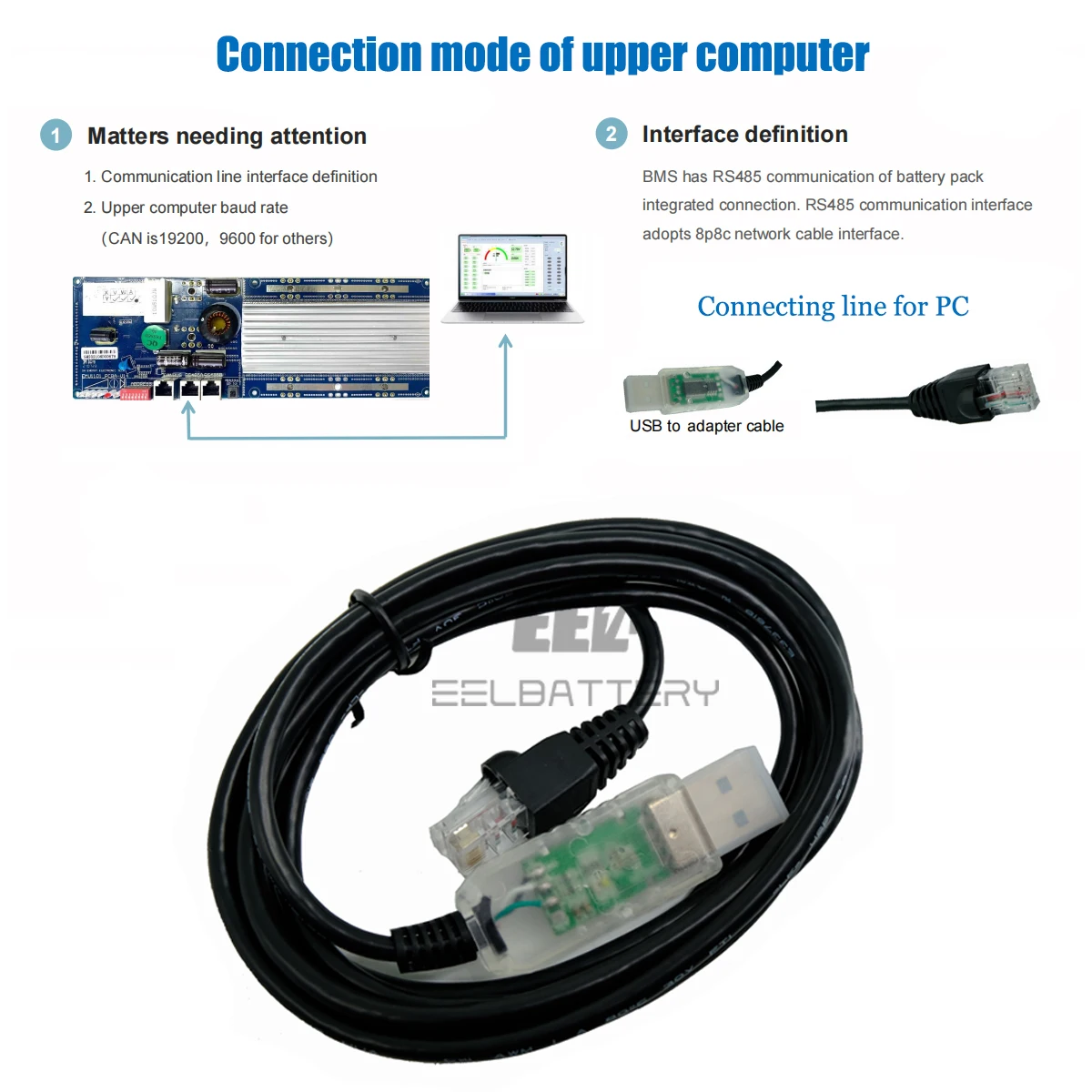

A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us.
Q:Does the 48V kit contain batteries?
A: Not included, see above for parts list.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime
Q:Why has my logistics information not been updated?
A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across
borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the
goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the
goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
