Hardware | processor: | Allwinner V535 Quad Core ARM Cortex-A7 @1.0GHz |
DDR: | DDR3 2Gb | |
SENSOR: | GC2053 CMOS 200W | |
WiFi: | 2.4Ghz+5Ghz dual-band | |
BT: | support | |
FM transmission: | Support 87~108Mhz | |
Camera Specifications: | GC2053/2MP 1080P/2G+4P/F2.0 aperture/145° oblique angle/17mm(outer ring diameter)x23mm | |
Expansion Card: | Support TF card (microSD card), maximum support 256GB expansion | |
Physical buttons: | POWER | |
speaker: | 8 ohms, 2W | |
microphone: | Electret MIC-1.8X4MM, 38±2dB | |
touch: | 2.5D full screen touch | |

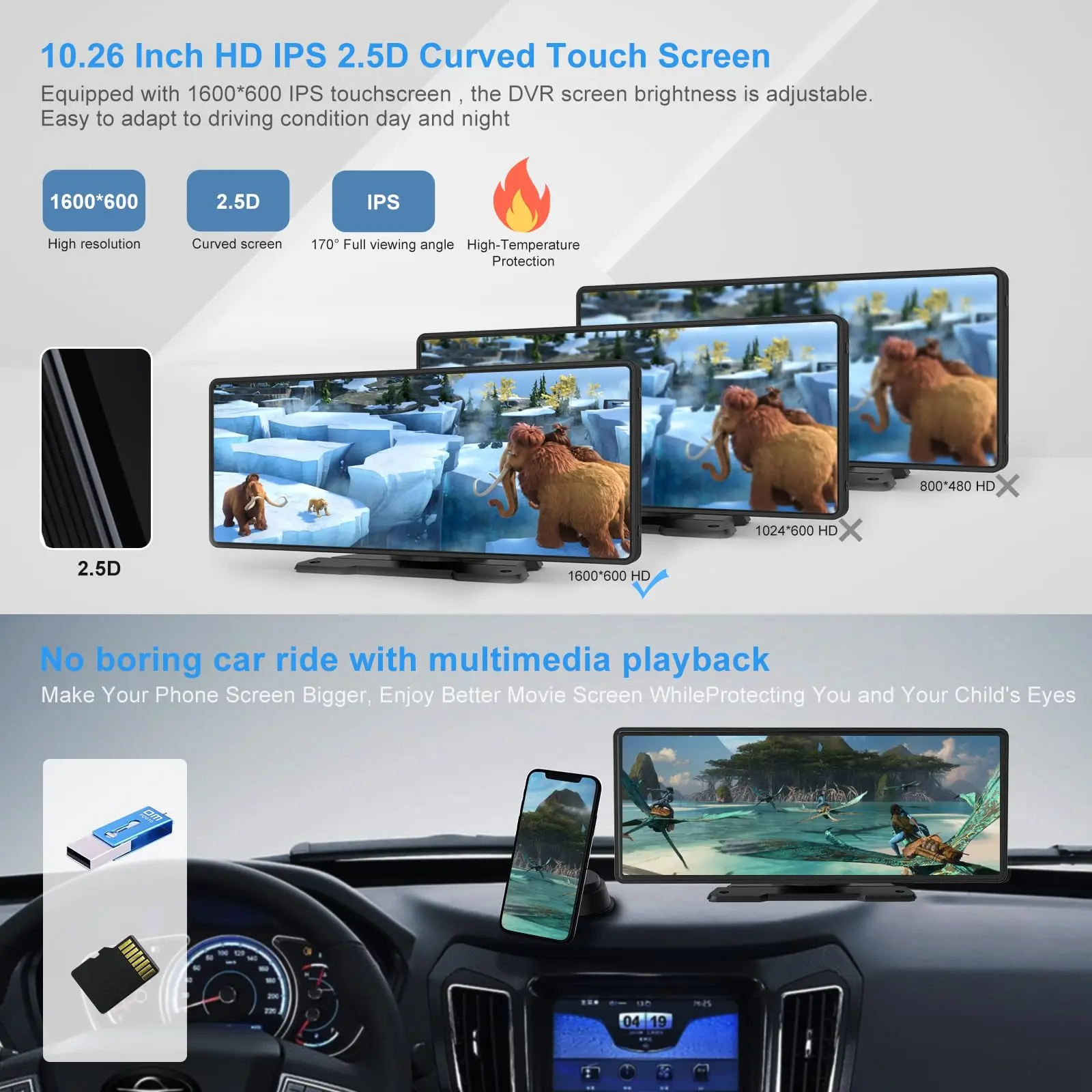

Screen | Screen size (resolution) | 10.26 inch IPS screen (resolution 1600X600) |
Features | language: | Simplified Chinese, Traditional Chinese, English, Russian, Spanish, French, German, Japanese, Korean and other languages |
Video resolution: | 2560*1440 25FPS/1920*1080 25FPS | |
Encoding type: | TS | |
Video encoding format: | H264 | |
Dual screen preview: | Support (need to be equipped with a dedicated time-lapse video step-down line) optional | |
Parking monitoring: | ||
Loop recording: | 2 minutes, 3 minutes, 5 minutes | |
Voice control: | support | |
screen protector: | off, 1 minute, 5 minutes | |
System/OS | Linux | |
UI | Built-in UI | |

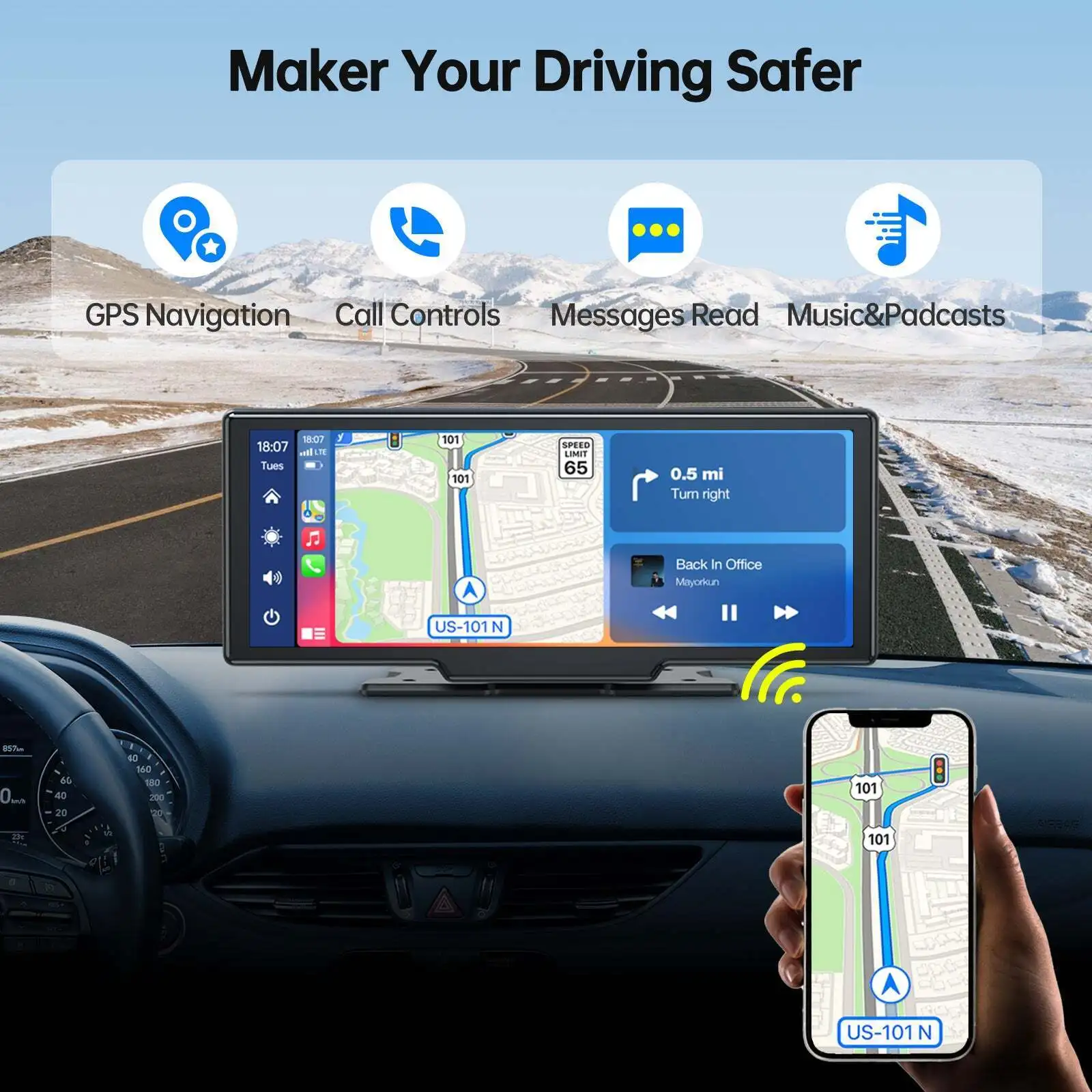

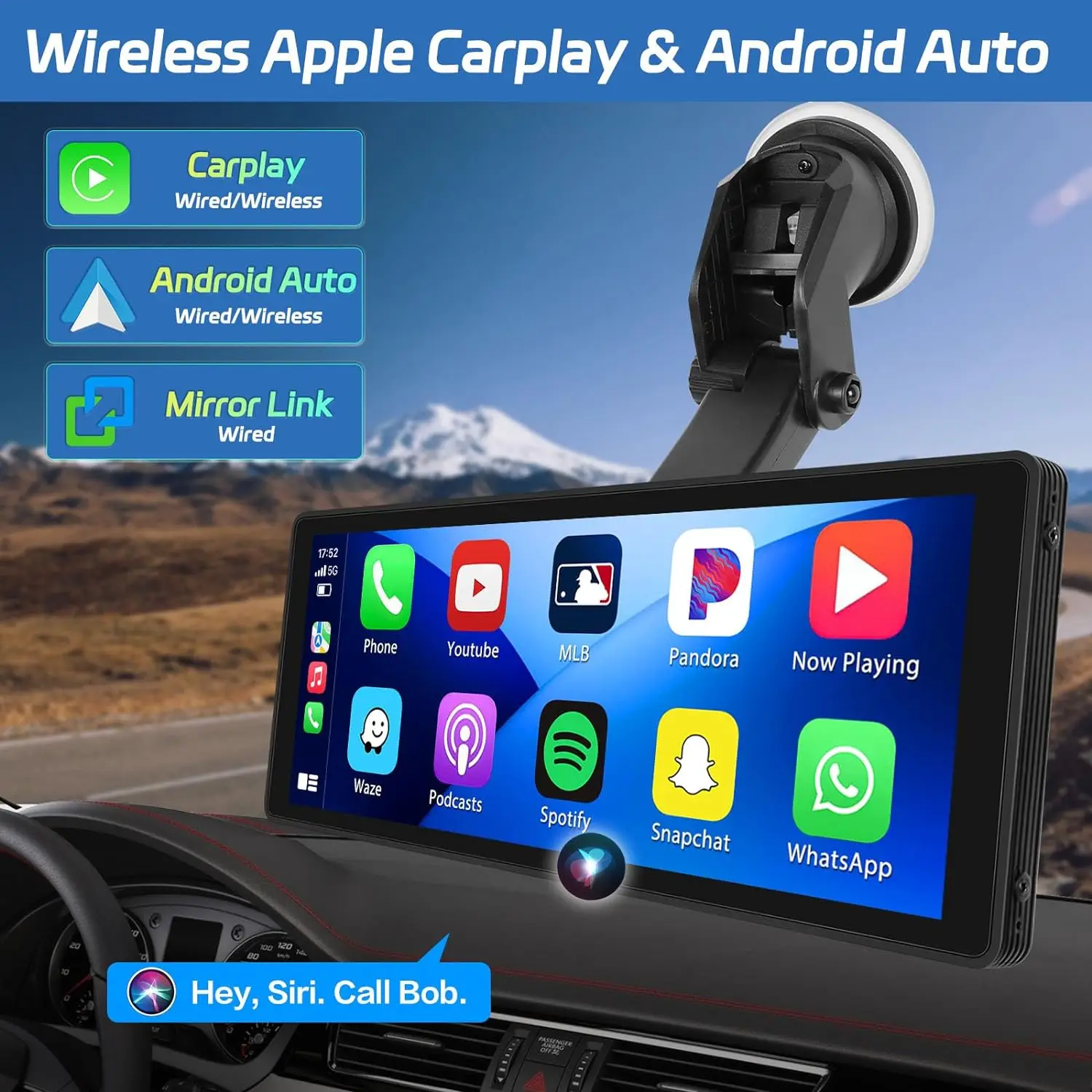

cast screen | Overseas Android Auto/CarPlay Domestic CarPlay/hicar/carlife+ | |
Connect | Backsight interface: | 2.5m headphone jack, four-segment AHD rear recording camera interface AHD1080P (1920X1080) |
AUX interface: | 3.5m headphone jack, three-stage | |
TF deck: | Support TF card (microSD card), maximum support 256GB expansion | |
USB interface: | Type C (power supply/download/FM antenna) | |
Power supply | Operating Voltage: | DC7-32V |
Working current: | <3A (typical value) (DC12V) | |
Quiescent Current: | 2mA | |
Operating temperature: | (-20°C-65°C) | |
Storage temperature: | (-20°C-75°C) | |
Accessories | Bracket: | Special bracket (optional) |
Buck line: | TypeC 3A, cigarette lighter interface | |
manual: | Have |
