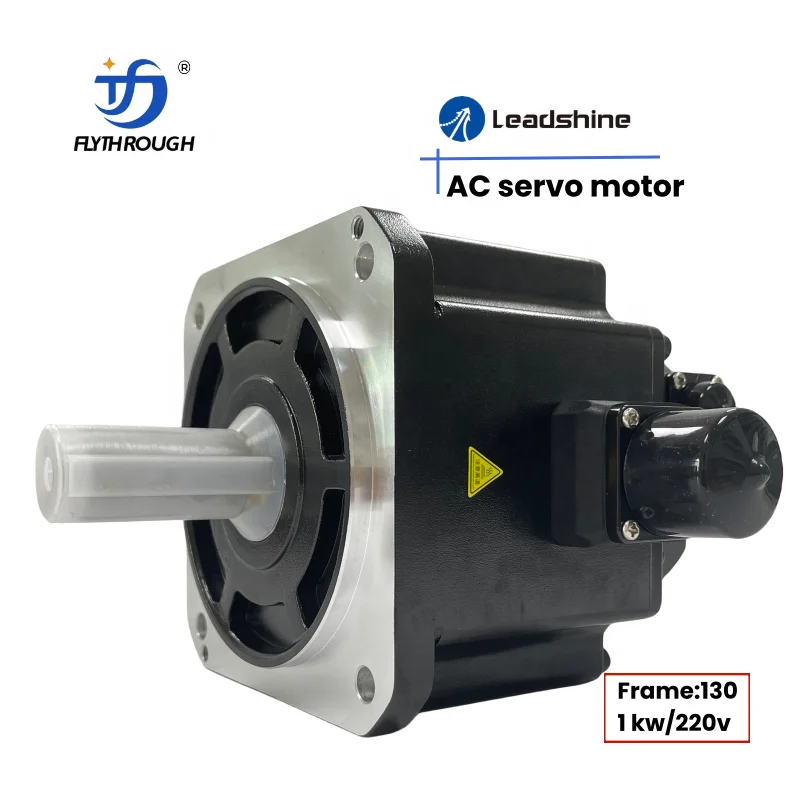

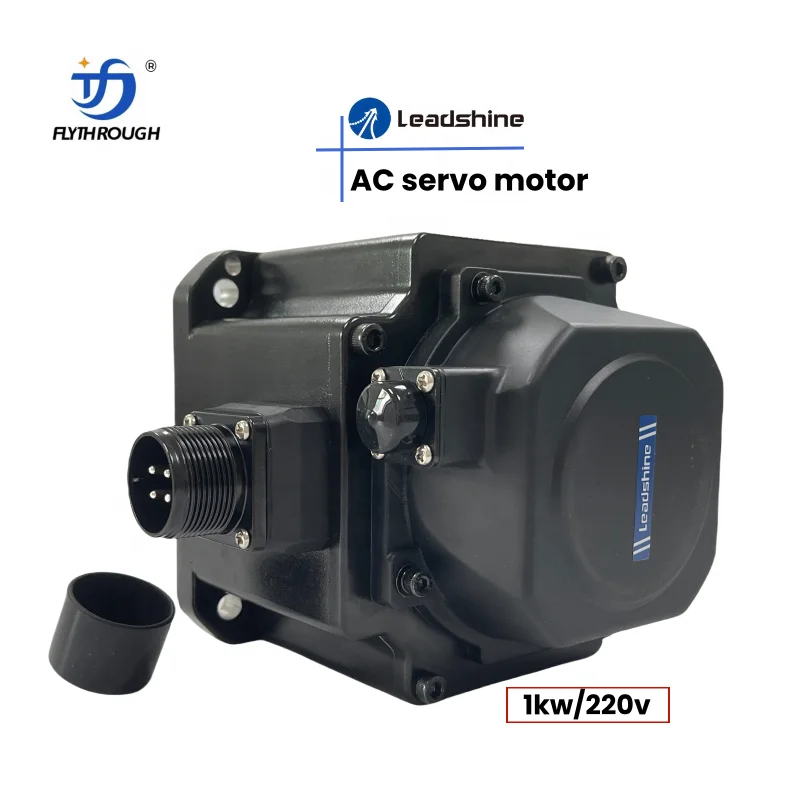

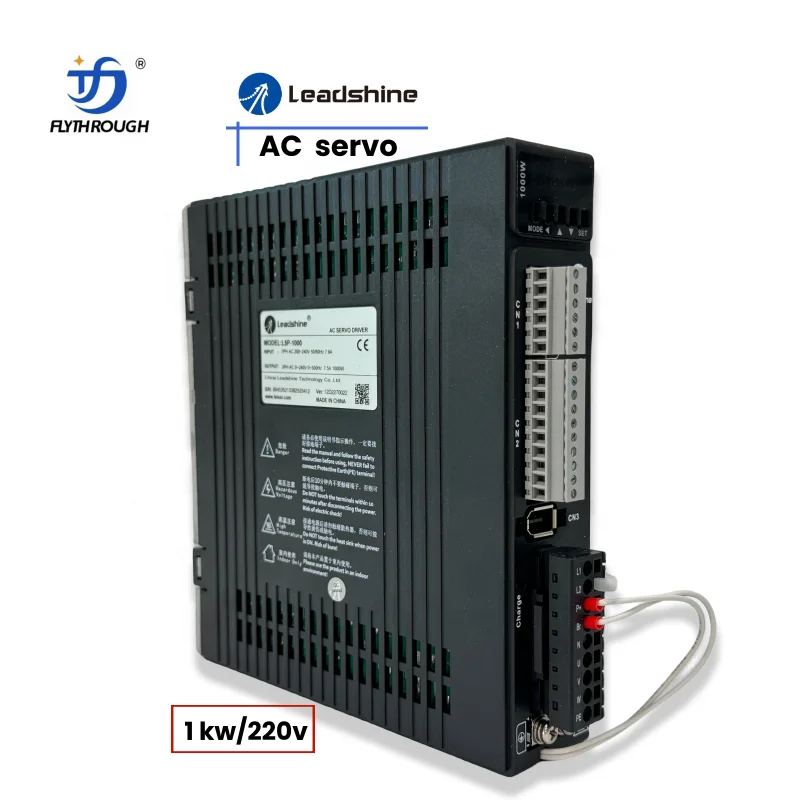

Original Leadshine 1kw servo systems kit or L5P 1000 Leadshine 17 Bit absolute value encoderac servo motor drive kit 1kw
- Category: >>>
- Supplier: Dongguan Feitong Intelligent Technology Co. Ltd.
Share on (1601075045151):
Product Overview
Description
Related Products
FAQ
Q : What about the price of the product? | A : Our products are original products, with factory prices, support inspection. | ||||||
Q : Do you have the products in stock ? | A : We have almost all product in stock ,except for non-standard orders. | ||||||
Q : whats the delivery time ? | A : Spot delivery time is about 3 working days , but the exact delivery time might be different for different order or at different time . | ||||||
Q : How does your factory do regarding quality control ? | A : Quality is the first ,our product quality assurance is 2 years,so you can rest assured to buy. | ||||||

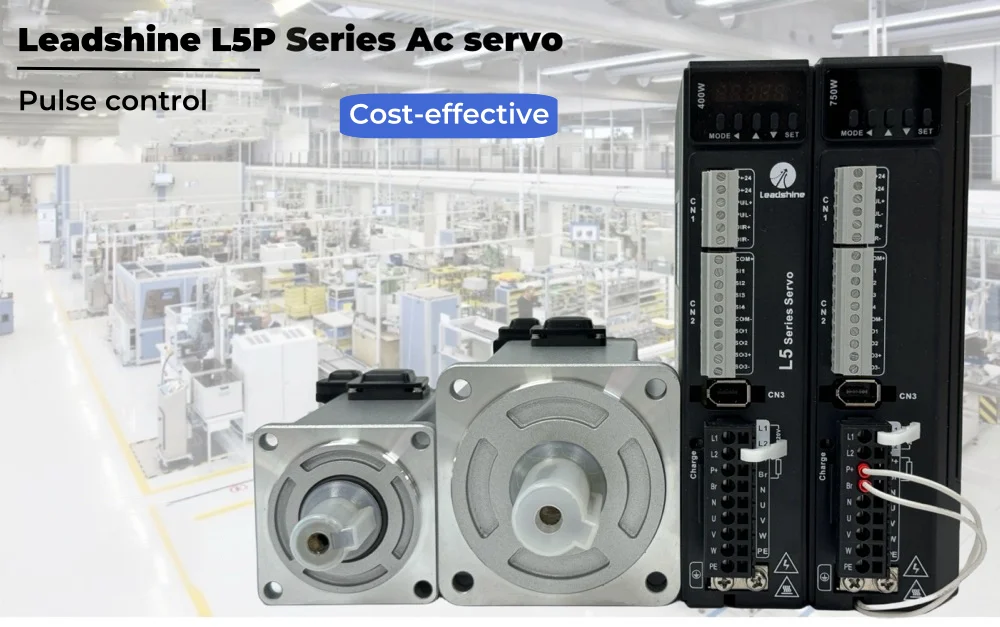

Product Description
Cost-effective version
1、With a single-turn 17-bit encoder .
2、2.5kHz speed loop broadband .
2、2.5kHz speed loop broadband .
3、Up to 6000rpm .
Easy to use
1、One key setting saves labor .
2、 Automatic trap function.
3、Standard screw terminals are securely connected.
3、Standard screw terminals are securely connected.
Stable and reliable

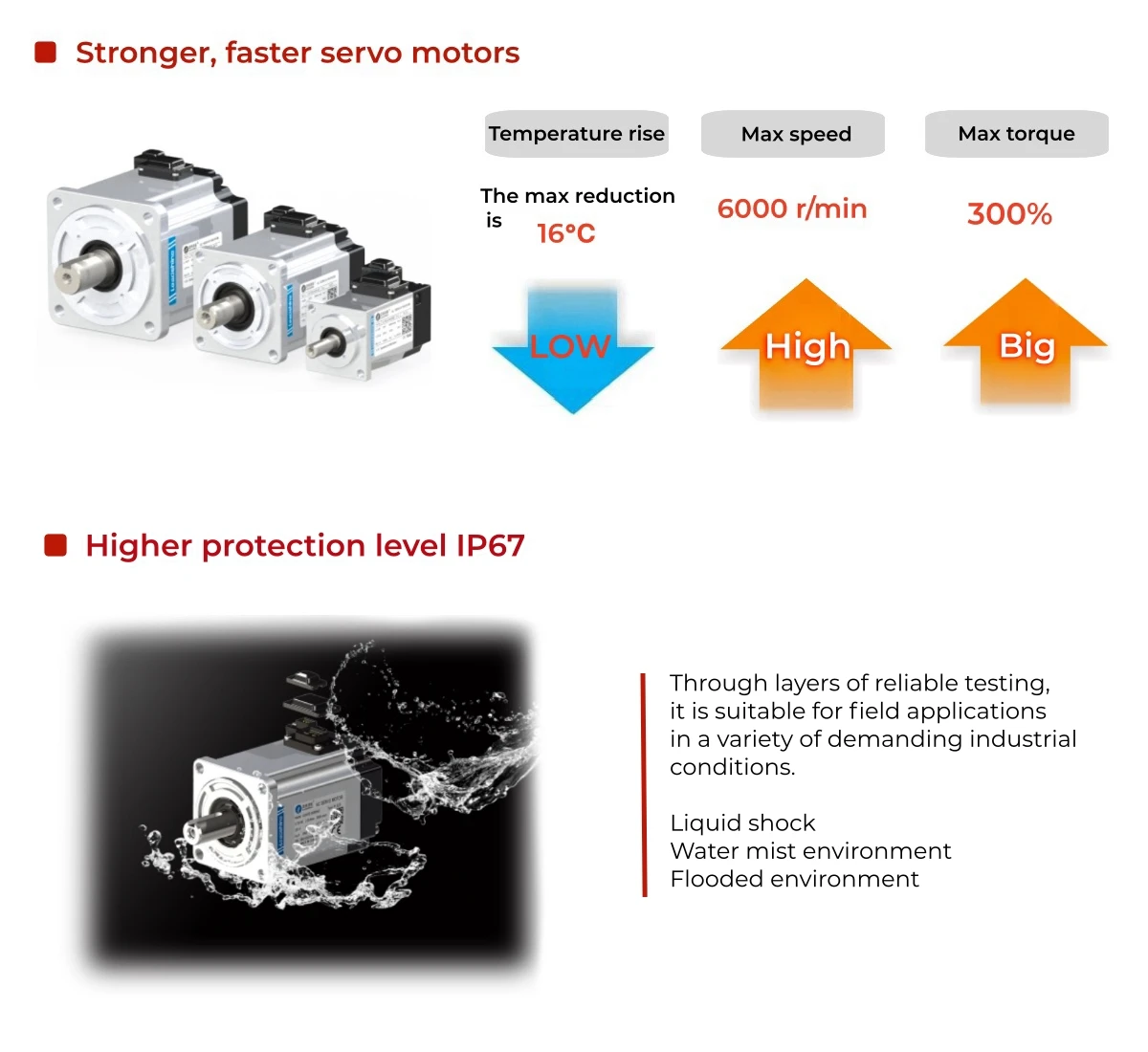

1、With in-line IP67 motor .
2、Up to 3x overload .
3、CE/TUV certification .

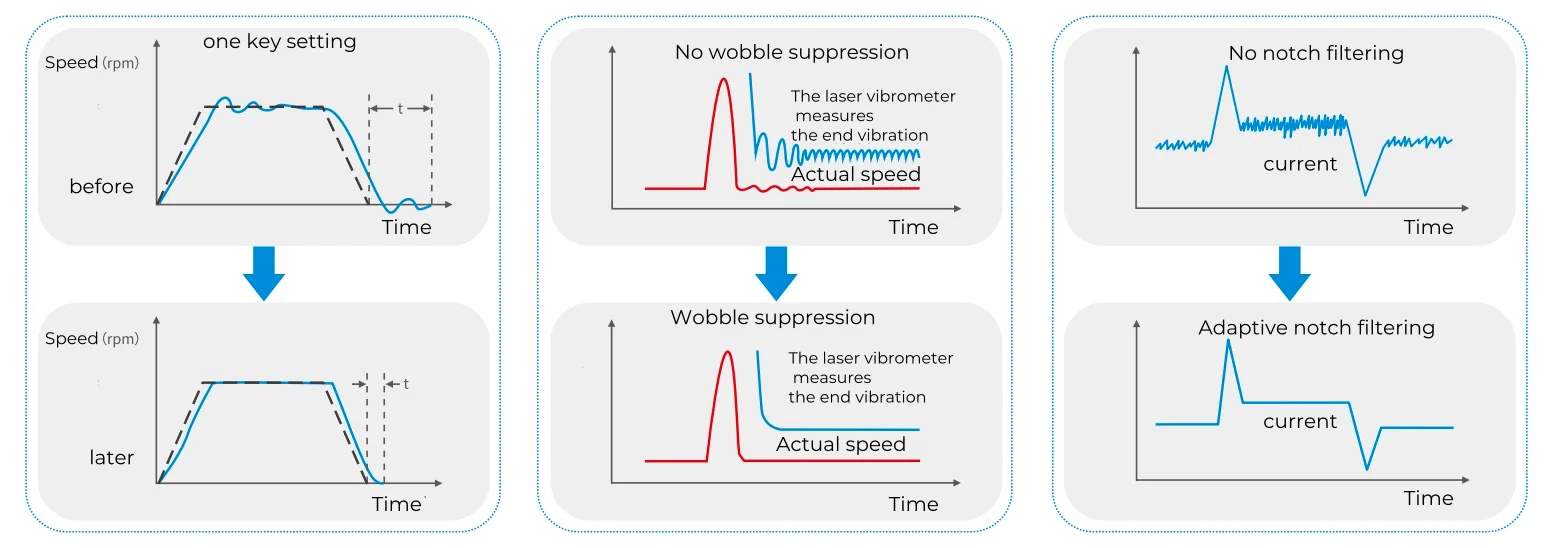

Advanced servo control algorithm
The L5P servo driver supports the "one key setting" function, which simplifies the gain debugging process and automatically adjusts the parameter gain after planning the trip, shortening the setting time.
When the pendulum is stopped, the low frequency vibration below 200Hz is suppressed, and the flexible system can run at high tempo.
Adaptive Notch Filter, provides 3 sets of Notch filter, manual/automatic filtering, eliminate resonance.

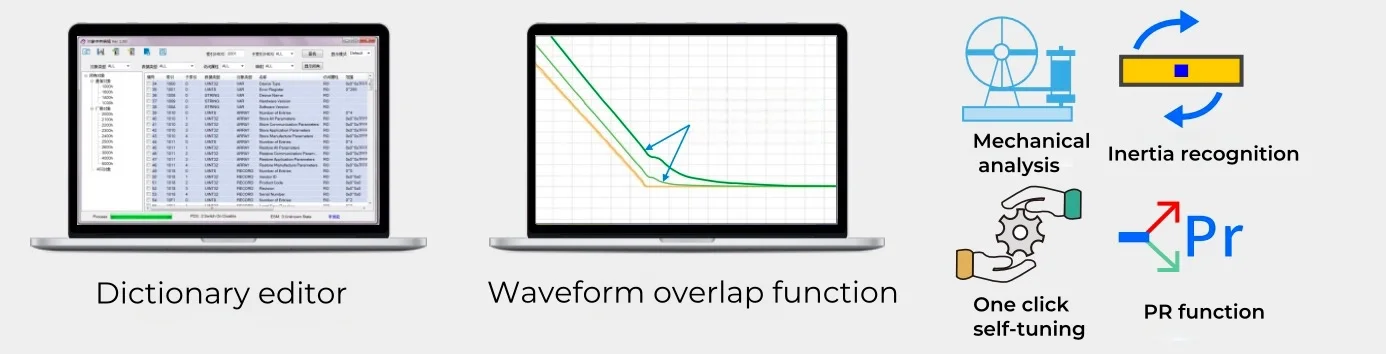

Easy to use servo debugging software
New oscilloscope module, new digital channel, cursor, object dictionary editor, waveform overlap and other functions, data acquisition more intuitive.
A wealth of auxiliary debugging tools, including one-click self-tuning, inertia recognition, mechanical analysis, etc., simplify the debugging process.
A wealth of auxiliary debugging tools, including one-click self-tuning, inertia recognition, mechanical analysis, etc., simplify the debugging process.

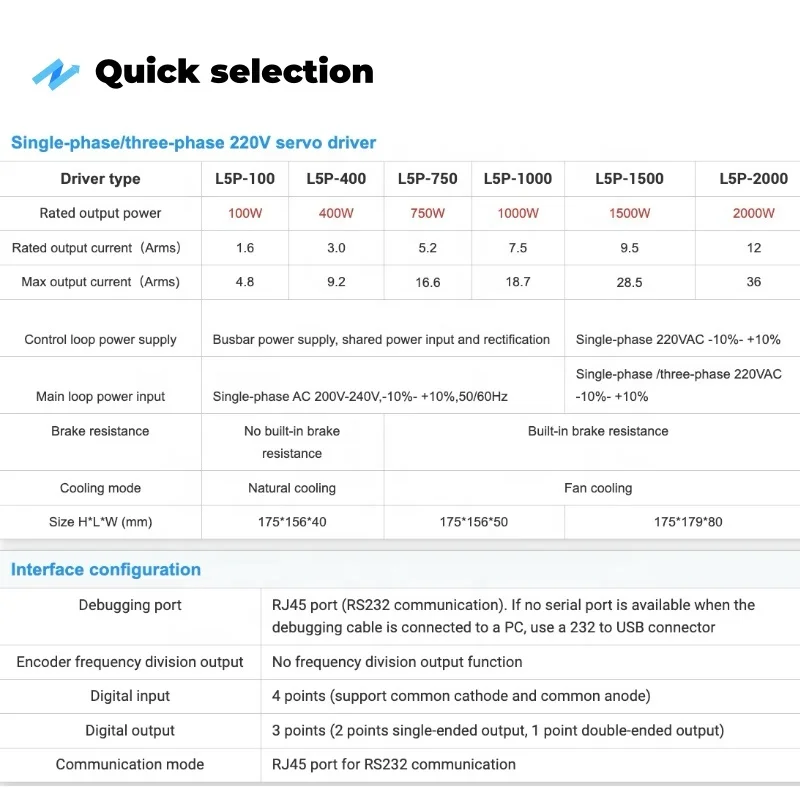

Technical parameter
Single-phase/three-phase 220V servo driver | ||||||||||||||
Driver type | L5P-100 | L5P-400 | L5P-750 | L5P-1000 | L5P-1500 | L5P-2000 | ||||||||
Rated output power | 100W | 400W | 750W | 1000W | 1500W | 2000W | ||||||||
Rated output current（Arms） | 1.6 | 3.0 | 5.2 | 7.5 | 9.5 | 12 | ||||||||
Max output current（Arms) | 4.8 | 9.2 | 16.6 | 18.7 | 28.5 | 36 | ||||||||
Control loop power supply | ||||||||||||||
Main loop power input | Single-phase /three-phase 220VAC -10%- +10% | |||||||||||||
Brake resistance | No built-in brake resistance | Built-in brake resistance | ||||||||||||
Cooling mode | Natural cooling | Fan cooling | ||||||||||||

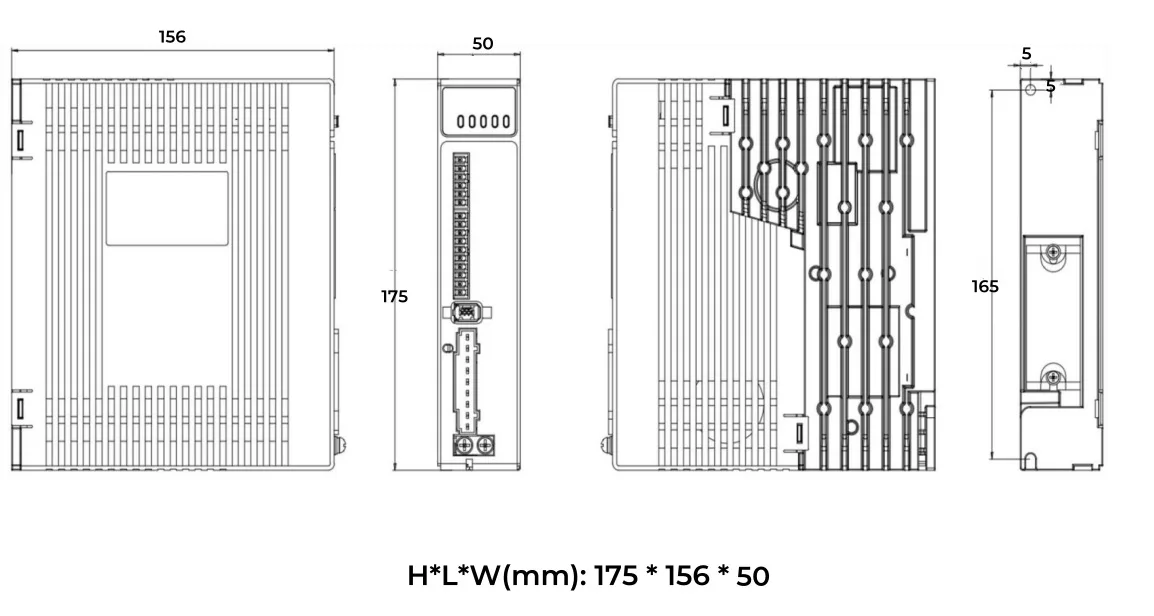

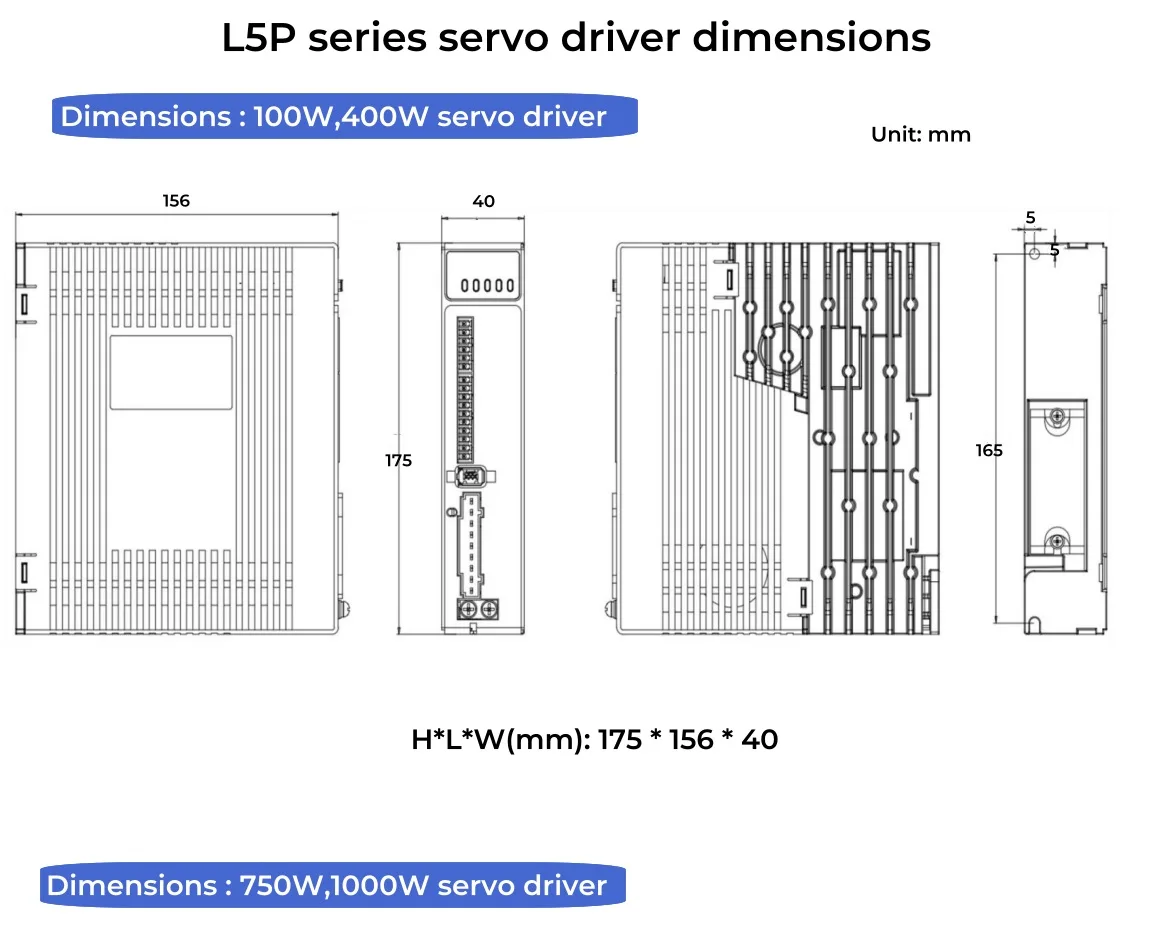

Size H*L*W (mm) | 175*156*40 | 175*156*50 | 175*179*80 | |||||||||||

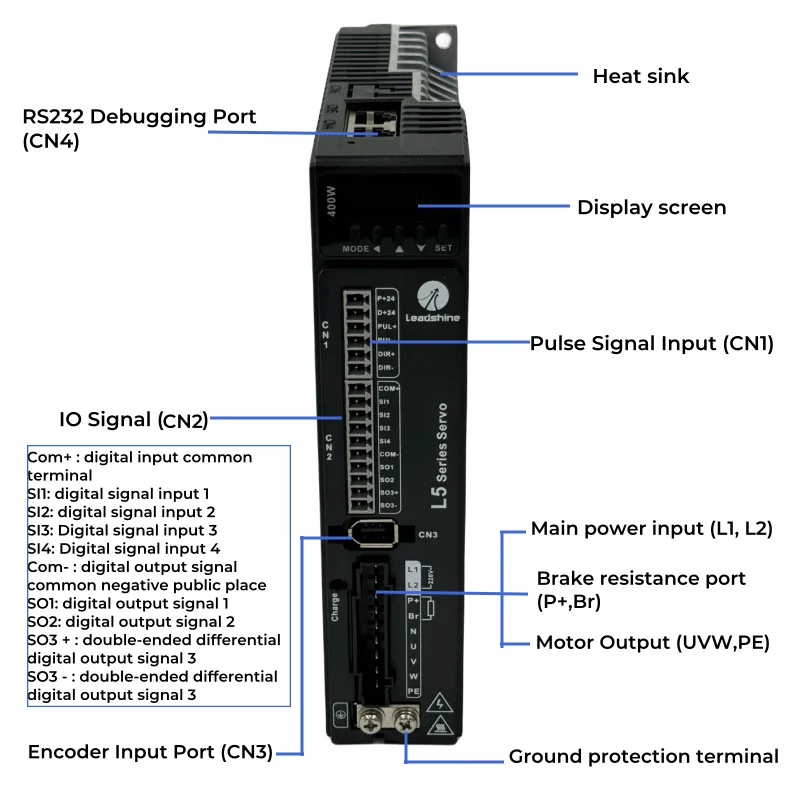

Interface configuration | ||
Debugging port | RJ45 port (RS232 communication). If no serial port is available when the debugging cable is connected to a PC, use a 232 to USB connector | |
Encoder frequency division output | No frequency division output function | |
Digital input | 4 points (support common cathode and common anode) | |
Digital output | 3 points (2 points single-ended output, 1 point double-ended output) | |
Communication mode | RJ45 port for RS232 communication | |

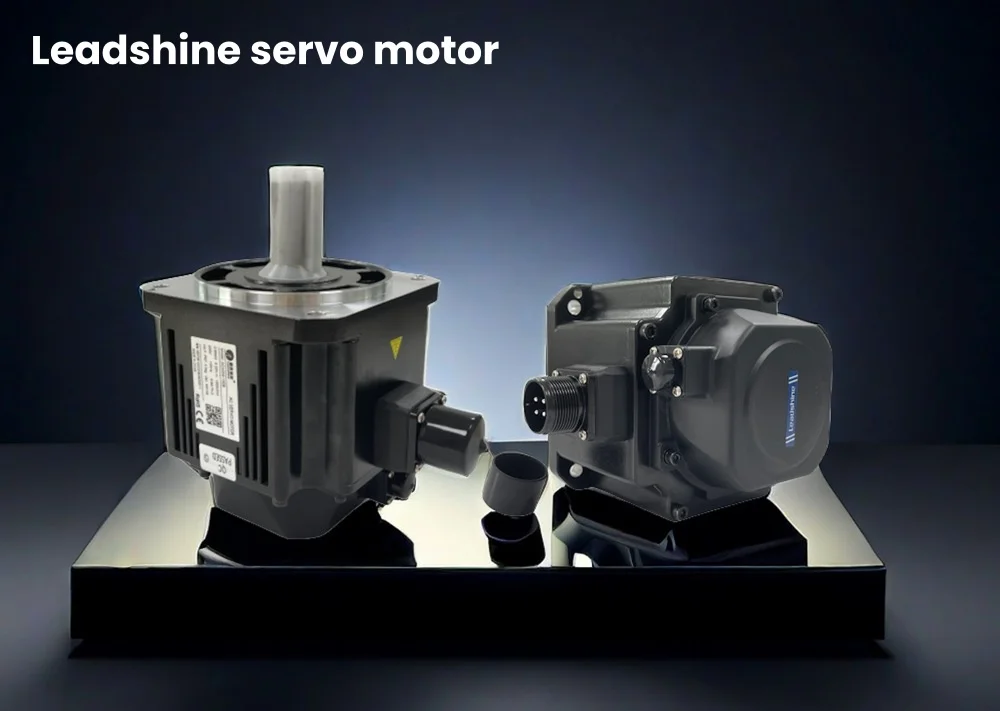

ACMOH series servo motor | ||||||||||||||
Frame | Rated power（w） | Motor type | Length（mm） | Rated torque (N.m) | Rated/Max speed (rpm) | Rated current (Arms) | Moment of inertia (Kg2*10-4) | |||||||
40 | 50 | ACM0H-04A5 | 56.7 | 0.16 | 3000/6000 | 0.93 | 0.0355 | |||||||
ACM0H-04A5B(Brake) | 84 | 0.0456 | ||||||||||||
100 | ACM0H-0401 | 67.7 | 0.32 | 3000/6000 | 0.92 | 0.0620 | ||||||||
ACM0H-0401B(Brake) | 95 | 0.0721 | ||||||||||||
60 | 200 | ACM0H-0602 | 71.6 | 0.64 | 3000/6000 | 1.5 | 0.29 | |||||||
ACM0H-0602B(Brake) | 100.9 | 0.31 | ||||||||||||
400 | ACM0H-0604 | 88.8 | 1.27 | 3000/6000 | 2.1 | 0.56 | ||||||||
ACM0H-0604B(Brake) | 118.1 | 0.58 | ||||||||||||
80 | 750 | ACM0H-0808 | 90.9 | 2.39 | 3000/6000 | 4.1 | 1.5 | |||||||
ACM0H-0808B(Brake) | 121.9 | 1.65 | ||||||||||||
1000 | ACM0H-0810 | 90.9 | 3.18 | 3000/6000 | 5.7 | 2.03 | ||||||||
ACM0H-0810B(Brake) | 121.9 | 2.13 | ||||||||||||
130 | 850 | ACM1M-1309 | 126 | 5.39 | 1500/4500 | 6.8 | 12.5 | |||||||
ACM1M-1309(Brake) | 153.5 | 14.8 | ||||||||||||
Note: The above servo motor is 17 bit magnetic encoder. | ||||||||||||||
Certifications
Product application
Company Introduction
Dongguan Feitong Intelligent Technology Co., Ltd is a professional enterprise in the field of intelligent equipment motion control. We are located in Dongguan, China, with convenient transportation,covering an area of more than 30,000 square meters.
Our products are CE and ROHS certified, and we offer a two year warranty on all products. The
company has a standard production workshop,professional and technical personnel,rich experience in operation ,so we not only support you with competitive prices,but also let you satisfied with our service.
After more than 20 years of product innovation,market development and application services,our products have the dual advantages of stability,reliability and superior performance.
In the electronic,robot ,laser,new energy,logistics,medical ,woodworking and other industries have
been by thousands of excellent equipement manufacturers for a long time , and exported to more
than countries such as the United States,Germany,India.
