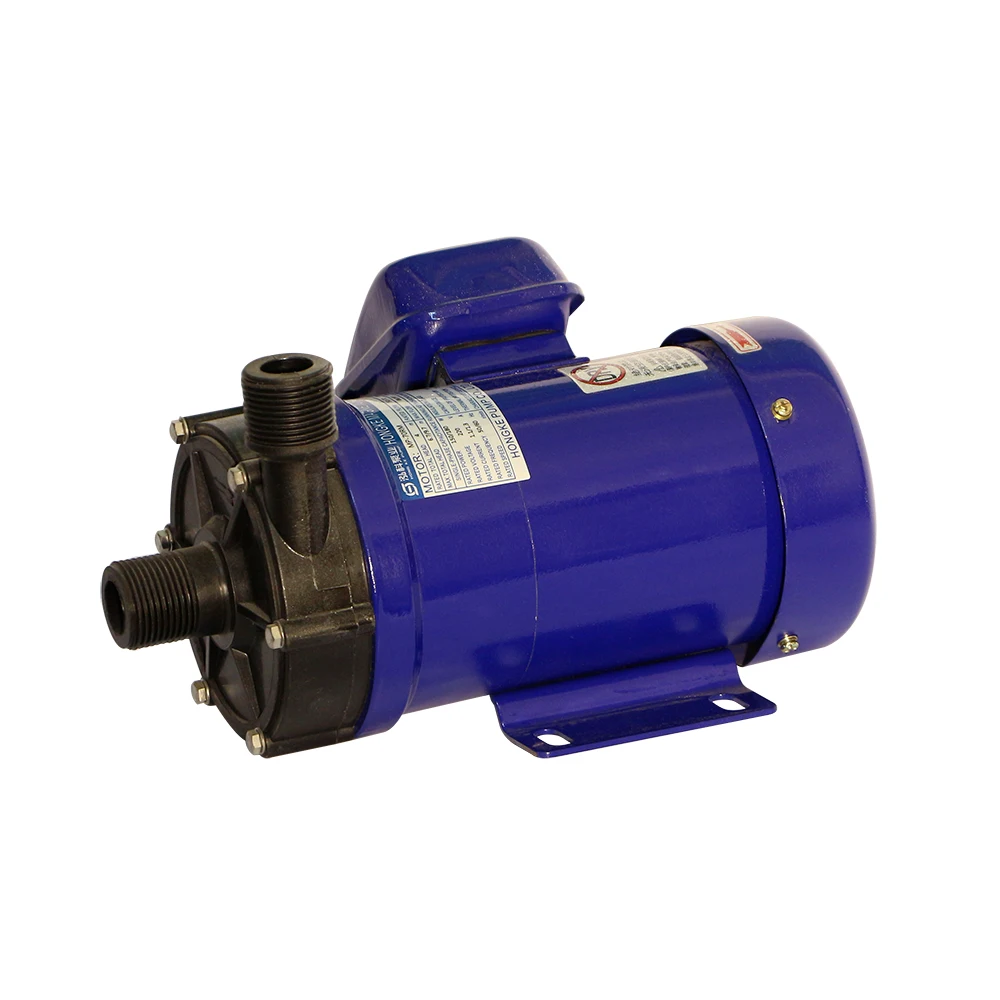

High Quality MP 55R Electroplating Chemical Magnetic Pump Corrosive Chemical Liquid Transfer Pump

Product Overview

Description

MP-55R Chemical Horizontal Semiconductor Plastic Transfer Acid Liquid Magnetic Drive Pump



The MP(MD),MP(MD)-F series magnetic pump has a compact structure and 100% leakproof, which is widely applied in various industruies and spoken highly of by users for its corrosion resistance and durability. Mainly adopting such material as GFRPP and PVDF, it's available for transporting many kinds of corrosive liquids. Due to its compact structure, the MP(MD), MP(MD)-F series is very appplicable for liquid circulation in photo developing, electroplating equipment and PCB equipment



Applications: Widely used in chemical industry, medicine, construction, Environmental protect, irrigation works, power industry,Petroleum, fire control, food, printing, and color Photofinishing, etc



The MP(MD),MP(MD)-F series pump's maximum flow is up to 220L/min from 5L/min. With such options as hose and thread connections, it's applicable for transporting acid and alkali liquid. Different impellers can be selected, subject to specific gravity of liquids, to transport many kinds of liquids with high specific gravity without overload.



Technical Parameters



Model	Power	Inlet&Outlet	Max flow	Standard flow	Max Head	Voltage
MP-10R	6W	14mm	11/12L/min	5/8L/min	1.5/2.1m	220V
M-15R	10W	14mm	16L/min	8L/min	2.4m	220V
MP-20R	15W	20mm	27/32L/min	17/22L/min	3.1/4.3m	220V
MP-30R	45W	20mm	33/38L/min	16/25L/min	3.8/5.4m	220/240V
MP-40R	65W	20mm	45/52L/min	22/34L/min	4.6/6.5m	220/240V
MP-55R	90W	20mm	60/70L/min	30/45L/min	5.6/8.2m	220V/380V
MP-70R	150W	25mm	86/97L/min	50/72L/min	6.7/9.7m	220/240V
MP-100R	250W	25mm	120L/min	60~70L/min	8.6m	220V/380V
MP-120R	370W	50mm	220L/min	140L/min	10.5m	220V/380V
MP-400R	400W	50mm	280L/min	150L/min	12.5m	380V
MP-401R	750W	50mm	330L/min	200L/min	18m	380V
MP-422R	1.5KW	50mm	400L/min	200L/min	19	380v
MP-423R	2.2KW	50mm	500L/min	300L/min	20.5m	380V





Working Principle



The MP(MD),MP(MD)-F series magnetic pump is driven by a pair of magnets connected on impeller and motor shaft. Unlike the traditional centrifugal pump, it's glandless for its structure. Its chamber is separated by the rear casing.Its motor is provided with active magnetic rotation. The active and passive magnetic coupling toque drives the impeller to rotate, thus achieving the liquid transprotation.





Structure Instructions



The MP(MD) series pump is one of the best magnetic drive pumps in simplicity, firmness and durability.

• The motor is of solid TEFC construction and is painted with 2 parts epoxy paint.


• The MP(MD)series pumps incorporates cereamic shaft and dual trust bearings to give smoother running and increased durability compared to other pumps in it's class.


• The pumps are seal-less and are available in FRPP, PVDF, CFRPP.


• The pumps are available with VITON, NBR, or EPDM gaskets.


• The pumps have no metallic parts in contact with the solution being pump.

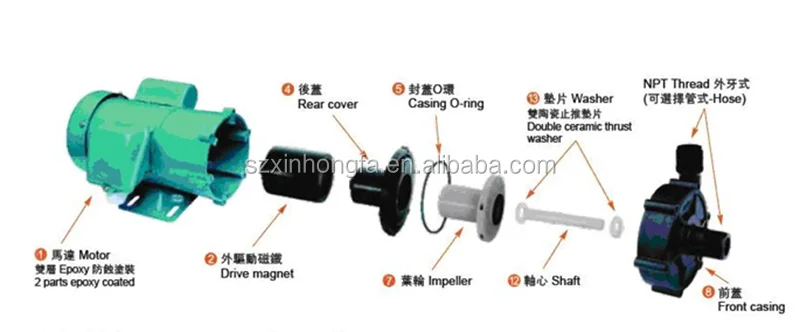

Structure Pics Show

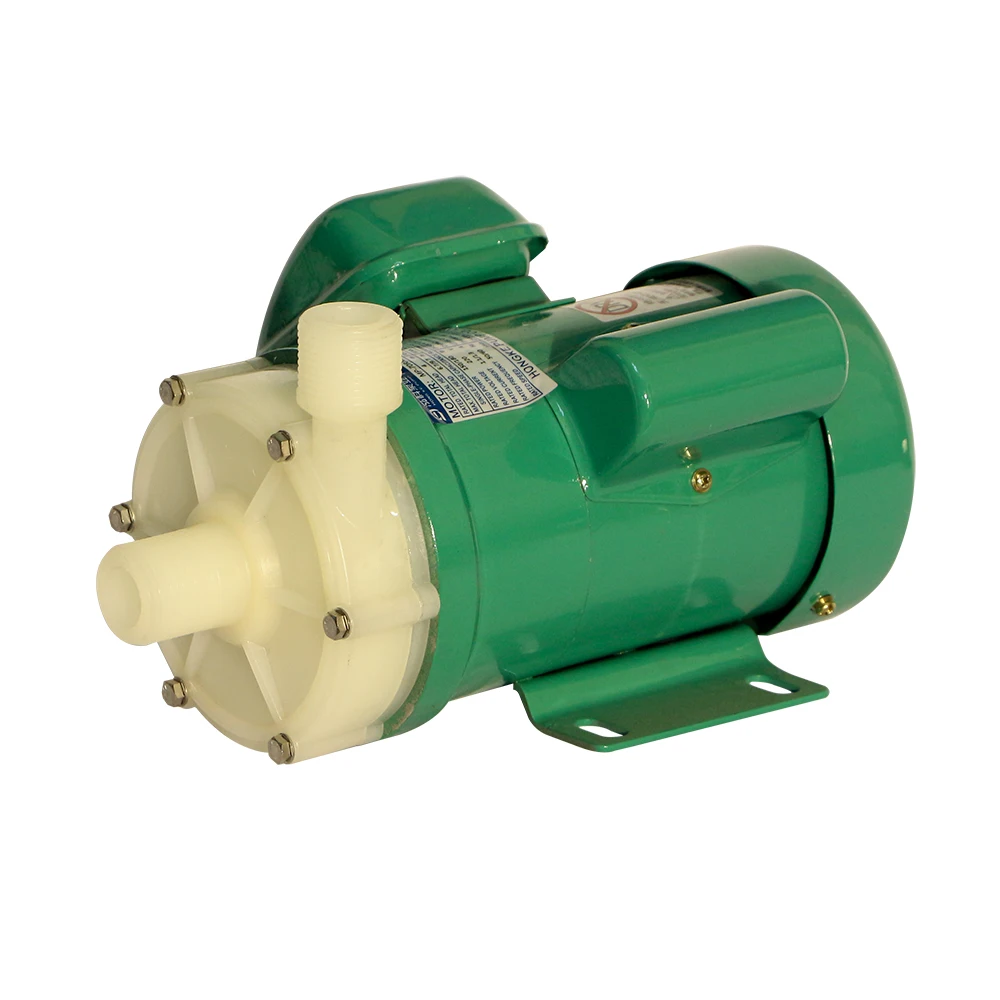

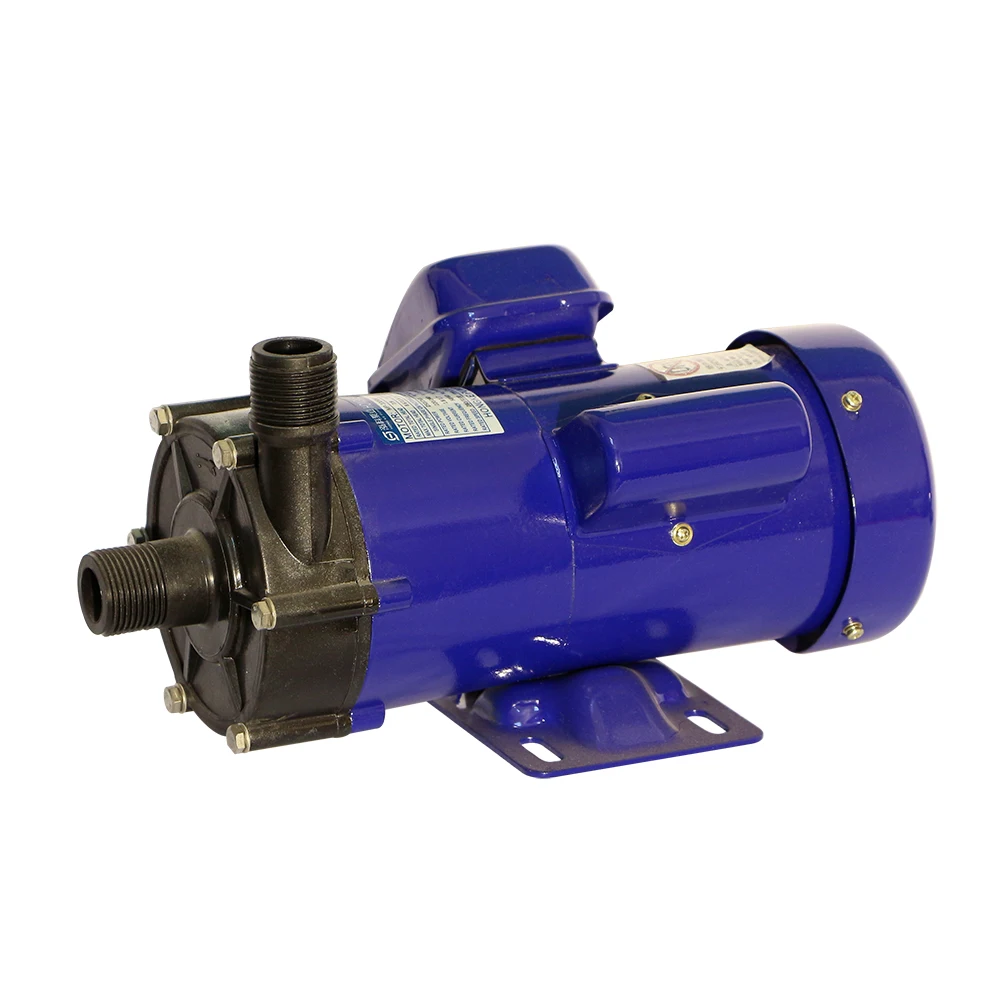

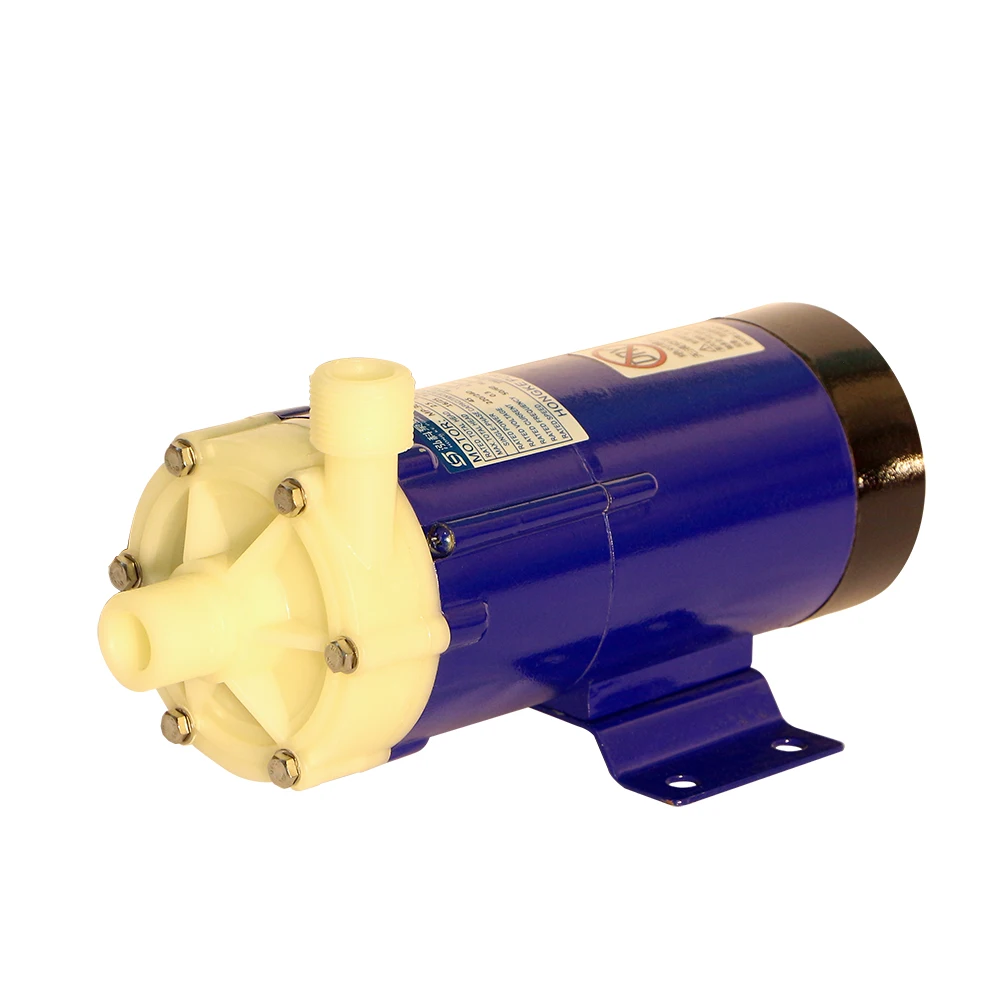

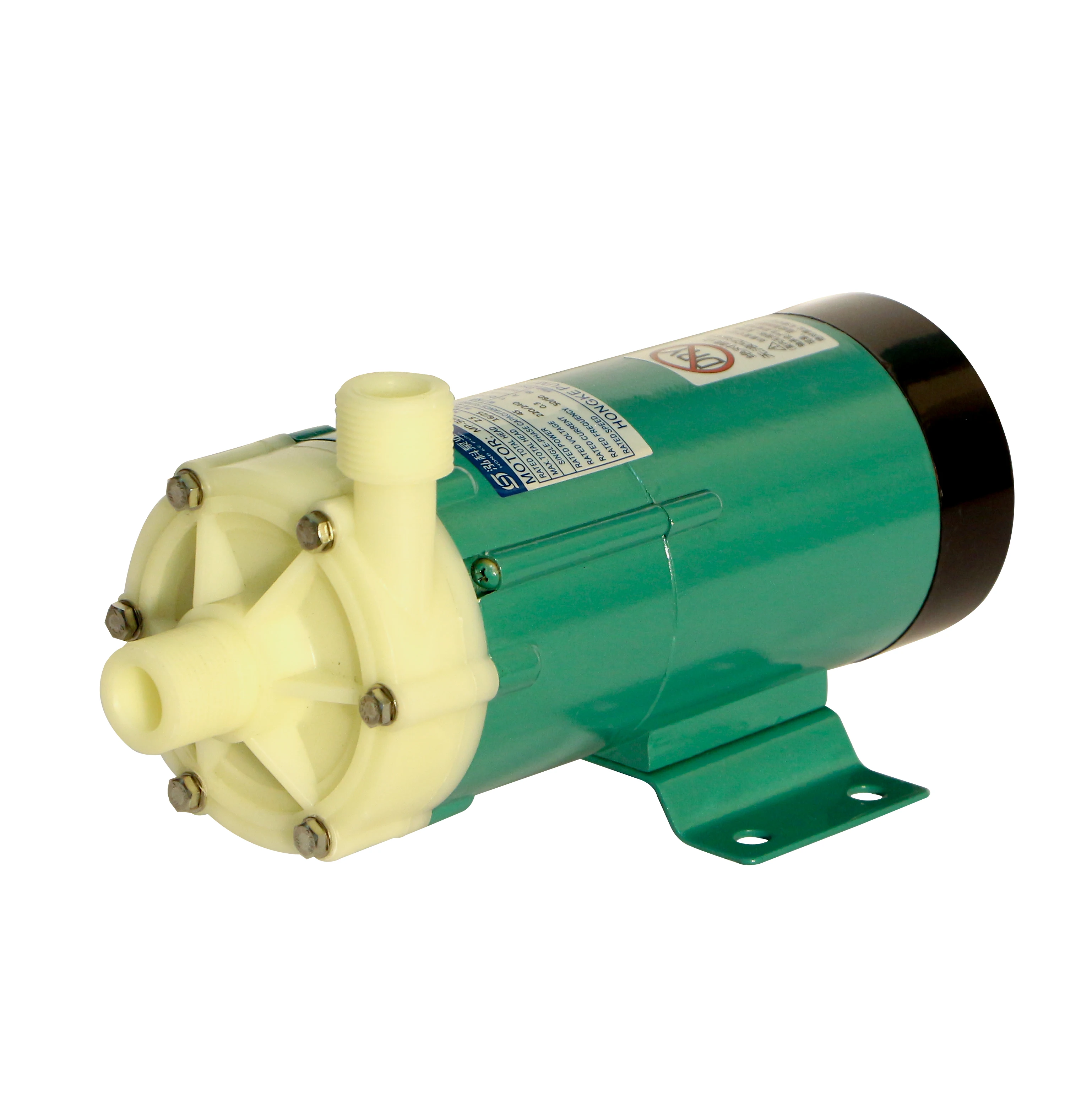

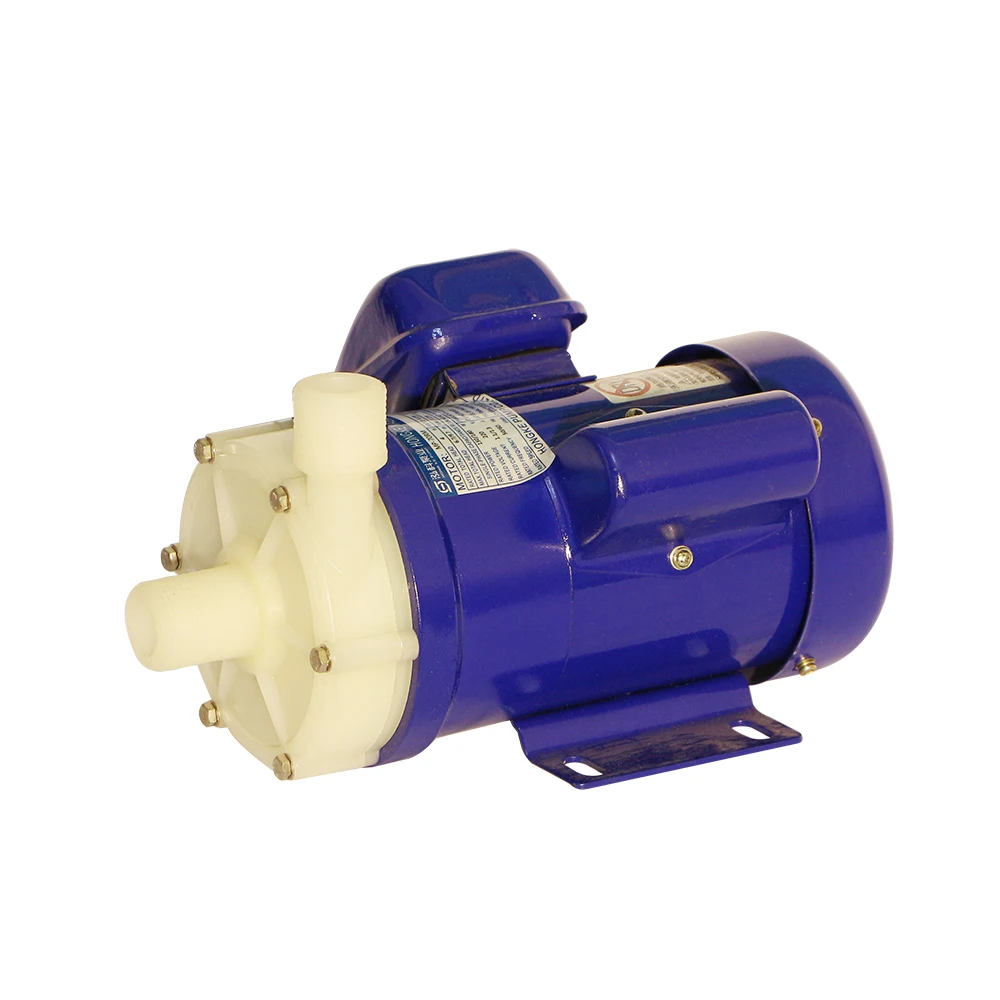

Detailed pics show
