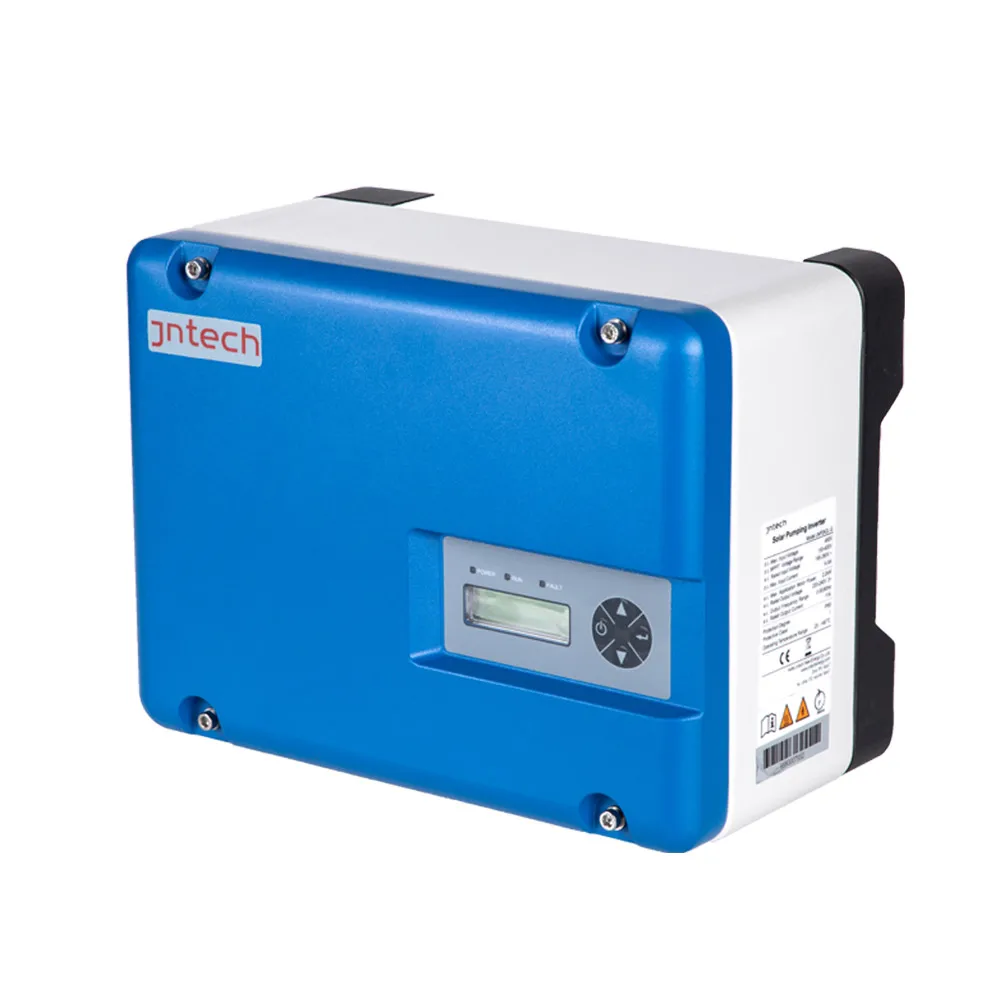

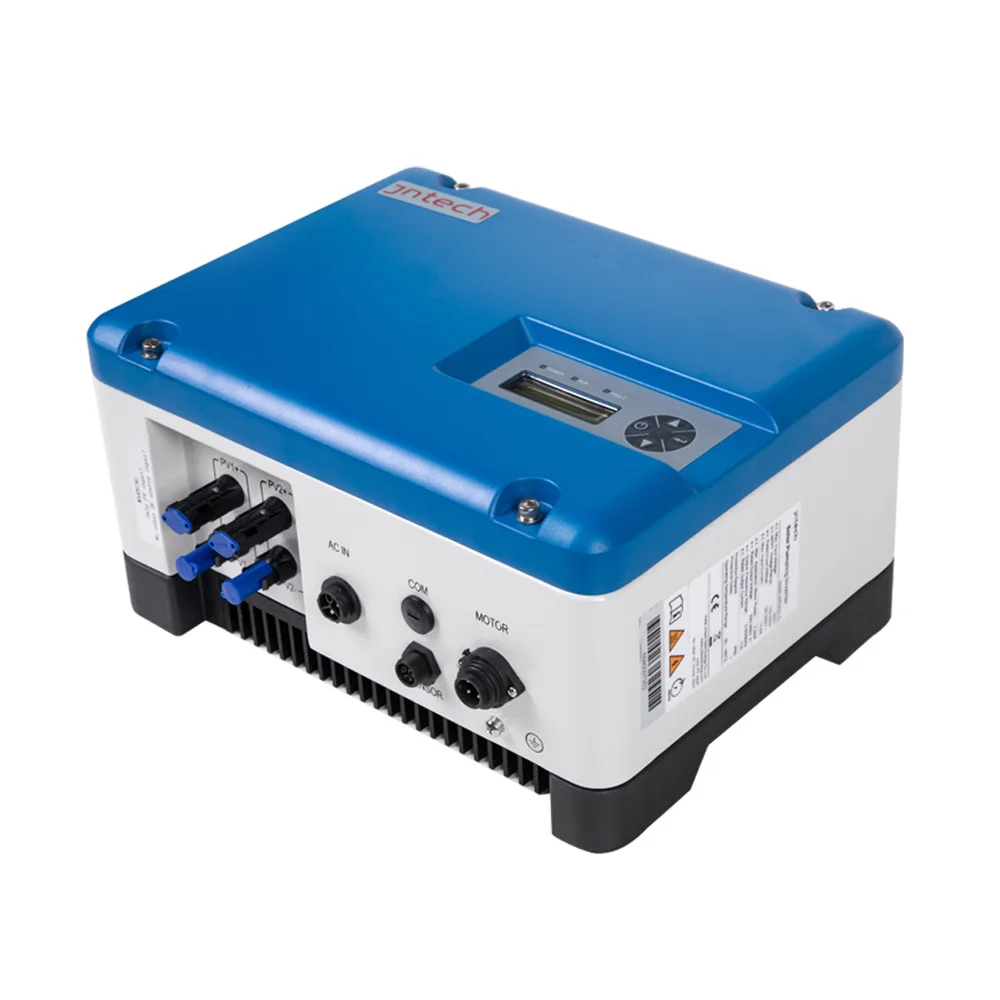

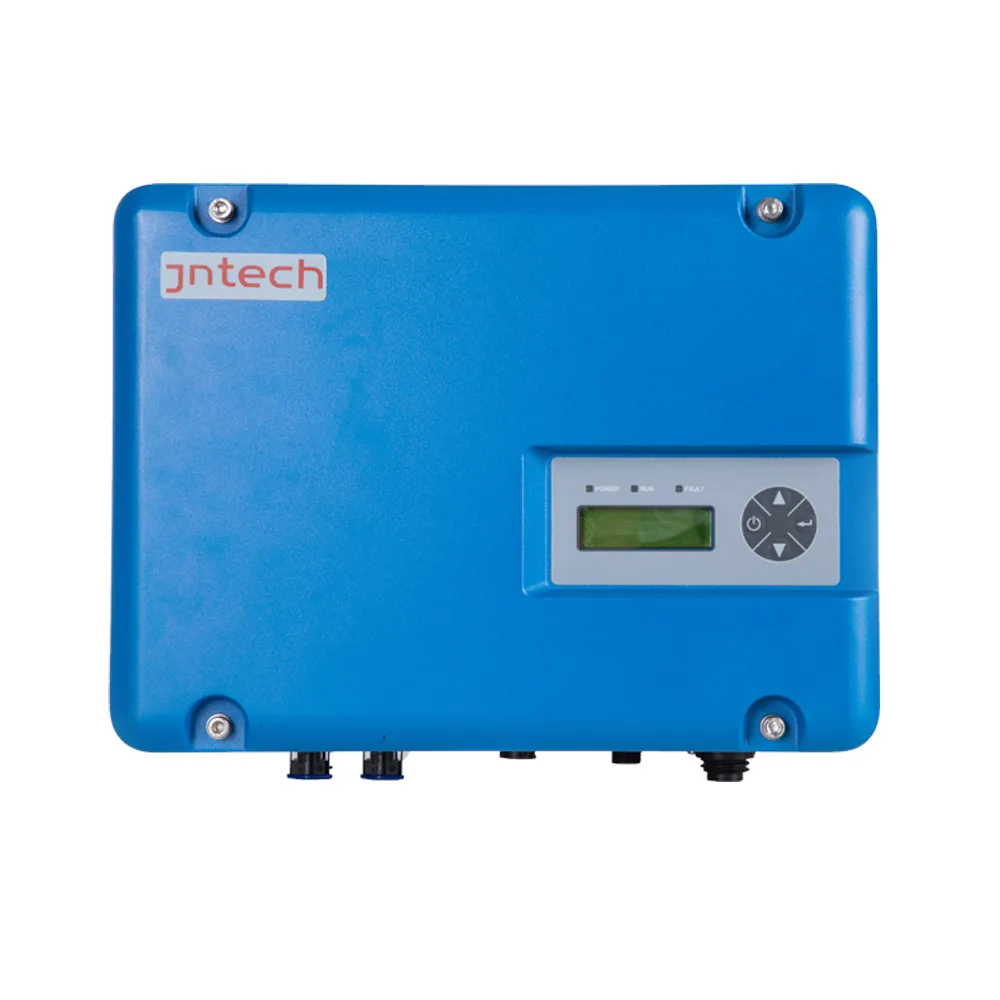

Wholesale Dc Ac 200v 380v 99%efficiency Power Water solar water pump controller Ip20 2.2 Kw Hybrid Off Grid Solar Controller
- Category: >>>
- Supplier: Jntech Renewable Energy Co. Ltd.
Share on (1601075173155):
Product Overview
Description
Product Description

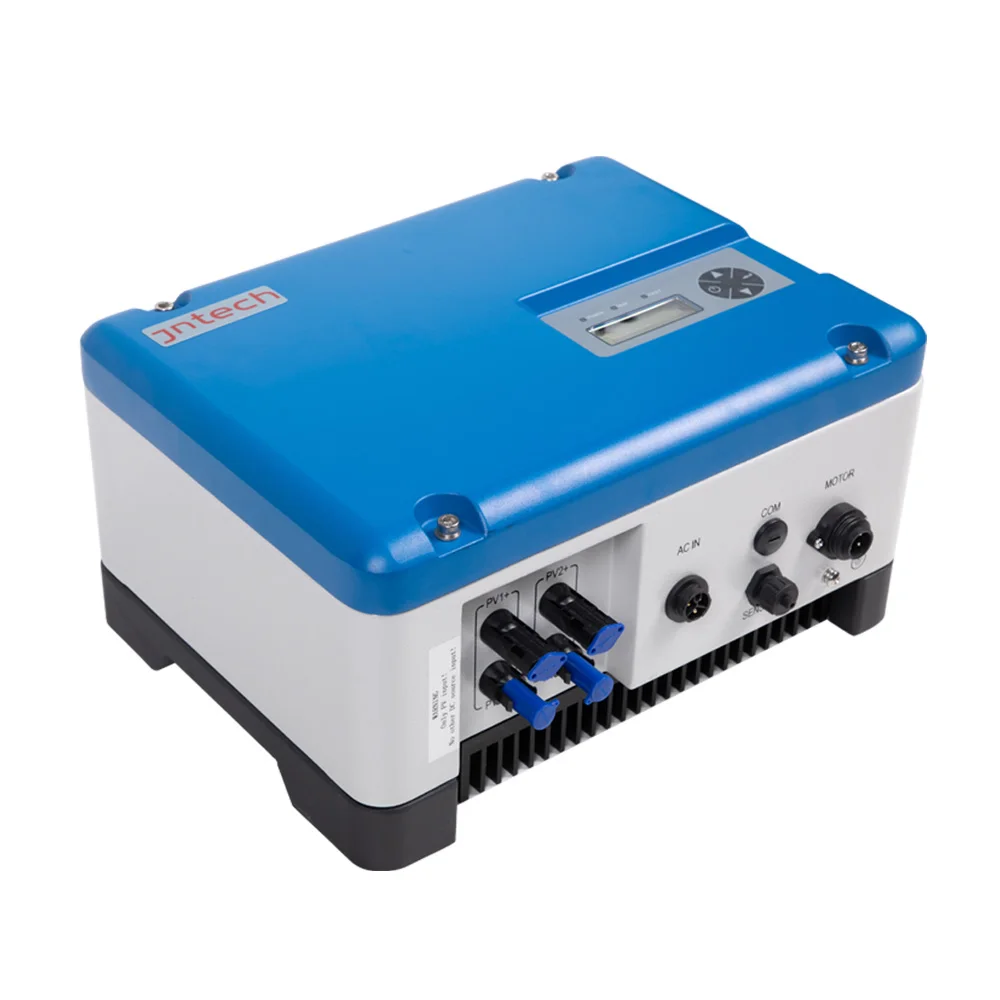

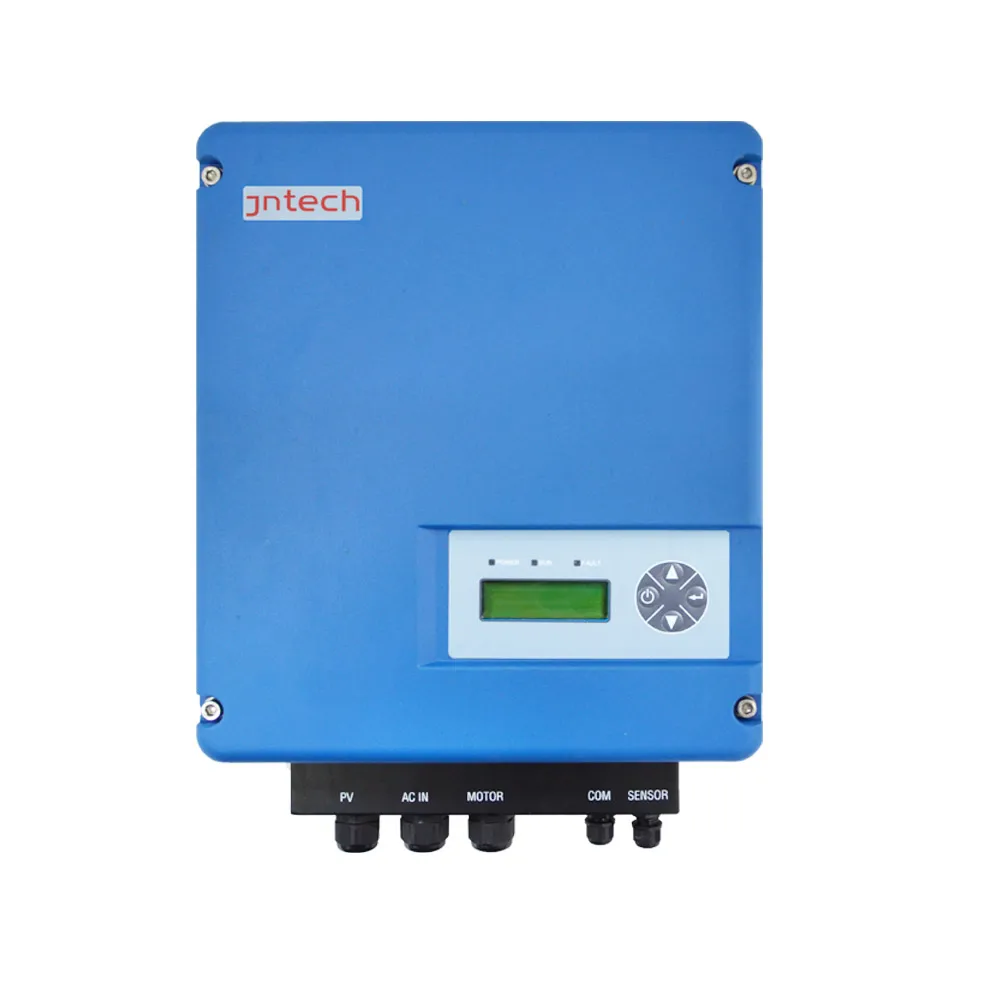

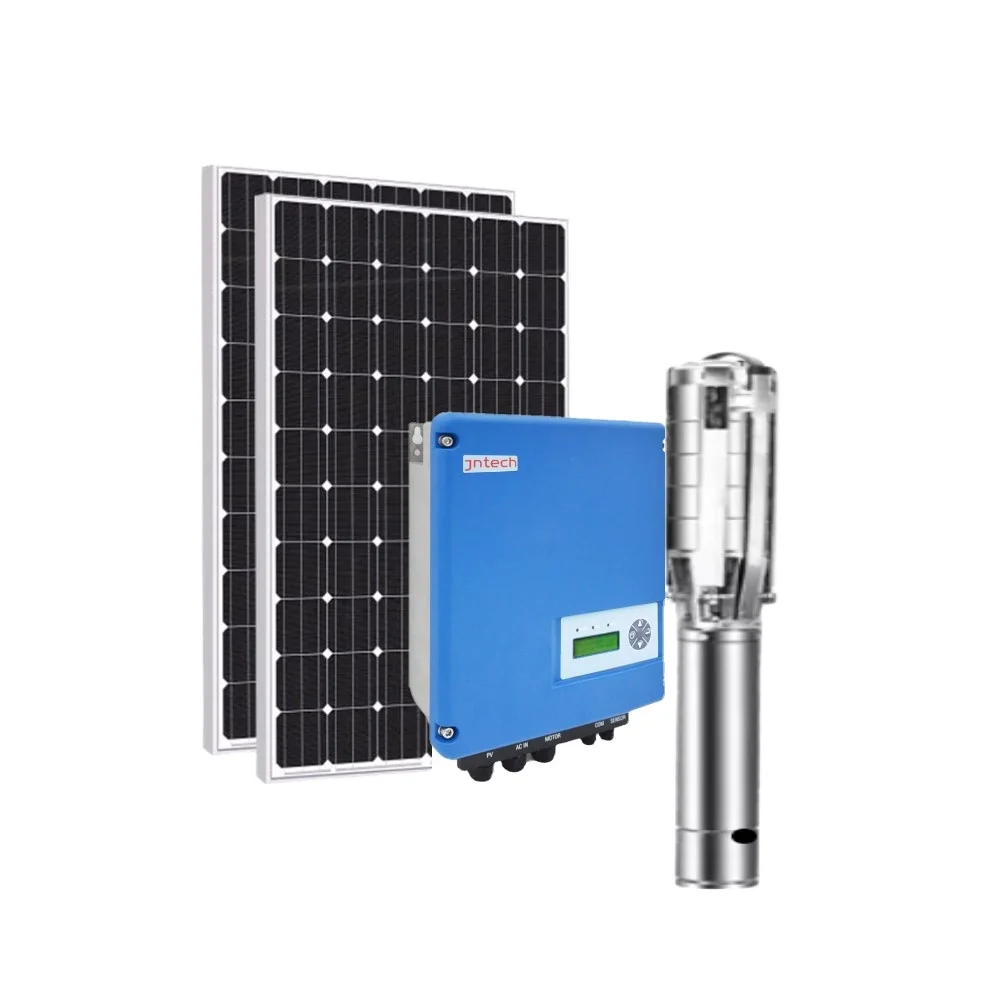

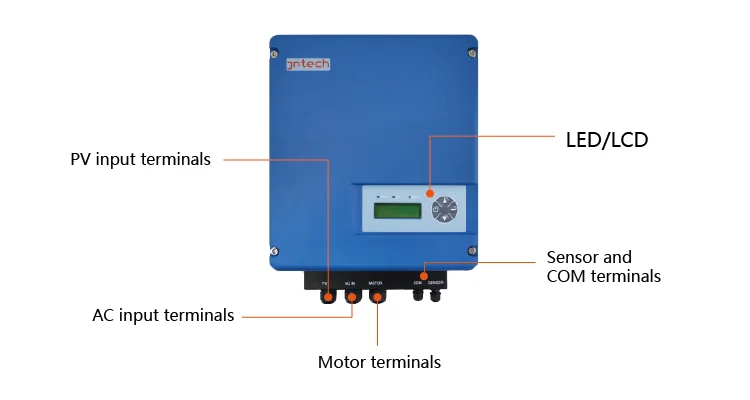

Jntech 5.5Kw 380V three phase solar pump Inverter with hybrid energy for middle field irrigation
Features of Solar pump Inverter
1.Automatic start and shut off according to solar intensity. No need manual operation once started.
2.Soft start controlling in rush current, to avoid motor burning.
3.IP65 design for outdoor application. Against raining, dust.
4.No need derate the power capacity for pump matching. The matching power with pump is 1:1.

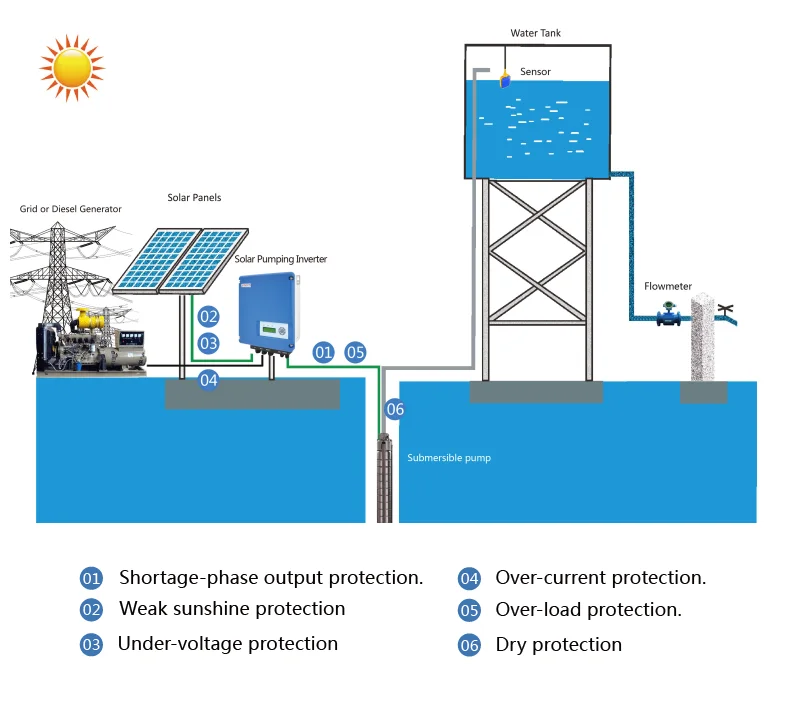

Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
2.Soft start controlling in rush current, to avoid motor burning.
3.IP65 design for outdoor application. Against raining, dust.
4.No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.
Model | JNP2K2H | JNP3KH | JNP4KH | JNP5K5H | JNP7K5H | ||||
Max, PV Input | 880V | ||||||||
MPPT Voltage | 460-850Vdc | ||||||||
Max. MPPT Efficiency | 99% | ||||||||
AC Input | 360-460Vac , 3phase , 50/60Hz | ||||||||
Output | 2.2kw | 3kw | 4kw | 5.5kw | 7.5KW | ||||
Output Voltage | 380-460Vac, 3 phase, 50/60Hz | ||||||||
Output Current | 6A | 7A | 9A | 13A | 18A | ||||
Protection | IP65 | ||||||||
Operating Temperature | -25 ~ +60 ℃， above 60 ℃ need derate operating | ||||||||
Cooling Way | Natural Cooling | Natural Cooling | |||||||
Display | LCD | LCD | |||||||
Communication | RS485/GPRS | RS485/GPRS | |||||||
Size | 265*330*150mm | 265*330*150mm | |||||||
Weight | 6.5kg | 6.5kg | |||||||

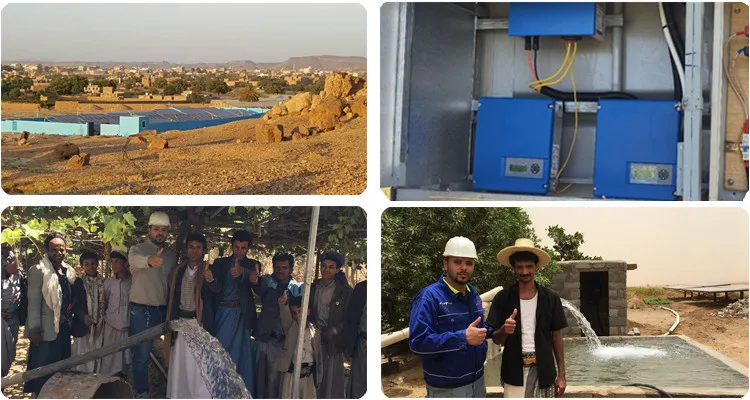

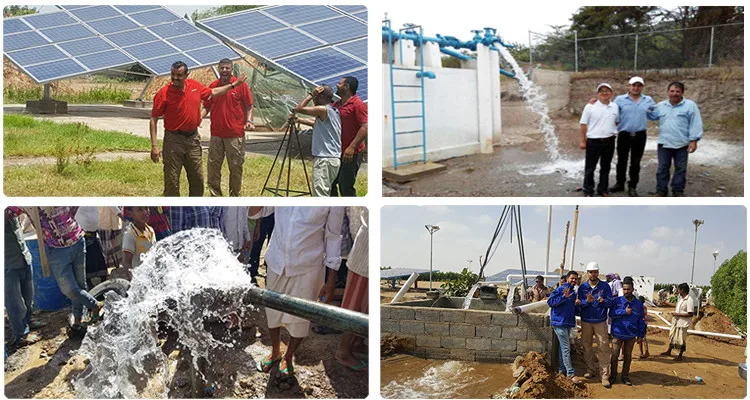

Projects
Related Accessory

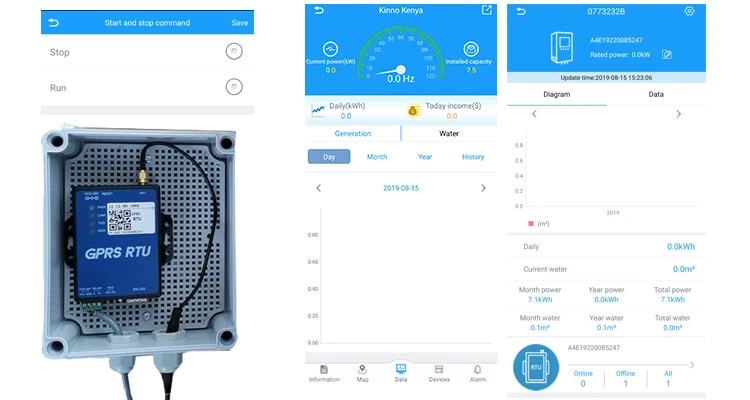

GPRS Remote Monitoring and Control
Using local data card, Download APP for Android cell phone, then you can see all the working parameters in smart phone, current power capacity, voltage, current, output frequency and so on, we also can control on and off remotely. once there is fault, it will show the error code , it is easy for maintenance.
PV Cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
AC Cable
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
Insulation thickness(mm) 1.0+1.0
Insulation thickness(mm) 1.0+1.0
Sheath thickness(mm) 2.0
admissible operating temperature of the conductor:-20~+65℃
Packing & Delivery
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
By sea | Delivery from Shanghai or Ningbo seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By TNT/DHL | ||||
Jntech Service
Technical and Requirement Communication Before Sales
Engineers Training in Customer's Office or Jntech Factory
Chinese Engineer or Local Agent Engineer Technical Support At Site

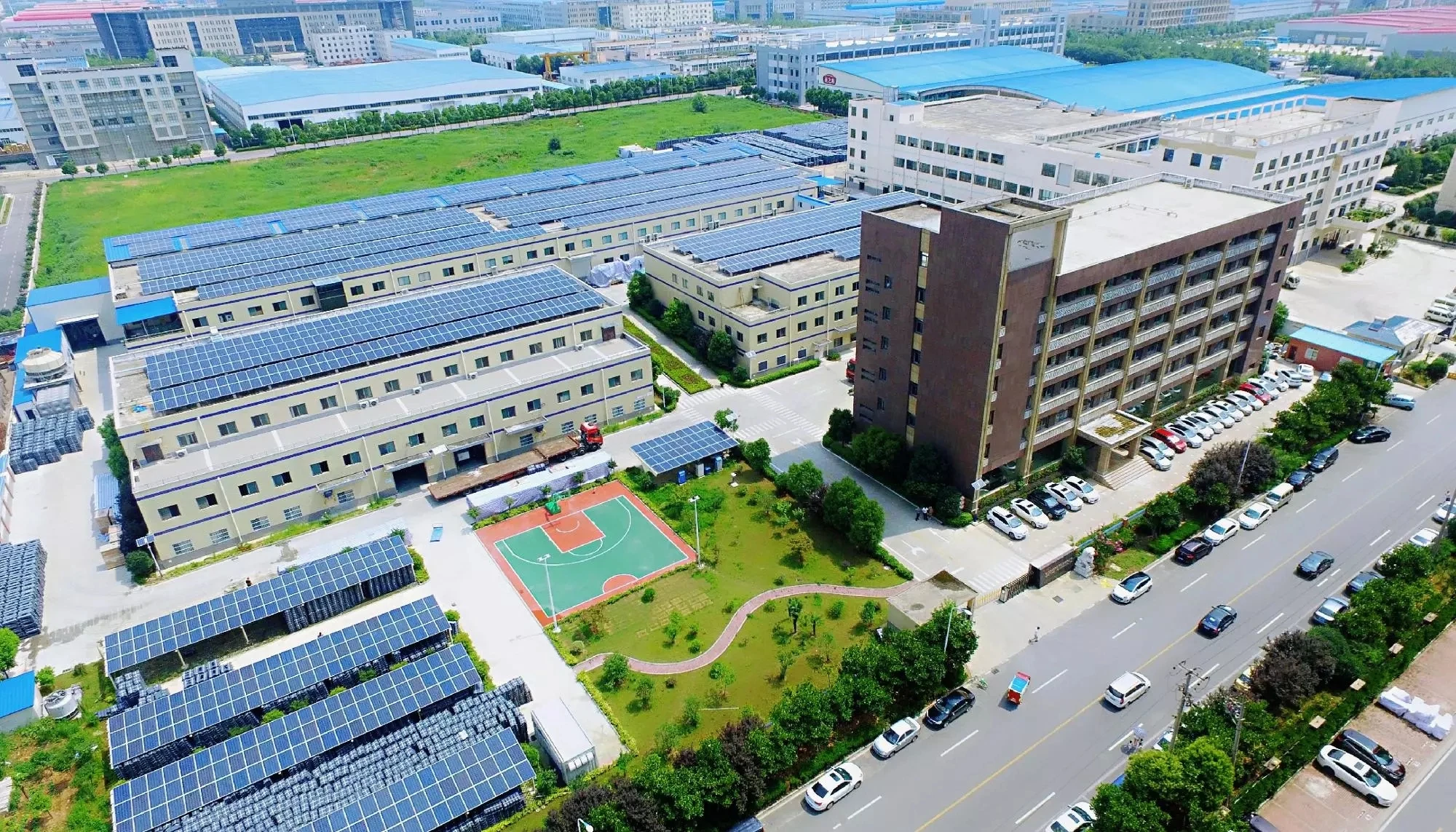

Company Introduction
JNTECH set up in 2006 China, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 60 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.

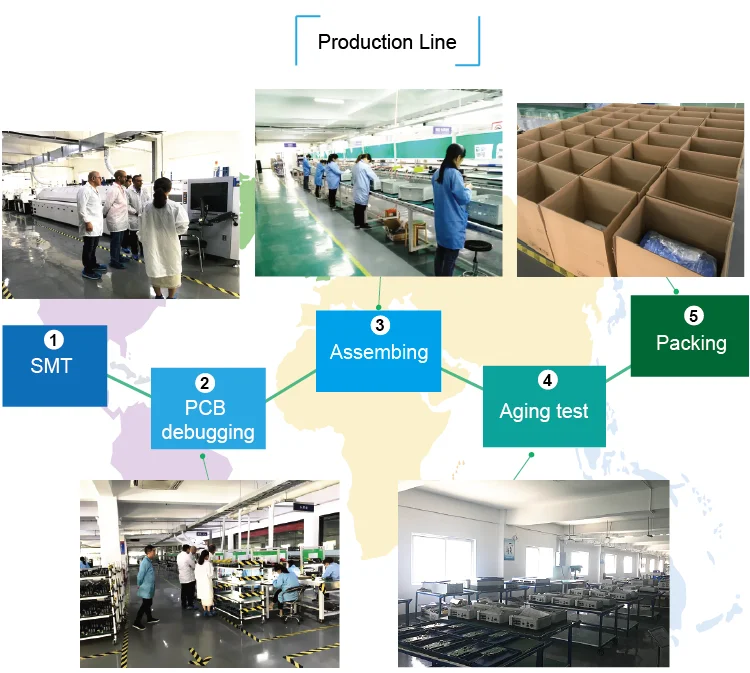

SMT
PCB
JNTECH Certifications
China only acquire German TUV certification of solar pump inverter business
ISO9001, IS014001, OHSAS18001,TUV,CE,AAA credit management system,Third level qualification of power project construction, National high-tech enterprisesJNTECH in the world
