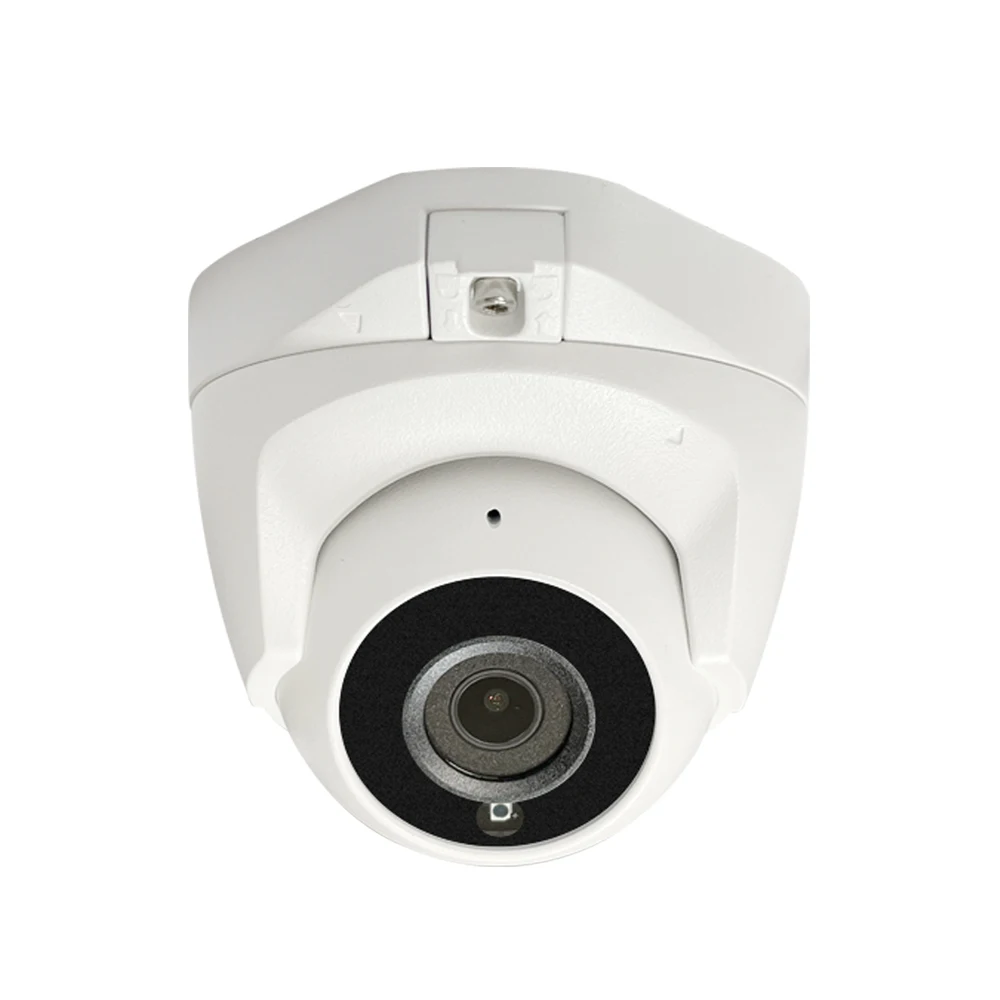

5MP 6MP OEM Dome CCTV 3.6mm fixed lens night vision POE Vandal proof IP camera with human body detection
- Category: >>>
- Supplier: Shenzhen YCX Electronics Co. Ltd.
Share on (1601075189014):
Product Overview
Description
5/6MP H.265 IP66 2.8mm fixed lens night vision POE turret IP camera with human body and vehicle detection
Products Description
5/6MP H.265 IP66 2.8mm fixed lens night vision POE turret IP camera with human body and vehicle detection
* 5/6MP H.265 IP66 2.8mm fixed lens night vision POE turret IP camera with human body and vehicle detection
* 1/3" GC4653 CMOS sensor
* Full HD resolution 2592*1944P/3072*2048P
* Ultra low illumination 0.01Lux
* Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
* Human body and vehicle Detection Motion Detection, Privacy Mask, Mirror
* RTSP and 17.06 compatible
* H.265/264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* Internal Microphone, reset button optional
* Lightning protection 4000V

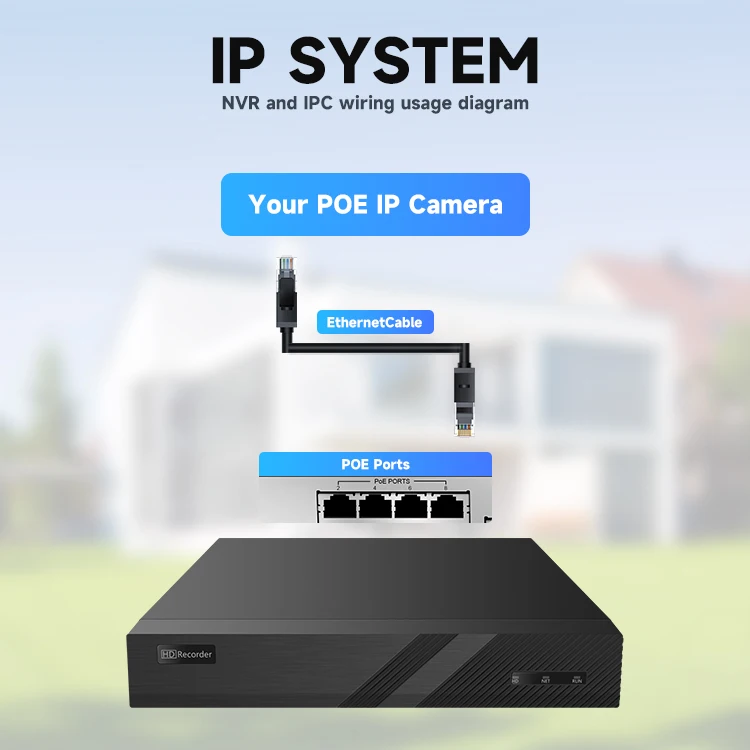

* RJ45 100mbps network port, IEEE802.3af PoE
* Strong water-proof housing, IP66
* 18PCS SMD IR Leds, Light distance:20-30M
* HD 2.8mm Fixed Lens
* 1/3" GC4653 CMOS sensor
* Full HD resolution 2592*1944P/3072*2048P
* Ultra low illumination 0.01Lux
* Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
* Human body and vehicle Detection Motion Detection, Privacy Mask, Mirror
* RTSP and 17.06 compatible
* H.265/264 dual-stream media server
* Easy-to-use P2P Cloud service
* Multi web browser, PC Client, mobile APP remote access
* Internal Microphone, reset button optional
* Lightning protection 4000V
* RJ45 100mbps network port, IEEE802.3af PoE
* Strong water-proof housing, IP66
* 18PCS SMD IR Leds, Light distance:20-30M
* HD 2.8mm Fixed Lens
Product Paramenters
Model | W705AHBB94BA | |
Camera | ||
Image Sensor | 1/3" GC4653 CMOS | |
Effective Pixels | 2592*1944/3072*2048 | |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Day/Night | Auto/Color/(B/W)/Timing | |
White Balance | Auto/Indoor/Outdoor | |
BLC | Support | |
DNR | 2D/3D DNR | |
Other | Human body and vehicle detection, Motion Detection, Privacy Mask, Mirror, flip | |
Encode | ||
Embedded Solution | SSC30KQ | |
Video Standard | H.264/H.265 | |
Video Resolution | Main Stream: 25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P Sub stream: 25fps@D1/VGA/360P/CIF, etc. | |
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR | |
Audio Standard | G.711-u/G.711-a | |
OSD Overlay | Title and Time overlay | |
LedS | ||
Leds | 18PCS SMD IR Leds | |
Light Distance | 20-30 M | |
Lens | ||
Focal length | HD 2.8mm Fixed Lens | |
Other Function | Audio | |
Network Services | ||
Protocol | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc. | |
P2P | Yes | |
Web | IE , Firefox, etc. | |
Media | CMS, Android, IOS | |
OVF | 17.06 compatible | |
General | ||
Network Port | 1-RJ45, 100Mbps, | |
Power Supply | IEEE802.3af PoE, 12 VDC ± 10% | |
Power Consumption | < 8 W | |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH | |
Company Profile
YCX Exhibition
YCX will attend many professional Security show each year: ISC America,Secutech Taiwan,IFSEC UK,Mips Russia,ESSEN Germany,Intersec,Dubai,CPSE China.etc.Welcome to meet us at the show!
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
OEM Inner Box
Label with basic information of camera
Outer box with our special secuirty packaging tape.
FAQ
1.Q:Are you a factory or trading company?
A:YCX Electronics founded in 2009,which is 100% real factory with covering 5000 square meters plant. with over 11 years experience in manufacture and export security CCTV Camera and recorder products. By using the advance ERP management system, experienced R&D team and strict quality control system,YCX can provide you with high quality security CCTV products.
2.Q: What's your main products?
A: YCX mainly provide POE IP security camera system including 3MP/5MP/8MP POE IP Cameras, PTZ cameras , WIFI camera and NVR, also 4 IN 1 cameras and DVRs. YCX developed own professional NVR software GUI 100%, which is stable and unique in the market, it could manage multi-brands IP cameras. Also all YCX IP cameras contain Hik private and standard ONVF protocol, which can compatible very well with HikNVR.
3.Q: What's the MOQ?
A: No MOQ required for sample order, at least one carton per model after sample order.
4.Q:How long is the delivery time?
A: Usually 15 days after order be confirmed; sample within 7 days. But it will take a little longer if with heavy burden of
production task. The final lead time is based on negotiation.Most orders will be shipped via door to door shipping services like DHL, UPS, FEDEX, TNT. While some bulk orders will be shipped via air shipping or sea shipping based on customer's
required.Meanwhile, the tracking number will be provided once the goods were sent out.
5.Q:How about warranty?
A:All YCX products with 24 months warranty since the purchase date. During the warranty period, you can contact our tech support team anytime.
6.Q: Can you provide OEM/ODM Service?
A: Sure, YCX has over 11-year experience in the security industry, which has the capability of offering excellent ODM/OEM services to customize security products. If you have your own design and have problems for production, welcome here! YCX can offer you stable quality and the best performance security products.
