CMS8000VET 12.1 Veterinary Vital Signs Patient Monitoring
- Category: >>>
- Supplier: Qinhuangdao Huaxi Medical Equipment Co. Ltd.
Share on (1601075599600):
Product Overview
Description

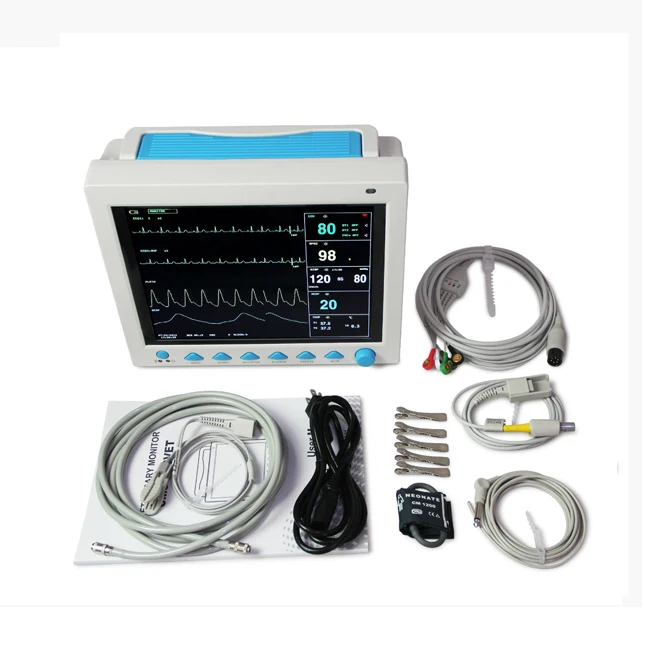

CMS8000VET Vital Signs Patient Monitor veterinary instrument
The CMS8000VET Veterinary Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals.User may select different parameter configurations according to different requirements. It adopts 100-240V~,50/60Hz for power supply, 12.1'' TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2 and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for moving.
This device can monitor such parameters as ECG, RESP, NIBP, SpO2 and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for moving.
Performance | ||||
ECG | Lead mode | 3-lead or 5-lead | ||
Lead selection | I, II, III, aVR, aVL, aVF, V | |||
Waveform | 5-lead, 2-channel3-lead, 1-channel | |||
Gain | 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV | |||
Scan speed | 12.5mm/s, 25 mm/s, 50 mm/s | |||
HR | Measurement and alarm range | 15~350bpm | ||
Accuracy | ±1% or ±1bpm, whichever is greater | |||
Alarm accuracy | ± 2 bpm | |||
Resolution | 1 bpm | |||
Measurement and alarm range | -2.0mV~+2.0mV | |||
Accuracy | 0.8mV~+0.8mV ±0.04mv or ±10%, whichever is greater | |||
Other range | unspecified | |||
Arrhythmia analysis | ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC | |||
Pacemaker | yes | |||
RESPIRATION | Method | R-F(RA-LL) Impedance | ||
Measurement and alarm range | 0~150rpm | |||
Resolution | 1 rpm | |||
±2 rpm | ||||
Alarm accuracy | ±3 rpm | |||
Apnea alarm | 10~40s | |||
Scan speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s | |||
NIBP | Method | Oscillometry | ||
Mode | Manual/AUTO/STAT | |||
Measurement interval in AUTO mode | 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes | |||
Measurement period in STAT mode | 5 minutes | |||
Measurement and alarm range | 10 ~ 270 mmHg | |||
Resolution | 1 mmHg | |||
Cuff pressure accuracy | ±3 mmHg | |||
Maximal mean deviation | ±5 mmHg | |||
Maximal standard deviation | 8mmHg | |||
Adult mode | 297±3 mmHg | |||
Pediatric mode | 240±3 mmHg | |||
Neonatal mode | 147±3 mmHg | |||
SpO2 | Measurement and alarm range | 0 ~ 100% | ||
Resolution | 1% | |||
Measurement accuracy | 70%~100%: ±2%0%~69%: unspecified | |||
PR | Measurement and alarm range | 30 ~ 250 bpm | ||
Measurement accuracy | ±2 bpm or ±2%, whichever is greater | |||
TEMP | Channel | dual-channel | ||
Measurement and alarm range | 0 ~ 50℃ | |||
Resolution | 0.1 ℃ | |||
Accuracy | ±0.1 ℃ | |||

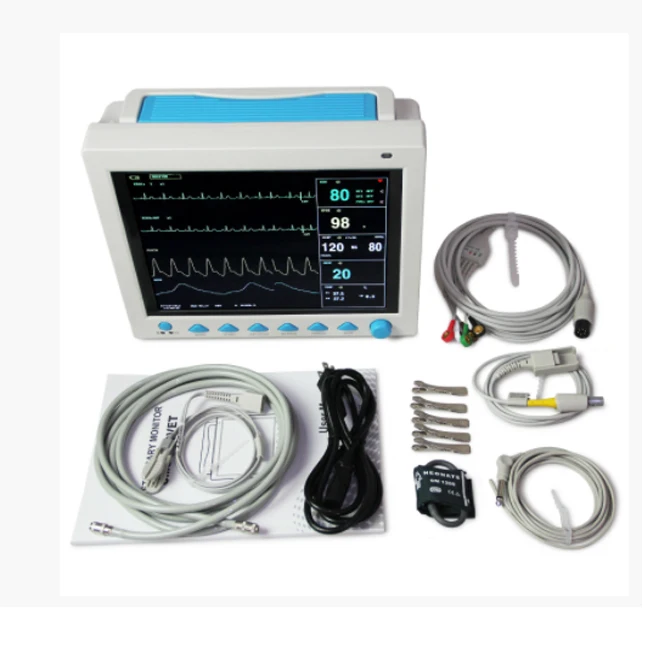

Accessories | veterinary tongue-clip SpO2 sensor (1M) | ||||
SpO2 sensor extension cable (2M) | |||||
Neonatal capsule single tube repeatable cuff (6-11cm) | |||||
NIBP extension tube | |||||
ECG lead cable | |||||
ECG veterinary clip | |||||
Transvaginal TEMP probe | |||||
Power cord | |||||
User Manual | |||||
Physical characteristic | Dimension | 235 mm(L) × 141 mm(W) × 222 mm(H) | |||
Weight | 2.5 Kg | ||||
Functions
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking
and drug concentration calculation, etc.
Features
1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish,Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)All-round monitor for adult, pediatric and neonate.
4)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.
5)Waveform, parameter color and location can be set optionally.
6)Operation mode: keys and buttons.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen, and with ECG step function.
9)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
10)HRV analysis function.
11)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
12)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
13)Drug concentration calculation and titration table functions.
14)Print trend table data with one-key.
15)Connect to Central Monitoring System by 3G, WiFi or wired mode.
16)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
17)Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking
and drug concentration calculation, etc.
Features
1)8'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish,Portuguese, Italian, Dutch, Romanian, Russian, Kazakhstan, Polish, Czech).
2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3)All-round monitor for adult, pediatric and neonate.
4)With standard interface, OxyCRG, trend chard, big character interface and view bed, convenient to observe.
5)Waveform, parameter color and location can be set optionally.
6)Operation mode: keys and buttons.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen, and with ECG step function.
9)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
10)HRV analysis function.
11)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.
12)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
13)Drug concentration calculation and titration table functions.
14)Print trend table data with one-key.
15)Connect to Central Monitoring System by 3G, WiFi or wired mode.
16)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
17)Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
