48v 51.2V 5kwh 5.12Kwh Solar Power Lifepo4 Battery 100AH 6000 Cycles Integrated Lithium lithium Battery pack For home use
- Category: >>>
- Supplier: Guangdong Techfine Electronic Co. Ltd.
Share on (1601075685307):
Product Overview
Description

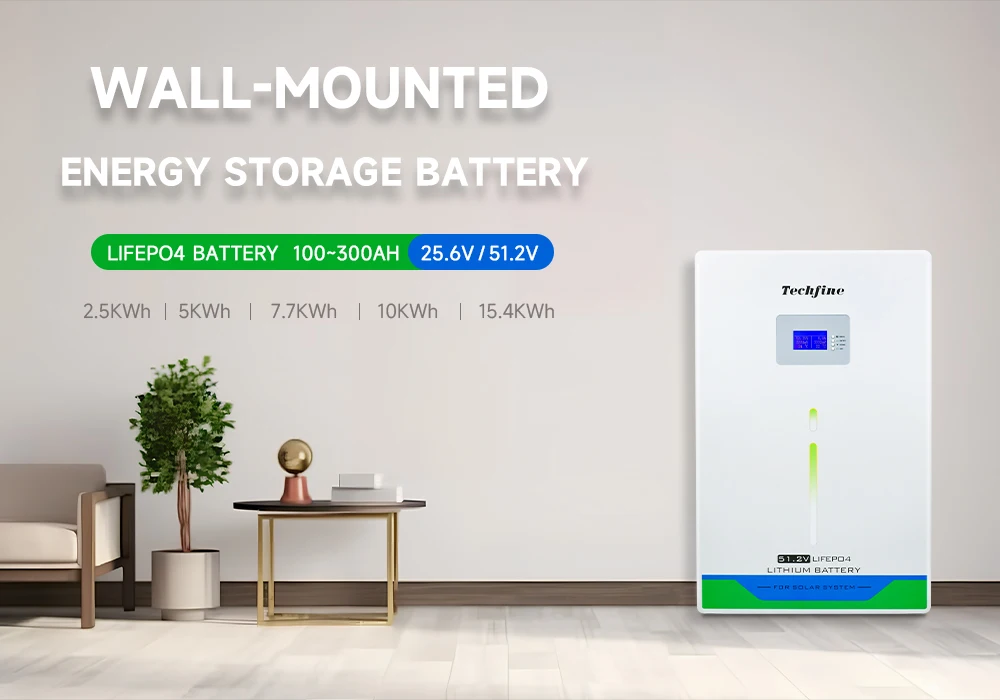

Technological Excellence, Shaping the Future — Techfine Wall-Mounted Lithium Batteries
Elevate your commercial projects with high-efficiency, long-life energy solutions. Techfine's wall-mounted LiFePO4 batteries deliver unparalleled battery technology and robust energy storage capabilities to provide stable and reliable power support for solar systems. With capacities ranging from 2.5kWh to 15.4kWh, our products cater to the energy requirements of diverse scales, from residential complexes to commercial buildings, ensuring self-sufficiency and maximized efficiency.
HIGH QUALITY BATTERY : The Powerhouse Behind Your Energy Solutions

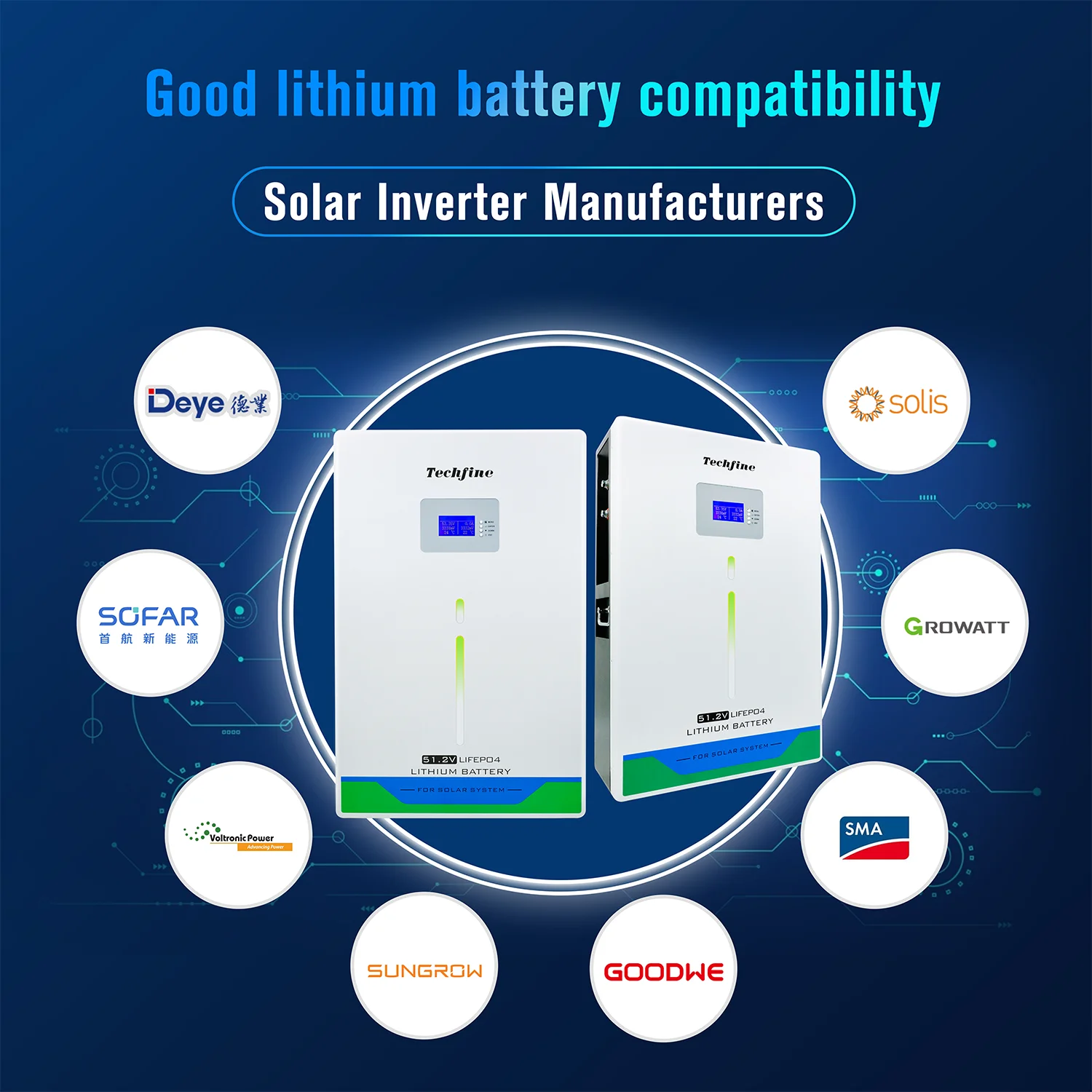

Unlock the full potential of energy storage with our top-tier batteries, engineered for excellence. Equipped with an intelligent Battery Management System (BMS), our batteries ensure flawless compatibility with all hybrid inverters, paving the way for seamless integration into diverse energy systems.
Product Parameters
LB100-51250 | LB230-512100 | LB300-512100 | LB200-256100 | ||||
Available Capacity | 5120WH | 11776WH | 15360WH | 5120WH | |||
Cell Chemistry | LiFePO4 | ||||||
Max Discharge Current | 100A | ||||||
Rated Voltage | 51.2V|DC | 25.6V|DC | |||||
Voltage Range | 43.2V-58.4V|DC | 21.6V-29.2V|DC | |||||
Maximum Output Power | 5120W | 2560W | |||||
Maximum Charging Voltage | 58.4V±0.2V|DC | 26.2±0.2V|DC | |||||
Rec. Charge Voltage | 58.4V±0.2V|DC | 26.2±0.2V|DC | |||||
Rec. Charge Current | 50A | 100A | 100A | 100A | |||
Charge Current Limit | 10A | ||||||
Long Delay Overcurrent Prot. | Alarm at >105A, protection at >110A/1S | ||||||
Instant Overcurrent Prot. | ≥150A/100ms | ||||||
Charge Overcurrent Release | Discharge current >1A to release | ||||||
Discharge Overcurrent Release | Charging current >1A to release | ||||||
Short Circuit Prot. | Yes, automatically releases when charging | ||||||
Temp & Safety Prot. | MOS Cell Ambient Failure & Temperature Protection | ||||||
Display Screen | LED strip display + LCD screen | ||||||
Battery Depth of Discharge (DOD) | ≥95% | ||||||
Modules Connection | 1-5 | ||||||
Communication | Standard configuration with RS232, RS485, CAN | ||||||
Protection Level | IP21 | ||||||
Cycle Life | ≥5000 cycles | ≥5000 cycles | ≥8000 cycles | ≥5000 cycles | |||
Operating Temperature Range | Discharging: -10°C to +50°C; Charging: 0°C to +60°C | ||||||
Storage Temperature | 1 month, 0–35°C; ≤1 month, -20–45°C | ||||||
Terminal Type | M8 | ||||||

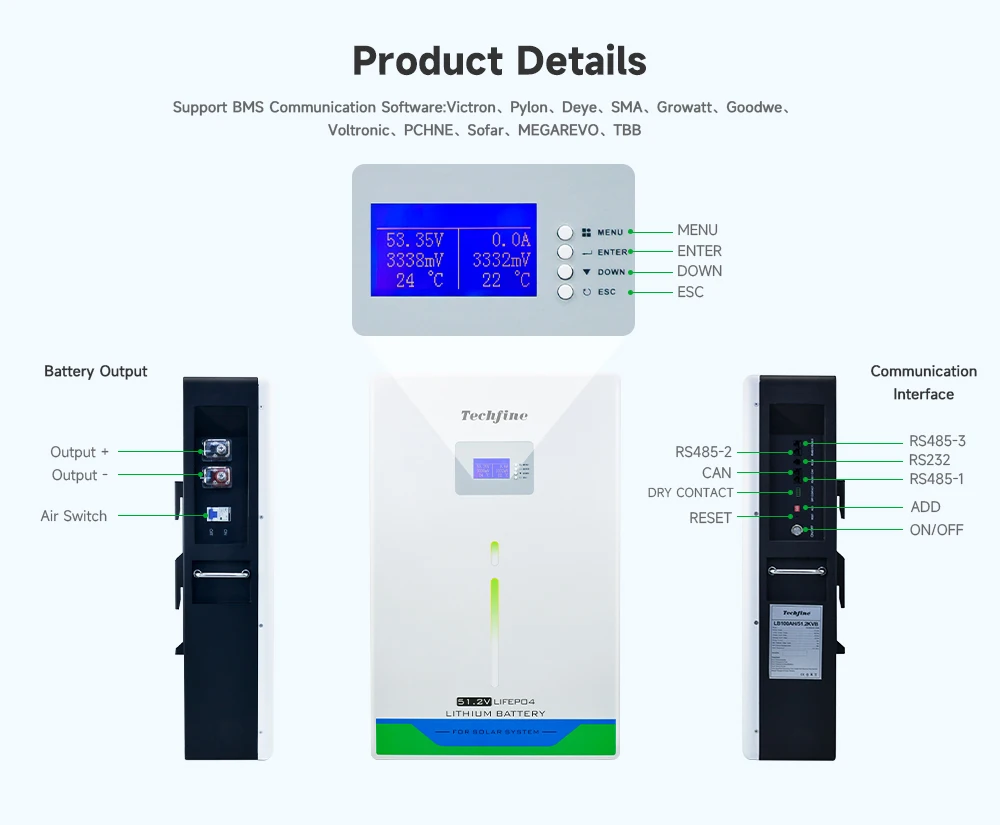

Product Overview
>Versatile Compatibility: Our comprehensive communication interface includes multiple RS485 ports, CAN, and RS232, ensuring easy integration with a wide range of inverters and energy management systems.
>Intuitive Controls: With a user-friendly display and simple navigation buttons, monitoring and managing your energy has never been easier.
>Robust Outputs: Equipped with solid battery output terminals and an air switch for safety, our batteries are ready to deliver reliable power where and when it's needed.
>Streamlined Maintenance: The practical design features accessible reset and on/off switches, making routine checks and troubleshooting a breeze.
>Intuitive Controls: With a user-friendly display and simple navigation buttons, monitoring and managing your energy has never been easier.
>Robust Outputs: Equipped with solid battery output terminals and an air switch for safety, our batteries are ready to deliver reliable power where and when it's needed.
>Streamlined Maintenance: The practical design features accessible reset and on/off switches, making routine checks and troubleshooting a breeze.
Techfine is dedicated to advancing sustainability every step of the way.
Our commitment to the environment extends beyond our products to include every aspect of our operations, as highlighted by our adherence to eco-friendly packaging standards. With prestigious memberships and compliance with international environmental regulations, we are proud to contribute to a greener planet.
Elevate your brand with Techfine's ODM services.
Our state-of-the-art lithium batteries are now available for complete customization. We empower your vision with the flexibility to personalize every aspect of the product — from the logo that represents your brand to the slogan that speaks your mission.
>Customized Branding: Put your stamp on our batteries with custom logos that resonate with your clients.
>Personalized Aesthetics: Choose the colors and designs that align with your brand identity and market strategy.
With Techfine, you don’t just get a product; you get a canvas for your brand. Our commitment is to support your product portfolio with customization that goes beyond the surface, making sure every battery you offer is distinctly yours.
>Customized Branding: Put your stamp on our batteries with custom logos that resonate with your clients.
>Personalized Aesthetics: Choose the colors and designs that align with your brand identity and market strategy.
With Techfine, you don’t just get a product; you get a canvas for your brand. Our commitment is to support your product portfolio with customization that goes beyond the surface, making sure every battery you offer is distinctly yours.
Our Factory
Industry-leading One-stop Customized Services
Guangdong Techfine Electronic Co., Ltd.
Professional manufacturer for solar & UPS system products in China.
Offer stable quality products with reasonable price and nice sales/after-sales service.
You can get suitable products with long time service and market sales support from us.
Of course, we also support OEM/ODM cooperation.
Techfine will be your reliable partner!
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
