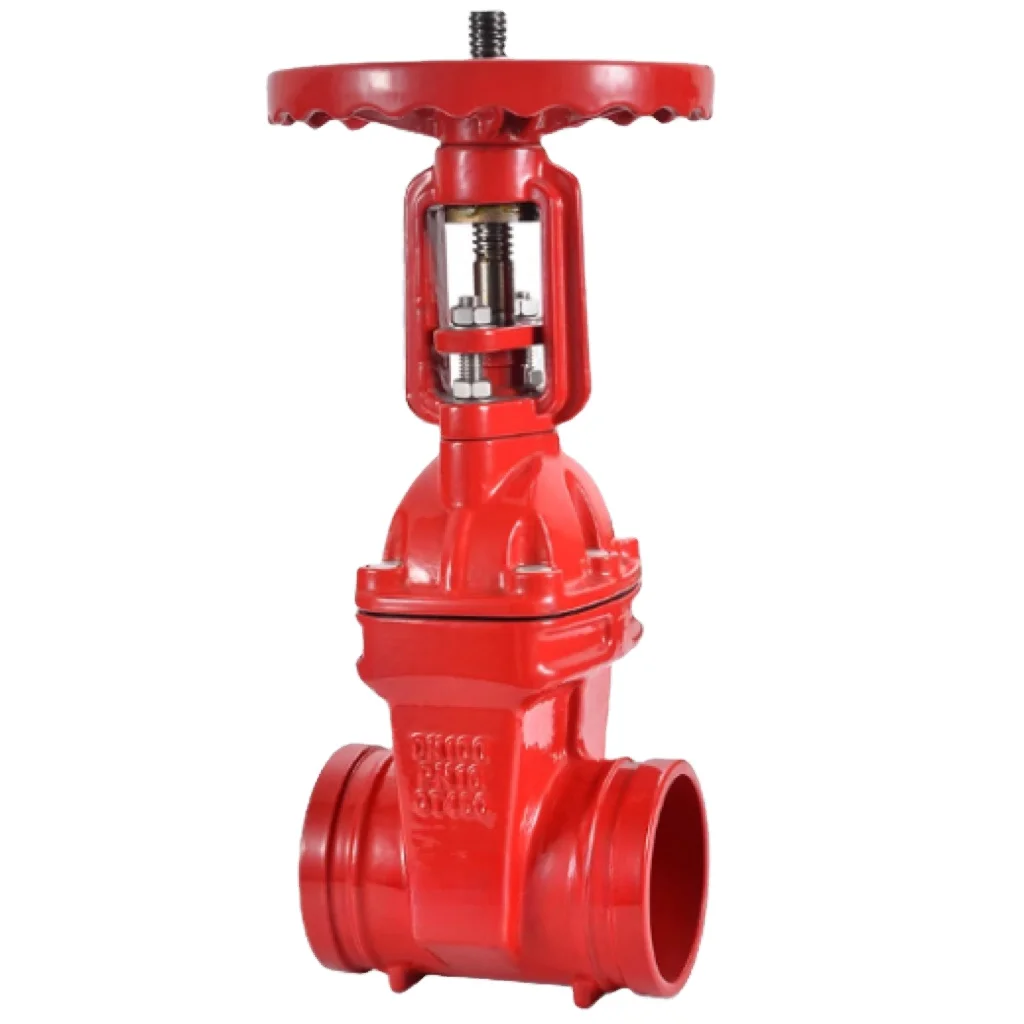

high quality factory manufacture Z81X 16Q grooved flanged ductile iron rising stem gate valve
- Category: >>>
- Supplier: Sichuan Jinhongshun Fluid Technology Co. Ltd.
Share on (1601075801379):
Product Overview
Description
Company Profile
VIP customers from Zambia visited our factory.
VIP customer from South Africa visited our factory.
Participated in the International Water System Exhibition in 2006.
VIP customers from Saudi Arabia visited our factory.
Canton Fair.
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4. Pressure customization
5, logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you!
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
Products Description
Z81X-16Q Groove Rising Stem Resilient Seat Gate Valve overcomes the defects of poor elasticity, fatigue, rust and other defects of general gate valve sealing.
The elastic seat gate valve utilizes the compensation effect of the elastic valve to produce a small amount of elastic deformation to achieve a good sealing effect. It is the gate, the movement direction of the gate is perpendicular to the direction of the fluid, the gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled.
Z81X-16Q Groove Rising Stem Gate Valve has remarkable advantages such as light opening and closing, reliable sealing, good elastic memory and long service life. It is widely used in tap water, textile, electric power, shipbuilding, metallurgy and energy systems, etc. It is used as a regulating and shut-off device on fluid pipelines.
Main features
1.There is no groove at the bottom of the valve seat and it is a flat-bottomed structure, which is consistent with the diameter of the valve body, avoiding the accumulation of debris and making the fluid flow unobstructed.
2.The inside and outside of the valve body and bonnet are coated with epoxy resin, the thickness of which is not less than that, and will not crack or fall off during use.
3.The surface of the valve plate is fully covered with rubber, the rubber and the core frame are firmly combined, not easy to fall off, and have excellent elasticity.
4.The upper seal between the valve stem and the valve cover adopts three O-shaped rubber sealing rings, the valve stem rotates easily, the sealing is reliable and the service life is long.
5.The valve body adopts the casting process, which is consistent with the valve plate, and has good sealing performance and good interchangeability.
2.The inside and outside of the valve body and bonnet are coated with epoxy resin, the thickness of which is not less than that, and will not crack or fall off during use.
3.The surface of the valve plate is fully covered with rubber, the rubber and the core frame are firmly combined, not easy to fall off, and have excellent elasticity.
4.The upper seal between the valve stem and the valve cover adopts three O-shaped rubber sealing rings, the valve stem rotates easily, the sealing is reliable and the service life is long.
5.The valve body adopts the casting process, which is consistent with the valve plate, and has good sealing performance and good interchangeability.
Relevant implementation standards
Nominal diameter: 50~400mm
Nominal pressure：1.0~1.6MPa
Body Material: Ductile Iron
Scope of application: water, oil, gas
Medium temperature: 0~80℃
Nominal pressure：1.0~1.6MPa
Body Material: Ductile Iron
Scope of application: water, oil, gas
Medium temperature: 0~80℃
item | value | ||||
Application | General | ||||
Port Size | DN50~DN400 | ||||
Warranty | 3 years | ||||
Place of Origin | China | ||||
Shanghai | |||||
Model Number | Z81X-16Q | ||||
Power | Hydraulic | ||||
Temperature of Media | Medium temperature, Normal temperature | ||||
Brand Name | |||||
Structure | Gate | ||||
Media | Water, steam, oil goods, non-corroslvegas | ||||
Customized support | OEM, ODM, OBM, Software reengineering | ||||
Main parts and materials:
Parts name | Materials |
Body | Ductile iron |
Sealing ring | NBR |
Cap | Ductile iron |
0 Sealing ring | NBR |
Dust cover | NBR |
Drive cap | Ductile iron |
valve | Ductile iron covered with EPDM or NBR |
Copper nut | Bronze |

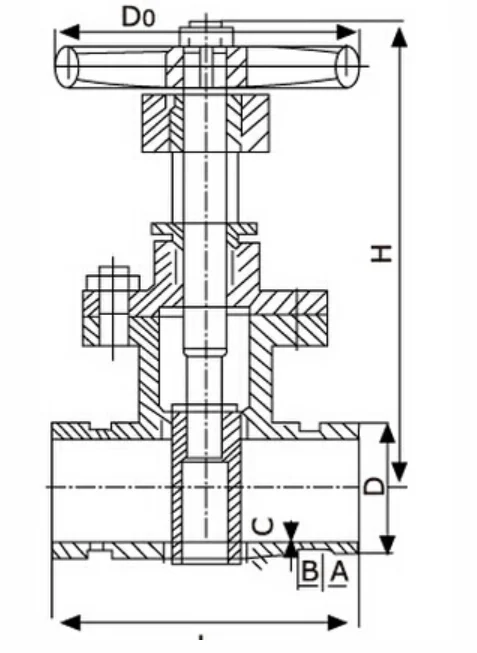

Main structure and connection dimensions
DN | D | A1 | BA | C |
50 | 57 | 14.5 | 9.5 | 2.2 |
60 | ||||
65 | 76 | 14.5 | 9.5 | 2.2 |
80 | 89 | 14.5 | 9.5 | 2.2 |
100 | 108 | 16 | 9.5 | 2.2 |
114 | ||||
125 | 133 | 16 | 9.5 | 2.2 |
140 | ||||
150 | 159 | 16 | 9.5 | 2.2 |
165 | ||||
200 | 219 | 19 | 13 | 2.5 |
250 | 273 | 19 | 13 | 2.5 |
300 | 325 | 19 | 13 | 3.3 |
350 | 377 | 25 | 13 | 3.3 |
400 | 426 | 25 | 13 | 5.5 |
